Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the
user manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

1 Your refrigerator 4
1 Your refrigerator 5
2 Important Safety
Warnings 6
Intended use 6
General safety 6
For products with a 9
water dispenser;9
Child safety9
Compliance with WEEE Directive and
Disposing of the Waste Product: 9
Package information 9
HC warning10
Things to be done for
energy saving 10
Recommendations for the
fresh food compartment10
3 Installation 11
Points to be paid attention to when
the relocation of the refrigerator11
Electrical connection 11
Disposing of the packaging12
Disposing of your old refrigerator12
Placing and Installation12
Installing the lower ventilation
cover 13
Changing the illumination lamp 13
Door Open Warning 13
Adjusting the legs13
4 Preparation 14
5 Using your refrigerator 15
Temperature setting button15
Setting the temperature of
your refrigerator15
Dual cooling system 15
Dual protection 15
Vacation Function16
Icematic and ice storage
container16
Crisper humidity control sliders17
Making ice17
Odour filter17
Using the rotary crisper (in
some models) 18
Rotary storage container18
Reversing the doors 19
Reversing the doors 20
Freezing fresh food21
Recommendations for preservation
of frozen food 21
Placing the food21
Deep-freeze information22
6 Maintenance and
cleaning 23
Protection of plastic surfaces 23
7.
Troubleshooting 24

EN
4

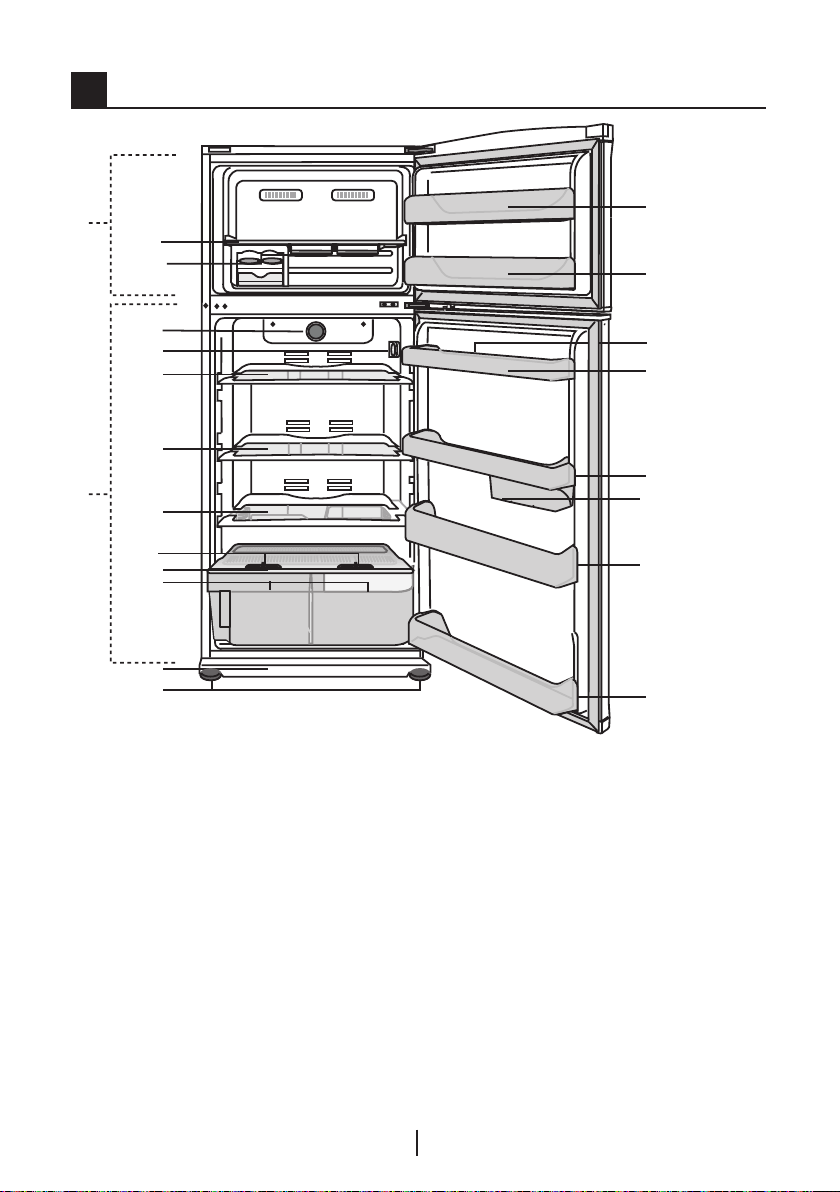

1Your refrigerator
1. Freezer compartment shelf
2. Ice storage container
3. Odour filter (in the air duct)
4. Temperature setting button
5. Adjustable glass shelves
6. Crisper humidity control sliders
7. Crisper cover
8. Crispers
9. Lower ventilation cover
10. Adjustable legs
11. Freezer compartment door shelf
12. Egg holders
13. Fridge compartment door shelves
14. Sliding storage containers
15. Freezer compartment
16. Fridge compartment
*5
5
5
6
7
*8
9
10
1
*2
11
13
13
13
13
12
11
3
4
15
16
*14
*5
5
5
6
7
*8
9
1
*2
10
12
12
12
12
11
10
3
4
14
15
*13
Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
* OPTIONAL

5EN
1Your refrigerator
1. Freezer compartment shelf
2. Ice storage container
3. Odour filter (in the air duct)
4. Temperature setting button
5. Adjustable glass shelves
6. Crisper humidity control sliders
7. Crisper cover
8. Crispers
9. Adjustable legs
10. Freezer compartment door shelf
11. Egg holders
12. 1Fridge compartment door shelves
13. Sliding storage containers
14. Freezer compartment
15. Fridge compartment
*5
5
5
6
7
*8
9
10
1
*2
11
13
13
13
13
12
11
3
4
15
16
*14
*5
5
5
6
7
*8
9
1
*2
10
12
12
12
12
11
10
3
4
14
15
*13
Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
* OPTIONAL

EN
6
2Important Safety Warnings
Please review the following
information. Failure to observe
this information may cause
injuries or material damage.
Otherwise, all warranty and
reliability commitments will
become invalid.
Original spare parts will be
provided for 10 years, following
the product purchasing date.
Intended use
This product is intended to be
used
• indoors and in closed areas
such as homes;
• in closed working environments
such as stores and offices;
• in closed accommodation
areas such as farm houses,
hotels, pensions.
• It should not be used outdoors.
General safety
• When you want to dispose/
scrap the product, we
recommend you to consult the
authorized service in order to
learn the required information
and authorized bodies.
• Consult your authorized
service for all your questions
and problems related to the
refrigerator. Do not intervene or
let someone intervene to the
refrigerator without notifying the
authorised services.
• For products with a freezer
compartment; Do not eat
cone ice cream and ice
cubes immediately after you
take them out of the freezer
compartment! (This may cause
frostbite in your mouth.)
• For products with a freezer
compartment; Do not put
bottled and canned liquid
beverages in the freezer
compartment. Otherwise,
these may burst.
• Do not touch frozen food by
hand; they may stick to your
hand.
• Unplug your refrigerator before
cleaning or defrosting.
• Vapor and vaporized cleaning
materials should never be
used in cleaning and defrosting
processes of your refrigerator.
In such cases, the vapor may
get in contact with the electrical
parts and cause short circuit or
electric shock.
• Never use the parts on your
refrigerator such as the door as
a means of support or step.
• Do not use electrical devices
inside the refrigerator.
• Do not damage the parts,
where the refrigerant is
circulating, with drilling or
cutting tools. The refrigerant
that might blow out when the
gas channels of the evaporator,
pipe extensions or surface
coatings are punctured causes
skin irritations and eye injuries.
• Do not cover or block the
ventilation holes on your
refrigerator with any material.
• Electrical devices must be
repaired by only authorised
persons. Repairs performed by
incompetent persons create a
risk for the user.

7EN
• In case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s
mains supply by either
turning off the relevant fuse or
unplugging your appliance.
• Do not pull by the cable when
pulling off the plug.
• Ensure highly alcoholic
beverages are stored securely
with the lid fastened and
placed upright.
• Never store spray cans
containing flammable and
explosive substances in the
refrigerator.
• Do not use mechanical devices
or other means to accelerate
the defrosting process, other
than those recommended by
the manufacturer.
• This product is not intended
to be used by persons with
physical, sensory or mental
disorders or unlearned or
inexperienced people (including
children) unless they are
attended by a person who
will be responsible for their
safety or who will instruct them
accordingly for use of the
product
• Do not operate a damaged
refrigerator. Consult with the
service agent if you have any
concerns.
• Electrical safety of your
refrigerator shall be guaranteed
only if the earth system in
your house complies with
standards.
• Exposing the product to
rain, snow, sun and wind
is dangerous with respect to
electrical safety.
• Contact authorized service
when there is a power cable
damage to avoid danger.
• Never plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or
serious injury may arise.
• This refrigerator is intended
for only storing food items. It
must not be used for any other
purpose.
• Label of technical specifications
is located on the left wall inside
the refrigerator.
• Never connect your refrigerator
to electricity-saving systems;
they may damage the
refrigerator.
• If there is a blue light on the
refrigerator, do not look at the
blue light with optical tools.
• For manually controlled
refrigerators, wait for at least 5
minutes to start the refrigerator
after power failure.
• This operation manual should be
handed in to the new owner of
the product when it is given to
others.
• Avoid causing damage on
power cable when transporting
the refrigerator. Bending cable
may cause fire. Never place
heavy objects on power cable.
Do not touch the plug with
wet hands when plugging the
product

EN
8
• Do not plug the refrigerator if
the wall outlet is loose.
• Water should not be sprayed
on inner or outer parts of the
product for safety purposes.
• Do not spray substances
containing inflammable gases
such as propane gas near the
refrigerator to avoid fire and
explosion risk.
• Never place containers filled
with water on top of the
refrigerator; in the event of
spillages, this may cause
electric shock or fire.
• Do not overload the refrigerator
with food. If overloaded, the
food items may fall down
and hurt you and damage
refrigerator when you open the
door.
• Never place objects on top
of the refrigerator; otherwise,
these objects may fall down
when you open or close the
refrigerator’s door.
• As they require a precise
temperature, vaccines,
heat-sensitive medicine and
scientific materials and etc.
should not be kept in the
refrigerator.
• If not to be used for a long
time, refrigerator should be
unplugged. A possible problem
in power cable may cause fire.
• The plug’s tip should be
cleaned regularly with a dry
cloth; otherwise, it may cause
fire.
• Refrigerator may move if
adjustable legs are not properly
secured on the floor. Properly
securing adjustable legs on
the floor can prevent the
refrigerator to move.
• When carrying the refrigerator,
do not hold it from door
handle. Otherwise, it may be
snapped.
• When you have to place
your product next to another
refrigerator or freezer, the
distance between devices
should be at least 8cm.
Otherwise, adjacent side walls
may be humidified.
• The product shall never be
used while the compartment
which is located at the top or
back of your product and in
which electronic boards are
available (electronic board box
cover) (1) is open.
1
1

9EN
For products with a
water dispenser;
• Pressure for cold water inlet shall
be maximum 90 psi (6.2 bar).
If your water pressure exceeds
80 psi (5.5 bar), use a pressure
limiting valve in your mains
system. If you do not know how
to check your water pressure,
ask for the help of a professional
plumber.
• If there is risk of water hammer
effect in your installation,
always use a water hammer
prevention equipment in
your installation. Consult
Professional plumbers is you
are not sure that there is no
water hammer effect in your
installation.
• Do not install on the hot water
inlet. Take precautions against
of the risk of freezing of the
hoses. Water temperature
operating interval shall be 33°F
(0.6°C) minimum and 100°F
(38°C) maximum.
• Use only potable water.
Child safety
• If the door has a lock, the key
should be kept away from reach
of children.
• Children must be supervised to
prevent them from tampering
with the product.
Compliance with WEEE
Directive and Disposing of the
Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification symbol
for waste electrical and
electronic equipment (WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic waste
at the end of its service life. Take it to
a collection point for the recycling of
electrical and electronic equipment.
Please consult your local authorities to
learn the nearest collection point. Help
protect the environment and natural
resources by recycling used products.
For children’s safety, cut the power
cable and break the locking mechanism
of the door, if any, so that it will be
non-functional before disposing of the
product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated by
the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and our
national asset wealth.

EN
10
If you want to contribute to the re-
evaluation of the packaging materials,
you can consult to your environmentalist
organizations or the municipalities where
you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore this warning if your product's
cooling system contains R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least 5cm
from electrical ovens.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store maximum
amount of food items in the freezer
when you remove the shelf or drawer
of the freezer. Energy consumption
value stated for your refrigerator has
been determined by removing freezer
shelf or drawer and under maximum
load. There is no harm to use a shelf or
drawer according to the shapes and
size of food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.
Recommendations for the
fresh food compartment
*May not be available in all models
Do not allow the food to touch the
temperature sensor in fresh food
compartment. To allow the fresh food
compartment keep its ideal storage
temperature, sensor must not be
hindered by food.
Do not place hot foods in the product.

11 EN
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged,
shelves, accessories, crisper, etc.
inside your refrigerator should be
fixed with adhesive tape and secured
against impacts. Package should
be bound with a thick tape or sound
ropes and the transportation rules
on the package should be strictly
observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the refrigerator,
Check the following before you
start to use your refrigerator:
1. Attach 2 plastic wedges as
illustrated below. Plastic wedges are
intended to keep the distance which
will ensure the air circulation between
your refrigerator and the wall. (The
picture is drawn up as a representation
and it is not identical with your
product.)
2. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the
refrigerator to the wall socket. When
the fridge door is opened, fridge
internal lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is not
running and this is quite normal.
5. Front edges of the refrigerator
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.

EN
12
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with
the waste instructions stated by your
local authorities. Do not throw away
with regular house waste, throw
away on packaging pick up spots
designated by the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the
doors of your refrigerator and pass it
sideways through the door.
1. Install your refrigerator to a
place that allows ease of use.
2. Keep your refrigerator away
from heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling
and at least 5 cm with the wall. Do not
place your product on the materials
such as rug or carpet.
4. Place your refrigerator on an
even floor surface to prevent jolts.

13 EN

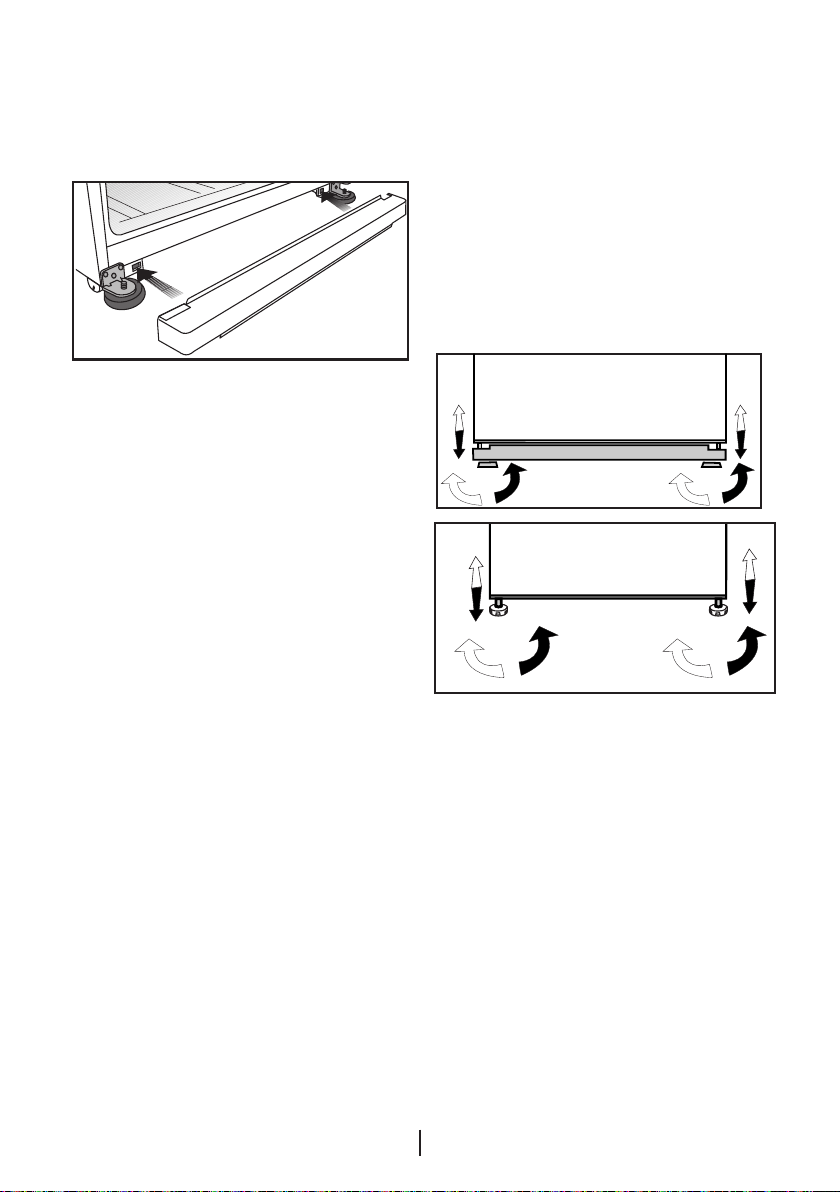

Installing the lower
ventilation cover
You can install the lower ventilation
cover as illustrated in the figure.
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator
by turning its front legs as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly lift the refrigerator will facilitate
this process.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call
your AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer
in a safe and comfortable way.The
lamps used in this appliance have to
withstand extreme physical conditions
such as temperatures below -20 °C.
(only chest and upright freezer)
Door Open Warning
*May not be available in all models
An audio warning signal will be given
when the door of your product is
left open for at least 1 minute. This
warning will be muted when the door
is closed or any of the display buttons
(if any) are pressed.

EN
14
4Preparation
• Your cooler/freezer should be
installed at least 30 cm away from
heat sources such as hobs, ovens,
central heater and stoves and at least
5 cm away from electrical ovens and
should not be located under direct
sunlight.
• Please make sure that the interior
of your cooler/freezer is cleaned
thoroughly.
• If two coolers are to be installed side
by side, there should be at least 2 cm
distance between them.
• When you operate your cooler/freezer
for the first time, please observe the
following instructions during the initial
six hours.
• Its door should not be opened
frequently.
• It must be operated empty without
placing any food in it.
• Do not unplug your cooler/freezer.
If a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• The baskets/drawers that are
provided with the chill compartment
must always be in use for low energy
consumption and for better storage
conditions.
• Food contact with the temperature
sensor in the freezer compartment
may increase energy consumption of
the appliance. Thus any contact with
the sensor(s) must be avoided.
• This product has been designed to
function at ambient temperatures
up to 43 °C (90 SDgrF). Even if the
ambient temperature falls to -15
°C, frozen food in the freezer does
not thaw thanks to its Advanced
Electronic Temperature Control
System. For the first installation, the
product should NOT be placed under
low ambient temperatures. This is
because the freezer cannot go down
to standard operation temperature.
When reaching continuous operation,
the product can be moved to
another place. Thus, later you can
place your product in the garage
or an unheated room without the
concern of causing frozen food to
get rotten. However, it is likely that
above mentioned low temperatures
may cause the freezing of the food in
the fridge compartment; thus, please
consume the food items in the fridge
in a controlled way as needed. When
ambient temperature goes back
to normal, you may change button
setting according to your need.
• If the ambient temperature is below
0°C, the food in fridge compartment
will freeze. Therefore, we recommend
not using the fridge compartment
in such low ambient temperatures.
You may continue to use the freezer
compartment as usual.
• In some models, the instrument panel
automatically turns off 5 minutes
after the door has closed. It will
be reactivated when the door has
opened or pressed on any key.
• Due to temperature change as a
result of opening/closing the product
door during operation, condensation
on the door/body shelves and the
glass containers is normal.

15 EN
5Using your refrigerator
Dual protection
Hygiene : Odour filter in the air duct of
the fridge compartment helps to clean
the air in the refrigerator. This filter
reduces the formation of bad odours
by means of its coating.
Temperature setting button
Temperature setting button allows you
to make the temperature setting of
your refrigerator.
Setting the temperature of
your refrigerator
The overall temperature setting of
your refrigerator is made by means of
the temperature setting button on the
right wall of the fridge compartment.
This button has 5different temperature
setting position. Select the position
suitable to your needs.
Dual cooling system
Your refrigerator is equipped with
two separate cooling systems to
cool the fresh food compartment and
freezer compartment. Thus, air in the
fresh food compartment and freezer
compartment do not get mixed.
Thanks to these two separate cooling
systems, cooling speed is much higher
then other refrigerators. Odours in the
compartments do not get mixed. Also
additional power saving is provided
since the automatic defrosting is
performed individually.

EN
16

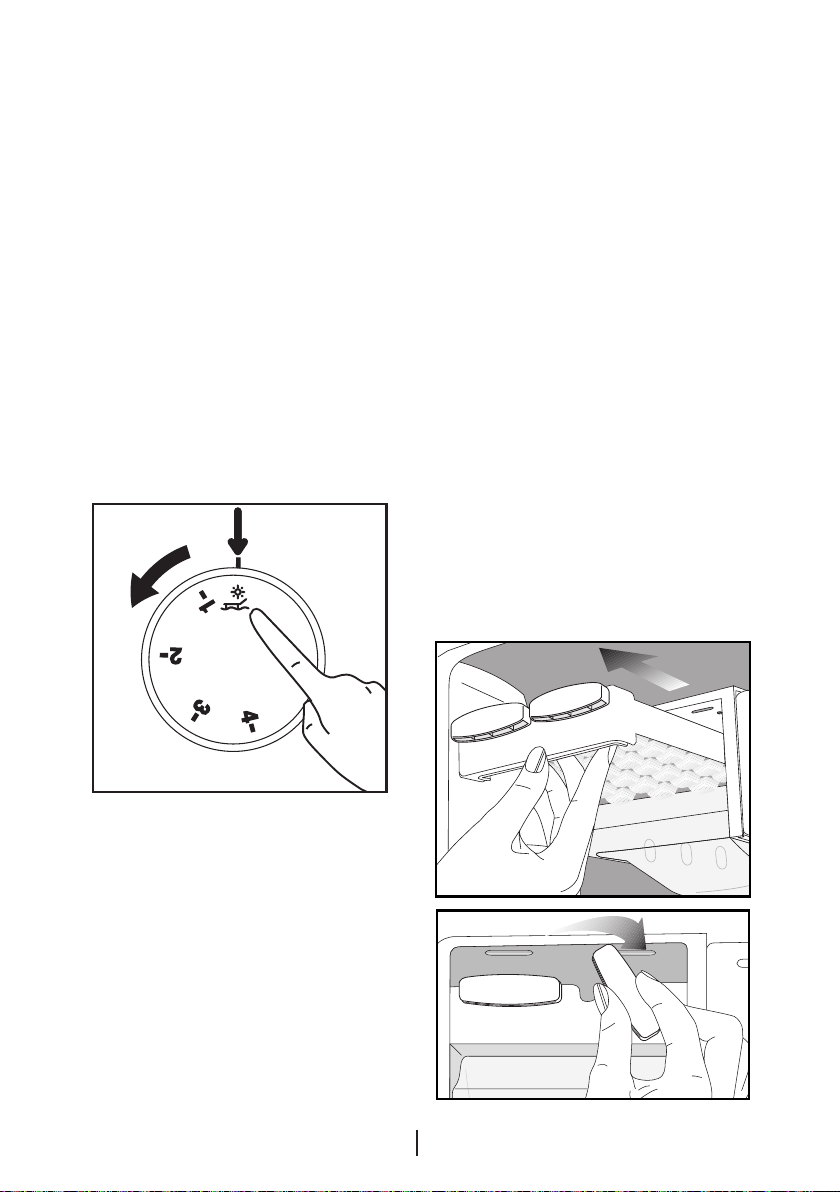

Vacation Function
If the doors of the product are
not opened for 12 hours after the
thermostat is switched to the hottest
position, then the vacation function will
be activated automatically.
Open the door of the product or
change the thermostat setting to
cancel the function.
Vacation function is optional. It may
vary depending on the product type
and may not be contained in every
product.
It is not recommended to store food
in cooler compartment when the
vacation function is active.
Icematic and ice storage
container
*May not be available in all models
Using the Icematic
Fill the Icematic with water and place
it into its seat. Your ice will be ready
approximately in two hours. Do not
remove the Icematic from its seating to
take ice.
Turn the knobs on the ice reservoirs
clockwise by 90 degrees.
Ice cubes in the reservoirs will fall
down into the ice storage container
below.
You may take out the ice storage
container and serve the ice cubes.
If you wish, you may keep the ice
cubes in the ice storage container.
Ice storage container
Ice storage container is only intended
for accumulating the ice cubes. Do not
put water in it. Otherwise, it will break.

17 EN
Crisper humidity control
sliders
Using the crisper humidity control
sliders
Crisper of your refrigerator is designed
specially to keep your vegetables fresh
without loosing their humidity. Cold air
circulates basically around the crisper
and the amount of the cold air passing
through the crisper is controlled by the
sliders on the front side of the crisper
cover.
You can adjust the humidity control
sliders to a suitable position according
to the humidity and cooling condition
of your food in the crisper.
If you want your food in the crisper
to cool more, open the holes of the
humidity control sliders and if you
want them to cool less and keep their
humidity for a longer time, close the
holes.
Odour filter
* OPTIONAL
Odour filter in the air duct of the fridge
compartment prevents the build-up of
unpleasant odours in the refrigerator.
Making ice
*optional
Fill the ice container with water and
place it into the freezer compartment.
Your ice will be ready approximately in
two hours.
You can remove the ice in the ice
container by removing it from the
freezer and twisting it.

EN
18
Using the rotary crisper (in
some models)
The crisper of your refrigerator which
opens with a rotating movement is
designed specially to provide ease of
usage and allow you to store more
vegetables and fruits (large volume)
you buy during large shopping.
When you grab and pull the handle
on the lower left hand side of the
crisper, it will rotate from left to right
and open easily. The separator in the
crisper will allow you to separate the
vegetables and fruits according to their
types and prevent them from crushing.
Rotary storage container
(in some models)
Sliding body shelf can be moved to left
or right in order to allow you place the tall
bottles, jars or boxes to the lower shelf
(Fig. 1)
You can reach the food that you have
placed into the shelf by grabbing and
turning it from its right edge (Fig.2).
When you want to load or remove it to
clean, turn it by 90 degrees, raise it up
and pull towards yourself (Fig. 3-4).
3
1
2
4

19 EN

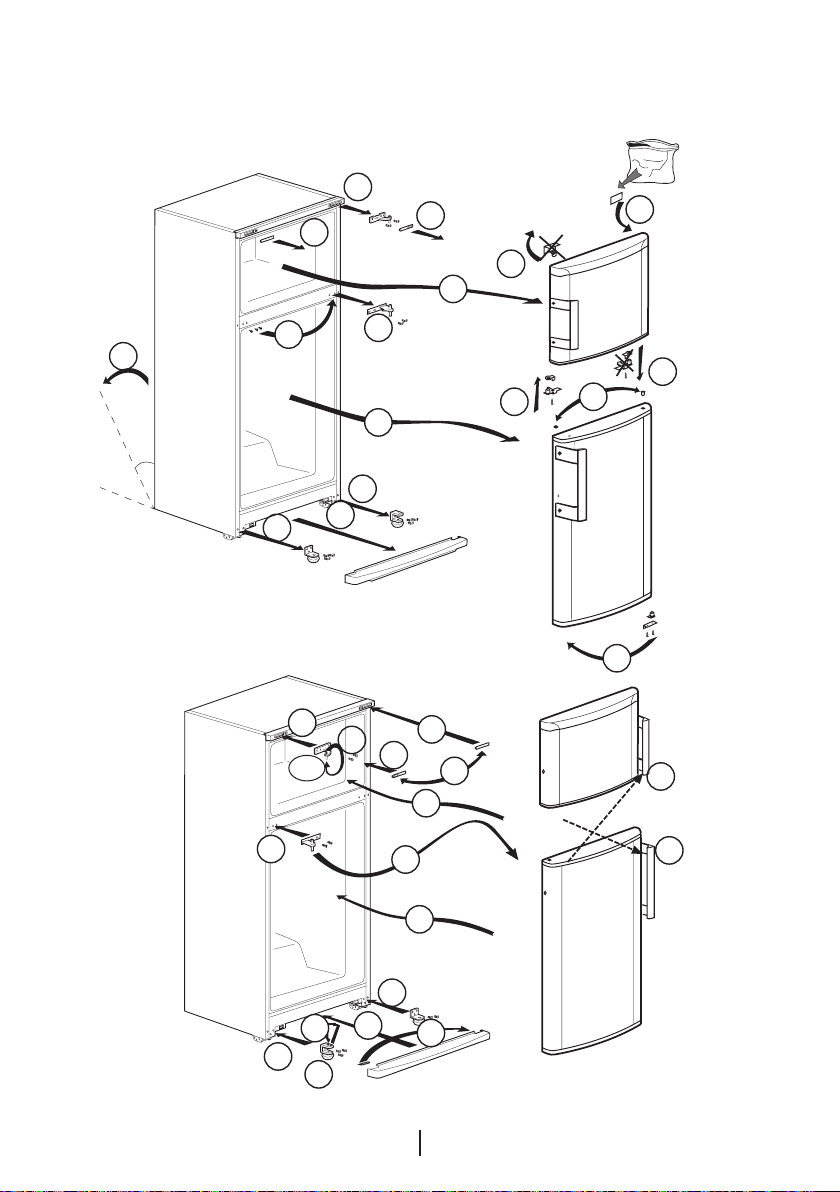

Reversing the doors
Proceed in numerical order .
11
11
13 14
15
12
5
4
1
10
9
17
18
19
20
8
29
29
180¡
4
7
21
28
16 18
45¡
2
3
22 23
25
24
23
19
22
6

EN
20
Reversing the doors
Proceed in numerical order .
10
10
5
4
1
6
4
12 13
3
7
89
14
19
19
22
17
180°
23
21
16
15
24
24
11
45°
2
20
18
