Beko DNE 47000 User manual

DNE 47000
DNE 47000 M
No-Frost
Froid ventilé
کفرب دض

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.
This product bears the selective sorting symbol for waste electrical and
electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimize its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human heatlh due to the presence of
hazardous substances.
Recycling

EN
2
1 Your refrigerator 3
2 Warnings 4
Intended use ................................4
General safety ..............................4
Things to be done for energy
saving...........................................6
HCA Warning ...............................6
3 Installation 7
Preparation...................................7
Points to be considered when re-
transporting your refrigerator ........7
Before operating your refrigerator . 8
Electric connection .......................8
Disposing of the packaging ..........8
Disposing of your old refrigerator ..8
Installing the plastic wedges .........9
Installing the lower ventilation cover9
Changing the illumination lamp ....9
Adjusting the legs .........................9
CONTENTS 4 Using your refrigerator10
Temperature setting button ........10
Setting the temperature of your
refrigerator..................................10
Dual cooling system ...................10
Dual protection...........................10
4 10

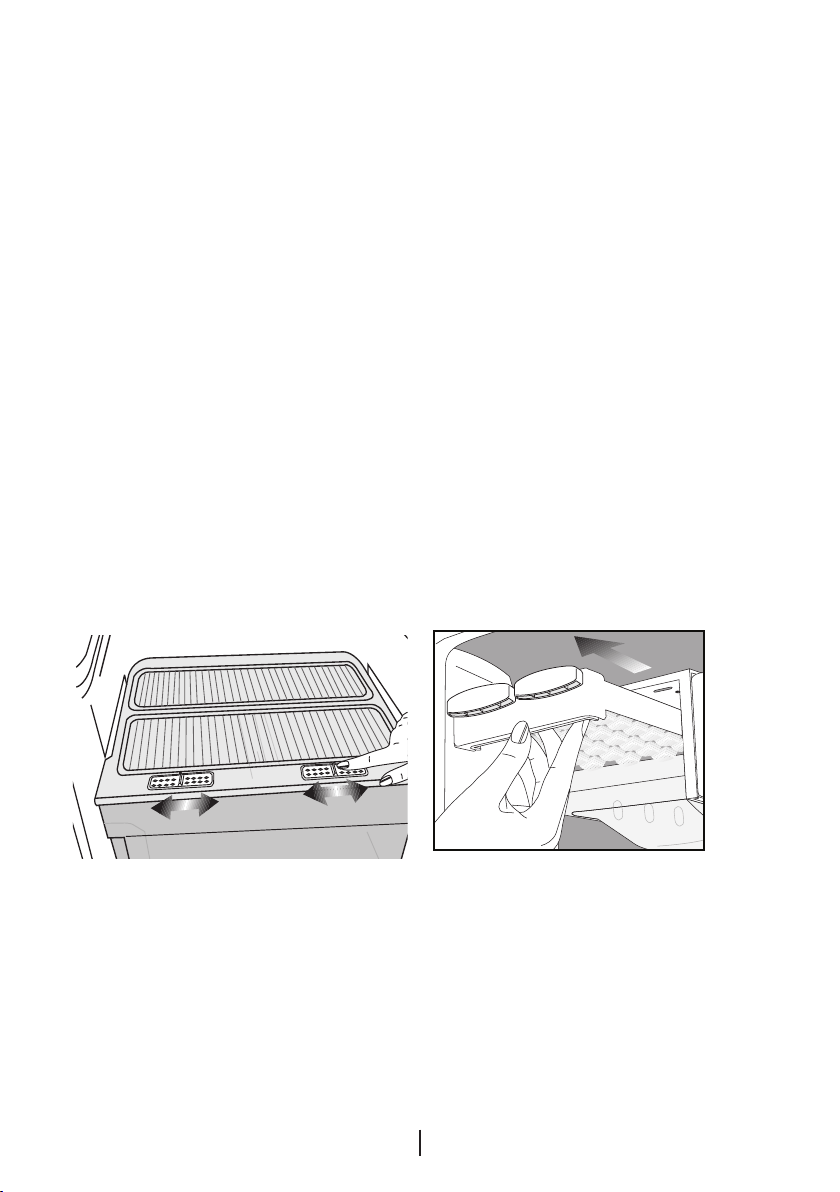

Crisper humidity control sliders...11
Icematic and ice storage container1 1
Using the rotary crisper (in some
models) ......................................12
Sliding Body Shelves ..................12
Reversing the doors ...................13
5 Maintenance and
cleaning 14
Protection of plastic surfaces .....14
6 Recommended solutions
for the problems 15

EN
3
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your refrigerator
1- Freezer compartment shelf
2- Icematic
3- Ice storage container
4- Temperature setting button
5- Adjustable glass shelves
6- Crisper humidity control sliders
7- Crisper cover
8- Crisper
9- Adjustable legs
10- Freezer compartment door shelf
11- Egg holders
12- Fridge compartment door shelves
13- Sliding storage containers
14- Freezer compartment
15- Fridge compartment
1
2
5
5
5
7
8
9
14
15
10
6
4
12
12
11
12
12
10
3
13

EN
4
2Warnings
CPlease review the following
information. If these are not followed,
personal injury or material damage
may occur. Otherwise, all warranty and
reliability commitments will become
invalid.
The usage life of the unit you
purchased is 10 years. This is the
period for keeping the spare parts
required for the unit to operate as
described.
Intended use
CThis product is designed for
domestic use.
CIt should not be used outdoors. It
is not appropriate to use it outdoor
even if the place is covered with a
roof.
General safety
CWhen you want to dispose/scrap
the product, we recommend you
to consult the authorized service in
order to learn the required information
and authorized bodies.
AConsult your authorized service for
all your questions and problems
related to the refrigerator. Do not
intervene or let someone intervene to
the refrigerator without notifying the
authorized services.
ADo not eat cone ice cream and ice
cubes immediately after you take
them out of the freezer compartment!
(This may cause frostbite in your
mouth.)
ADo not put bottled and canned
liquid beverages in the freezer
compartment. Otherwise, these may
burst.
ADo not touch frozen food by hand;
they may stick to your hand.
BVapor and vaporized cleaning
materials should never be used in
cleaning and defrosting processes
of your refrigerator. In such cases,
the vapor might get in contact with
the electrical parts and cause short
circuit or electric shock.
ANever use the parts on your
refrigerator such as the door as a
means of support or step.
BDo not use electrical devices inside
the refrigerator.
ADo not damage the cooling circuit,
where the refrigerant is circulating,
with drilling or cutting tools. The
refrigerant that might blow out when
the gas channels of the evaporator,
pipe extensions or surface coatings
are punctured may cause skin
irritations and eye injuries.
ADo not cover or block the ventilation
holes on your refrigerator with any
material.
B Repairs of the electrical appliances
must only be made by qualified
persons. Repairs performed by
incompetent persons may create a
risk for the user.
BIn case of any failure or during
a maintenance or repair work,
disconnect your refrigerator’s mains
supply by either turning off the
relevant fuse or unplugging your
appliance.
BDo not pull by the cable when pulling
off the plug.
APlace the beverage with higher
proofs tightly closed and vertically.

EN
5
AFlammable items or products that
contain flammable gases (e.g.
spray) as well as the explosive
materials should never be kept in the
appliance.
ADo not use mechanical devices
or other means to accelerate the
defrosting process, others than those
recommended by the manufacturer.
AThis appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
AChildren should be supervised to
ensure that they do not play with the
appliance
ADo not operate a damaged
refrigerator. Consult your service if
you have any doubts.
BElectrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
BExposing the product to rain, snow,
sun and wind is dangerous with
respect to electrical safety.
BContact the authorized service when
there is a power cable damage and
etc. so that it will not create a danger
for you.
BNever plug the refrigerator into
the wall outlet during installation.
Otherwise, risk of death or serious
injury may arise.
AIf you have a lock on the door, the
key should be kept out of reach of
children.
AThis refrigerator is designed solely for
storing food. It should not be used for
any other purposes.
AThe label that describes the technical
specification of the product is
located on the inner left part of the
refrigerator.
ADo not hook up the refrigator to
electronic energy saving systems as
it may damage the product.
AIf the refrigerator has blue light do not
look at the blue light through optical
devices.
AIf the power supply is disconnected
in manually controlled refrigerators
please wait for at least 5 minutes
before reconnectig the power.
AThis product manual should be
passed to the next owner of the
refrigerator if the owner changes.
BWhen moving the refrigerator make
sure that you do not damage the
power cord. In order to prevent
fire the power cord should not be
twisted. Heavy objects should not
be placed on the power cord. When
the refrigerator is being plugged do
not handle the power outlet with wet
hands.
BDo not plug the refrigerator if the
electric outlet is loose.
BDo not splash water directly on the
outer or inner parts of the refrigerator
due to safety.

EN
6
BDo not spray inflammable materials
such as propane gas etc near
refrigerator due to the risk of fire and
explosion.
BDo not place objects filled with water
on top of the refrigerator as it may
result in electric shock or fire.
ADo not overload the refrigerator with
excess food. The excess food may
fall when the door is opened resulting
in injuring you or damaging the
refrigerator. Do not place objects on
top of the refrigerator as the objects
may fall when opening or closing the
refrigerator door.
HCA Warning
AIf your product is equipped with
a cooling system that contains
R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.
Ignore the warning.
If your product is equipped with
a cooling system that contains
R134a.
You can see the gas used in
production of your product on the
rating plate that is located on the left
inner part of it.
Never dispose the product in fire.
AMaterials that require certain
temperature conditions such as
vaccine, temperature sensitive
medicines, scientific materials etc
should not be kept in refrigerator.
BIf refrigerator will not be operated for
an extended period of time it should
be unplugged. A problem in electrical
cable insulation may result in fire.
BThe tip of the electric plug should be
cleaned regularly otherwise it may
cause fire.
AThe refrigerator may move when the
adjustable feet is not positioned firmly
on the floor. Using the adjustable feet
you can unsure that the refrigerator is
positioned firmly on the floor.
AIf the refrigerator has door handle
do not pull the refrigerator via door
handles when moving the product
as it may disconnect the handle from
the refrigerator.
Things to be done for energy
saving
CDo not leave the doors of your
refrigerator open for a long time.
CDo not put hot food or drinks in your
refrigerator.
CDo not overload your refrigerator so
that the air circulation inside of it is
not prevented.
CDo not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators.
CPay attention to keep your food in
closed containers.

EN
7
3Installation
BPlease remember that the
manufacturer shall not be held
liable if the information given in the
instruction manual is not observed.
Preparation
CYour refrigerator should be installed
at least 30 cm away from heat
sources such as hobs, ovens, central
heater and stoves and at least 5
cm away from electrical ovens and
should not be located under direct
sunlight.
CThe ambient temperature of
the room where you install your
refrigerator should at least be 10°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
CPlease make sure that the interior
of your refrigerator is cleaned
thoroughly.
CIf two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and
etc. in your refrigerator must be
fastened securely by adhesive tape
against any jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the
rules of transportation printed on the
package must be followed.
CPlease remember…
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.

EN
8
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?
2. Insert the 2 plastic wedges onto
the rear ventilation as illustrated in
the following figure. Plastic wedges
will provide the required distance
between your refrigerator and the wall
in order to allow the air circulation.
3. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
4. Plug the refrigerator into the wall
outlet. When the fridge door is open
the fridge compartment interior light
will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not running
and this is quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
BThe connection must be in
compliance with national regulations.
BThe power cable plug must be easily
accessible after installation.
BVoltage and permitted fuse protection
are indicated in the “Specifications”
section.
BThe specified voltage must be equal
to your mains voltage.
BExtension cables and multiway plugs
must not be used for connection.
A damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is danger of
electric shock!
Disposing of the packaging
AThe packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose them of by
classifying them in accordance
with the waste instructions. Do not
dispose them of along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old machine without
giving any harm to the environment.
A You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
A Before disposing of your
refrigerator, cut out the electric plug
and, if there are any locks on the door,
make them inoperable in order to
protect children against any danger.

EN
9
Installing the plastic wedges
You can install the 2 plastic wedges as
illustrated in the figure.
Plastic wedges will provide the
required distance between your
refrigerator and the wall in order to
allow the air circulation. Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning the front legs of it as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone
to slightly lift the refrigerator will
facilitate this process.
Changing the illumination
lamp
To change the lamp used for
illumination of your refrigerator, please
call your Authorized Service.
Installing the lower ventila-
tion cover
You can install the lower ventilation
cover as illustrated in the figure.

EN
10
Temperature setting button
Temperature setting button allows you
to make the temperature setting of
your refrigerator.
Setting the temperature of
your refrigerator
The overall temperature setting of
your refrigerator is made by means of
the temperature setting button on the
right wall of the fridge compartment.
This button has 5different temperature
setting position. Select the position
suitable to your needs.
Dual cooling system
Your refrigerator is equipped with
two separate cooling systems to
cool the fresh food compartment and
freezer compartment. Thus, air in the
fresh food compartment and freezer
compartment do not get mixed.
Thanks to these two separate cooling
systems, cooling speed is much higher
then other refrigerators. Odours in the
compartments do not get mixed. Also
additional power saving is provided
since the automatic defrosting is
performed individually.
4Using your refrigerator
4
Dual protection
Hygiene : Odour filter in the air duct of
the fridge compartment helps to clean
the air in the refrigerator. This filter
reduces the formation of bad odours
by means of its coating.
Silver: Inner surfaces and crispers
of the refrigerator are rendered
antibacterial by means of the silver-
ion additive. Thus, growth and
reproduction of bacteria on interior
body parts and crisper are prevented.

EN
11
Crisper humidity control
sliders
Using the crisper humidity control
sliders
Crisper of your refrigerator is designed
specially to keep your vegetables
freshly without loosing their humidity.
Cold air circulates basically around
the crisper and the amount of the
cold air passing through the crisper is
controlled by the sliders on the front
side of the crisper cover.
You can adjust the humidity control
sliders to a suitable position according
to the humidity and cooling condition
of your food in the crisper.
If you want your food in the crisper
to cool more, open the holes of the
humidity control sliders and if you
want them to cool less and keep their
humidity for a longer time, close the
holes.
Icematic and ice storage
container
Using the Icematic
* Fill the Icematic with water and place
it into its seat. Your ice will be ready
approximately in two hours. Do not
remove the Icematic from its seating to
take ice.
* Turn the knobs on it clockwise by 90
degrees.
Ice cubes in the cells will fall down into
the ice storage container below.
* You may take out the ice storage
container and serve the ice cubes.
* If you wish, you may keep the ice
cubes in the ice storage container.
Ice storage container
Ice storage container is only intended
for accumulating the ice cubes. Do not
put water in it. Otherwise, it will break.

EN
12

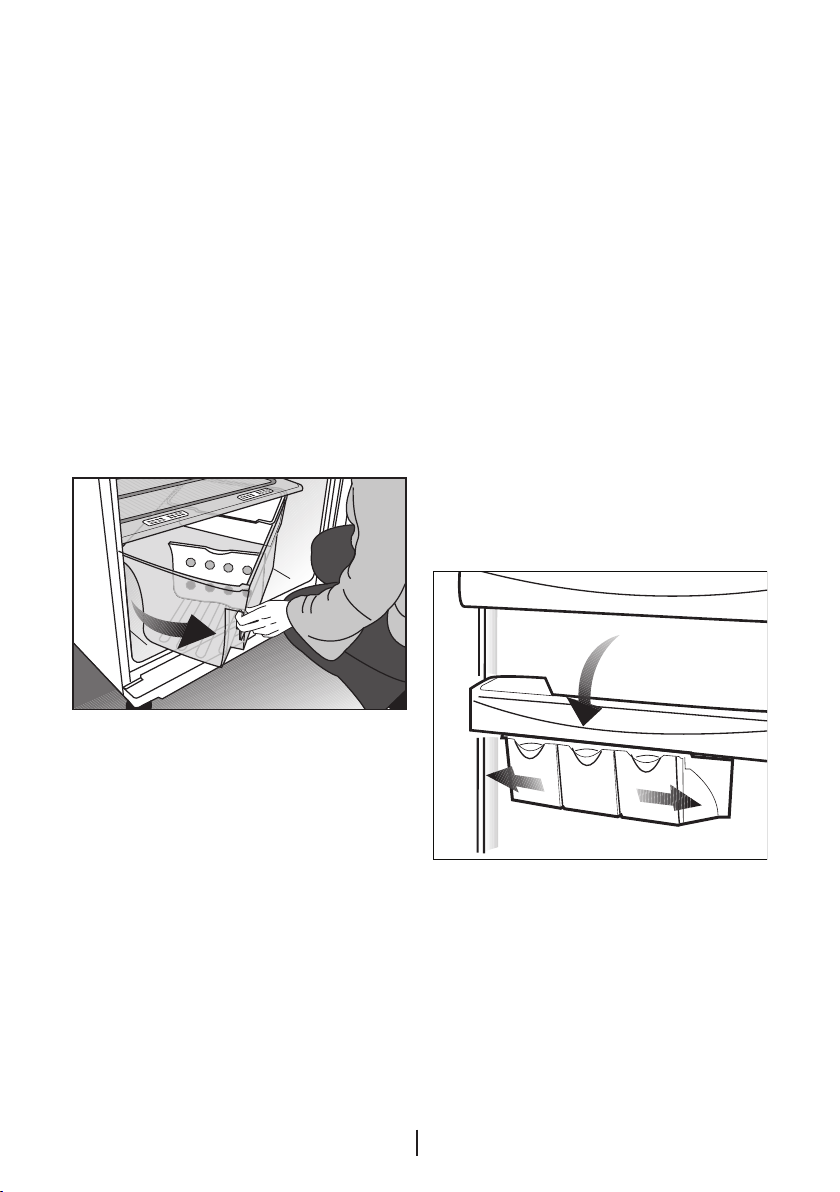

Using the rotary crisper (in
some models)
The crisper of your refrigerator which
opens with a rotating movement is
designed specially to provide ease of
usage and allow you to store more
vegetables and fruits (large volume)
you buy during large shopping.
When you grab and pull the handle
on the lower left hand side of the
crisper, it will rotate from left to right
and open easily. The separator in the
crisper will allow you to separate the
vegetables and fruits according to their
types and prevent them from crushing.
Sliding Body Shelves
• Sliding body shelves can be pulled
by slightly lifting up from the front and
moved back and forth. They come to
a stop point when pulled towards front
to allow you reach the foods placed at
the back of the shelf; when it is pulled
after slightly lifted upwards at the
second stop point, the body shelf will
be released.
The shelf should be hold tightly from
the bottom as well in order to prevent
it from tipping over. The body shelf is
placed on the rails at the sides of the
refrigerator body by bringing it to one
lower or one upper level.
The body shelf should be pushed
backwards to seat it completely.

EN
13
Reversing the doors
Proceed in numerical order .
11
10
10
5
4
1
6
4
12 13
3
7
89
14
19
19 22
17
180°
23
21
16
15
45 °
24
24
18
2
20

EN
14
5Maintenance and cleaning
ANever use gasoline, benzene or
similar substances for cleaning
purposes.
BWe recommend that you unplug the
appliance before cleaning.
CNever use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish for
cleaning.
CUse lukewarm water to clean the
cabinet of your refrigerator and wipe
it dry.
CUse a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
BMake sure that no water enters the
lamp housing and other electrical
items.
BIf your refrigerator is not going to be
used for a long period of time, unplug
the power cable, remove all food,
clean it and leave the door ajar.
CCheck door seals regularly to ensure
they are clean and free from food
particles.
CTo remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-
cooked meals in your refrigerator
in unsealed containers as they
damage the plastic surfaces of your
refrigerator. In case of spilling or
smearing oil on the plastic surfaces,
clean and rinse the relevant part of
the surface at once with warm water.

EN
15
6Recommended solutions for the problems
Please review this list before calling the service. It might save you time and
money. This list includes frequent complaints that are not arising from defective
workmanship or material usage. Some of the features described here may not
exist in your product.
The refrigerator does not operate
• Is the refrigerator properly plugged in? Insert the plug to the wall socket.
• Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out?
Check the fuse.
Condensation on the side wall of the fridge compartment. (MULTI ZONE, COOL CONTROL
ve FLEXI ZONE)
• Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient
conditions. Storage of food containing liquid in open containers. Leaving the door ajar.
• Switching the thermostat to a colder degree.
• Decreasing the time the door left open or using it less frequently.
• Covering the food stored in open containers with a suitable material.
• Wipe the condensation using a dry cloth and check if it persists.
Compressor is not running
• Protective thermic of the compressor will blow out during sudden power failures or plug-out
plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been
balanced yet.
• Your refrigerator will start running approximately after 6 minutes. Please call the service if your
refrigerator does not startup at the end of this period.
• The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator.
Defrosting cycle occurs periodically.
• Your refrigerator is not plugged into the socket. Make sure that he plug is inserted tightly to the
wall socket.
• Are the temperature adjustments correctly made? There is a power failure. Call your electricity
supplier.
The fridge is running frequently or for a long time.

EN
16
• Your new refrigerator may be wider than the previous one. This is quite normal. Large
refrigerators operate for a longer period of time.
• The ambient room temperature may be high.This is quite normal.
• The refrigerator might have been plugged in recently or might have been loaded with food.
Cooling down of the refrigerator completely may last for a couple of hours longer.
• Large amounts of hot food might have been put in the refrigerator recently. Hot food causes
longer running of the refrigerator until they reach the safe storage temperature.
• Doors might have been opened frequently or left ajar for a long time. The warm air that has
entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors
less frequently.
• Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly
closed.
• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a
warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean
or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of
time in order to maintain the current temperature.
Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature
to a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature is adjusted to a very low temperature. Adjust the fridge temperature to
a warmer degree and check.
Food kept in the fridge compartment drawers are freezing.
• The fridge temperature is adjusted to a very low temperature. Adjust the fridge temperature to
a warmer degree and check.
Temperature in the fridge or freezer is very high.
• The fridge temperature is adjusted to a very high degree. Fridge adjustment has an effect on
the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge
or freezer temperature reaches to a sufficient level.
• The door might be left ajar. Close the door completely.
• Large amounts of hot food might have been put in the refrigerator recently. Wait until the fridge
or freezer reaches the desired temperature.
• Refrigerator might have been plugged in recently. Cooling down of the refrigerator completely
takes time because of the size.
Noise similar to the sound of seconds heard from an analog clock is coming from the
refrigerator.
• This noise is coming from the solenoid valve of the refrigerator. Solenoid valve functions for
the purpose of ensuring coolant passage through the compartment which can be adjusted to
cooling or freezing temperatures, and performing cooling functions. This is normal and is not
fault cause.
The operation noise increases when the refrigerator is running.
• The operating performance characteristics o f the refrigerator may change according to the
changes in the ambient temperature. It is normal and not a fault.

EN
17
Vibrations or noise.
• The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the
floor is level, strong and capable to carry the refrigerator.
• The noise may be caused by the items put onto the refrigerator. Such items should be removed
from the top of the refrigerator.
There are noises like liquid spilling or spraying.
• Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is
normal and not a fault.
There is a noise like wind blowing.
• Air activators (fans) are used in order to allow the refrigerator to cool efficiently. It is normal and
not a fault.
Condensation on the inner walls of refrigerator.
• Hot and humid weather increases icing and condensation. It is normal and not a fault.
• The doors are ajar. Make sure that the doors are closed completely.
• Doors might have been opened very frequently or they might have been left open for along time.
Open the door less frequently.
Humidity occurs on the outside of the refrigerator or between the doors.
• The weather may be humid. This is quite normal in humid weather. When the humidity is less,
condensation will disappear.
Bad odor inside the refrigerator.
• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge,
warm water or carbonated water.
• Some containers or packaging materials might be causing the smell. Use a different container or
different brand packaging material.
The door(s) is (are) not closing.
• Food packages may prevent the door’s closing. Replace the packages that are obstructing the
door.
• The refrigerator is probably not completely vertical on the floor and it might be rocking when
slightly moved. Adjust the elevation screws.
• The floor is not level or strong. Make sure that the floor is level and capable to carry the
refrigerator.
Crispers are stuck.
• The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Veuillez d’abord lire la notice d’utilisation !
Chère cliente, cher client,
Nous espérons que votre produit, qui a été fabriqué dans des usines modernes et vérifié
au terme des procédures de contrôle de qualité les plus méticuleuses, vous aidera
efficacement.
Pour cette raison, nous vous conseillons de lire attentivement tout le manuel d’utilisation
de votre produit avant de vous en servir, et de le conserver ensuite pour une utilisation
ultérieure.
Le présent manuel
• vous aidera à utiliser votre produit avec rapidité et sécurité.
• Lisez le manuel avant d’installer et de faire fonctionner votre produit.
• Respectez les instructions, notamment celles relatives à la sécurité.
• Conservez ce manuel dans un endroit facilement accessible car vous pouvez en avoir
besoin ultérieurement.
•En plus, lisez également les autres documents fournis avec votre produit.
Veuillez noter que ce manuel peut également être valide pour d’autres modèles.
Symboles et descriptions
Vous retrouverez les symboles suivants dans le présent manuel :
CInformations importantes ou astuces.
AAvertissement relatif aux conditions dangereuses pour la vie et la propriété.
BAvertissement relatif à la tension électrique.

FR
2
1 Votre réfrigérateur 3
2 Avertissements 4
Utilisation prévue .................................. 4
Sécurité générale.................................. 4
Mesures d’économie d’énergie............. 6
Avertissement HCA .............................. 6
3 Installation 7
Préparation........................................... 7
Points à prendre en compte lorsque vous
transportez à nouveau votre produit. .... 7
Avant de faire fonctionner votre
réfrigérateur.......................................... 8
Branchement électrique........................ 8
Mise au rebut de l’emballage................ 8
Mise au rebut de votre ancien
réfrigérateur.......................................... 8
Installation des cales en plastique......... 9
Remplacement de la lampe ................. 9
Réglage des pieds................................ 9
Table des matières 4 Utilisation de votre
réfrigérateur 10
Bouton de réglage de la température.. 10
Réglage de la température de votre
réfrigérateur........................................ 10
Système de réfrigération Dual............. 10
Double protection............................... 10
Bac à légumes: utilisation des curseurs
de réglage de l’humidité (dans certains
modèles) ......................................11
Distributeur et récipient de conservation de
glaçons .............................................. 11
Utilisation du bac àlégumes rotatif (dans
certains modèles) .........................12
Etagères coulissantes......................... 12
Réversibilité des portes....................... 13
5 Entretien et nettoyage 14
Protection des surfaces en plastique. 14
6 Solutions recommandées
aux problèmes 15
