Beko KS 13200 User manual

57 8377 0000/AE
Kühlschrank/Gefrierschrank
Bedienungsanleitung
Réfrigérateur
Manuel d'utilisation
Gebruiksaanwijzing
Koelkast
KS 13200
EN / DE / FR / NL
Refrigerator
User manual

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the
user manual as well.
The user manual will help you use the product in a fast and safe way.
 Read the manual before installing and operating the product.
 Make sure you read the safety instructions.
 Keep the manual in an easily accessible place as you may need it later.
 Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
CONTENTS
1 Your refrigerator 3
2 Important Safety
Warnings 4
Intended use ...............................................4
General safety ............................................ 5
For products with a ..................................9
water dispenser;........................................9
Child safety ..................................................9
Compliance with WEEE Directive and
Disposing of the Waste Product: .....10
Package information..............................10
HC warning.................................................10
Things to be done for energy saving11
3 Installation 12
Points to be paid attention to when
the relocation of the refrigerator.....12
Electrical connection .............................12
Disposing of the packaging.................13
Disposing of your old refrigerator....13
Placing and Installation.........................13
Adjusting the legs...................................14
Changing the illumination lamp .......14

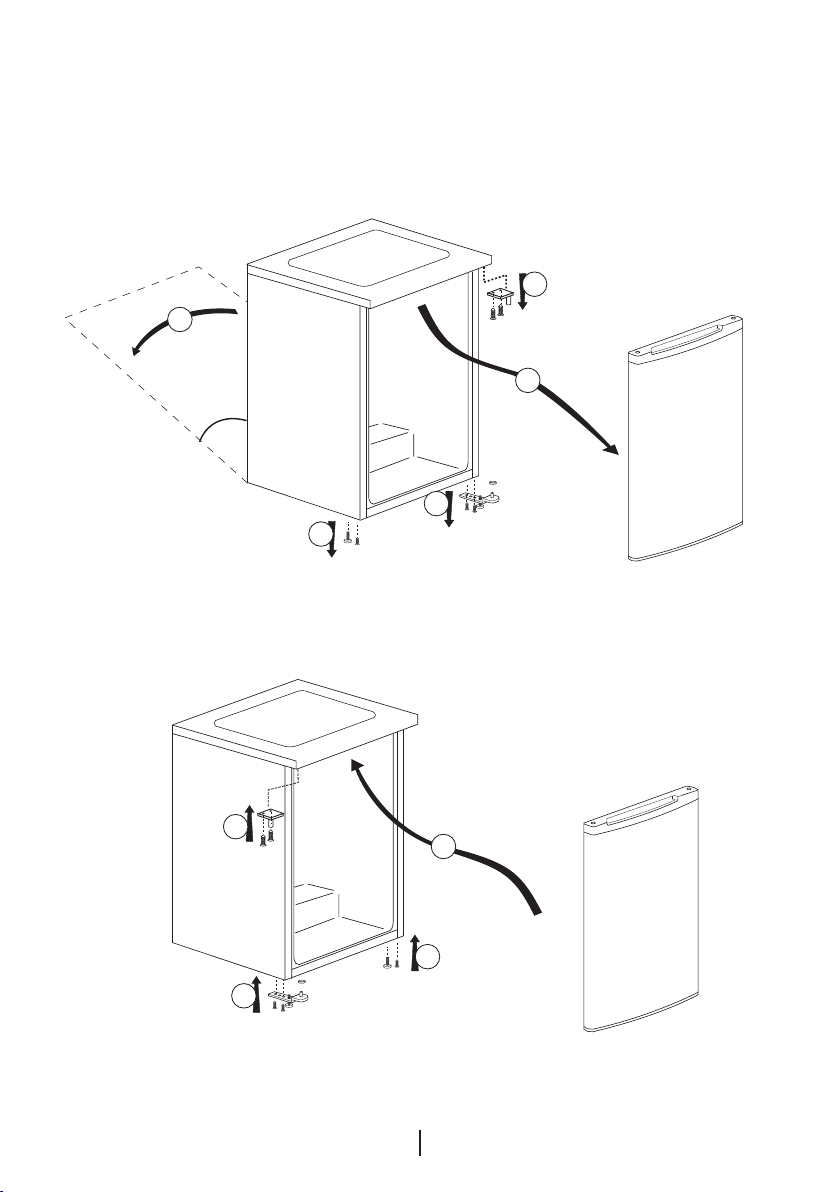

Reversing the doors...............................15
4 Preparation 16
5 Using your refrigerator 17
Defrosting of the appliance................18
Cooling.........................................................18
Food storage .............................................18
6 Maintenance and
cleaning 21
Protection of plastic surfaces .......... 22
7 Troubleshooting 23

EN
3
1Your refrigerator
1. Top trim
2. Drain tray
3. Interior light & Thermostat knob
4. Movable shelf
5. Crisper cover
6. Crisper
7. Adjustable front feet
8. Door shelves
9. Egg tray
10. Bottle shelf
CFigures that take place in this instruction manual are schematic and may
not correspond exactly with your product. If the subject parts are not included
in the product you have purchased, then it is valid for other models.
5
6
8
9
10
2
1
3
4
7

EN
4
2Important Safety Warnings
Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will
become invalid.
Original spare parts will
be provided for 10 years,
following the product
purchasing date.
Intended use
A
WARNING:
Keep ventilation
openings, in the
appliance enclosure
or in the built-in
structure, clear of
obstruction.
A
WARNING:
Do not use
mechanical devices
or other means
to accelerate the
defrostingprocess,
other than those
recommended by
the manufacturer.
AWARNING:
Do not damage the
refrigerant circuit.
A
WARNING:
Do not use
electrical
appliances inside
the food storage
compartments
of the appliance,
unless they
are of the type
recommended by
the manufacturer.
A
WARNING:
Do not store
explosive
substances such
as aerosol cans
with a flammable
propellant in this
appliance.
This appliance is
intended to be used in
household and similar
applications such as
– staff kitchen areas in
shops, offices and other
working environments;
– farm houses and by
clients in hotels, motels

EN
5
and other residential
type environments;
– bed and breakfast type
environments;
– catering and similar
non-retail applications.
General safety
 When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information
and authorized bodies.
 Consult your
authorized service
for all your questions
and problems related
to the refrigerator. Do
not intervene or let
someone intervene to
the refrigerator without
notifying the authorised
services.
 For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause
frostbite in your mouth.)
 For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the
freezer compartment.
Otherwise, these may
burst.
 Do not touch frozen
food by hand; they may
stick to your hand.
 Unplug your refrigerator
before cleaning or
defrosting.
 Vapor and vaporized
cleaning materials
should never be used in
cleaning and defrosting
processes of your
refrigerator. In such
cases, the vapor may
get in contact with the
electrical parts and
cause short circuit or
electric shock.
 Never use the parts on
your refrigerator such as
the door as a means of
support or step.
 Do not use electrical
devices inside the
refrigerator.
 Do not damage the
parts, where the

EN
6
securely with the lid
fastened and placed
upright.
 Never store spray cans
containing flammable
and explosive
substances in the
refrigerator.
 Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.
 This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced
people (including
children) unless they are
attended by a person
who will be responsible
for their safety or who
will instruct them
accordingly for use of
the product
 Do not operate a
damaged refrigerator.
Consult with the service
agent if you have any
concerns.
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.
 Do not cover or block
the ventilation holes on
your refrigerator with
any material.
 Electrical devices must
be repaired by only
authorised persons.
Repairs performed by
incompetent persons
create a risk for the user.
 In case of any failure or
during a maintenance or
repair work, disconnect
your refrigerator’s mains
supply by either turning
off the relevant fuse
or unplugging your
appliance.
 Do not pull by the cable
when pulling off the
plug.
 Ensure highly alcoholic
beverages are stored

EN
7
 Electrical safety of your
refrigerator shall be
guaranteed only if the
earth system in your
house complies with
standards.
 Exposing the product
to rain, snow, sun and
wind is dangerous with
respect to electrical
safety.
 Contact authorized
service when there is a
power cable damage to
avoid danger.
 Never plug the
refrigerator into the
wall outlet during
installation. Otherwise,
risk of death or serious
injury may arise.
 This refrigerator is
intended for only
storing food items. It
must not be used for
any other purpose.
 Label of technical
specifications is located
on the left wall inside
the refrigerator.
 Never connect
your refrigerator to
electricity-saving
systems; they may
damage the refrigerator.
 If there is a blue light
on the refrigerator, do
not look at the blue light
with optical tools.
 For manually controlled
refrigerators, wait for at
least 5 minutes to start
the refrigerator after
power failure.
 This operation manual
should be handed in to
the new owner of the
product when it is given
to others.
 Avoid causing damage
on power cable when
transporting the
refrigerator. Bending
cable may cause fire.
Never place heavy
objects on power cable.
Do not touch the plug
with wet hands when
plugging the product

EN
8
 Do not plug the
refrigerator if the wall
outlet is loose.
 Water should not be
sprayed on inner or
outer parts of the
product for safety
purposes.
 Do not spray
substances containing
inflammable gases such
as propane gas near the
refrigerator to avoid fire
and explosion risk.
 Never place containers
filled with water on top
of the refrigerator; in
the event of spillages,
this may cause electric
shock or fire.
 Do not overload the
refrigerator with food.
If overloaded, the food
items may fall down and
hurt you and damage
refrigerator when you
open the door.
 Never place objects on
top of the refrigerator;
otherwise, these
objects may fall down
when you open or close
the refrigerator’s door.
 As they require a precise
temperature, vaccines,
heat-sensitive medicine
and scientific materials
and etc. should not be
kept in the refrigerator.
 If not to be used for a
long time, refrigerator
should be unplugged.
A possible problem in
power cable may cause
fire.
 Refrigerator may move
if adjustable legs are not
properly secured on the
floor. Properly securing
adjustable legs on the
floor can prevent the
refrigerator to move.
 When carrying the
refrigerator, do not hold
it from door handle.
Otherwise, it may be
snapped.
 When you have to place
your product next to
another refrigerator or
freezer, the distance
between devices
should be at least 8cm.
Otherwise, adjacent
side walls may be
humidified.

EN
9
 The product shall never
be used while the
compartment which
is located at the top or
back of your product
and in which electronic
boards are available
(electronic board box
cover) (1) is open.
1
1
For products with a
water dispenser;
 Pressure for cold water
inlet shall be maximum
90 psi (6.2 bar). If your
water pressure exceeds
80 psi (5.5 bar), use a
pressure limiting valve
in your mains system. If
you do not know how
to check your water
pressure, ask for the
help of a professional
plumber.
 If there is risk of water
hammer effect in your
installation, always
use a water hammer
prevention equipment
in your installation.
Consult Professional
plumbers is you are not
sure that there is no
water hammer effect
in your installation.
 Do not install on the
hot water inlet. Take
precautions against
of the risk of freezing
of the hoses. Water
temperature operating
interval shall be 33°F
(0.6°C) minimum
and 100°F (38°C)
maximum.
 Use only potable water.
Child safety
 If the door has a lock,
the key should be kept
away from reach of
children.

EN
10
 Children must be
supervised to prevent
them from tampering
with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling.Therefore,donotdispose
the product with normal domestic
waste at the end of its service life.
Take it to a collection point for the
recycling of electrical and electronic
equipment. Please consult your
local authorities to learn the nearest
collection point. Help protect the
environment and natural resources by
recycling used products. For children’s
safety, cut the power cable and break
the locking mechanism of the door, if
any, so that it will be non-functional
before disposing of the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and
our national asset wealth.
If you want to contribute to the
re-evaluation of the packaging
materials, you can consult to your
environmentalist organizations or the
municipalities where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage
and transportation. In the event of
damage, keep your product away from
potential fire sources that can cause
the product catch a fire and ventilate
the room in which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.

EN
11
Things to be done for
energy saving
 Do not leave the doors of your
refrigerator open for a long time.
 Do not put hot food or drinks in your
refrigerator.
 Do not overload your refrigerator so
that the air circulation inside of it is
not prevented.
 Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
 Pay attention to keep your food in
closed containers.
 For products with a freezer
compartment; You can store
maximum amount of food items
inthe freezer when you remove
the shelf or drawer of the freezer.
Energy consumption value stated
for your refrigerator has been
determined by removing freezer
shelf or drawer and under maximum
load. There is no harm to use a shelf
ordrawer according to the shapes
and size of food to be frozen.
 Thawing frozen food in fridge
compartment will both provide
energy saving and preserve the food
quality.

EN
12
3Installation
BIn case the information which
are given in the user manual are not
taken into account, manufacturer
will not assume any liability for this.
Points to be paid attention
to when the relocation of
the refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged,
shelves, accessories, crisper, etc.
inside your refrigerator should be
fixed with adhesive tape and secured
against impacts. Package should be
bound with a thick tape or sound
ropes and the transportation rules
on the package should be strictly
observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the refrigerator,
Check the following before you
start to use your refrigerator:
1. Attach 2 plastic wedges as
illustrated below. Plastic wedges
are intended to keep the distance
which will ensure the air circulation
between your refrigerator and the
wall. (The picture is drawn up as a
representation and it is not identical
with your product.)
2. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the
refrigerator to the wall socket. When
the fridge door is opened, fridge
internal lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give
rise to noise, even if the compressor
is not running and this is quite normal.
5. Front edges of the refrigerator
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in
compliance with national regulations.
 The power plug must be easily
accessible after installation.
 Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
 The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
 Extension cables and multi plugs
must not be used for connection.

EN
13
BA damaged power cable must
be replaced by a qualified electrician.
BProduct must not be operated
before it is repaired! There is the risk
of electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with
the waste instructions stated by your
local authorities. Do not throw away
with regular house waste, throw away
on packaging pick up spots designated
by the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator
without giving any harm to the
environment.
 You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the
room where the refrigerator will be
installed is not wide enough for the
refrigerator to pass through, then call
the authorized service to have them
remove the doors of your refrigerator
and pass it sideways through the door.
1. Install your refrigerator to a
place that allows ease of use.
2. Keep your refrigerator away
from heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on the
materials such as rug or carpet.
4. Place your refrigerator on an
even floor surface to prevent jolts.

EN
14
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator
by turning its front legs as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone
to slightly lift the refrigerator will
facilitate this process.
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call
your AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose
of this lamp is to assist the user to
place foodstuffs in the refrigerator/
freezer in a safe and comfortable
way.The lamps used in this appliance
have to withstand extreme physical
conditions such as temperatures
below -20 °C.
(only chest and upright freezer)

EN
15
Reversing the doors
Proceed in numerical order
1
60°
5
2
3
4
8
9
7
6

EN
16
4Preparation
CYour refrigerator should be installed
at least 30 cm away from heat
sources such as hobs, ovens, central
heater and stoves and at least 5
cm away from electrical ovens and
should not be located under direct
sunlight.
CThe ambient temperature of
the room where you install your
refrigerator should at least be 5°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
CPlease make sure that the interior
of your refrigerator is cleaned
thoroughly.
CIf two refrigerators are to be
installed side by side, there should
beat least 2 cm distance between
them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the
initial six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for
the problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.

EN
17
5Using your refrigerator
The operating temperature is
regulated by the temperature control.
1 = Lowest cooling setting
(Warmest setting)
5 = Highest cooling setting
(Coldest setting)
(Or)
Min. = Lowest cooling setting
(Warmest setting)
Max. = Highest cooling setting
(Coldest setting)
The average temperature inside the
fridge should be around +5°C.
Please choose the setting according
to the desired temperature.
You can stop operation of your
appliance by turning the thermostat
knob to “0” position.
Warm Cold
1 2 3 4 5
(Or) Min. Max.
Please note that there will be
different temperatures in the cooling
area.
The coldest region is immediately
above the vegetable compartment.
The interior temperature also
depends on ambient temperature,
the frequency with which the door is
opened and the amount of food kept
inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
The coldest region is immediately
below the ice making compartment.
Under high humidity, condensation
may occur on your refrigerator; this is
not a failure. It can be wiped with a dry
cloth according to safety instructions.
Icing, frosting and condensation are
normal for icebox compartment and
water drain container.
Check regularly to see if the drain
pipe is clogged or not and clear it with
the stick in the hole when necessary.

EN
18
Defrosting of the appliance
Excessive build-up of ice will affect
the cooling performance of your
device.
It is therefore recommended that you
defrost your appliance at least twice
a year, or whenever the ice build-up
exceeds 7 mm.
Defrost your device when there is
only little or no food in it.
Take out the food. Wrap the food in
several layers of paper, or a blanket,
and keep it in a cold place.
Unplug the appliance or switch
off the circuit breaker to start the
defrosting process.
Take out the accessories (like shelf,
drawer etc.) from the appliance and
use a suitable container to collect the
thawing water.
Use a sponge or a soft cloth to
remove thawing water if necessary at
the compartments.
Keep the door open during
defrosting.
For quicker defrosting, place
containers with warm water inside
the appliance.
Never use electrical devices,
defrosting sprays or pointed or sharp-
edged objects such as knives or forks
to remove the ice.
After the defrosting is done, clean
the inside.
Reconnect the appliance to the
mains. Place the frozen food into the
drawers and slide the drawers into the
freezer.
Switch off the circuit breaker and
unplug the appliance for your safety
to start the defrosting process.
During defrost, evaporation tray
damper should be positioned as in the
winter mode. After defrost, it can be
positioned with respect to summer or
winter mode, as needed.
Cooling
Food storage
The fridge compartment is for the
short-term storage of fresh food and
drinks.
Store milk products in the intended
compartment in the refrigerator.
Bottles can be stored in the bottle
holder or in the bottle shelf of the
door.
Raw meat is best kept in a
polyethylene bag in the compartment
at the very bottom of the refrigerator.
Allow hot food and beverages to cool
to room temperature prior to placing
them in the refrigerator.

EN
19

Store concentrated alcohol in a
container only standing upright and
tightly closed.

Do not store explosive substances or
containers with flammable propellant
gases (canned cream, spray cans etc.)
in the appliance.
There is a danger of explosion.
The shown close-tipped offset is
part of design , it has no effect on
cooling system.
