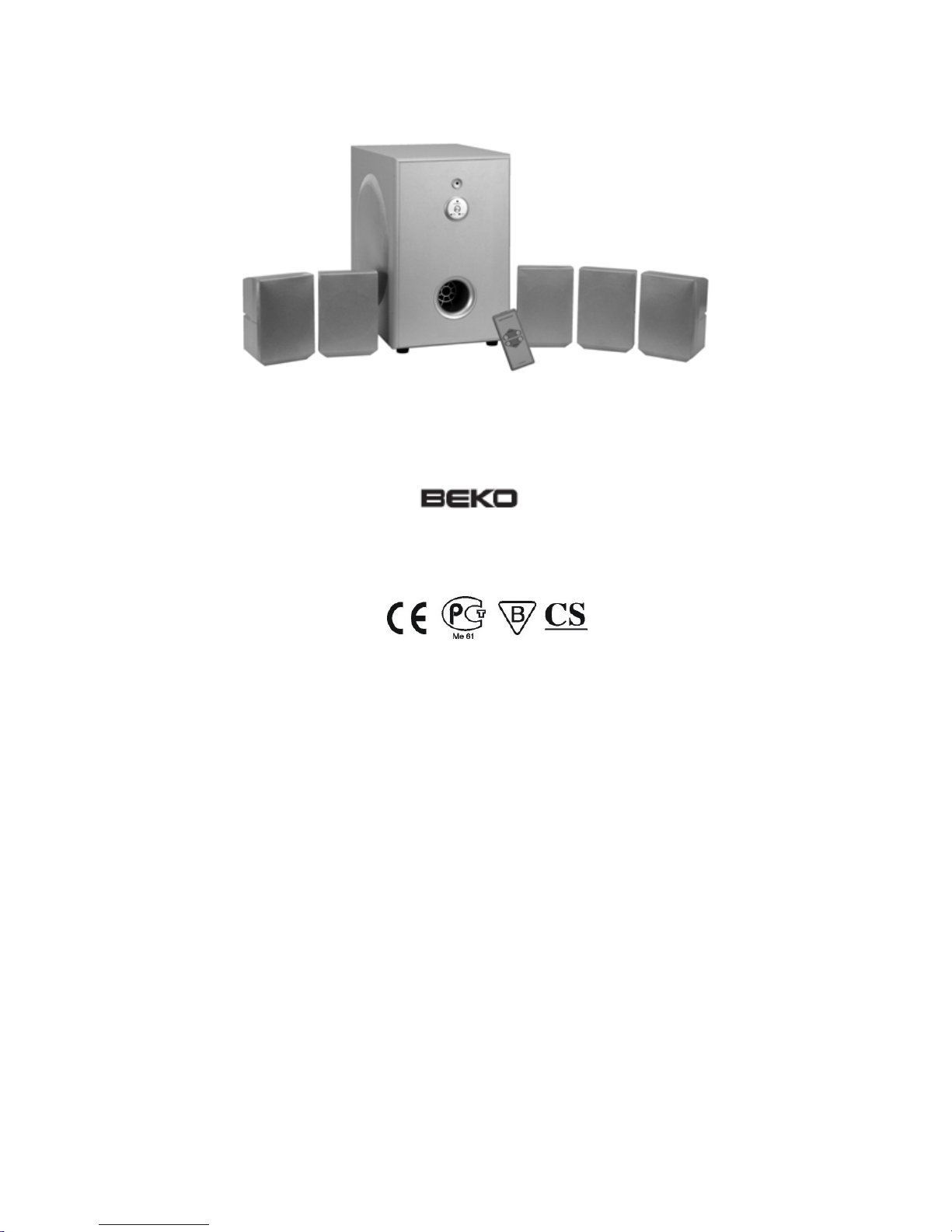

Beko HPS-100 User manual

Model No: HPS-100
HOME THEATRE SPEAKER SET

Contents
1. Contents/Features
2. Precautions
3. Safety Warnings
4. Front Panel Operation
5. Rear Panel Setting
6. Connection with Sound Source and Satellites
7. Operation Instruction
8. Trouble Shooting
9. Specifications
Features
1. 5.1 channel connection to DVD player
2. Compatible with AC-3 & DTS connection
3. Individual Woofer VolumeAdjust
4. Master Volume Adjust
5. Ultra slim card-like size remote control
6. Satellites are desk & wall-mountable
Precautions CAUTION: To reduce the risk of electric shock, do not remove the
cover or back. Refer servicing to qualified service personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
The apparatus should not be exposed to dripping or splashing area. No objects filled with
Thank you very much for purchasing our product. Please read this
instruction manual completely before connecting and operating the
machine for best performance and safety.

liquids, such as vases, should be placed on the apparatus.
Safety Warnings
Leave 15cm for ventilation. Do not block the pipe of the subwoofer.
Do not open the cover and do not repair yourself. Do not function the system when liquid
Refer servicing to qualified personnel. gets into the subwoofer.
Do not climb on this system. Pull out the plug while smoke,
particular smell or noise inside.

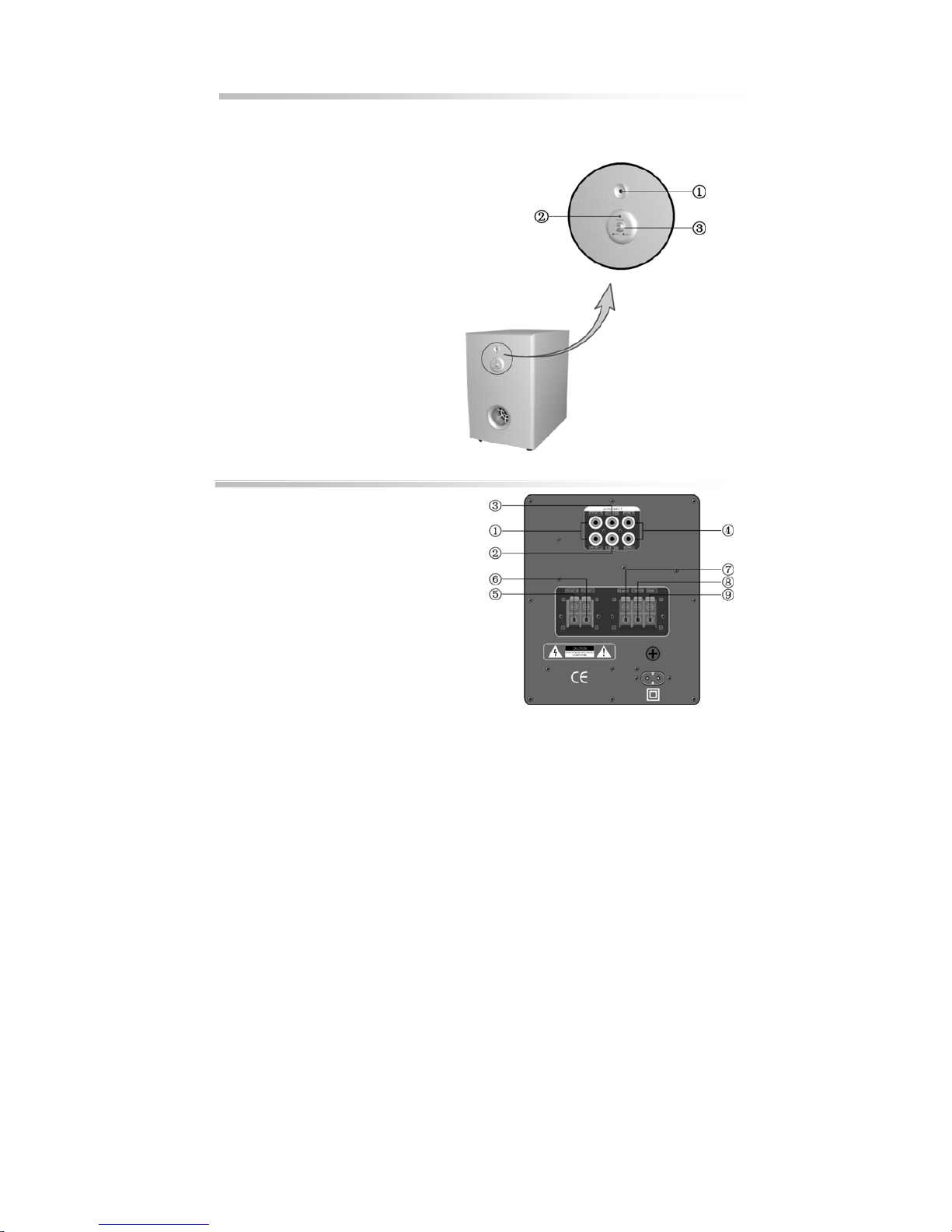

Front panel operation
1. Remote sensor
2. Power LED light
3. Power On/ Off Button
Rear panel setting
1.Front Left and Right Input terminal
2.Center Input terminal
3.Subwoofer Input terminal
4.Rear Left and Right Input terminal
5. Front Right channel speaker input terminal
6. Front Left channel speaker input terminal
7. Rear right channel speaker input terminal
8. Center channel speaker input terminal
AC POWER
FUSE

9. Rear left channel speaker input terminal
Connections with sound source and satellites
1. Connection with sound source equipment
2. Connection with satellite speakers
AC POWER
FUSE

Operation instructions
1. Stereo / 5.1 Mode Selection
For stereo mode, please connect the sound source with Front L and Front R input terminal.
This unit is AC-3 and DTS compatible. For 5.1 sound effect, please connect it with 5.1 input
terminals.
2. Power On
Front panel operation
Press the Power button and once LED light flickers, this product is connected with power.
3. Master and Woofer Volume adjust
Remote control operation
①. Press button of “Master ∧” or “Master ∨” to increase or decrease the volume of whole
speaker system.
②. Press button of “Woofer ∧” or “Woofer ∨” to increase or decrease the volume of whole
speaker system.
4. Power off
Front Panel Operation
Press the Power button again and once LED light diminishes, this product is disconnected
from power.

Trouble Shooting
Problem Cause Solution
No sound
zImproper connection of
speaker terminal.
zImproper connection of
sound frequency
terminal.
zImproper connection of
AC plug and the socket.
zVolume is too low.
zThe speaker terminal is
short-circuited
zEnsure that the equipment
is connected properly.
zEnsure that the sound
frequency is connected
properly.
zInsert the AC plug securely
into the AC outlet.
zIncrease the volume with
volume controlling button.
zCut off power, reconnect
the speaker, then start the
power again.
Sound distortion
zImproper connection of
amplifier input terminal.
zThe volume is too high.
zEnsure that the input
terminal is connected
properly.
zLower the volume with
volume controlling button.
Sound only from
one channel
zImproper connection of
amplifier input terminal
zInput level is too high
zEnsure that the input
terminal is connected
properly
zAdjust the woofer and
master volume properly
Remote control
fails to work
zThe battery has gone
off.
zInterference by strong
and direct sunlight.
zReplace with new
batteries.
zKeep the sensor away
from sunlight.

zObstacle in front of the
sensor. zRemove the obstacle.
Technical Data
Model No.:
Power/Frequency: 230 V ~50Hz
Watts: Subwoofer: 30W Satellite: 15WX5
