Built-In Automatic
Washer Dryer Machine
BWD 6421
LJ6A034CO / B0J6A1500

Read this manual prior to initial operation of the product!
Dear Customer,
We hope that your product, which has been manufactured in modern facilities and
passed through a strict quality control procedure, will give you very good results.
We advise you to read through this manual carefully before using your product and
keep it for future reference.
The User Manual will help you use your machine in a fast and safe way.
• Read the User Manual before installing and starting your product.
• In particular, follow the instructions related to safety.
• Keep this User Manual within easy reach for future reference.
• Also read all additional documents supplied with this product.
Remember that this User Manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this User Manual the following symbols are used:
C Important information or useful hints about usage.
AWarning for hazardous situations with regard to life and property.
BWarning for supply voltage.
When your appliance is of no further
use, it should not be disposed of
together with general domestic waste.
It can be taken, free of charge, to a
specific waste collection centre, run
by your local authority, or dealers who
provide this service.
Disposing of waste domestic appliances
separately means avoiding possible
negative consequences for the
environment and health, derived from
incorrect disposal. This will enable the
materials in them to be treated and
recycled, obtaining important savings in
energy and resources.
To highlight the obligation of
collaborating with selective waste
collection, the product is marked
with a symbol to warn against using
traditional containers for disposing of the
appliance.
For further information, contact
your local authority or the shop
where you purchased the
product.
INFORMATION FOR THE CORRECT DISPOSAL OF WASTE
ELECTRICAL AND ELECTRONIC APPLIANCES

EN
3
TABLE OF CONTENTS
1 Your washing machine 4
Overview . . . . . . . . . . . . . . . . . . . . . . . 4
2 Warnings 5
Intended use . . . . . . . . . . . . . . . . . . . . 5
3 Installation and assembly 6
Unpacking the washing machine . . . . . 6
Unblocking the washing machine . . . . 6
Connection to the mains water supply 6
Drainage connection . . . . . . . . . . . . . . 7
Levelling . . . . . . . . . . . . . . . . . . . . . . . 8
Electrical connection . . . . . . . . . . . . . . 8
Pre-cleaning . . . . . . . . . . . . . . . . . . . . 9
4 Preparing to wash 10
Preparing garments for washing . . . . 10
Sorting the clothes . . . . . . . . . . . . . . 10
Detergent and additives. . . . . . . . . . . 11
eco-note . . . . . . . . . . . . . . . . . . . . . . 11
5 Selection Of Washing And
Drying Programme 12
eco-note . . . . . . . . . . . . . . . . . . . . . . 12
Spin speed selection . . . . . . . . . . . . . 14
Time delay selection . . . . . . . . . . . . . 14
Additional functions . . . . . . . . . . . . . . 15
Starting up. . . . . . . . . . . . . . . . . . . . . 16
Child/key lock function . . . . . . . . . . . 16
Wash/dry program status and power
cuts. . . . . . . . . . . . . . . . . . . . . . . . . . 17
Power Cuts . . . . . . . . . . . . . . . . . . . . 17
6 Maintenance and cleaning 18
Maintenance . . . . . . . . . . . . . . . . . . . 18
Cleaning the detergent dispenser . . . 18
Cleaning The Filter. . . . . . . . . . . . . . . 19
Cleaning the outside . . . . . . . . . . . . . 19
7 Safety and troubleshooting 20
8 Guarantee 22
9 Service 23

EN
4
Overview
1- Power Cord
2- Control Panel
3- Detergent dispenser
4- Stainless steel drum
5- Accessible filter
1 Your washing machine
6- Drain hose
7- Hatch
8- Adjustable feet
9- Water inlet hose

EN
5
To avoid the risk of fire, electric
shocks, injury or damage when
using your washing machine, please
take the following precautions:
• This washing machine comes with
a manual that includes operating,
maintenance and installation
instructions. Please read all the
instructions before using the
washing machine.
• Do not wash items that have
previously been cleaned, washed,
soaked or treated with petrol,
solvents for dry cleaning, other
inflammable substances or
explosives, as they produce fumes
that could catch fire or explode.
• Do not add petrol, solvents for dry
cleaning or other inflammable or
explosive substances to the wash
water as they produce fumes that
could catch fire or explode.
• Do not repair or replace any part of
the washing machine or try to carry
out any type of servicing unless it is
recommended in the maintenance
instructions in the manual.
2 Warnings
• Do not climb onto the machine or
stand on the open hatch door.
• Do not use an extension lead or
adaptor to connect your washing
machine to the mains supply.
• The machine should only be used
for the purpose it is designed for.
• Follow the washing instructions
recommended by the manufacturer
of the garment to be washed.
• Do not turn your washing machine
on until you are sure that:
- It has been installed in accordance
with the installation instructions.
- All the water, drainage, mains
electricity and earth connections
meet the local regulations and/or
other applicable regulations.
Intended use
• This appliance is not intended for
use by persons (including children)
with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety.
Children should be supervised to
ensure that they do not play with the
appliance.

EN
6
Unpacking the washing
machine
• Remove the base, corner protectors
and top cover.
3 Installation and assembly
Unblocking the washing
machine
• Remove the screws holding the
plastic covers to the back of the
washing machine.
• Loosen and remove the 3 blocking
screws.
• Cover the holes with the plastic
covers you have just removed.
C
Do not throw the blocking screws
away. You may need to move the
washing machine at a later date.
Connection to the mains
water supply

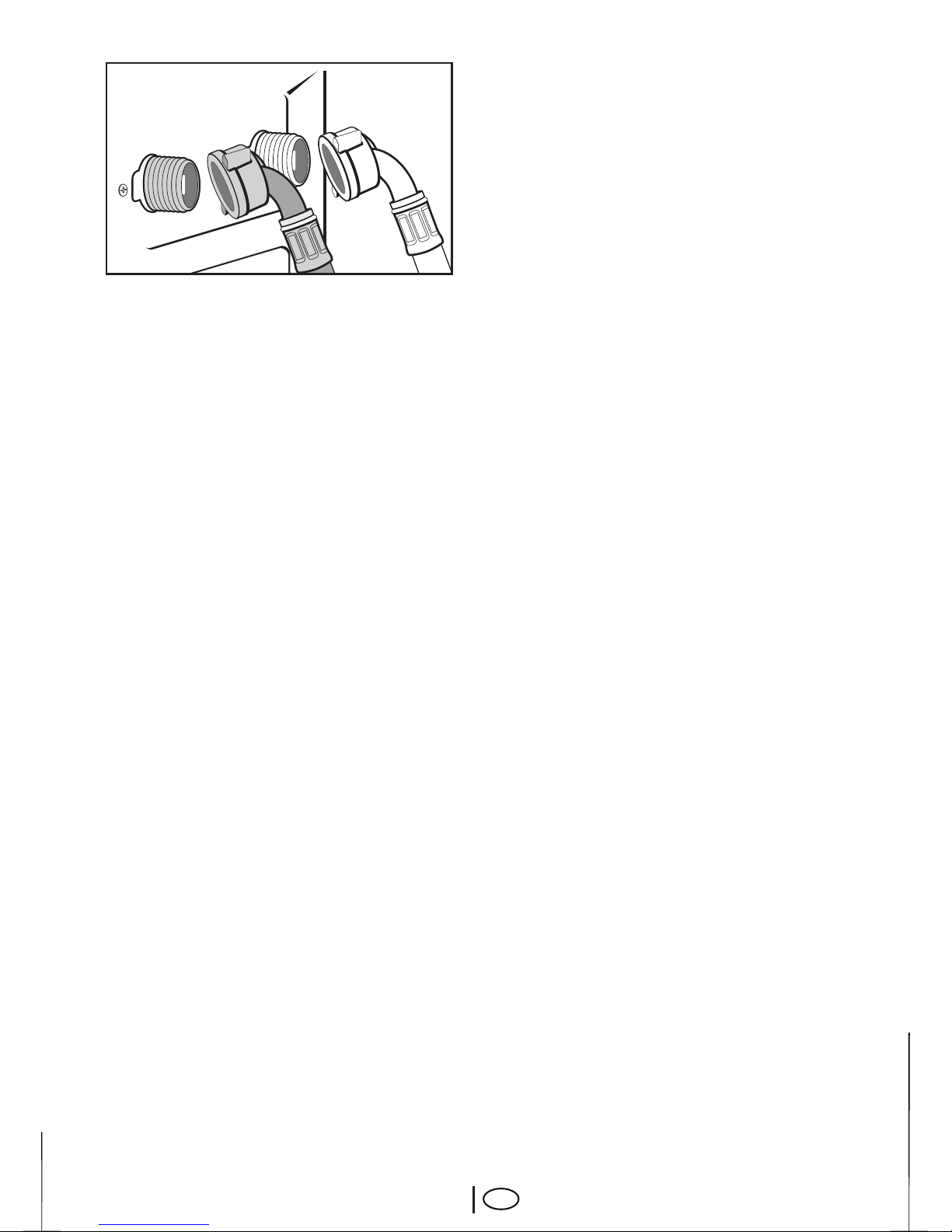

The water supply hose is inside the
drum:
• Connect the bent end of the hose to
the threaded inlet of the electrovalve
located at the rear of the washing
machine.

EN
7
• Connect the other end of the hose
to the water intake. Then securely
tighten the connection nut.
• Make sure that the gasket is in
place.
C
It is important that the drain hose
bend is correctly fastened to the
outlet, to prevent any risk of it
becoming detached and causing
flooding.
C
If your washing machine has a hot
water intake, connect the hose with
the red threaded end to the hot
water tap, and to the electrovalve
with the red filter.
C
The washing machine must be
connected to the mains water
supply, using the new supply hoses
supplied with the appliance. Do not
use water supply hoses that have
been used before. For your washing
machine to work properly, the mains
water pressure must be between
0.05 and 1MPa (0.05 and 10 Kgr/
cm2).
Drainage connection
To make the washing machine ready
for use, make sure that tap water
supply and water drainage systems are
appropriate before calling the authorised
service agent. If they are not, call a
qualified plumber to have any necessary
arrangements carried out.

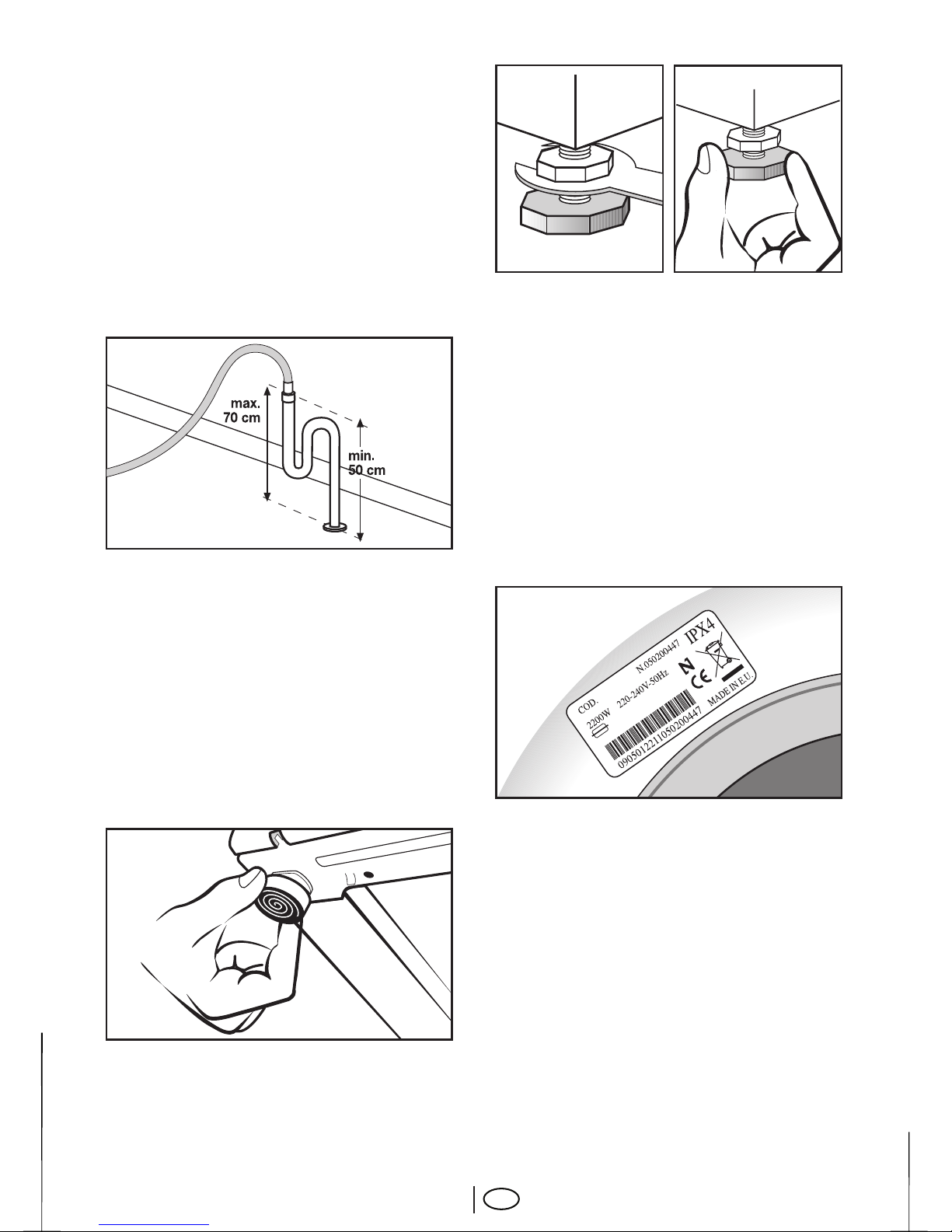

• It is recommended that you have a
fixed drainage outlet 50 to 70 cm
from the floor.
Avoid the drain hose being too tight,
kinked or restricted.
• The end of the drain hose
must be directly connected to
the wastewater drain or to the
washbasin.
• The end of the drain hose must
always be secured regardless of the
connection type.
AYour floor will be flooded if the hose
comes out of its housing during
water discharge.
• In case the hose is routed at floor
level or close to the floor (less than
50 cm) and then rises higher, water
discharge becomes more difficult
and laundry will come out wetter
than normal. Therefore, follow the
heights described in the figure.
• To prevent flow of dirty water back
to the washing machine and to allow
for easy discharge, the end of the
hose must not be inserted in to the
drain more than 15 cm. If it is too
long, cut it shorter.
• The end of the hose should not be
bent, it should not be stepped on
and the hose must not be pinched
between the drain and the machine.

EN
8
• If the length of the hose is too short,
add an original extension hose. The
maximum length of the hose must
not be longer than 3.2 m from the
machine outlet. To avoid water leak
failures, the connection between the
extension hose and the drain hose
of the product must be well fitted
with an appropriate clamp so that it
will not come off and leak. Electrical connection
Consult the specification plate located
on the hatch door of the washing
machine before making the electrical
connections. Ensure that the voltage
reaching the plug is the same as that on
the plate.
Do not remove the specification
plate. The information on it is
important.
Levelling
C
Use the adjustable feet to level the
washing machine. This will reduce
the noise level and prevent it from
moving during use.
C
Do not bring the feet too far out, you
will achieve better stability.
C
You need to use a spanner for the
models that have a nut.
C
It is very important to correctly earth
the washing machine. The electrical
installation, plug, socket, fuses
or automatic switch and counter
must be correctly specified for the
maximum power indicated on the
specifications plate.
C
Do not plug the washing machine
plug into the socket with wet or
damp hands.
C
To remove the power cord, pull on
the body of the plug.

EN
9
C
If the power cord is damaged, it
must be replaced by a cord or
special unit provided by either the
manufacturer or your after sales
service.
C
With built-in washing machines,
the plug must be accessible after
installation.
Pre-cleaning
When your washing machine has been
correctly installed, we recommend that
you pre-clean the machine.
This is to check that the installation,
the connections and the drainage are
all correct, and to thoroughly clean the
inside of the washing machine before
any wash programmes are run (see the
operating instructions on the following
pages).
• Select the normal programme at
60ºC.
• Press the Start/Stop button.

EN
10

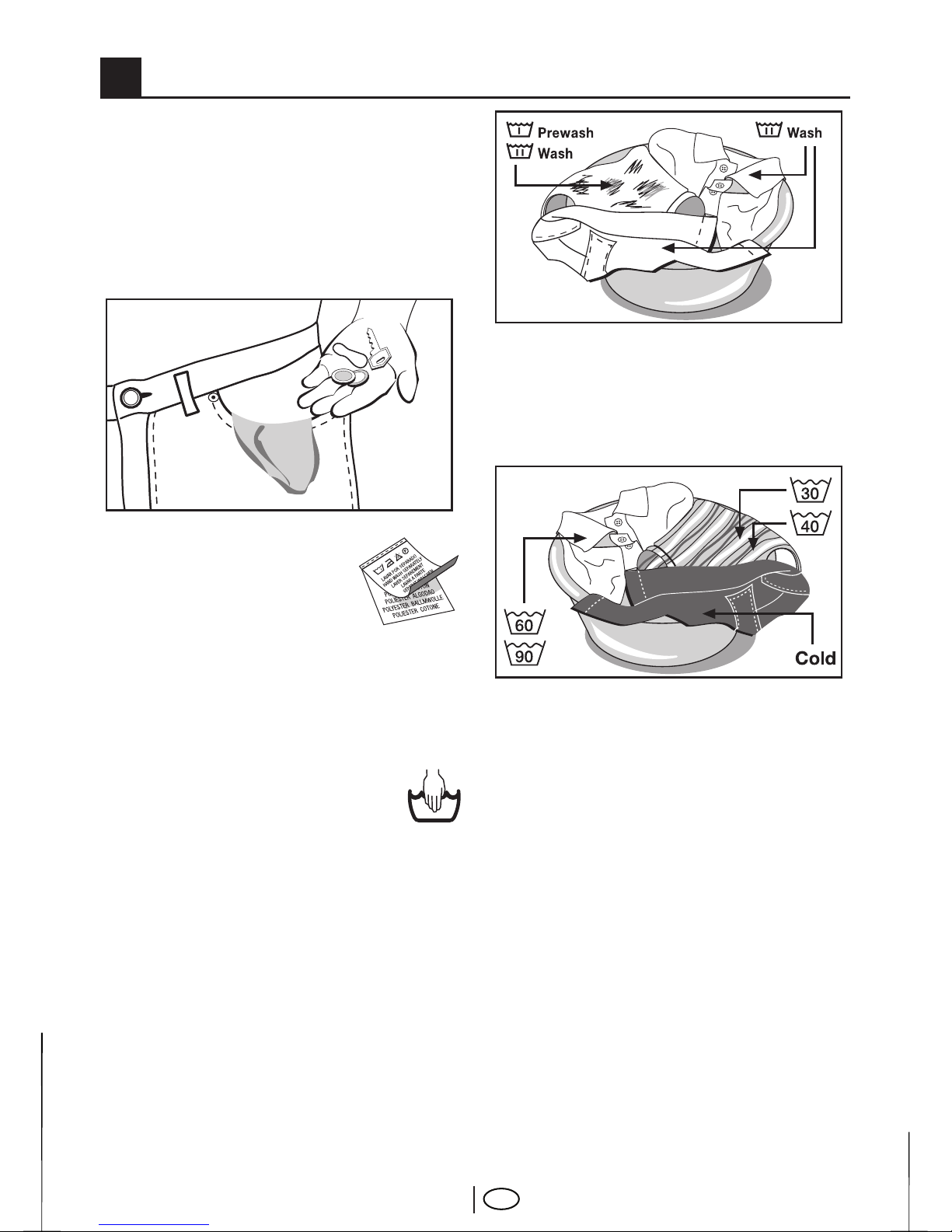

Preparing garments for
washing
C
Before placing the clothes in the
drum, make sure all the pockets are
empty.
C
Any small objects may block the
drain pump.
4 Preparing to wash
Sorting the clothes
• Sort the clothes
according to fabric
and how they are
made:
We recommend using the delicate
programmes for sensitive fabrics.
There is a special wool programme
for woollens.
C
Make sure beforehand
that your woollens can be
machine- washed.
Before using the drying programme,
first check the label on the garment
to make sure it can be tumble dried.
• Sort clothes according to how
soiled they are.
Wash lightly soiled garments using a
short programme.
Use a programme without prewash
for medium-soiled garments.
Wash heavily soiled garments using
a long programme with prewash.
• Sort your clothes according to
colour.
Wash whites and coloured
separately.
C
We recommend loading the
washing machine to its full capacity.
This means savings on water and
energy.
C
Whenever possible, we recommend
that you wash garments of different
sizes within the same wash
programme. This improves the
washing action and also aids the
correct distribution of the garments
in the drum when spin-drying, and
the washing machine will therefore
be quieter.
C
It is a good idea to put small
garments in a wash bag.

EN
11
Detergent and additives

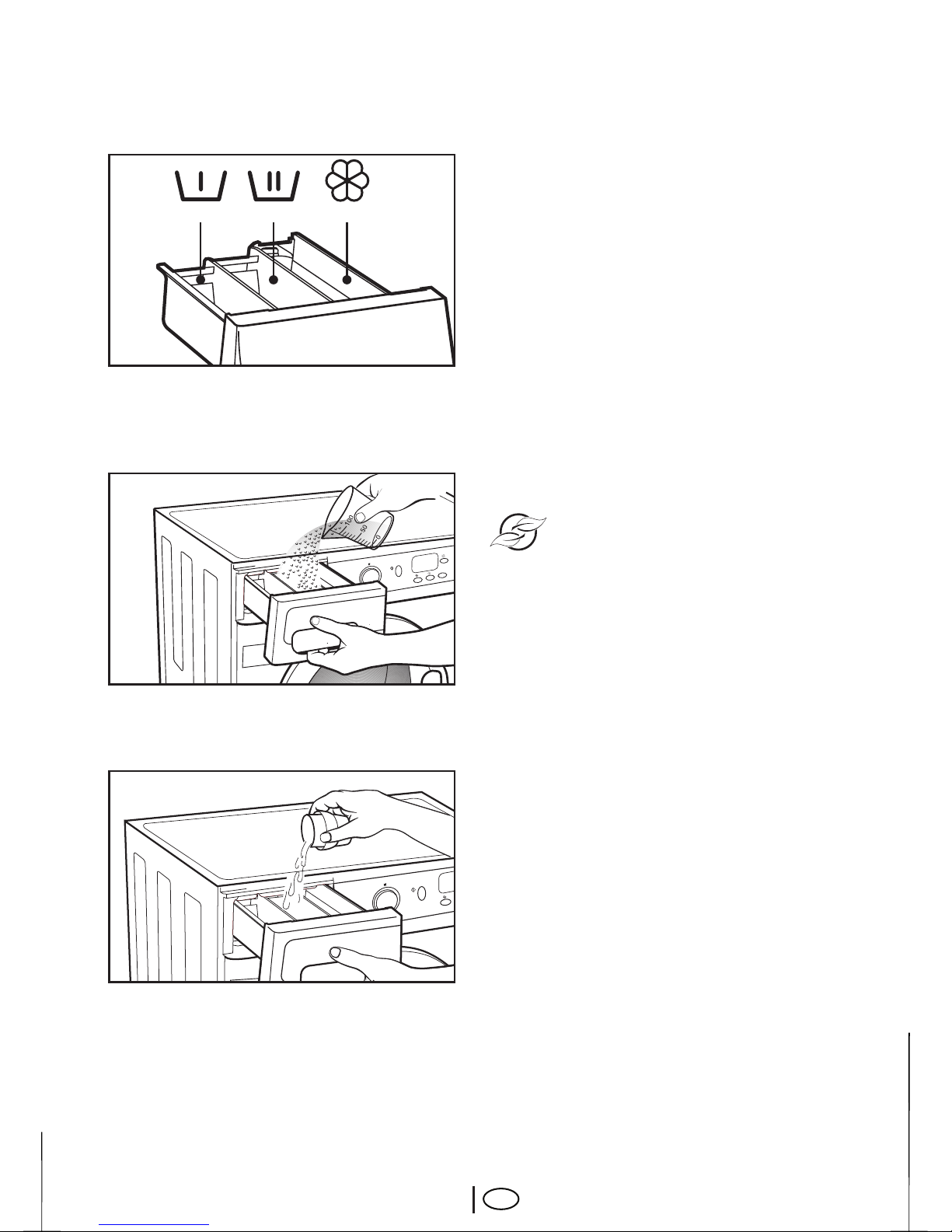

• Your washing machine’s detergent
dispenser has three compartments.
• Put the detergent or additive into the
detergent dispenser before starting
the wash programme.
• Liquid detergents may also be used
in this washing machine.
Place this optional dispenser inside
the wash compartment.
C
The level of liquid must never be
higher than the MAX mark printed
on the dispenser wall.
Remember that the amount of detergent
to be used will always depend on:
• The amount of clothes to be
washed.
• How heavily the clothes are soiled.
• The hardness of the water
(Information on water hardness in
your area can be obtained from the
competent local authorities).
C
We recommend the use of a
decalcifying product if the water
hardness is high in your area.
eco-note
Remember that concentrated
detergents exist which are more
environment and nature-friendly.
The use of more detergent than
necessary will not improve your washing
results, and apart from costing you
money it will have a negative effect on
the preservation of the environment.
We therefore recommend you follow the
detergent manufacturer’s instructions.
WASH FABRIC SOFTENERPREWASH
WASH FABRIC SOFTENERPREWASH
WASH FABRIC SOFTENERPREWASH

EN
12
1 Start/stop button
2 Screen
3 Drying time button
4 Detergent dispenser
5 Selection Of Washing And Drying Programme
5 Programme selector command
6 Spin and anti-crease button
7 Time delay button
8 Additional function button
To select a wash programme, proceed
as follows:
• Starting from the off “0” position,
the washing machine turns on
when selecting the desired wash
programme, (see programme table).
The procedure for selecting the drying
time is as follows:
• Select drying time in minutes using
the drying time button.
The time will appear on the display,
increasing each time the drying time
button is pressed.
eco-note
We recommend you choose a
wash programme without prewash
whenever possible. This will save you
money and help protect the environment.
C
If you select a wash + dry option,
the load must not be over 4
kg. (1.5 kg. for delicate wash
programmes).
There are five types of programme:
Normal programmes
Auxiliary programmes
Wool programmes
Delicate programmes
Drying programmes.

EN
13
Programme Recommended
temperature Fabric type
Possible option buttons
Max
load of
clothes
(Kg)
Wash
product
compartment
Programme description
Total
consumptioi
kWh/litres
Approx.
duration
(minutes)
Extra rinse
Intensive wash
Easy-iron
Spin speed
selection
No spin
Anti-crease |
Normal programmes
1 Normal cold Cold Cotton/Linen delicate colours
very light soil YES 6
Normal wash, rinses,
automatic additive absorption if desired and long nal spin
0.15/49 60
2 Quick 30°C Cotton/Linen whites/colours
very light soil YES NO YES 1.5
SHORT wash, rinses, automatic additive absorption if desired and long nal spin
0.20/30 30
3 Normal 30°C Cotton/Linen delicate colours
light soil YES 6
Normal wash, rinses,
automatic additive absorption if desired and long nal spin
0.40/49 82
4 Normal 40°C Cotton/Linen fast colours
light soil YES 6 0.65/49 87
5 (*) Normal 60°C Cotton/Linen fast colours
medium soil YES 6 1.02/49 91
6 Normal 90°C Cotton/Linen whites heavy soil YES 6 1.90/55 110 7 Prewash 60°C Cotton/Linen whites/fast
colours heavy soil 6
Prewash, normal wash,
rinses, automatic additive absorption if desired and long nal spin
1.45/60 105
Delicate
programmes
8 Delicate cold Cold Synthetic/cotton mix delicate
colours very light soil YES 3 Delicate wash, rinses,
automatic additive absorption if desired and gentle nal spin
0.15/55 50
9 Delicate 30°C Synthetic/cotton mix delicate
colours light soil YES 3 0.35/55 50
10 Delicate 40°C Synthetic/cotton mix delicate
colours medium soil YES 3 0.60/55 55
Wool P.
11 Wool 35°C WOOL 35 Wool/wool mix whites/colours
light soil YES NO YES 1
WOOL wash, rinses,
automatic additive absorption if desired and gentle nal spin
0.50/60 40
Auxiliary
prog.
12 Rinses -Cotton/cotton mix Synthetic/
Delicate Wool/wool mix YES NO YES 6
Rinses, automatic additive
absorption if desired and long nal spin
0.05/30 23
13 Spin-drying -Cotton/cotton mix Synthetic/
Delicate Wool/wool mix NO YES 6 - Drain and long nal spin 0.05/0 10
Drying prog.
14 Normal dry - Cotton/Linen - 4- Normal dry 2.8/48 160
3 1.8/27 100
15 Delicate dry - Synthetic/mixed fabrics - 1.5 - Delicate dry 1.2/26 95
(*) Programme for wash and energy consumption assessment in accordance with standard EN60456, press intensive wash button. NOTE: the KWh and litre consumptions and programme durations may vary depending on the type and amount of clothes, mains water pressure, etc.

EN
14
•Anti-crease option
The wash programme stops on
the last rinse, with the clothes
left in water. When the function is
deactivated, the washing machine
continues the programme, draining
and spin-drying.
It is used, for example, when you
are not at home and want to delay
the spin-drying until you get home,
to prevent the clothes creasing after
spin-drying and being left in the
drum to be removed.

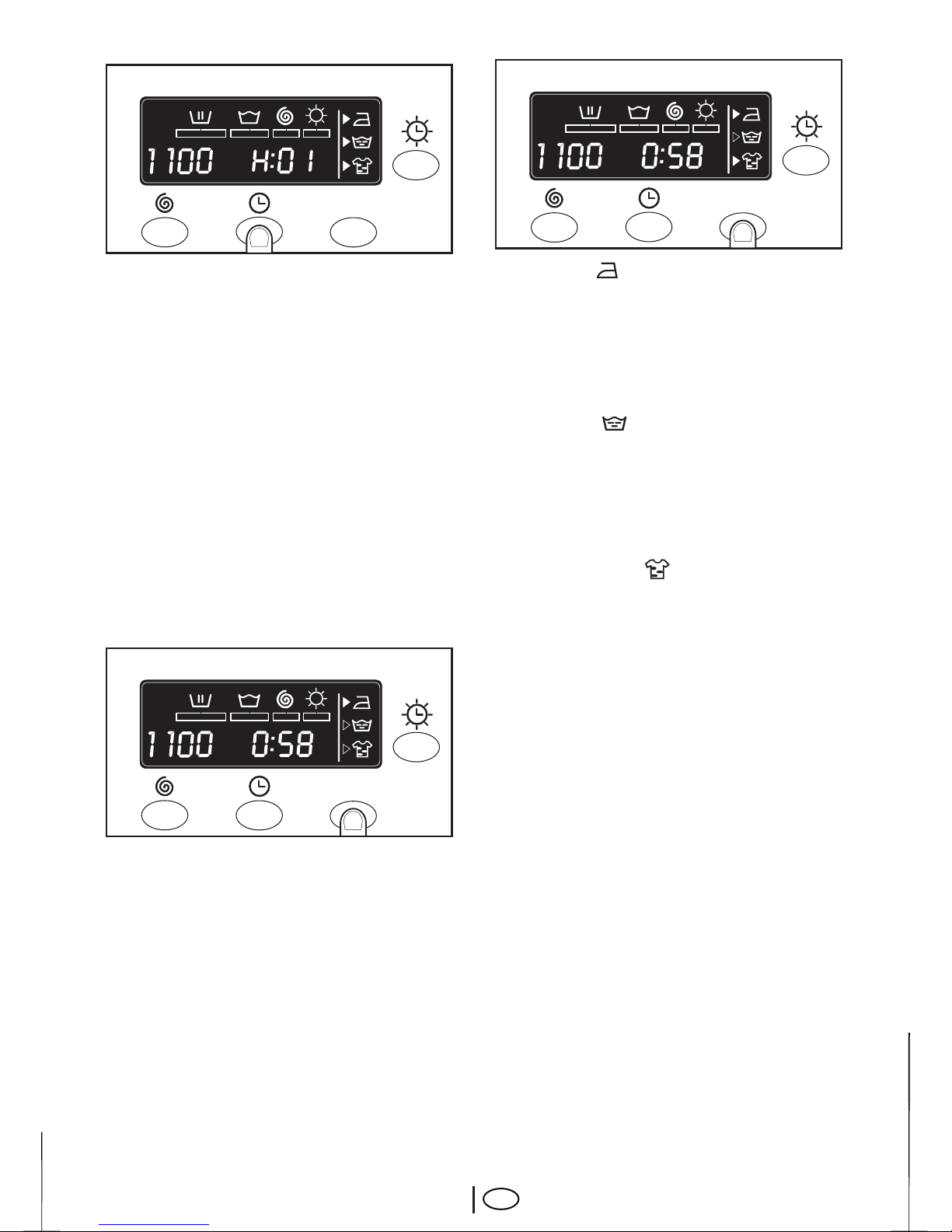

Time delay selection
Time delay selection button
A delay of up to 24 hours can be
selected.
The delay must be selected after
choosing the wash programme.
To select the hours of delay, press the
clock button. Each time the button is
pressed the start of washing is delayed
by 1 more hour.
Spin speed selection
The wash options must always be
selected after choosing the wash
programme. Any programme change
during selection cancels the previously
selected options.
• Spin speed selection and anti-
crease button
The selected programme has its
own particular spin speed.
• You can change it by repeatedly
pressing the spin button. The spin
speed will gradually be reduced at
100 r.p.m. intervals to 400 r.p.m.
for display models. On non-display
models the LED will light up.
• No spin
Press the spin button again to get
to the no spin option. A programme
without a final spin. It is used to
prevent creasing when washing
special fabrics.
Select
Select
Select
Select
Select
Select
Select
Select
Select
Select
Select
Select
Select
Select
Select
Select

EN
15
Cancelling the delay
To cancel the delay you have to press
the clock button successively. The
delay will be cancelled when 24 hours
have been reached and the button is
pressed once more. If the programme is
changed the delay is also cancelled.
Additional functions
Additional function selection button
depending on programmes.
• There are 3 options: easy iron, extra
rinse and intensive wash.
Press the button and the desired
option will be displayed.
• By pressing the button several times
you can choose between several
combinations of one, two and
up to three additional functions at
the same time depending on the
programme selected.
Select
Select
Select
Select
Select
Easy-iron
This option prevents garments from
creasing by means of carrying out a
special programme with special turns to
fluff out the garments after spin-drying
and make them easier to iron.
Extra rinse
Increases the level of the final rinse
obtained in the clothes; suitable for large
loads and garments belonging to people
with sensitive skin. Increases water
consumption!
Intensive wash
This option, specially recommended for
heavily soiled, stained clothes, achieves
better results by extending the normal
wash cycle.
C
If during the additional function
selection, the programme is
changed or the ON/OFF button is
pressed, all the functions selected
until then are cancelled.

EN
16
Starting up
Start/Stop button
• To start up the washing machine
you have to press the Start/Stop
button.
The minutes remaining until the end
of washing and drying will appear on
the display at all times.
Child/key lock function
Child/key lock function selection
The lock function ensures that the
programme will not be affected if any
buttons are pressed. It is used when
children could press the buttons, etc.
The Child/Key Lock function should be
activated after the wash programme
has been selected together with all its
options.

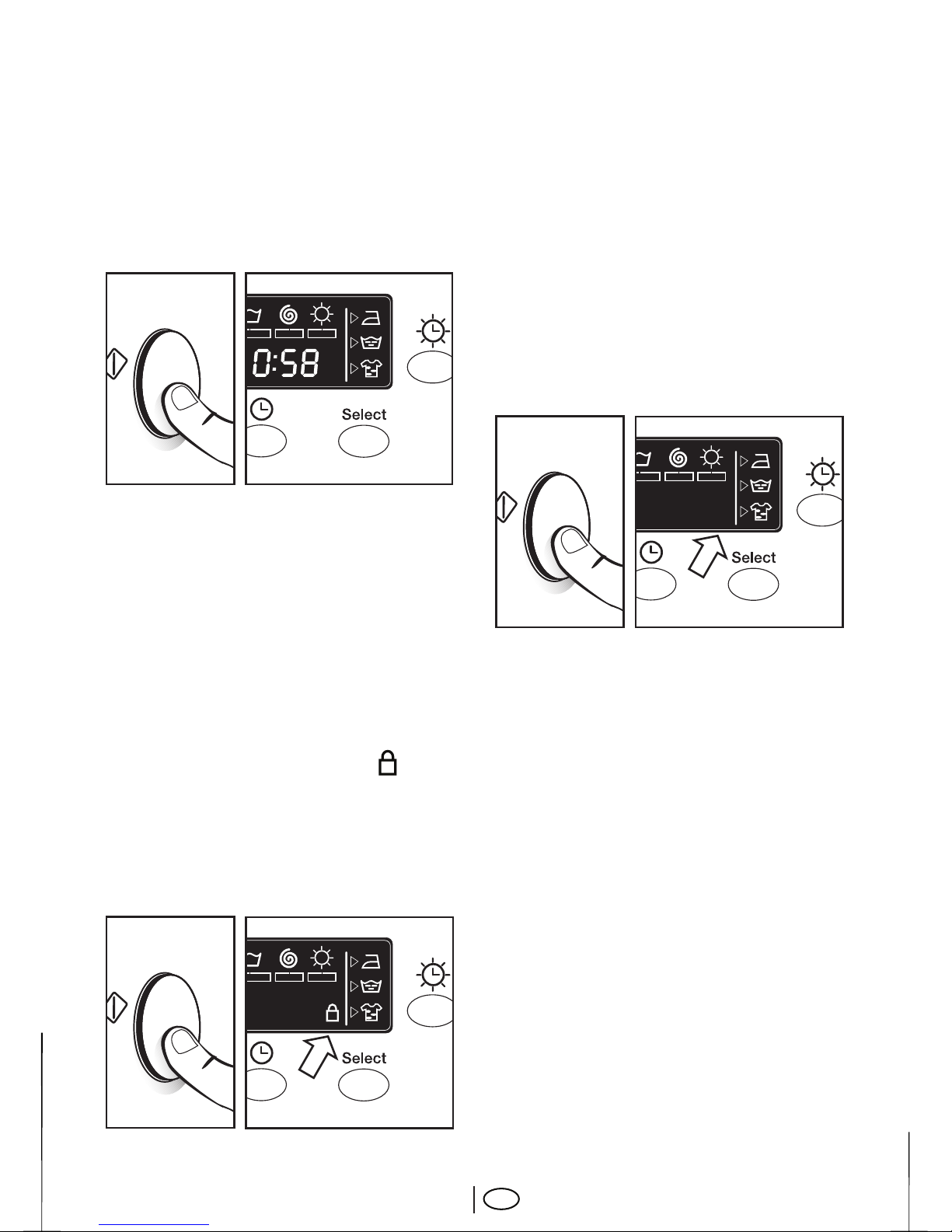

Activating the lock function
• The lock function is activated by
pressing the Start/Stop button
and holding it down for at least 3
seconds. The display will show if it is
activated.
Deactivating the lock function
• The lock function is cancelled when
the wash programme comes to an
end.
If you want to deactivate the lock
function before the end of the
programme, you have to hold the
Start/Stop button down again for at
least 3 seconds. After 3 seconds,
the lock function indicator will
disappear from the display, and it
will go into pause status. Turning to
Off position “0” does not cancel the
lock.

EN
17
Wash/dry program status and
power cuts

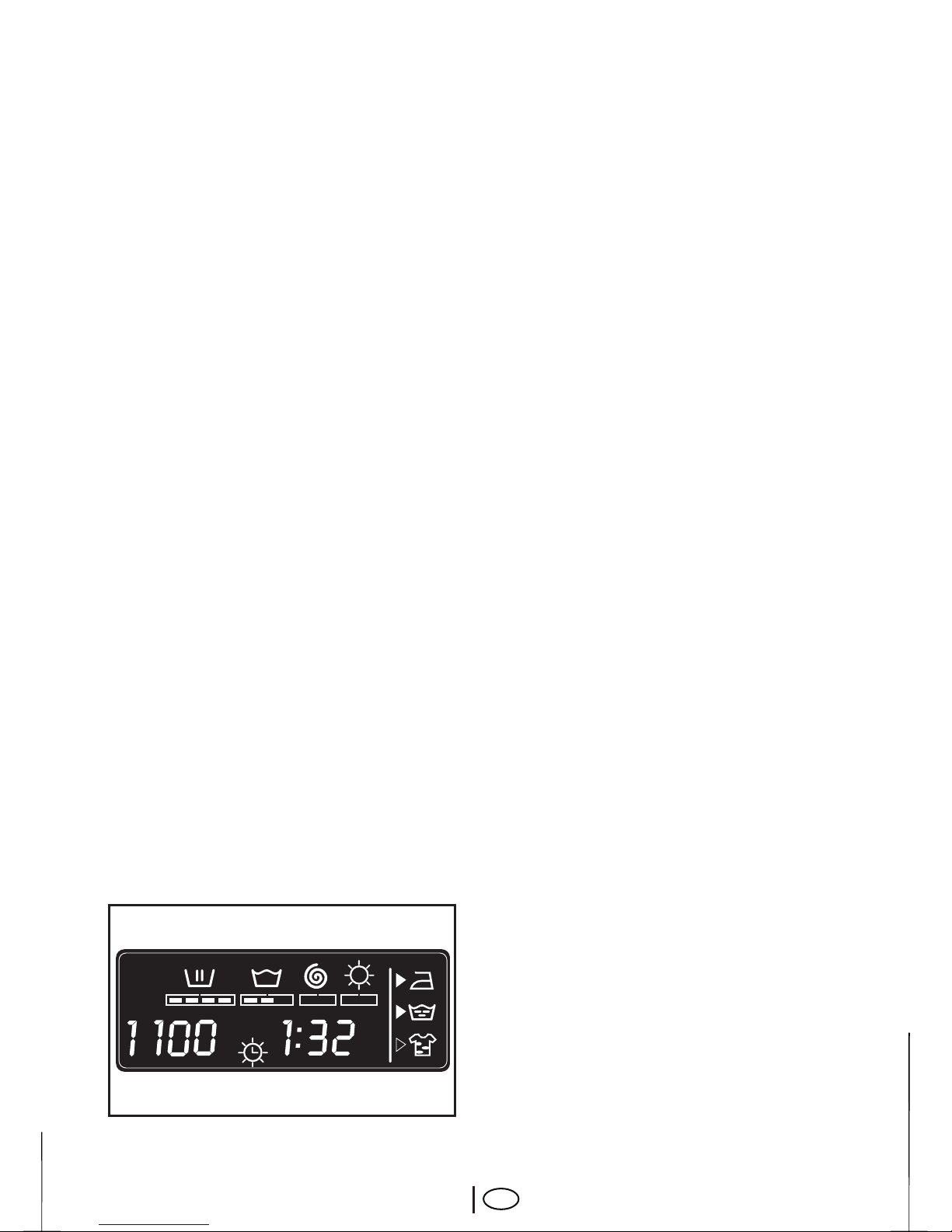

Programme Phases
Once started, current programme status
and time remaining till completion can
be ascertained from the screen.
The active phases will appear
successively at the top of the display
as the programme progresses. The
time remaining until the end of the
programme will also appear on the
display. It updates at regular intervals,
but not minute by minute.
Any option button can be selected
provided the wash phase in which it
takes effect has not been passed and
when the programme accepts the
option.
Pressing the start/stop button during the
wash activates the PAUSE function.
C
If the programme is changed on the
selector dial during the washing and
drying process, the washer-dryer
will go onto PAUSE status and the
programme will be cancelled.
C
If you need to add or remove a
garment, press the start/stop button
and make sure that the water level
is not above the door overflow level
and that the temperature inside is
not high. Press the start/stop button
again to restart the wash from the
same cycle phase it had stopped at.
Power Cuts
If there is a power cut, the washing
machine will continue to operate from
the point at which it stopped when
power is reconnected (its memory lasts
for a few hours).
Warnings:
A
Level the washing machine by
adjusting the feet to reduce the
noise caused by spin-drying.
A
Try and wash clothes of different
sizes in the same wash programme
to favour the distribution of the
clothes inside the drum during spin-
drying.
A
All the models have a safety system
for spin-drying that prevents spin-
drying from being carried out if the
distribution of the clothes inside
the drum is too concentrated.
This prevents the appliance from
vibrating too much.
If you find that the clothes are not
properly wrung out, try spin-drying
them again after having distributed
the clothes more evenly in the drum.

EN
18
Maintenance
After each wash, leave the door open
for a while to allow the air to circulate
freely inside the machine.
From time to time, depending on
the hardness of your water, it is
recommendable to run a full wash cycle
using a decalcifying product. This will
extend the life of your washing
machine.
C
The washing machine should
be disconnected from the mains
electricity supply before any cleaning
or maintenance is carried out.
Cleaning the detergent
dispenser
Clean the detergent dispenser whenever
there is any washing product residue left
inside.
• Pull outwards on the detergent
dispenser to remove it completely.
• Use warm water and a brush to
clean the compartments.
• Also clean the additive compartment
siphons, having removed them first.
Once they have been cleaned, put
them back making sure that they fit
right in to the back.
Put the dispenser back into the
washing machine.
C
A dirty or incorrectly fitted siphon
will prevent the additives from being
taken in and leave water inside
the compartment at the end of the
wash.
6 Maintenance and cleaning

EN
19
Cleaning The Filter
Clean the accessible filter if the drain
pump is blocked by any foreign objects.
• Use a coin to turn the filter cap.
• Pull out the filter cap.
• Place a container under the drain
pump filter to collect any water that
comes out of it.
• Half- or quarter-turn the filter to the
left.
Water will start to come out.
• When all the water has drained
out of the washing machine, turn
the filter several times until it can
be completely removed by gently
pulling on it.
• Remove the objects or fluff caught
in the filter or the drain pump.
Put the filter and the filter cap back
in place.
C
To avoid burns, do not carry out this
operation when the wash water is at
a temperature of over 30°C.
Cleaning the outside
The outside of the washing machine
should be cleaned with warm soapy
water or a gentle cleaning agent. Do
not use abrasive cleaning products or
solvents.
It should then be thoroughly dried with a
soft cloth.
C
When there have been spillages
of detergent or additives from
the dispenser onto the washing
machine cabinet, clean them up
right away as they are corrosive.

EN
20
If you detect any problems with your
washing machine, you will probably
be able to rectify them yourself by
consulting the following instructions.
Important
If this is not the case, unplug the
appliance and contact the TECHNICAL
ASSISTANCE SERVICE.
C
Never open up the appliance. There
is no fuse or similar component
inside that can be replaced by the
user.
7 Safety and troubleshooting
Indicator Problems
FO1 No water coming in
FO2 Does not drain or spin-dry
CO3 Does not spin-dry
FO4 Does not start
FO5
.
.
F10
Call the Technical
Assistance Service
Why won’t the washing machine start?
• Check the door is properly shut.
• The washing machine is not plugged into the mains or there is no voltage in
the mains supply.
• The Start/Stop button has not been pressed.
• If the washing machine door is not properly shut, F04 will appear on the
display.
Why is the washing machine vibrating or making too much noise?
• The blocking and transport screws have not been removed.
• The washing machine has not been correctly levelled.
Why doesn’t the washing machine take in water?
• Indicator F01, no water coming in, this may be due to a cut in the water
supply, a tap turned off or a blocked water inlet filter.
• The possible solutions are as follows: wait for the water supply to be
reconnected, turn on the tap, or remove the water inlet hose and clean the
filter.
If this failure is detected, F01 will appear on the display.
Why doesn’t the washing machine drain or spin-dry?
• The reasons for the F02 indicator may be the following: washing machine drain
pump blocked, building drainage pipes blocked, or incorrect pump electrical
connection.
• Solution: if the pump is blocked, gain access to it as described in section 2,
maintaining and cleaning the appliance.
If this failure is detected, F02 will appear on the display.
