Belar FMCS-1 User manual

BELAR ELECTRONICS LABORATORY, INC.
119 LANCASTER AVENUE ● P.O. BOX 76 ● DEVON, PA 19333-0076 USA
VOICE [phone] ● FAX [phone]
www.belar.com ● [email protected] ● [email protected] ● [email protected]
BELAR
FMCS-1
ALL-IN-ONE
FM MODULATION MONITOR
Guide to Operations
©2012

WARRANTY, FACTORY RECALIBRATION AND FACTORY SERVICE
FOR ASSISTANCE:
CONTACT YOUR BELAR SALES REPRESENTATIVE
CUSTOMER SERVICE AT THE BELAR FACTORY.
Immediately upon receiving your equipment, please make a careful inspection for any shipping damage. If damage is found or
suspected, please notify the carrier at once and then contact your dealer or the BELAR factory. We strongly encourage you to
save the shipping carton and shipping materials supplied with your equipment. They are specially designed to properly protect
your equipment, and in the event that you need to return it for service, only these OEM shipping materials can ensure its safe
return to our factory.
All BELAR products are warranted against defects in materials and workmanship. This warranty applies for one year from the
date of delivery, FOB factory or, in the case of certain major components listed in the instruction manual, for the specified
period. BELAR will repair or replace products which prove to be defective during the warranty period provided that they are
returned to BELAR pre-paid. No other warranty is expressed or implied. BELAR is not liable for consequential damages.
ARETURN MATERIAL AUTHORIZATION NUMBER MUST BE OBTAINED FROM BELAR IN
ADVANCE OF RETURN.
$Please call (610-687-5550) or email ([e-mail]) to request an RMA number to display on the outside of your
shipping carton and all paperwork.
$A written statement with the name, address, telephone number & email address together with a brief description of the
work requested, must accompany all returns.
$The customer shall be responsible for all costs of transportation and insurance to and from the BELAR factory, and all
such costs must be prepaid.
PLEASE VISIT:WWW.BELAR.COM AND REGISTER YOUR PRODUCT SO WE MAY KEEP YOU
INFORMED OF THE LATEST HARDWARE AND SOFTWARE UPDATES.
We no longer ship PC Control Software with the units. Please visit www.belar.com and download the latest WizWin and
Server PC Control Software. Software updates will be posted on our website periodically. The FMCS-1 can be updated in the
field using the PC Software.

Table of Contents
1. General Information .......................................................................................................................................................1
2. Front Panel .....................................................................................................................................................................2
3. Rear Panel.......................................................................................................................................................................3
4. Main Tuning Screen ........................................................................................................................................................4
5. dB Readings Screen.........................................................................................................................................................5
6. Stereo Bargraph Screen...................................................................................................................................................5
7. SCA Bargraph Screen.......................................................................................................................................................6
8. Total dB Bargraph Screen ................................................................................................................................................6
9. Separation Bargraph Screen............................................................................................................................................7
10. Crosstalk Bargraph Screen ..........................................................................................................................................7
11. RF Spectrum Screen....................................................................................................................................................8
12. Composite Spectrum Screen.......................................................................................................................................8
13. Audio Spectrum Screen ..............................................................................................................................................9
14. RDS Basic Data Screen ..............................................................................................................................................10
15. Alarms/Relay Screen ................................................................................................................................................11
16. Popup Menus ...........................................................................................................................................................12
16-1. RF Popup Menu ........................................................................................................................................................... 12
16-2. Composite Popup Menu.............................................................................................................................................. 13
16-3. SCA Popup Menu......................................................................................................................................................... 13
16-4. RF Spectrum Popup Menu........................................................................................................................................... 14
16-5. Composite Spectrum Popup Menu ............................................................................................................................. 14
16-6. Audio Spectrum Popup Menu ..................................................................................................................................... 15
16-7. Unit Settings Popup Menu .......................................................................................................................................... 15
16-8. Output Settings Popup Menu...................................................................................................................................... 16
16-9. Network Status Popup Menu ...................................................................................................................................... 16
16-10. Network Configure Popup Menu............................................................................................................................ 17
16-11. Email Settings Popup Menu.................................................................................................................................... 17
16-12. Info Settings Popup Menu ...................................................................................................................................... 18
17. Software Setup and Unit Update Information...........................................................................................................19
17-1. Connecting to the unit using the RJ-45 Network Jack ................................................................................................. 19
17-2. Connecting to the unit using the RS-232 Port ............................................................................................................. 19
17-3. Updating the FMCS-1 Firmware .................................................................................................................................. 19
17-4. Updating the FMCS-1 Lantronix Ethernet Controller .................................................................................................. 19

FMCS-1 Monitor
BELAR ELECTRONICS LABORATORY, INC. Page 1
1. GENERAL INFORMATION
Description
The FMCS-1 provides a complete solution for the Analog portions of the FM signal. The unit
combines the features and functions of an RF amplifier, FM demod, stereo demod, RDS decoder,
SCA decoder, and FFT spectrum analyzer in one product. Using state of the art DSP techniques all
of the FMCS-1 processing takes place in the digital domain, this results in FM analog
performance that was previously not possible.
Features
Frequency Agile RF input
AM & Sync AM Noise measurements
HD RF carrier rejections filters to improve analog readings in the presence of HD carriers.
FM Demodulation with 100dB 75 µsec SNR
Variable Bandwidth Composite Filtering
Stereo Demodulation with 100dB L/R Separations
Full metering of Analog Peak and RMS values
RDS Injection/Phase and Full Data decoding
Two SCA Decoders
RF, Composite, and Audio FFT Spectrum Analysis
RJ-45 Ethernet Interface with remote PC software

FMCS-1 Monitor
Page 2 FMCS-1
2. FRONT PANEL
The FMCS-1 front panel consists of a 640x240 pixel color LCD display, a rotary encoder with
push switch and a headphone jack. To change screens rotate the encoder, to select a screen and
change any available parameters push on the knob. Once a screen is selected use the cursor to
select the parameters on a given screen, to change a parameter select and click on it. Selected
parameters change from yellow to green. When finished, click again to return to the cursor for that
screen, to exit the screen select the icon and click it. The encoder now returns to changing
screens.
To access the popup menus press and hold down the encoder for 2 seconds. To navigate the popup
menus rotate the encoder to highlight a menu choice and click the encoder. To exit the pop menu
at any time, hold down the encoder for 2 seconds.
The headphone jack is assignable to any available audio source. To assign the left and right
channels see the Outputs popup menu under Settings.

FMCS-1 Monitor
BELAR ELECTRONICS LABORATORY, INC. Page 3
3. REAR PANEL
High Level RF Inputs...............................................................................................................87.5 to 108.0 MHz, 0.5 to 5.0 Vrms, 50Ω, BNC connector
Antenna Input.............................................................................................................................87.5 to 108.0 MHz, 100µV sensitivity, 75Ω, F connector
Analog Composite Outputs................................................................................................. 1.5 Vrms @ 100% = 75 kHz deviation, 75Ω, BNC connector
Digital Composite Outputs....................................................................................................... LVDS encoded SCLK, FS, and SDATA, RJ-45 connector
AES-3ID Outputs............................................................................................................................AES encoded audio, 1.0Vpk-pk, 75Ω, BNC connector
Analog Audio Outputs........................................................................................................................................+10dBm, 600Ωbalanced, XLR connector
RS-232 Connector.......................................................................................................................................................................... Male, 9 pin D connector
PIN #
Type
Description
PIN #
Type
Description
1
Input
CTX
4
Output
RTS
2
Input
RX
5
Ground
GND
3
Output
TX
6 - 9
N/C
Ethernet Connector .....................................................................................................................................................................................................RJ-45
Remote Alarm Connector .......................................................................................................................................................Female, 15 pin D connector,
...................................................................................................................................Form C Relay contacts rated at 10W max, 0.5A max, 200 VDC max.
PIN #
Relay #
Description
PIN #
Relay #
Description
1
1
CM
8
3
NC
2
1
NC
9
3
NO
3
1
NO
10
4
CM
4
2
CM
11
4
NC
5
2
NC
12
4
NO
6
2
NO
13-15
N/A
N/A
7
3
CM

FMCS-1 Monitor
Page 4 FMCS-1
4. MAIN TUNING SCREEN
SCREEN DISPLAY DATA
Total Peak Indicator: Total Peak Modulation
Pilot Presence Indicator: Pilot Tone Presence
RDS Presence Indicator: RDS Carrier Presence
RDS Sync Indicator: Indicates the RDS decoder has synced to the RDS data stream as is decoding data
SCA#1 Presence Indicator: SCA#1 Carrier Presence
SCA#1 Peak Indicator: SCA#1 Peak Modulation
SCA#2 Presence Indicator: SCA#2 Carrier Presence
SCA#2 Peak Indicator: SCA#2 Peak Modulation
Total, Left, Right, L+R, L-R: Peak Modulation Data
Pilot Injection, Pilot Modulation: Pilot Injection Level, Pilot Modulation represents the AM modulation present on Pilot. This is an indication of off-
the-air reception quality or multi-path.
RDS Injection: RDS Injection Level
SCA#1 Injection, SCA#1 Peak, SCA#2 Injection, SCA#2 Peak: SCA Injection Level, SCA Peak Modulation is normalized to 100% to a selectable
1.0-7.0 kHz deviation.
RF Level: Indicates signal strength in dB for Antenna input, or percent of full scale input level for High Level inputs. To adjust the RF input level, use
the RF attenuator to bring the signal into the green region for proper operation. For both High Level and Antenna Inputs the RF Level indicates yellow
for low signal level values, green for normal levels, and red for overload levels.
SCREEN SELECTABLE DATA
To select a parameter click on the screen, then use the cursor to select the parameter using the knob, and click again. Adjust the parameter using the
knob and click to set the new value.
To exit this screen, select the screen icon (in the upper right corner of the screen) and push the rotary encoder dial to exit the screen command mode
and return to the screen selection mode.
Tuning Frequency: Selects the Tuning frequency of the FMCS-1 in 100 kHz steps. The unit tunes to the new frequency as the frequency is changed.
RF Attenuator: Adjusts RF input attenuator in 0.5dB steps from 0.0 to −31.5dB of attenuation. There are separate attenuators from the High Level and
Antenna Inputs.

FMCS-1 Monitor
BELAR ELECTRONICS LABORATORY, INC. Page 5

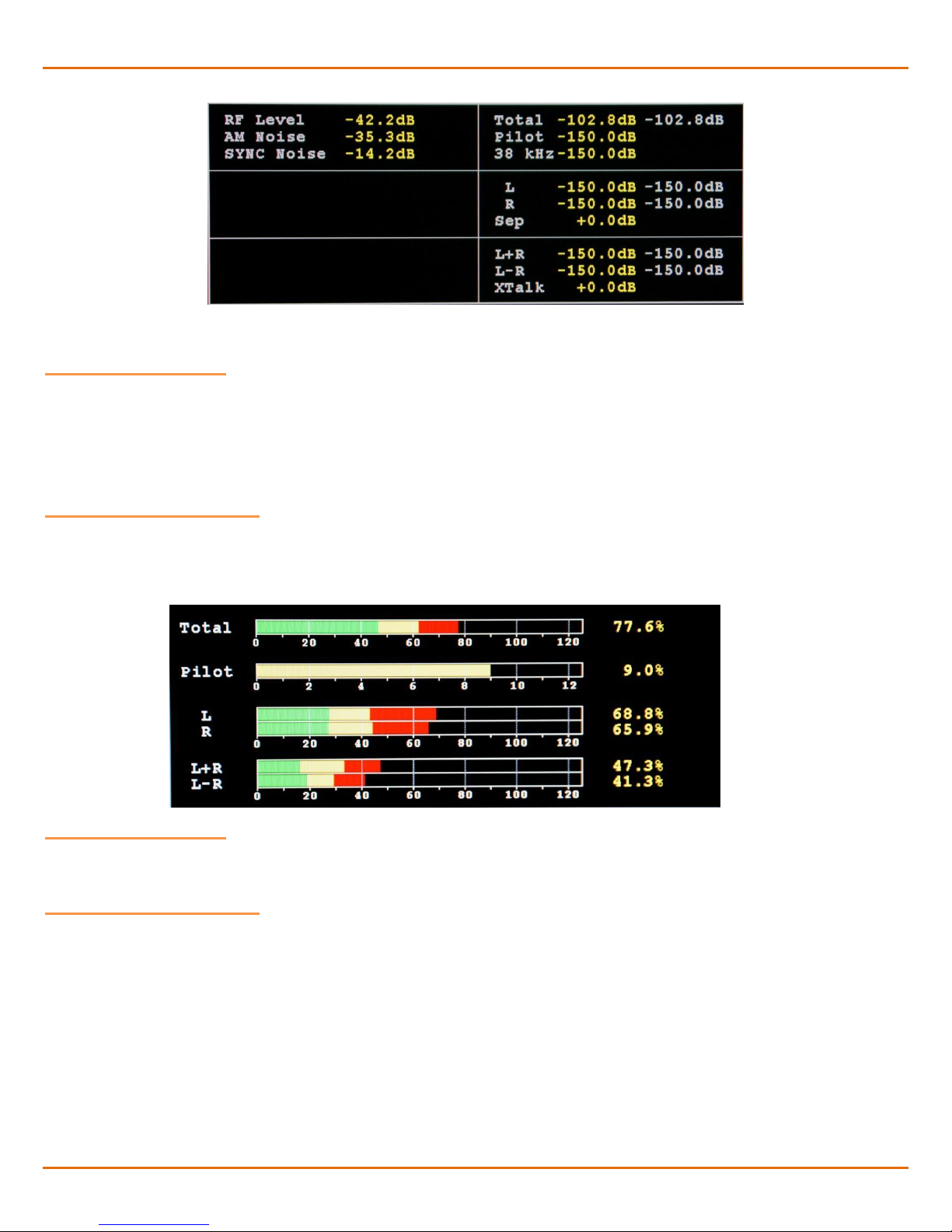

5. DB READINGS SCREEN
The dB readings screen contains all the dB RMS readings performed in the FMCS-1, the readings in white are de-emphasized, the yellow readings are
flat or wideband.
SCREEN DISPLAY DATA
RF Level: Depending on which RF Input is selected displays the dB level at the A/D Input, the input begins overloading at +3.0dB.
AM Noise: AM modulation present on the FM carrier, this reading is de-emphasized by definition.
SYNC Noise: AM modulation present on the FM carrier, this reading is wideband.
Total, Pilot, 38 kHz, L, R, L+R, L-R: All readings are referenced to 0dB = 100% modulation or 75 kHz deviation.
Sep, XTalk: Separation and Crosstalk readings are the difference between the flat Left and Right, or L+R and L-R readings.
SCREEN SELECTABLE DATA
None
6. STEREO BARGRAPH SCREEN
SCREEN DISPLAY DATA
Total, Pilot, Left, Right, L+R, and L-R: Peak Modulation bar graphs display the Peak (Red), Average (Yellow), and Min (Green) modulation data.
All readings a referenced to 100% at 75 kHz deviation.
SCREEN SELECTABLE DATA
None

FMCS-1 Monitor
Page 6 FMCS-1
7. SCA BARGRAPH SCREEN
SCREEN DISPLAY DATA
RDS Injection: RDS subcarrier injection as measured thru a 57 kHz BPF.
SCA#1 & SCA#2 Injection: SCA Injections are measured thru a user selectable variable bandwidth BPF; see SCA in the popup menus for settings.
SCA#1 & SCA#2 Peak: SCA Peak Modulation bar graphs display the Peak (Red), Average (Yellow), and Min (Green) modulation data. All readings a
referenced to 100% at a user specified deviation which is adjustable from 1.0 to 7.0 kHz. See the SCA popup menu.
All Injection readings are referenced to 100% at 75 kHz deviation.
SCREEN SELECTABLE DATA
None
8. TOTAL DB BARGRAPH SCREEN
SCREEN DISPLAY DATA
Total Modulation: Total Peak Modulation bar graph displays Peak (Red), Average (Yellow), and Min (Green) modulation data.
Total dB:Total dB bar graph displays Flat (Yellow) and De-Emphasized (Green) dB RMS data.
Pilot dB:Pilot dB bar graph displays the dB RMS value as measured thru the 19 kHz pilot BPF.
38 kHz dB:38 kHz Subcarrier dB bar graph displays the dB RMS value as measured thru the 38 kHz subcarrier suppression BPF.
All readings are referenced to 100% or 0.0dB at 75 kHz deviation.
SCREEN SELECTABLE DATA
None

FMCS-1 Monitor
BELAR ELECTRONICS LABORATORY, INC. Page 7
9. SEPARATION BARGRAPH SCREEN
SCREEN DISPLAY DATA
Left & Right Modulation: Peak Modulation bar graph displays Peak (Red), Average (Yellow), and Min (Green) modulation data.
Left & Right dB: dB bar graph displays Flat (Yellow) and De-Emphasized (Green) dB RMS data.
Separation dB:Separation dB bar graph displays the dB RMS value of the difference between the Left and Right Flat dB values. The measurement
assumes the larger signal is the wanted channel verse the lesser unwanted channel and represents the stereo separation.
SCREEN SELECTABLE DATA
None
10. CROSSTALK BARGRAPH SCREEN
SCREEN DISPLAY DATA
L+R & L-R Modulation: Peak Modulation bar graph displays Peak (Red), Average (Yellow), and Min (Green) modulation data.
L+R & L-R dB: dB bar graph displays Flat (Yellow) and De-Emphasized (Green) dB RMS data.
Crosstalk dB:Crosstalk dB bar graph displays the dB RMS value of the difference between the L+R and L-R Flat dB values. This measurement
assumes the larger signal is the wanted channel verse the lesser unwanted channel and represents the stereo crosstalk.
SCREEN SELECTABLE DATA
None
