Belkin F5L010 User manual

Laptop Power Adapter for travel
User Manual
EN
PL
CZ
HU
RU
SK
P75573ej_F5L010ej_man.indb 1 12/6/2007 1:36:53 PM

P75573ej_F5L010ej_man.indb 2 12/6/2007 1:36:53 PM

EN-1
Congratulations and thank you for purchasing the Laptop Power Adapter for travel from
Belkin. This new Adapter eliminates the need for multiple power supplies in today’s mobile
society. A user can connect to the most common sources of power including AC wall
sockets, cigarette-lighter assemblies (CLAs) that supply DC power from an automobile
battery, and DC power from a specially designed Belkin battery that can be connected to the
Adapter for short-term needs.
Through the use of patented power-tip technology, this Adapter will not only charge the most
popular laptops (12 tips are included), it will also charge the latest digital devices, including
cell phones, digital cameras, camcorders, portable DVD players, MP3 players, and more.
Introduction
P75573ej_F5L010ej_man.indb 1 12/6/2007 1:36:53 PM

EN-2
For terms and conditions, to activate your warranty, and to register your Laptop Power
Adapter, please visit www.belkin.com/europe-powersupply.
Product Registration and Warranty
For information on the disposal of this product
refer to http://environmental.belkin.com
P75573ej_F5L010ej_manual_uk.indd 2 09/01/2008 17:46:45

EN-3
Before use, please read the following important safety information.
Following these simple guidelines will ensure trouble-free operation and optimal
performance of the Laptop Power Adapter and compatible electronic devices.
1. Avoid pulling on the cords and cables. Always grip plugs firmly when unplugging from
power source and when disconnecting cables. Never force a power tip into an electronic
device.
2. Before use, completely review power-tip compatibility information found in the
instructions, or at www.belkin.com/ europe powersupply.
WARNING: Using the wrong power tip may damage your electronic device or cause it
to malfunction.
3. To avoid electrical hazard, be sure to unplug the Adapter from its external power source
before attaching the power tip.
4. For indoor use only. Avoid exposure to external heat sources; direct, prolonged sunlight;
dust; corrosive chemicals; and moisture.
5. It is normal for power adapters to become warm during use. Avoid touching the device
during use. Avoid placing in direct sunlight or near heat-sensitive materials.
6. Do not drop or subject the Laptop Power Adapter to undue shock.
7. Do not place anything on top of the Laptop Power Adapter.
8. Always use the supplied cables and connectors as shown. Use of cables, connectors,
or accessories not supplied with this product constitutes misuse and may result in injury
or damage.
9. Do not attempt to service or disassemble. The unit is not user-serviceable. Attempting
to disassemble or service the unit can result in electrical hazard, including death from
exposure to high voltage. If you experience problems with the unit, discontinue use
and contact Belkin for assistance. Attempting to open or service the unit voids all
warranties, express or implied.
Important: Safety Information
P75573ej_F5L010ej_man.indb 3 12/6/2007 1:36:53 PM

EN-4
AC Wall Outlets: The Laptop Power Adapter for travel can be operated from any standard
wall outlet using the attached AC power cord. After attaching the appropriate power tip (see
the “Tip Selection” section) to the output cable of the power supply, insert or attach the tip
to your device to begin charging. Power will immediately be delivered to your device whether
it is powered on or not. Generally, if your unit is not powered on, the battery will begin to
charge. It is normal for power supplies to be warm during use. Avoid placing it near heat
sources, direct sunlight, or heat-sensitive materials.
Air/Auto/Boat/RV: When mobile, the Laptop Power Adapter for travel can be operated using
the cigarette-lighter assembly (CLA) designed by Belkin, provided with this Laptop Power
Adapter. As noted above, after attaching the appropriate power tip (see section VI) to the
output cable of the power supply, insert or attach the tip to your device. Next, insert the CLA
into the socket provided in your vehicle. Power will now be supplied to your laptop or other
mobile device.
Many low-power devices, such as cell phones, PDAs, and MP3 players, can be powered
using the standard USB output. Simply insert the USB cable provided with your device into
the USB port to begin charging or to supply power.
Using the Laptop Power Adapter
P75573ej_F5L010ej_man.indb 4 12/6/2007 1:36:53 PM

EN-5
Technical Specifications
Input Voltage (AC) 100–240V
Input Voltage (CLA) 12–16VDC
Input Voltage (backbone – battery) 12–16VDC
Output Voltage 16–24V
Output Current 5A (max)
Output Power 69W
USB Output 5V @ 0 to 0.5A
Unit Dimensions 152 x 66 x 32mm
Weight 433.7g
AC Input Cable 635mm
DC Power Output Cable 172.7cm
CLA Cable 51.5cm
Storage Temperature -40 to 85° C
Operating Temperature 0 to 40° C
Relative Humidity (non-condensing) 95%, max
Built-In Circuit Protection Overvoltage, undervoltage,
over temperature
P75573ej_F5L010ej_man.indb 5 12/6/2007 1:36:53 PM

EN-6

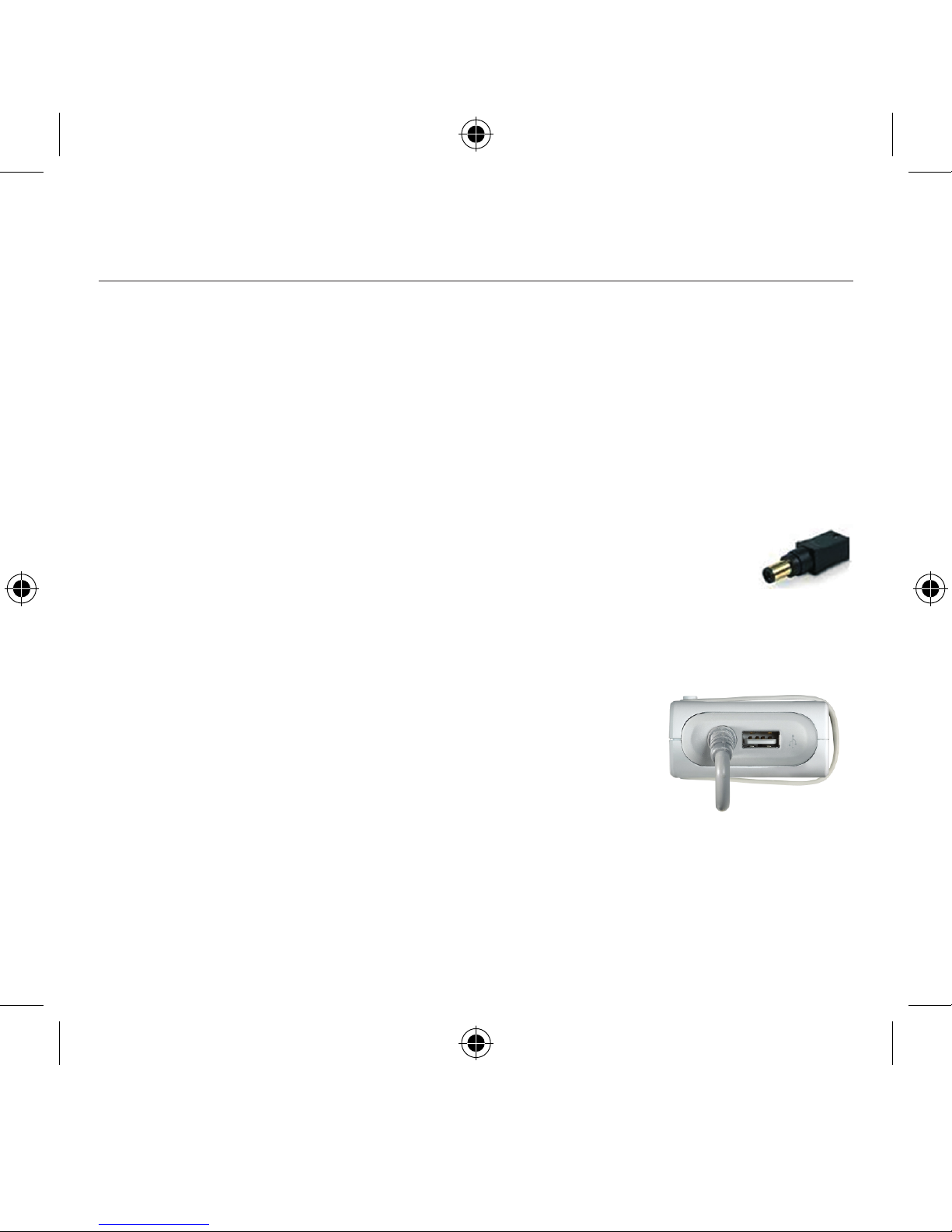

Belkin has made life easy for you by providing your new Laptop Power Supply with twelve
(12) power tips for virtually any PC-based laptop.*
To get going, follow these easy steps:
Unplug power supply
Choose power tip (see the “Tip Selection”x section and Tip Compatibility List)
Connect tip to output cable
Plug tip into laptop
Plug in power supply
If you wish to connect to a device using the built-in USB connector, the steps are similar:
Unplug power supply
Connect device cable to USB port
Plug cable into device
Plug in power supply
Getting Connected
P75573ej_F5L010ej_man.indb 6 12/6/2007 1:36:54 PM

EN-7
Tip Selection
Each laptop has a specific tip that can be used for power. These tips have different
dimensions and deliver different levels of current and voltage. It is important that you
choose the correct tip for your laptop.
Belkin has provided twelve (12) of the most popular laptop tips with this device (see table
below). The tips can be used with laptops from major manufacturers that include HP®,
IBM®, Toshiba®, Sony®, Dell®, and others.
Power-Tip Compatibility List
Tip # Laptop Manufacturer
1 Acer®
3 Gateway®, Acer, IBM
4 IBM
5 Hewlett-Packard®, NEC®, Toshiba
6 Panasonic®, Sony
7 Sony
8 Toshiba
11 Compaq®
29 Compaq, Hewlett-Packard
36 Dell
125 IBM
129 Hewlett-Packard
*Laptop Guarantee: If we didn’t include a tip for your laptop, tell us at www.belkin.com/europe-powersupply
and we’ll ship your first tip free! (Excludes Apple® laptops)
P75573ej_F5L010ej_man.indb 7 12/6/2007 1:36:54 PM

EN-8
If your device is not charging or operating properly, take the following steps:
1. Disconnect the Laptop Power Adapter from its power source.
2. Verify that the correct power tip has been installed by checking the Power-Tip
Compatibility List. NEVER force a power tip into an electronic device.
3. Reconnect the Laptop Power Adapter. Check that all connections are secure.
4. Plug the correct power tip into your electronic device. The device should begin charging
regardless of whether it is powered on or not.
5. Note that if the green power-indicator LED does not light, it may have simply burned out.
6. If you are still experiencing problems, please contact Belkin.
Troubleshooting
P75573ej_F5L010ej_man.indb 8 12/6/2007 1:36:54 PM

EN-9
CE Declaration of Conformity
We, Belkin International, Inc., declare under our sole responsibility that the F5L010, to which
this declaration relates, is in conformity with Generic Emissions Standard EN 55022 and with
Generic Immunity Standard EN 55024 and LVD 1998.
Belkin International, Inc., Limited Lifetime Product Warranty
What this warranty covers.
Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this Belkin product
that the product shall be free of defects in design, assembly, material, or workmanship.
What the period of coverage is.
Belkin warrants the Belkin product for the 3-Year Warranty.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge (except for
shipping charges for the product).
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided to Belkin
for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin
determines that the Belkin product has been improperly installed, altered in any way, or
tampered with. The Belkin Product Warranty does not protect against acts of God such
as flood, earthquake, lightning, war, vandalism, theft, normal-use wear and tear, erosion,
depletion, obsolescence, abuse, damage due to low voltage disturbances (i.e. brownouts or
sags), non-authorized program, or system equipment modification or alteration.
Information
P75573ej_F5L010ej_man.indb 9 12/6/2007 1:36:54 PM

EN-10
Information
How to get service.
To get service for your Belkin product you must take the following steps:
1. Belkin Ltd., United Kingdom [phone], within 15 days of the Occurrence. Be
prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then instruct you on how to
forward your receipt and Belkin product and how to proceed with your claim.
Belkin reserves the right to review the damaged Belkin product. All costs of shipping the
Belkin product to Belkin for inspection shall be borne solely by the purchaser. If Belkin
determines, in its sole discretion, that it is impractical to ship the damaged equipment to
Belkin, Belkin may designate, in its sole discretion, an equipment repair facility to inspect
and estimate the cost to repair such equipment. The cost, if any, of shipping the equipment
to and from such repair facility and of such estimate shall be borne solely by the purchaser.
Damaged equipment must remain available for inspection until the claim is finalized.
Whenever claims are settled, Belkin reserves the right to be subrogated under any existing
insurance policies the purchaser may have.
P75573ej_F5L010ej_man.indb 10 12/6/2007 1:36:54 PM

EN-11
Information
Technical Support
Technical support is available to all registered users of Belkin products.
Web Support
You may find the answer to your problem in the Frequently Asked Questions (FAQ) section of
the “Support Center” area on the Belkin website: www.belkin.com.
Registering Your Belkin Product
Register your Belkin product online at www.belkin.com.
P75573ej_F5L010ej_man.indb 11 12/6/2007 1:36:55 PM

EN-12
Information
You can find additional support information on our website www.belkin.com
through the tech-support area. If you want to contact technical support by phone,
please call the number you need from the list below*.
*Local rates apply
Country Number Internet adress
AUSTRIA 08 - 20 20 07 66 http://www.belkin.com/uk
BELGIUM 07 07 00 073 http://www.belkin.com/nl
CZECH REPUBLIC 23 900 04 06 http://www.belkin.com/uk
DENMARK 701 22 403 http://www.belkin.com/uk
FINLAND 00800 - 22 35 54 60 http://www.belkin.com/uk
FRANCE 08 - 25 54 00 26 http://www.belkin.com/fr
GERMANY 0180 - 500 57 09 http://www.belkin.com/de
GREECE 00800 - 44 14 23 90 http://www.belkin.com/uk
HUNGARY 06 - 17 77 49 06 http://www.belkin.com/uk
ICELAND 800 8534 http://www.belkin.com/uk
IRELAND 0818 55 50 06 http://www.belkin.com/uk
ITALY 02 - 69 43 02 51 http://www.belkin.com/it/support/tech
LUXEMBOURG 34 20 80 8560 http://www.belkin.com/uk
NETHERLANDS 0900 - 040 07 90
€0.10 per minute http://www.belkin.com/nl
NORWAY 815 00 287 http://www.belkin.com/uk
POLAND 00800 - 441 17 37 http://www.belkin.com/uk
PORTUGAL 707 200 676 http://www.belkin.com/uk
RUSSIA 495 580 9541 http://www.belkin.com/uk
SOUTH AFRICA 0800 - 99 15 21 http://www.belkin.com/uk
SPAIN 902 - 02 43 66 http://www.belkin.com/es/support/tech
SWEDEN 07 - 71 40 04 53 http://www.belkin.com/se/support/tech
SWITZERLAND 08 - 48 00 02 19 http://www.belkin.com/uk
UNITED KINGDOM 0845 - 607 77 87 http://www.belkin.com/uk
OTHER COUNTRIES +44 - 1933 35 20 00
P75573ej_F5L010ej_man.indb 12 12/6/2007 1:36:55 PM

EN-13
P75573ej_F5L010ej_man.indb 13 12/6/2007 1:36:55 PM

F5L010ej P75573ej
Belkin Tech Support
Europe : www.belkin.com/support
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
[phone]
[phone] fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, Netherlands
[phone]
[phone] fax
Belkin GmbH
Hanebergstraße 2,
80637 Munich, Germany
[phone]
[phone] fax
Belkin SAS
130 rue de Silly
92100 Boulogne Billancourt, France
[phone]
[phone] fax
Belkin Iberia
C/ Anabel Segura, 10 planta baja, Of. 2
28108, Alcobendas, Madrid, Spain
[phone]
[phone] fax
© 2007 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective
manufacturers listed. Apple is a trademark of Apple Inc., registered in the U.S. and other countries.
P75573ej_F5L010ej_man.indb 14 12/6/2007 1:36:55 PM

Podróżny zasilacz do laptopa
Podręcznik użytkownika
PL
P75573ej_F5L010ej_man.indb 15 12/6/2007 1:36:56 PM

P75573ej_F5L010ej_man.indb 16 12/6/2007 1:36:56 PM

PL-1
Dziękujemy za zakup podróżnego zasilacza firmy Belkin do laptopa. To nowe
urządzenie eliminuje konieczność stosowania wielu zasilaczy w warunkach pracy
mobilnej. Umożliwia podłączanie notebooka do różnych źródeł zasilania, w tym do
gniazda ściennego, modułu gniazda zapalniczki zasilanego z akumulatora pojazdu
oraz na krótki czas do gniazda prądu stałego specjalnego akumulatora firmy Belkin.
W zasilaczu zastosowano opatentowaną technologię końcówek przyłączeniowych.
Dzięki temu można zasilać nie tylko najpopularniejsze modele notebooków (w
zestawie jest 12 końcówek), ale także najnowsze urządzenia cyfrowe, w tym telefony
komórkowe, aparaty cyfrowe, kamery, przenośne urządzenia DVD, odtwarzacze MP3
i inne.
Wprowadzenie
P75573ej_F5L010ej_man.indb 1 12/6/2007 1:36:56 PM

PL-2
Aby zapoznać się z warunkami gwarancji i uaktywnić ją, oraz aby zarejestrować
posiadany zasilacz do laptopa, należy odwiedzić stronę www.belkin.com/europe-
powersupply.
Rejestracja produktu i gwarancja
Informacje o pozbywaniu się produktu po
zakończeniu eksploatacji można znaleźć na stronie
http://environmental.belkin.com.
P75573ej_F5L010ej_man.indb 2 12/6/2007 1:36:56 PM
