Thank you for buying this British-built appliance from us.
This user guide book is designed to help you through each step of owning your new product.
Please read it carefully before you start using your appliance, as we have endeavored to answer as
many questions as possible, and provide you with as much support as we can.
General information, spares and service information is available from our website.
If you should nd something missing from your product or have any questions that are not covered in
this user guide, please contact us (see contact information inside the front cover).
European Directives
As a producer and a supplier of cooking appliances we are committed to the protection of the environ-
ment and are in the compliance with the WEEE directive. All our electric products are labelled
accordingly with the crossed out wheeled bin symbol. This indicates, for disposal
purposes at end of life, that these products must be taken to a recognized collection points,
such as local authority sites/local recycling centres.
This appliance Complies with European Community Directives (CE) for household and similar electrical
appliances and Gas appliances where applicable.
This appliance conforms to European Directive regarding Eco design requirements for energy-related
products. Our policy is one of constant development and improvement, therefore we cannot guarantee
the strict accuracy of all of our illustrations and specications - changes may have been made subse-
quent to publishing.
Disposal of Packaging Material
The packaging materials used with this appliance can be recycled. Please dispose of the packaging
materials in the appropriate container at your local waste disposal facilities.
UK ONLY GAS WARNING:
If you smell gas, Do not try to light any appliance. Do not touch any electrical switch.
Call the Gas Emergency Help line at 0800 111999
INTRODUCTION

WARNING
• If the hob surface is cracked, broken or shattered, switch off the
appliance to avoid the possibility of electric shock and call for a
service engineer’s visit.
• During use the appliance becomes hot. Care should be taken to
avoid touching heating elements.
• The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements. Children
less than 8 years of age shall be kept away unless continuously
supervised. This appliance can be used by children aged from 8
years and above and persons with reduced physical sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning the use of
the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
• Do not use a steam cleaner on any cooking range, hob or oven
appliance.
• Metallic objects such a knives, forks, spoons and lids should not
be placed on the hob surface since they can get hot.
• If your appliance is tted with a lid, any spillage should be removed
from the lid before opening. The hob surface should be allowed to
cool before closing the lid.
• After use, switch off the hob element by its control and do not rely
on the pan detector.
• To avoid electric shock, ensure that the appliance is switched off
before replacing the lamp.
• The appliance is not intended to be operated by means of an
external timer or separate control system.
• Unattended cooking on a hob with fat or oil can be dangerous and
may result in re.
SAFETY

• NEVER try to extinguish a re with water, but switch off the
appliance and then cover the ame with a lid or damp cloth.
• Danger of re: Do not store items on the cooking surfaces.
• Only use hob guards designed by the manufacturer of the cooking
appliance or indicated by the manufacturer of the appliance in
the instructions for use as suitable or hob guards incorporated in
the appliance. The use of inappropriate hob guards can cause
accidents.
• If the cooker is placed on a base, measures have to be taken to
prevent the appliance slipping from the base.
• Never put items directly on the base of the oven or cover the oven
with foil, as this can cause the base element to overheat.
CAUTION
• The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
• This appliance must not be installed behind a decorative door in
order to avoid overheating.
• Fire Safety Advice
If you do have a re in the kitchen, don’t take any risks - get everyone out of your home and call the
Fire Brigade.
Ifyouhaveanelectricalreinthekitchen:
• Pull the plug out, or switch off the power at the fuse box - this may be enough to stop the re imme-
diately
• Smother the re with a re blanket, or use a dry powder or carbon dioxide extinguisher
• Remember: never use water on an electrical or cooking oil re.
• Other Safety Advice
• Servicing should be carried out only by authorised personnel.
• Do not operate the appliance without the glass panel correctly tted.
• Do not modify the outer panels of this appliance in any way.
• This appliance must be earthed.
• The appliance must never be disconnected from the mains supply during use, as this will seriously
affect the safety and performance, particularly in relation to surface temperatures becoming hot and
gas operated parts not working efciently. The cooling fan (if tted) is designed to run on after the
control knob has been switched off.
• GAS WARNING! - If you smell gas: Do not try to light any appliance, Do not touch any electrical
switch. Contact your local gas supplier immediately.

USING YOUR APPLIANCE
Getting to know your product
Note: Your appliance layout may differ depending on the model.
Hob
Left hand rear
Left hand front
Right hand rear
Right hand front
Centre
Minus key On/Off key
Cook zones
Bridge symbolBridge symbol
Cook zones
Cook zones
Cook zones
Timer
Cook zones

Control Panel
Appliance functions
Note: Your oven may not have all of the functions shown here. We recommend for best cooking results,
please preheat your oven for 15 minutes and 3-5 minutes for grilling.
Do not try to slow cook using any of the other oven functions.
Defrost
Fanned Oven
Base Heat
Lights only
Conventional Grill
Conventional Oven
Oven Selector Control
Base Heat with fan
Intense Baking
Low Grill
Single Grill
Top Heat
Dual Grill
Fanned Grill
SSlow Cook
Clock/Programmer
Thermostat indicator
Thermostat indicator (Top oven only)
Oven / Grill controls
Top oven/Grill or Grill
Oven Oven

Single grill Dual Grill
OFF
1
7
8
2
3
4
5
6
OFF
1
2
3
4
5
1
2
3
4
5
D
u
a
l
G
r
i
l
l
S
i
n
g
l
e
G
r
i
l
l
Top oven/Grill Oven
OFF
60
80
100
120
140
160
180
200
220
240
260
OFF
60
80
120
140
160
180
200
220
240
S
Ovens and Grill
Main ovens and Top oven/Grill Grill only
When using the top oven or main oven, the red thermostat indicator will come on until the selected
temperature is reached.
When the Top oven/grill or grill is switched on, the cooling fans comes on to keep the fascia and control
knobs cool during cooking/grilling. The cooling fans may operate when the main ovens are in use,
depending on the temperature setting. The fans may continue to operate for a period after the oven/grill
has been switched off. During use the fan may cycle on and off, this is normal.
Important: Never put items directly on the base of the oven, or cover the oven base with foil, as this
may cause the element to overheat. Always position items on the shelf.

The right hand main oven will not operate if the programmer is set to Auto, see clock/programmer
section.
Grill
THE DOOR MUST BE OPEN WHEN THE GRILL IS USED FOR CONVENTIONAL GRILLING.
Grill pan, trivet and detachable grill pan handle
The grill trivet, inside the grill pan, can be inverted to give a high or low position, or it may be removed.
The speed of grilling can be controlled by selecting a higher or lower shelf position, or adjusting the grill
setting.
Inverted

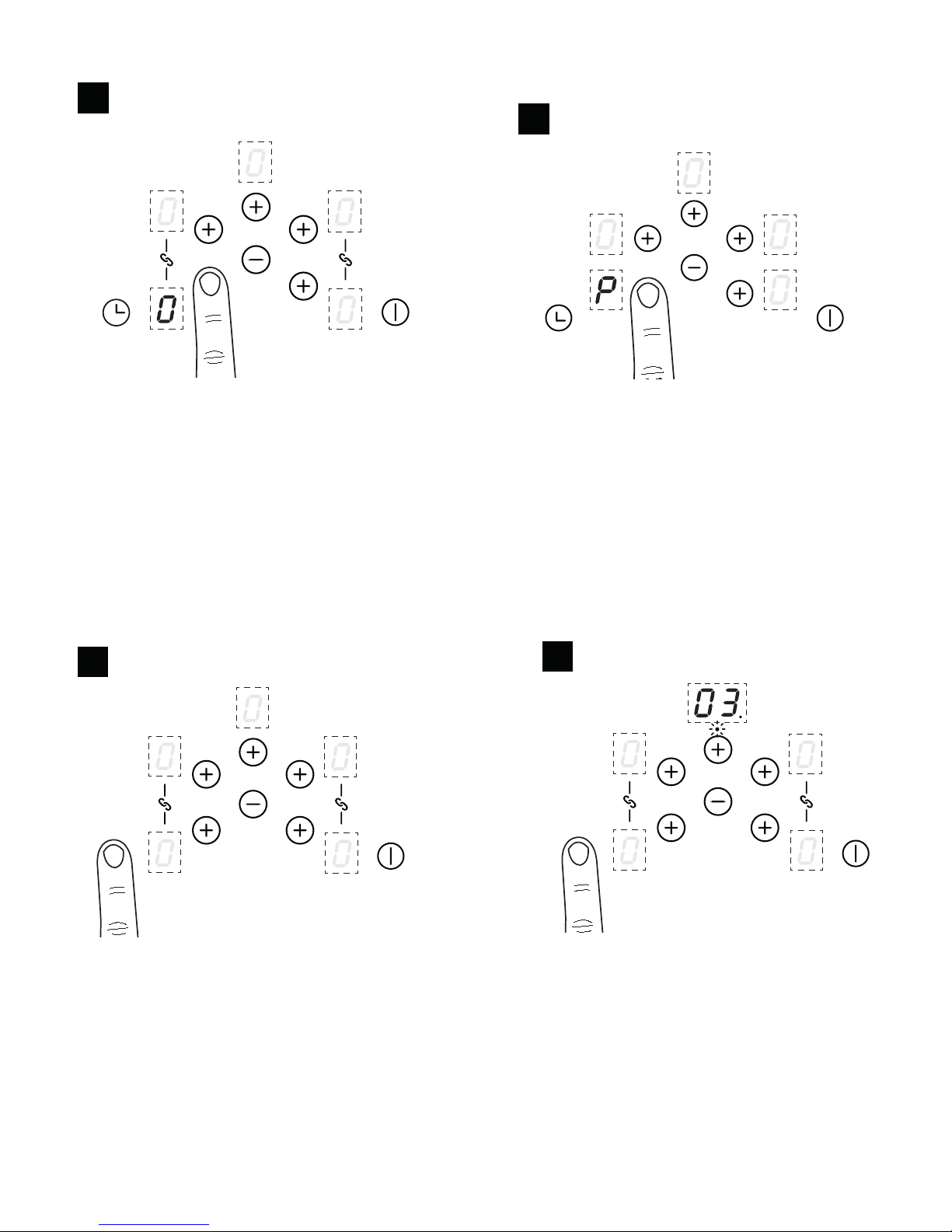

Hob Overview

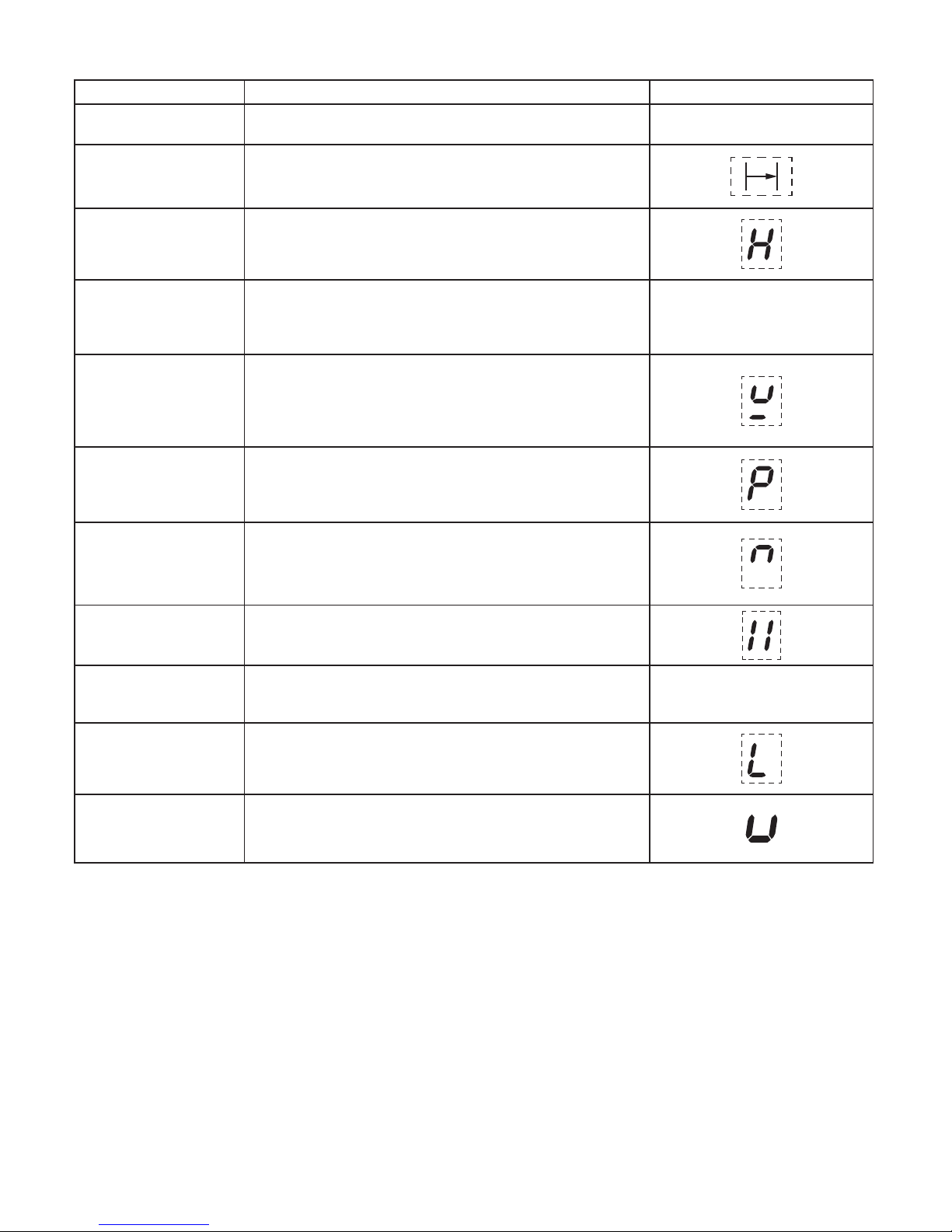

Function Description Symbol
Power Level Once a cook zone is selected, a power level can be set to a
low or high temperature. 1-9
Cook zone timer
Once a cook zone is selected, the cook zone timer can be activated
to sound after a pre-determined amount of time. When the alarm
sounds, the cook zone will turn off.
Residual Heat After use, the cooking surface remains hot and the residual
heat symbol will be displayed.
Automatic switch off
Each cook zone is pre-set with a maximum operation time.
Once this time is reached, the zone will automatically switch
off. The residual heat symbol will be displayed if the surface
remains hot.
N/A
Pan detection
If no pan or an unsuitable pan is detected on an activated
cook zone, the pan detection symbol will be displayed.
Suitable pans - cast iron, metals with magnetic properties.
Non-suitable pans - copper, stainless steel, aluminium,
glass, ceramic, terra-cotta.
Booster function
The booster function temporarily increases the power to a
cook zone allowing for a faster heat up time. It will deactivate
automatically after 10 minutes or if a lower power level is
selected.
Bridge function
Individual cook zones can be bridged or joined together to
create a larger, single controlled cook zone. By bridging the
left hand front and rear zones or the right hand front and rear
zones, two larger cook zones can be created.
Pause
When at least one cooking zone is in operation, the pause
function can be activated. This will pause all cooking on the
hob for up to 10 minutes.
Recall function
While the hob is in use, if it is accidentally turned off, turn
the hob back on within 6 seconds and the settings will be
restored.
N/A
Child lock Child lock can be activated to stop the hob from being
accidentally turned on.
Low temp/keep warm
This setting temperature is set to allows the user to keep
food warm without over cooking. This setting can also thaw
frozen foods.

Caution: Always ensure that induction pans remain within the marked cooking area when hot. Do not
allow hob pans to rest on the user control panel at the front of the hob glass, as this will cause the
controls to overheat and the appliance to temporarily shut down.
Please be aware that the pans can make a noise during cooking. This is caused by vibration due to the
passage of energy from the hob to the pan.
Switching the appliance On/Off
1Press and hold the On/Off key to activate
the appliance
2Press and hold the On/Off key to deactivate
the appliance
If within 20 seconds, no action (zone or timer selection) takes place the hob will automatically switch off.
Switching a cook zone On/Off
1Touch the plus key for the relevant cook zone
2Touch the cook zone plus key and the
central minus key to set a power level
Note: Setting the power level to “0” will switch off the cook zone.

Griddle zone with bridge function
1Press the Front Left or Front Right key and
hold until the bridge function blinks
2Press the corresponding rear key
immediately to activate
3Once activated, set the power level by touching
the front zone plus key and central minus key
The Left Hand and Right Hand zones can be used as 4 separate cooking zones which can be
controlled individually or they can be bridged to provide 2 large zones that can be controlled via one
setting on each side. Large pans and griddle plates can be placed across the bridged zones.

Low temperature setting/Keep warm
This function can be used when the cook zone(s) are in the bridge function.
1Touch the plus key for the relevant cook zone
2Touch the cook zone plus key to select “u”
The “u” symbol can be found between power level “0” and “1”. Use the relevant cook zone plus key and
central minus key to scroll through the power levels.
Pause key
Ensure a cooking level has been set
1Press and hold central minus key
2Press and hold central minus key until
beep, then immediatley press any cook
zone plus key to de-activate
If the pause mode is not de-activated within 10 minutes, the hob will switch off.
Recall
If the hob is switched off accidentally, all the settings can be restored within 6 seconds by pressing the
On/Off key, followed by the central minus key to resume cooking.

Booster function
1Touch the plus key for the relevant cook zone
2Use the cook zone plus key and the central
minus key to select “P”
For quick operation, touch the minus key for quicker access to the Power Boost level.
The power boost function can temporarily boost the power to a cook zone. This function is not available
in bridge mode.
Note: The Power Boost function will only operate for a limited time and will deactivate automatically if
the product is hot or overheating.
Setting the Minute minder
1Touch the timer key
2Set the time by pressing the timer key
or the minus key

3The time will set when no key is pressed
after 1 second. A dot will flash in the
timer display. The time will count down
4The timer display will flash and beep will
be heard when the time is up. Touch any
key to stop the beeping
The maximum time that can be set is 99 minutes.
To modify or cancel the Minute minder
Repeat “Setting the Minute minder” steps to modify the timer.
Setting the time back to “00” will cancel the minute minder.
Timer auto switch off
Ensure power level is already set before selecting a cook zone to be timed.
1Touch the cook zone plus key
2
Touch the timer key

3Set the time by pressing the timer or the
minus key. The cook zone timer symbol
will appear next to the selected cook zone.
4The time is set when no key is pressed
after 1 second
When the time is up, the timer display will ash, beep and the cook zone will automatically switch off.
Touch any key to stop the beeping.
To modify or cancel the auto switch off
Repeat the “Setting a cook zone timer” steps to set a time for other cook zones or modify a set time.
Setting the time back to “00” will cancel the minute minder.
Additional timer information
If multiple zones have been set for timed operation, the timer display will always display the time for the
cook zone with the shortest time remaining. To check the timer setting for a different cook zone, simply
select the required cook zone, the remaining time will briey appear in the timer display.
To activate child lock
The appliance must be switched on.
1
Touch and hold the On/Off key for 3
seconds until the “L” symbol appears on all
cook zone displays
When you now switch on the appliance “L” will appear in all the cook zone displays. The child lock fea-
ture will be permanently activated.

To de-activate the child lock
1
Touch and hold the On/Off key to deactivate
the child lock. “L” symbol will disappear
Once the child lock is deactivated, the appliance can continued to be used.
Auto stand by
The hob will automatically switch off if left (with pan) on for an extended period of time, see maximum
running times below
Power Level Maximum Operation Time
hours
1 8
2 6
3 5
4 5
5 4
6 1.5
7 1.5
8 1.5
9 1.5
P (Power Boost) 5 minutes

Appliance errors
Appliance
Errors Fault Description Action
E2 Induction coil overheating Remove pans and allow to cool
E8 Fan blocked to appliance
Check installation allows for free air ow,
clean cooling fan inlets on the underside of
the hob
E3 Water or pans on the glass
above the user controls
Clean any water on the surface above user
controls/display
E6 Mains power disturbance Supply to appliance must be checked-Contact
electrician
E/H Temperature sensor issue Allow system to cool

Please be aware that only the main oven is controlled by the programmer.
Clock / Programmer
Note: Your clock / programmer may not have all these functions
Minute minder
MenuMinus Plus
Cooking time / Duration
End of cooking time
Time of day
Keylock
Auto cooking
Automatic mode
Manual mode
Volume level
7-segment display
Max. adjustable minute minder
Max. adjustable cooking time
Display hours:minutes
Display minutes:seconds
, ,
Using the touch controls
Menu - Scroll through to select a function
Plus - Increase time or volume
Minus - Decrease time or volume
When a function is selected and the time or volume is set, the chosen function will automatically start
seven seconds after setting.
Manual Mode
If the programmer is not in semi-automatic or full-automatic mode you can use oven functions manually.
The manual icon is also on the display.

Setting the time of day
By pressing menu, scroll through the functions until you reach ‘time of day’.
1
2Press the plus or minus buttons to set a time
Setting the minute minder
The maximum cooking time that can be set is 99 minutes.
1
2Press the plus or minus buttons to set a time
Once set, the minute minder will start to countdown in steps of seconds. The display will show the
minute minder symbol and the remaining time. The countdown will continue in the background, if other
functions are being set.
When the set time for the minute minder has completed, an alarm is heard and the minute minder
symbol will ash on the display. Press any button to stop the alarm and the time of day is displayed.
