Belling BI 90 MF and Instruction Manual

Belling BI 90 MF

IMPORTANT NOTICE
Please note the cooling fan fitte to this appliance is an integral part of its safety
an functionality.
When the appliance is installe care must be taken that the cooling fans perfor-
mance is not impe e by any objects coming into contact with it. (Installation
pipes, lea s etc)
Care must also be taken that there is sufficient air flow at the rear of the appliance
for the cooling fan to run at its optimum efficiency. (Particularly Built In appliances)
See clearance imensions in the installation section of the booklet.
During use the Appliance must never be isconnecte from the Mains supply as
this will seriously affect the safety an performance of the appliance, particularly
in relation to surface temperatures becoming hot an gas operate parts not work-
ing efficiently.
The cooling fan is esigne to run on after the control knob has been switche off
to keep the front of the appliance an the controls cool until the appliance has nat-
urally coole itself.

User’sSection ..................................... 2 - 19
Intro uction.................................................2
Functions...................................................4
BeSafe-NotSorry............................................5
UsingtheGrills...............................................6
Grillinginthetopoven.........................................7
Grillinginthemainoven........................................7
UsingtheTopOven ...........................................8
UsingtheMainOven..........................................9
Oven cooking 10
Conventional Oven 11
Top Heat Only 11
Base Heat Only 11
Fan Oven 11
Fan & Base Heat Only 11
Intensive Bake 11
Defrosting and cooling 12
Slow cooking 12
Programmer/Clock..........................................13
Cleaning .................................................19
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 - 23
Step1:Prepareinstallation.................................21&22
Step 2: Connect to electricity supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Step 3: Secure appliance to cabinetry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TechnicalData .......................................24
CustomerCare.................................BackPage
1
CONTENTS

Thank you for choosing a
British built appliance by
Belling.
We hope the following information
will help you to quickly familiarise
yourself with the features of the
appliance, an to use it successfully
an safely.
Our policy is one of constant
evelopment an improvement. Strict
accuracy of illustrations an specifications
is not guarantee . Mo ification to
esign an materials may be necessary
subsequent to publication.
Please rea the instructions in this
han book before using or installing
this appliance.
Your 1st year guarantee
To fulfil the con itions of your guarantee,
this appliance must be correctly
installe an operate , in accor ance
with these instructions, an only be
use for normal omestic purposes.
Please note that the guarantee, an
Service availability, only apply to the
UK an Republic of Irelan .
Before using the appliance for
the first time, remove any protective
polythene film an wash the oven
shelves an furniture in hot soapy
water to remove their protective
covering of oil. Even so, when you
first turn on the oven or grill you may
notice a smell an some smoke.
Condensation
When hot an col air meet,
con ensation forms. The outer oor is
air coole an the inner oor gets hot,
so some con ensation might form; this
is normal an will isappear within 10
- 15 minutes.
Electrical connection
Please refer to installation instructions
for electrical connection.
In your own interest, an that of safety,
make sure that the installation is carrie
out by a competent person.
Disconnection of electric appliances
shoul always be carrie out by a
competent person.
Warning: This appliance must be
earthe .
In the event of a power cut
1. Switch off the electricity supply to the
appliance at the cooker control unit.
2. When the power returns, see the
‘Programmer / Clock’ section to
‘Set the time of ay’.
2
INTRODUCTION

To replace an oven light bulb
WARNING - switch off the electricity
supply to the appliance at the socket,
to avoi the risk of electric shock.
Wait until the oven is cool, then
remove the oven shelves.
The oven light is at the rear of the oven
cavity.
Unscrew the lens cover (turn anticlock-
wise). Unscrew the bulb an replace.
Replace lens cover.
Please note that the oven light bulb is
not covere by guarantee.
Environmental Protection
We are committe to protecting the
environment an operate an
Environmental Management System
which complies with BS EN ISO
14001:1996.
Disposal of packaging
• All our packaging materials are
recyclable an environmentally
frien ly.
• Please help us to protect our
environment by isposing of all
packaging in an environmentally
frien ly manner.
• Please contact your local authority
for the nearest recycling centre.
Caution: Packaging materials can
pose a risk of suffocation - keep away
from chil ren.
The appliance is esigne to fit into
a stan ar 600mm wi e housing
unit with a minimum internal height of
880mm.
Cooling fan
The cooling fan helps to keep the
exterior cool uring normal use.
When an element is operate , you
shoul heat the cooling fan switch on
automatically an be able to feel air
evacuating from the appliance vents
just below the fascia.
The cooling fan will continue to operate
for approximately 10 minutes after
turning off the elements. This is normal.
If there is no such in ication that the
fan is operating, the appliance will
require servicing.
DO NOT USE THE
APPLIANCE UNTIL IT HAS BEEN SERVICED .
Switch the appliance off at the mains
an contact Customer Support.
Glass panels
To meet the relevant Stan ar s of
Domestic cooking appliances, all the
glass panels on this appliance are
toughene to meet the fragmentation
requirements of BS3193. This ensures
that, in the unlikely event that a panel
breaks, it oes so into small fragments
to minimise the risk of injury.
Please take care when han ling, using
or cleaning all glass panels as any
amage to the surfaces or e ges may
result in the glass breaking without
warning or apparent cause at a later
ate. Shoul any glass panel be
amage , we strongly recommen
3
INTRODUCTION

Symbol Function / Feature Top Main
Oven Oven
Conventional Grill page 7 page 7
Economy Grill page 7 -
Fanne Grill - page 7
Conventional Oven page 8 page 11
Top Heat Only page 8 page 11
Base Heat Only page 8 page 11
Fanne Oven - page 11
Fan an Base Heat Only - page 11
Intensive Bake - page 11
Defrosting an Cooling - page 12
Oven Temperature Control 
Oven Selector Control - 
4
FUNCTIONS

When you are cooking, keep
children away from the vicinity
of appliance.
This pro uct is esigne as a omestic
cooking appliance for the preparation
an cooking of omestic foo
pro ucts, an shoul not be use for
any other purpose.
• Remove all packaging from the
appliance before using for the
first time.
• Make sure you rea an
un erstan the instructions before
using the appliance.
• Keep electrical lea s short so they
o not rape over the appliance
or the e ge of the worktop.
• Keep all flammable materials (such
as curtains, furnishings & clothing)
away from the appliance.
• Parts of the appliance may be hot
uring or imme iately after use.
Care shoul be taken to avoi
touching heating elements insi e
the oven. Allow sufficient time for
the appliance to cool after
switching off.
• When opening the appliance
oor, take care to avoi skin
contact with any steam which may
escape from the cooking.
• Do not use aluminium foil to cover
the grill pan, or put items wrappe
in foil un er the grill, as this creates
a fire hazar . The high reflectivity
can also amage the element.
• Do not use the oven with the oor
inner glass panel remove .
• Do not rape tea towels over the
flue vents or oors, as this creates
a fire hazar .
• Use oven gloves when removing
hot foo / ishes from the oven or
grill. The oven / grill an utensils
will be very hot when in use.
• Do not use foil on oven shelves, or
allow it to block the oven flue, as
this creates a fire hazar , an
prevents heat circulation.
• When cooking heavy items - eg;
turkeys - o not pull the oven shelf
out with the item still on the shelf.
•Drop-down doors: Do not place
items on the oor when open.
• Switch off the electricity supply
before replacing the oven light
bulb, to avoi the possibility of
electric shock.
• Never use the appliance for
heating a room.
All installation, servicing an
maintenance work shoul be carrie
out by a competent person who will
comply with current Regulations,
Stan ar s an Requirements.
Warning: This appliance must be
earthe .
When you have finished
cooking check that all controls
are in the off position.
5
BE SAFE - NOT SORRY

Caution: Accessible parts may
be hot when the grill is used,
young children should be kept
away.
Using the grills
The 900 has a grill in both oven cavi-
ties.
The top oven grill is a fully variable
ual grill.
The main oven features fixe rate
grilling - a single element conventional
grill, an a fanne grill function.
Follow the instructions given on the
next page when operating these grills.
Preheating
For best results, preheat the grill for
3 - 5 minutes.
Aluminium foil
Using aluminium foil to cover the grill
pan, or putting items wrappe in foil
un er the grill can create a fire hazar ,
an the high reflectivity can amage
the grill element.

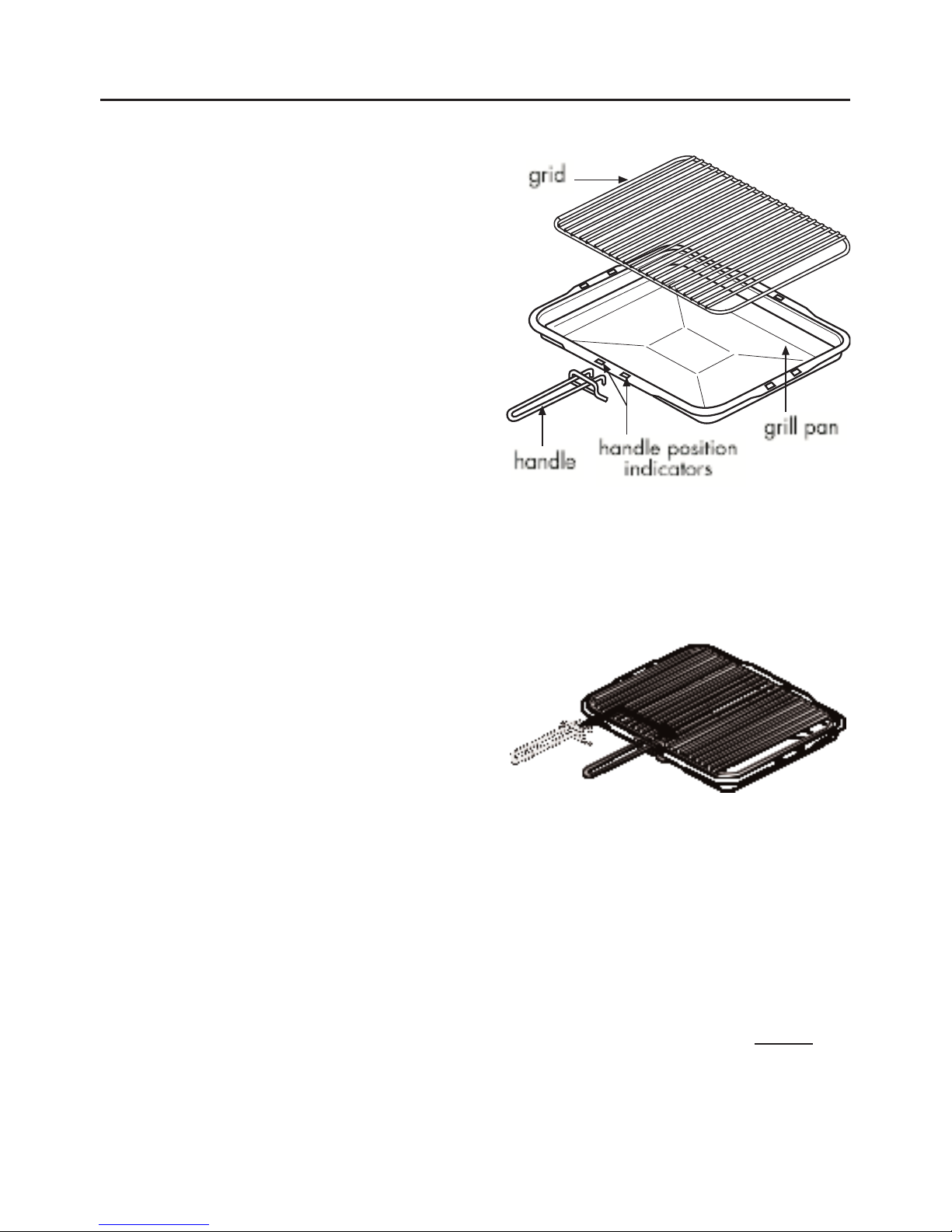

Detachable grill pan handle
Place the han le over the e ge of the
grill pan, at the narrow si e e ges.
Sli e the han le to the centre, an
locate between the han le position
in icators.
The han le shoul be remove from
the pan uring grilling, to prevent
overheating.
The han le is esigne for removing /
inserting the grill pan un er the grill
when grilling.
If cleaning the grill pan when it is hot,
use oven gloves to move it. Do not use
the han le to pour hot fats from the
grill pan.
Foo for grilling shoul be positione
centrally on the trivet.
6
USING THE GRILLS

Grilling in the top oven
The top oven grill is a fully variable
ual grill.
To switch on the grill
Important: The top oven / grill oor
must be kept open when the top oven
grill is use - either fully open or using
the oor stop position - open the oor
about 75mm an it will hol open. If
the grill oor is close whilst the grill is
in use, it will cause the grill oor to
become hot.
Turn the oven control knob either
clockwise to use the full grill set-
tings, or clockwise to the economy
grill settings, Then select 1 - 8 on the
grill control.
The economy grill settings only use the
inner element of the grill.
To switch off, return the control knob to
the “” off position.
Grilling in the main oven
The main oven grill & fanne grill are
fixe settings using the inner element only.
Make sure that the programmer is set
to manual before grilling.
Conventional grill
The oor must be open when the grill
is use for conventional grilling - either
fully open or using the oor stop
position - open the oot about 75mm
an it will hol open.
If the grill oor is close while the grill
is in use, the grill will cycle on an off
at a high temperature, causing the
oor to become hot.
(i) Turn the selector control knob to
the conventional grill setting.
(ii) Turn the oven temperature control
knob to the full on setting.
Fanned grill
The oor must be close when the
fanne grill is use .
When opening the oor, take care to
avoi skin contact with any steam
which may escape from the cooking.
(i) Turn the selector control knob to
the fan grill setting.
(ii) Turn the oven temperature control
knob to the esire temperature-
setting.
When the fanne grill is selecte , only
the inner element will come on.
7
USING THE GRILLS

Caution: Accessible parts may
be hot when the top oven is
used, young children should be
kept away.
The top oven is a conventional oven.
To switch on the top oven
Turn the top oven control knob to the
esire temperature setting.
The re thermostat in icator will come
on until the selecte temperature is
reache an then go off; it will turn on
an off perio ically as the thermostat
operates to maintain the selecte
temperature.
To switch off, return the control to the
“” off position.
Top heat only
Turn the top oven control knob past the
oven temperature markings, until the
top heat symbol is in the win ow as
shown below.
Important notes
•Important: Never put items
irectly on the base of the oven or
cover the oven base with foil, as
this may cause the element to
overheat.
8
USING THE TOP OVEN

Caution: Accessible parts may
be hot when the ovens are
used, young children should be
kept away.
The main oven is a multi-function oven,
an may be use as a conventional
oven or a fanne oven. It may also be
use as a grill, or with one of the other
oven functions.
Manual operation
The programmer must be set to manual
operation before the main oven or grill
functions can be use . If A(Auto) is
on the programmer isplay, return the
oven to manual operation by pressing
the two en buttons.
To turn on the main oven
Step 1 - Select the function
Turn the selector control knob in either
irection, until the function you require
appears in the win ow.
Step 2 - Set the main oven control
If you have selecte an oven cooking
function, then simply turn the main
oven temperature control knob clock-
wise to the require temperature - this
brings on the neon in icator light,
which will stay on until the oven reach-
es the require temperature.To switch
off the main oven, return the control
knob to the “l” off position.
Automatic operation
See ‘Programmer / Clock’ section.
9
USING THE MAIN OVEN

Using the main oven
Caution: Accessible parts may
be hot when the appliance is in
use - keep children away from
the vicinity of the oven.
Never put items irectly on the base of
the oven or cover the oven base with
foil, as this can cause the base element
to overheat.
Manual operation
Set the programmer to manual operation.
See ‘Programmer / Clock’ section.
Turn the selector control knob to the
symbol for the esire oven function.
Turn the main oven temperature con-
trol knob to the esire temperature.
The re thermostat in icator neon will
come on an off until the selecte
temperature is reache an then go
off; it will turn on an off perio ically
as the thermostat operates to maintain
the selecte temperature.
To switch off the main oven, return the
main oven control knob to the “l” off
position.
Automatic operation
See ‘Programmer / Clock section.
Preheating
Always use the fan oven setting for
preheating to save time an electricity.
After the oven has been preheate on
the fan oven setting, turn the selector
control knob to the oven setting you
require.
The oven must be preheate when
cooking frozen or chille foo , an we
recommen preheating for yeast mixtures,
batters, soufflés an whiske sponges,
otherwise preheating is not necessary
as a fan oven warms up quickly.
Preheat the oven until the in icator
neon switches off for the first time;
this will take between 5 - 15 minutes,
epen ing on the temperature selecte .
To help the air circulate freely
• Position the shelves evenly within
the oven an maintain a clearance
from the oven roof an base.
• If more than one cooking ish or
baking tray is to be use on a shelf,
leave a gap of at least 25mm
between the items themselves an
the oven interior.
• Allow enough space between
shelves for foo that will rise
uring cooking.
•Do not place items on the oven
base as this will prevent air from
circulating freely.
10
USING THE MAIN OVEN

Main oven functions
Conventional oven
(i) Turn the selector control knob to
the conventional oven symbol.
(ii) Turn the main oven control knob to
the require temperature.
The temperature you select
correspon s to the temperature in the
mi le of the oven.
The top heat comes from the outer
element of the grill, an the base heat
is un er the oven base.
Top heat only
(i) Turn the selector control knob to
the top heat symbol.
(ii) Turn the main oven control to the
require temperature.
Base heat only
(i) Turn the selector control knob to
the base heat symbol.
(ii) Turn the main oven control knob to
the require temperature.
Fan oven
(i) Turn the selector control knob to
the fan oven symbol.
(ii) Turn the main oven control knob to
the require temperature.
The fan oven comes on when the oven
is switche on an circulates the air
aroun the oven to give a fairly even
temperature throughout the oven.
Fan and base heat only
(i) Turn the selector control to the fan
an base heat symbol.
(ii) Turn the main control to the
require temperature.
Intensive bake
(i) Turn the selector control to the
intensive bake symbol.
(ii) Turn the main oven control to the
require temperature.
11
USING THE MAIN OVEN

Defrosting and cooling
(i) Turn the selector control knob to
efrost .
(ii) Turn the oven control to the light
symbol .
To defrost frozen foo s, place foo
in the centre of the oven an close
the oor.
To cool foo s after cooking prior to
refrigeration or freezing, place foo
in the centre of the oven with the
oor open.
Be safe
•Do not efrost stuffe poultry using
this metho .
•Do not efrost larger joints of meat
or poultry over 2kg / 4lb using this
metho .
•Never place uncooke foo which
is to be efroste next to cooke
foo which is to be coole , as this
can lea to cross contamination.
Please refer to the Cooking Guide for
more information on using the Defrost
function.
Slow cooking
Turn the selector control to either
conventional oven or fanne oven.
Do not try to slow cook using any of
the other oven functions.
For roasting joints of meat or poultry
an for pot roasts, preheat the oven to
190˚C - 200˚C an cook for 30 minutes,
then a just the oven temperature control
to 110 - 120˚C for the remain er of
the cooking time.
• Always use the top half of the oven
when slow cooking with the
conventional oven function.
• Slow cooking times will be about
three times as long as conventional
cooking times.
• Make sure that frozen foo s are
thoroughly thawed before cooking.
•Do not slow cook joints of meat or
poultry weighing more than 21⁄4kg /
41⁄2lb. Always use the top half of
the oven for slow cooking.
12
USING THE MAIN OVEN

Programmer / Clock
13
Programmer / Clock
Automatic cooking is only available in
the main oven
The programmer buttons
own - re uce
up - increase
The ‘function’ button in the centre is
use for setting the minute min er an
setting up the automatic cooking. See
below for etails.
Symbols on the LED display.
This ‘A’ symbol appears when either a
semi, or fully automatic program is
selecte . This symbol will flash while
a program is being set. Once a pro-
gram is set the symbol will light up,
an remain lit until the alarm soun s,
or the program is cancelle
This Bell symbol appears when the
Minute Min er function has been
selecte . While the Minute Min er is
being set, the Bell symbol flashes.
Once the length of time is set, the Bell
symbol remains lit until the time runs
own, or the function is cancelle .
This message an ‘A’ symbol appear
when you are aske to set the length
of time you require the oven to cook
automatically for. Using the Up an
Down buttons a justs this accor ingly.
This message an ‘A’ symbol appear
when you are aske to enter in an en
time, or when you woul like the oven
to switch itself off.

Programmer / Clock
14
To set the time of day
Press the Up an Down buttons
together for a few secon s, an
release.
The ‘’ in between the numbers on
the LED Display will begin to flash.
While the ‘’ is flashing it is possi-
ble to a just the time using the Up an
Down buttons. Once the time has
been set, allow approximately 30 sec-
on s before using any of the other
timer functions. This ensures that the
time will remain correct.
To select an alarm tone
There are three tones to chose from.
Press an hol the down button to lis-
ten to the first tone.
Release the down button an press it
again to listen to the secon tone etc.
Releasing the down button after the
tone has soun e will automatically
select that tone
Setting the minute minder
To set the Minute Min er, press the
Function button once. The bell symbol
will appear an start flashing. The
flashing only lasts for 5 secon s so the
time must be set within this time frame.
Use the Up an Down button to set
the length of time require . Once this
has been one, the Minute Min er is
set.
When the esire length of time has
counte own the alarm will soun .
To cancel the tone, press any of the
buttons.
To cancel the Minute Min er at any
time, press the function button an
then press the Up an Down buttons
together.

Programmer / Clock
Semi-automatic cooking
There are two types of semi automatic
cooking available on this appliance.
The oven must be switche on, an in
use to use either of these functions
successfully.
The Duration metho allows you to set
the oven for a specific length of time.
If a ish nee e 2 hours to cook, then
it woul be possible for you to set the
oven to turn off 2 hours later. This
allows you to be sure that your foo
will be cooke for a set length of time
an no longer.
The En Time metho allows you to
enter a specific time when you woul
like the oven to switch off. If you wish
to leave the oven unatten e , then it
offers peace of min that the oven will
have turne itself off at the set time.
To cancel the semi automatic pro-
grams, press both the Plus an Minus
buttons together. This can be one at
any time uring the cooking process.
Then if necessary, re program.
For the instructions on how to use both
of these functions, please see the fol-
lowing page.
Fully automatic cooking
This function incorporates both a ura-
tion an an en time an is meant to be
use when you wish to elay the start
time.
We recommen that the first few times
this function is use you are in the
house, this will familiarise you with your
oven an prevents foo from being over
cooke or un er cooke .
Care must be taken when selecting
foo s for this function, it is not recom-
men e for certain foo items which
may spoil, or are sensitive to being left.
It is also a visable to set the en time to
be as close to your return as possible to
prevent foo being left stan ing.
15

Programmer / Clock
16
Programmer / Clock
1. The Duration metho
2.
3.
4. The En Time metho
.
6.
Semi-automatic cooking
The Duration method
Press the Function button twice,(1)
which will skip past the Minute
Min er.
The LED isplay will flash the wor
‘ ur’, (2) an the ‘A’ will flash on the
left han si e of the isplay.
Use the Up an Down buttons to set
the length of time you want to cook
for.(3) This must be one within 5
secon s or the time of ay will show
again.
Once this is one the oven will auto-
matically switch off once the time has
elapse , an the alarm will soun .
To switch off the alarm, press any
button. To view any remaining time
press the function button twice
The End Time method
Press the Function button three times,
which will skip past the Minute Min er
an the Duration programmer. (4)
The LED isplay will flash the wor
‘En ’ an the ‘A’ will flash on the left
han si e of the isplay. ( )
Use the Up an Down buttons to
select the time the oven is require to
turn off. (6)
Once this is one the oven will turn
itself off at the time you have selecte .
To switch off the alarm, press any
button.

Programmer / Clock
17
Programmer / Clock
7
8
9
10
11
12
Fully automatic cooking (example)
This programming metho is best suit-
e for when a elaye start time is
require . Unlike the semi automatic
metho s this requires both the ura-
tion an the en time to be entere .
The timer will work out the start time
an begin cooking.
Press the function button twice to
select the length of time your foo will
nee . (7)
The ‘A’ on the left han si e will
flash an the ‘ ur’ message will flash
up. (8)
Using the Up an Down buttons set
the time you require within 5 secon s
of the ‘ ur’ message. (9)
Press the function button three times
until the ‘A’ flashes again an the
‘En ’ messages appears. (10) &
(11)
Using the Up an Down buttons, set
the time you woul like the oven to
switch off. (12)
Set the temperature of the oven an
place the foo insi e.
While the automatic function is run-
ning, the ‘A’ will appear statically on
the isplay, with the time.
Try to keep the en time as close to
when you expect to return, this will
prevent cooke foo from being left
stan ing in a warm oven.
The timer will calculate the appropri-
ate start time.
To switch off the alarm, press any but-
ton

Automatic cooking
These notes below are to help you with
using the automatic cooking facility.
Please make sure that you rea them
carefully before you start using the
automatic functions.
Do
• Familiarise yourself with the use of
the programmer.
• Select foo s which are as fresh as
possible, an as col as possible -
ie; preferably straight from the
refrigerator.
• Choose foo s which are suitable
for cooking from a col start, as
some ishes will be affecte by
being left uncooke , at room tem-
perature, perhaps for several
hours, especially when the weath-
er is hot.
• Make sure that meat, poultry an
uncooke foo are thoroughly
thawe before placing them in the
oven.
• Cover ishes with li s or foil, as
they may be left stan ing in the
oven for some time before cook-
ing.
Do not
• Never place warm foo in the
oven for elaye cooking - eg;
stews prepare by frying meat first
must be thoroughly coole before
placing in the oven.
• Do not cook ishes containing left
over cooke meat or poultry, or
pastry ishes with wet fillings, as
they are not suitable for automatic
cooking.
• Do not put foo items inten e for
elaye cooking into a warm oven
- allow the oven to cool before set-
ting for elaye cooking.
• Do not over-fill ishes containing
liqui s, as they might boil over.
• Never leave foo in the oven to
cool slowly after cooking, serve
imme iately or refrigerate.
Automatic cooking - hints
18
