Bellucci Slim Latte User manual

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 1 of 21
Automatic Coffee Machine
Instruction Manual

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 2 of 21
SAFETY PRECAUTIONS
These important safety precautions are critical part of the appliance. Please read them all carefully before
using the appliance for the first time. You may keep the instructions for future reference or pass it to other
users.
The appliance is designed for domestic use and may only be operated in accordance with these instructions for
use.
Always handle with care and warn other users the potential danger.
DANGER: Misuse of the appliance can cause injury!
DO’s
1. Check the mains voltage stated on the rating plate corresponds to the local electricity supply.
2. Unwind and straighten the power cord before using the appliance.
3. Place the appliance on a firm and steady surface.
4. The appliance must be used and rested on a stable surface.
5. Disconnect the appliance from mains supply outlet under the following conditions:
a. Before the water tank is filled with water
b. Before removing any parts from the appliance or refit any parts on the appliance.
c. Before cleaning or maintenance
d. When the appliance is not working correctly
e. After using the appliance
6. Empty the water tank, when the appliance unused for long period
7. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
8. Always use cold water to make coffee. Warm water or other liquids could cause damage to the
coffee maker.
9. If the power cord is damaged, it must be replaced by the manufacturer or its service agent or
similarly qualified person in order to avoid any hazard.
10. Use the grinder for grinding coffee bean only.
11. Children shall not be playing with the appliance.
12. Always disconnect the appliance from the supply if it is left unattended and before assembling,
disassembling or cleaning.
13. Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction by a person
concerning use of the appliance in a safe way and understand the hazards involved.
14. This appliance shall not be used by children. Keep the appliance and its cord out of reach of
children.
15. This appliance is designed for household use only.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 3 of 21
DO NOT’s
1. Do not allow children to touch the appliance or the power cord during the operation
2. Do not use an extension power cord set unless competent authority has approved it.
3. Do not leave the appliance unattended, when it is connected to main supply.
4. Do not use the appliance in outdoor environment.
5. Do not use appliance for other than intended use.
6. Do not let cord hang over the edge of table or counter or touch hot surface.
7. Do not use or place the appliance on a wet or hot surface.
8. Do not use the appliance if the drip tray is improperly placed in position.
9. Do not immerse the appliance in water or any liquids.
10. Do not use the appliance when any parts of the appliance are damaged.
11. Do not use the appliance when it is not working properly.
12. Do not unplug the appliance by pulling the power cord.
13. Do not place the cord on a sharp edge of an item.
14. Do not attempt to open the main body or dismantle any parts from the appliance, there is no
serviceable part inside.
15. 15. The appliances normally cleaned after use and not intended to be immersed in water for
cleaning and the appliance must not be immersed
16. 16. The use of accessories not included in the box is not recommended. It might be dangerous and
should be avoided.
17. 17. Do not place the appliance on or near hot gas or electric burner, or in heated oven.
18. 18. Do not operate the hot water function continuously for more than one tank of water.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 4 of 21
A. Machine Overview
I. GENERAL DESCRIPTION
1. External Drip Tray
2. Internal Drip Tray
3. Coffee Grounds Container
4. Adjustable coffee spout
5. Control Panel
6. Coffee Bean compartment
7. Coffee Beans Container Cover
8. Water Tank
9. Power cord
10. Service Door
11. Brewer
12. Cleanness brush
13. Milk container
14. Milk container lid
15. Connection milk tube
16. Milk tube connector
17. Connection rubber
18. Container milk tube
19. Needle

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 5 of 21
II. CONTROL PANEL& ON/OFF BUTTON
Flashing: Low water level/ Water tank missing
Lack of bean
Lights up stably: coffee grounds container is full
Flashing: Internal Drip Tray/coffee grounds container is missing
Lights up stably: Brewer is missing/ installed improperly
Flashing: Service door is opened / installed improperly
Lights up stably: Requires to do descaling
Flashing: Descaling is under process
Empty System Function is running
Power ON/OFF Button
Espresso Button
Cappuccino Button
Latte Macchiato Button
Cleaning Button
Hot water Button
ACCESSORY
In the box, three packs of cleaning agents are included for the process of self-cleaning.
Power ON/OFF Button

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 6 of 21
MACHINE INSTALLATION
1. Choose a safe and stable surface with an easily reachable
power supply and allow minimum distance from the sides
of the machines (Figure 1).
2. Insert the external drip tray. Make sure it is inserted correctly.
3. Lift the water tank by using the lid as the handle.
4. Fill the water tank with water to the Max level and place it back into the machine.
Note: To prevent overflow of water from the water tank, do not add
water directly into the appliance with another container.
IMPORTANT: Never fill the water tank with warm, hot, sparkling water or any other liquid which might
damage the water tank and the machine

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 7 of 21
5. Remove the bean container lid.
6. Fill the bean box with coffee bean.
IMPORTANT: Fill the coffee bean container with coffee beans only. Grounded coffee, instant coffee,
caramelized coffee and any other objects may damage the machine
7. Install back the container lid.
8. Unwind and straighten the power cord and insert the plug into the socket located on the back of the
machine. Insert the other end of the power cord into a wall socket with suitable power voltage.
Espresso Americano preparation
1. Switch on the appliance by pressing the power on/off button and make sure the drip tray under the coffee
spout and water tank with water inside. The appliance will perform auto-rinsing for a small cup of water,
you can stop it by pressing Hot Water Button.
2. The appliance is then in the standby condition.
3. Place a cup under the coffee spout and adjust the height of the spout the fit the cup. Depending on the
size of the cup (too tall or too wide) you can remove the drip tray or adjust the position of the drip tray as
below:
4. The Espresso or Americano button being pressed will light on and the illuminator will light up indicating
that the appliance is preparing the cup of coffee.
5. When the appliance is back to standby condition, the coffee is ready to serve.
Tip: The auto rinsing would not appear if the appliance is just switch off for a while. You can deactivate
this function by following steps and activate this function by same way.
Step1) remove the service door
Step2) press On/Off button until a bit sound appear.
Note: Press the hot water button to clean inside of the coffee maker before first use.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 8 of 21
Preparing Latte Macchiato
Assembling the automatic milk froth system
Note: There is a protective cover for the milk tube connector inlet, just take it off when you need to insert
the milk tube connector
2. Insert the container milk tube to the
rubber inside the lid.
1. Place the connection rubber into
the slot inside the lid
3. Insert the connection milk tube to
the rubber outside the lid
4. Insert the milk tube connector to the
dispensing spout milk frother inlet (open
the inlet cover first)
Protective cover

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 9 of 21
1. Fill the milk container with milk and close the lid. Switch on the appliance by pressing the power on/off
button and make sure the drip tray under the coffee spout and water tank with water inside. The
appliance will perform auto-rinsing for a small cup of water, you can stop it by pressing Hot Water Button
2. Place a cup under the spout
3. Press Latte Macchiato button, only Latte Macchiato button lights indicating Latte preparation. The
indicator keeps on during preparation process.
4. The machine dispenses milk first and then coffee.
5. Preparation will stop automatically. If you want to stop, press the button again during the operation.
6. Remove milk container from machine and put it in the fridge.
7. After use, see chapter “Daily Cleaning of the appliance”, section cleaning the automatic milk froth
system.
Note:
•Cleaning the automatic milk froth system before first use.
•Use cold milk (at a temperature of approximately 5°C/41°F) with a protein content of at least 3%
to ensure an optimal frothing result
Warning:
•Steam and hot milk may spray out of the spout when starting the brewing.

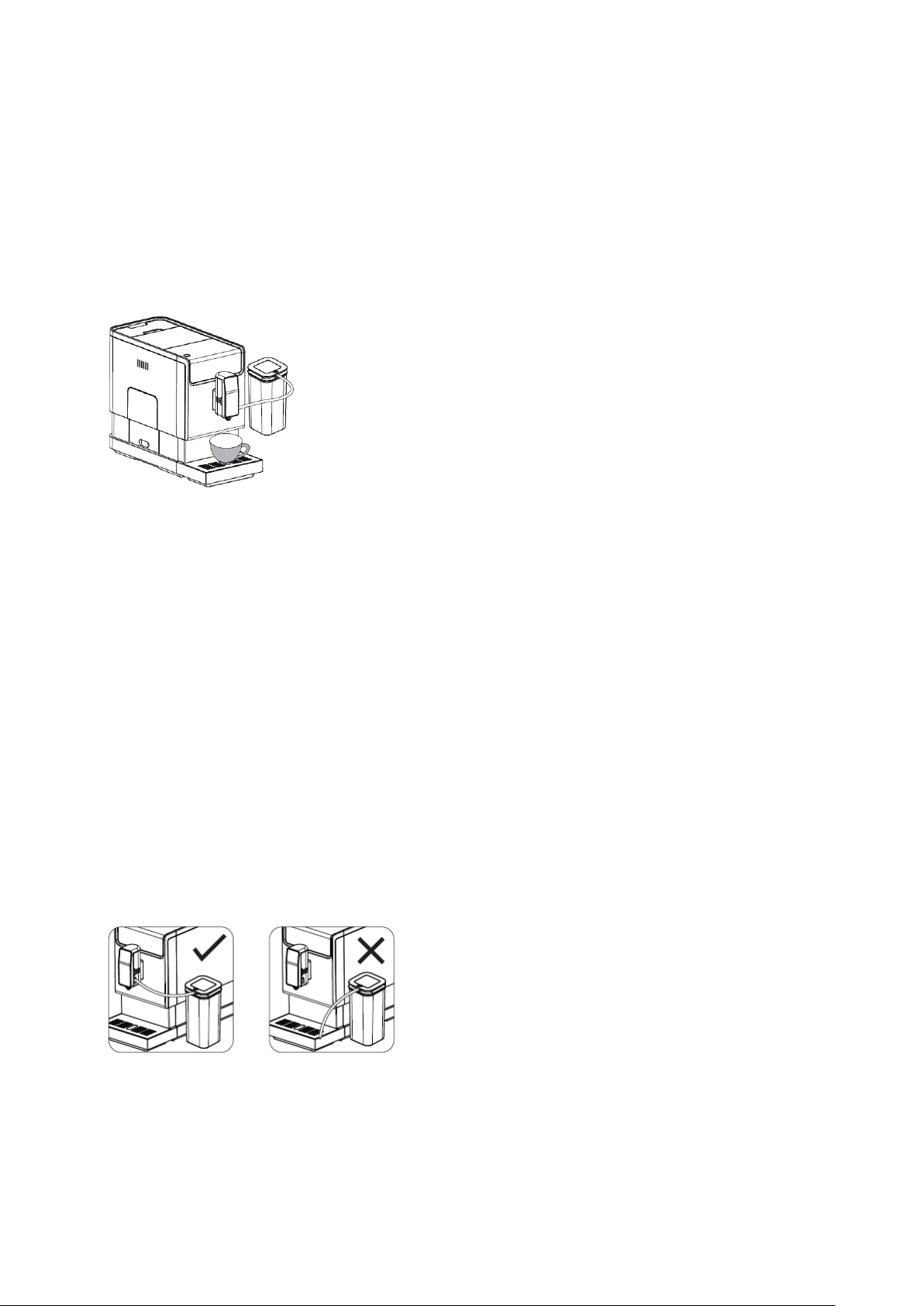

•Place the connection milk tube around the milk container lid after use. Do not let it fall freely to
prevent milk spray out caused by pressure difference

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 10 of 21
Preparing Cappuccino
Assembling the automatic milk froth system as described in preparing latte macchiato section.
1. Fill the milk container with milk and close the lid. Switch on the appliance by pressing the power on/off
button and make sure the drip tray under the coffee spout and water tank with water inside. The
appliance will perform auto-rinsing for a small cup of water, you can stop it by pressing Hot Water Button
2. Place a cup under the spout.
3. Switch on and press Cappuccino button, only Cappuccino button lights indicating coffee preparation. The
indicator keeps on during preparation process.
4. The machine dispenses milk first and then coffee.
5. Preparation will stop automatically. If you want to stop, press the button again during the operation.
6. Remove milk container from machine and put it in the fridge.
7. After use, see chapter “Daily Cleaning of the appliance”, section cleaning the automatic milk froth
system).
Note:
•Cleaning the automatic milk froth system before first use.
•Use cold milk (at a temperature of approximately 5°C/41°F) with a protein content of at least 3%
to ensure an optimal frothing result
Warning:
•Steam and hot milk may spray out of the spout when starting the brewing.
•Place the connection milk tube around the milk container lid after use. Do not let it fall freely to
prevent milk spray out caused by pressure difference.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 11 of 21
Preparing Milk Foam
Assembling the automatic milk froth system as describe in preparing latte macchiato section
1. Place a cup under the spout.
2. Fill the milk container with milk and close the lid.
3. Connect the milk froth system to the machine.
4. Press the Cleaning button twice. The button light goes on during the preparation.
5. After use, see chapter “Daily Cleaning of the appliance”, section cleaning the automatic milk froth
system).
Note:
•Cleaning the automatic milk froth system before first use.
•Use cold milk (at a temperature of approximately 5°C/41°F) with a protein content of at least 3%
to ensure an optimal frothing result
Warning:
•Steam and hot milk may spray out of the spout when starting the brewing.
•Place the connection milk tube around the milk container lid after use. Do not let it fall freely to
prevent milk spray out caused by pressure difference.
Hot water
1. Put a cup under the spout.
2. Press Hot water button, only Hot water button lights indicating the preparation. The indicator keeps on
during preparation process.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 12 of 21
DAILY CLEANING OF THE APPLIANCE
Timely cleaning and maintenance of the appliance is very important to prolong the life of the appliance.
Cleaning the drip tray and coffee grounds container
Empty and clean the drip tray every day.
1. Pull the external drip tray out of the machine.
2. Empty the water inside the drip tray in the sink and wash it with fresh
water. Dry it afterwards.
3. Slides open the internal drip tray and the coffee grounds container.
4. Empty the coffee grounds container and rinse it with fresh water.
Dry it afterwards.
5. Place the coffee grounds container back in the drip tray.
6. Place the external drip tray at it original position.
Tips: When lights up, the coffee grounds container needs to be empty.
Cleaning the brewer
1. Slight press the bottom of the service door to open it.
2. Remove the service door.
3. Press the release knob.
4. Remove the brewer and rinse it under tap.
5. Insert back the brewer to its original position and install back
the service door its original position.
Tips: When lights up stably, it indicate that the brewer is missing / installed improperly. When is
flashing, it indicates that the service door is missing/ installed improperly.
Note: When is flashing, the coffee grounds container is missing
Cleaning the water tank
1. Lift the water tank out of the machine and clean it with fresh water.
2. Fill it with drinkable water up to the MAX level indication and place it back in the machine.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 13 of 21

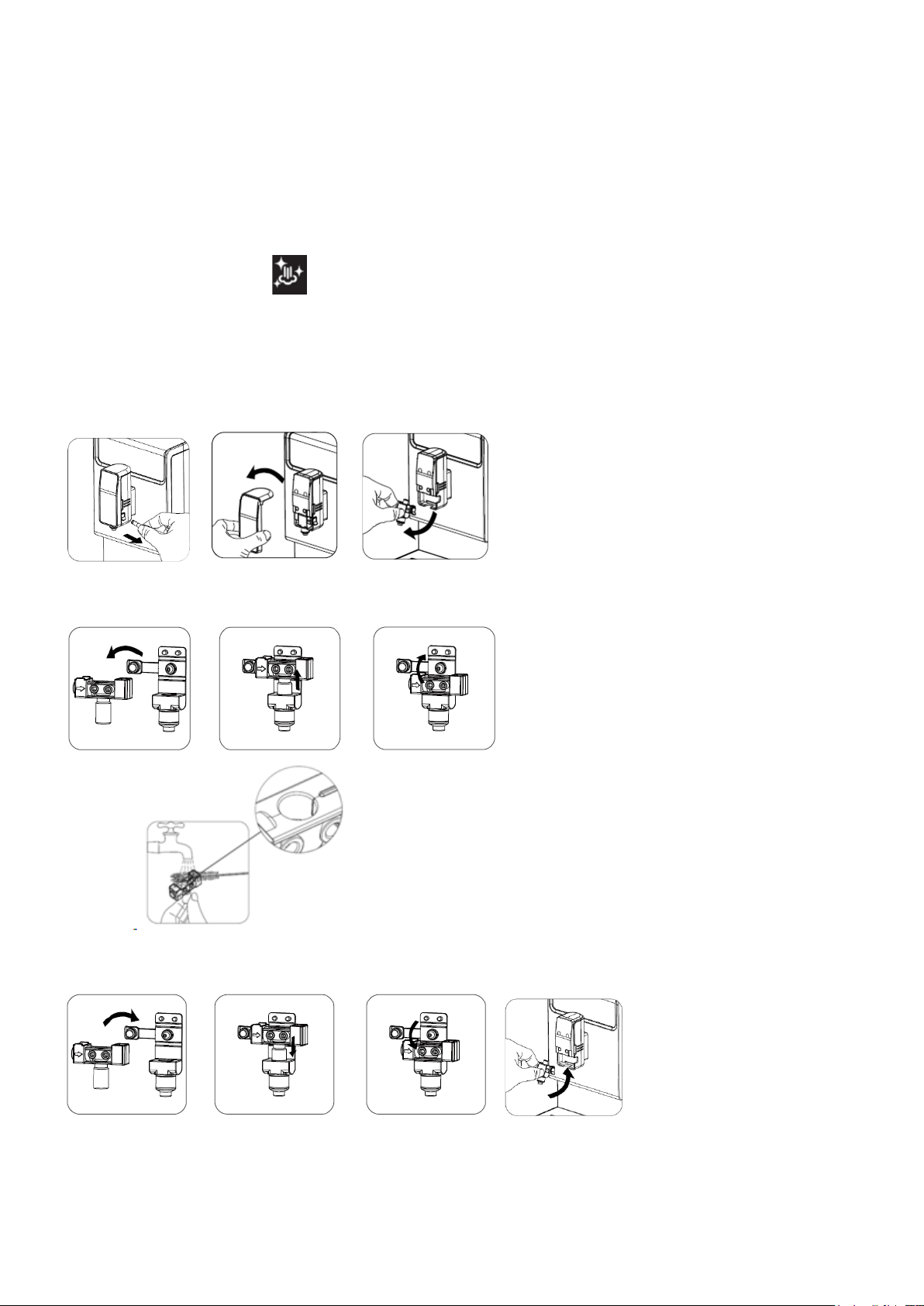

Cleaning the automatic milk froth system
Note: it is important to do this step daily to make sure the function of automatic milk frother running in
good condition
1. Place a cup under the spout.
2. Fill the milk container with fresh water.
3. Connect the milk container to the coffee machine as describe in “Preparing Latte Macchiato”section
4. Press the Cleaning button .
5. The machine dispenses hot water and steam to wash the dispensing tube and milk spout.
6. Touch the button again to stop the water.
7. Take apart the milk frother by following procedure. Clean them with fresh water. Then insert the milk
frother into slot. (see below step)
Step 1: take out the spout cover and then take out the milk frother
Step 2: Take apart the milk frother into two parts and clean with fresh water
You can use bristle of brush to clean the above circle area to ensure no residual
Step 3: Assemble the milk frother back to original position
Step 4: Insert the milk frother to the slot of machine.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 14 of 21

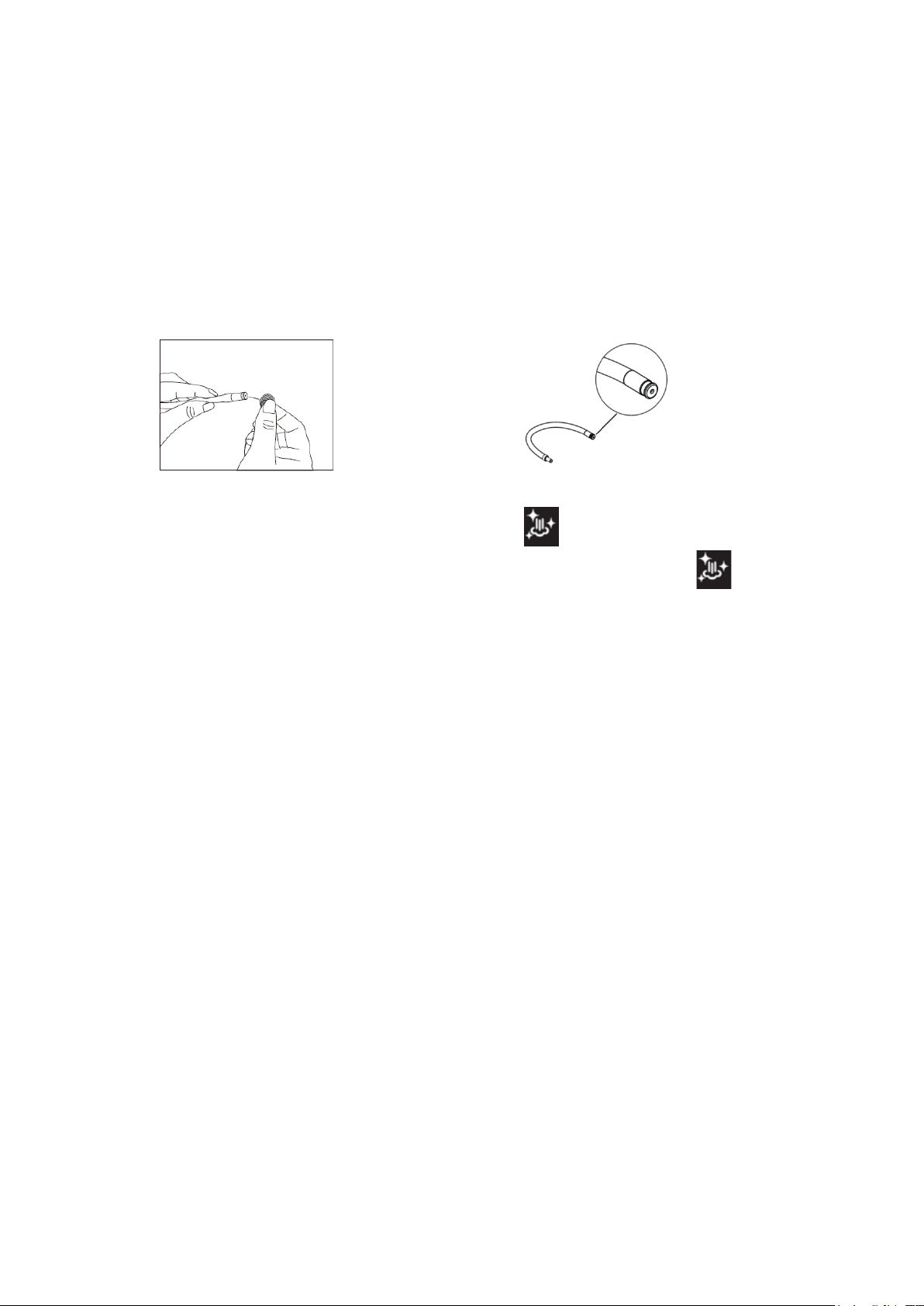

Cleaning the milk container and connection milk tube
Note:it is important to do this step daily to make sure the function of automatic milk frother running in
good condition.
1. Empty the milk inside the milk container and wash it with fresh water, take out the connection rubber
and container milk tube to wash it with fresh water too, then assemble them to the lid again (make sure
the connection is fit and correct)
2. Clean the both end of milk connection milk tube with fresh water, to make sure the hole on the milk
tube connector is clean(see picture),you can use needle or bristle of brush to clean the hole.
3. Fill the milk container with fresh water and connect to the machine with container milk tube
4. Using Frothing milk function by pressing the Cleaning button , the water in milk container can clean
the connection tube internal. You can stop the cleaning by press the Cleaning button again.
Turning Off the machine
Switch off the appliance by pressing the power on/off button.
Auto-Shut off
The Appliance is equipped with auto-shut off. Depending on the mode you have selected the appliance will
have different auto-shut off timing(SEE “Further Setting – III Mode Selection”).

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 15 of 21
FURTHER SETTING
I. ADJUSTIING THE QUANTITY OF YOUR COFFEE/ MILK FOAM/HOT WATER
The machine can memorize your desired volume of coffee, milk foam and hot water.
Preparing quantity for Espresso / Latte Macchiato/Cappuccino/milk foam /Water
1. Place a cup under the spout
2. Switch on the machine, all buttons lights on.
3. Press Espresso / Latte Macchiato /Cappuccino/milk foam /Water button, only your desired one
illuminates.
4. If machine dispenses milk, press and hold the button to continue and release the button when milk froth
reaches your desired volume. Milk froth stops with two beep sounds and the volume is now stored.
5. If machine dispenses coffee, touch and hold the button to continue and release the button when coffee
reaches your desired volume. Coffee stops with two beep sounds and the volume is now stored.
6. If machine dispenses water, touch and hold the button to continue and release the button when water
reaches your desired volume. Water stops with two beep sounds and the volume is now stored.
7. Then Espresso/ Americano/ Latte Macchiato /Cappuccino/milk foam /Water button is programmed: every
time it’s pressed, the machine will brew the same amount set.
*Note: To reset the factory setting quantity of coffee/milk foam /hot water, press and hold the on/off button
and cappuccino button together for 5 seconds.
GRINDING ADJUSTMENT
You can adjust the grinder to suit the roast of your coffee by turning
adjuster knob in the bean container:
1. When the grinder is grinding the coffee bean when it is making
the coffee, you can turn the adjust knob to do the
adjustment (CAUTION: Never do the grinding adjustment when
the grinder is not operating. It may damage the grinder.)
2. The dots on the adjuster knob indicate the fineness of the grind.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 16 of 21
MODE SELECTION
The machine has three different setting: default setting, ECO mode and speed mode. In ECO mode, the
appliance helps to save more energy. In speed mode, the user can make their coffee faster than in default
setting.
ECO Mode
Speed Mode
Default Setting
Illumination Light
No
Yes
Yes
Pre-brewing*
Yes
No
Yes
Auto shut off time
10mins
30mins
20mins
Cup Volume memory
Yes
Yes
Yes
*Note: The pre-brewing function moistens the grounded beans in the brewer with a small amount of water
before full extraction. This expands the coffee grounds to build up a greater pressure in the brewer which
help extraction of all the oils and full flavor from the grounded beans.
1. When the machine is in standby condition, press and holds the for 5 seconds.
2. The following button will have the following indications in different settings:
Cappuccino button
Latte Macchiato button
Espresso button
In ECO Mode
Flashing
Lights ON
Flashing
In Speed Mode
Flashing
Flashing
Lights ON
In Default Setting
Lights On
Flashing
Flashing
Press the Cappuccino button for ECO mode, Latte button for speed mode and Espresso button for default
setting. Two Beep sound will be heard indicates that the mode is being selected. (Note: If you are pressing
the relative lights on button for each mode, the machine will not response).
3. If you would like to remain the setting unchanged, press again or wait for 5 seconds for the machine
to return to the standby condition.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 17 of 21
CLEANING & MAINTENANCE
SELF-CLEANING
When lights up stably, it indicates that the appliance needs to undergo self-cleaning. The appliance will
remain in the best condition if this function is performed at least once a month or more regularly depending
on the hardness of water used. It is also suggested that to
1. Fully fill the water tank.
2. Adding one pack of cleaning agent included in the box to the water tank.
IMPORTANT: Do not use vinegar or other cleaning agent to do self-cleaning of this appliance. The cleaning
agent might damage the appliance.
3. Plug in the appliance.
4. Place a sufficient large container under the coffee spout.
5. In standby condition, press and hold and Espresso button for 5 seconds. A beep sound will be heard
with and Espresso button will be flashing.
6. Press Espresso button to confirm undergoing the self-cleaning process. To resume back to the standby
condition, press .
7. will be flashing indicates that the appliance is undergoing the self-cleaning process. (Caution: Keep
skin/body away from the hot water.)
8. When all the water in the water tank is being dispensed out, and Espresso button will be flashing.
Remove all the remaining solution in the water tank and fillthe tank with normal tap water until the max
position. When water is filled into the water tank, will goes off. Then the appliance will continue
the self-cleaning process, there is waiting period for this process, please be patient and let the machine
complete the process and don’t stop manually
9. When the self-cleaning process is completed, the appliance will switch off automatically.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 18 of 21
EMPTY SYSTEM FUNCTION
The empty system function is recommended to use before long period of non-use, frost protection and before
talking to repair agent.
1. In standby condition, press and hold the and the Latte Macchiato button together for 5
seconds.
2. will then be flashing.
3. Remove the water tank from the appliance. will light up stably indicates that the empty system is
under process. You can press before removing the water tank to resume back to the standby
condition.
4. When the empty system function is completed, the appliance will switch off automatically
Important: After perform EMPTY SYSYEM FUNCTION; press the hot water button until water can come out
from spout when the coffee maker is reused again.
MANUAL RINSING
You can perform a manual rinsing cycle to clean the coffee nozzle after use. It is also suggested to perform a
manual rinsing if the appliance has not been used for a long period of time.
1. In standby condition, press and hold the and hot water button together.
2. All button will then goes off. The coffee nozzle will then dispense a small amount of water which is used
for the rinsing.
Danger: Water comes out of the coffee nozzle is hot and is collected in the drip tray underneath. Avoid
contact with splashes of water.
3. After rinsing, the appliance will return to the standby condition.
CLEANING THE APPLIANCE
1. Disconnect the power cord from the mains supply outlet.
2. Pour away all the water in the internal and external drip tray
3. Use a damped cloth or non-scratching cleaner to clean the water stains on the appliance.
IMPORTANT: Never use any abrasive, vinegar or descaling agents not included in the box to clean the
appliance.

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 19 of 21
Cleaning coffee powder outlet
Coffee powder may stick on the wall of powder outlet for appliance after used a long period of time. It is
suggested to clean the outlet by following step to ensure that coffee powder can come to brewer.
1. Push the service door recess area
2. Take out the service door
3. Press the release knob of brewer
4. Take the brewer out
5. Use Cleanness Brush to clean the powder
outlet

Bellucci Slim Latte Automatic Coffee Machine
Instruction Manual
Page 20 of 21
TROUBLESHOOTING
PROBLEM
CAUSE
SOLUTION
The appliance does not work.
The appliance is not
connected to the mains.
- Plug in and press the switch.
- Check the cable and the Plug
No or delayed response in
several trials of pressing on
function key on the panel
- Appliance is under an
electromagnetic interference
- Dirt over the panel
- Unplug the appliance. Restart after few
minutes
- Clean the panel with the cloth provided
The coffee is not hot enough.
- The cups have not been
preheated.
- The brewing unit is too cold.
- Rinse the appliance at least 3 times before
making the coffee.
The coffee cannot come out
from spout.
Empty system function maybe
used before.
Press the hot water button until water can come
out from spout.
The first cup of coffee is
poor quality.
The first run of grinder does
not pour sufficient quantity
coffee power into the brewing
unit.
Throw the coffee away. The other coffees will
always be of good quality.
Coffee has no cream.
- Coffee bean is not fresh.
Change or using appropriate brand of coffee
bean.
The touch buttons are not
sensitive
Not pressing the touch button
from the front direction of the
appliance
Press the lower bottom part of the icon of the
touch button from the front direction of the
appliance.
The appliance takes too long
time to warm up.
Excessive scale has built up.
Descale the appliance.
The water tank is removed /
the water level is very low in
the water tank but
have no alert.
The area near the water tank
connector is wet.
Wipe the water around the water tank connector
Internal drip tray is filled
with a lot of water.
Coffee powder too fine which
block the water to come out.
Adjust the coffee fineness to bigger dot during
grinder operation.
Coffee is delivered too slowly
or a drop at a time.
Coffee powder too fine which
block the water to come out.
Adjust the coffee fineness to bigger dot during
grinder operation.
Lack of bean indicator
flashes but there is still a lot
of coffee bean inside the
container.
Internal coffee powder outlet
is blocked.
To follow the steps of section E (V. Cleaning
coffee powder outlet).
No milk foam out from the
machine
The automatic milk frother is
dirty or not assembled or
installed correctly
Clean the automatic milk frother and make sure
it is correctly assembled or installed.
No milk foam out from the
machine
The hole of the Milk tube
connector is blocked by milk
residues
Refer to section “Daily Cleaning of the
appliance”, follow “cleaning the milk container
and connection milk tube”, Clean the connector
and make sure all the hole on the connector is
clean, use needle or bristle of brush to clean the
hole.
The hole of the Milk tube
The milk tube connector has
Soaking the connection milk tube into warm
