Belmont Medical Technologies RAPID INFUSER RI-2 User manual

702-00190 Rev. 004 Belmont Medical Technologies Page 1of 62
702-00190 Rev. 004

702-00190 Rev. 004 Belmont Medical Technologies Page 2of 62
OPERATOR’S MANUAL
All service calls & questions
should be directed to:
USA: +1.855.397.4547
Worldwide: +1.978.663.0212
Belmont Medical Technologies
780 Boston Road
Billerica, MA 01821, USA
Emergo Europe
Westervoortsedijk 60
6827 AT ARNHEM
The Netherlands
[phone]
For use by trained medical professionals by physician prescription only

702-00190 Rev. 004 Belmont Medical Technologies Page 3of 62
The Belmont®Rapid Infuser RI-2
Operator’s Manual
Table of Contents
Chapter 1: System Overview................................................................................................... 7
Introduction ............................................................................................................................ 7
User Environment................................................................................................................... 7
Indications For Use................................................................................................................. 7
Contraindications.................................................................................................................... 8
Overview of The Belmont®Rapid Infuser RI-2 ........................................................................ 8
Major Components of the Control System .............................................................................. 9
Control Panel: Display and Keys ..........................................................................................10
Chapter 2: Operation ..............................................................................................................11
Introduction ...........................................................................................................................11
Warnings............................................................................................................................11
Cautions ............................................................................................................................12
Compatible Fluids..................................................................................................................13
Step-By-Step Operating Procedures .....................................................................................14
Inspecting the System........................................................................................................14
IV Pole Mounting................................................................................................................14
Installing the Disposable Set ..............................................................................................15
Installing the Optional Large Reservoir ..............................................................................16
Powering On the System ...................................................................................................17
Installing Fluid Bag.............................................................................................................18
Prime Screen .....................................................................................................................18
Priming the Main System ...................................................................................................18
Priming the Patient Line .....................................................................................................19
Connecting to the Patient...................................................................................................19
Initiating Infusion................................................................................................................20
Maintaining Infusion ...........................................................................................................20
Infuse Screen.....................................................................................................................20
Pressure Control ................................................................................................................21
Automatic Air Purging ........................................................................................................21
Automatic Air Purging Screen ............................................................................................21

702-00190 Rev. 004 Belmont Medical Technologies Page 4of 62
Bolus Infusion (Infuse a Fixed Volume)..............................................................................21
Recirculation ......................................................................................................................22
Battery Operation...............................................................................................................23
Low Battery........................................................................................................................23
Accidental Power Off .........................................................................................................23
Accidental Power Off Screen .............................................................................................23
End of Procedure ...............................................................................................................24
System Error......................................................................................................................24
Chapter 3: Alarms and Troubleshooting Guide ....................................................................25
Introduction ...........................................................................................................................25
Information Signals................................................................................................................25
Operational Alarms................................................................................................................26
Air Detection ......................................................................................................................26
Fluid Out ............................................................................................................................26
Door Open .........................................................................................................................27
High Pressure ....................................................................................................................27
Missing Disposable ............................................................................................................27
Heating Alarms......................................................................................................................28
System Error #101 .............................................................................................................28
System Error #102 .............................................................................................................28
Hardware Alarms...................................................................................................................29
System Error #201 .............................................................................................................29
System Error #202 .............................................................................................................29
System Error #203 .............................................................................................................29
System Error #204 .............................................................................................................29
System Error #205 .............................................................................................................29
System Error #206 .............................................................................................................29
System Error #207 .............................................................................................................30
System Error #208 .............................................................................................................30
System Error #209 .............................................................................................................30
System Error #210 .............................................................................................................30
Troubleshooting Other Operational Difficulties.......................................................................31

702-00190 Rev. 004 Belmont Medical Technologies Page 5of 62
Chapter 4: Parameters Setting and Preventative Maintenance ...........................................33
Introduction ...........................................................................................................................33
System Setup ........................................................................................................................34
1. Date/Time ...................................................................................................................35
2. Display Brightness ......................................................................................................36
3. Language Setup .........................................................................................................36
4. Key Rate.....................................................................................................................36
5. Bolus Volume..............................................................................................................36
6. Pressure Limit.............................................................................................................36
Service and Preventive Maintenance Schedule.....................................................................37
Schedule 1.........................................................................................................................37
Schedule 2.........................................................................................................................37
Routine Maintenance.............................................................................................................38
1. Clean Device Exterior .................................................................................................38
2. Disinfect Device Exterior .............................................................................................40
3. Power Cord.................................................................................................................41
Testing the System and Operational Check-Out....................................................................42
Material Required:..............................................................................................................42
1. Visual Inspection.........................................................................................................42
2. Seals...........................................................................................................................43
3. Instrument Door and Ceramic Disks ...........................................................................43
4. Rubber Feet................................................................................................................43
5. System Operational Check-Out...................................................................................44
6. Battery Run Time ........................................................................................................44
7. Electrical Safety Test - Leakage Current.....................................................................45
8. Hardware Verification..................................................................................................46
9. Clean the Pump Head.................................................................................................51
Checklist................................................................................................................................52
Fuse ......................................................................................................................................54
Calling for Service .................................................................................................................54
Electromagnetic Compatibility ...............................................................................................54

702-00190 Rev. 004 Belmont Medical Technologies Page 6of 62
Chapter 5: Technical Specification of The Belmont®Rapid Infuser RI-2 ............................56
Technical Specifications of the Belmont®Rapid Infuser RI-2 .................................................56
Dimensions ...........................................................................................................................56
Portability ..............................................................................................................................56
Power AC ..............................................................................................................................56
Battery...................................................................................................................................57
Environment ..........................................................................................................................57
Operating Parameters ..........................................................................................................57
Operating Panel ....................................................................................................................58
Safety and Monitoring............................................................................................................58
Alarm States and Controls.....................................................................................................59
Disposable Sets ....................................................................................................................59
Disposable Environment........................................................................................................59
Disposable Symbols and Definitions......................................................................................59
Classifications .......................................................................................................................60
Symbols and Definitions ........................................................................................................61
Waste Electrical and Electronic Equipment (WEEE)..............................................................62

702-00190 Rev. 004 Belmont Medical Technologies Page 7of 62
The Belmont®Rapid Infuser RI-2, warms blood, colloid, and crystalloid to physiologic
temperature at user-set rates from 10 to 750 milliliters per minute (ml/min) with 1000 ml/min as
an option. 2.5 and 5.0 ml/min (150 and 300 ml/hr) are also available to keep the venous line
open.
The system monitors temperature, line pressure, and air in the fluid path to ensure safe operation
and alarms at all unsafe conditions. A hardware override circuit prevents unsafe operation in
case of system computer failure. A screen displays flow rate, total fluid infused, temperature, line
pressure, alarm and status messages and proper procedures to proceed safely after an alarm
situation. Keys appropriate to a particular point in the operation are displayed on the touch screen.
A battery backup allows for mobile transport of the patient. During battery operation, fluid warming
is disabled while pump operation and safety monitoring remain active. The built-in rechargeable
battery automatically charges whenever the system is connected to line power.
NOTE: Federal law (USA) restricts this device to sale by or on the order of a physician.
User Environment
The operating environment for the Belmont®Rapid Infuser RI-2 is general operation in hospital or
alternate care environments. The Belmont®Rapid Infuser RI-2 will be subject to the temperature,
humidity, and pressure typical of a health care environment. Sources of shock, drop and vibration
are also those typically found in a health care environment. The Belmont®Rapid Infuser RI-2 is
intended to be used by trained healthcare professionals.
Indications For Use
The Belmont®Rapid Infuser RI-2 is designed to be used in general operation in hospital or
alternate care environments to provide warmed blood and fluids to any patients requiring
warmed infusion from 2.5mL/min to 1000mL/min.
•Intravenous infusion of crystalloid, colloid, or blood product, including packed red blood cells,
as volume replacement for patients suffering from blood loss due to trauma or surgery.
•Intravenous infusion of warmed fluid to re-warm patients after surgery or for hypothermia.
•Infusion of warmed fluid for irrigation in urology procedures.
It is essential that you read and understand this
manual before operating the system.
Introduction
Chapter 1: System Overview

Chapter 1: System Overview
702-00190 Rev. 004 Belmont Medical Technologies Page 8of 62
Contraindications
The Belmont®Rapid Infuser RI-2 is designed to provide warmed blood and fluids from
2.5mL/min to 1000mL/min and should not be used where rapid infusion is medically
contraindicated.
•The system should not be used to warm platelets, cryo-precipitates, granulocyte suspensions
or unprocessed / non-anti-coagulated blood products.
•This system is not intended for drug administration.
•Calcium containing solutions (ex. Lactated Ringer’s solution), dextrose in water, and hypotonic
sodium chloride solutions should not be added to blood components. Use only anticoagulated
blood products.
Overview of The Belmont
®
Rapid Infuser RI-2
The complete system consists of the Belmont®Rapid Infuser RI-2 Control System, which can
be mounted on an IV pole, and the Disposable Set. The Belmont®Rapid Infuser RI-2 can be
used only with the supplied disposables. A large volume 3-liter reservoir is available as an
optional accessory for convenience in cases involving very large infusion volumes, see page 16.
The Disposable Set is preassembled and has a sterile fluid path. It is intended for single
patient use only.
Disclaimer: the IV pole is not required for use; it is not considered a critical-detachable
component and ordering an IV pole from Belmont is optional.

Chapter 1: System Overview
702-00190 Rev. 004 Belmont Medical Technologies Page 9of 62
Major Components of the Control System
System Diagram Showing Main Components
1. Fluid Out Detector detects and alarms at
an out of fluid situation.
2. Power Switch turns system power on and
off.
3.
Roller Pump is designed for pumping
accuracy and reliability.
4. Display and control panel show status and
alarm messages with touch keys at the
bottom of the screen.
5.
IR Temperature Probe (Output Probe)
monitors output fluid temperature as it
exits the Heat Exchanger.
6. Air Detector detects air in the line. If air is
detected the valve wand is closed
immediately to prevent air into the patient.
Pumping and heating stop, alarm sounds
and “Air Detection” message is displayed
on screen.
7. Valve wand closes off the recirculation line
when the system is in the infusion mode
and closes off the infusion line when the
system is in the recirculation mode. It
immediately closes the infusion line to the
patient when an error condition occurs
which may require user intervention.
8.
IR Temperature Probe (Input Probe)
monito
rs input fluid temperature as it
enters the Heat Exchanger.
Fluid Out (1)
Detector
Display (4)
IR (5)
Probe
Air (6)
Detector
Valve (7)
Wand
IR Probe
(8)
Power (2)
Switch
Roller Pump
(3)

Chapter 1: System Overview
702-00190 Rev. 004 Belmont Medical Technologies Page 10 of 62
Control Panel: Display and Keys
The control panel consists of the touch screen display, which incorporates a bright graphical
display with touch pad keys. The display shows status and alarm messages at the top and middle
and contains the touch keys at the bottom.
CONTROL PANEL SUMMARY
Status Display:
•Flow Rate in ml/min (The Belmont®Rapid Infuser RI-2
displays both the user Set Flow Rate and the Actual Flow
Rate)
•Volume Infused
•Infusate Temperature in ºC
•Pressure in the Fluid Line in mmHg
•Bolus Volume (when infusion of a
fixed bolus of fluid is desired).
Function Keys: The keys that control all system functions are displayed on the screen. The
screen is changed each time a function key is pressed. Only keys that are
relevant to the desired function are presented. The active key is highlighted.
There are three (3) different levels of sensitivity: Fast, Medium, and Slow. The
key sensitivity is set at the factory to Fast but can be adjusted by the operator
in SERVICE MODE.
See Chapter 4, page 36 for ‘Key Rate’ sensitivity setup.
Alarm Display: Graphical alarm messages indicating where errors have occurred and suggested
operator action.

702-00190 Rev. 004 Belmont Medical Technologies Page 11 of 62
Introduction
This chapter explains the procedure for setting up and initiating safe and effective operation of
the Belmont®Rapid Infuser RI-2. To change screens’ language, select language at start-up or
go to Chapter 4 “LANGUAGE SETUP” to setup your preferred language.
Warnings
•Use dedicated circuit breaker to avoid risk of supply interruption and for proper function of The
Belmont Rapid Infuser RI-2. The Belmont draws maximum current under normal operating
conditions and should be the only device operating on the circuit breaker.
•Do not use with pressure infusers or “bag squeezers”. The system pump provides adequate
pressure to infuse fluid.
•Do not use this product in the presence of flammable anesthetics.
•Do not use this product in an Oxygen rich environment.
•Do not use this product in the presence of Nitrous Oxide.
•The Belmont Rapid Infuser RI-2 should not be left unattended while in operation.
•Disposable set is for single patient use only. Do not reuse.
•Inspect and make certain that the patient line is completely primed and free of air. Any air
bubbles after the valve wand in the patient line must be removed before the procedure can
safely continue.
•Once the door is opened, all safety features of the system may be bypassed. Clamp off the
patient line to ensure that air is not allowed to enter the patient prior to opening the door to the
RI-2.
•Do not infuse blood that is in the disposable set when over temperature condition occurs. Red
cells that have been subjected to high temperature may not be safe to infuse.
•Do not access SERVICE mode to adjust settings while the instrument is connected to patient.
•Excessive or prolonged recirculation may damage red blood cells by exposing them repeatedly
to the rollers inside the pump head.
•Practice standard precautions when handling blood products. Treat all blood as if it were
infected and clean up all spills immediately.
•Medical Electrical Equipment needs special precautions regarding EMC and needs to be
installed and put into service according to the Electromagnetic Compatibility (EMC)
information provided in the accompanying documents.
•Portable and Mobile RF Communications Equipment can affect Medical Electrical Equipment.
Chapter 2: Operation

Chapter 2: Operation
702-00190 Rev. 004 Belmont Medical Technologies Page 12 of 62
Cautions
•If an IV pole is used, check that the system is securely clamped to the IV pole and will not tip
over.
•Do not pressurize the reservoir.
•Do not apply a vacuum to the reservoir.
•Ensure the tubing and the reservoir and the interlock block is not bent, kinked, or pulled too
tight.
•Immediately wipe any spills from the device.
•Prime the main system with solutions compatible with blood products. Do not prime with blood
or blood products.
•A dedicated intravenous access site should be used for infusing blood components and
solutions compatible with blood per AABB guidelines.
•Replace reservoir chamber or disposable set if the filter becomes clogged. If it becomes
occluded the fluid sensor will activate, an audible alarm will sound, a message "Fluid Out,
Check inlet tubing and Filter. Add more fluid" will appear and the pump will stop.
•Excessive or prolonged recirculation may damage red blood cells by exposing them repeatedly
to the rollers inside the pump head.
•Battery operation should be used only briefly or at very low flow rates because there is no
heating.
•With fluid in the disposable set and the system not powered on, keep the patient line clamped
closed when opening the door to prevent uncontrolled fluid flow.
•Do not infuse blood that is in the disposable set when over temperature condition occurs. Red
cells that have been subjected to high temperature may not be safe to infuse.
•Turn the system to OFF and unplug the power cord before cleaning to avoid electric shock.

Chapter 2: Operation
702-00190 Rev. 004 Belmont Medical Technologies Page 13 of 62
Compatible Fluids
Solution
Description
Compatible?
Anticoagulated whole blood that is processed
& washed through a cell saver device
YES
FFP
Fresh Frozen Plasma
YES
RBCs
Red Blood Cells
YES
NS
0.9% NaCl
YES
Albumin 5%
YES
Hydroxyethyl Starch (HES)
Hetastarch in 0.9% Saline
YES
Normosol
Electrolytes in H20
YES
Plasma-Lyte A
YES
Colloids
This is a broad-spectrum term
Sodium Bicarbonate Solutions
NO
½ NS
0.45% NaCl
NO
3% NS
3% NaCl
NO
Platelets
Should not be diluted, stick to tubing
NO
Cryoprecipitate
Should not be diluted
NO
Calcium containing Solutions
Ca
NO
Lactated Ringer’s Solution
K, Na, Cl, Ca, Lactate
NO
Ringer’s Solution
K, Na, Cl, Ca, Lactate
NO
Hartmann’s Solution
K, Na, Cl, Ca, Lactate
NO
Hextend
Hetastarch in Lactated Ringer’s
NO
8% Amino Acids
NO
Intralipids 10%
NO
Intralipids 20%
NO
D5W
5% Dextrose in Water
NO
D10W
10% Dextrose in Water
NO
D20W
20% Dextrose in Water
NO
D50W
50% Dextrose in Water
NO
D5 ¼ NS
5% Dextrose 0.2% NaCl
NO
D5 ½ NS
5% Dextrose 0.45% NaCl
NO
D5NS
5% Dextrose 0.9% NaCl
NO
D10NS
10% Dextrose 0.9% NaCl
NO
10% Dextran in 5% Dextrose
NO
10% Dextran 40 in 0.9% NS
NO
5% Alcohol in 5% Dextrose
NO
D5 LR
5% Dextrose in Lactated Ringer’s
NO
D10 LR
10% Dextrose in Lactated Ringer’s
NO
Glucose
NO

Chapter 2: Operation
702-00190 Rev. 004 Belmont Medical Technologies Page 14 of 62
Step-By-Step Operating Procedures
SET-UP
Inspecting the System
•Power cord
•Reservoir Support
•Disposable Set
•Large Reservoir and holder, if needed
Inspect the system to ensure that you have all necessary
components.
Ensure that circuit breaker is easily accessible to turn off in an
emergency situation.
Use only supplied power cord.
IV Pole Mounting
•IV Pole: 5 wheel, maximum diameter 1 1/4"
•Install the Support Assembly 30" from the
ground, if not already installed.
•Mount the Belmont®Rapid Infuser RI-2 on the IV
Pole above the Support Assembly
•Install the Reservoir Support app. 9" above the
top of the system
Disclaimer: the IV pole is not required for use; it is
not considered a critical-detachable component and
ordering an IV pole from Belmont is optional.
CAUTION:
If an IV Pole is used, check that the system is
securely clamped to the IV pole and will not tip over
1. Install the support assembly (support clamp and
washer) approximately 30" from the ground.
•While holding clamp closed, loosen the screw to
open up the clamp. Install clamp on the IV pole,
holding clamp close and tighten screw using the
supplied 3/16 Allen wrench.
•Optional: Snap the plastic washer onto the IV
pole above the support clamp. Not all IV Poles
are supplied with the plastic washer as it is
optional and does not affect functionality.
2. Lift up on the “Pole Clamp Release Handle” to open.
Mount the system onto the IV pole, above the
support assembly, by pushing down on the pole
clamp release handle. Check that the system is
locked in place before proceeding.
3. Clamp the reservoir support onto the IV pole
approximately 9" above the Belmont® Rapid Infuser
RI-2.
•Make certain that there is nothing obstructing the
air vents at the bottom of the system.
Device Set-up without IV Pole
1. Ensure all 4 feet are securely attached to the device.
2. Place device on a sturdy, flat surface that will not
obstruct the fan guards.
3. Ensure there is place to hang fluids bags above the
reservoir to avoid kinked or twisted tubing.
Instructional Video
IV POLE
RI-2 UNIT
SUPPORT
CLAMP
PLASTIC
WASHER
RESERVOIR SUPPORT
OPTIONAL
Reservoir support
Support Clamp
IV Pole
Optional Support
Washer
RI-2 Unit
Door
Latch

Chapter 2: Operation
702-00190 Rev. 004 Belmont Medical Technologies Page 15 of 62
Installing the Disposable Set
Store the disposable set, in the sealed original
packaging, in a dry well-
ventilated area free from
exposure to chemical vapors.
It is recommended to load and prime the disposable
set just prior to the procedure.
WARNING: The disposable set is for single patient
use only. Do not reuse.
3-Spike Disposable set with key components
1. Snap reservoir chamber into
the reservoir support clamp.
2.
Open the door. Insert heat
exchanger with red arrow
pointing up
(Red tinted
tubing to red stripe on unit.)
3.
Firmly position the interlock
block into the fluid out
detector.
4.
Guide the curved piece of
pump tubing (
Blue tinted
tubing) over the pump head.
Check that the thinner
recirculate line is in the grove
to the right.
Do not kink or twist the
tubing
5. Place the pressure chamber
into the pressure chamber
well. Firmly insert the wider
infuse line into the air
detector and to the left of
valve wand.
Do not apply excessive
pressure to the pressure
transducer.
The pressure
transducer can be
damaged with excessive
force. Do not use the
system if the pressure
transducer is damaged.
6. Place the thinner recirculate line to the right of the air
detector, and to the right of the valve wand.
7.
Close and latch the door. Make certain the pump
tubing is not caught. Connect the patient line.

Chapter 2: Operation
702-00190 Rev. 004 Belmont Medical Technologies Page 16 of 62
Installing the Optional Large Reservoir
•Install large reservoir holder
•Install large reservoir
CAUTION:
Do not pressurize the reservoir
Do not apply a vacuum to the reservoir
Ensure the tubing between the reservoir and the
interlock block is not bent, kinked, or pulled too tight.
Adjustment of the reservoir or reservoir holder may
be needed.
1. Using aseptic techniques, remove the reservoir
chamber from the 3-Spike disposable set by
disconnecting the luer connectors.
•Disconnect the larger pump tubing by pressing in
the luer lock tab and pulling out the connector.
•Disconnect the thinner recirculate line by
unscrewing the connector.
2. Attach the large reservoir holder onto the IV pole, if
used, and place the reservoir into the holder.
3. Assemble the large reservoir using aseptic
techniques by attaching the three fluid supply tails
onto the top of the reservoir.
4. Connect the large reservoir to the fitting of the 3-
Spike disposable set.
5. Adjust the reservoir holder to make sure that the two
connection leads underneath the reservoir are not
stretched or kinked.
Stretched or kinked connection leads can cause flow
restrictions and frequent Fluid Out alarms.

Chapter 2: Operation
702-00190 Rev. 004 Belmont Medical Technologies Page 17 of 62
Powering On the System
•
Check that the detachable power cable is
securely seated in the main power receptacle.
•Check that the moisture guard is flush against the
Rapid Infuser if present.
•Plug the system power cord into a grounded, 3-
prong, 20 Amp, AC receptacle (120V device) or
into appropriate grounded, 3-prong, minimum 10
Amp, AC receptacle (230V device)
on a
dedicated circuit breaker.
•Do not use an adaptor for ungrounded outlets.
•Ensure
that circuit breaker is easily
accessible to turn off in an emergency
situation.
Power-Up Screen
2
3
4
5
6
1. Set reservoir into holder
2. Insert Heat Exchanger
3. Insert Interlock Block
with blue arrow
4. Place tubing matching color
5. Insert Pressure Chamber
6. Place tubing matching colored
lines, close and latch door
NEXT
Installation Screen
1. Plug system into a dedicated AC power source
(breaker).
2. Turn power on by firmly pressing the circuit
breaker to the ON position. The system will
perform a self-check to check the integrity of
system parameters.
3. Ensure AC POWER PRESENT appears at the
logo screen when the system first powers up.
Check the power cord and AC receptacle
connections if the statement does not appear.
4. PRIME screen will appear.
5. Press NEXT to go to the PRIME screen.
•If screen language is not your preferred
language, turn power off and back on.
•Press SERVICE to go to
CALIBRATION/SETUP screen.
•Press LANG SETUP → choose your preferred
language → NEXT → EXIT SERVICE.
•If you turn power ON without the disposable
set, INSTALLATION screen appears.
•Open the door and follow instructions on
screen to install the disposable set.
•Close the door. PRIME screen will
automatically appear.
WARNING: The RI-2 should not be left unattended
while in operation.
WARNING: Use a dedicated circuit breaker to avoid
risk of supply interruption and for proper function of
The Belmont Rapid Infuser RI-2. The Belmont draws
maximum current under normal operating conditions
and should be the only device operating on the
circuit breaker.

Chapter 2: Operation
702-00190 Rev. 004 Belmont Medical Technologies Page 18 of 62
Installing Fluid Bag
Install solution compatible with blood for the main
system prime.
,
Prime Screen
1. Hang fluid bag(s) on the IV pole, if used.
2. Completely close bag clamps, remove the bag
spike cap(s). Spike fluid bag(s), piercing it fully
to ensure that fluids flow freely.
3. Open bag clamps.
•When hanging the fluid bag above the
machine, the pump tubing that is seated in the
fluid out detector should not be stretched.
Stretching the pump tubing may cause false
Fluid Out alarms.
•The recirculate line must not be kinked or
restricted.
The Belmont®Rapid Infuser RI-2, is not for use in
warming platelets, cryo-precipitates, granulocyte
suspensions, pharmaceutical agents, unprocessed
whole blood.
DO NOT combine any substances containing calcium
with blood prodcuts. This will cause clotting and
occlusion of the unit and possible overheating
occurrence. Calcium containing solutions, such as
Lactated Ringer’s solution, Hartmann’s solution,
dextrose in water, and hypotonic sodium chloride
solutions should not be added to blood components
per AABB (American Association of Blood Banks).
See the compatible fluids list on page 10.
Caution: Prime the main system with solutions
compatible with blood products. Do NOT prime with
blood or blood products.
Priming the Main System
System Priming Screen
CAUTION:
Immediately wipe any spills from the device
1. Press PRIME to recirculate 100 ml of fluid at 500
ml/min to remove air and fill the main system with
fluid.
2. The prime volume, 100 ml, countdown is
displayed on the screen. Priming will stop
automatically when countdown reaches 0 ml.
SYSTEM PRIMED screen appears.
•If after 30 seconds the prime volume remains
at 100 ml, the system will stop, alarm and
instruct the user to unclamp the lines and
resume prime.
•If prime has to be stopped, press STOP. The
prime volume countdown will remain on the
screen. Press RESUME PRIME to continue
prime.

Chapter 2: Operation
702-00190 Rev. 004 Belmont Medical Technologies Page 19 of 62
Priming the Patient Line
SYSTEM PRIMED
PREPARE PATIENT LINE.
PRESS PT. LINE PRIME TO PUMP
AT 50ML/MIN OR PRESS AND HOLD
TO PUMP AT 200ML/MIN.
STOP
PT. LINE
PRIME
System Primed Screen
WHEN PT. LINE PRIMED
PRESS STOP AND THEN INFUSE.
STOP
PT LINE
PRIME
Patient Line Primed Screen
To remove air from the patient line:
1. Open the roller clamp and remove the luer cap
from the patient line.
2. Press PT. LINE PRIME
•Press once, prime at 50 ml/min. Press and hold,
prime at 200 ml/min.
3. Press STOP after no air remains in patient line.
WARNING: Inspect and make certain that the patient
line is completely primed and free of air. Any air
bubbles after the valve wand in the patient line must
be removed before the procedure can safely
continue.
Connecting to the Patient
Match infusion set to flow rate and fluid type, see
chart.
1. Select an appropriate cannula size for desired
flow rate.
2. Using aseptic technique, make patient
connection without entrapping air.
CAUTION: A dedicated intravenous access site
should be used for infusing blood components and
solutions compatible with blood per AABB
guidelines.

Chapter 2: Operation
702-00190 Rev. 004 Belmont Medical Technologies Page 20 of 62

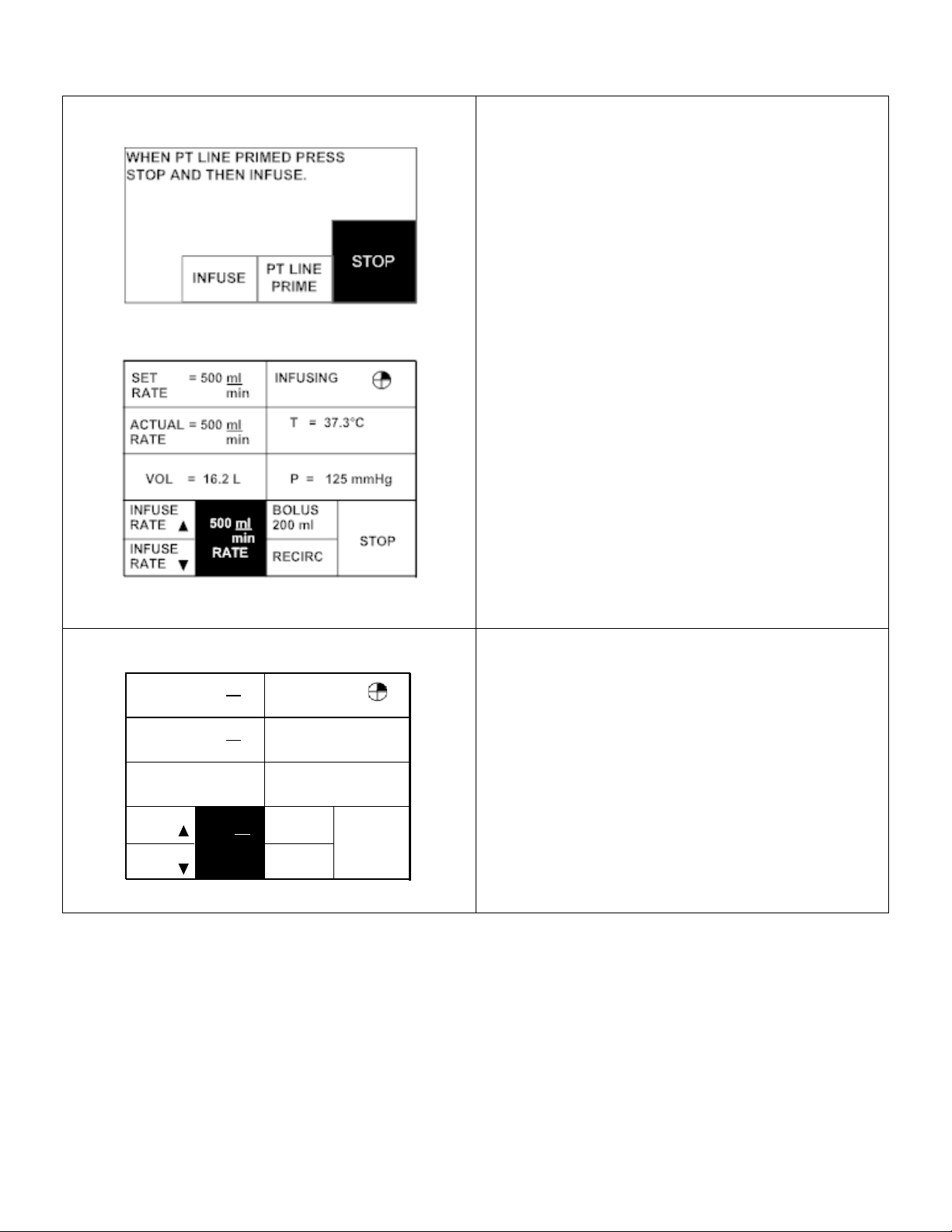

Initiating Infusion
Patient Line Primed and Infuse Screen
Infuse Screen
1. Press INFUSE to start infusing at 10 ml/min.
2. Press 500 ML/MIN key to infuse at 500 ml/min or
adjust flow rate, as needed, by pressing INFUSE
RATE ▲/INFUSE RATE ▼ key (increase/decrease
by 10 ml/min).
Do not mix solutions containing calcium such as
Lactated Ringer’s, or Hartmann’s solution with
citrated blood products. See the compatible fluids list
on page 10.
Use only anticoagulated blood products.
Maintaining Infusion
ACTUAL
RATE
VOL = 16.2 L P = 125 mmHg
T = 37.3°C
500 ml
min
RATE STOP
INFUSE
RATE
INFUSE
RATE
= 500 ml
min
SET
RATE
= 500 ml
min
BOLUS
200 ml
RECIRC
INFUSING
Infuse Screen
Routinely check patient and system parameters, on
screen. Respond to and correct system alarms.
Disposable set should be replaced after 24hours of use.
CAUTION:
Replace reservoir chamber or disposable set if the
filter becomes clogged. If it becomes occluded the
fluid out sensor will activate, an audible alarm will
sound, a message “Fluid Out, Check inlet tubing and
Filter. Add more fluid” will appear and the pump will
stop.
