PHYWE 09057-51 User manual

1
www.phywe.com, © All rights reserved 09057-51 / 0414
Operating instruct
i
ons
XR 4.0 X-ray Plug-in with copper/molybdenum/iron/tungsten
X-ray tubes
09057-51
09057-61
09057-71
09057-81
PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D-37079 Göttingen
Phone [phone]
Fax [phone]
E-mail [e-mail]
The unit complies with
the corresponding EC
guidelines.
Fig: 09057-51, 09057-61, 09057-71, 09057-81
CONTENTS
1 SAFETY PRECAUTIONS
2 PURPOSE AND CHARACTERISTICS
3 FUNCTIONAL AND OPERATING ELEMENTS
4 NOTES ON OPERATION
5 HANDLING
6 TECHNICAL SPECIFICATIONS
7 PARTS SUPPLIED
8 ACCESSORIES
9 NOTES ON THE GUARANTEE
10 WASTE DISPOSAL
11 APPENDIX
1 SAFETY PRECAUTIONS
•Carefully read these operating instructions completely
before operating this instrument. This is necessary to
avoid damage as well as for user-safety.
•Only use the instrument for the purpose for which it was
designed.
•Only use the instrument in dry rooms in which there is no
risk of explosion.
•Never cover up the vent slots of the experimental set-up.
•Do not open up the instrument.
•Do not connect other instruments to the unit than those
intended for it.
•Take care that no liquid penetrates in through the hous-
ing openings.
•Switch the unit off after usage, as it is not designed for
permanent operation. The maximum recommended daily
operating time is 10 hours. Exceeding this does not rep-
resent a safety risk but can negatively influence the ser-
vice life of X-ray tubes.
•Take care when drawing out a tube insert that has been
in operation as internal parts of it could be very hot.
•Handle with Care

2
www.phywe.com, © All rights reserved 09057-51 / 0414
2 PURPOSE AND CHARACTERISTICS
Each plug-in consists of a pre-adjusted X-ray tube in a
sheet steel housing with a handle. All plug-ins are sup-
plied ready for use in the basic XR 4.0 X-ray expert
unit.
•Pre-adjusted tubes with quick-change technol-
ogy
•Hot parts contact protection
•Housing with ratchet and pawl mechanism and
2 safety contact pins which only unlock for tube
operation when a plug-in has been correctly
inserted.
3 FUNCTIONAL AND OPERATING ELEMENTS
The following ready for use plug-ins are available:
• Plug-in with Cu X-ray tube, article no. 09057-51
• Plug-in with Mo X-ray tube, article no. 09057-61
• Plug-in with Fe X-ray tube, article no. 09057-71
• Plug-in with W X-ray tube, article no. 09057-81
(For wavelengths and energies of the characteristic X-ray
lines refer to the Technical specifications and the Appendix).
Each plug-in consists of a factory-adjusted X-ray tube in a
sheet steel housing. To prevent damage from overheating,
each tube is enclosed in a Duran glass cylinder which has
side tubes for forced air cooling via the fan in the basic de-
vice.
Each plug-in is equipped with an HV plug and a plug for tube
cathode heating. Tube operating parameters can so be
picked up via the corresponding sockets of the basic device.
Two metal pins at the sides release a safety micro-switch
which safeguards the tube plug-in chamber on correct inser-
tion of an plug-in.
4 NOTES ON OPERATION
Handle with care!
First start up:
X-ray tubes are not to be operated under full power on their
first start up. For the running-in of a tube we recommend that
you first operate it for a period of 10 minutes with a maximum
beam current but with an acceleration voltage which is not
above 25 kV.
This procedure must be repeated when a tube has not been
used for a period of some weeks.
• Minimum life time of the tube: 500 operating hours
5 HANDLING
Handle with care!
Inserting and changing X-ray tube inserts:
Stop X-ray tube operation before carrying out a change
of plug-ins.
Plug-ins must be removed without tilting them. To insert an
plug-in, fit the guide tabs in the guide rails without tilting the
plug-in. Ensure that all plug connections have secure contact
by pushing the plug-in in to the stop.
6 TECHNICAL SPECIFICATIONS
• Target angle 19°
• Max. operating values 1 mA/35 kV-DC
• Test voltage 50 kV
• Dimensions (26.7x14.8x20.3) cm
• Weight 4.3 kg
• Minimum life time of the tube: 500 operating hours
• Characteristic X-ray lines for copper:
o K-alpha: 8.03 keV; (154,2 pm)
o K -beta: 8.90 keV; (139,2 pm)
• Characteristic X-ray lines for molybdenum:
o K -alpha: 17.4 keV
o K -beta: 19.6 keV
• Characteristic X-ray lines for iron:
o K -alpha: 6.40 keV; (194 pm)
o K -beta: 7.06 keV; (176 pm)
• Characteristic X-ray lines for tungsten:
o See Appendix
7 PARTS SUPPLIED
•Complete with dust-protective hood
8 ACCESSORIES
09057-01 XR 4.0 X-ray diaphragm tube, d = 1 mm
09057-02 XR 4.0 X-ray diaphragm tube, d = 2 mm
09057-03 XR 4.0 X-ray diaphragm tube, d = 5 mm

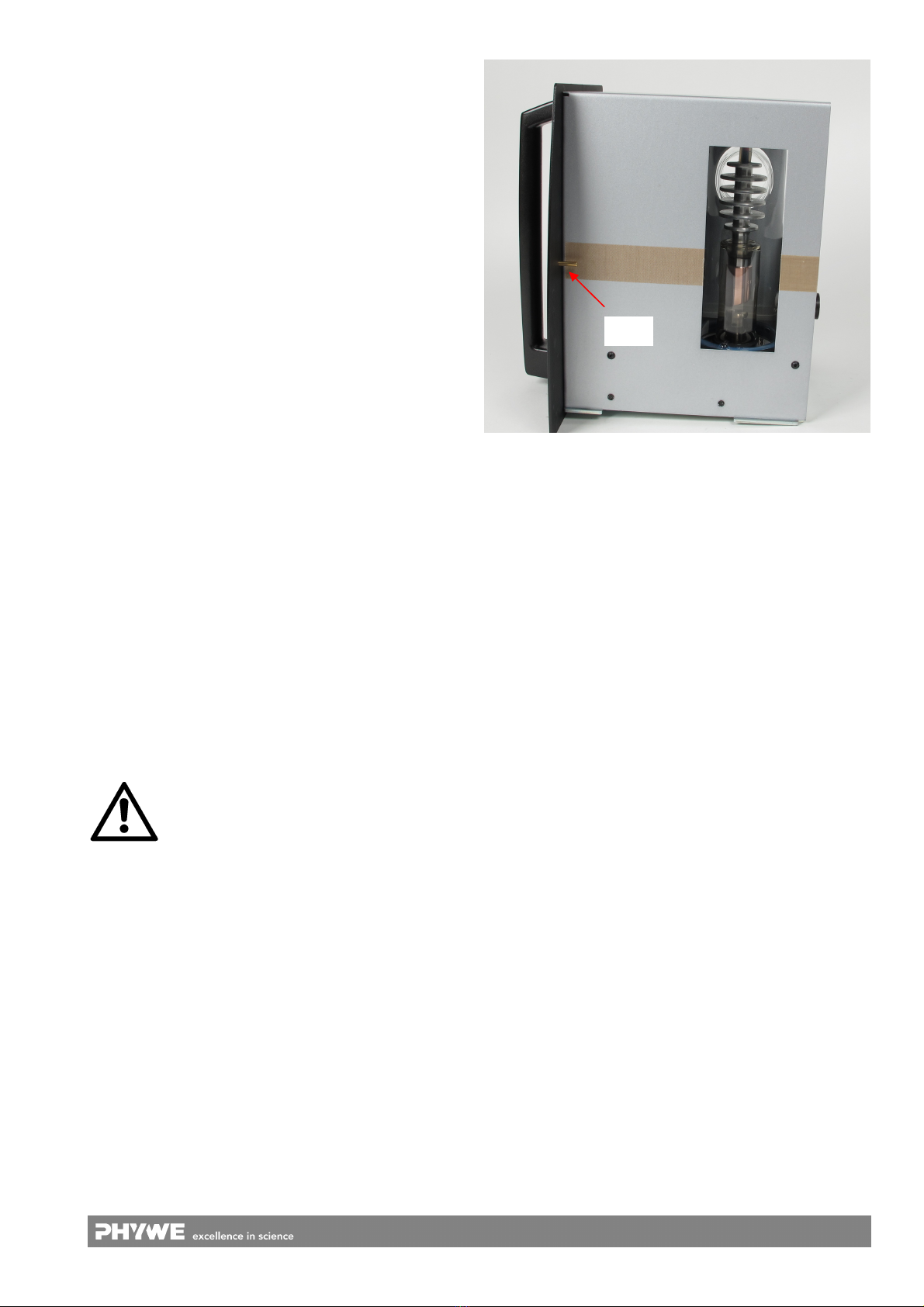

Fig. 2: Side view of a tube plug-in
(1)

3
www.phywe.com, © All rights reserved 09057-51 / 0414
9 NOTES ON THE GUARANTEE
We guarantee the instrument supplied by us for a period of
24 months within the EU, or for 12 months outside of the EU.
Excepted from the guarantee are damages that result from
disregarding the Operating Instructions, from improper han-
dling of the instrument or from natural wear.
The manufacturer can only be held responsible for the func-
tion and technical safety characteristics of the instrument,
when maintenance, repairs and alterations to the instrument
are only carried out by the manufacturer or by personnel who
have been explicitly authorized by him to do so.
10 WASTE DISPOSAL
The packaging consists predominately of environmentally
compatible materials that can be passed on for disposal by
the local recycling service.
Should you no longer require this product,
do not dispose of it with the household re-
fuse.
Please return it to the address below for
proper waste disposal.
PHYWE Systeme GmbH & Co. KG
Abteilung Kundendienst (Customer Service)
Robert-Bosch-Breite 10
D-37079 Göttingen
Phone [phone]
Fax [phone]
11 APPENDIX
Symbols and safety designation
CAUTION: General danger
spot
WARNING of hot surfaces

4
www.phywe.com, © All rights reserved 09057-51 / 0414
11 APPENDIX
Spectrum of the tungsten X-ray tube with Table
Line ϑ
/ °
n λ
/ pm
E
exp.
/ eV
Lin
es
Transition
E
Lit.
/ eV
1 14.69 1 102.15 12138 γ
4
L
1
O
3
12063
2 15.23 1 105.81 11717 γ
3/2
L
1
N
3
/L
1
N
2
2 15.23 1 105.81 11717 γ
3/2
L
1N3
/L
1
N
2
3 15.74 1 109.27 11346 γ
1
L
2
N
4
11286
4 16.28 1 112.92 10980 γ
5
L
2
N
1
10949
5 17.92 1 123.94 10003 β
2
L
3
N
5
9961
6 18.21 1 125.87 9849 β
3
L
1
M
3
9818
7 18.47 1 127.61 9716 β
1
L
2
M
4
9673
8 18.79 1 129.74 9556 β
4
L
1
M
2
9525
9 20.60 1 141.72 8748 ηL
2
M
1
8725
10 21.47 1 147.43 8409 α
1/2
L
3
M
5
/L
3
M
4
11 22.51 1 154.21 8040 Cu-Kα
1/2
12 24.57 1 167.49 7402 l L
3
M
1
7387
13 31.80 2 106.13 11682 γ
3
L
1
N
3
11674
14 32.01 2 106.76 11613 γ
2
L
1
N
2
11608
15 33.03 2 109.79 11294 γ
1
L
2
N
4
11286
16 38.12 2 124.33 9972 β
2
L
3
N
5
9961
17 38.80 2 126.20 9824 β
3
L
1
M
3
9818
18 39.52 2 128.16 9674 β
1
L
2
M
4
9673
19 40.24 2 130.10 9529 β
4
L
1
M
2
9525
20 47.12 2 147.58 8401 α
1
L
3
M
5
8397
21 47.58 2 148.68 8339 α
2
L
3
M
4
8335
22 54.88 3 109.71 11300 γ
1
L
2
N
4
11286
23 56.47 2 167.88 7385 l L
3
M
1
7387
24 67.90 3 124.28 9976 β
2
L
3
N
5
9961
25 70.09 3 126.12 9831 β
3
L
1
M
3
9818
26 72.66 3 128.04 9683 β
1
L
2
M
4
9673
27 75.79 3 130.03 9535 β
4
L
1
M
2
9525
Fig. 3: The intensity of the W-X-ray radiation as function of the glancing angle ϑ of the analyser crystal: LiF
