Belmont Medical Technologies RAPID INFUSER RI-2 Specification sheet

IV POLE
RI-2 UNIT
SUPPORT
CLAMP
PLASTIC
WASHER
RESERVOIR SUPPORT

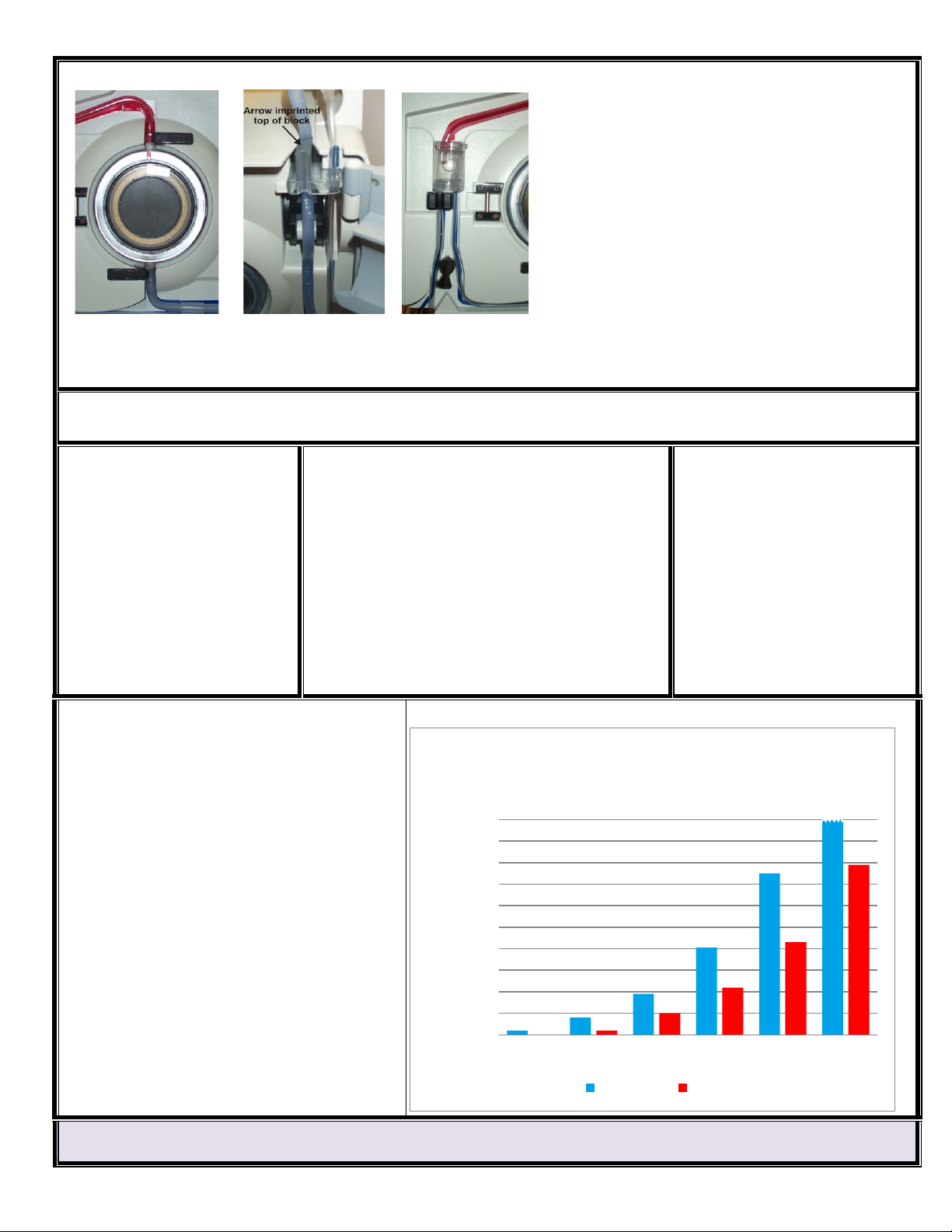

Step-By-Step Quick Set-Up
SETUP:
•Inspect the system
Power cord: 14/3 SJT cable with Hospital plug
(USE ONLY SUPPLIED POWER CORD)
IV pole: 5 wheel IV pole (max. diameter 1 1/4")
Pole mount support assembly (Support Clamp & Plastic washer)
Reservoir support
Disposable set
3L Reservoir and reservoir holder, if needed
MOUNT ON THE IV POLE:
30 in (76 cm)
Pole Clamp
Release Handle
SETUP / MOUNT ON IV POLE
•Mount The Belmont® Rapid Infuser RI-2,
app. 30” from the ground
•Tighten the “Pole Clamp Release Handle”
onto the IV pole
•Install the Pole Mount Support Assembly
(support clamp and plastic washer) under
the RI-2
•Clamp the Reservoir Support above the
RI-2

0
100
200
300
400
500
600
700
800
900
1000
22g 20g 18g 16g 14g 12g
Flow Rate
Maximum Achievable Flow
(at 300 mmHg with 2" cannula)
Crystalloid PRBC
INSTALL DISPOSABLE SET:
•Place the thinner recirculate line to the right of the air detector, and to the right of the valve wand.
•Close and latch the door. Make certain the pump tubing is not caught.
3-STEP OPERATING INSTRUCTIONS:
We strongly recommend loading and priming the disposable set just prior to the procedure.
1. POWER ON
•Turn power switch ON. Wait
for PRIME screen to appear
•Completely close bag
clamps. Hang and spike fluid
bag(s)
•Open bag clamp(s) - if not
connected to a fluid bag,
leave closed
2. SYSTEM/PATIENT LINE PRIME
DO NOT MIX LACTATED RINGER’S OR OTHER SOLUTIONS
CONTAINING CALCIUM WITH CITRATED BLOOD PRODUCTS
•Press PRIME to prime the system (circulate 100
ml of fluid at 500 ml/min.) Prime volume (100 ml)
countdown is displayed on screen.
Stop automatically when countdown reaches 0 ml
•Prime patient line.
Press PT. LINE PRIME once to pump at 50
ml/min or press and hold to pump at 200 ml/min.
Press STOP when line is free of air bubbles
3. INFUSE
A single dedicated intravenous
access should be used
exclusively for infusing blood
components and solutions
compatible with blood.
•Using aseptic technique,
make patient connection
without entrapping air
•Press INFUSE
•Infusion starts at 10 ml/min.
Press INFUSE RATE ▲/ ▼
to change flow rate
BATTERY
•System automatically switches to battery
when AC is disconnected
BOLUS INFUSION
•Infuse fixed volume at 200 ml/min (Fixed
volume: Factory set at 200 ml)
•Return to previous flow rate if flow rate was set
at 50 ml/min or lower.
•Return to 50 ml/min if flow rate was set higher
than 50 ml/min
•Change the preset BOLUS volume: Press and
hold the BOLUS key. Release the key when
the desired BOLUS volume appears in the
volume delivered position
CAUTION:
Immediately wipe any spills from the device.
CANNULA SIZE: Match Infusion Set to Flow Rate and Fluid Type
INSTALL DISPOSABLE SET / 3-STEP OPERATING INSTRUCTIONS
•Snap reservoir chamber into the reservoir support
clamp.
•Open the door. Insert heat exchanger with red
arrow pointing up (Red tinted tubing to red stripe
on unit).
•Firmly position the interlock block into the fluid out
detector.
•Guide the curved piece of pump tubing (Blue
tinted tubing) over the pump head. Check that the
thinner recirculate line is in the groove to the right.
Do not kink or twist the tubing.
•Place the pressure chamber into the pressure
chamber well. Firmly insert the wider infuse line into
the air detector and to the left of the valve wand.

ALARM/MESSAGE
POSSIBLE CAUSE
SOLUTION
OPERATIONAL ALARMS
UNIT DOES NOT POWER
UP
•Power switch not completely depressed
•Depress power switch completely
AIR DETECTION
•Air in the line
•Tubing in Air detector Sensor not fully
seated
•Leak in disposable set
•Air detector sensor dirty
•Open door, squeeze tubing directly below air
detector sensor to clear air. Recirculate to
remove air in line
•Reseat tubing in Air detector Sensor
•Replace disposable set, if leak
•Clean sensor with moistened Q-tip and dry
DOOR OPEN
•Door is open
•Close the door
FLUID OUT
•Out of fluid
•Bag clamps not fully opened
•Bag not fully spiked
•Tubing in Fluid OUT Sensor not fully
seated
•Filter clogged
•Recirculate line (smaller tubing) blocked
•Add fluid
•Open bag clamps
•Check bag spikes
•Reseat tubing in Fluid OUT Sensor
•Replace filter if it becomes clogged
•Check recirculate line
HIGH PRESSURE
•Infusion site may be positional
•Cannula bore size is too small
•Patient line is blocked
•Recirculate line is kinked
•Pressure limit setting is set too low
•Check the infusion site
•Use appropriate cannula size
•Check patient line
•Check recirculate line
•Increase pressure limit setting.
•See Chapter IV of Operator’s Manual
LOW BATTERY
•Battery voltage is too low
•Plug system into AC outlet
•Check power cord at AC outlet and unit
MISSING DISPOSABLE
•No disposable set in the unit
•Install disposable set

HEATING ALARMS
SYSTEM ERROR #101
CHECK TEMPERATURE
PROBES FOR
BLOCKAGE. CLEAN
WINDOWS. PRESS
RETRY TO CONTINUE.
SERVICE MACHINE IF
ERROR PERSISTS.
•IR probes are wet, dirty, or blocked
•Disposable set windows are wet, dirty, or
blocked
•IR probe errors
•Clean IR probes with moistened Q-tip and dry
•Clean window and dry. Replace disposable set,
if clogged
•Press RETRY to continue. If error persists, call
service
SYSTEM ERROR #102
INFUSATE OVER
TEMPERATURE.
DISCARD DISPOSABLE
AND BLOOD. RESTART
SYSTEM WITH A NEW
DISPOSABLE. SERVICE
MACHINE IF ERROR
PERSISTS.
•IR probes are wet, dirty, or blocked
•Fluid supply is over temperature limit
•Restricted flow or out of fluid
•Clean IR probes with moistened Q-tip and dry.
•Clean window and dry. Replace blood and
disposable set
•Make sure bag clamps are open and flow is
unimpeded. Make sure that filter (in reservoir
chamber) is not clogged, replace if needed. Add
more fluid, if fluid out
INTERNAL SYSTEM FAULT ALARMS
SYSTEM ERROR #201
•Air detector errors
•Power off and restart. Service machine if error persists
SYSTEM ERROR #202
•Fluid out detector errors
•Power off and restart. Service machine if error persists
SYSTEM ERROR #203
•Excessive AC power line noise or internal failure
•Press RETRY to continue. Service machine if error
persists
SYSTEM ERROR #204
•Power feedback circuit errors
•Power off and restart. Service machine if error persists
SYSTEM ERROR #205
•Heater hardware errors
•Press RETRY to continue. Service machine if error
persists
SYSTEM ERROR #206
•Power driver module overheating
•Make sure air vent, at the bottom of the unit, is not
blocked
•Wait for unit to cool. Display will return to infuse
screen when error clears
•Service machine if error persists
SYSTEM ERROR #207
•Fluid pump errors
•Check that pump turns freely and head is clean
•Press RETRY to continue. Service machine if error
persists
SYSTEM ERROR #208
•Valve errors
•Valve position sensor errors
•Check that valve is not blocked
•Power off and restart. Service machine if error persists
SYSTEM ERROR #209
•Printed Circuit Board overheating
•Make sure air vent, at the bottom of the unit, is not
blocked
•Wait for unit to cool. Display will return to infuse
screen when error clears
•Service machine if error persists
SYSTEM ERROR #210
•Internal computer errors
•Power off and restart. Service machine if error persists
ALARM/MESSAGE
POSSIBLE CAUSE
SOLUTION

TROUBLESHOOTING OTHER DIFFICULTIES
DIFFICULTY
POSSIBLE CAUSE
SOLUTION
BATTERY NO HEAT
•Power cord not plugged in AC outlet
•Power cord is loosened from back of the unit
•Plug into AC outlet
•Check power cord connection
DIM DISPLAY
•Display brightness has been set to the lowest
•To increase display brightness, see SYSTEM
PARAMETERS SETTING below
FLOW RATE SLOWING
DOWN AND DOES NOT GO
TO SET FLOW RATE
•Line kinked or obstructed
•Cannula is too small
•System keeps pressure in-
line under pressure limit
setting
•Check if line is kinked
•Use appropriate cannula size
•To change pressure limit, see SYSTEM
PARAMETERS SETTING below
KEY PAD NOT
RESPONDING
•Key pad sensitivity has been set to SLOW
•Key pad errors
•To reset key pad sensitivity, see SYSTEM
PARAMETERS SETTING below
•Power down and retry. If error persists, call
service
WILL NOT HEAT
•Windows on disposable set or IR probes are wet, dirty,
or obstructed
•Power Driver module is not calibrated properly
•IR probes are out of calibration
•Clean IR probes with moistened Q-tip and dry.
Replace disposable set, if clogged
•Re-calibrate, Chapter IV
•Re-calibrate, Chapter IV
WILL NOT PRIME
•Out of fluid
•Bag clamps not fully opened
•Bag not fully spiked
•Tubing in Fluid OUT Sensor not fully seated
•Filter clogged
•Recirculate line (smaller tubing) blocked
•Add fluid
•Open bag clamps
•Check bag spikes
•Reseat tubing in Fluid OUT Sensor
•Replace filter if it becomes clogged
•Check recirculate line
UNABLE TO CALIBRATE
•Hardware errors
•Call service

SYSTEM PARAMETERS SETTING
The CALIBRATION/SET-UP screen is accessed by pressing SERVICE key during power-up
This key appears on the BELMONT logo screen and remains active for 4.5 seconds before system enters the PRIME screen.
DATE/TIME
•Press DATE TIME key
•Start with either DATE or TIME
•Enter appropriate date or time. Enter
time in 24 hour clock format
(i.e 1:00 PM = 13:00)
•Press UPDATE to save the new value
•Press NEXT to return to setup screen
DISPLAY BRIGHTNESS
•Press DISPLAY BRIGHT key
•There are four (4) levels of
display brightness. Release the
key when the desired brightness
appears
Factory set at level 4
KEY RATE
•Press KEYRATE key.
•There are three (3) levels of key pad
sensitivity, FAST, MEDIUM, SLOW.
Factory set at MEDIUM
•Press to select the time required to
depress a key for stoke to be
recognized. (SLOW requires the most
time and makes the touch key less
sensitive).
BOLUS VOLUME
•Press SETUP BOLUS key.
Factory set at 200 ml
•Change the preset volume: Press and
hold BOLUS key. The bolus volume can
be set from 100 to 1000 ml and can be
changed from 100, 200, 400, 500, and
1000 ml each time SETUP BOLUS key
is pressed.
•Release the key when the desired
volume appears in the volume delivered
position
PRESSURE LIMIT
•Press PRESS LIMIT key.
Defaults to 300 mmHg
•Press and hold to change the
limit in increment of 50 mmHg
TROUBLESHOOTING OTHER DIFFICULTIES / SYSTEM PARAMETERS SETTING

REPLACING RESERVOIR CHAMBER / INSTALL 3 LITER RESERVOIR
REPLACE FILTER / RESERVOIR CHAMBER (FLUID SUPPLY)
INSTALL 3 LITER RESERVOIR
Connect 3 Liter Reservoir to the 3-Spike Disposable Set
REPLACING RESERVOIR CHAMBER
CAUTION
Replace filter, reservoir chamber and/or disposable set if
filter(s) becomes clogged. If it becomes occluded the fluid
out sensor will activate, an audible alarm will sound, a
message “Fluid Out, Check inlet tubing and Filter. Add
more fluid” will appear and the pump will stop.
1. Clamp off the pump tubing using the slide clamp.
2. Using aseptic techniques, remove the reservoir chamber from
the 3-Spike disposable set by disconnecting the luer
connectors:
•Disconnect the larger pump tubing by pressing in the luer
lock tab and pulling out the connector.
•Disconnect the thinner recirculate line by unscrewing the
connector.
3. Connect the reservoir chamber to the luer connectors of the
3-Spike disposable set.
INSTALL 3 LITER RESERVOIR
1. Assemble the 3L Reservoir using aseptic techniques by
attaching the three fluid supply tails onto the top of the
reservoir.
2. Attach the reservoir holder on the IV pole, place reservoir
in the holder.
3. Clamp off the pump tubing on the 3-Spike disposable set
using the slide clamp. Remove reservoir chamber, see
‘REPLACING RESERVOIR CHAMBER, step 2'.
4. Connect the 3L Reservoir to the luer connectors of the 3-
Spike disposable set.
5. Adjust the reservoir holder to make sure that the two
connection leads underneath the reservoir are not
stretched or kinked.
REPLACING RESERVOIR CHAMBER / INSTALL 3 LITER RESERVOIR

Display
Power
Switch
Fluid Out
Detector
Pump
Head
Air
Detector
Valve
Wand
Heat
Exchanger
Pressure
Chamber
Pump
Tubing
Interlock
Block
Patient
Line
Recirculate
Line
Roller
Clamp
Reservoir
Chamber
Infuse
Line
IR Probe
Probe
IR
780 BOSTON ROAD
BILLERICA, MA 01821, USA
USA: 866.663.0212
WORLDWIDE: +1 978.663.0212
WWW.BELMONTMEDTECH.COM
702-00201 Rev. D
CONVERSIONS & HEATING
Heats to 39oC
Heats to 37.5oC
ml/min
ml/hr
ml/min
ml/hr
2.5
150
60
3,600
5
300
70
4,200
10
600
80
4,800
20
1,200
90
5,400
30
1,800
100
6,000
40
2,400
200
12,000
50
3,000
300
18,000
400
24,000
500
30,000
600
36,000
700
42,000
750
45,000
1000
60,000

THE BELMONT® RAPID INFUSER RI-2
QUICK REFERENCE GUIDE
TECHNICAL SUPPORT
USA: 855.397.4547
WORLDWIDE: +1.978.663.0212
[e-mail]
WWW.BELMONTMEDTECH.COM
IT IS ESSENTIAL THAT YOU READ AND UNDERSTAND THE OPERATOR’S MANUAL BEFORE USING THIS DEVICE
Registered in Accordance with ISO 13485
