Belson BR-200 User manual
www.belson.com
BEFORE ASSEMBLY, PLEASE MAKE SURE ALL COMPONENTS ARE INCLUDED.
A - RACK
( 1 ) - ONE RACK
D - BASE POST
( 2 ) - TWO BASE POSTS
C - WHEEL BASE SUPPORT
( 2 ) - TWO WHEEL BASE SUPPORT
FP - FASTENER PACK
( 1 ) - ONE FASTENER PACK
www.belson.com
1 - #3 PHILLIPS DRIVE BIT
2 - 9/16" SOCKET WRENCH
ALSO NEEDED FOR THIS ASSEMBLY WILL BE THE FOLLOWING MATERIALS:
16 - 3/8” X 4” HEX BOLT LAG BOLT
BEFORE ASSEMBLY, PLEASE MAKE SURE ALL FASTENERS ARE INCLUDED.
16 - 3/8" FLAT WASHER
www.belson.com
STEP #1:
FASTEN ( 2 ) TWO BASE POSTS TO ( 2 ) TWO WHEEL BASE SUPPORTS AS SHOWN BELOW, BEING
SURE TO LINE UP THE PRE-DRILLED HOLES TO THE PILOT HOLES. USE ( 1 ) ONE 3/8” X 4“ HEX
HEAD LAG BOLT AND ( 1 ) ONE 3/8” FLAT WASHER PER HOLE TO SECURE.
3/8” FLAT WASHER
3/8” X 4” HEX
HEAD LAG BOLT
www.belson.com
STEP #2:
FASTEN THE RACK TO THE BASE POSTS, BEING SURE TO LINE UP THE PRE-DRILLED HOLES TO THE
PILOT HOLES ON THE SIDE. USE ( 1 ) ONE 3/8” X4” HEX HEAD LAG BOLT AND ( 1 ) ONE 3/8” FLAT
WASHER PER HOLE TO SECURE.
3/8” FLAT WASHER
3/8” X 4” HEX
HEAD LAG BOLT
www.belson.com

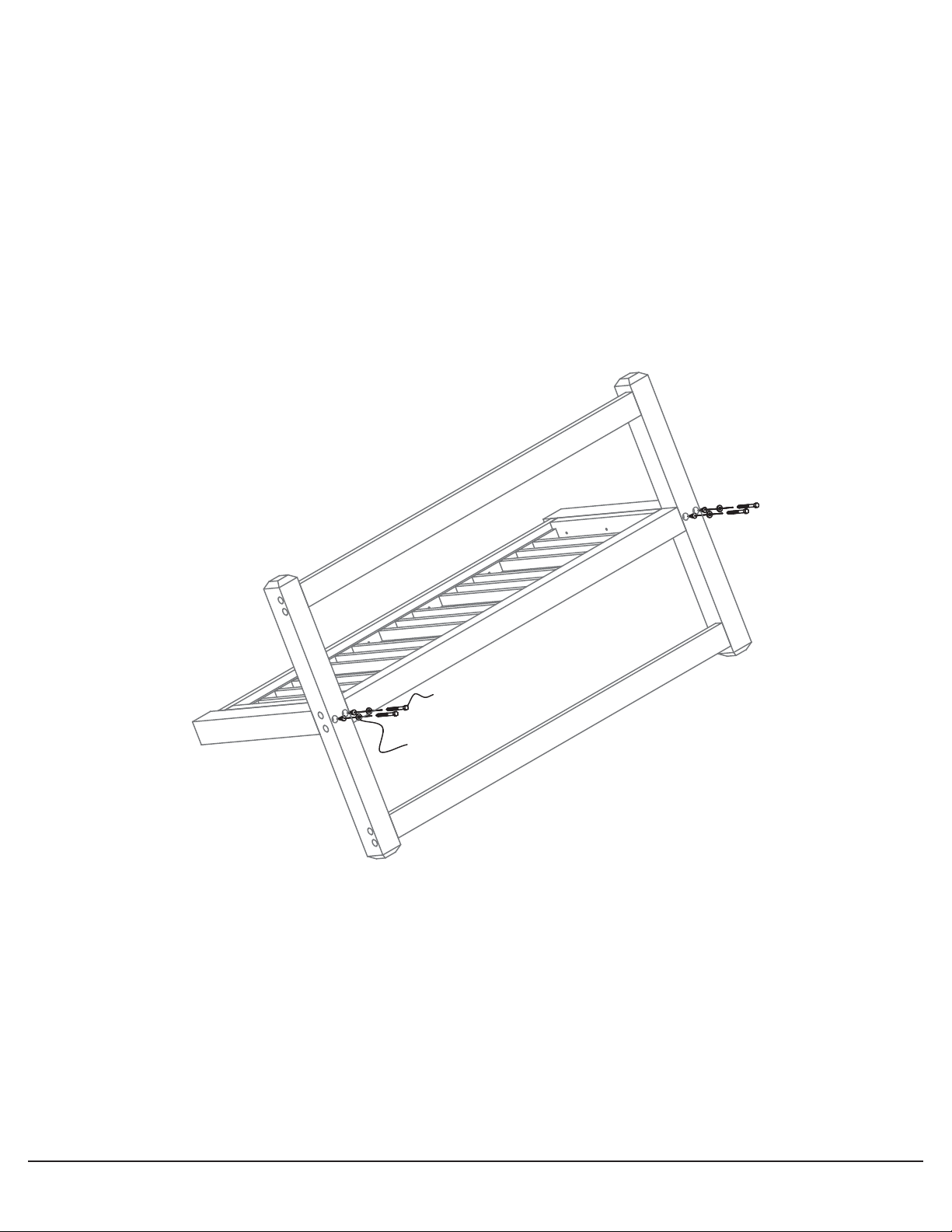

STEP #3:
FLIP THE BIKE RACK ON TO ITS SIDE AS SHOWN IN DIAGRAM. PLEASE USE CAUTION AS
THE BIKE RACK WEIGHS APPROXIMATELY 150 POUNDS.
STEP #4:
FASTEN THE BOTTOM OF THE BASE POSTS TO THE RACK AS SHOWN IN THE DIAGRAM ABOVE.
USE ( 1 ) ONE 3/8” X 4” HEX HEAD LAG BOLT AND ( 1 ) ONE 3/8” FLAT WASHER PER HOLE TO
SECURE.
3/8” FLAT WASHER
3/8” X 4” HEX
HEAD LAG BOLT
