Belvedere 8400 BACKWASH SHAMPOO BOWL User manual

Shampoo
Bowls
8400 BACKWASH
SHAMPOO BOWL
PAGE 1 of 4
8400
Belvedere USA Corporation
A wholly owned subsidiary of The Wella Corporation
One Belvedere Boulevard, Belvidere, Illinois 61008
Printed in U.S.A. E.C.O. 9162 4001148 Rev. 04-05
8400 BACKWASH SHAMPOO BOWL
WITH MODEL 522 FIXTURE AND
603 BACKFLOW PREVENTER
INSTALLATION AND PLUMBING
MOUNTING
SCREW
ATTACH HOSE RECEIVER TO BOWL
(STEPS 2 thru 4).
2. To make hose receiver installation easier,
complete these steps to cut screw threads
in the mounting holes:
STake a mounting screw and drive it 2 or
3 turns into one hole.
DO NOT OVERTIGHTEN.
SRemove the screw.
SRepeat for all four (4) mounting holes.
DRIVE
SCREW
IN 2 OR 3
TURNS
NOTE: Read the instructions through before starting
to familiarize yourself with the components.
Any conformance with LOCAL CODES or
INSPECTIONS is the RESPONSIBILITY
OF THE PURCHASER.
1. Attach the fixture to the bowl according to
the instructions packed with the fixture. 3. Place the gasket
over the flange
on the bottom
of the hose
receiver.
HOSE
RECEIVER
GASKET
4. Place the hose receiver and gasketin the bowl.
Install the Mounting Bracket on the bottom
side of the Bowl with four (4) embossed
corners facing upward, against the
bottom of the Bowl. Secure with four (4)
Screws.
DO NOT OVERTIGHTEN.
MOUNTING
SCREW
EMBOSSED
CORNER
(UP)

PAGE 2 of 4
8. From the underside of the Bowl, place the fiber
and rubber washers over the strainer
body. Secure
the strainer
body
with
the nut.
DO NOT
OVER-
TIGHTEN.
When the
strainer body
is tightened
securely to
the Bowl,
clean off
any excess
plumber’s
putty.
9. Attach the
gasket and
tailpiece to
the strainer
body.
DO NOT
OVERTIGHTEN.
6. Apply a liberal amount
of plumber’s putty
(available at
most hard-
ware stores)
around the
top of the
drain
opening.
PLUMBER’S
PUTTY
DRAIN OPENING
INSTALL THE DRAIN ASSEMBLY
(STEPS 6-9)
TAILPIECE
GASKET
BOWL
RUBBER
WASHER
STRAINER
BODY
BOWL
NUT
FIBER
WASHER
5. Attach the backflow preventer to the fixture
tailpiece. Do not overtighten. Place the end of
the spray hose with the brass connector through
the hole in the hose receiver. Attach the Spray
Hose connector to the backflow preventer.
STRAINER
BODY
PLUMBER’S
PUTTY
DRAIN
OPENING
7. Place the strainer body in the opening,
and press it into the plumber’s putty.
SPRAY
HOSE
RECEIVER
TAIL-
PIECE
BACKFLOW
PREVENTER

12. Set the bowl onto the wall bracket. Have a
helper hold the bowl in place. Fasten the bowl
to the bracket with two 1/4-20 bolts supplied.
NOTE:
A bead of silicone type caulk is required
between the bowl and the wall to prevent
water seepage.
10. Install the
wall bracket
so that the top
edge is 35” from
the finished floor.
(This bracket
height is
suggested to
obtain the neckrest
height suitable
for most stylists.
However, the bracket
height may be varied to
suit personal preference.)
Be sure that the bracket is securely
fastened to a structural member in the wall.
Be sure the bracket is level. Install the
leveling bolt into the wall bracket.
ALL PLUMBING TO BE PLANNED AND
PERFORMED BY A QUALIFIED PLUMBER
IMPORTANT NOTE:
It is the responsibility of the owner and/or the
installer to be sure that the installation meets
all local plumbing codes and regulations.
PAGE 3 of 4
TO INSTALL THE 8400 BOWL IN THE S54K-Q BACKWASH. REFER TO THE
INSTALLATION INSTRUCTIONS PACKED WITH THE CABINET.

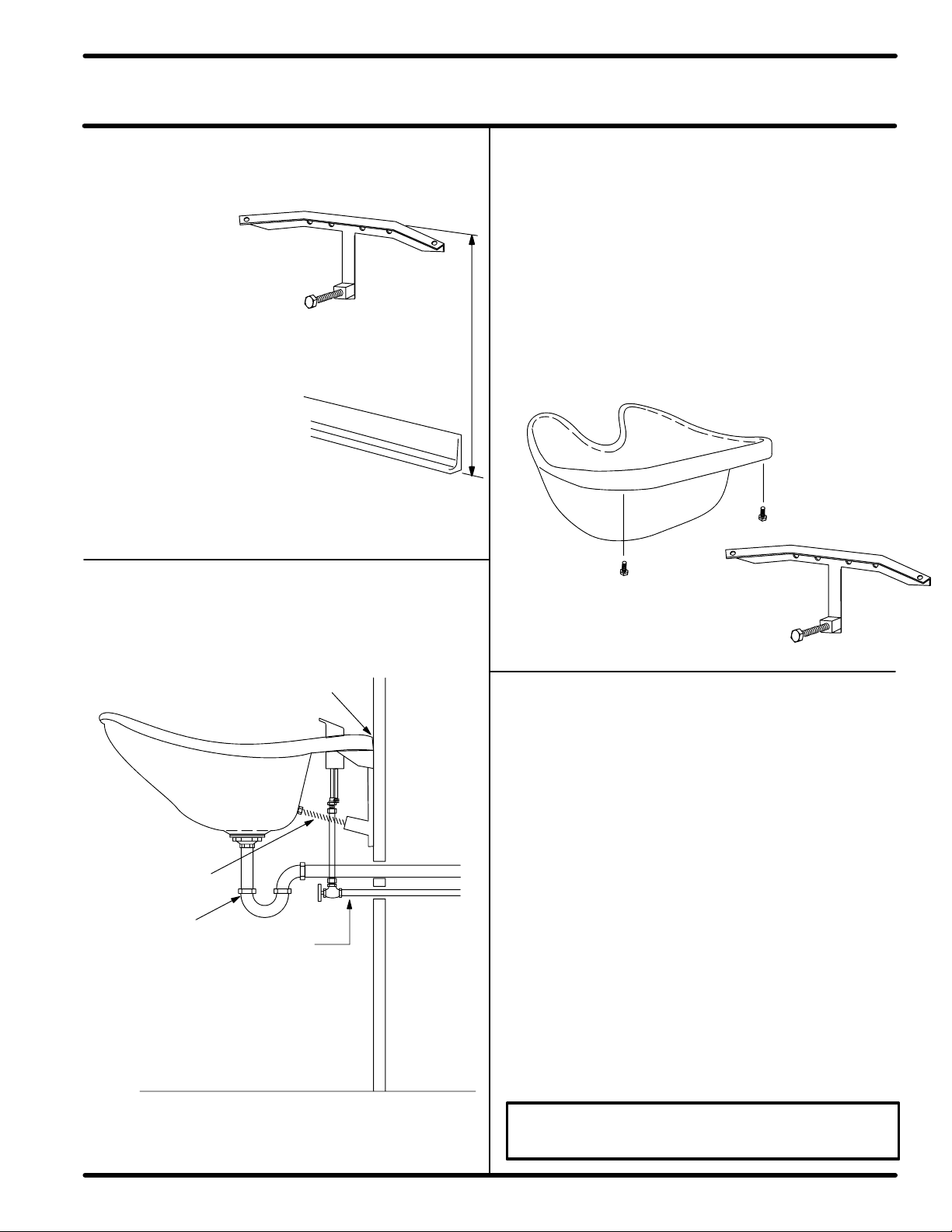

TO MOUNT THE 8400 BOWL TO
THE WALL (STEPS 10 THRU 12)
BRACKET
BOWL
LEVELING
BOLT
35”
TRAP
SUPPLY LINES
BOWL
LEVELING BOLT
11. Check to be sure the bowl is level side-to-side
and front-to-back. Connect the fixture to the hot
and cold supply lines. Install the trap and connect
the drain. Apply a bead of silicone to the back
edge of the bowl to seal it to the wall.
NOTE:
When used with a booth unit, attach the
bracket with tee nuts. Use the outer bracket
holes as a guide to drill (2) new 5/16”dia.
holes.
(The 8400 Bowl Bracket is different from
conventional brackets. Two of the pre-
drilled holes in the booth unit will not align
correctly.)
From the back side of the cabinet front
panel, insert the cap tee nuts in the holes.
Secure the bracket with the screws that
were supplied with the cabinet.
When mounting the bracket on a shampoo
bulkhead at the recommended 35” height,
drill (5) 5/16” dia. holes. Use the bracket as
a guide to mark hole locations.
APPLY SILICONE HERE

IMPORTANT NOTE:
This shampoo bowl is designed to be used with the Belvedere SR04 and SR24 Siesta Backwash Shampoo
Chairs. Use of other chairs is not recommended.
For optimum comfort when the bowl is used with Siesta Backwash Chairs, install the bowl
so the neckrest is at 34-3/4” above the finished floor.
If you decide to use this bowl with conventional shampoo chairs, install the bowl with the neckrest at 31”.
To mount the bowl at these heights, locate the bowl bracket height as shown in these
specifications. These dimensions may vary to suit individual salon owners.
PAGE 4 of 4
ROUGH-IN PLUMBING SPECIFICATIONS.
IMPORTANT!
DO NOT
OVERTIGHTEN
DRAIN ASSEMBLY!
31/2” BASKET STRAINER
SIDE
VIEW
FRONT
VIEW
TOP
VIEW
BRACKET
COLD
HOT
FINISHED FLOOR LINE
APPROX.
16”
6” TAILPIECE
FURNISHED
18”
LEVELING BOLT
34 3/4” RECOMMENDED
[31” Conventional]
CLEANING INSTRUCTIONS
Paste wax monthly to preserve and protect
against common soils.
With normal care your bowl will last many years.
CLEAN ONLY WITH A NON-ABRASIVE
LIQUID CLEANER.
Dow Tub & Tile CleanerR409R
Mr. CleanRFantasticR
DO NOT USE HARSH ABRASIVES
These will dull the sparkling surface.
35”
[311/4”
Conventional]
TOP OF
BRACKET
TO FLOOR
4” 4”
HOT
APPLY SILICONE HERE
