PLEASE OBSERVE THE FOLLOWING PRECAUTIONS
AND INSTRUCTIONS BEFORE INSTALLATION AND USE.
•This product must be connected to a grounded 120V GFCI (Ground Fault
Circuit Interrupt) outlet. Do not connect the power cord if it is damaged or
broken. Do not plug the product into a loose electric outlet.
•It is recommended to operate this product on a separate circuit.
Sharing a circuit could cause the breaker to trip or lights to flicker.
•If it is necessary to use an extension cord, use only a three-prong
extension cord plugged into a proper GFCI outlet. The marked rating
of the extension cord should be equal to or greater than the electrical
rating of the unit (10 amp). Consult a qualified electrician or service
person if you are not sure whether the unit is properly grounded.
•Do not open this product for repair without authorization from the
manufacturer. Only qualified service personnel should service this
product. Do not use accessories not recommended by the manufacturer.
•Connect this product to a cold water supply line.
•Close supervision is necessary when this product is used by children,
eldely, or adults with sensitive skin. A low temperature burn may occur
when the skin has been in contact with an object at relatively low
temperature for an extended period of time.
•If using any chemical toilet bowl cleaner, be sure to wipe up any spills that
splash onto the bidet. Do not use benzene or any acid chemical detergent,
as they can cause discoloration. Only neutral detergents are permitted.
•Do not plug in the power cord before connecting the water supply hose.
•Install in an area with adequate ventilation to avoid high levels of
humidity which can damage the electronic components.
•Do not touch the power cord with wet hands or reach for a product
that has fallen into water. Unplug immediately.
•Unplug the bidet seat when cleaning or detaching from the toilet bowl.
Do not plug in until plumbing work has been completed.
•Keep the power cord away from heated surfaces to prevent a fire hazard.
Keep any flammable materials away from this product at all times.
IMPORTANT SAFEGUARDS

76
OVERVIEW & PARTS
HD-7500 HD-7500 Parts List
Side Control Panel Stainless Steel Nozzle
Lid
Side Control Panel
Warm Air Dryer
Release Button
Night Light
Stainless Steel Nozzle
Seat Sensor
Heated Seat
1. Turbo Wash
2. Rear Wash
3. Front Wash
1. Remote Receiver
2. Rear Wash
3. Power/Eco Mode LED
4. Power Button
PRODUCT INFORMATION
T-Valve
*Rubber Washer inside
Bidet
Hose
(2) Top
Mount Anchors
Remote
Control
Remote
Control Bracket
Wrench
Catch
Plate
(2) Bolt
Guides
(2) Mounting
Bolts
1
2
3
1 2 3 4
(3) AAA
Batteries
Phillips Screwdriver
Recommended Installation Tools

98
REMOTE CONTROL
Stop Button
Rear Wash
Front Wash
Turbo Wash
Warm Air Dryer
Adjustable Water Pressure/
Adjustable Dryer Temp.
Adjustable Water Temp.
Adjustable Heated Seat
Adjustable Nozzle Position
Nozzle Cleaning
Eco Mode
The HD-7500 is a bidet toilet seat designed for superior hygiene,
comfort, and sustainability. Each use will leave you feeling clean and
confident, while reducing your overall footprint.
Sit Down On The Seat
This product includes a built-in seat sensor that must be
activated with skin contact in order to operate bidet functions.
Stop Button
Press to stop a wash or dry function.
Hold the button for 3 seconds to power off.
Rear Wash
Press to activate the rear wash cycle, carefully crafted with the
optimum cleansing angle and spray pattern. Press again to oscillate.
This wash cycle will automatically turn off after 2 minutes.
Front Wash
Press to activate the front wash cycle, which offers an
alternate accommodating spray pattern. Press again to oscillate.
This wash cycle will automatically turn off after 2 minutes.
Turbo Wash
Press to activate a focused wash with higher water pressure.
Press again to oscillate. This wash cycle will automatically
turn off after 2 minutes.
Functions & Features
GETTING STARTED

10 11
GETTING STARTED
Warm Air Dryer
Press to activate the warm air dryer. Adjust the dryer temperature by
pressing “+” and “-” . (Temperature can be adjusted up to 5 levels.)
Adjustable Water Pressure
Press “+” or “-” during a wash cycle to adjust the water pressure
to your desired level.
Adjustable Water Temperature
Adjust the water temperature by pressing the corresponding
button to cycle through 5 temperature levels.
Adjustable Heated Seat
Adjust the heated seat by pressing the corresponding
button to cycle through 5 temperature levels.
Auto Oscillation
Press “Stop” and “^” during a wash cycle to turn automatic
oscillation on/off.
Adjustable Nozzle Position
Push the “^” or “v” during a wash cycle to adjust the nozzle position.
GETTING STARTED
Nozzle Cleaning
•This product has an automatic nozzle cleaning function that rinses
the nozzle before each use.
•Press “Nozzle Cleaning” to activate a nozzle cleaning cycle
that rinses the nozzle 10 times.
•Press and hold the “Rear Wash” button on the side control panel
for 5 seconds while not seated to extend the nozzle without
spraying for 2 minutes. Gently clean the nozzle with a soft cloth
or toothbrush. Press the “Stop” button to retract the nozzle.
Eco Mode
Press to turn energy saving functions on/off. When enabled,
eco mode will decrease temperature settings when not seated.
Night Light
Press the “Stop” and “Turbo Wash” buttons for 3 seconds to turn
the night light on/off.
Smart Seat Sensor
Press the “Stop” and “Nozzle Cleaning” buttons to turn
the seat sensor on/off.
Sounds On/Off
Beeping can be enabled or disabled by pressing and holding the
“Stop” and “+” buttons while not seated.
Vibration On/Off
Press the “Stop” and “v” buttons to turn the remote
vibration touch on/off.

1312
INSTALLATION GUIDE
BEFORE INSTALLATION
Do not plug the power cord in until installation is complete.
Please contact our service center at 847.458.2334 for alternate
fittings or assistance with this process.
1. Turn Off Water
Turn off the water shut-off
valve. Drain the toilet tank
completely by flushing the
toilet. Unscrew the hose
connected to the toilet tank. Existing
Toilet Hose
2. Remove Toilet Seat
Unscrew the nuts on both sides of
the toilet to release the existing
toilet seat from the toilet.
3. Install Catch Plate
Insert the top mount anchors into the toilet bolt holes. Insert the mounting bolts
through the guides, catch plate, and mounting holes and into the top mount rubber
anchors. Fasten with a phillips screwdriver to secure the catch plate on the toilet.
INSTALLATION
Align the bidet seat with the catch
plate and slide it all the way back
until you hear a click.
4. Install Your HD-7500
Bolt
Bolt Guides
Catch Plate
Top Mount
Anchors
Back of
toilet

14 15
INSTALLATION
Adhesive Tape Wall
6. Plug It In!
1. Remove the adhesive cover from the back of bracket and
place the bracket where desired.
2. Insert the supplied batteries (AAA) and close the battery cover.
Ensure the batteries are inserted properly accordingly to polarity.
Plug the power cord into a 120V power outlet. The HD-7500 will beep.
Press “Rear Wash” while unseated. The water will start filling the tank
and the bidet will beep 3 times. Once the tank is full, the beeping will stop.
1. Install the t-valve onto the toilet tank. Ensure the rubber
gasket is properly seated inside the t-valve.
2. Connect your existing toilet hose to the water shut-off valve and t-valve.
3. Connect the provided bidet hose to the bidet seat and t-valve.
4. Open the water shut-off valve. Check for any leaking or dripping.
Use a wrench to tighten any loose connections.
*Shut-off valves may vary. If supplied parts do not fit, please call
847.458.2334. Alternate fittings are available upon request.

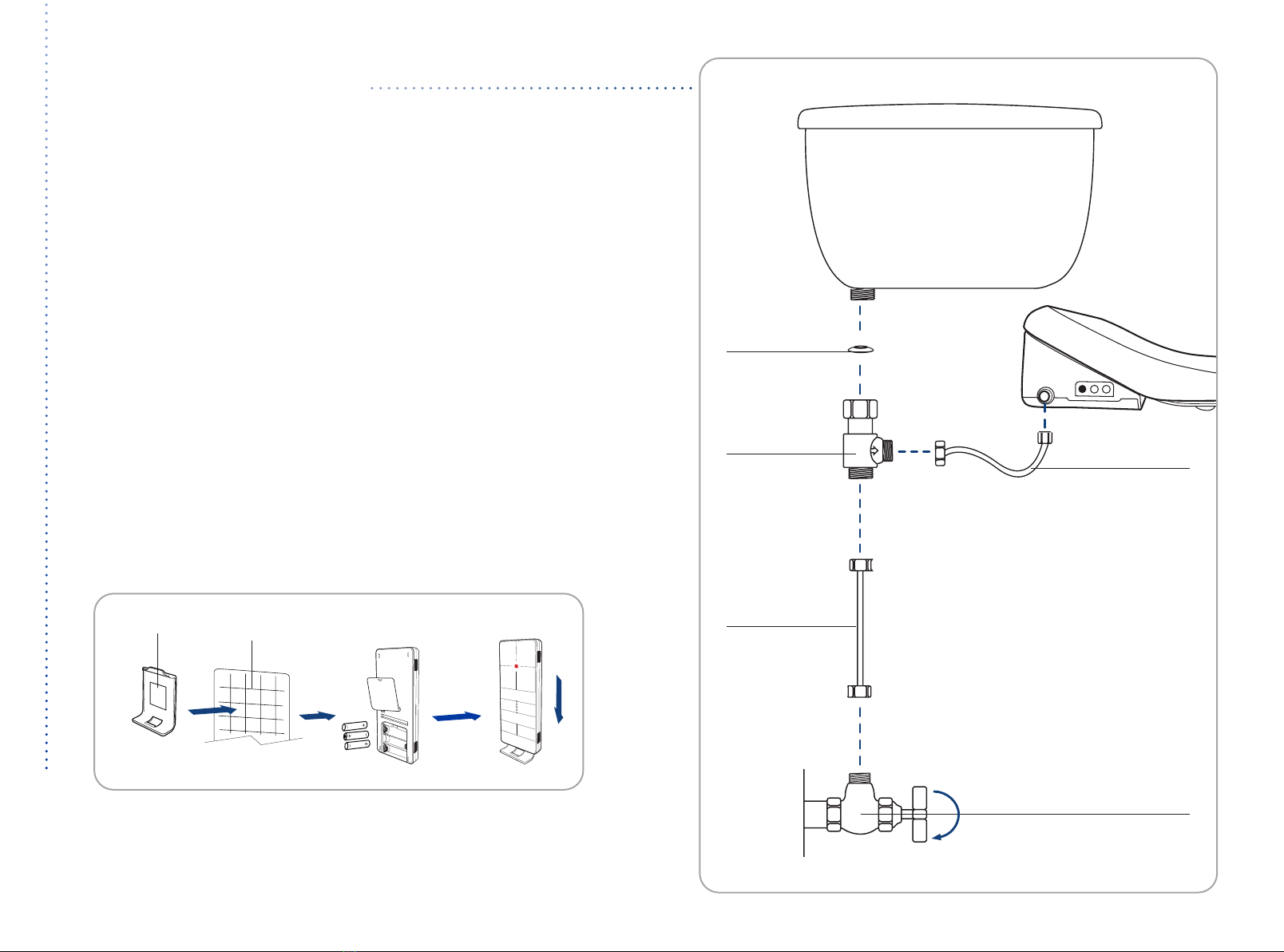

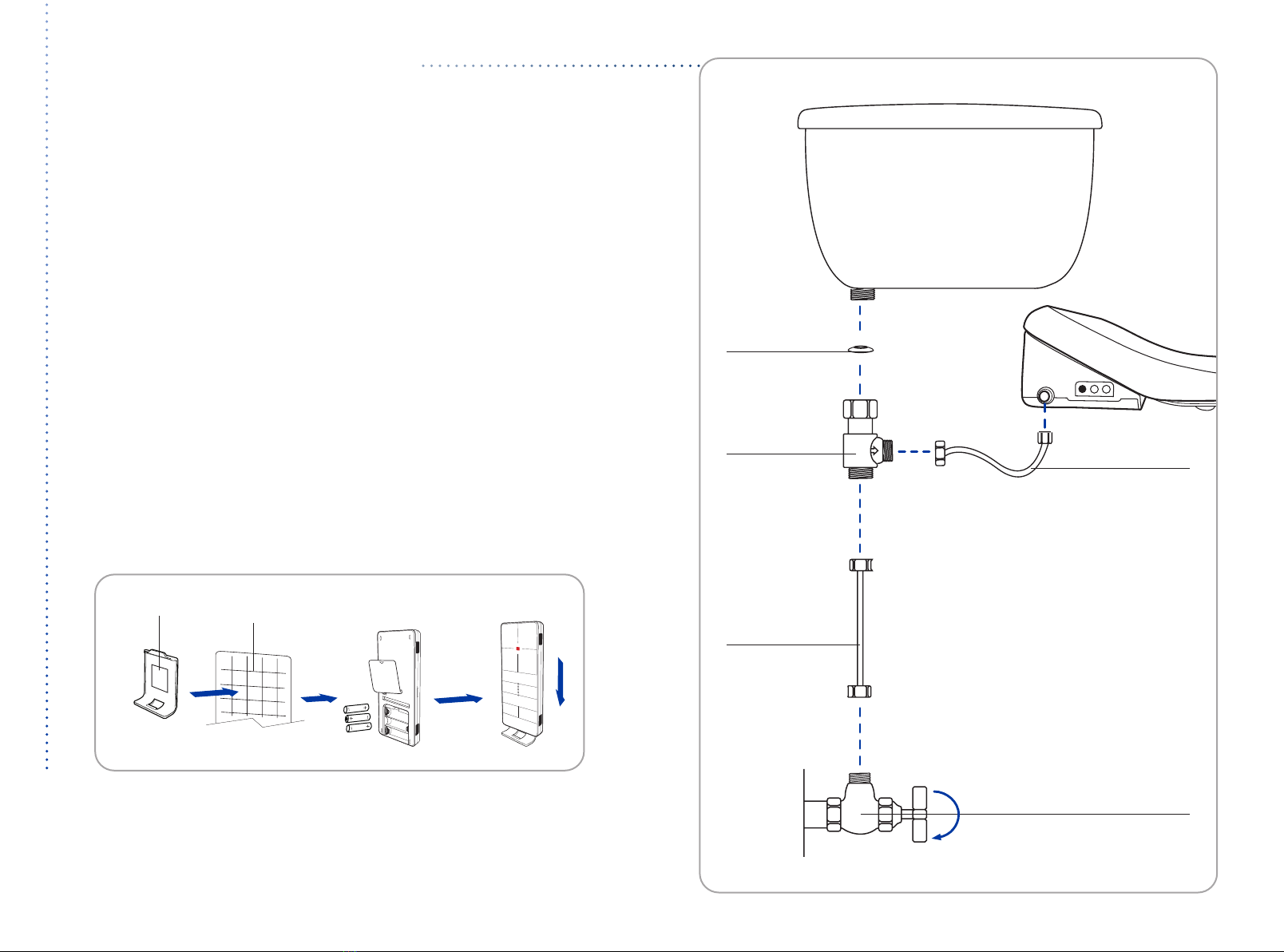

5. Connect the Water Hoses
7. Mounting the Remote
INSTALLATION
Toilet Tank
T-Valve
Rubber Washer
*Inside T-valve
Toilet Hose
Bidet Hose
Shut-off Valve

1716
MAINTENANCE
Replacing Remote Batteries
•If the remote is low, the first LED on the “Adjustable Water Pressure” and
“Dry Temp.” will flash. Please replace the batteries.
•The LED will automatically turn off after 5 seconds to preserve energy.
Settings are changed to default when replacing the batteries.
MAINTENANCE
Draining the Warm Water Tank
If you do not intend to use this product for an extended period of time,
drain the water from this product’s warm water tank.
Before draining, unplug the power cord and wait 30 minutes until the unit has
cooled down. Do not insert your finger into the drain hole.
1. Disconnect the power plug.
2. Close the water shut-off valve.
3. Press the release button on the right side of the bidet and pull it forward.
4. Open the drain cap located on the back and bottom of the product and drain
out all the water in the tank. Beware of losing the drain bolt.
Avoid placing the product in a fully upright position.
*Close shut-off valve
Release
Button
Pairing The Remote ID
1. Press “Stop” and “Seat Temp” for 3 seconds. Channels will show up on on
the LEDs. Set desired channel with “+” and “-”. Press “Stop” to save settings.
•Channel 1-5 - LEDs flashing
Channel 6-10 - LEDs on
2. Press “Stop” and “Rear Wash” on the side control panel for 3 seconds.
The LED will start flashing. Press “Stop” on the remote to finish the
channel setting.
3. To reset all remote settings, press “Stop” and “Front Wash” for 3 seconds.

18 19
Cleaning the HD-7500
•When you clean this product, do not use thinner, benzene or toilet bowl
cleaner, as it may cause discoloration or damage.
•Disconnect the power cord and use a wet cloth when you clean this product.
Cleaning the Strainer
*Close shut-off valve
This product will not operate properly if the strainer is clogged.
Please clean the strainer regularly.
1. Unplug the power cord. Close the water shut-off valve.
2. Unscrew the bidet hose from the bidet seat.
3. Clean the strainer with a small brush.
4. Re-connect the bidet hose. Open the water shut-off valve.
Plug in the power cord.
MAINTENANCE
Problem Check The Following
Water does
not spray
•Check if water supply is cut off.
•Check if the strainer is clogged.
•Ensure the seat sensor is activated.
The unit is not
operating
•Check if power cord is plugged in.
•Check the LED light on side control panel.
•Ensure the seat sensor is activated.
Water is leaking
•Verify all connections are secure.
•Contact customer support.
The water
pressure is weak
•Check the pressure if set to low.
•Check for any kinked hoses.
•Check if the strainer is clogged.
The heated seat
is not warm
enough
•Check if the seat temperature is set to level 1.
The water
is not warm
enough
•Check if the water temperature is set to level 1.
The nozzle
is stuck •Ensure the seat sensor is activated.
The product
is unstable •Tighten the mounting bolts firmly.
The dryer is
not working •Ensure the seat sensor is activated.
The dryer
has a smell •The dryer may release a slight odor for the first few uses.
TROUBLESHOOTING GUIDE

2120
SPECIFICATIONS
Specifications HD-7500
Power Rating 120Vac, 60Hz, 1400W
Water Supply
Water Supply Method Direct connection to waterworks
Water Pressure Range 0.07 ~ 0.74 MPa(0.7 ~ 7.5 kgf/cm2)
Power Cord 4 feet
Wash
Device
Posterior Wash Max. 650 cc ± 100 cc
Feminine Wash Max. 650 cc ± 100 cc
Adjustable
Water Pressure 5 Levels
Warm Water Temp Room Temp - Low, Normal, High
Heated
Seat
Temperature Room Temp - Low, Normal, High
Heater 1200 W
Safety Devices Overheating preventing fuse, Seat
heat temperature sensor
Dryer
Temperature Room Temperature, ~131°F level 1-5
Heater 250 W
Safety Devices Temperature fuse
Dryer •
Eco Mode •
Night Light •
Inlet Water Temperature 41°F ~ 95°F ( 3°C~ 35°C )
(Recommended temp. - 50°F ~ 95°F)
Ambient Temperature 41°F ~ 104°F ( 3°C~ 40°C )
(Recommended temp. - 50°F ~ 95°F)
Dimensions
Elongated W: 18.11 in / L : 20.47 in / H : 5.31 in
Round W:15.43 in / L: 18.9 in / H: 5.71 in
Weight 7.9 lbs (Packaged: 11.4 lbs)
1 YEAR FULL COVERAGE WARRANTY
Bio Bidet Innovation LLC warrants its product to be free from manufacturing
defects under normal use and service for a period of one (1) year from
original date of purchase.
This warranty is extended only to the ORIGINAL PURCHASER.
•Bio Bidet Innovation LLC’s obligations under this warranty are limited to
repair or replacement, at Bio Bidet Innovation LLC’s option, of products
or parts found to be defective, provided that such products were properly
installed and used in accordance with instructions.
•Bio Bidet Innovation LLC reserves the right to make such inspections
as may be necessary in order to determine the cause of the defect.
•Bio Bidet Innovation LLC will not charge for labor or parts in connection
with warranty repairs done at Bio Bidet Innovation LLC.
•Bio Bidet Innovation LLC is not responsible for the cost of removal, return,
initial install, and/or re-installation of products.
This warranty does not apply to the following items:
•Damage or loss sustained in a natural calamity such as fire,
earthquake, flood, thunder electrical storm, etc.
•Damage or loss resulting from any unreasonable use,
misuse, abuse, negligence, or improper maintenance of the product.
•Damage or loss resulting from removal, improper repair,
or modification of the product.
•Damage or loss resulting from sediments or foreign matter
contained in a water system.
•Damage or loss resulting from improper installation or from
installation of a unit in a harsh and/or hazardous environment.
WARRANTY

22 23
This warranty gives you specific legal rights. You may have other rights
which vary from state to state. To obtain warranty repair service under this
warranty, you must take the product or deliver it prepaid to a Bio Bidet
Innovation LLC service facility together with a letter stating the problem, or
contact a Bio Bidet Innovation LLC distributor or products service contractor,
or write directly to Bio Bidet Innovation LLC, 300 Mill St, Sheboygan Falls, WI
53085 or give us a call at 847.458.2334.
This written warranty is the only warranty made by Bio Bidet Innovation LLC.
Repair or replacement as provided under this warranty shall be the exclusive
remedy available to the purchaser. Bio Bidet Innovation LLC shall not be
responsible for loss of the product or for other incidental, special or
consequential damages or expenses incurred by the purchaser, or for labor or
other costs due to installation or removal, or costs of repairs by others, or
for any other expense not specifically stated above. Except to the extent
prohibited by applicable law, any implied warranties, including that of
merchantability or fitness for use, are expressly limited to the duration this
warranty. Some states do not allow limitations on how long an implied
warranty lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitation and exclusion may not apply to you.
WARRANTY
Warning - Bio Bidet Innovation LLC shall not be responsible or
liable for any failure of, or damage to, this plumbing product or
product component caused by either chloramines in the treatment
of public water supply or in-tank bowl cleaners containing chlorine
(calcium hypochlorite).
Note - The use of high concentration of chlorine or chlorine related
products can seriously damage the fittings. This damage can cause
leakage and serious property damage.
Bemis Manufacturing Co.
300 Mill St, Sheboygan falls, WI 53085
T: 847.458.2334
F: 847.854.1296
[email protected]
www.toiletseats.com
WARRANTY
Notes

Manual Del Usuario
HD-7500

2726
¿Preguntas?
Estamos aquí para ayudar.
847.458.2334
[email protected]
www.biobidet.com
Soporte técnico y suplente de
accesorios están disponibles.
Registro y Recursos
de instalación
TABLA DE CONTENIDO
INFORMACIÓN DEL PRODUCTO
Consideraciones importantes
Descripción general y piezas
Control remoto
PARA COMENZAR
Funciones & Características
INSTALACIÓN
Guía de Instalación
MANTENIMIENTO
Emparejamiento de la identificación remota
Reemplazo de baterías remotas
Drenaje del depósito de agua caliente
Limpieza del HD-7500
Limpieza del colador
Guía para resolver problemas
Especificaciones
GARANTÍA
Garantía
Notas
04
09
12
16
21

2928
OBSERVE LAS SIGUIENTES PRECAUCIONES E INSTRUCCIONES ANTES
DE LA INSTALACIÓN Y USO.
•Este producto debe conectarse a un tomacorriente GFCI (Interruptor
de Falla a Tierra) de 120 V con conexión a tierra. No conecte el cable
de alimentación si está dañado o roto. No enchufe el producto en un
tomacorriente suelto.
•Se recomienda operar este producto en un circuito separado.
Compartir un circuito podría hacer que el interruptor se dispare o
que las luces parpadeen.
•Si es necesario usar un cable de extensión, use solo un cable de
extensión de tres puntas enchufado en un tomacorriente GFCI
adecuado. La clasificación marcada del cable de extensión debe ser
igual o mayor que la clasificación eléctrica de la unidad (10 amperios).
Consulte a un electricista calificado o a una persona de servicio si no
está seguro de si la unidad está correctamente conectada a tierra.
•No abra este producto para repararlo sin la autorización del fabricante.
Solo personal de servicio calificado debe reparar este producto. No utilice
accesorios no recomendados por el fabricante.
•Conecte este producto a una línea de suministro de agua fría.
•Es necesaria una estrecha supervisión cuando este producto es utilizado
por niños, ancianos o adultos con piel sensible. Una quemadura por baja
temperatura puede ocurrir cuando la piel ha estado en contacto con
un objeto a una temperatura relativamente baja durante un período de
tiempo prolongado.
•Si usa algún limpiador químico para inodoros, asegúrese de limpiar
cualquier derrame que salpique el bidé. No use benceno ni ningún
detergente químico ácido, ya que pueden causar decoloración. Solo se
permiten detergentes neutros.
•No enchufe el cable de alimentación antes de conectar la manguera de
suministro de agua.
•Instale en un área con ventilación adecuada para evitar altos niveles de
humedad que puede dañar los componentes electrónicos.
CONSIDERACIONES IMPORTANTES
•No toque el cable de alimentación con las manos mojadas ni trate de alcanzar
un producto que ha caído al agua. Desenchufe inmediatamente.
•Desenchufe el asiento del bidé cuando lo limpie o lo quite de la taza del
inodoro. No lo enchufe hasta que se haya completado el trabajo de plomería.
•Mantenga el cable de alimentación alejado de superficies calientes para evitar
riesgos de incendio. Mantenga cualquier material inflamable alejado de este
producto en todo momento.
INFORMACIÓN DE PRODUCTO

3130
DESCRIPCIÓN GENERAL Y PIEZAS
HD-7500 HD-7500 Lista de Partes
Válvula T
Arandela de goma en
el interior
Manguera
de Bidet
(2) Anclajes de
Montaje Superior
Control
Remoto
Soporte del Control
Remoto
Llave
Inglesa
Placa de
Montaje
(2) Guías de
Pernos
(2) Pernos de
Montaje
(3) Baterías
AAA
Destornillador
Phillips
Herramientas de Instalación Recomendadas
INFORMACIÓN DE PRODUCTO
Panel de Control Lateral Boquilla de Acero Inoxidable
1. Lavado Turbo
2. Lavado Trasero
3. Lavado Delantero
1. Receptor Remoto
2. Lavado Trasero
3. Encendido/LED modo eco
4. Botón de Encendido
1 2 3 4
Tapa
Panel de
Control Lateral
Secador de
Aire Aaliente
Botón de Liberación
Luz Nocturna
Boquilla de
Acero Inoxidable
Sensor de Asiento
Asiento con
Calefacción

32
CONTROL REMOTO
33
El HD-7500 es un asiento sanitario bidet diseñado para una higiene,
comodidad y sostenibilidad superiores. Cada uso te dejará sintiéndote
limpio y confianza, mientras reduce su huella total.
Siéntate en el asiento
Este producto incluye un sensor de asiento incorporado que
debe ser se activa con el contacto con la piel para operar las
funciones del bidet.
Botón de Detener
Presione para detener una función de lavado o secado.
Mantenga presionado el botón durante 3 segundos para apagar.
Lavado Trasero
Presione para activar el ciclo de lavado trasero, diseñado
cuidadosamente con el ángulo de limpieza y el patrón de rociado
óptimo. Presione de nuevo para oscilar. Este ciclo de lavado se apagará
automáticamente después de 2 minutos.
Lavado Frontal
Presione para activar el ciclo de lavado frontal, que ofrece un patrón de
rociado acomodativo alternativo. Presione de nuevo para oscilar.Este
ciclo de lavado se apagará automáticamente después de 2minutos.
Lavado Turbo
Presione para activar el ciclo de lavado frontal, que ofrece un patrón de
rociado acomodativo alternativo. Pulse de nuevo para oscilar. Este ciclo
de lavado se apagará automáticamente después de 2 minutos.
Funciones & Características
EMPEZANDO
Botón de Detener
Lavado Trasero
Lavado Frontal
Lavado Turbo
Secador de Aire Caliente
Adjustable Water Pressure/
Adjustable Dryer Temp.
Temperatura de
Agua Ajustable
Asiento con
Calefacción Ajustable
Posición de
Boquilla Ajustable
Limpieza de Boquilla
Modo Económico

34 35
PARA COMENZAR
Secadore de Aire Caliente
Presione para activar el secador de aire caliente. Ajuste la temperatura
presionando “+” y “-”. (La temperatura se puede ajustar hasta en 5 niveles).
Presión de Agua Ajustable
Presione “+” o “-” durante un ciclo de lavado para ajustar la
presión del agua al nivel deseado.
Temperatura de Agua Ajustable
Ajuste la temperatura del agua presionando el botón
correspondiente para recorrer 5 niveles de temperatura.
Asiento con Calefacción Ajustable
Ajuste el asiento con calefacción presionando
el botón correspondiente para recorrer 5 niveles de temperatura.
Oscilación Automática
Presione “Stop” y “^” durante un ciclo de lavado
para encender/apagar la oscilación automática.
Posición de boquilla Ajustable
Presione “^” o “v” durante un ciclo de lavado para
ajustar la posición de la boquilla.
PARA COMENZAR
Limpieza de Boquillas
•Este producto tiene una función de limpieza automática
de la boquilla que enjuaga la boquilla antes de cada uso.
•Presione “Limpieza de boquillas” para activar un ciclo de
limpieza de boquillas que enjuaga la boquilla 10 veces.
•Presione el botón “Limpieza de boquilla” mientras no está sentado
para extender la boquilla sin rociar durante 2 minutos. Limpie
suavemente la boquilla con un paño suave o un cepillo de dientes.
Presione el botón “Detener” para retraer la boquilla.
Modo Eco
Presione para encender/apagar las funciones de ahorro de
energía. Cuando está habilitado, el modo eco disminuirá los
ajustes de temperatura cuando no esté sentado.
Luz Nocturna
Presione los botones “Stop” y “Turbo Wash” durante
3 segundos para encender/apagar la luz nocturna.
Sensor de Asiento Inteligente
Presione los botones “Detener” y “Limpieza de boquillas”
para encender/apagar el sensor del asiento.
Sonido Encendido/Apagado
El pitido se puede habilitar o deshabilitar manteniendo
presionados los botones “Detener” y “+” mientras no está sentado.
Vibración Encendido/Apagado
Presione los botones “Detener” y “v” para
encender/apagar la vibración táctil remota.

3736
GUÍA DE INSTALACIÓN
ANTES DE LA INSTALACIÓN
No enchufe el cable de alimentación hasta que se complete la
instalación. Comuníquese con nuestro centro de servicio al
847.458.2334 para accesorios alternativos o asistencia
con este proceso.
1. Apagar el Agua
Cierre la válvula de agua.
Drene el tanque del sanitario
completamente lavando el
sanitaario. Desenrosque la
manguera conectado al
tanque del sanitario.
Manguera
de sanitario
existente
2. Retire el Asiento
Desenrosque las tuercas en
ambos lados del sanitario para
liberar el asiento del sanitario.
3. Instala la Placa de Montaje
Inserte los anclajes de montaje superior en los orificios de los pernos del sanitario.
Inserte los pernos de montaje a través de las guías, la placa de sujeción y los orificios
de montaje y en los anclajes de montaje superior. Sujete con un destornillador
Phillips para asegurar la placa de sujeción en el sanitario.
INSTALACIÓN
Alinee el asiento del bidet con la
placa de sujeción y deslícelo
completamente hacia atrás
hasta que escuche un clic.
4. Instala tu HD-7500
Pernos
Guías de Pernos
Placa de Montaje
Anclajes de
Montaje Superior
Parte trasera
del sanitario

38 39
INSTALACIÓN
6. ¡Conéctalo!
1. Retire la cubierta adhesiva de la parte posterior del
soporte y coloque el soporte donde desee.
2. Inserte las pilas suministradas (AAA) y cierre la tapa de las pilas.
Asegúrese de que las baterías estén insertadas correctamente de
acuerdo con la polaridad.
Enchufe el cable de alimentación en una toma de corriente de 120 V.
El HD-7500 emitirá un pitido. Presione “Lavado Trasero” mientras no está
sentado. El agua comenzará a llenar el tanque. y el bidé emitirá un pitido
3 veces. Una vez que el tanque esté lleno, el pitido se detendrá.
1. Instale la válvula-T en el tanque del sanitario. Asegúrese de
que la goma esté correctamente asentada dentro de la válvula T.
2. Conecte la manguera de su sanitario existente a la
válvula de cierre de agua y la válvula-T.
3. Conecte la manguera del bidet provista al asiento del bidet y la válvula-T.
4. Abra la válvula de cierre de agua. Compruebe si hay
fugas o goteos. Utilice una llave para apretar las conexiones sueltas.
*Las válvulas de cierre pueden variar. Si las piezas suministradas no encajan,
llame al 847.458.2334. Los accesorios alternos están disponibles bajo pedido.
5. Conecte las mangueras de agua
7. Montaje del Control Remoto
INSTALACIÓN
Cinta Adhesiva Pared
Tanque de Sanitario
Válvula-T
Arandela de goma
*Válvula-T en interior
Manguera
de Sanitario
Manguera de Bidet
Válvula de Cierre
