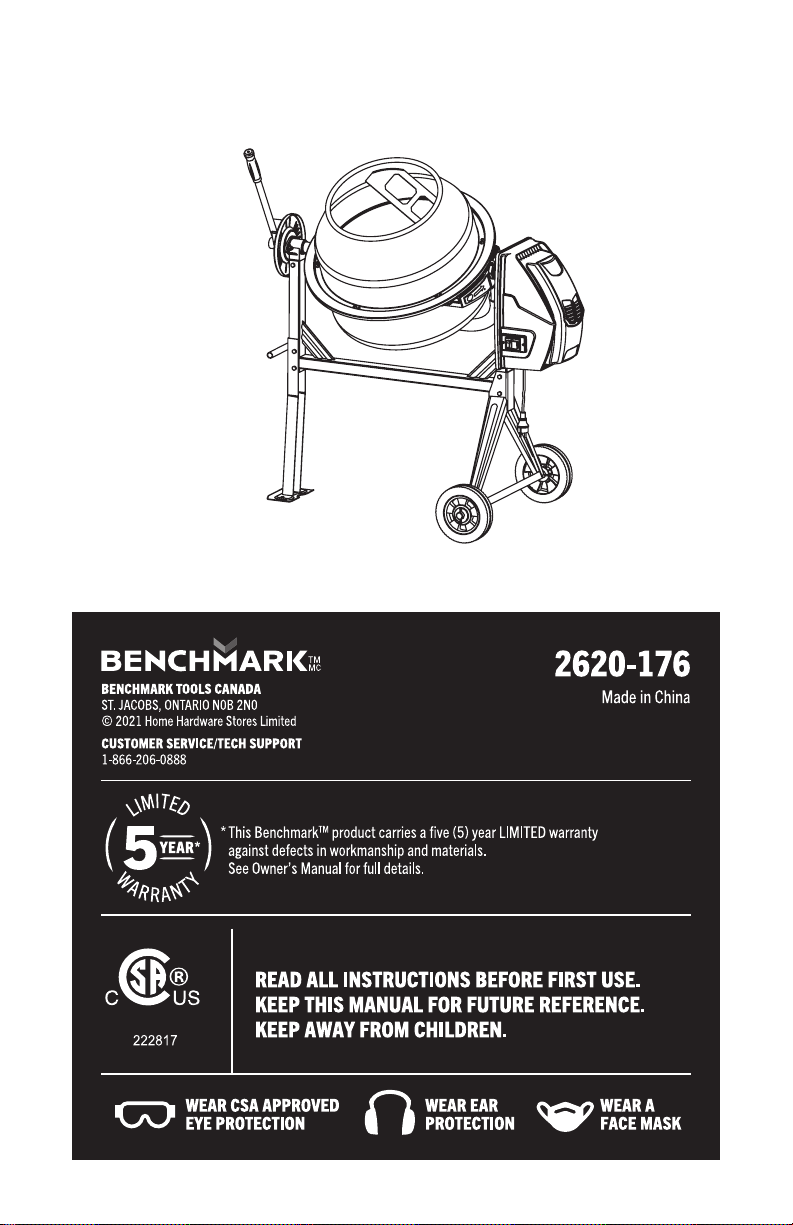

Benchmark HCM400 User manual
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
WEAR A
FACE MASK
222817
120V • 60Hz • 5AMP
5 year limited warranty on tool
4 cu ELECTRIC
CEMENT MIXER
1
PRODUCT SPECIFICATIONS
4 CU FT ELECTRIC CEMENT MIXER
Model Number HCM400
Motor 120V, 60Hz, 5A
Drum Capacity 115 Liters / 25 gallons
Drum Mouth 385 mm
Drum Speed 26.7 / min
Overall Size Length 1200 mm / 47"
Width 710 mm / 28"
Height 1350 mm / 53"
Weight 41 kg / 90.3 lbs
NEED ASSISTANCE?
Call us on our toll- free customer support line:
1-833-818-4111 (Monday through Friday 9am – 5pm Eastern Standard Time)
• Technical questions
• Replacement parts
• Parts missing from package
2620-176
4 CU FT ELECTRIC CEMENT MIXER
2
TABLE OF CONTENTS
Product Specifications................................................................................... 1
Table of Contents ........................................................................................... 2
Safety Warnings & Instructions....................................................................... 3
Contents of Shipping Container...................................................................... 7
Assembly Instructions.................................................................................... 8
Operating Instructions ................................................................................. 12
Maintenance Instructions ............................................................................ 13

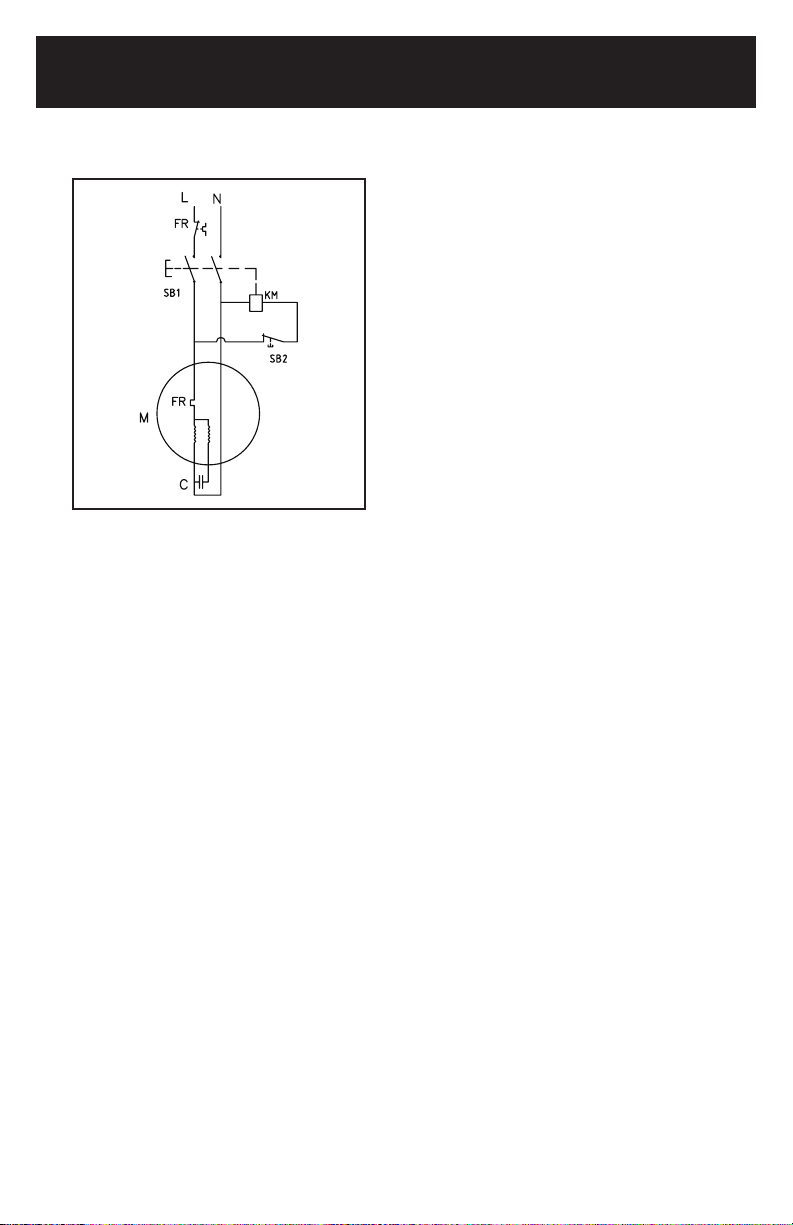

Wiring Diagram ............................................................................................ 14

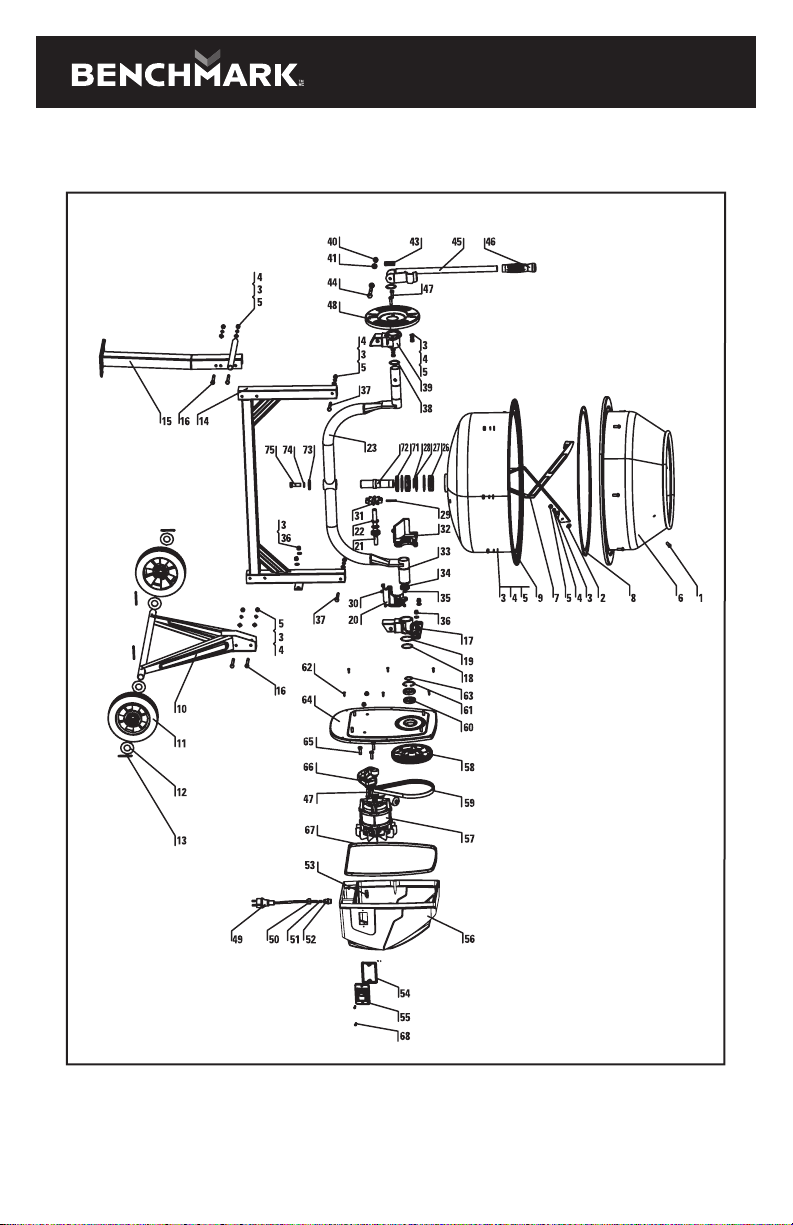

Parts Schematic .......................................................................................... 15
Parts List ..................................................................................................... 16
Warranty...................................................................................................... 18
3
SAFETY WARNINGS & INSTRUCTIONS
SYMBOL MEANING
UNDERSTAND YOUR MIXER
Read and understand the owner’s manual and labels axed
to the mixer. Learn its application and limitations as well as
the specific potential hazards peculiar to it. Become familiar
with the controls before operating this mixer.
STAY ALERT
Do not operate the mixer while under the influence of drugs,
alcohol, or any medication that could aect your ability to
use it properly. Do not use this mixer when you are tired or
distracted from the job at hand. Watch what you are doing
at all times. Use common sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surrounding workspace. Keep
your work area clean and well lit. Cluttered areas invite
injuries. Keep area around the mixer clear of obstructions,
grease, oil, trash and other debris which could cause
persons fall onto moving parts. Only use or operate the
mixer on solid, flat, level ground that is capable to support
the weight of the mixer and its load to prevent the mixer
from tipping over. Do not attempt to move the mixer when it
is loaded and/or in operation. This mixer is intended for the
production of concrete, mortar and plaster. It is not suitable
for the mixing of flammable or explosive substances. Do
not use it in areas where fumes from paint, solvents or
flammable liquids pose a potential hazard.
INSPECT YOUR MIXER
Check your mixer before turning it on. Keep guards in
place and in working order. Do not plug mixer with motor
cover o. Check all bolts, nuts, and screws for tightness
before each use, especially those securing guards and drive
mechanisms. Vibration during mixing may cause these to
loosen. Form a habit of checking to see that all the adjusting
tools, shovels, hand trowels and other tools/equipment
are removed from mixer area before turning it on. Replace
damaged, missing or failed parts before using it. Warning
labels carry important information. Replace any missing or
damaged warning labels.
2620-176
4 CU FT ELECTRIC CEMENT MIXER
4
SYMBOL MEANING
DRESS PROPERLY
Do not wear loose clothing, gloves, neckties or jewelry
(rings, wrist watches). They can be caught in moving parts.
Protective electrically nonconductive gloves and nonskid
footwear are recommended when working. Wear protective
hair covering to contain long hair, preventing it from getting
caught in machinery. Wear a face or dust mask if the
operation is dusty. Always wear safety goggles and/or face
shields. Everyday eyeglasses have only impact resistant
lenses. They are not safety glasses.
DO NOT ABUSE CORD
Never carry mixer by cord or yank it to disconnect it from
socket. Keep cord from heat, oil and sharp edges.
EXTENSION CORDS
Improper use of extension cords can cause the motor
to overheat. Your extension cord should be no longer
than 30 feet and a minimum of 12 gauge with a 3-prong
grounded plug. Avoid use of free and inadequately insulated
connections. Connections must be made with protected
material suitable for outdoor use. Make sure that any
extension cord connections are dry and safe.
Ensure that the extension cord is carefully laid out avoiding
liquids, sharp edges and places where vehicles might run
over it. Avoid allowing the extension cord to be trapped
underneath the mixer. Unroll it fully or it will overheat and
could catch fire.
AVOID ELECTRICAL SHOCK
Check that the electric circuit is adequately protected and
that it corresponds with the power, voltage and frequency of
the motor. Do not plug or unplug the motor while standing in
or around damp or wet ground. Do not use the mixer in wet
or damp areas or expose it to rain.
Prevent body contact with grounded surfaces: pipes,
radiators, ranges, and refrigerator enclosures. Make sure
your fingers do not touch the plug’s metal prongs when
plugging or unplugging the mixer.
5
SYMBOL MEANING
KEEP VISITORS AND CHILDREN AWAY
Keep unauthorized persons away from the mixer. Do not
allow children to handle or climb on or in the mixer.
DO NOT OVERREACH
Keep proper footing and balance at all times when loading
or unloading the mixer. Never stand on mixer. Serious injury
could occur if the mixer is tipped or if the moving parts are
unintentionally contacted. Do not store anything above or
near the mixer where anyone might stand on the mixer to
reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands out of the way of all moving parts. Do not place
any part of your body or any tool, like shovel in the drum
during operation.
When operating, do not pass hands through the clearance
between frame and support arm or the one between the
drum and support arm.
DON'T FORCE TOOL
It will do a better and safer job at its designed rate.
Never try to split logs larger than those indicated in the
specifications table. This could be dangerous and may
damage the machine. Don't use log splitter for a purpose for
which it was not intended.
NEVER LEAVE TOOL RUNNING UNATTENDED
Don't leave tool until it has come to a complete stop.
DISCONNECT POWER
Never open the motor cover before unplugging the mixer.
Disconnect from power supply when not in use, before
moving, making adjustments, changing parts, cleaning,
or working on the mixer.
Consult technical manual before servicing.
MAINTAIN YOUR MIXER WITH CARE
Clean the mixer immediately after use. Keep the mixer clean
for best and safest performance. When maintaining this
mixer, only the manufacturer’s original replacement parts
may be used.
2620-176
4 CU FT ELECTRIC CEMENT MIXER
6
SYMBOL MEANING
PROTECT THE ENVIRONMENT
Take leftover materials to an authorized collection point
or follow the stipulations in the country where the mixer is
used. Do not discharge into drains, soil or water.
STORE IDLE EQUIPMENT
When not in use, the mixer should be stored in a dry location
to inhibit rust. Keep the mixer away from children and others
not qualified to use it.
7
CONTENTS OF THE SHIPPING CONTAINER
1. Upper Drum
2. Bottom Drum with Support Arm
3. Locking Plate
4. Transmission Case
5. Tipping Bar
6. Mixing Blades (1 Pair)
7. Support Leg
8. Support Frame
9. Wheel Axle Bracket
10. Wheels (1 Pair)
11. Motor Support Bracket
12. Operator's Manual
13. Hardware Bag
2620-176
4 CU FT ELECTRIC CEMENT MIXER
8
ASSEMBLY INSTRUCTIONS
It is recommended that two people assist in the assembly.
THE STAND
1. With a split pin inserted into the
inner holes in each stub axle, place
a flat washer, then a wheel followed
by another flat washer. Insert another
split pin into the axle holes outside
each flat washer. Bend each side
of the pins outward so they do not
fall out.
2. With the frame lying on its side,
attach the support leg as shown.
Insert two M8X70 hex bolts through
the holes from one side, then flat
washers, lock washers and nuts
from the other side.
3. Turn the frame over and attach the
axle bracket with wheels in the
same manner.
4. Make sure all bolts and nuts
are tightened.
9

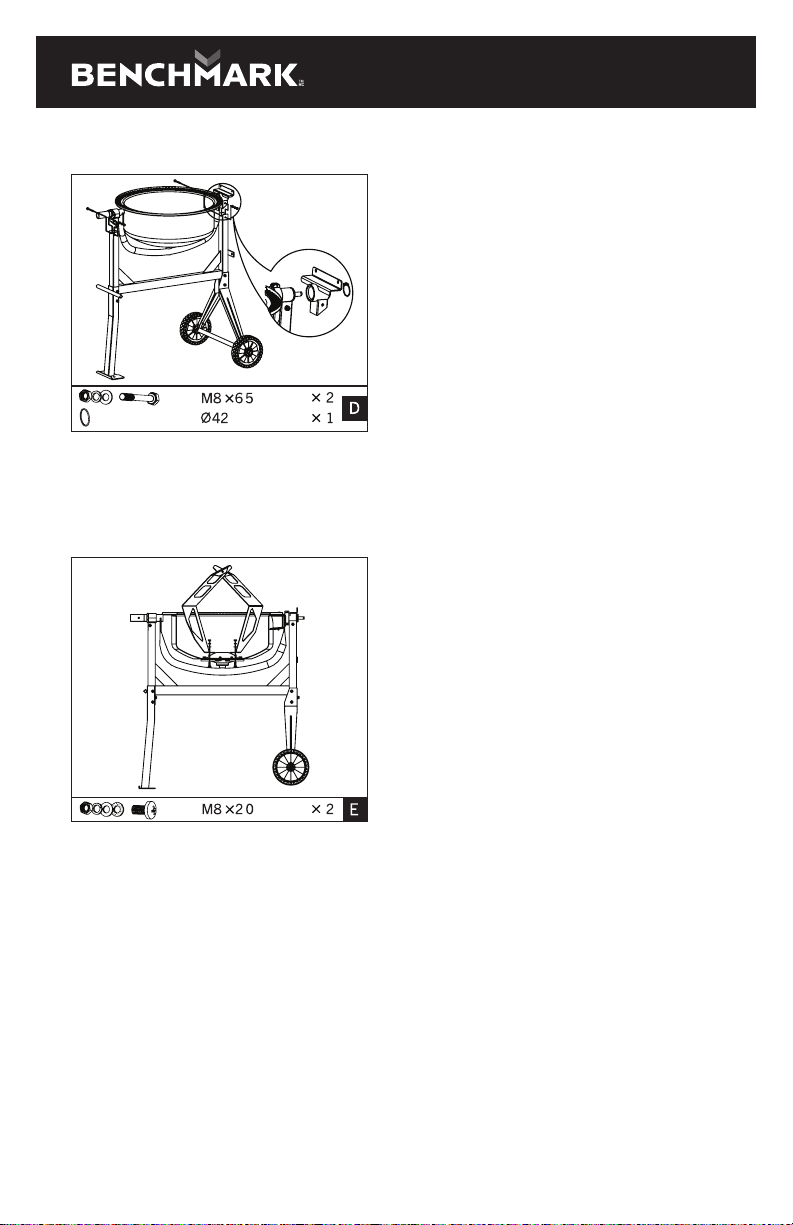

THE BOTTOM DRUM
1. Slide the bearing block on the shaft.
Hold it in place with Ø 42 spiral ring.
2. Carefully, and with two people, set the
bottom drum with support arm onto the
side supports of the stand as shown,
so that the bearing blocks slot into the
channels provided by the side supports.
The larger diameter shaft should be at
the leg end of the stand.
3. At each side, line up the holes in the
side support with those in the bearing
block and insert a M8X65 hex bolt from
one side, then a flat washer, lock washer
and nut from the other side. Tighten
with a wrench.
THE MIXING BLADES
Mount the mixing blades inside the bottom
drum loosely as shown - Two holes are
provided at the base of the drum into
which a M8X20 bolt may be inserted from
the outside. A leather washer, flat washer,
lock washer and a nut should be threaded
on loosely on the inside. The leather
washer should be placed under the blade
down against the drum.
NOTE: Two arrows are labeled on upper
drum and bottom drum to make their
position relative. If you have any diculty
in correctly positioning the mixing blades,
it is helpful if you temporarily mount the
upper drum on the top of the bottom drum,
rotating it so that the two arrows line up.
2620-176
4 CU FT ELECTRIC CEMENT MIXER
10

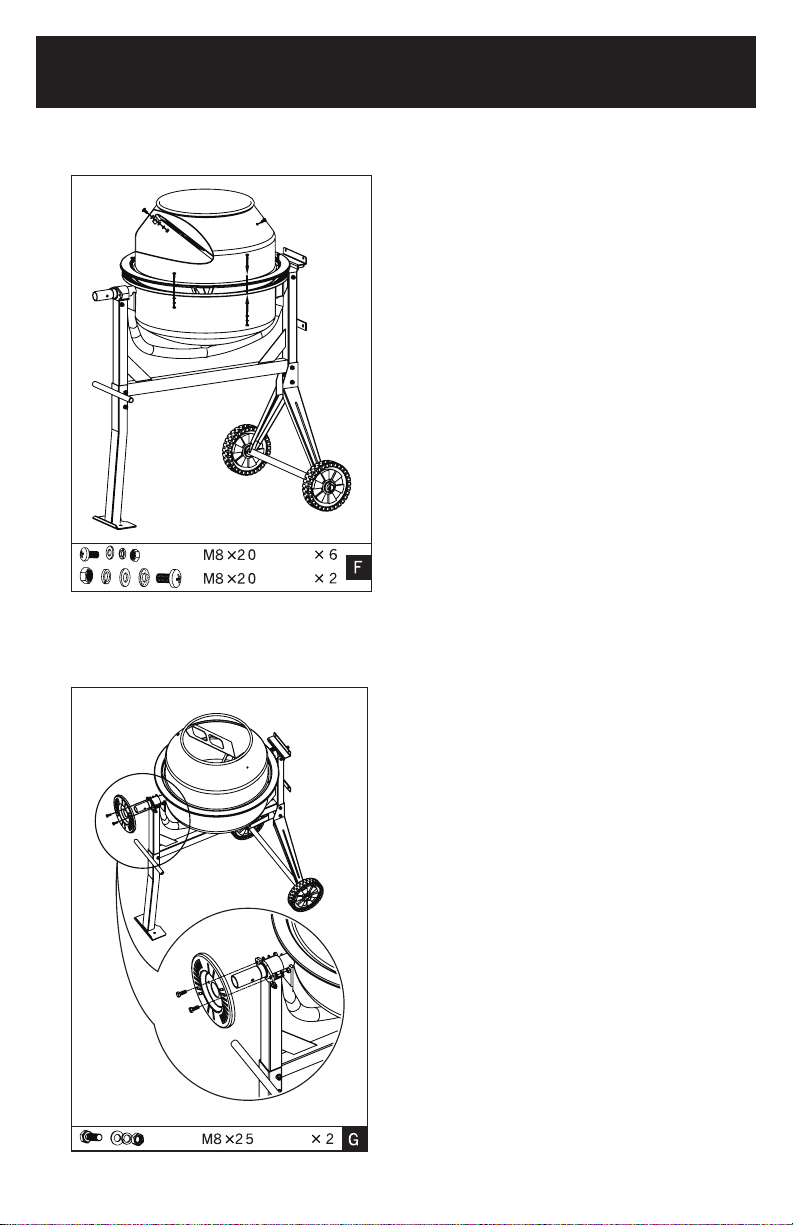

THE MIXING BLADES
1. Position the upper drum on bottom
drum over the rim, making sure the
mounting holes align in both as well as
the labeled arrows.
2. Insert a M8X20 cross headed screw
into each mounting hole in the rim.
Secure each bolt from below with a
flat washer, lock washer and nut. Make
sure the tightening process is carried
out progressively.
3. Secure the mixing blades to the upper
drum by inserting two M8X20 cross
headed screws, from the outside
through the holes in the drum.
4. A leather washer should be positioned
inside between the drum and blade.
Secure the mixing blade on the inside
using a flat washer, spring washer
and nut.
5. Finally, ensure top and bottom mixing
blade mountings are tight.
THE TIPPING BAR
1. Slide the locking plate over the large
diameter shaft at the leg end of the
frame with the rim facing inwards as
shown. Secure with two M8X25 bolts,
each with a nut, lock and flat washers.
11

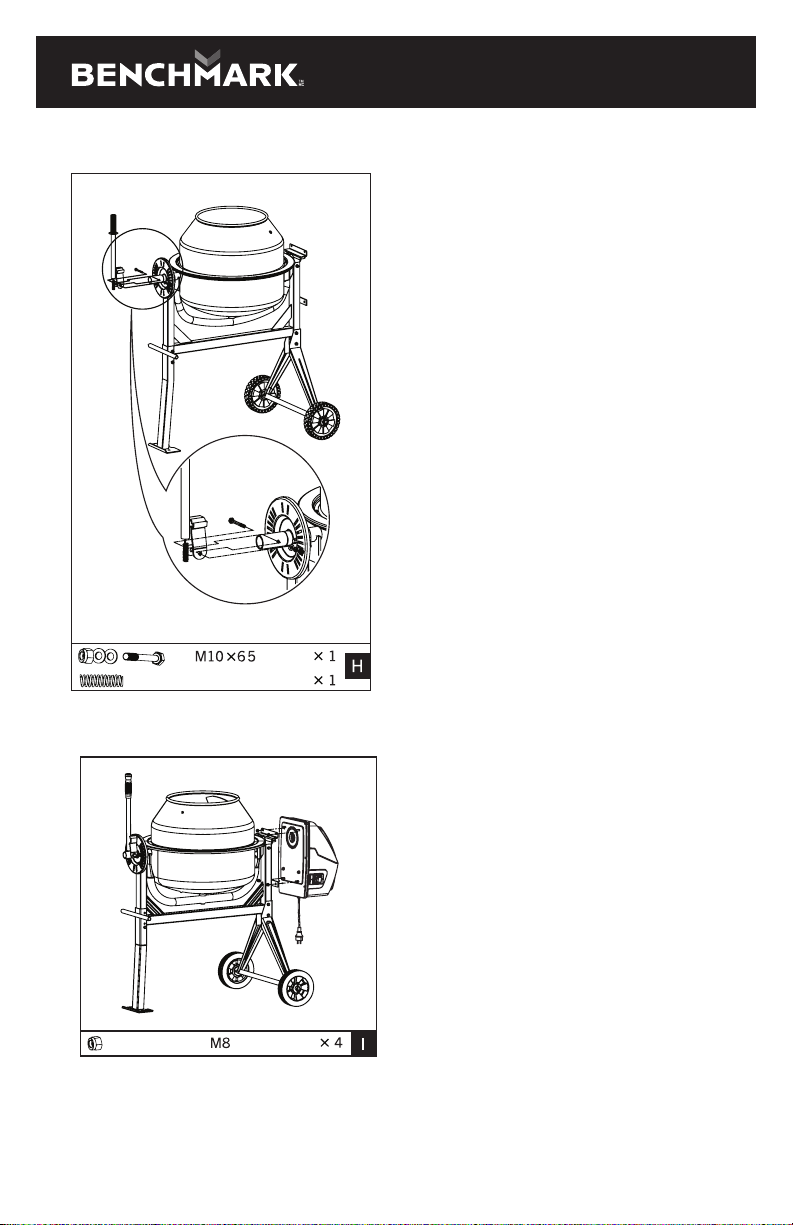

THE TIPPING BAR CONT.
2. Insert the spring into the bar pipe.
Holding it in place with a finger, place
the bar over the larger diameter shaft
so that the shaft retains the spring.
Press down on bar until the holes in the
bracket line up with the hole drilled.
Insert a M10X65 hex bolt and screw
on a nut with flat washers from the
other side. Screw the nut up against the
bracket firmly, but not so tightly so as
to prevent the bar from pivoting about
the bolt.
THE TRANSMISSION CASE
Lining up the keyways, slide the
transmission case over the pinion shaft.
Secure the case to the frame with four
M8 lock nuts.
2620-176
4 CU FT ELECTRIC CEMENT MIXER
12
OPERATING INSTRUCTIONS
DRUM TILTING
The spring-loaded tipping bar with locking lugs provides an easy positive control of
the drum which can be locked in the mix, discharge and stored position.
The drum is locked in position by lugs on the self-locating tipping bar/wheel which
engage into the locking plate on the mixer frame. To tilt the drum, withdrawn the
tipping bar to dis-engage the locking lugs. This then allows the tipping bar and drum
to be turned in the same direction.
To retain the drum in position, aligning the lugs with the slots, release the tipping bar
a little while retaining the drum. Rotate the tipping bar until the locking lugs engage
into the locking plate on the mixer frame.
LOADING/MIXING POSITION
For Mortar For Concrete EMPTYING
POSITION
STORAGE
POSITION
LOADING
Completely unwind the extension cord. Connect it to the concrete mixer first
before plugging in power supply.
Always start the mixer before loading the drum. Loading the drum
with drum rotating.
Do not throw material into the mixer to avoid sticking firmly to the back of the
drum. Trickle it steadily over the ram.
NOTE: A built-in thermal protector is arranged in the motor to prevent it from
overheating. The thermal protector restores automatically when the motor
cools down.
13
For best results, proceed as follows:
1. Add the required amount of gravel into the drum.
2. Add the required amount of cement into the drum.
3. Add the required amount of sand into the drum.
4. Pour the required amount of water into the drum.
EMPTYING
Do not turn mixer o while full of load. Emptying the drum with drum rotating.
CLEANING
Never put hands inside the drum with drum rotating.
Thoroughly clean the mixer at the end of each day’s operation. Keep your mixer
clean. The slightest trace of material left in the drum will harden and attract more
each time you use it until the machine is useless. Dried cement should be scraped
out of the drum. Do not throw bricks into mixer drum to clean it out. Do not beat
on the drum with a shovel, a hammer or other tools to break up accumulations of
dried cement mix, as damage to the mixer may result. The drum may be scoured
for approximate 2 minutes, using 1” gravel and water mixture. Then discharge the
gravel/water mixture and hose down the drum assembly inside and out. The IP44D
protection class construction of the concrete mixer enables you to hose down the
drum assembly safely.
Do not pour or spray water directly over the motor cover, especially the
openings in it.
Wipe o any external material on the motor cover. Do not use petrol,
turpentine, lacquer or paint thinner, dry cleaning fluids or similar products.
The use of chemical products or solvents may aect the properties of the
cover which was made of high density polyethylene PET.
MAINTENANCE INSTRUCTIONS
Ensure the extension cord is always unplugged before the motor cover is
removed. The drive belt is under constant even tension by a spring loaded
jockey. No adjustment apart from a touch of grease on the spindle.
The bearings are sealed for life.
The wiring diagram and parts schematic in this manual are as reference tools
only. Neither the manufacturer nor distributor makes any representation
or warranty of any kind to the buyer that he or she is qualified to make any
repairs to the product or that he or she is qualified to replace any parts of the
product. Only qualified technicians should repair the mixer. Any maintenance
and repairs carried out, to any of the electric components must be undertaken
by a qualified electrician.
Parts in a circle should only be fitted by a qualified electrician.
2620-176
4 CU FT ELECTRIC CEMENT MIXER
14
WIRING DIAGRAM
15
PARTS SCHEMATIC
2620-176
4 CU FT ELECTRIC CEMENT MIXER
16
PARTS LIST
WARNING:
When servicing, use only original equipment replacement parts. The use of any
other parts may create a safety hazard or cause damage to the log splitter.
Any attempt to repair or replace electrical parts on this log splitter may create a
safety hazard unless repairs are performed by a qualified technician.
Customer Service / Tech Support 1-866-206-0888.
Key# Part # Description Qty
1 2620-176-1 Cross Headed 10 Screw M8x20 10
2 2620-176-2 Waterproof Washer 4
3 2620-176-3 Flat Washer 8 22
4 2620-176-4 Spring Washer 8 18
5 2620-176-5 Nut M8 18
6 2620-176-6 Upper Drum 1
7 2620-176-7 Mixing Blade 2
8 2620-176-8 Rubber Gasket 1
9 2620-176-9 Lower Drum 1
10 2620-176-10 Axle Bracket 1
11 2620-176-11 Wheel 2
12 2620-176-12 Flat Washer 27 4
13 2620-176-13 Cotter Pin 5X40 4
14 2620-176-14 Frame 1
15 2620-176-15 Support Leg 1
16 2620-176-16 Bolt M8X70 4
17 2620-176-17 Bearing Block - Right 1
18 2620-176-18 Circlip 42 1
19 2620-176-19 O-Ring 1
20 2620-176-20 Gear Guard - Long 1
21 2620-176-21 Drive Shaft 1
22 2620-176-22 Sleeve Pipe 2
23 2620-176-23 Cradle 1
26 2620-176-24 Bearing 6206 2
27 2620-176-27 Circlip 62 3
28 2620-176-28 Circlip 30 1 1
29 2620-176-29 Lock Pin 5X40 1
30 2620-176-30 Self Tapping Screw ST4.2X13 3
17
Key# Part # Description Qty
31 2620-176-31 Drive Pinion 1
32 2620-176-32 Gear Guard - Short 1
33 2620-176-33 Circlip 42 1
34 2620-176-34 Bearing 6202 2
35 2620-176-35 Circlip 15 1
36 2620-176-36 Lock Nut M8 4
37 2620-176-37 Bolt M8X65 2
38 2620-176-38 Circlip 38 2
39 2620-176-39 Bearing Block - Left 1
40 2620-176-41 Lock Nut M10 1
41 2620-176-42 Flat Washer 10 2
43 2620-176-43 Spring 1
44 2620-176-44 Hex head bolt M10X65 1
45 2620-176-45 Tipping Bar 1
46 2620-176-46 Handle Grip 1
47 2620-176-47 Bolt M8X25 5
48 2620-176-48 Locking Plate 1
49 2620-176-49 Power Cord 1
50 2620-176-50 Strain Relief Nut 2
51 2620-176-51 Strain Relief Rubber 1
52 2620-176-52 Strain Relief Bolt 1
53 2620-176-53 Strain Relief Nut 1 1
54 2620-176-54 Gasket, Switch 1
55 2620-176-55 Switch 1
56 2620-176-56 Motor Cover 1
57 2620-176-57 Motor 1
58 2620-176-58 Idle Pulley 1
59 2620-176-59 Belt 1
60 2620-176-60 Bearing 6906 2
61 2620-176-61 Snap Washer – Hole 47 1
62 2620-176-62 Self Tapping Screw ST4.2X16 6
63 2620-176-63 Circlip 30 1
64 2620-176-64 End Plate 1
65 2620-176-65 Bolt M8X25 3
2620-176
4 CU FT ELECTRIC CEMENT MIXER
18
Key# Part # Description Qty
66 2620-176-66 Motor Mount Bracket, End Plate 1
67 2620-176-67 Gasket 1
68 2620-176-68 Self Tapping Screw ST3.5X16 2
71 2620-176-69 Oil seal 62x35x8 1
72 2620-176-70 Fixed Shaft 1
73 2620-176-71 Washer 1
74 2620-176-72 Spring Washer 12 1
75 2620-176-73 Bolt M12x35 1
WARRANTY
BENCHMARK 4 CU FT ELECTRIC CEMENT MIXER WARRANTY
If this Benchmark tool fails due to a defect in material or workmanship within five
years from the date of purchase, return it to any Home Hardware store with the
original bill of sale for exchange. This warranty does not include expendable parts
including but not limited to blades, brushes, belts, light bulbs and/or batteries.
This warranty covers defects in material or workmanship only. It does not cover
normal wear and tear, failure due to abuse/misuse, or defects caused by careless or
accidental mishandling. If this Benchmark product is used for commercial or rental
purposes, this warranty does not apply.
120V • 60Hz • 5AMP
5 year limited warranty on tool
4 cu ELECTRIC
CEMENT MIXER
Other manuals for HCM400
1
Table of contents
