TnT302S OWNER’S MANUAL

TnT302S 2
CONTENTS
CONTENTS ...........................................................................................................................................................................................................
Important Reminder .......................................................................................................................................................................................
Preface ..................................................................................................................................................................................................................
Safety Notes ........................................................................................................................................................................................................
Safe Driving Rules .......................................................................................................................................................................................
Protective Riding Gear ..............................................................................................................................................................................
VIN Number & Engine Number ...................................................................................................................................................................
Location of Parts ...............................................................................................................................................................................................
Meter & Indicator ........................................................................................................................................................................................
Primary Parts ......................................................................................................................................................................................................

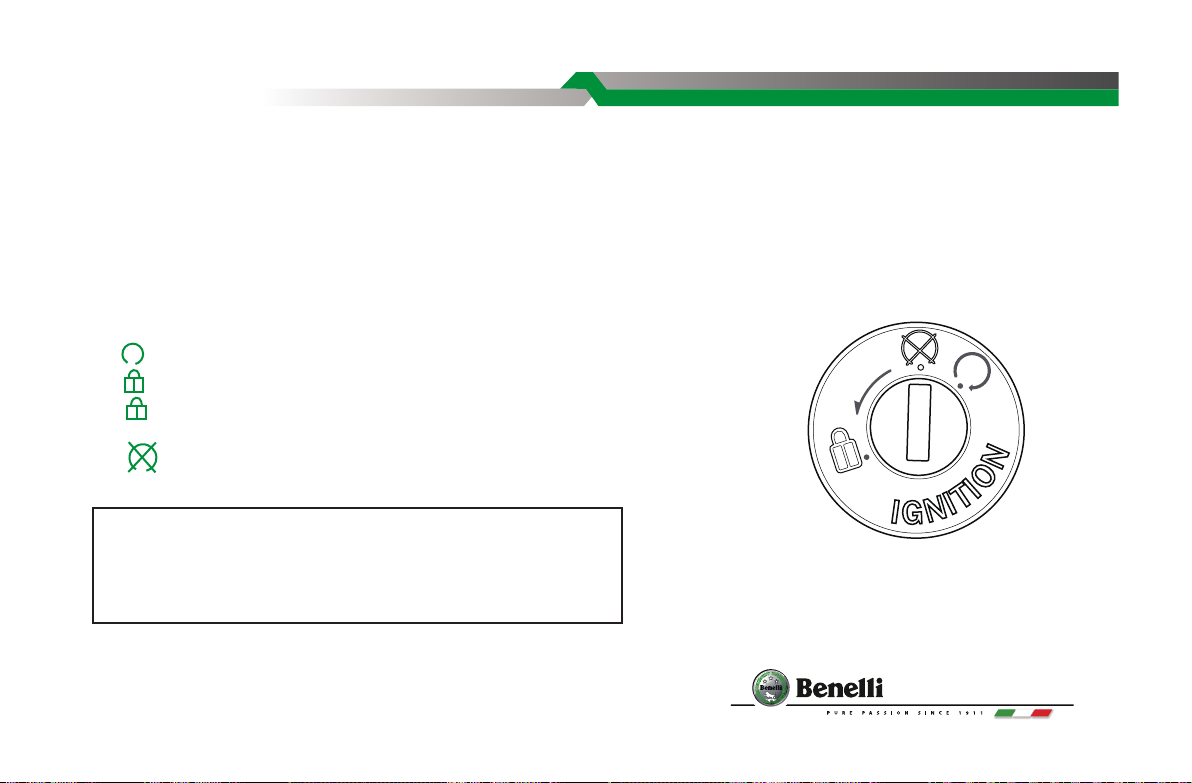

Ignition switch .............................................................................................................................................................................................

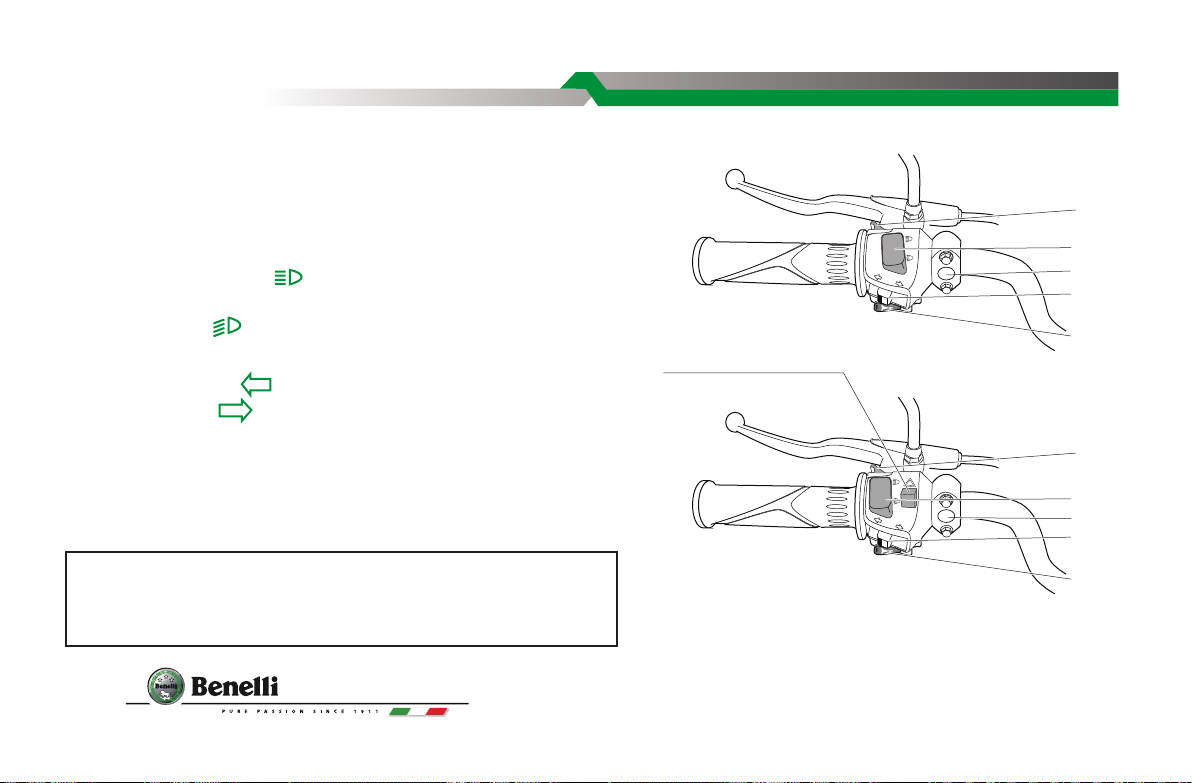

Left Handlebar Switch ...............................................................................................................................................................................
Right Handlebar Switch ............................................................................................................................................................................
Fuel Tank ........................................................................................................................................................................................................
Rear Shock Absorber ..................................................................................................................................................................................
Rear Brake Pedal ..........................................................................................................................................................................................
256778
9
10
11
15
15
16
21
22
23
24

CONTENTS
3TnT302S
Shifter Lever ...............................................................................................................................................................................................
Tool Kit .......................................................................................................................................................................................................
Fuel and Engine Oil Recommended ......................................................................................................................................................
Engine Break-In ..............................................................................................................................................................................................
Pre-ride Inspection ......................................................................................................................................................................................
How to start the engine ........................................................................................................................................................................
Acceleration and deceleration ...........................................................................................................................................................
Changing gears ........................................................................................................................................................................................
Inspection & Maintenance .........................................................................................................................................................................
Maintenance Schedule .........................................................................................................................................................................
Oil Level & Oil Change ...........................................................................................................................................................................
Spark plug ..................................................................................................................................................................................................
Catalytic Converter...................................................................................................................................................................................
Battery ..........................................................................................................................................................................................................
Throttle Cable Adjustment ...................................................................................................................................................................
Clutch Adjustment ...................................................................................................................................................................................
Chain Adjustment ....................................................................................................................................................................................
24
25
25
26
26
28
29
30
31
31
34
35
35
36
39
40
40

CONTENTS
4
TnT302S
Brakes ............................................................................................................................................................................................................
Air Filter Maintenance .............................................................................................................................................................................
Bulb Replacement ....................................................................................................................................................................................
Fuse Replacement .....................................................................................................................................................................................
Lubrication points .....................................................................................................................................................................................
Adjustment of Valve Clearance ............................................................................................................................................................
Tires .................................................................................................................................................................................................................
Storage Guidelines ..........................................................................................................................................................................................
Emissions Warranty ........................................................................................................................................................................................
Specications & Technical Parameters .....................................................................................................................................................
42
44
44
45
46
46
47
48
50
54

IMPORTANT REMINDER
5TnT302S
Warning: This motorcycle must be equipped with a fuse of the same specication as stock to ensure safe opera-
tion. Use of fuses of the wrong specication is strictly prohibited. Use of incorrect fuses or non fuse objects could
result in sparks, re or even electrocution.
Location of the fuse: next to the battery.
A blown fuse is usually caused by an electrical system fault. Look over the vehicle any time a fuse has blown and
needs to be replaced before installing it. If the fuse blows immediately when installed do not attempt to replace it
again and do not replace the fuse with a non fuse object like wire. Take your vehicle to an authorized Benelli
dealership for inspection and repair and only operate it once the situation is resolved.
Notes:
Before changing the fuse, switch the key to " " in case of short circuit;
* Make sure the contact point of the fuse is not broken while changing the fuse, which would result in bad
contact, parts damage, and even re.
Do not recongure the motorcycle or change the locations of the parts and accessories at will, this will cause a
strong impact on the stability and safety of the motorcycle, and may cause operational faults. Modications
performed to the electrical system, emission control system, canister, or any other components are prohibited and
will violate the riding safety and trac administration regulations. Any and all problems arising from unauthorized
modications of this vehicle will become the responsibility of the user. The user shall obey all local regulations and
trac safety laws.

PREFACE
6
TnT302S
TIP:
Break-in of your Motorcycle
The rst 1,000km (600 mi.) of operation are the most crucial miles of the engine service lifespan. If break-in is
carried out normally, the longest service lifespan can be assured and the performance of the engine will be
completely optimized.
PREFACE
Welcome to the world of motorcycling!
As the owner, you are beneting from the vast experience and newest technology regarding the design and
manufacture of high-quality products, which have earned us a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your vehicle. The Owner’s
Manual does not only instruct you on how to operate, inspect and maintain your vehicle, but also how to safeguard
yourself and others from trouble and injury. In addition, the many tips given in this manual will help keep your
vehicle in the best possible condition. If you have any further questions, do not hesitate to contact your dealer.
Our company continually seeks advancements in product design and quality. Therefore, while this manual
contains the most current product information available at the time of printing, there may be minor discrepancies
between your vehicle and this manual. If there is any question concerning this manual, please consult your dealer.
Please carefully read this manual to understand the key rules. The words "Warning", "Notice" and "Tip" are used
here to indicate the importance degrees, please make sure that you fully understand the meanings as the follow-
ing:

7TnT302S
SAFETY NOTES
Warning------------ indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Notice------------ Indicates special precautions that must be taken to avoid damage to the vehicle or other property.
Tip------------ Provides key information to make procedures easier or clearer.
This owner's manual which describes the use and operation of the vehicle should be kept on the vehicle at all
times for reference. If sold, this manual should accompany the vehicle.
SAFETY NOTES
Warning:
For the purposes of safety, the rider should carefully read this entire manual so that he/she is completely
familiar with the vehicle before riding it.
1. Inspect your motorcycle completely before starting the engine so as to prevent possible accidents or damage.
2. Many accidents can be attributed to an inexperienced rider. Make sure that the rider is qualied before riding the
motorcycle. Never allow someone without a drivers licence to ride the vehicle.
3. Most of the accidents between cars and motorcycles are caused by the cars "not seeing" the motorcycle rider. In
order to avoid accidents, the rider shall make themselves visible by:
Wearing bright colored and reective clothing;
Don't ride in the blind spot of the rear-view mirrors of the other vehicles on the road.

8
TnT302S
SAFETY NOTES
4. The rider shall obey all of the national and local laws and regulations.
Speeding is one of the key reasons for accidents. So keep your speed within the limit stated.
Use your turn signals before turning and your brakes when braking to prevent accidents.
5. When riding, the driver should hold both handlebar grips and keep both feet on the footpegs and the passenger
should grab somewhere on the vehicle or onto the driver with feet on the passenger footpegs.
6. Any reconguration or disassembly which would aect the riding safety or maintenance of your motorcycle is
strictly prohibited.
7. Any aftermarket accessories installed shall not aect the riding safety or operational performance of the motor-
cycle. Overloading of the electrical system will result in danger and possibly re.
8. Do not operate the engine within conned spaces as the exhaust gas would cause injury or death. Carbon
Monoxide is a colorless, odorless, tasteless gas which may be present even if you do not see or smell any engine
exhaust.
1. Most fatal accidents involving motorcycle riders are caused by head injuries. For the purposes of personal
safety, the rider should wear an approved safety helmet, motorcycle boots, gloves and protection clothing. The
passenger shall also wear this same gear.
2. The exhaust pipe and muer will be very hot during and for some time after operation. Never touch the
muer or exhaust and wear riding gear that totally covers your legs.
3. Don't wear loose tting clothing that may interfere with the control levers, pedals or wheels.
PROTECTIVE CLOTHING

9TnT302S
The vehicle identication number (VIN) and the engine serial number are used to register the vehicle, they are
also used to assist your dealer in terms of ordering parts or referring to special service information.
Record the numbers for the possible use in the future.
Vehicle identication number (VIN) is printed on the right side of the steering head tube.
The engine serial number is printed on the lower part of the right engine crank case area.
Please write down these numbers here for your reference.
SERIAL NUMBER
VIN:
Engine Number:

10
TnT302S

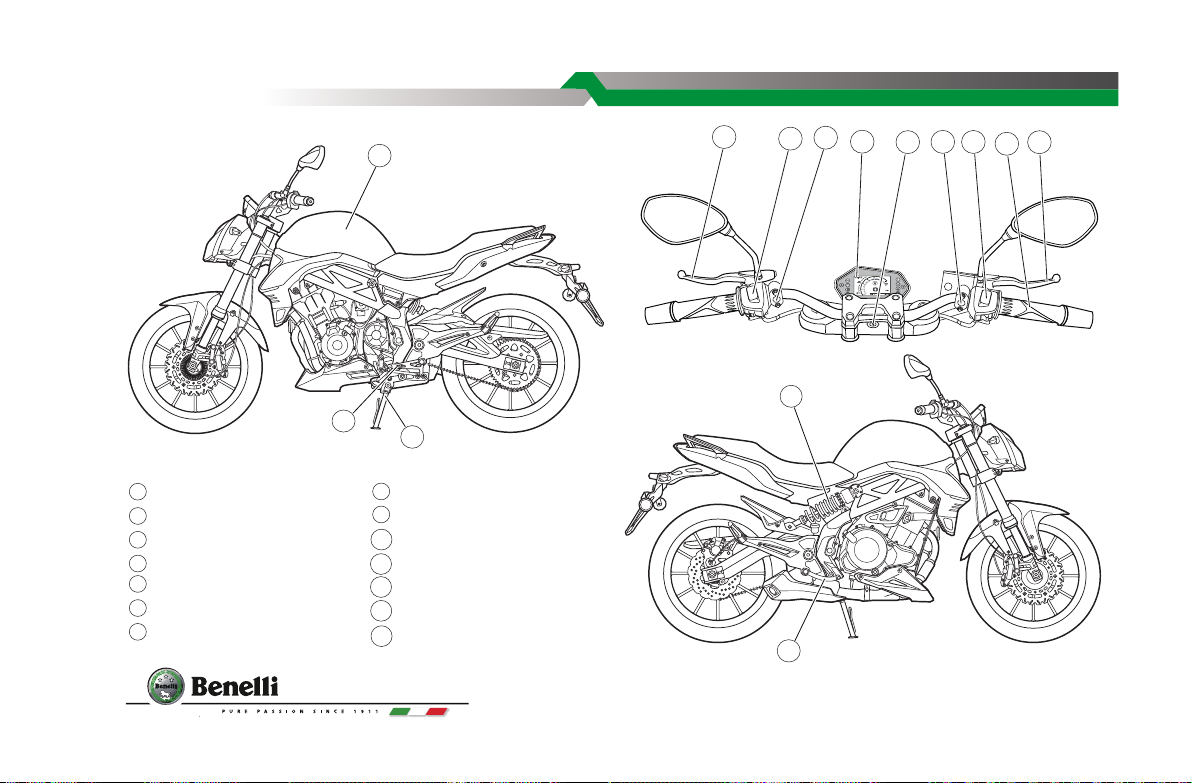

LOCATION OF PARTS
1 Clutch lever
2 Left handlebar switch
3 ABS switch (if equipped)
4 Meter
5 Ignition switch
7 Right handlebar switch
6 Meter function button
9 Front brake lever
8 Throttle grip
Rear shock absorber
Rear brake pedal
Shifter lever
13 Side stand
10
11
12
14 Fuel tank
Left view
Right view
45
7
689
1
23
14
13
12
11
10

TnT302S
11
LOCATION OF PARTS
Meter & Indicator 11
10
112
3
2
4
5
16
6
9
7 8
13
14
15
Daytime mode

TnT302S 12
LOCATION OF PARTS
Night mode
11
10
112
3
2
4
5
8
9
7
13
14
6
15
16

TnT302S
13
LOCATION OF PARTS
1. NEUTRAL INDICATOR LAMP
When the transmission is in the neutral position, the indicator
lamp will be on.
2. TURNING INDICATOR
The indication lamps will ash with the turning signals.
3. TURNING INDICATOR
The indication lamps will ash with the turning signals.
4. ENGINE CONTROL SYSTEM TROUBLE INDICATOR
Return to an authorized dealer if this indicator is activated
while riding.
5. WATER TEMPERATURE WARNING
Stop to check the water tank level if this indicator light
is lit.
6. FUEL LEVEL INDICATOR
It indicates the fuel level in the fuel tank.
7. CLOCK
Indicates the time.
8. WATER TEMPERATURE GAUGE
This indicator indicates the temperature of the coolant. When
the pointer is in between C and H, the temperature is normal.
Stop to check the water tank level if the pointer is higher than
the H level.
9. GEAR INDICATOR LAMP
Numbers on the meter indicate the gear positions of the
vehicle including 1, 2, 3, 4 , 5, and 6.
10. SPEEDOMETER
Speedometer shows the running speed, kilometers/hours.
11. TACHOMETER
Tachometer indicates the revolution per minute of the
engine.
12. HIGH BEAM INDICATOR LAMP
When the high beam lamp of the headlight is on, the high
beam indicator lamp will be on.
13. ENGINE OIL PRESSURE WARNING LAMP
When this indicator lights up, that means the bike has the
risk of insucient lubrication and should be checked/re-
paired immediately.
14. FUEL LEVEL WARNING LAMP
It indicates the fuel is less than 15% of total capacity in the
fuel tank.

TnT302S 14
15. ABS INDICATOR LIGHT (IF EQUIPPED)
1. ABS failure -- If any type of ABS failure is detected and
stored, ABS indicator light is lit and stays on after repaired,
then ABS indicator light will be unlit after the next Power
switch ON/OFF and when vehicle speed exceeds 5km/h.
2. ABS is under OFF mode --ABS indicator light Blink 1
time/1.27s (Slow Blink)

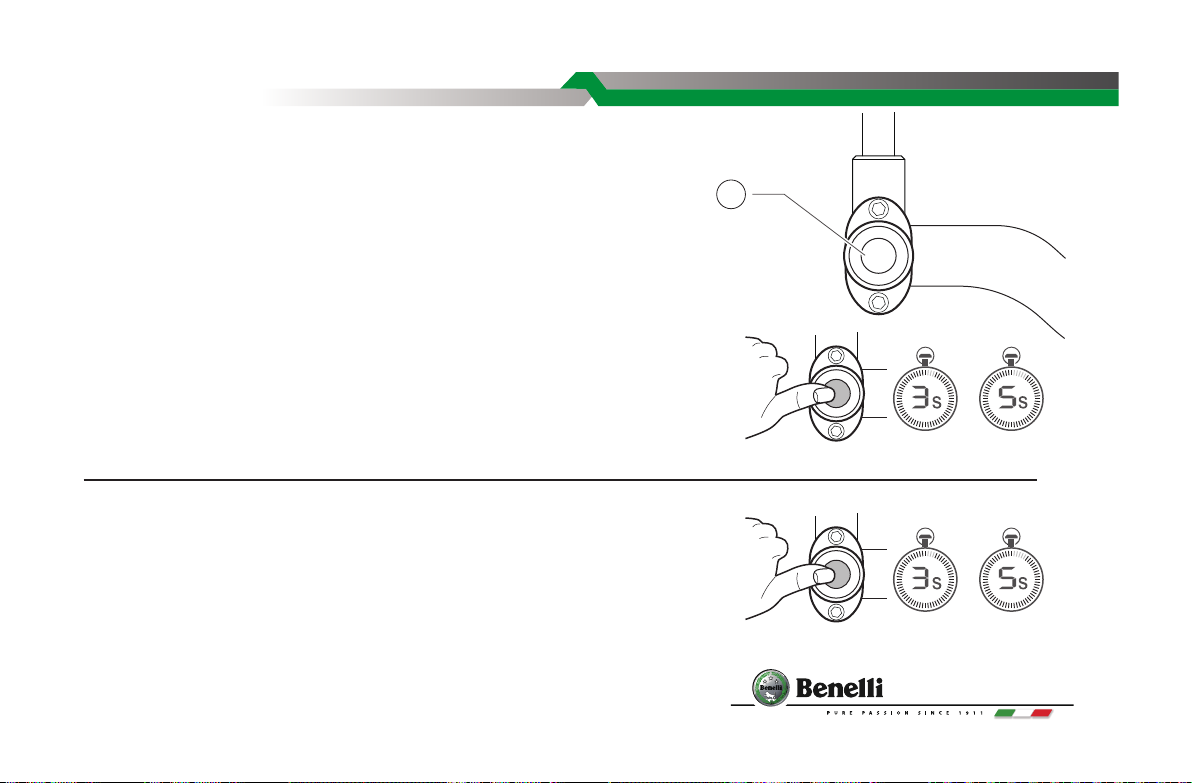

3. When pressing the ABS switch within 3s ~30s --ABS indi-
cator light Blink 1 time/0.32s (Quick Blink)
4. ABS is under ON mode -- When the ignition switch
turned on, the ABS indicator lamp will light and stays acti-
vated, until the motorcycle is ridden away, once reaching
about 3~5KM/H the ABS indicator lamp will be unlit.
LOCATION OF PARTS
Normally the ABS indicator light comes on when the
ignition switch is turned on and goes o shortly after
the vehicle starts moving. If the indicator light shows
any of the following, a fault or faults may have occurred
in the ABS. You should have the vehicle checked by an
authorized Benelli dealer.
a. The light does not come on when the ignition switch
is turned on.
b. The light remains lit after the vehicle is moving over
5km/h.
Remember that the ABS does not function when the
indicator light is on, but if only the ABS system fails
(without any other malfunctions in mechanical parts, for
example, brake hoses, master cylinders, brake callipers),
the conventional brake system should still work normal-
ly.

TnT302S
15
PRIMARY PARTS
Notice：
Do not turn your key to lock the vehicle while driving which
is not necessary and is also apt to cause accident.
Press the key in with proper force.
P
U
S
H
IGNITION SWITCH
“ ”（On) position: The circuits are on
“ ” Position: turn left to the maximum, press the key to the position
of “ ”. Take out the key. In this condition, the vehicle has been locked.
If you want to unlock the vehicle, insert the key and turn clockwise.
“ ”（O) position: All the circuits are o.
16. PHOTOSENSITIVE SWITCH
There are two modes in this meter. They switch automatically depending on the intensity of the light. Please follow the
below steps to switch it manually. Cover the switch with your hand for 3-5 seconds to switch daytime mode to night
mode. Use a ashlight to illuminate this switch for 3-5 seconds to change from night mode to daytime mode.

TnT302S 16
1. HORN BUTTON
Press down on the button to activate the horn.
2. HIGH & LOW BEAM SWITCH
Turn the switch to the " " position, the high beam of the headlamp
turns on and the indicator lamp on the meter will also turn on; turn
the switch to the " " position, the low beam of the headlamp will turn on.
3. DIRECTION INDICATOR LAMP SWITCH
Turn the switch to " " position, the left direction signal lamp ashes;
turn the switch to " " position, the right direction signal lamp ashes;
and the indicator lamps will ash accordingly.
4. PASSING SWITCH
When passing other vehicles, press this button so the high beam of
the headlight will ash to alarm the vehicles in front of you.
PRIMARY PARTS
Warning：
Turn on the direction signal lamps in time when changing lanes or
turning a direction, turn o the lamps when turning is complete.
2
4
3
5
1
2
4
3
5
1
or
LEFT HANDLEBAR
HAZARD SWITCH

TnT302S
17
PRIMARY PARTS
5. ABS SWITCH (IF EQUIPPED)
If you want to enable/disable the ABS , please keep you motorcycle
under 5km/h or stop, because the ABS switch only works when the
vehicle speed is lower than 5km/h.
5
ABS
From ABS ON mode → OFF mode
Please Keep pressing the ABS switch precisely within the range of 3~5 sec-
onds, the ABS indicator light should be changed from lit to blink as per 1.27s
(Slow Blink) when you release the switch, now the ABS is turned OFF and the
brake will work as a conventional system does.
From ABS OFF mode → ON mode
Please keep pressing the ABS switch precisely within the range of 3~5 sec-
onds, the ABS indicator light should be changed from blink as per 1.27s (Slow
Blink) to constantly lit when you release the switch.
Or you can turn the ignition switch o and on to reset the ABS system to ON
mode
ABS
ABS ~
~

TnT302S 18
PRIMARY PARTS
ABS
ABS
The operation will be ignored by the
system If you keep pressing the ABS
switch within 5s~30s. ABS will keep the
current mode.
The ABS will be changed to ON mode
from any other mode if the switch was
stuck or pressed more than 30s.
ABS is designed to help prevent the wheels from locking up when the brakes are applied hard while riding
straight. The ABS automatically regulates brake force intermittently, gaining gripping force and braking force
helps prevent wheel lock-up and allows stable steering control while stopping. Brake control function is identical
to that of a conventional vehicle. The brake lever is used for the front brake and the brake pedal for the rear brake.
Although the ABS provides stability while stopping by preventing wheel lock-up, remember the following
characteristics:
~
NOTICE
The ABS switch does
not work If you press
the ABS switch when
either the front or rear
wheel speed is over
5km/h.
Anti-lock Brake System (ABS) for models equipped with ABS

TnT302S
19
PRIMARY PARTS
• To apply the brake eectively, use the front brake lever and rear brake pedal simultaneously in the same
manner as a conventional vehicle brake system.
• ABS cannot compensate for adverse road conditions, misjudgement or improper application of the brakes.
You must take the same care as with vehicles not equipped with ABS.
• ABS is not designed to shorten the braking distance. On unpaved, uneven, or downhill surfaces, the stopping
distance of a vehicle with ABS may be longer than that of an equivalent vehicle without ABS. Use special caution
in such areas.
• ABS will help prevent wheel lock-up when braking in a straight line, but it cannot control wheel slip which may
be caused by braking during cornering. When leaning in corners, it is better to limit braking to gentle application
of both brakes or not to brake at all. Reduce your speed before you enter a corner. Same as a conventional brake
system, an excessive sudden stop may cause the wheel to lock up and lose control.
• During braking, ABS will not prevent the rear wheel from lifting.
ABS cannot protect the rider from all possible hazards and is not a substitute for safe riding practices. Be
aware of how the ABS operates and its limitations. It is the riders responsibility to ride at appropriate speeds and
manner for weather, road surfaces and trac conditions.
WARNING
!

TnT302S 20
PRIMARY PARTS
The computers integrated in the ABS compare vehicle speed with wheel speed. Since non-recommended tires
can aect wheel speed, they may confuse the computers, which can extend braking distance.
Use of non-recommended tires may cause a malfunction of ABS system and can lead to extended braking dis-
tance. The rider could have an accident as a result. Always use the recommended standard tires for this vehicle.
WARNING
!
○ The ABS indicator light may come on under certain extreme riding condition. For example, wheelie, stop-
pie, or burn-out, rear-wheel drifting, or any maneuvers may cause the front and rear wheel to have dierent rota-
tional status. In this case, rst turn the ignition key to “OFF” , and then back to “ON” . The ABS indicator light
goes o by this operation, but if the ABS indicator light remains lit after the vehicle reaches a speed of approxi-
mately 5 km/h or above, you should have the bike checked by an authorized Benelli dealer.
○ When the ABS is functioning, you may feel a pulsing in the brake lever or pedal. This is normal. You don’ t
need and should not stop applying brakes when this specic pulsing feeling appears.
○ ABS does not function at speeds of approximate 5 km/h or below.
○ ABS does not function if the battery is discharged.
!
NOTICE
