TVS PHOENIX User manual

CONTACT(S) FOR SUPPORT
-I-
CONTACT(S) FOR SUPPORT
In case you need any Clarification or Service Assistance, please contact our Dealer
Dealer code , name .......................................................................................................................
Address ..........................................................................................................................................
.........................................................................................................................................................
.........................................................................................................................................................
Contact person name and mobile no. (Sales)
.........................................................................................................................................................
Contact person name and mobile no. (Service)
.........................................................................................................................................................
Email id ...........................................................................................................................................
Or
TVS Motor Company‘s Area Offices (flip over for addresses)
Or
Toll Free Number : 18004252077
Email : [email protected]

CONTACT(S) FOR SUPPORT
-II-
CONTACT(S) FOR SUPPORT

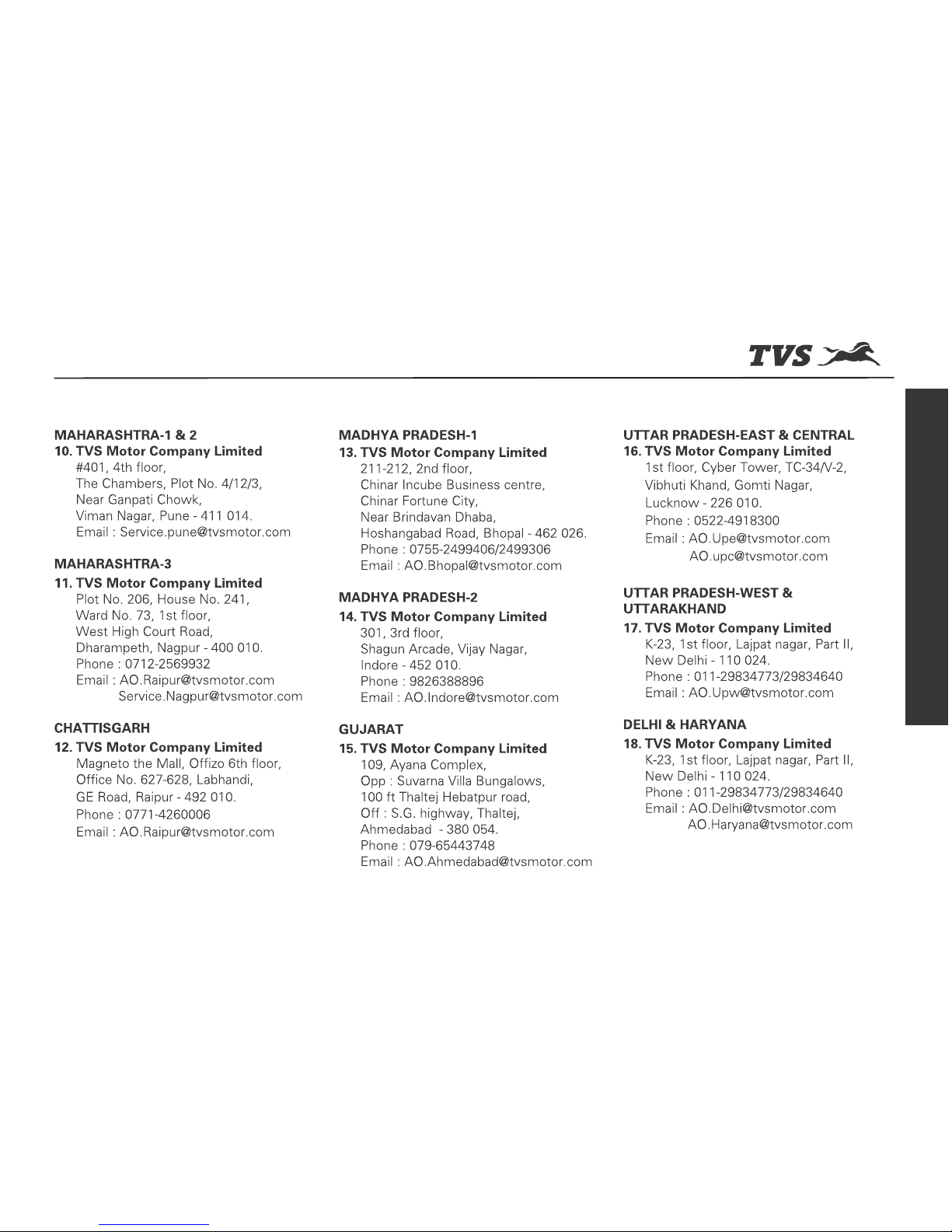

CONTACT AT OUR AREA OFFICES

CONTACT(S) FOR SUPPORT
CONTACT(S) FOR SUPPORT
-III-
CONTACT AT OUR AREA OFFICES

CONTACT(S) FOR SUPPORT
-IV-
CONTACT(S) FOR SUPPORT
CONTACT AT OUR AREA OFFICES

UNIQUE FEATURES OF TVS PHOENIX
UNIQUE FEATURES OF TVS PHOENIX
-V-

UNIQUE FEATURES OF TVS PHOENIX
UNIQUE FEATURES OF TVS PHOENIX
-VI-
* Applicable only for Disc version

UNIQUE FEATURES OF TVS PHOENIX
UNIQUE FEATURES OF TVS PHOENIX
-VII-

Dear friend,
Thank you for choosing TVS Phoenix 125 – The Fully Loaded 125cc Bike.
As an elite owner of the TVS Phoenix 125, you are now part of a family with millions of satisfied TVS customers.
TVS Phoenix 125 is a supreme combination of contemporary styling, thoughtful engineering and premium
features. It is a re-imagination of comfort and convenience like no other bike in the category.
This manual explains the multiple features and operations of your TVS Phoenix 125. Please read it carefully and
follow the instructions to enjoy a fabulous ride.
To prolong your ride, we urge you to get your TVS Phoenix 125 serviced only at TVS Motor Company Authorised
Main Dealers / Authorised Dealers.
Wishing you a joyful riding experience!
TVS MOTOR COMPANY LIMITED
FOREWORD
FOREWORD
-VIII-

NOTICE
-IX-
NOTICE
This manual should be considered as a permanent part of the motorcycle and should remain with the motorcycle
when resold or transferred to a new owner.
All information, illustrations, photographs and specifications contained in this owner’s manual are based on the
latest product information available at the time of this publication. TVS Motor Company Limited may, however,
incorporate modifications or improvements on its vehicles at any time without notice, and therefore, in such
events it is possible that the relevant part of the owner’s manual does not apply to your vehicle.
Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this
owner’s manual.
Note
Accessories shown in the picture may not be part of the standard equipment.
Pictures shown in this manual are of TVS Phoenix 125 Disc Brake model
Part Number :- NC210010 Revision 0, April 2015

SAFETY INFORMATION
SAFETY INFORMATION
Operating this vehicle safely is an important responsibility of the rider. To help you make decisions about safety,
we have provided operating procedure and other information in this manual. This information alerts you on
potential hazards that could hurt you or others. Since it is not possible to warn you about all hazards associated
with operating or maintaining the vehicle, you must use your own judgement.
You will find important safety information in following form in this manual. These words carry the following
connotations:
Warning
Disregarding this message might result in injury to the rider.
Caution
This message indicates special procedures or precautions to be followed to avoid damage to the vehicle.
Note
This message provides further clarification for clear understanding of a particular information.
-X-

CONTENTS
CONTENTS
-XI-
Running-in information 01
Safe riding tips 02
Know your TVS Phoenix 125 06
Riding your TVS Phoenix 125 25
Maintenance 30
Warranty and services 50
Technical specifications 62
General information 65

Caution
Replacing the engine cum transmission oil during first free service is most important for better life of engine.
Always use TVS TRU4 PREMIUM oil (SAE10W30 API-SL, JASO MA2) for better performance and life.
RUNNING-IN INFORMATION
RUNNING-IN INFORMATION
The first 1000 km is a crucial part for the life of your motorcycle. Proper running-in operation during this period
helps in ensuring maximum life and smooth performance of your motorcycle.
The reliability and performance of your motorcycle depends on the special care and restrain exercised during the
running-in period. It is especially important that you avoid operating the engine in high speed (RPM), which could
expose the engine parts to excessive stress. Maximum recommended speed during the running-in is:
Maximum 50 kmph speed upto 1000 km (vary the engine speed for better mating of parts).
The first free service at 500 ~ 750 km is most important. During running-in period all the engine components and
other parts will have set in. All adjustments to be restored, all fasteners to be tightened. Engine cum transmission
oil to be replaced. Timely performance of the first free service will ensure optimum service life and performance
from the engine.
-1-

SAFE RIDING TIPS
SAFE RIDING TIPS
SAFE RIDING RECOMMENDATIONS
Any two wheeler riding requires some precautions to be taken to ensure the safety of the rider, pillion and other
road users. These precautions are:
Familiarise yourself with TVS Phoenix 125
Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to
practice riding TVS Phoenix 125 in a low-traffic condition until you are thoroughly familiar with your vehicle and its
controls. Remember practice makes you perfect.
Riding apparel
Loose, fancy clothing can be uncomfortable and unsafe when riding a two-wheeler. Choose good quality two
wheeler riding apparel.
Know your limits
Ride within the boundaries of your own skill at all times. Knowing these limits and staying within them will help
you avoid accidents.
-2-
Warning
Two wheeler safety equipment starts with a safety helmet of good quality. One of the most serious injuries
that can happen is head injury. Always wear ISI approved helmet. You should also have good suitable eye
protection.

SAFE RIDING TIPS
SAFE RIDING TIPS
Posture
Proper vehicle riding starts with proper posture.
1. Keep your elbows relaxed and flexible.
2. Sit and adjust yourself on seat so that arms and
shoulders are relaxed.
3. Look widely instead of gazing at one point.
4. Keep the knees close to fuel tank.
Cornering
When cornering, centrifugal force works in a
direction perpendicular to the direction in which
the vehicle is moving. Centrifugal force increases
in proportion with speed and the radius of the
corner.
During cornering, reduce speed so as to lessen the
effects of centrifugal force. By all means, avoid
abrupt application of brake or sudden steering.
-3-
Warning
One-hand riding is dangerous. Keep both hands
firmly on the handle bar and both feet securely on
the foot rest. Under no circumstances should both
the hands be removed from the handle bar, as it is
very dangerous.
Avoid use of mobile phones while riding as it
could lead to fatal accident.
Do not downshift the gear in the midst of
cornering. Slow down to a safe speed before
negotiating a corner. If this is the first time that you
are riding a vehicle of this type, we suggest that
you practice on a safe, open area to become
thoroughly familiar with the operation of the
vehicle.

Braking
For safe riding, it is very important to master the
braking techniques.
1. Close / release the throttle.
2. Hold the vehicle upright as you apply the brake.
3. Progressive application of brake is safer.
4. Never depress the clutch lever while braking at
higher speeds.
5. Apply both the brakes.
6. Riding down hills, while cornering and wet
roads, close the throttle and down shift the
gear to take advantage of gearbox and engine
which acts as an additional brake. This will
avoid loss of control over the vehicle due to
over speed.
Causes for poor braking
1. If the brake shoes / pads or drum / disc are worn
out or if there is water or oil on them, sufficient
friction does not develop and brakes do not
work well.
SAFE RIDING TIPS
SAFE RIDING TIPS
2. Even when the brake works normally, if the
road surface is wet or the tyre surface is
worn-out, tyres do not take a firm hold on the
surface, increasing the stopping distance.
3. Approximately 60% braking effect is from front
brake. Non-usage of front brake causes poor
braking.
-4-
Warning
As the vehicle speed increases, the stopping
distance also increases progressively. Be sure
that, you have sufficient distance between you and
the vehicle or obstruction ahead of you.
Avoid directing the water jet directly towards brake
drums / disc pads during water wash.
Using only the front or rear brake is dangerous and
can cause skidding and loss of control. Apply both
the brakes together and with great care on a
wet road or other slippery surfaces. Any abrupt
braking on slippery or irregular roads can cause loss
of rider control.

SAFE RIDING TIPS
SAFE RIDING TIPS
ACCESSORY INSTALLATION AND
SAFETY TIPS
Use extreme caution while selecting and installing
the accessories for your motorcycle.
The addition of unsuitable accessories can lead
to unsafe operating conditions. Your friendly
Dealer will assist you in selecting quality
accessories and installing them correctly.
While selecting the accessories, make sure the
accessories should not obstruct lighting,
steerability, suspension level and ground
clearance. Please ensure that, if the tank cover is
used, it is not getting en-trapped between fuel tank
and fuel tank cap.
Additional electrical equipments and controls
should not exceed the specified electrical
system load of the vehicle (capacity of battery
and magneto).
EMISSION CONTROL
All the TVS vehicles are tested in the factory for
optimum fuel efficiency and lowest possible CO
levels.
Note
Get your vehicle certified by the Government
authorised emission testing stations at
specified intervals.
-5-
Do not disturb the Carburettor settings as this
may lead to higher fuel consumption and also
higher CO levels.
If the vehicle needs any adjustments, please
consult nearest TVS Motor Company Authorised
Main Dealer or Authorised Dealer.
While adequate care is exercised at the factory to
ensure that the emissions are within the limits, it is
essential for the owner to always maintain the
motorcycle in good condition by getting it
periodically checked and serviced by TVS Motor
Company Authorised Main Dealer or Authorised
Dealer so that the emission and fuel consumption
levels are maintained as per norms.

KNOW YOUR TVS PHOENIX 125
KNOW YOUR TVS PHOENIX 125
VEHICLE IDENTIFICATION NUMBER
Serial numbers of both frame and engine are required for vehicle identification. They are also required to assist
your Dealer for ordering parts or referring to special information.
Please fill the above boxes now for future reference
Frame number
Engine number
Control key number
The frame serial number is stamped on the left side
of the steering head tube.
The engine serial number is stamped on the top of
the left side crankcase near cylinder block.
-6-

KNOW YOUR TVS PHOENIX 125
KNOW YOUR TVS PHOENIX 125

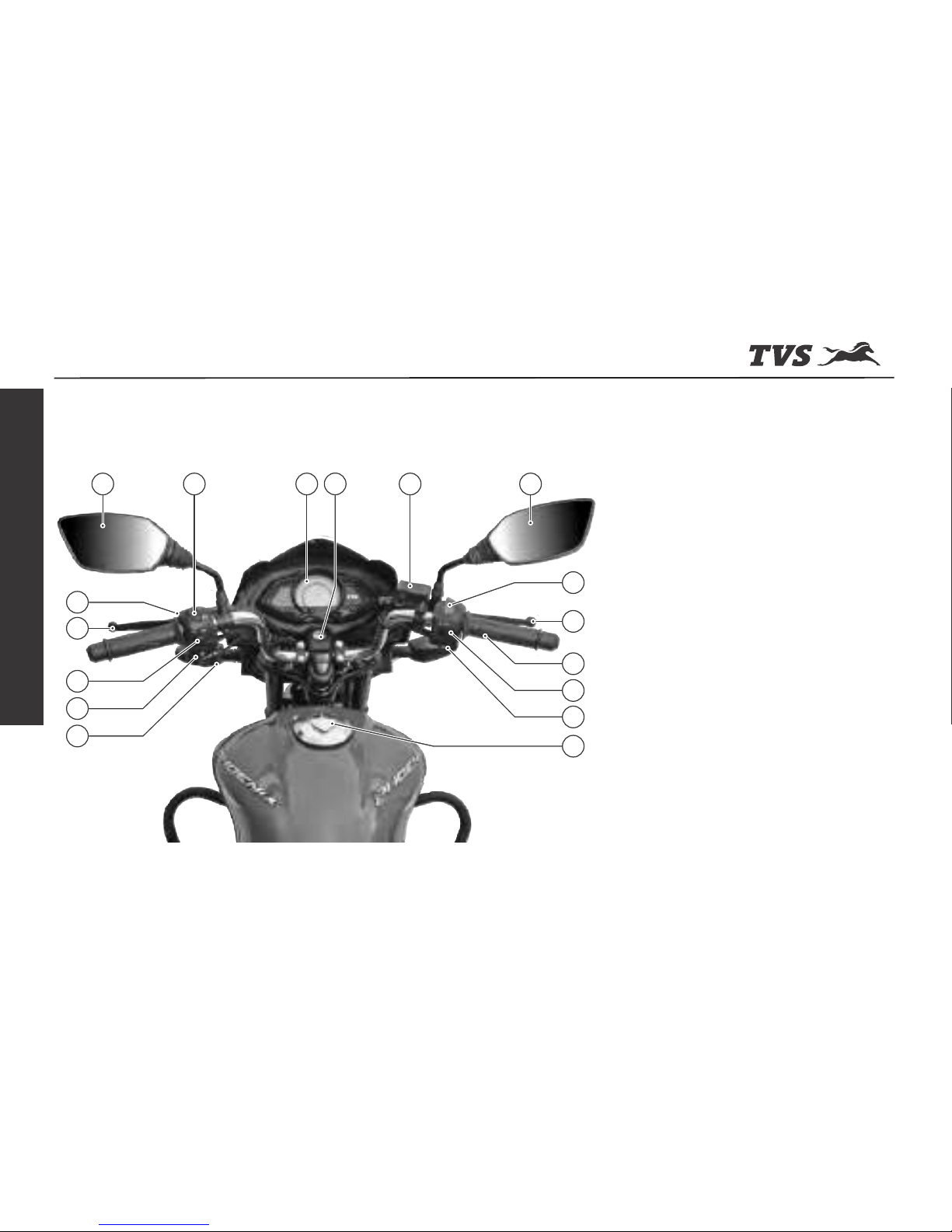

LOCATION OF PARTS - HANDLE BAR
1. Choke lever
2. Horn switch
3. Turn signal lamp switch
4. Clutch lever
5. Pass by switch
6. Rear view mirror L
7. High / low beam switch
8. Digital speedometer
9. Ignition cum steering lock
10. Master cylinder front*
11. Rear view mirror R
12. Hazard switch
13. Front brake lever
14. Throttle grip
15. Head lamp switch
16. Electric starter switch
17. Fuel tank cap
-7-
12
13
14
15
16
17
6 7 8 10 11
9
1
2
3
4
5
* Applicable only for Disc version

KNOW YOUR TVS PHOENIX 125
LOCATION OF PARTS - VEHICLE LEFT SIDE
1. Front wheel axle
2. Fuel cock
3. Gear shift lever
4. Rider foot rest L
5. Centre stand
6. Side stand
7. Chain inspection window
8. Pillion foot rest L
9. Rear wheel axle
10. Lady foot rest
11. Saree guard
12. Cover frame L lock
13. Rear shock absorber L
KNOW YOUR TVS PHOENIX 125
-8-
132
12 13
457
6910 11
8

KNOW YOUR TVS PHOENIX 125

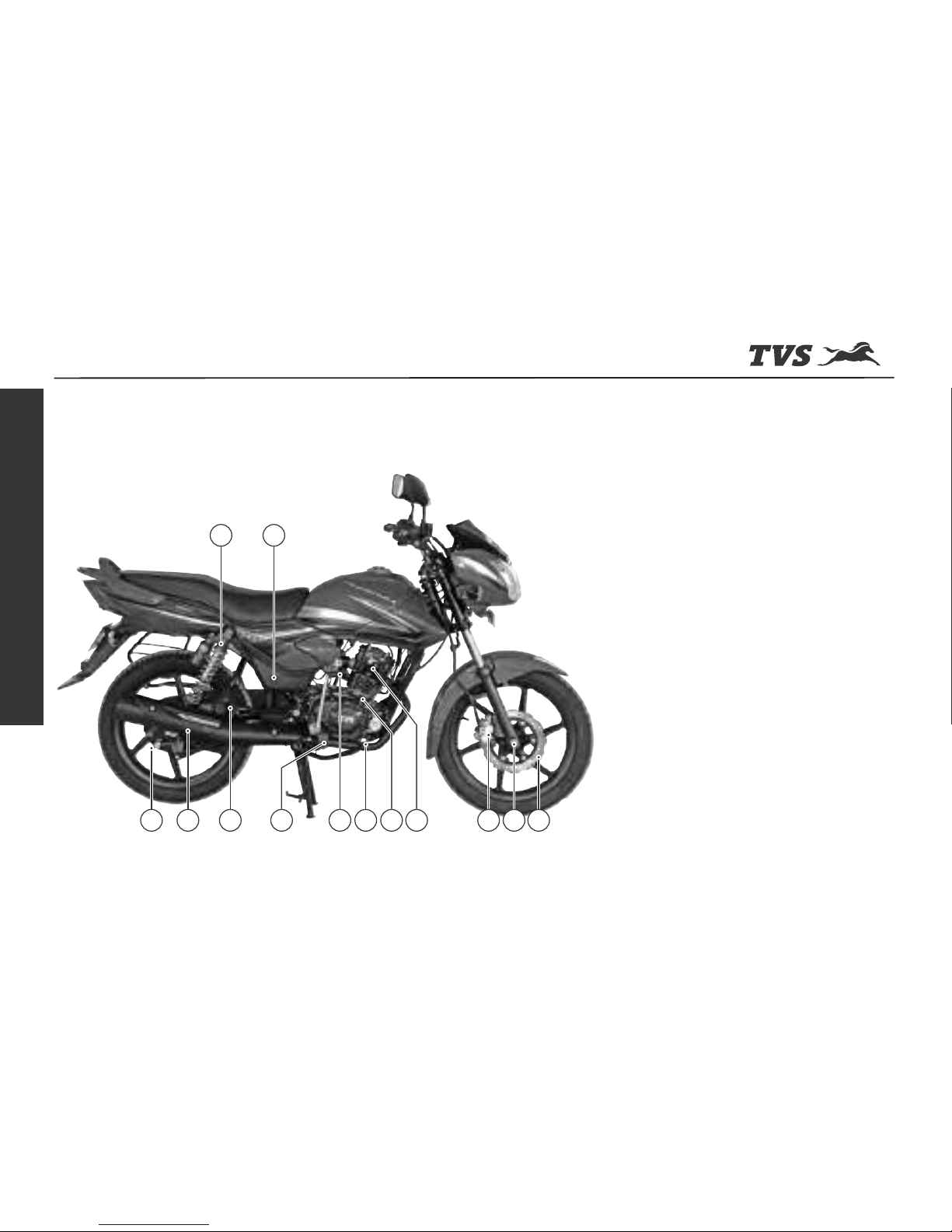

LOCATION OF PARTS - VEHICLE RIGHT SIDE
1. Disc plate front*
2. Front wheel axle nut
3. Front caliper assembly*
4. Spark plug
5. Gauge oil level
6. Rear brake pedal
7. Kickstarter lever
8. Rider foot rest R
9. Pillion foot rest R
10. Muffler assembly
11. Rear brake adjuster
12. Rear shock absorber R
13. Cover frame R screw
KNOW YOUR TVS PHOENIX 125
-9-
1239
1011
12 13
* Applicable only for Disc version
45678
