BenQ mobile S75 User manual

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 1of 42 Internal Use Only
BE INSPIRED
S
S
S7
7
75
5
5
V1.0
Release Date Department Notes to change
R 1.0 15.08.2005 COM D CCQ SLI APAC New Document

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 2of 42 Internal Use Only
Table of Content
1Introduction ...............................................................................................................................3
1.1 PURPOSE ................................................................................................................................3
1.2 SCOPE ....................................................................................................................................3
1.3 TERMS AND ABBREVIATIONS.....................................................................................................3
1.3.1 Terms .............................................................................................................................3
1.3.2 Abbreviations..................................................................................................................3
2Remark .......................................................................................................................................4
3GPRS (General Packet Radio Service)....................................................................................4
4K-Java Application....................................................................................................................5
5Key Features..............................................................................................................................6
6Comparison with Previous Product.........................................................................................8
7Accessories ...............................................................................................................................9
7.1 S75 INTERFACE TO ACCESSORIES..........................................................................................10
8Unit Description of S75...........................................................................................................11
8.1 EXPLODED VIEW OF S75........................................................................................................12
9Disassembly of S75.................................................................................................................13
10 Assembly of S75......................................................................................................................21
11 Assembling and Disassembling of Camera Module............................................................23
12 Mobile Software Programming...............................................................................................25
12.1 MOBILE SOFTWARE UPDATING ...........................................................................................26
12.2 FLOW CHART FOR SOFTWARE UPGRADING .........................................................................27
13 Siemens Service Equipment User Manual............................................................................28
14 JPICS (Java based Product Information Controlling System)............................................29
14.1 INSTALLATION OVERVIEW....................................................................................................31
14.2 GENERATE CODES .............................................................................................................32
14.2.1 Master – Phonecodes ..............................................................................................32
14.2.2 Simlock Unlock – Code ............................................................................................33
14.3 PRINTING IMEI LABEL ........................................................................................................34
15 International Mobile Equipment Identity, IMEI......................................................................35
16 General Testing Information...................................................................................................36
17 Annex 1 ....................................................................................................................................41
18 Annex 2 ....................................................................................................................................42

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 3of 42 Internal Use Only
1 Introduction
This document describes the process and procedure regarding the verification of the
customers fault description of Siemens Mobile Phones.
1.1 Purpose
Purpose of the instruction is to avoid unnecessary repairs and to optimise repairs. Beside
this, the instruction is made to give the Service Partners a general orientation where to find
and where to get required documents.
1.2 Scope
This document is the reference document for all Siemens authorised Service Partners. It
has to be used from the Level 0 onwards up to the maximum repair Level.
1.3 Terms and Abbreviations
1.3.1 Terms
GOLD GSM One Logic Device is the micro controller used by the mobile phone.
There are two types in use. The E-Gold and the S-Gold (mostly used by 65series
phones)
1.3.2 Abbreviations
GRT Global Repair Tool

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 4of 42 Internal Use Only
2 Remark
All instructions given in this document are valid for S75.
3 GPRS (General Packet Radio Service)
GPRS is a new non-voice value added services that allows information to be sent and
received across a GSM mobile telephone network. It supplements today’s Circuit Switched
Data (CSD) and Short Message Services (SMS). GPRS involves overlaying a packet based
air interface on the existing circuit switched GSM network. This gives the option to use a
packet-based data service. The information is split into separated but related “packets”
before being transmitted and reassembled at the receiving end. Theoretically, maximum
speeds of up to 171.2 kilobits per second (kbps) are achievable with GPRS using all eight
timeslots at the same time. This is about 3 times as fast as the data transmission speed
possible over today’s fixed telecommunications networks and 10 times as fast as current
Circuit Switched Data services on GSM networks.
Example: Cell with 1 Frequency channel:
1 physical channel for signaling, 4 physical channels for Circuit switched and 3 physical channels for
Packet switched.

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 5of 42 Internal Use Only
4 K-Java Application
Java-based game system
Java Application Manager
(JAM)
Application launcher and
download manager.
Supports HTTP-based OTA
download of applications over
GPRS and CSD.
yes
RAM for Java applications Available RAM for Java
applications (i.e. Program code
and data) during application
runtime:
Minimum 100 Kbytes (Has to be
taken as working assumption
for application development).
Goal: 145 Kbytes as SL45i (not
committed)
yes
MIDP 1.0, CLDC 1.0 As SL45i, including
performance optimizations from
SL45i-Infusio.
yes
‘OEM extensions’ Proprietary API extension as
SL45i. Including ‘Siemens
Game API’
yes
HTTP API over GPRS Sl45i: only CSD yes

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 6of 42 Internal Use Only
5 Key Features
Bands • Triple Band E-GSM 900 / GSM 1800 / GSM 1900
• GPRS Multi Class 10
Battery • Li-Ion Battery Pack
• Nominal Voltage : 3.7V
• Nominal Capacity : 780 mAh
• GSM Capacity : 750 mAh
• Power Input : 2.0A (0.6 ms) / 0.25A (4 ms)
• Cut-off Threshold : 3.2V
Stand-by Time ≥Approx. 250 hrs (Best Case)
Talk Time ≥5 hrs (Best Case)
SIM Card • Small (”Plug In”) 1.8 or 3V SIM card (Phase II)
• To insert the SIM card, the battery pack must be
removed.
Speech Codec
• Triple Rate (HR/FR/EFR) and Adaptive Multi Rate are
available as standard
Temperature
Range
• -300C to +550C (Normal operation)
• -1000C to +850C (Storage capability)
Display • Type: Full Graphic
• Resolution: 132 x 176 Pixel
• Display 262,144 colours
• Technology: TFT
• Panel dimensions: 32.3 x 47.1 mm
• Active area / mm: 27.7 x 37.0 mm
• Backlight: Lightguide +4 white side-shooter LEDs
• Pixel size per mm: 0.21mm x 0.21mm ( 1 pixel consist
of 3 sub pixels in red, green and blue)
Keypad •hardcaps in IMF-technilogy
• 12-key-block (0-9, #, *)
• two function keys (SEND, END)
• ON/OFF key combined with the END key; the symbol 
(I inside O) is used as a symbol for ON/OFF.
• 5 way-joystick
• 2 soft-keys for different SW-enabled functions
• 1 dedicated hardkey (provider key)
• white as illumination colour
• tactile finder on key “5“
• 6 white LEDs for keypad

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 7of 42 Internal Use Only
Acoustics
• Three-in-one-earpiece for handset, handsfree and
ringing tones
• Uni-directional microphone
• Loud signal emitter (soundringer) (>100dB(A) SPL
@5cm, 'Hongkong-Spec.') only for rectangular sound
signals (NOT POSSIBLE for all Soundringer melodies)
• Polyphonic ringer tones 64 voices
• Hands free mode
• different selectable volume levels for handsfree,
handset and ringer mode (for the amount see SW
product description)
• Speaker Dependant (SD) Voice Name Dialling
• Audio decoding: MP3 (ringtones and music player),
Real Audio 8 (available within 2nd SW release), MPEG4
AAC/AAC+/AAC++ (ring tones and music player), AMR-
NB,encoding: AMR-NB,
Memory • Approx 20MB internal
Connectivity • Bluetooth
• Infrared
Ring tones • 64 chords polyphonic ringtones
Multimedia • Video resolution:QCIF, subQCIF;decoding (15fps):
H263, MPEG4, Real Video 8 (available within 2nd SW
release) ;encoding (15 fps): H263; streaming: Real
Video 8 (available within 2nd SW release), 3GPP
(H.263, MPEG4)
• Audio streaming: AMR-NB, AAC, AAC++, Real Audio 8
(available within 2nd SW release,);
Camera • Integrated 1.3 Mega Pixel camera
• integrated camera flash light

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 8of 42 Internal Use Only
6 Comparison with Previous Product
Feature CX65/CX66 Ulysses X75 Minos Delta
Supported Systems Triple Band
EGSM 900/GSM1800/
GSM1900 (EMEA, APAC)
GSM 850/GSM1800/
GSM1900 (NAFTA)
Triple Band
EGSM 900/GSM1800/
GSM1900 (EMEA, APAC)
No GSM 850
Stand-by Time ≥250h ≥250h
Talk Time ≥5 h ≥5 h
Battery Technology
Battery Capacity
Li-Ion Battery Pack
Nominal Cap.: 780 mAh
Li-Ion Battery Pack
Nominal Cap.: 780 mAh
Weight Approx. 90 g approx. 89 g
Volume Approx. 78 cm3approx. 84 cm3Higher volume
Length 108 mm 102.9 mm 6.1mm shorter
Width 44…47 mm 47.0 mm (Sidekeys)
Thickness 17…18 mm 18.7 mm (Display) 0.7 mm thicker
SIM Plug-In 1.8V/3V Plug-In 1.8V/3V
Antenna Integrated Integrated
Antenna Performance in
comparison
-0,8 dB @ 900 MHz
-0,5 dB @ 1800 MHz
~28 dBm @ 900 MHz
~25 dBm @ 1800 MHz
~24 dBm @ 1900 MHz
(2,7-Band-Antenna)
Half Rate Yes Yes
Enhanced Full Rate Yes Yes
AMR Yes Yes
Fax/Data Yes Yes
GPRS Yes (Class 10) EDGE/Class 10 Higher data transfer rate
Keypad Illumination Yes (white) White LED
Display /
Display Illumination
TFT/TFD
132 x 176 Pixel 2,0”
65k colour
TFT/TFD
132 x 176 Pixel 1,8”
262k colour
Higher Resolution Colour
User Memory Approx. 11 MB 20 MB internal
Exchangeable
Memory
no Yes, RS-MMC reader
available
Possibility for higher
Memory
Camera VGA Mega pixel camera
(integrated)
Higher Resolution
New feature in CX-class
BT No Yes
Flash light No Yes
Video decoding (15fps): H263
encoding (15 fps): H263
decoding (15fps): H263,
MPEG4, Real Video 8
encoding (15 fps): H263
streaming: Real Video 8,
3GPP (H.263, MPEG4)
Audio / Music 32 chords polyphonic
ringtones
decoding: MP3,Real Audio
8, MPEG4, AAC/AAC+ /
AAC++ , AMR-NB
encoding: AMR-NB
streaming: AMR-NB, AAC,
AAC++, Real Audio 8
64 chords polyphonic
Voice/ speech function No Speaker Dependant (SD)
Voice Name Dialling
Speaker Dependant (SD)
Voice Control
Sidekey No Yes

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 9of 42 Internal Use Only
7 Accessories
For S75, the following accessories will be available.
Description Part number
Tour Case FCT-650 TBC
Belt Case FCL-600 TBC
Car Charger ECC-500 TBC
Li-Ion Battery 820mAh EBA-760 TBC
Travel Charger ETC-500 L36880-N5601-A104
Travel Charger ETC-510 L36880-N5601-A105
Car Charger Plus ECC-600 L36880-N7101-A109
Desk Top Stand EDS-600 TBC
Car Kit Bluetooth® Portable HKW-700 L36880-N7421-A101
Car Kit Bluetooth® HKW-600 L36880-N6551-A100
Car Kit Bluetooth® HKW-710 (successor of HKW-600) TBC
Car Kit Bluetooth® SIM HKW-720 TBC
Mobile Holder HMH-765 TBC
Car Kit Easy Upgrade HK0-700 L36880-N7431-A103
Car Kit Upgrade HK0-650 L36880-N7401-A120
Headset Bluetooth® HHB-600 L36880-N7401-A100
Headset Bluetooth® HHB-610 L36880-N7401-A101
Headset Bluetooth® HHB-700 TBC
Headset Bluetooth® HHB-710 TBC
Headset Bluetooth® Stereo HHB-750 TBC
Headset Stereo HHS-700 L36880-N7431-A101
Charger Adapter ECA-500 (for Headset Bluetooth®) L36880-N7401-A104
Mobile Music Set IMS-700 L36880-N7431-A110
Headset Purestyle HHS-610 L36880-N7101-A500
Headset HHS-510 L36880-N5601-A108
Headset Basic HHS-500 TBC
Car Kit Comfort Basic HKC-700 TBC
Car Kit Easy HKP-700 L36880-N7431-A100
Car Kit Portable HKP-500 L36880-N5601-A109
Mobile Holder Antenna HMH-760 TBC
Car Data Adapter HKO-690 L36880-N7101-A800
SyncStation DSC-600 TBC
Flash IFL-600 L36880-N7101-A400
Data Cable DCA-500 (RS232) L36880-N5601-A110
Data Cable USB – serial DCA-510 L36880-N5601-A111
Data Cable USB – USB DCA-540 L36880-N6501-A102
Note: Visit the Communication Market for updated accessories:
https://market.benqmobile.com

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 10 of 42 Internal Use Only
7.1 S75 Interface to Accessories
The phone has got a full compatible interface to accessories. All shown interfaces are for
car-cradle. Interfaces for Belt-Clip will not be necessary.
Accessory-Interfaces
Accessory-Interfaces

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 11 of 42 Internal Use Only
8 Unit Description of S75
The S75 Minos is designed as a Bar phone with two PCBs. The whole unit consists of a
NoID-Block and parts for the customization. The NoID-Block itself is made of the soldered
PCBs and the preassembled upper and lower cases. It is full functional and testable. The
parts for the customization are the keypad, the front cover, the rear cover and the battery
cover, but only the battery cover will be exchangeable for the end user.
Except of the upper case which is a 2 shot moulded plastic part all other cases and covers
are 1 shot moulded plastic parts. The upper case is galvanized (1 colour) and the rear and
battery covers are lacquered (1 colour). The decoration of the front cover is done by IMD
and the decoration of the keypad by IMF. The lower case is without any additional surface
decoration (1 colour).

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre

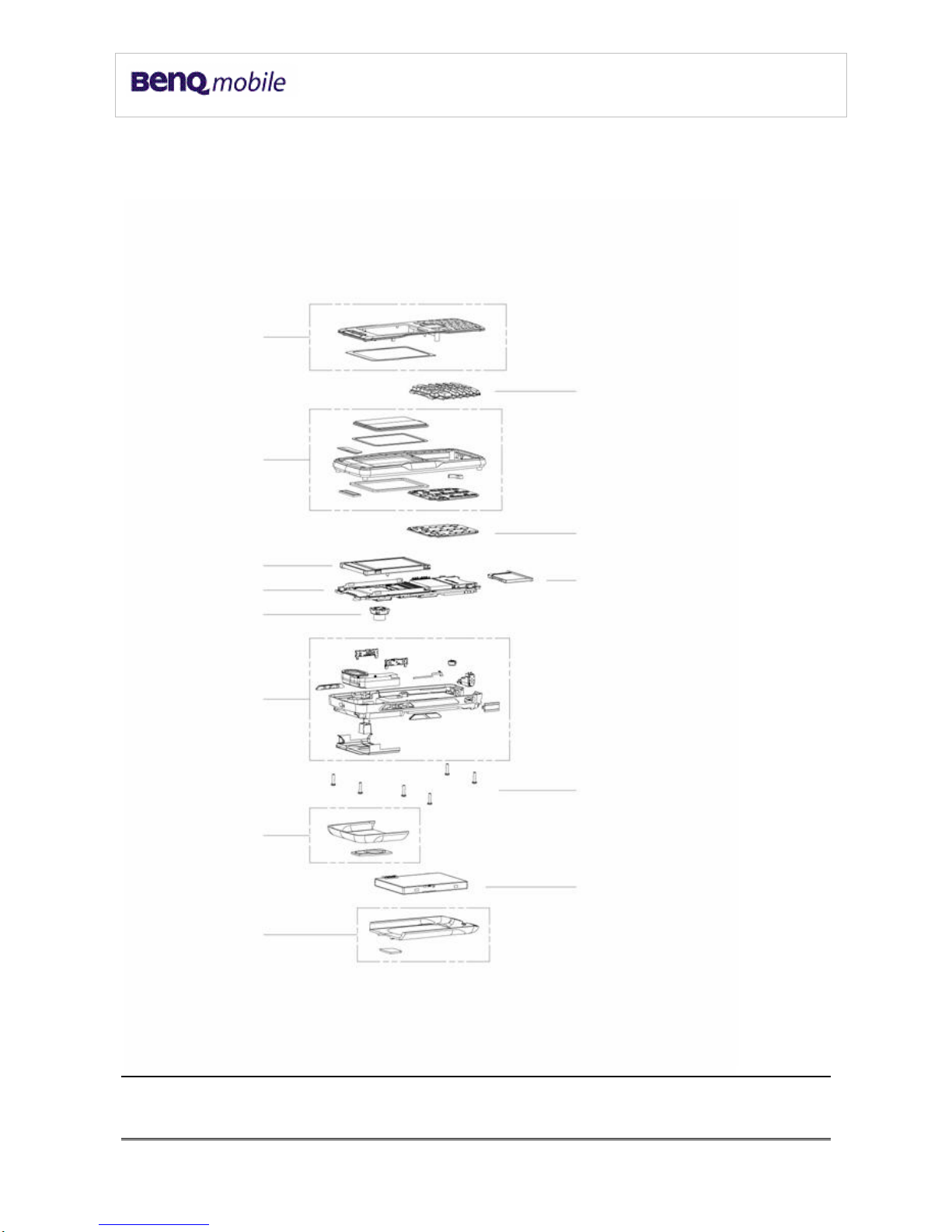

8.1 Exploded View of S75
Front cover ass.
Upper case ass.
LCD-Module
PCB
Camera-Module
Lower case ass.
Rear cover ass.
Battery cover ass.
Keypad
MMI
MMC-Tray
Screws
- 4 for NoID-Block
- 2 for Front
cover
Battery pack
All Rights Reserved
COM D CCQ APAC SLI Page 12 of 42 Internal Use Only

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 13 of 42 Internal Use Only
9 Disassembly of S75
Note: ESD concept; the internal circuits will be more susceptible to ESD because of the use
of exchangeable housing. The construction of the internal block must be/is designed, in the
best possible way, to protect the circuit against sparks.
The keypad must be completely closed to prevent any occurrence of an ESD disruptive
discharge.
The SIM contacts may be open, thus reachable for ESD contact discharge. This could lead
to damage or destruction of the S-Goldlite pins.
It is a requirement for the service personnel to observe ESD protection rules while
performing servicing the S75.
Step 1
Front view of the S75
Step 2
Back View of the S75
Step 3
Remove Battery cover.

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 14 of 42 Internal Use Only

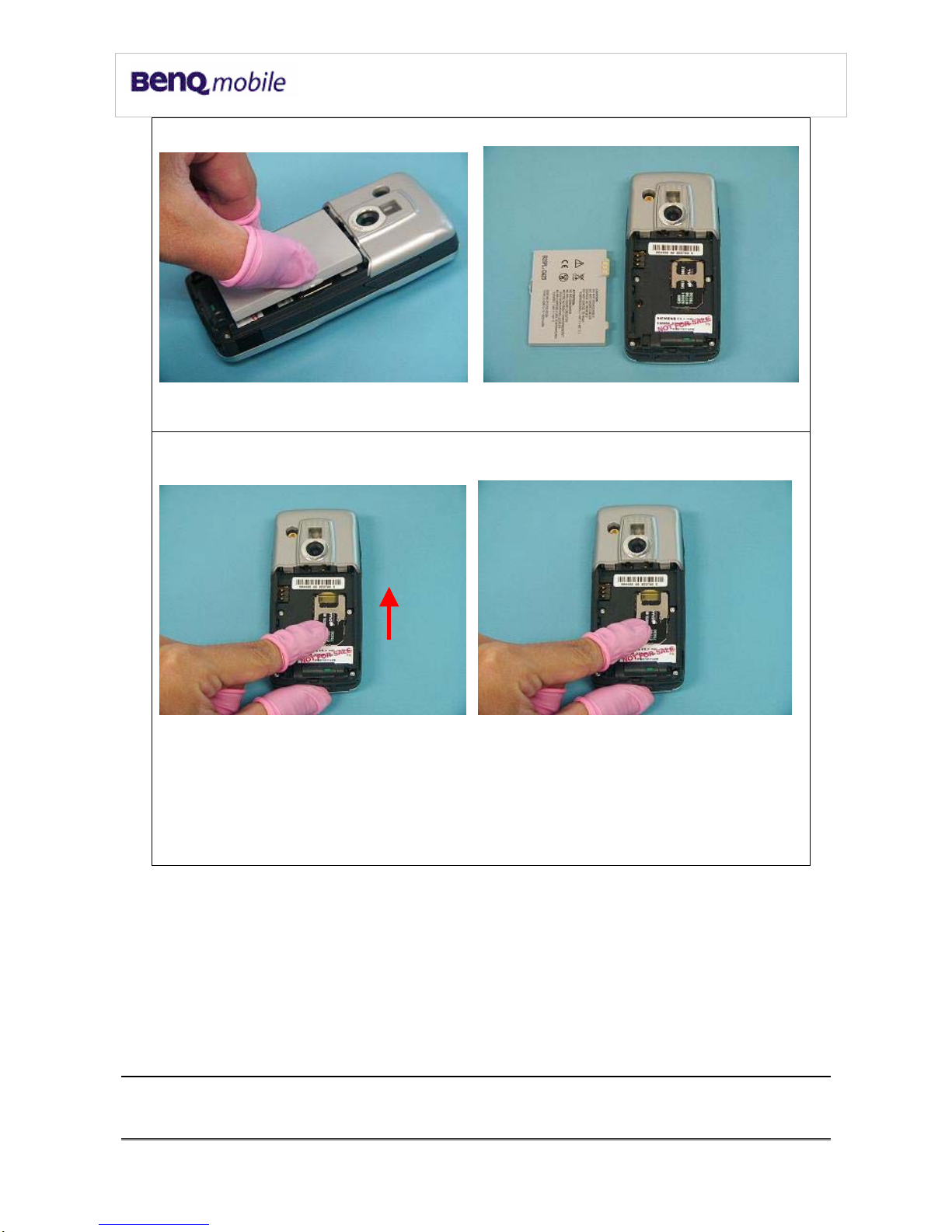

Step 4
Remove Battery.
Step 5
Remove SIM card.

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 15 of 42 Internal Use Only
Step 6
The rear cover of the S75 has 5 hooks. Start to release the first 2 of them. Use
the “removal tool” F30032-P385-A1 and press it down.
To release the next 3 hooks in the upper part, push rear cover with the thumb
angular ahead until you hear a “click” as a sign of release.
Check the hooks carefully. If you see any damage, do not use the cover again.
Please keep in mind that damages cause by unprofessional opening are not
reimbursed by BenQ Mobile.

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 16 of 42 Internal Use Only
Step 7
Unscrew the 6 T5 plus screws using a Torque screw driver.
Step 8
Remove Lower Mounting Frame.
Step 9
Remove Vibramotor using tweezer.

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 17 of 42 Internal Use Only
Step 10
Remove Microphone using Tweezer.
Step 11
Remove Earphone.
Step 12
Remove Main Board.

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 18 of 42 Internal Use Only

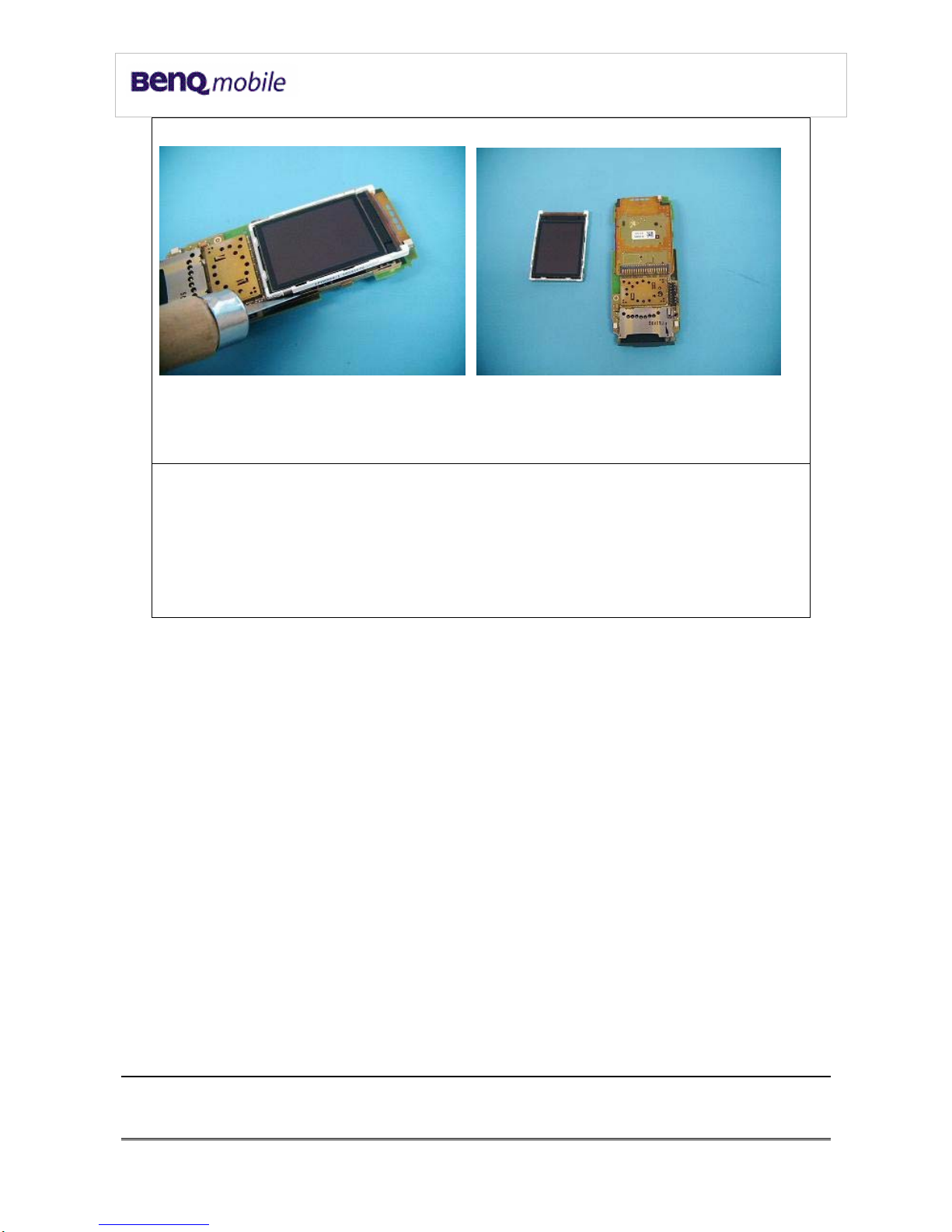

Step 13
Remove Display Module using Opening tool – Place protective foil over on the
Display Module.
Step 14
Remove Camera module – Refer to Chapter 9 for Camera Module assembling and
disassembling instructions.

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 19 of 42 Internal Use Only
Step 15
Remove MMI and Keypad using Opening tool.

S75 Level 1-2 Service Manual
Copyright © BenQ Mobile BenQ Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 20 of 42 Internal Use Only

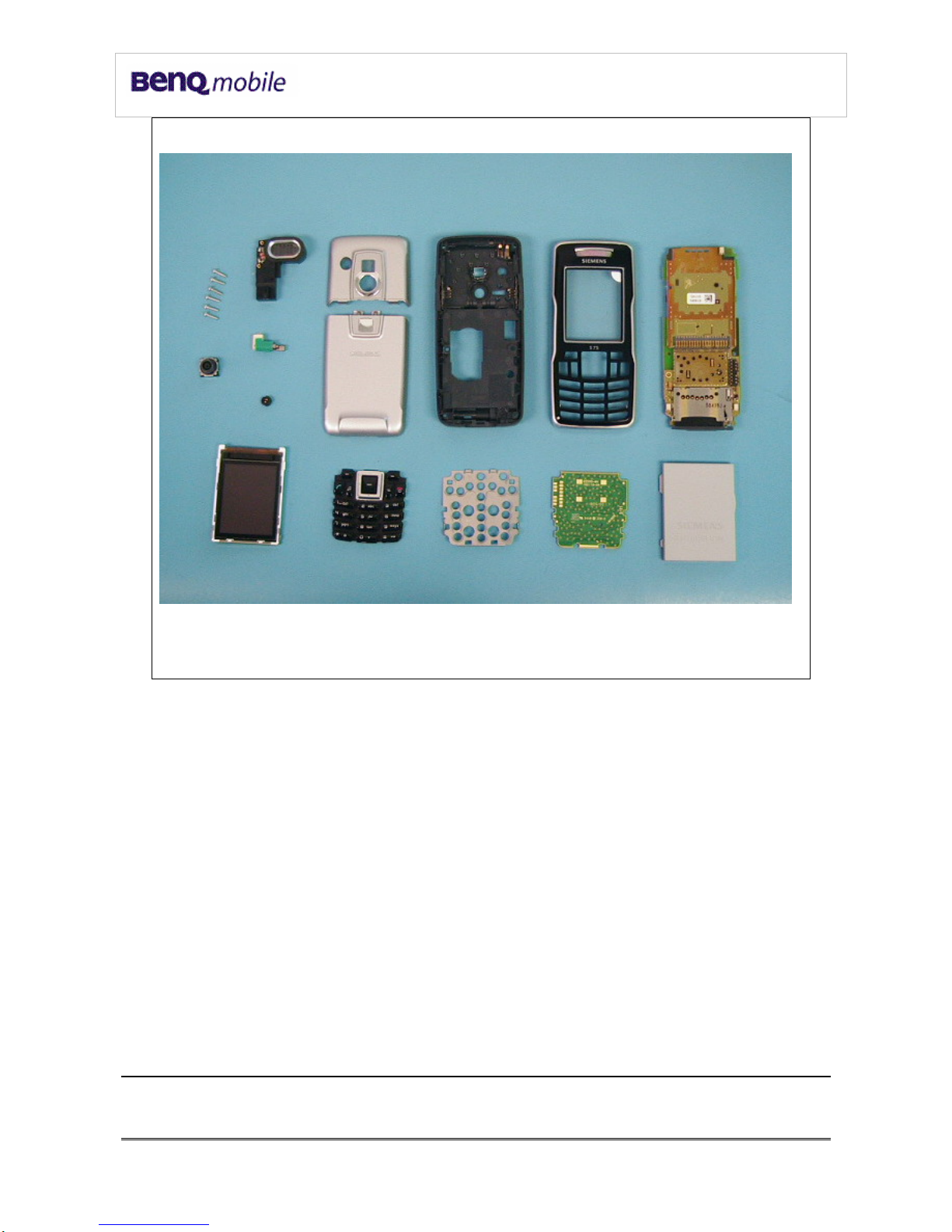

Fully disassembled S75
Rear Upper Case
Earphon Lower Mounting Main
Screws
V
ibramoto
Camera
Microphon
Battery
Keypa
MMI Battery Li-
Display Module
