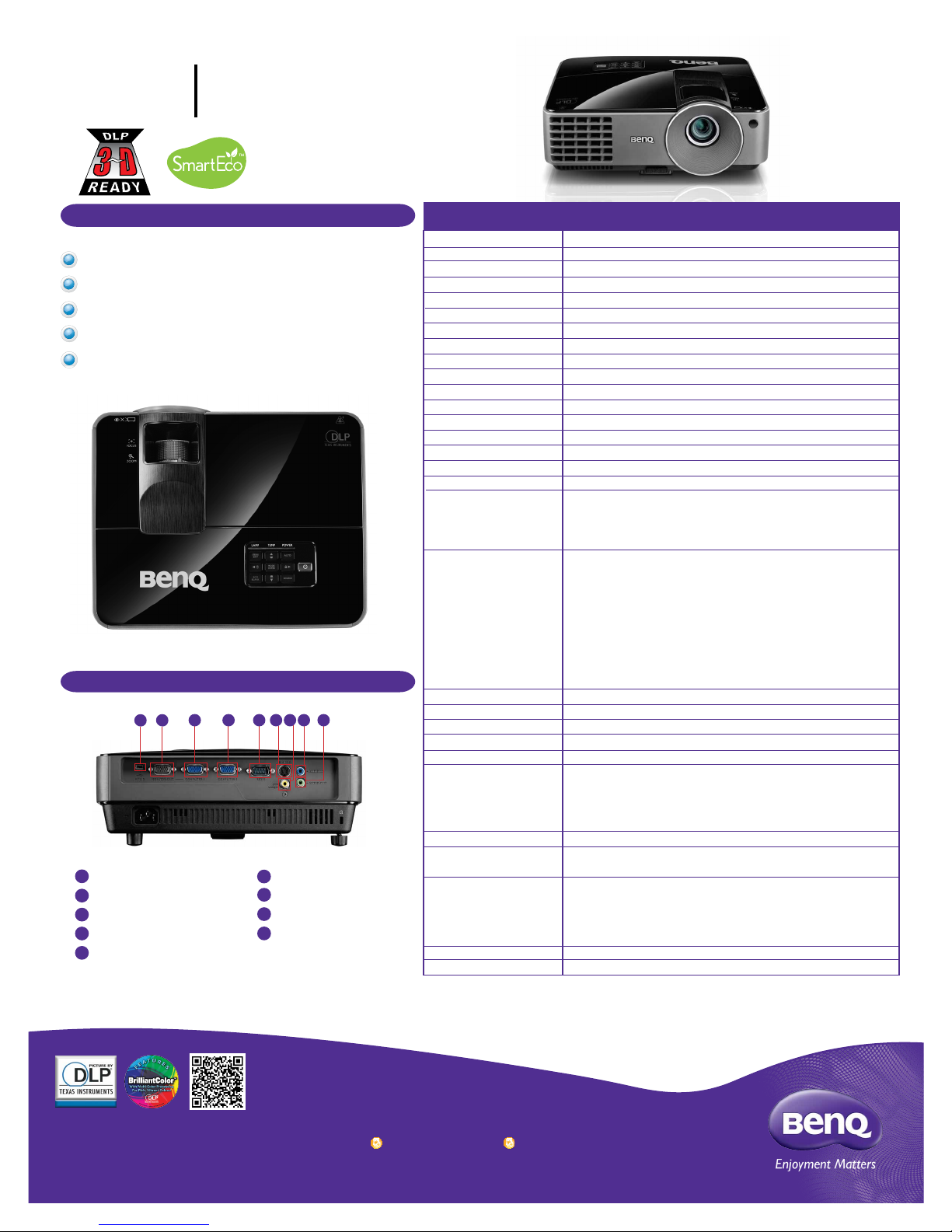

BenQ MS502 User manual

BenQ America Corp.
15375 Barranca Parkway. Suite A-205. Irvine, CA 92618 Tel: [phone] www.BenQ.us
BenQ is a registered trademark of BenQ Corp. DLP® is a registered trademark of Texas Instruments. All rights reserved.
Product names, logos, brands, and other trademarks featured or referred to in this materials are the property of their respective trademark holders.
Specifications subject to change without notice.
MS502
DIGITAL
PROJECTOR
Features Specications
Native SVGA Resolution (800x600)
2700 ANSI Lumens; 13000:1 Contrast Ratio
BrilliantColor™, Long Lamp Life
High Contrast Ratio, 3D Ready
Virtually Color Decay Free; SmartEco™
Projection System
Native Resolution
Brightness
Contrast Ratio
Display Color
Lens
Aspect Ratio
Throw Ratio
Image Size Diagonal
Zoom Ratio
Lamp Type
Lamp Life
Keystone Adjustment
Projection Offset
Resolution Support
Horizontal Frequency
Vertical Scan Rate
Compatibility
Interface
Dimensions (WxHxD)
Weight
Power Supply
Power Consumption
Audible Noise
On-Screen Display
Languages
Picture Mode
Accessories (Standard)
Accessories (Optional)
UPC Code
Limited Warranty
DLP
SVGA (800 x 600)
2700 ANSI Lumens
13000:1
1.07 Billion Colors
F=2.56-2.8, f=21-23.1mm
Native 4:3 (5 aspect ratio selectable)
1.86 - 2.04 (53”@ 6.6 ft)
40”-300”
1.1:1
190W
4500/6000/6500 hours (Normal/Eco/SmartEco Mode)*
1D, Vertical +/- 40 degrees
120% ±5%
VGA (640 x 480) to UXGA (1600 x 1200)
31K~102KHz
23~120Hz
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
3D Compatibility: PC: 120Hz Frame Sequential 3D for resolutions
up to WXGA.
Computer In (D-Sub 15pin) x2 (shared with Component)
Monitor Out (D-Sub 15 pin) x1
Composite Video In (RCA) x1
S-Video In (Mini DIN 4pin) x1
Audio In (Mini Jack) x1
Audio Out (Mini Jack) x1
Speaker 2W x1
USB (Type Mini-B) x1 (Download & page up/down)
RS232 (DB-9Pin) x1
11.31” x 4.5” x 9.15”
5.29lbs (2.3kg)
AC 100 to 240 V, 50/60 Hz
275W, Standby<0.5W
33/26 dBA (Normal/Economic mode)
English/ France/ Germany/ Italian/ Spanish/ Russian/ Traditional
Chinese/ Simplied Chinese/ Japanese/ Korean/ Swedish/ Dutch/
Turkish/ Czech/ Portuguese/ Thai/ Polish/ Hungarian/ Croatian/
Romanian/ Norwegian/ Danish/ Bulgaria/ Finnish/ Indonesian/ Greek/
Hindi/ Arabic (28 Languages)
Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Remote Control w/ Battery, Power Cord, User Manual CD, Quick Start
Guide, Warranty Card, VGA (D-sub 15 pin) Cable
Spare Lamp Kit P/N: 5J.J6D05.001
Ceiling Mount P/N: 5J.J2K01.001
3D Glasses P/N: 5J.J0T14.011
P/N: 5J.J3925.001
Carrying Bag P/N:5J.J3T09.001
8400460-2471-0
1 year parts & labor; 1 year or 2000 hours of lamp life
MS502 04-16-12-BQus
*Lamp life results will vary depending on environmental conditions and usage. Actual product’s features and specications
are subject to change without notice.
1
2
3
4
5
6
7
8
9
Input and Output Terminals
USB (Mini-B)
Monitor Out (D-sub 15pin)
Computer-1 (D-sub 15pin)
Computer-2 (D-sub 15pin)
RS232 (DB-9pin)
S-Video (Mini DIN 4-pin)
Video Out (RCA Jack)
Audio In (Mini Jack)
Audio Out (Mini Jack)
123456789

Screen Size Distance from screen (inch) Vertical offset
(inch)
Diagonal W
(inch)
H
(inch)
Min length Average Min length
Inch mm Max zoom Max zoom
30 762 24 18 44.57 46.81 49.02 1.81
40 1016 32 24 59.40 62.40 65.35 2.40
50 1270 40 30 74.29 78.00 81.69 2.99
60 1524 48 36 89.13 93.58 98.07 3.58
80 2032 64 48 118.86 124.80 130.75 4.80
100 2540 80 60 148.58 155.98 163.43 5.98
120 3048 96 72 178.27 187.20 196.10 7.20
150 3810 120 90 222.83 233.98 245.12 9.02
200 5080 160 120 297.13 312.01 326.85 12.01
220 5588 176 132 326.85 343.19 359.53 13.19
250 6350 200 150 371.42 390.00 408.54 15.00
300 7620 240 180 445.71 467.99 490.28 17.99
Ceiling Mount Screw:
M4 x 8 (Max L = 8 mm)
Units: inch
8.17”
3.07”
4.84”
3.28”
5.59”
11.31”
9.16”
7.86”
3.03”
14.35” 15.67” 17.56”
3.01” 1.3”
9.15”
4.5”
11.31”
Distance Chart
Ceiling Mount Chart
Dimensions
MS502 Digital Projector
