BenQ 1346-800 User manual

28

1
°
Call us on our toll- free customer support line:
1-866-349-8665 (Monday through Friday 9am –5pm
Eastern Standard Time)
Technical questions
Replacement parts
Parts missing from package

2

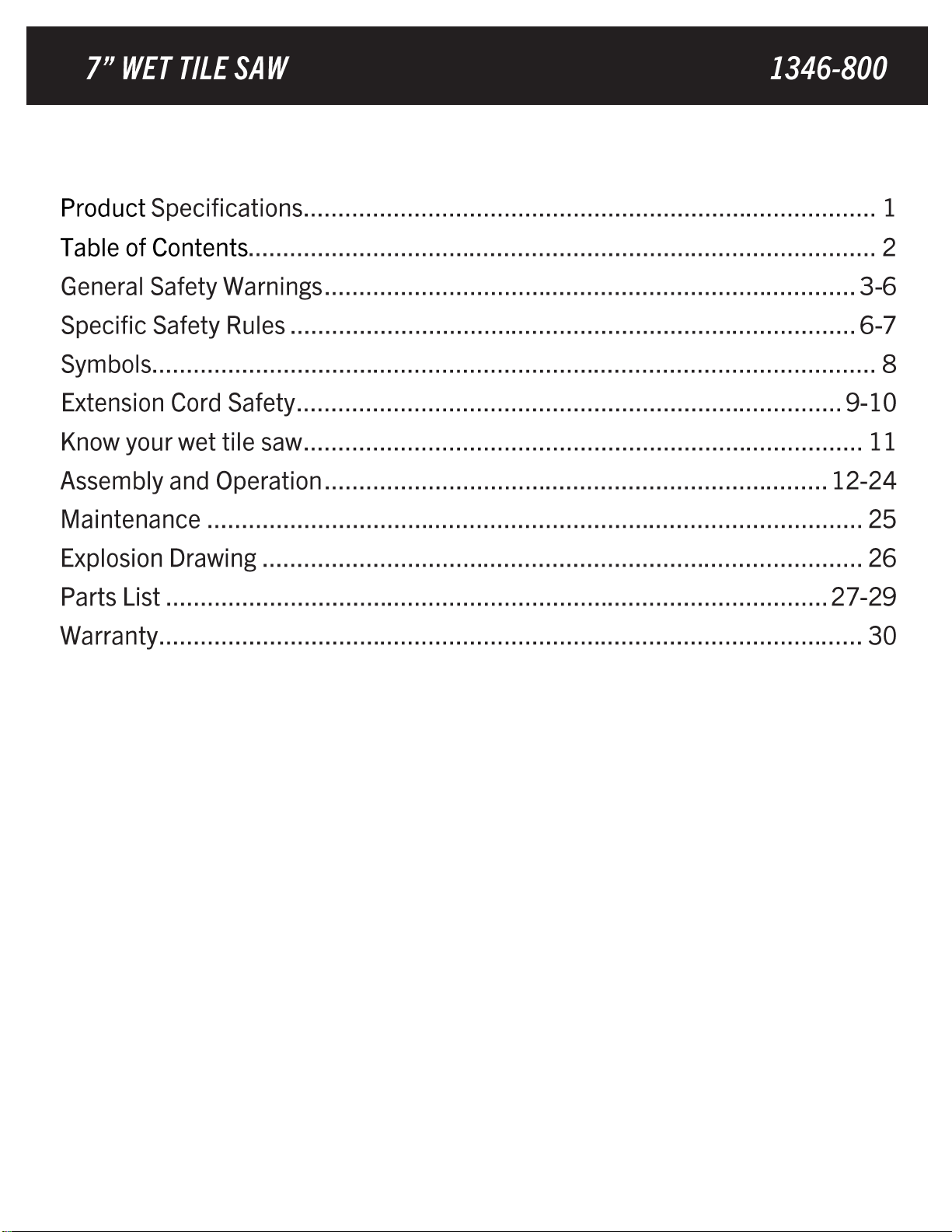

TABLE OF CONTENTS

3

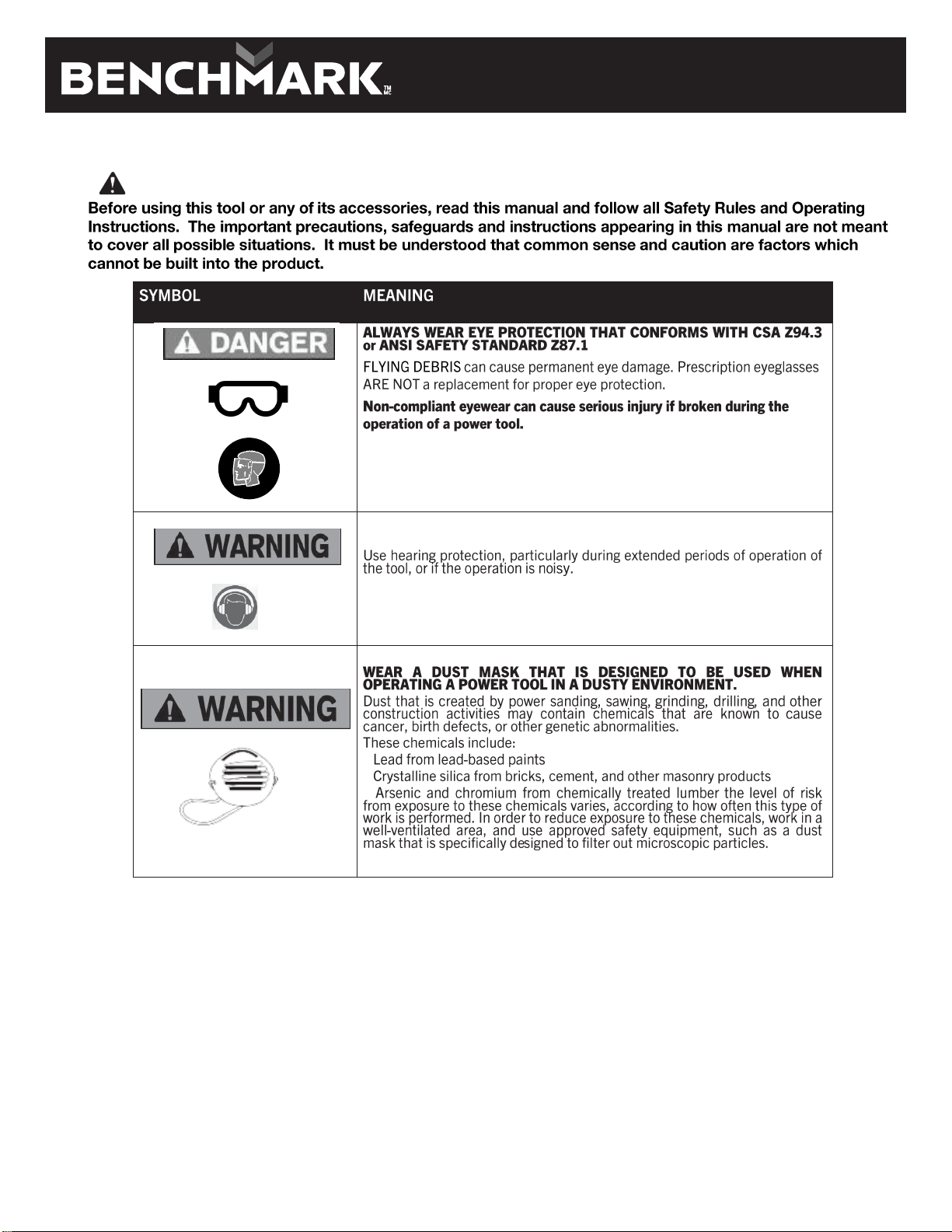

GENERAL SAFETY WARNINGS
WARNING:
•
•
•

4
READ ALL INSTRUCTIONS
Read the operator’s manual carefully. Learn the saw’s applications and limitations as
wellasthespecificpotentialhazardsrelated to this tool. For
example, pipes, radiators, ranges, refrigerator enclosures.
and in good working order.
Form habit of checking to see that key and adjusting wrenches are
removed from tool before turning it on.
Cluttered areas and benches invite accidents. leave tools or pieces of tile on the
saw while it is in operation. Do
not use power tools in damp or wet locations or expose to rain.
Keep the work area well lit. All visitors should wear safety glasses and be kept a safe
distance
from work area. Do not let visitors contact tool or extension cord while operating.
with padlocks and master switches, or by removing starter keys.
It will do the job better and safer at the feed rate for which it was designed.
Don’t force the tool or attachment to do a job it was not designed for. Don’t use it for a purpose not
intended. Make sure your extension cord is in good condition. Use only a cord heavy
enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss
of power and overheating. A wire gauge size (A.W.G.) of at least 14 is recommended for an extension cord 25 feet or
less in length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
Do not wear loose clothing, gloves, neckties, or jewellery. They can get caught and draw you into
moving parts. Rubber gloves and nonskid footwear (rubber soled boots) are recommended when working outdoors.
Also wear protective hair covering to contain long hair.
Everyday eyeglasses have only impact- resistant
lenses, they are safety glasses.
Use clamps or a vise to hold work when practical, it is safer than using your hand and frees both
hands to operate the tool.
Always keep proper footing and balance.
Keep tools sharp and clean for better and safer performance. Follow instructions for
lubricating and changing accessories.
When not in use, before servicing, or when changing attachments, blades, bits, cutters,
etc., all tools should be disconnected.
Be sure switch is off when plugging in any tool.
Consult the operator’s manual for recommended accessories. The use of
improper accessories may risk injury.
Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally
contacted. Before further use of the tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its
operation. A guard or other part that is damaged must be properly repairedor replacedbyan authorized service center to
avoid risk of personal injury. Feed work into
a blade or cutter against the direction of rotation of blade or
cutter only.
Don’t leave tool until it comes to a
complete stop. Wear a face or dust mask if
the cutting operation is dusty.

5
Wear hearing protection during extended periods of operation.
Never yank cord to disconnect from receptacle. Keep cord away from heat, oil, and sharp
edges. These cords are rated for
outdoor use and reduce the risk of electric shock.
and in working order.
Keep hands away from wheels. Do not reach underneath work or
aroundoroverthewheelwhilewheelisrotating.Donot attempt to remove cut material when wheel is moving.
WHEEL COASTS AFTER BEING TURNED OFF.
Normal sparking of the motor could ignite fumes.
If damaged, have repaired by a qualified service technician at an authorized
service facility. Stay constantly aware of cord location and keep it well away from the rotating wheel.
If tool is equipped with three- prong plug, it should be plugged into a three-hole electrical
receptacle.
ONLY POWER THE TOOL WITH A GFCI (GROUND FAULT CIRCUIT INTERRUPTOR) PROTECTED
OUTLET. if the grounding instructions are not completely
understoodor if indoubtastowhether thetoolisproperly grounded.
3-wire extension cords that have 3-prong grounding plugs and 3-pole
receptacles that accept the tool's plug.
the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified
electrician. Alwaysuse acleanclothwhencleaning.Never
use
brake fluids, gasoline, petroleum-based products, or any solvents to clean tool.
Watch what you are doing and use common sense. Do not operate tool
when you are tired. Do not rush. Have defective switches replaced by an
authorized service center. use blades with
incorrect size holes. Never use washers or arbor nuts that are
defective or incorrect. The maximum blade capacity of your saw is 7 in. (178 mm).
BEFORE MAKING A CUT, BE SURE ALL ADJUSTMENTS ARE SECURE.
or other moving parts during use.
NEVER START A TOOL WHEN ANY ROTATING COMPONENT IS IN CONTACT WITH THE WORKPIECE.
use only identical replacement parts. Use of any other parts may create a hazard or cause
product damage. listed in this manual or addendums. Use of accessories that are
not
listed may cause the risk of personal injury. Instructions for safe use of accessories are included with the accessory.
Make sure blade is tight and not contacting saw or workpiece before connecting to
power supply.

6
to come into contact with brake fluids, gasoline, petroleum based products, or solvents.
Watch what you are doing and use common sense. Do not operate tool
when you are tired. Do not rush. Have defective switches replaced by an
authorized service center. use blades with
incorrect size holes. Never use washers or arbor nuts that are
defective or incorrect. The maximum blade capacity of your saw is 7 in. (178 mm).
BEFORE MAKING A CUT, BE SURE ALL ADJUSTMENTS ARE SECURE.
or other moving parts during use.
NEVER START A TOOL WHEN ANY ROTATING COMPONENT IS IN CONTACT WITH THE WORKPIECE.
use only identical replacement parts. Use of any other parts may create a hazard or cause
product damage. listed in this manual. Use of accessories that are not listed may cause
the risk of personal injury. Instructions for safe use of accessories are included with the accessory.
Make sure blade is tight and not contacting saw or workpiece before connecting to
power supply.
SERVICE
Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the
safety of the power tool is maintained.
SPECIFIC SAFETY RULES
WARNING: Know your wet tile saw. Do not use the wet tile saw until you have read and understand this
Instruction Manual. Learn the tool’s applications and limitations, as well as the specific potential hazards related to
this tool. Following this rule will reduce the risk of electric shock, fire, or serious injury.
Always wear eye protection. Any power tool can throw foreign objects into your eyes and cause permanent eye
damage. ALWAYS wear safety goggles (not glasses) that comply with ANSI safety standard Z87.1. Everyday
glasses have only impact resistant lenses. They ARE NOT safety glasses.
WARNING: Glasses or googles not in compliance with ANSI Z87.1 could cause serious injury when they
break. firmly against the miter guide or fence.
stand or have any part of your body in line with the path of the blade.
attempttofreeastalledbladewithoutfirstturning the saw and disconnecting the saw from the power source.
it must bereplacedonlybythemanufactureror byanauthorized service
center to avoid risk. where a sudden slip could cause your hand to move
into the cutting tool. to see the work and that no obstructions will interfere with
safe
operation performing any work using the saw.
before disconnecting it, to avoid accidental starting when reconnecting to power supply.

7
should have the following markings:
Wear eye, hearing, and breathing protection.
Usesplash hood for everyoperation for which itcan be used.
Disconnect saw before servicing, when changing blades, and cleaning.
Use tool only with smooth edge blades free of openings, grooves, and teeth.
Replace damaged blade before operating.
Do not fill water bath above water fill line.
Refer to them frequently and use to instruct other users. If you loan someone
this tool, loan them these instructions too.

8
SAFETY SYMBOLS
WARNING: Some of the following symbols may appear on your tool. Study these symbols and
learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer
operation of this tool.
V
Volts
Three-phase alternating current
with neutral
A
Amperes
Hz
Hertz
Direct current
W
Watts
no
No load speed
kW
Kilowatts
Alternating or direct current
Microfarads
Class II construction
L
Litres
Splash-proof construction
kg
Kilograms
Watertight construction
H
Hours
Protective grounding at
terminal, Class I tools
N/cm²
Newtons per square
centimeter
.../min
Revolutions or reciprocations per
minute
Pa
Pascals
Diameter
Min
Minutes
S
Seconds
Directional arrow
~ or AC
Alternating current
Warning symbol
Three-phase alternating current
Wear your safety glasses

9

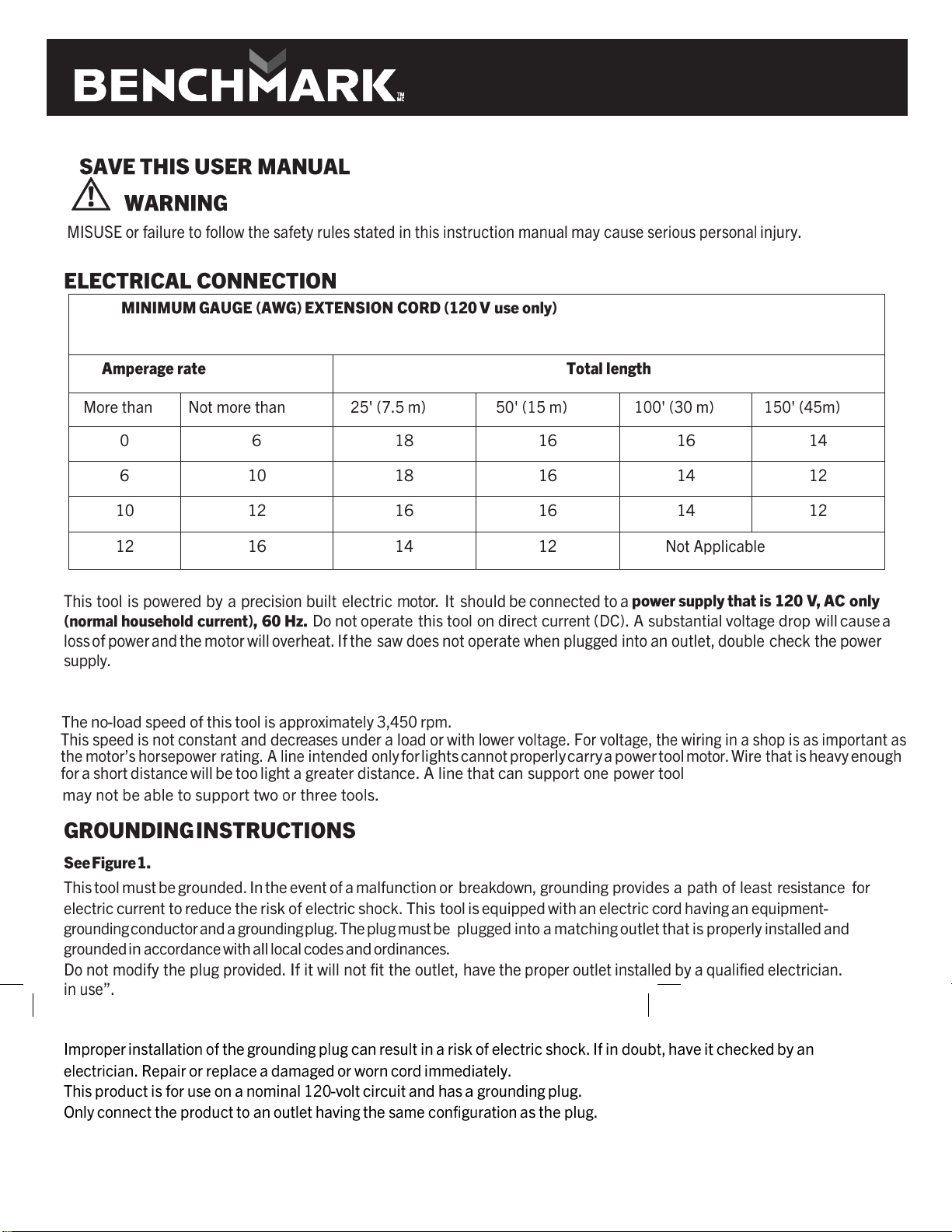

SPEED AND WIRING
WARNING:

10

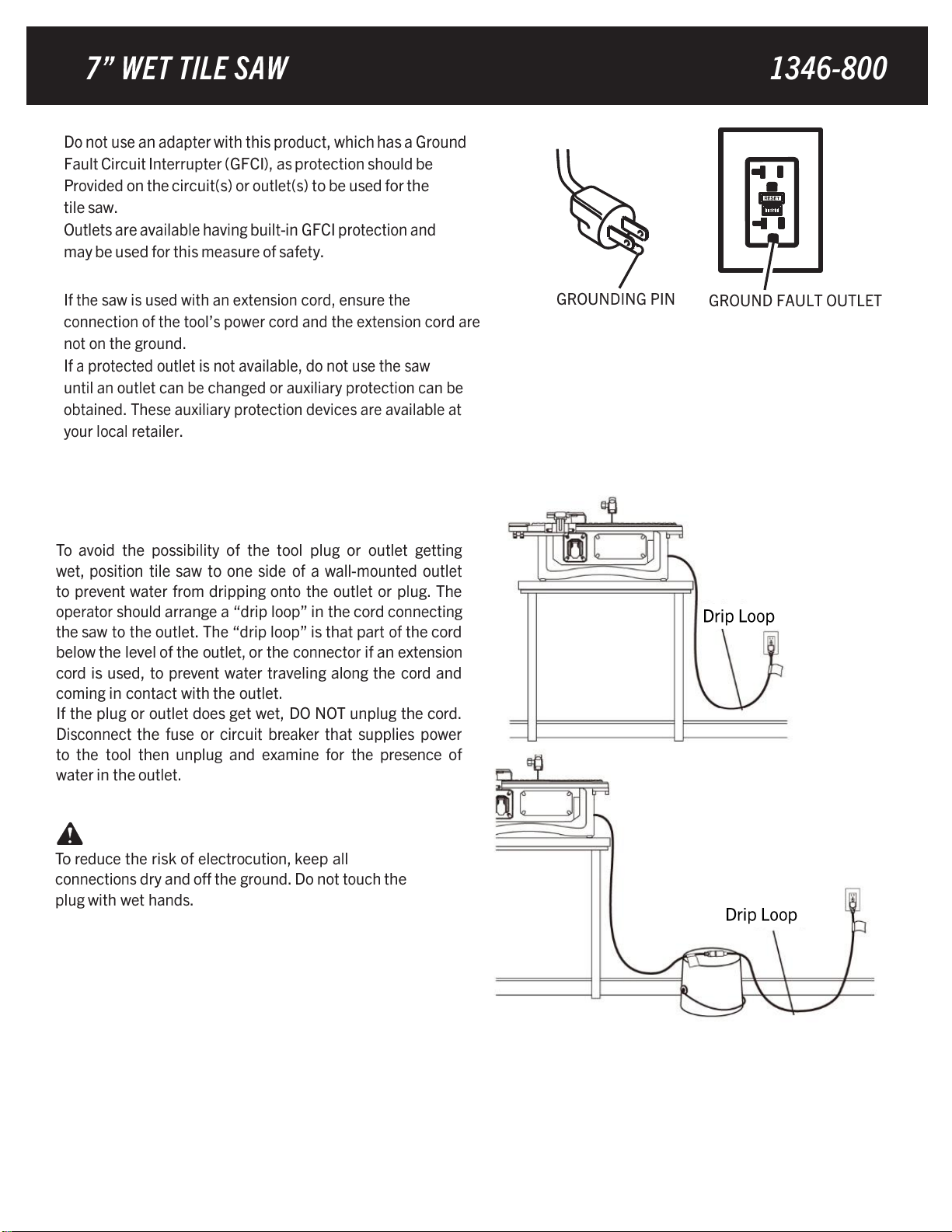

POSITION OF THE TILE SAW
See Figures 2 - 3.
WARNING:
Fig. 1
Fig. 2
Fig. 3

11

12

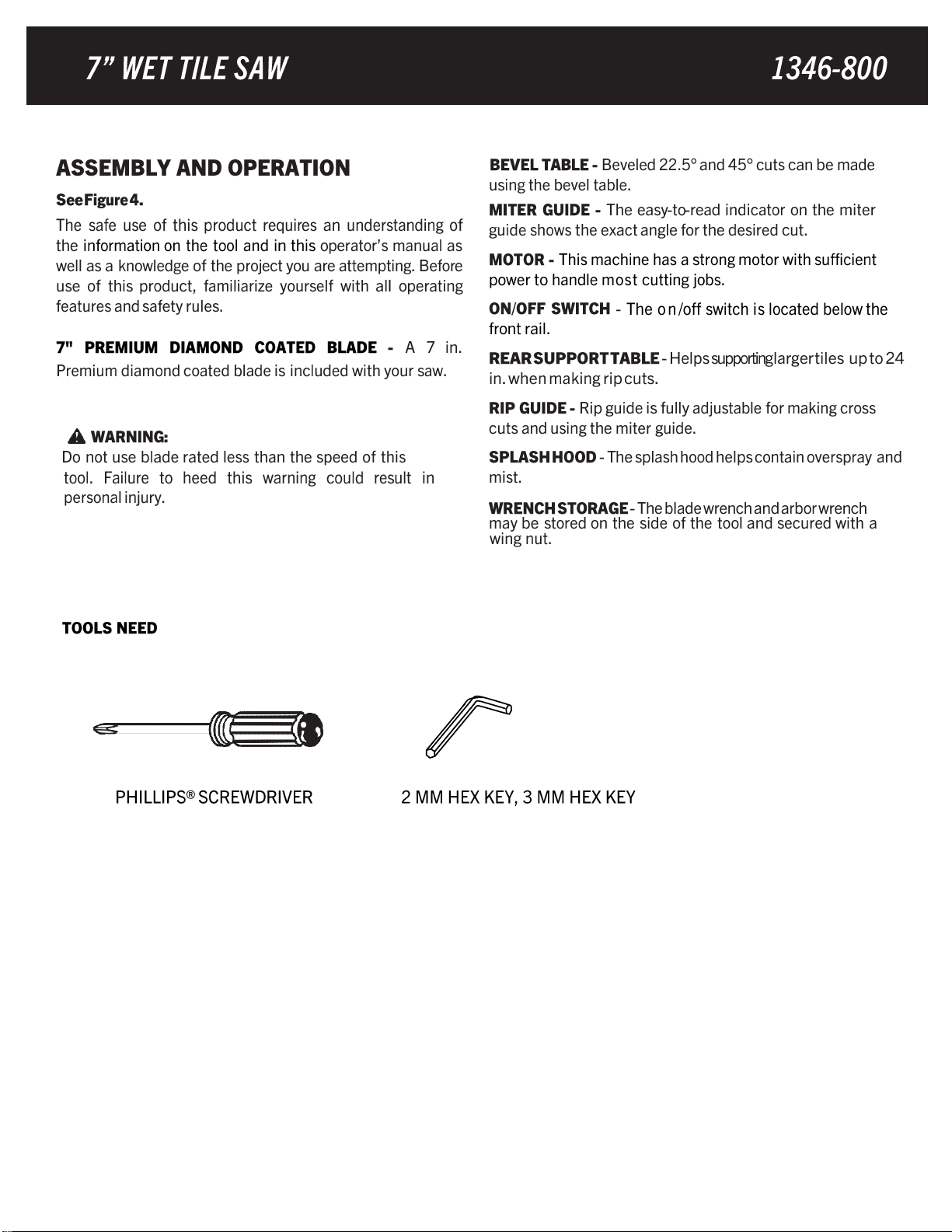

The following tool (not included or drawn to scale) are needed for assembly and alignment:
Fig. 5

13
Fig. 6

14
UNPACKING MOUNTING HOLES
WARNING:
INSTALLING THE REAR SUPPORT
TABLE
SeeFigure7.
WARNING:
If any parts are damaged or missing do not operate
this tool until the parts are replaced. Use of this
product with damaged or missing parts could result in
serious personal injury.
WARNING:
Do not attempt to modify this tool or use accessories not
recommended for use with this tool. Any such alteration
or modification is misuse and could result in a
hazardous condition leading to possible serious
personal injury. Fig. 7
WARNING:
Do not connect to the power supply until the assembly
is complete. Failure to comply could result in
accidentalstartingand possibleserious personal injury.
For maximum performance and safety, it is recommended
that you use the 7 in. Diamond blade provided with
your saw.
WARNING:
Do not use blades rated less than the no-loadspeedof
this tool. Failure to heedthis warning could result in
personal injury. Do not use blades with cracks, gaps,
or teeth.

15
INSTALLING DIAMOND COATED
BLADE
See Figures 8 - 9.
Always make sure the inner blade washer is installed
before placing the blade on the arbor. Failureto do
socouldcausean accident, since the blade will not
tighten properly. Never use blade that have openings,
grooves, or teeth on this tool.
Fig.9

16
INSTALLING THE SPLASH HOOD
SeeFigure10.
Remove the bevel table.
Using a PHILLIPS®screwdriver, loosen and remove the
three screws located in the pocket under the table
behind the blade.
Slide the L-shaped splash hood bracket into the pocket.
Reinstall the screws through the splash hood bracket and
into the table. Tighten securely.
Align the hood bracket with the blade so that it
does not interfere with the material being cut. To check
thealignment,see S in
theAdjustments section of thismanual.
Always adjust the splash hood horizontally to the
table and slightly above tile thickness. The Hood must
not touch the tile.
To lift or lower the splash hood or adjust its position,
loosen the lock knob, adjust the splash hood to the de-
sired height, and retighten the lock knob.
Reinstall the bevel table.
INSTALLING THE RIP GUIDE
SeeFigure11.
Place the front of the rip guide on the front rail of the saw
table.
Lower the back of the rip guide to the saw table.
Use the rip guide scale, located on front of the table, to
set the rip guide to the desired width of cut.
Push the locking lever down to secure to the saw table.
When securely locked, the locking lever should point
Fig. 10
Downward.
Fig. 11
Fig.11

17

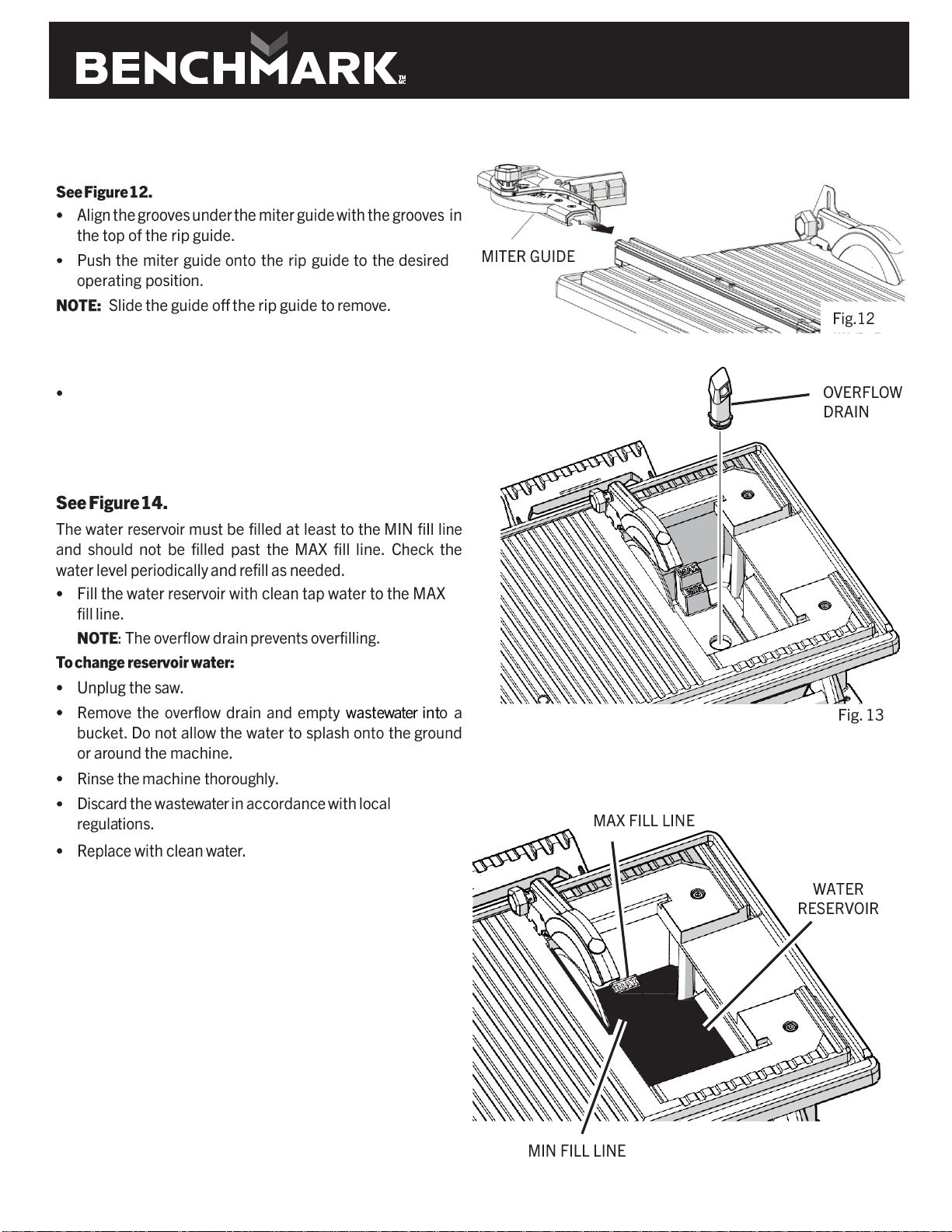

INSTALLING THE MITER GUIDE
INSTALLING THE OVERFLOW DRAIN
SeeFigure13.
Firmlypush the overflowdrain into the hole in the bottom
of the water reservoir.
FILLING/CHANGING THE WATER
RESERVOIR
Fig. 14

18
WARNING: WARNING:
WARNING:
WARNING:
APPLICATIONS
You may use this tool for the purposes listed below:
Straight line cutting operations such as cross cutting,
mitering, ripping, and beveling
This saw is designed to cut man-made tile, pavers,
and stone tile products only.
ON/OFF SWITCH
Fig. 15

19
