General
Table of contents
1. General Information __________________________________ 4
2. Technical data _______________________________________ 7
2.1 Dimensions B 1 FUV_______________________________ 7
2.2 Dimensions, flanges _______________________________ 7
2.5 Burner installation _________________________________ 8
2.4 Working field B 1 FUV _____________________________ 8
2.3 Setting of brake plate and air flow ___________________ 8
2.6 Recommended nozzles and pressures _______________ 9
2.7 Nozzle table, 7-15 bar _____________________________ 9
2.8 Description______________________________________ 10
3. General instructions _________________________________ 11
3.1 General instructions ______________________________ 11
3.2 Delivery inspection _______________________________ 12
3.3 Preparing for installation___________________________ 12
3.4 Oil distribution ___________________________________ 12
3.5 Electrical connection______________________________ 12
3.6 Burner installation ________________________________ 13
4. Basic settings ______________________________________ 14
4.1 Example of basic settings _________________________ 14
4.2 Suction plate ____________________________________ 15
5. Burner servicing ____________________________________ 16
5.1 Servicing _______________________________________ 16
5.2 Hanging the burner_______________________________ 16
5.3 Servicing the combustion device ___________________ 16
5.4 Replacing the oil pump ___________________________ 18
5.5 Replacing the fan motor and fan wheel ______________ 19
5.6 Replacing the entire electrical package ______________ 20
5.7 Replacing individual electrical components ___________ 20
6. Instructions Pump __________________________________ 21
6.1 DANFOSS BFP41________________________________ 21
7. Preheater___________________________________________ 25
8. Oil burner control ___________________________________ 26
8.1 Wiring diagram _________________________________ 26
8.2 List of components_______________________________ 27
8.3 Colour codes LMO14/24 __________________________ 28
8.4 Fault codes LMO14/24 ___________________________ 28
9. Fault Location ______________________________________ 29
9.1 Burner will not start_______________________________ 29
9.2 Burner will not start after normal use ________________ 29
9.3 Delayed ignition__________________________________ 30
9.4 Noise in pump ___________________________________ 30
9.5 Pump pressure __________________________________ 30
10. Log of flue gas analysis____________________________ 32
11. Oil burners maintenance instructions _______________ 33

4Bentone
1. General Information
This Installation and Maintenance manual:
• is to be regarded as part of the burner and must always be kept near
the installation site
• is intended for use by authorised personnel
• must be read prior to installation
• must be observed by all who work with the burner and associated
system components
• work with the burner may only be carried out by certified installers/
personnel
• Enertech AB is not liable for any typographical errors and reserves the
right to make design changes without prior notice.
• The burner may only be used for its intended purpose in accordance
with the product’s technical data.
• The burner may only be installed and operated by authorised
personnel.
• The product is packaged to prevent damage from occurring during
handling. Handle the product with care. Lifting equipment must be
used to lift larger packages.
• The products must be transported/stored on a level surface in a dry
environment, max. 80% relative humidity, no condensation.
Temperature -20 to +60 °C.
• Check that the burner is compatible with the boiler’s output range.
• The label information on the rating plate refers to the burner’s minimum
and maximum power.
• The power data on the type sign refers to the burner’s min. and max.
power.
• All components must be installed without being bent, twisted or
subjected to mechanical or thermal forces which can affect the
components.
• The burner must be installed so that it complies with local regulations
for fire safety, electrical safety, and fuel distribution.
• Make sure when installing the equipment that there is enough space to
service the burner.
• Permitted ambient temperature during operation -0 to +60 °C. Max
80% relative humidity, no condensation.
• The installer must ensure that the room has adequate air supply.
• The room must comply with local regulations pertaining to its intended
use.
• The installation site must be free of chemicals.
• Burner pipes, fan wheels and air dampers may contain sharp edges.
• The surface temperature of the burner’s components can exceed 60
°C.
• Caution: The burner has moving parts, and there is risk of crushing
injuries.
165 105 01

5Bentone
• The electrical installation must be professionally carried out in
accordance with applicable high voltage regulations, as per Enertech’s
recommendations.
• Before servicing, shut off the fuel supply and turn off the power to the
burner.
• Leak checks must be performed during installation and servicing to
prevent fuel leakage.
• Care should be taken by the installer to ensure that no electrical cables
or fuel lines are crushed or otherwise damaged during installation or
servicing.
• If the boiler is equipped with an access hatch, this must be equipped
with a hatch opening switch connected to the burner's safety system.
• When in operation, the burner’s noise level can exceed 85 dBA.
Use hearing protection.
• The burner must not be put into operation without proper safety and
protection devices.
• A Class BE fire extinguisher is recommended.
• It is forbidden to alter thedesign or use accessories which have not
been approved by Enertech in writing.
• Prior to operation, the following points must be checked:
-fitting and installation work has been completed and approved
-electrical installation has been correctly performed
-flue gas ducts and combustion air ducts are not blocked
-all actuators and control and safety devices are in working order and
correctly set
• After commissioning, if a steady red light on the burner control is
displayed, contact your installation technician.

6Bentone
Components Service life – Recommended
replacement
Service life – Recommended
replacement Operating cycles
Control system 10 years 250,000 cycles
Pressure switch 10 years 250,000 cycles
Flame guard 10 years 250,000 cycles
UV flame sensor 10000 hrs N/A
Damper motor 500 000 cycles
Contaktor 10 years 500,000 cycles
Burner 1 year 3000 hrs
Filter 1 year 3000 h Change
Oilhose 1 year control/change
Nozzle 1 year change 3000h Change
Electrods 1 Year Change /cleaning 3000h Change /cleaning
Brake plate 1 Year Change /cleaning 3000h Change /cleaning
Motor 1 year 3000 hrs
Cuppling chaft 1 year control/change 3000h control/change
Fan wheel “1 Year Change when dirty /
unbalance”
“3000h Change when dirty /
unbalance”
The burner and its components must be recycled according to applicable regulations.
Burner servicing schedule
Servicing must be carried out once a year or after 3000 hours of operation
Component replacement intervals
Delivery check
• Make sure everything is delivered and the goods have not been
damaged during transit.
• If something is wrong with a delivery, report it to the supplier.
• Transport damage must be reported to the shipping company.

7Bentone
165 205 42
2. Technical data
The burner is intended for:
• Light oil, B10 heating oil/biofuel blend (as defined in DIN V51603-6)
and is used for:
• Water heating generators
• Hot air generators (these require LMO 24 255 C2E)

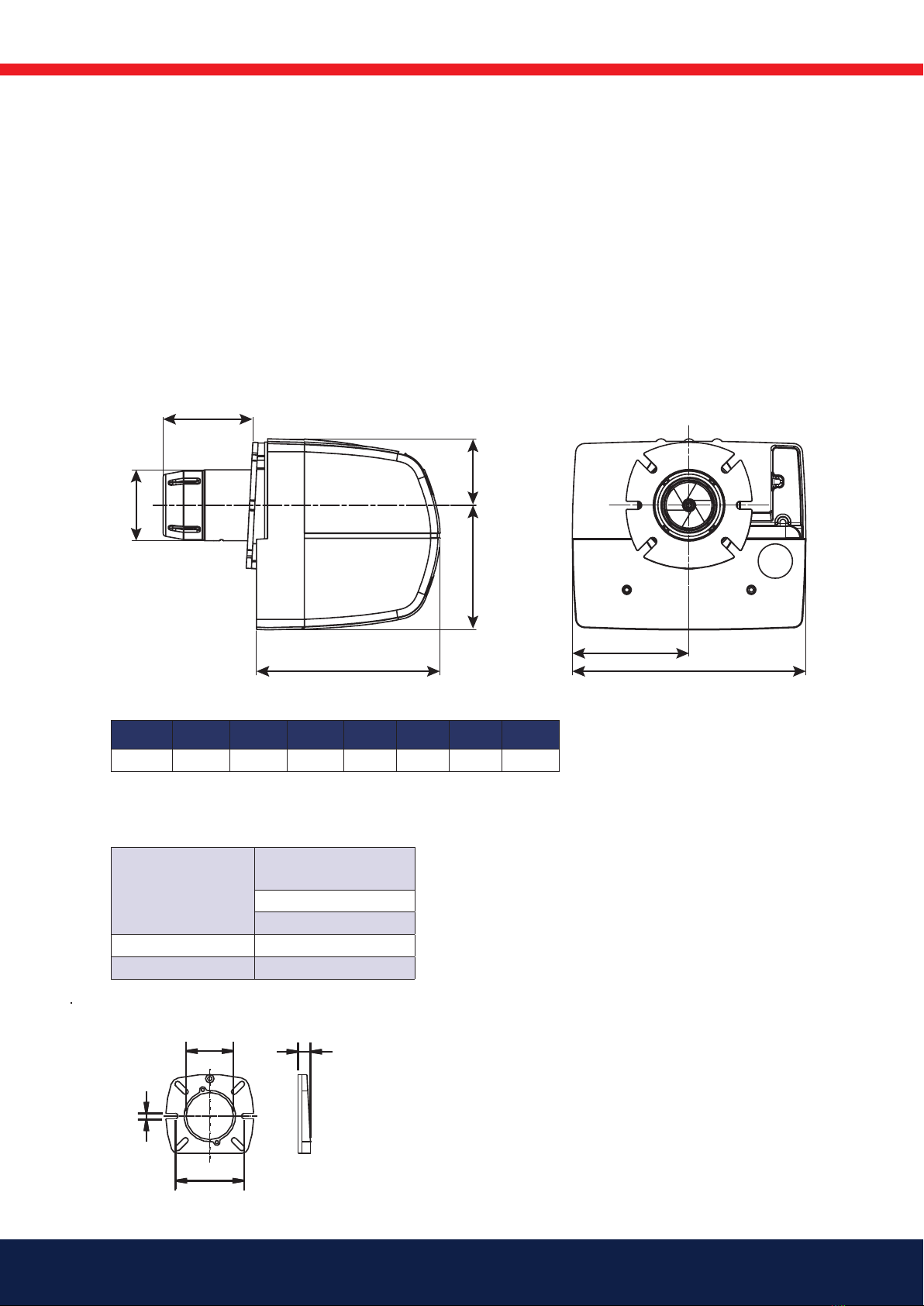

2.1 Dimensions B 1 FUV
* Min. recommended distance to floor.
Ø B C D E F G *H
B 1 89 230 156 83 146 293 200
B
A
C
E
D
F
G
2.2 Dimensions, flanges
Length of blast tube
Protrusion from flange,
measurement A
Flange
1
132 107
193 168
Flange 1
10,5
ø89,5
130-150
21

8Bentone
2.3 Setting of brake plate and air flow
a b c
B 1 7,5 ± 0,5 1,8 ± 0,2 +0,2 ± 0,3

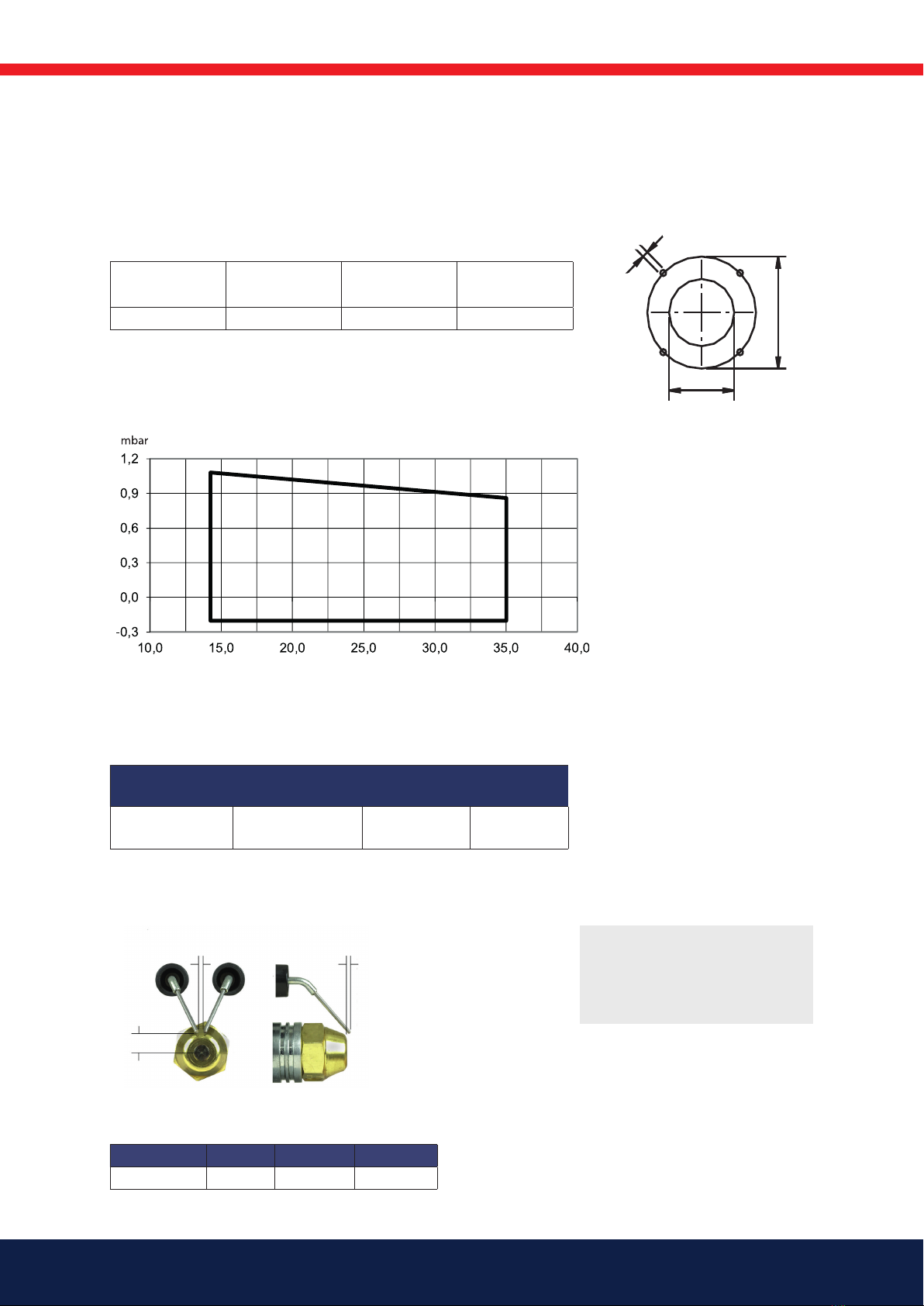

2.4 Working field B 1 FUV
1,2-3,0 kg/h
14-35 kW
Type Motor Complete
burner
Sound
B 1 110W 1,0A 230V
50Hz 6,3µF
230V 1,84A
50Hz
70 dBA ± 0,5
dBA
2.4.1 Electric Specification
Burner correspond to IP 20
a
bc
d1
d2
d3
Combustion
device
d1d2d3
B 1 ø 90 M10 ø 125-150
2.5 Burner installation
2.5.1 Hole patten
Make sure the hole pattern on the boiler is designed for burner flange.
!*NB It is important that
the spark does not strike
against the brake plate or
nozzle

9Bentone
2.6 Recommended nozzles and pressures
Because of the different types of boiler in existence, with varying furnace
geometries and furnace loads, it is not possible to commit to any given spray
angle or spay pattern. Note that spray angles and spray patterns change
with pump pressures.
Nozzle 60° Solid/Hollow cone
80° Solid/Hollow conel
Pump pressure 10 bar (8–14 bar) Fuel oil 1
10 bar (7–12 bar) Kerosene

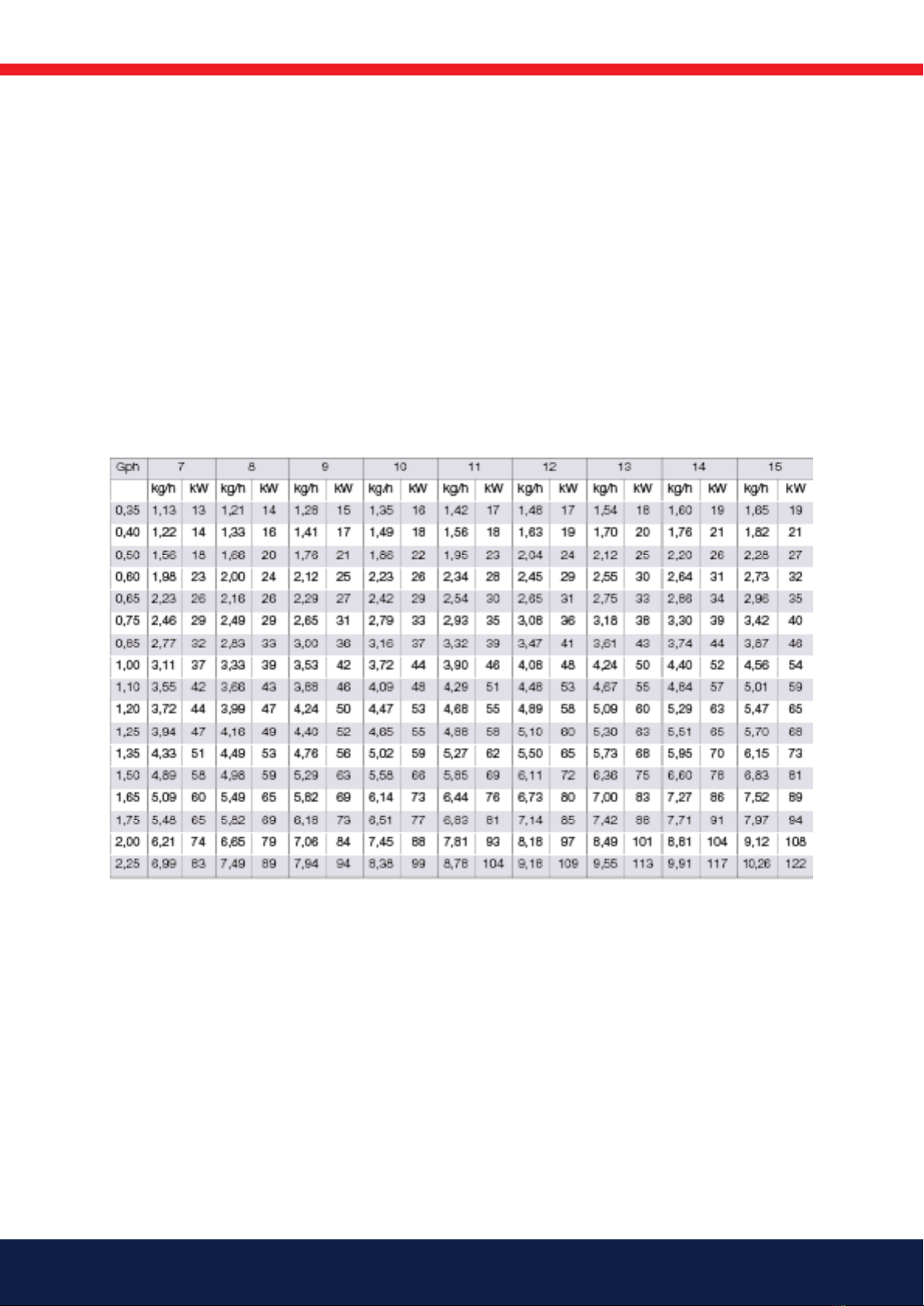

2.7 Nozzle table, 7-15 bar
2.7.1 Burner with preheater
Allow for a reduction in oil quantity of 5–20% with preheating owing to:
• Temperature increases at the nozzle.
• Nozzle design.
• Capacity (the higher the capacity the lower the difference).
The table applies to oils with a viscosity of 4.4 mm2/s (cSt) at a density of 830 kg/m3.
Pump pressure, bar

10 Bentone

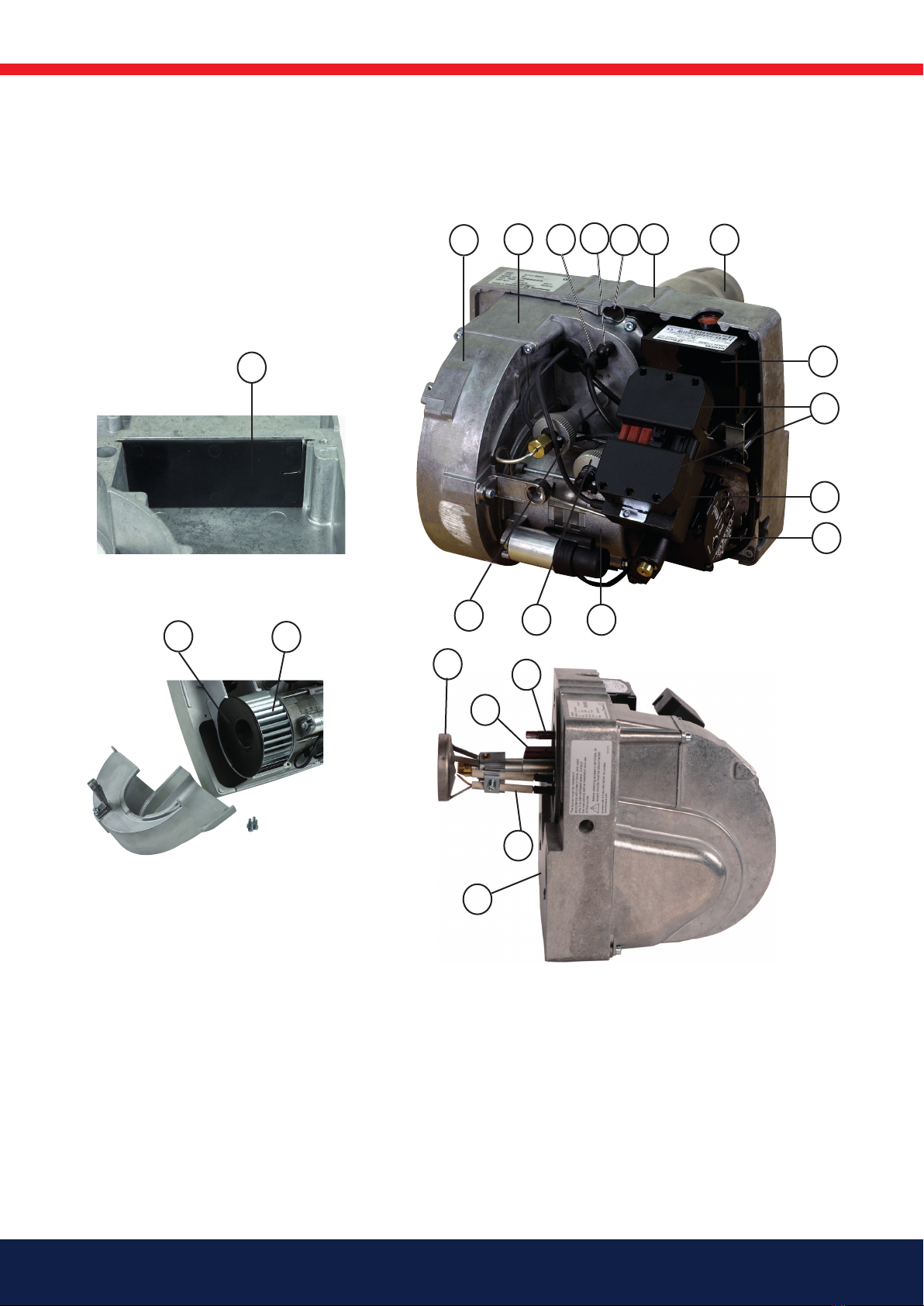

1. Fan housing, upper part
2. Fan housing, middle part
3. Photoresistor
4. Test nipple, fan pressure
5. Frame
6. Blast tube
7. Control box
8. Electric contact X1,X2 (see
wiring diagram)
9. Ignition transformer
10. Oil pump
11. Motor
12. Air adjustment
13. Adjustment of nozzle assembly
14. Automatic air damper
15. Suction plate
16. Fan wheel
17. Shrouded disc
18. Preheater
19. Electrodes
20. Hole for set screw A
21. Plate, silencer
2.8 Description
123456
7
8
9
10
1112
13
14
15 16
3
17
18
19
21
20

11Bentone
165 205 43
3. General instructions
3.1 General instructions
Oil burners must be installed in accordance with local regulations. The
installer must therefore be knowledgeable of the regulations pertaining to oil
and combustion.
Only oil suitable for the burner must be used and then in combination with a
suitable oil filter installed before the burner’s oil pump.
If the burner is replacing an existing burner, ensure that the oil filter is
replaced or cleaned. Installation may only be performed by qualified
personnel.
Care should be taken by the installer to ensure that electrical cables and oil
lines are not pinched or otherwise damaged during installation or servicing
3.1.1 Installation and Maintenance Manual
The maintenance instructions supplied with the burner must be kept at an
easily accessible location in the boiler room.
3.1.2 Instructions
The user must be comprehensively instructed in the operation of the oil
burner and entire system. It is the responsibility of the supplier to instruct the
user.
3.1.3 Inspection and maintenance
Refer to servicing schedule
3.1.4 Start-up
In order to obtain the correct setting, a flue gas analysis and temperature
measurement must be carried out. Otherwise, there is a risk of soot build up,
poor efficiency or condensation in the chimney. The system must be fine-
tuned at start-up. The temperature in the chimney at a depth of 0.5m must
be at least 60°C to prevent condensation.

12 Bentone
!If any electrical connection is used other than that recommended by Enertech, there may be a risk of
damage to property and personal injury.
3.2 Delivery inspection
Make sure everything is delivered and the goods have not been damaged
during transit. If something is wrong with a delivery, report it to the supplier.
Transport damage must be reported to the shipping company.
3.3 Preparing for installation
Check that the burner’s dimensions and capacity range are suitable for the
relevant boiler. The power data on the rating plate refers to the burner’s
minimum and maximum power.
3.4 Oil distribution
In order to achieve good reliability, it is important that the oil distribution
system is designed correctly.
Take the following into account:
-Selection of pipe diameter, pipe length and height difference; see
Pump instruction.
-Pipelines are to be laid with the fewest possible number of glands.
-The pipes are to be laid so that the oil supply hoses are not subjected
to tensile stresses or become excessively bent when the burner is
swung out or removed for servicing.
-The oil filter should be installed so that the filter cartridge can easily be
replaced or cleaned.
-Parts in contact with oil must be selected in materials that are capable
of withstanding the medium’s physical properties.
-When installing oil hoses, check that the inlet and return hoses are
fitted to the appropriate connection on the oil pump. The hoses must
be located so that they do not bend or become subject to tensile
load.
-Bleed the oil system. The oil pump/oil preheater may be damaged if
run dry. The vacuum in the suction line should not fall below 0.3 bar
during start-up.
!Be sure to fill the
burner oil system
before starting it for
the first time.
3.5 Electrical connection
• Before work on the electrical connection, the current must be
disconnected so that the installation is isolated.
• Electrical connection must be done in accordance with the applicable
regulations.
• Burners must be connected to an all-pole switch.
• Connection must conform to the wiring diagram.
• Use appropriately sized fuses.
!The oil filter must
be installed before
the burner’s oil
pump

13Bentone
165 205 44
3.6 Burner installation
3.6.1 Hole pattern
Make sure the hole pattern on the burner corresponds to the supplied flange
(refer to Technical data).
3.6.2 Burner installation
1. Install the flange with gasket on the boiler.
2. Fit the selected nozzle
(refer to Technical data).
3. Install the brake plate and check the ignition electrodes
(refer to Burner Servicing).
4. Mount the burner to the flange.
5. Insulate between the burner and boiler door to reduce radiated heat (if
necessary).
3.6.3 Oil lines
1. Check the dimensions of the oil lines (refer to Pump instructions).
2. The oil filter should be fitted to the incoming oil line. If a degasser is
installed, the oil filter should be fitted to the oil line up to the degasser
in order to prolong the service life of the oil filter.
3. For single pipe systems, the return plug must be removed
(refer to Pump instructions).
4. When installing oil hoses, check that the supply and return hoses are
fitted to the appropriate connection on the oil pump. The hoses must
be located so that they do not bend or become subject to tensile load.
5. Bleed the oil system. Dry running will damage the oil pump.
6. The vacuum in the suction line should not fall below 0,3 bar during
start-up.
3.6.4 Electrical connection
If the boiler does not have a pre-fitted connector, connect to the supplied
connectors (x2) as shown in the wiring diagram.
1. Switch off the main switch.
2. Connect the Europlugs (x2) as shown in the wiring diagram.
3. Fit the Europlugs (x2) to the burner.
4. Turn on the main switch.
3.6.5 Check oil line seals
Once the burner has been installed and commissioned, the seals of the
various coupling elements should be checked.
When a leak is detected, it is usually sufficient to tighten the coupling
element that is leaking.
Return Supply
X1
X2

14 Bentone
165 205 45
* Energy value of EO1 fuel oil = 11.86 kWh/kg
Burner output 30 kW
Estimated nozzle output: 30 / 11,86* = 2,53 kg/h
Choice of nozzle according to the table (refer to Technical data).
According to the nozzle table, this provides the following nozzle.
Nozzle: 0,65 Gph
Pump pressure: 11,0 bar
4. Basic settings
4.1 Example of basic settings
4.1.1 Choice of nozzle
B 1 FUV
4.1.2 Basic settings
The setting value for 30kW according to basic settings tables
(Setting values).
Air setting = 12,5
Insert setting = 5
Suction plate = 4
Setting values for insert B 1 FUV
Setting values for air damper B 1 FUV
Nozzle assembly, scale
Burner capacity, kW
0
2
4
6
8
10
12
14
15 20 25 30 35 40 45
Suction plate=4
Suction plate=1
Air, scale
Burner capacity, kW
0
5
10
15
20
15 20 25 30 35 40 45
Suction plate=1 Suction plate=4

15Bentone
4.2 Suction plate
In the case of higher power, as well as with boilers featuring overpressure
in the combustion chamber, it is possible to achieve higher fan pressure by
altering the position of the suction plate, see illustration. The plate is located
beneath the outer half of the fan housing, see illustration, Cleaning the fan
wheel.
-Position 1 is normally used for nozzles up to 0.60 gph and position 4
for larger nozzles. Position 2 and 3 are intermediate positions. Positi-
on 5 and higher does not give more pressure and they are not used.
-Check that the plate is placed in the correct position. Otherwise the
aircannot be adjusted to the correct value.
4.2.1 Insert control
The burner is equipped with a lever that changes the position of the brake
plate in the burner tube. This is used to set the correct pressure drop across
the combustion assembly, thereby obtaining good combustion without
pulsation.
The setting to be used depends on, among other things, the output settings
and overpressure in the boiler
Setting the brake plate
• Small column: turn the screw left
• Large column: turn the screw right
Setting the brake plate position affects airflow. Therefore, it is always
necessary to fine-tune airflow using the burner’s airflow regulator.
4.2.2 Air intake adjustment
Setting the air intake is very important to achieve good combustion with
neither too much nor too little air. To adjust the combustion airflow, turn the
airflow knob lever. The extent to which the airflow lever must be open is
determined by the heat output and overpressure in the boiler as well as other
settings on the burner such as the position of the brake plate.
4.2.3 Setting the air quantity
Turn the air intake clockwise to increase airflow and anticlockwise to
decrease airflow. Insert control Air control

16 Bentone
165 205 46
!When servicing/replacing components that affect com-
bustion, an analysis and soot test must be carried out on
the installation.
5. Burner servicing
5.1 Servicing
Servicing must be carried out after 3,000 operating hours, but at least once
yearly.
Only authorised personnel may perform service.
Before any type of servicing is carried out, shut of the power at the main
switch and turn off the oil.
Be careful: certain parts exposed after separation of the burner can be hotter
than 60°C. Care should be taken by the installer to ensure that electrical
cables and oil lines are not pinched or otherwise damaged during installation
or servicing.
5.2 Hanging the burner
During servicing, the burner can be hung from the screw in the burner flange.
This makes the burner pipe, brake plate, preheater and electrodes easily
accessible.
5.3 Servicing the combustion device

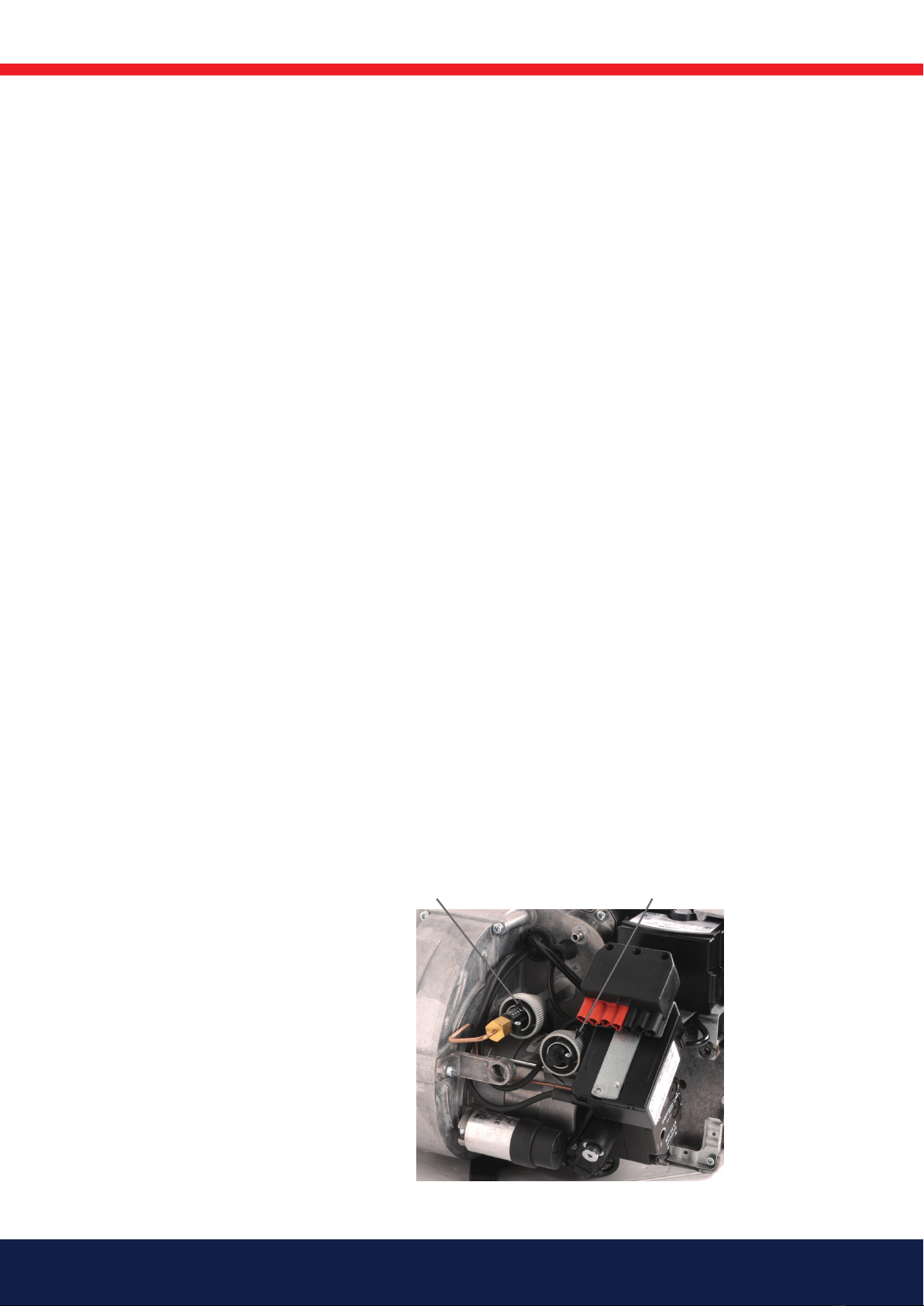

1. Switch off mains power, remove the cover and disconnect the
Europlug from the burner.
2. Remove the burner from the boiler by loosening the screw (A)
3. Loosen the two screws one turn. Turn to the right and remove the
burner tube.
4. Visually inspect the combustion assembly and check the various
components for defects.
5. Loosen and pull the brake disc off the preheater. Clean the brake plate
as necessary.
6. Unscrew the nozzle.
7. Fit the nozzle. Do not clean the nozzle. If the nozzle is defective, it must
be changed
8. Check the ignition electrodes. Replace as necessary (refer to Technical
data for electrode settings).
9. Fit the brake plate/electrode package
10. Fit the burner pipe and insert the burner into the boiler.
11. Connect the Europlug and turn on the mains power.
12. Start the burner and check the combustion.
1
2
A

17Bentone
1.1.1 Replacing the preheater
1. Switch off mains power, remove the cover and disconnect the
Europlug from the burner.
2. Remove the burner from the boiler by loosening the screw (A)
3. Loosen the two burner tube set screws one rotation. Turn to the right
and remove the burner tube.
4. Remove the preheating and ignition cables.
5. Loosen and pull the brake disc off the preheater. Clean the brake plate
as necessary.
6. Unscrew the nozzle.
7. Loosen the nut holding the oil pipe and preheater together.
8. Install the new preheater. Check the condition of the O-ring, replace if
necessary.
9. Fit the nozzle.
10. Fit the brake plate/electrode package. Check that the distance between
the nozzle and brake plate is correct (refer to Technical data).
11. Connect the preheating and ignition cables.
12. Fit the burner pipe and insert the burner into the boiler.
13. Connect the Europlug and turn on the mains power.
14. Start the burner and check the combustion.

18 Bentone
!When servicing/replacing components that affect combustion, an analysis and soot test must
be carried out on the installation.
5.4 Replacing the oil pump
1. Switch off mains power, remove the cover and disconnect the
Europlug from the burner.
2. Remove the oil hoses from the pump.
3. Remove the burner from the boiler by loosening the screw (A)
4. Loosen the hex nut from the stud bolt. Pull the electrical package
backwards and rotate approx. 90° clockwise. (G)
5. Disconnect the solenoid valve cable from the pump.
6. Disconnect the connection tube (D) from the pump.
7. Loosen the screws (E), pull out the oil pump and remove the pump
coupling.
8. Move the pump coupling (or replace) to the new oil pump and install
the pump in the burner. Tighten the screws and fit the connection tube
(D).
9. Connect the solenoid valve cable.
10. Refit the electrical package.
11. Insert the burner into the boiler.
12. Fit the oil hoses (for conversion between single-pipe and double-pipe
systems, see Pump instructions).
13. Connect the Europlug and turn on the mains power.
14. Turn on the burner, air the pump, adjust the pressure, and check the
combustion.
D
E
E
G

19Bentone
!When servicing/replacing components that affect combustion, an analysis and soot test must
be carried out on the installation.
5.5 Replacing the fan motor and fan
wheel
1. Switch off mains power, remove the cover and disconnect the Europlug
from the burner.
2. Remove the oil hoses from the pump.
3. Remove the burner from the boiler by loosening the screw (A)
4. Loosen the hex nut from the stud bolt. Pull the electrical package
backwards and rotate approx. 90° clockwise. (G)
5. Disconnect all electrical connectors, remove the photoresistor.
6. Disconnect the connection tube (D) from the pump.
7. Unscrew the four screws (H). Remove the fan housing half.
8. Check the suction plate position and remove it.
9. Loosen the screws (F) (x2) holding the motor flange.
10. Lift out the motor.
11. Loosen and remove the fan wheel.
12. Fit the fan wheel to the motor, tighten the locking screw. The fan wheel
must be fitted with a little play between the motor and the fan wheel. Make
sure that there are no scratching noises.
13. Align the motor flange with the fan housing.
14. Re-assemble the motor and fan housing. Alternately tighten the
screws. This is done to ensure the fan housing and the motor flange
are aligned in the correct position.
15. Assemble the fan housing. Make sure that there are no scratching noises.
16. Fit the connection pipe (D).
17. Connect all electrical cables and insert the photoresistor.
18. Refit the electrical package.
19. Insert the burner into the boiler.
20. Fit the oil hoses
21. Connect the Europlug and turn on the mains power.
22. Start the burner and check the combustion.
A
H
H
HH
F
F

20 Bentone
!When servicing/replacing components that affect combustion, an analysis and soot test must
be carried out on the installation.
5.6 Replacing the entire electrical
package
1. Switch off mains power, remove the cover and disconnect the
Europlug from the burner.
2. If necessary, disconnect the oil hoses from the pump.
3. If necessary, remove the burner from the boiler by loosening the screw
(A).
4. Loosen the hex nut from the stud bolt. Pull the electrical package
backwards and rotate approx. 90° clockwise. (G)
5. Loosen the burner, remove the preheating and ignition cables
6. Disconnect all electrical cables, remove the photoresistor.
7. Take the new electrical package and attach the preheating and ignition
cables. (Make sure the rubber grommet is firmly in place to avoid
unnecessary air leakage.)
8. Refit the electrical package.
9. Connect all electrical cables and insert the photoresistor.
10. Insert the burner into the boiler.
11. Fit the oil hoses
12. Connect the Europlug and turn on the mains power.
13. Start the burner and check the combustion.
5.7 Replacing individual electrical
components
1. Switch off mains power, remove the cover and disconnect the
Europlug from the burner.
2. If necessary, disconnect the oil hoses from the pump.
3. If necessary, remove the burner from the boiler by loosening the screw
(A).
4. Loosen the hex nut from the stud bolt. Pull the electrical package
backwards and rotate approx. 90° clockwise. (G)
5. Remove the burner control and disconnect the component cable to be
replaced.
6. Connect the new cable.
7. Insert the burner control.
8. Refit the electrical package.
9. Connect all electrical cables and insert the photoresistor.
10. Insert the burner into the boiler.
11. Fit the oil hoses
12. Connect the Europlug and turn on the mains power.
13. Start the burner and check the combustion.
G
