Bercomac 700320 User manual

1
OWNER’SMANUAL
MODELNUMBERS
700320Frontframe
700321Drivelinekit
700322Drivelinekit
700323Drivelinekit
BERCO
FrontFrame
for
JOHNDEERE 425,445,455/X475,X485,X495/
X575,X585,X595/X700,X720,X728,X740,X748
Tractors
103540 J-09
* ASSEMBLY * REPAIR PARTS
* OPERATION * MAINTENANCE
CAUTION:
READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS
BEFORE OPERATING THIS EQUIPMENT

2
LIMITED WARRANTY
Bercomac Limitée
92, Fortin North, Adstock, Quebec, Canada, G0N 1S0
Conditions and Products Covered:
BERCOMAC guarantees any part of the product or accessory
manufactured by BERCOMAC and found in the reasonable
judgment of BERCOMAC to be defective in material and or
workmanship will be repaired or replaced by an authorized
dealer without charge up to our maximum labor rates and pre-
established times. For replacement parts only standard ground
freight services are covered. This warranty extends to the
original retail purchaser only and is not transferable to any
subsequent purchasers.
Warranty Period
(from date of the original retail purchase)
xResidential use: 1 year
xSemi-commercial, professional or rental use: 90 days
Exceptions Noted Below; the following items are guaranteed
by the original manufacturer and have their own warranty,
conditions and limited time:
xTire Chains: 90 days
xEngines (installed in factory on BERCO equipment): 2 years
xEngines (sold separately): Validate with the dealer.
Please refer to the engine manufacturer’s warranty
statement included with the unit. BERCOMAC is not
authorized to handle warranty adjustments on engines.
Items and Conditions NOT Covered:
This warranty does not cover the following:
xPick-up or delivery charges or in-home services fees.
xAny damage or deterioration of the unit, parts and or finish
of these due to normal use, wear and tear, or exposure.
xCost of regular use or maintenance service or parts, such as
gas, oil, lubricants, tune-up parts, and adjustments.
xAny part or accessory which has been altered, modified,
misused, neglected, accidentally damaged or not properly
installed, maintained, stored or repaired not in accordance
with the instructions in the owner’s manual.
xRepair due to normal wear and or any wear items such as
shear pins, bolts, belts, etc.
xExpedited freight fee services for replacement parts.
xShear bolts and shear pins are to be considered as a
preventive measure not as an assured protection, any
damages resulting from the lack of shear bolts breakage are
not covered.
NOTE: All warranty work must be performed by an authorized
dealer using original (manufacturer) replacement parts.
Owner’s Responsibilities:
BERCOMAC’s defective equipment or part must be returned
to an authorized dealer within the warranty period for repairs.
In the event that defective merchandise must be returned to
manufacturer for repairs, freight fees are prepaid and a written
authorization from BERCOMAC must be obtained by dealer
prior to the shipment. This warranty extends only to
equipment operated under normal conditions. To validate a
warranty claim, it is the user’s responsibility to maintain and
service the unit as specified in the owner’s manual or to have
the unit serviced at their dealer at their expense.
General Conditions:
The sole liability of BERCOMAC with respect to this warranty
shall be strictly and exclusively repair and replacement as
mentioned herein. BERCOMAC shall not have any liability for
any other costs, loss or damage, including but not limited to,
any incidental or consequential loss or damage.
In particular, without being limited to, BERCOMAC shall have
no liability or responsibility for:
xTravel time, overtime, after hours time or other
extraordinary repair charges or relating to repairs and or
replacements outside of normal business hours.
xRental of like or similar replacement equipment during the
period of any, repair or replacement work.
xAny communicating or travel charges.
xLoss or damage to person or property other than that
covered by the terms of this warranty.
xAny claims for lost revenue, lost profit or any similar costs
as a result of damage or repair.
xAttorney’s fees.
BERCOMAC’s responsibility in respect to claims is limited to
making the required repairs or replacement without charge up
to our maximum labor rates and pre-established times and no
claim of breach of warranty shall be cause for cancellation or
rescission of the contract of sale of any product or accessory.
This warranty gives you specific legal rights. You may also
have other rights, which vary from state to state.
NOTE: Bercomac reserves the right to change or improve the design of any part or accessory without assuming any obligation to modify
any product previously manufactured.
Instructions for Obtaining Warranty Services:
Contact dealer where equipment was purchased or any other BERCOMAC service dealer to arrange service at their dealership. To
locate a dealer convenient to you, access our website at www.bercomac.com. Don't forget to bring the product and your proof of
purchase (sales receipt) to the BERCOMAC dealer.

1
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................................................... 2
SAFETY PRECAUTIONS ..................................................................................................................................... 3
ASSEMBLY
Step 1:FRONT FRAME INSTALLATION
Model 425-445-455 ..................................................................................................................... 5
Model X475-X485-X495 / X700-X720-X740 .............................................................................. 7
Model X575-X585-X595 / X728-X748 ........................................................................................ 9
Step 2: Counterweight Support Adaptor Installation .............................................................................. 12
Step 3: Driveline Kit Installation ............................................................................................................... 12
Step 4: Snowblower Installation .............................................................................................................. 13
Rotary Broom Installation ........................................................................................................... 16
Utility Blade Installation ............................................................................................................... 18
MAINTENANCE
Lubrication ................................................................................................................................................ 19
DISMOUNTING ..................................................................................................................................................... 20
TORQUE SPECIFICATION TABLE ..................................................................................................................... 21
PARTS BREAKDOWN AND LISTS
Driveline Kit #700321 ............................................................................................................................... 22
Driveline Kit #700322 ............................................................................................................................... 24
Driveline Kit #700323 ............................................................................................................................... 26
Front Frame #700320 .............................................................................................................................. 28
OPTIONS ............................................................................................................................................................... 31
TROUBLESHOOTING
See attachment owner’s manual for this section. (Snowblower, Utility Blade, Rotary Broom)
PAGE

2
INTRODUCTION
TO THE PURCHASER
This new accessory was carefully designed to give years of dependable service. This manual has been provided to
assist in the safe operation and servicing of your attachment.
NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but
are intended for reference only and are based on the latest product information available at the time of publication.
Familiarize yourself fully with the safety recommendations and operating procedures before putting the machine to
use. Carefully read, understand and follow these recommendations and insist that they be followed by those who will
use this attachment.
THIS SAFETY ALERT SYMBOL IDENTIFIES AN IMPORTANT SAFETY MESSAGE IN THIS
MANUAL THAT HELPS YOU AND OTHERS AVOID PERSONAL INJURY OR EVEN DEATH.
DANGER, WARNING, AND CAUTION ARE SIGNAL WORDS USED TO IDENTIFY THE LEVEL OF
HAZARD. HOWEVER, REGARDLESS OF THE HAZARD, BE EXTREMELY CAREFUL.
DANGER: Signals an extreme hazard that will cause serious injury or death if recommended precautions
are not followed.
WARNING: Signals a hazard that may cause serious injury or death if the recommended precautions are
not followed.
CAUTION: Signals a hazard that may cause minor or moderate injury if the recommended precautions are
not followed.
Record your attachment serial number and purchase date in the section reserved below (there is no serial number on
the subframe). Your dealer requires this information to give you prompt, efficient service when ordering replacement
parts. Use only genuine parts when replacements are required.
If warranty repairs are required please present this registration booklet and original sales invoice to your selling dealer
for warranty service.
This manual should be kept for future reference.
Please check if you have received all the parts for your kit with the list of the
bag and the list of the box.
SERIAL NUMBER : ___________________________
(IF APPLICABLE)
MODEL NUMBER: ___________________________
PURCHASE DATE : ___________________________

3
SAFETY PRECAUTIONS
Careful operation is your best insurance against an accident. Read this section carefully before operating the vehicle
and accessory. This accessory is capable of amputating hands and feet and throwing objects. Failure to observe the
following safety instructions could result in serious injury. All operators, no matter how experienced they may be,
should read this and other manuals related to the vehicle and accessory before operating. It is the owner's legal
obligation to instruct all operators in safe operation of the accessory.
GLOSSARY:
In this manual, right and left sides are determined by
sitting on the seat of the vehicle facing forward.
In this manual, "accessories" means attachments
(snowblower, rotary broom, blade etc.) that you install
on the vehicle (lawn tractors, A.T.V. s etc).
TRAINING:
This symbol, "Safety Alert Symbol", is used
throughout this manual and on the
accessory’s safety labels to warn of the
possibility of serious injury. Please take
special care in reading and understanding
the safety precautions before operating the
vehicle and accessory.
1. Read this owner's manual carefully. Be thoroughly
familiar with the controls and proper use of the
vehicle and accessory. Know how to stop the unit
and disengage the controls quickly.
2. Never allow children to operate the vehicle nor the
accessory. Never allow adults to operate the vehicle
nor the accessory without proper instructions.
3. No one should operate the vehicle nor the
accessory while intoxicated or while taking
medication that impairs the senses or reactions.
4. Keep the area of operation clear of all people,
particularly small children and pets.
PREPARATION:
1. Thoroughly inspect the area where the accessory
is to be used and remove door mats, all foreign
objects and the like.
2. For motorized accessories, disengage all clutches
and shift into neutral before starting engine.
3. Do not operate the accessory without wearing
adequate winter outer garments. Avoid loose fitting
clothing that can get caught in moving parts. Wear
footwear that will improve footing on slippery
surfaces.
4. Handle fuel with care, it is highly flammable.
a) Use approved fuel container.
b) Never add fuel to a running engine or hot engine.
c) Fill fuel tank outdoors with extreme care. Never fill
fuel tank indoors.
d) Never fill containers inside a vehicle, or on a
truck or a trailer bed with a plastic liner. Always
place containers on the ground, away from your
vehicle, before filling.
e) When practical, remove gas-powered
equipment from the truck or trailer and refuel it
on the ground. If this is not possible, then refuel
such equipment on a trailer with a portable
container, rather than from a gasoline
dispenser nozzle.
f) Keep the nozzle in contact with the rim of the
fuel tank or container opening at all times, until
refueling is complete. Do not use a nozzle lock-
open device.
g) Replace fuel cap securely and wipe up spilled
fuel.
h) If fuel is spilled on clothing, change clothing
immediately.
5. Never attempt to make any adjustments while the
engine (motor) is running (except when specifically
recommended by manufacturer).
6. Let the vehicle and accessory adjust to outdoor
temperatures before using.
7. Never use an accessory without proper guards,
plates, or other safety protective devices in place
8. Always make sure to wear the appropriate safety
equipment required (glasses, muffs, mask…) for
each type of product. See operation section.
9. Always make sure of having safe traction on the
vehicle by using the recommended accessories
(chains, A.T.V. tracks, counterweights…). See
operation section.
10. Never modify the accessory or any part without
the written consent from the manufacturer.

4
OPERATION:
1. Do not put hands or feet near, under or inside rotating
parts.
2. Exercise extreme caution when operating on or
crossing gravel drives, walks or roads. Stay alert for
hidden hazards or traffic. Do not carry passengers.
3. After striking a foreign object, stop the engine (motor),
disconnect the wire from the spark plug(s) and keep
wire away to prevent accidental starting. Thoroughly
inspect the accessory for any damage and repair
damage before restarting and using the accessory.
4. If the unit should start to vibrate abnormally, stop the
engine (motor) and check immediately for the
cause. Vibration is generally a warning of trouble.
5. Take all possible precautions when leaving the
vehicle unattended. Disengage the power take-off,
lower the attachment, place the transmission into
neutral, set the parking brake, stop the engine and
remove the contact key.
6. Do not run the engine indoors, except when starting
the engine and for transporting in or out of the
building. Do not operate or let motor run in a storage
area without ventilation because gas contains
carbon monoxide which is odorless, colorless and
can cause death.
7. Never use the accessories across the face of
slopes, go from top to bottom. Exercise extreme
caution when using equipment on slopes. Do not
attempt to clear a steep slope.
8. Never tolerate bystanders in the working zone.
Never use an accessory in the direction of
bystanders, it might throw gravel or debris that can
hurt people or damage property.
9. Never operate the accessory at high transport
speeds on slippery surfaces. Use care when
backing up.
10. Do not carry passengers.
11. Disengage power to the accessory when it is
transported or not in use.
12. Never operate the accessory without good visibility
or light.
13. Keep the accessory away from heat sources or
flames.
MAINTENANCE AND STORAGE
1. When cleaning, repairing or inspecting the vehicle
and accessory, make certain that all moving parts
have stopped. Disconnect wire from the spark
plug(s) and keep wire away to prevent accidental
starting.
2. Check all the bolts and components at frequent
intervals to make sure that they are properly
tightened.
3. Never store a motorized accessory with fuel in the
fuel tank inside a building where ignition sources are
present such as hot water and space heaters,
clothes dryers, and the like. Allow the engine to cool
before storing in any enclosure.
4. Always refer to the owner’s manual when you store
the accessory and vehicle for a prolonged or an
unspecified length of time.
5. Maintain or replace safety and instruction labels, as
necessary.
6 For winter accessories, (if applicable), let the engine
run for a few minutes after clean snow in order to
prevent the rotary parts from freezing.
7. Inspect the vehicle’s and accessory’s air filter every
day. Clean it or replace it as necessary. Change the
oil more often when working in dusty conditions.
See the vehicle’s and accessory's owner’s manual.
THIS SYMBOL MEANS
DANGER !
BECOME ALERT !
YOUR SAFETY IS INVOLVED !
SAFETY PRECAUTIONS

5
ASSEMBLY
STEP 1
FRONT FRAME INSTALLATION:
MODELS 425-445-455
IMPORTANT: TORQUE ALL BOLTS ACCORDING
TO TORQUE SPECIFICATION TABLE (SEE TABLE
OF CONTENTS) WHEN STATED: TIGHTEN FIRMLY.
REFER TO PARTS BREAKDOWN SECTION FOR
THEIR IDENTIFICATION.

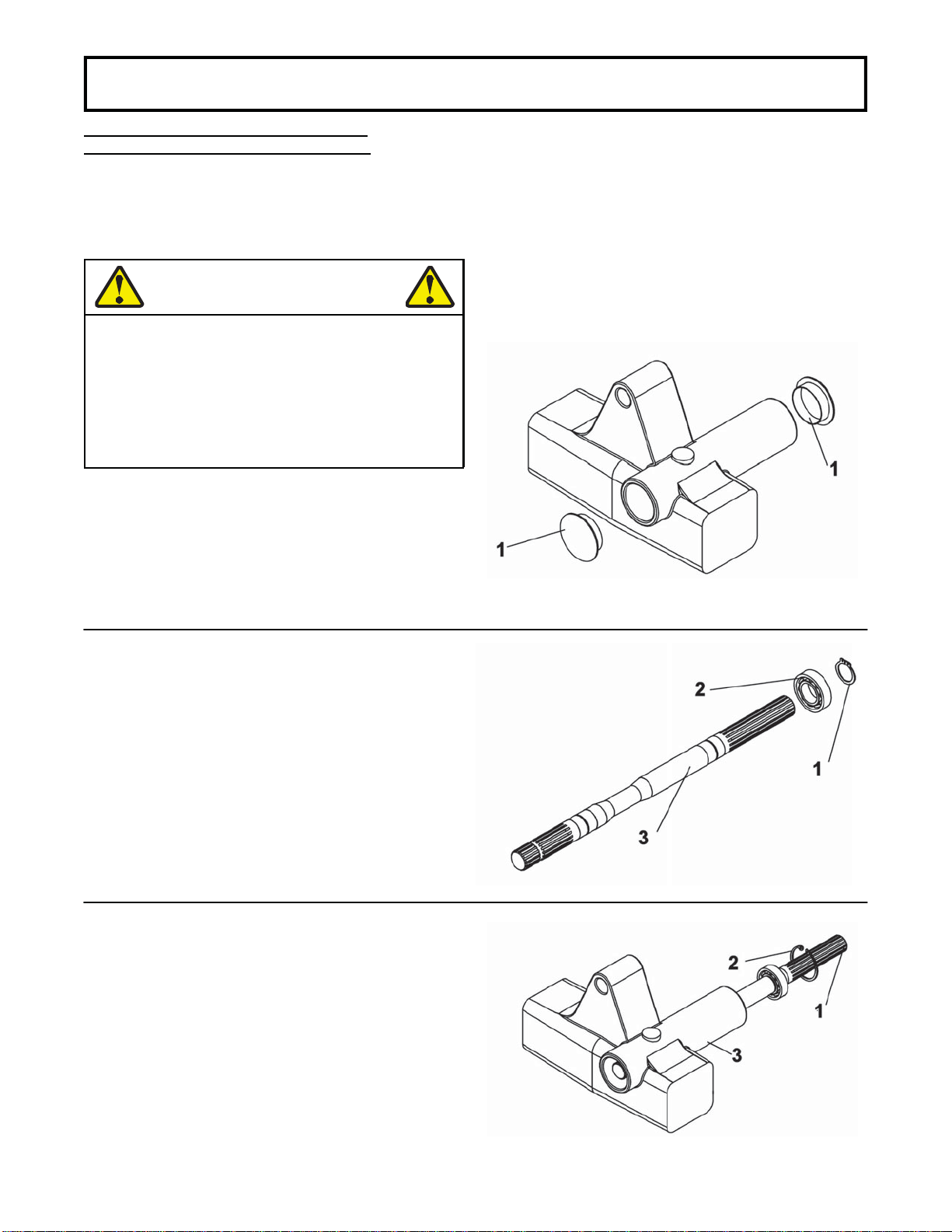

If the front P.T.O. is required, proceed as follows, if
not, go to the next step.
Install the shaft support (item 1) on the front frame
(item 2) with two 1/2 x 3 3/4" hex bolts (item 3).
Secure with two nylon insert locknuts (item 4).
Tighten firmly.
NOTE: The front brush guard (option from John
Deere) must be removed.
Install the front frame (item 1) on the tractor’s frame
by inserting the shaft (item 2) into the hole in the front
axle.
Pull the knobs (one on each side) (item 3) and hook
the front frame on the hooks (item 4). Release the
knobs.
Make sure the pins are well entered into the holes
(item 5).
Unscrew the two bolts (item 6) in order to install the
handle support.
WARNING
TO PREVENT INJURIES:
Park the machine on a flat surface.
Disengage the P.T. O.
Lower the attachment to the ground.
Apply parking brake.
Stop the motor and remove the ignition key.
Wait until all moving parts have stopped before
leaving the driver’s seat.
Install the shaft support
Install the front frame

6
ASSEMBLY

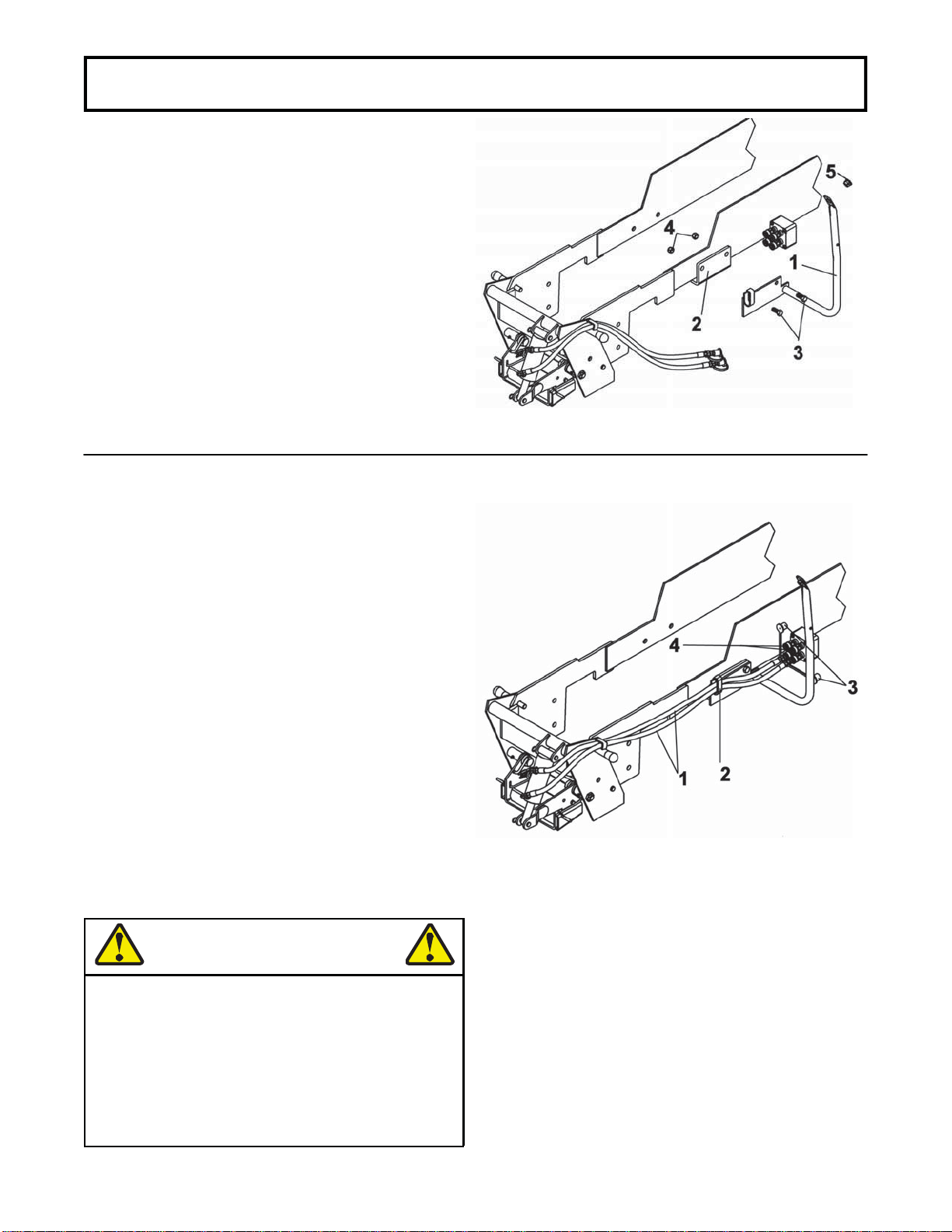

Install the handle support (item 1) on the stopper plate
(item 2) and secure with the same bolts (item 3) and
nuts (item 4) that you have removed.
Tighten firmly.
Install the plastic grommet (item 5) in the handle
support.
Hook the hoses (item 1) in the hook (item 2).
Remove the dust caps (item 3) and connect the hoses
into the quick couplers (item 4) (bottom section) of the
hydraulic valve on the tractor.
NOTE: In order to make sure that the hoses are well
installed, pull the hydraulic lift arm towards you, the
attachment must lift at least 4’’ off the ground. If this
is not the case, reverse the hoses.
Install the handle support
WARNING
TO PREVENT INJURIES AND FOR MORE
TRACTION WHEN USING THE ATTACHMENT:
-Rear counterweight of 150 lbs. minimum is
required to counterbalance attachment’s weight.
-Tractor manufacturer approved tire chains are
required.
-Do not operate on a slope greater than 10°.
-When dismounting the attachment remove rear
counterweights.
Connect the hoses

7
ASSEMBLY
NOTE: The front brush guard (option from John
Deere) must be removed.
Install the front frame (item 1) on the tractor’s frame
by inserting the shaft (item 2) into the hole in the front
axle.
Pull the knobs (one on each side) (item 3) and hook
the front frame on the hooks (item 4). Release the
knobs.
Make sure the pins are well entered into the holes
(item 5).
FRONT FRAME INSTALLATION:
MODELS X475, X485, X495, X700, X720, X740
IMPORTANT: TORQUE ALL BOLTS ACCORDING
TO TORQUE SPECIFICATION TABLE (SEE TABLE
OF CONTENTS) WHEN STATED: TIGHTEN FIRMLY.
REFER TO PARTS BREAKDOWN SECTION FOR
THEIR IDENTIFICATION.
WARNING
TO PREVENT INJURIES:
Park the machine on a flat surface.
Disengage the P.T. O.
Lower the attachment to the ground.
Apply parking brake.
Stop the motor and remove the ignition key.
Wait until all moving parts have stopped before
leaving the driver’s seat.
Install the shaft support
Install the front frame
If the front P.T.O. is required, proceed as follows, if
not, go to the next step.
Install the shaft support (item 1) on the front frame
(item 2) with two 1/2 x 3 3/4" hex bolts (item 3).
Secure with two nylon insert locknuts (item 4).
Tighten firmly.

8
ASSEMBLY

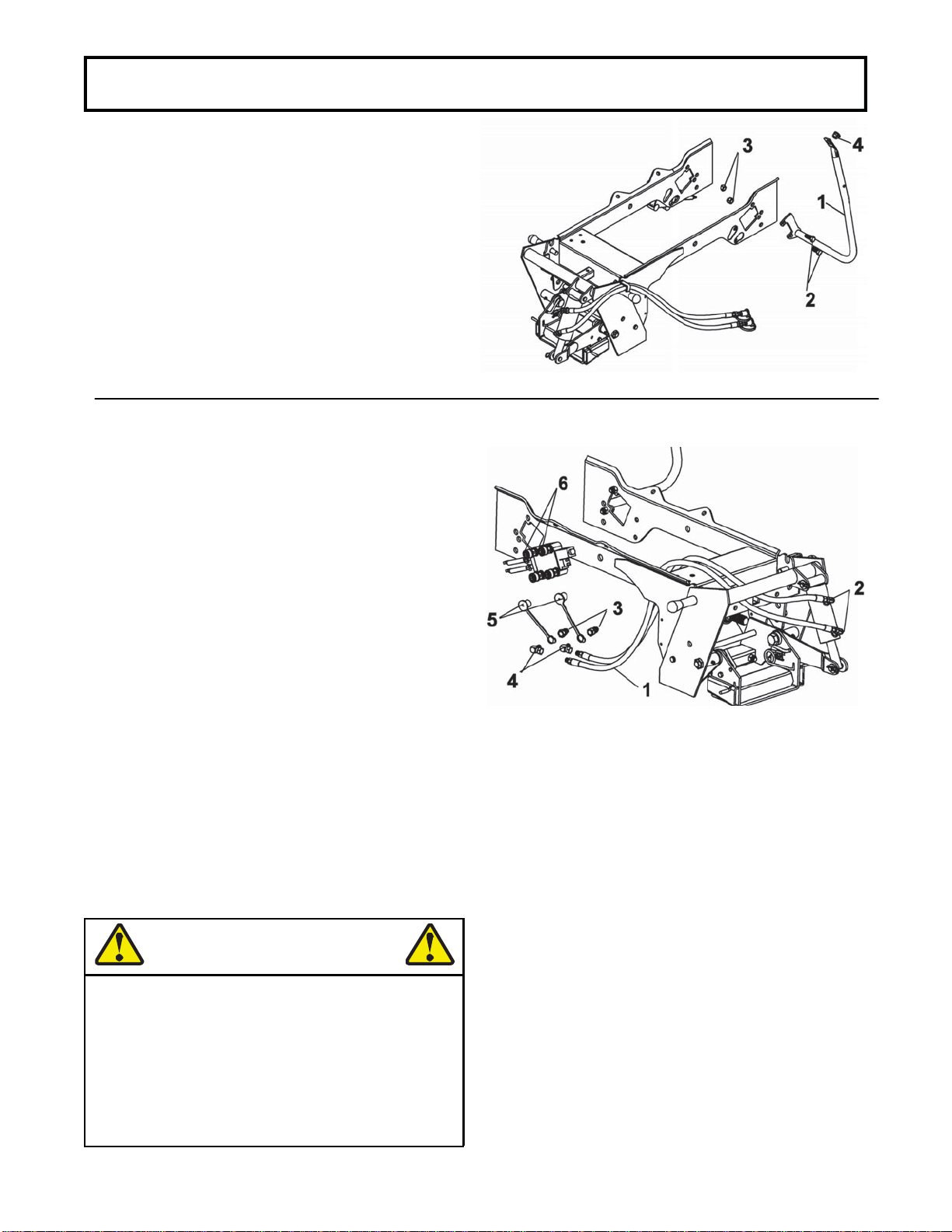

Install the handle support (item 1) by unscrewing the two
bolts in place (if installed) and secure with two 1/2 x 1
1/4’’ hex bolts (item 2) and nylon insert locknuts (item 3).
Tighten firmly.
Install the plastic grommet (item 4) in the handle support
(item 1).
VERY IMPORTANT, BE CAREFUL NOT TO LET
ANY DIRT GET INTO THE HYDRAULIC SYSTEM.
Unscrew the hoses (item 1) from the adaptors (item 2)
and reinstall the hoses on the right side of the frame as
shown by taking care to turn the adaptors in order for
the hoses to be as straight as possible.
Unscrew the quick coupler male (item 3) and screw the
two 90° adaptors (item 4) into the quick coupler male,
making sure to install the dust caps (item 5). Add some
Teflon sealant on the threads. Screw the 90° adaptors
(item 4) on the hoses.
Connect the hoses by following these steps: Route the
hoses under the round tube of the front frame, on the
channel over the axle, and under the frame on the right
side. Connect the hoses to the quick couplers (item 6)
(top section) of the hydraulic valve. Tie the hoses to the
frame with a nylon tie wrap so that they do not touch the
tires.
NOTE: In order to make sure that the hoses are well
installed, pull the hydraulic lift arm towards you, the
attachment must lift at least 4’’ off the ground. If this
is not the case, reverse the hoses.
Install the handle support
WARNING
TO PREVENT INJURIES AND FOR MORE
TRACTION WHEN USING THE ATTACHMENT:
-Rear counterweight of 150 lbs. minimum is
required to counterbalance attachment’s weight.
-Tractor manufacturer approved tire chains are
required.
-Do not operate on a slope greater than 10°.
-When dismounting the attachment remove rear
counterweights.
Modify installation of the hoses

9
ASSEMBLY
If the front P.T.O. is required, proceed as follows, if
not, go to the next step.
Remove the rubber plugs (item 1) from front and back
of front axle.
Install a bearing (item 2) and a small retaining ring (item
1) on the full splined end of the shaft (item 3) as shown.
Install the shaft (item 1) in the axle (item 3) from the
back with the full splined end towards the rear of the
tractor.
Use a brass or rubber mallet and lightly tap the shaft into
the front axle until fully entered.
Install the large retaining ring (item 2) into the groove.
FRONT FRAME INSTALLATION:
MODELS X575, X585, X595, X728, X748
IMPORTANT: TORQUE ALL BOLTS ACCORDING
TO TORQUE SPECIFICATION TABLE (SEE TABLE
OF CONTENTS) WHEN STATED: TIGHTEN FIRMLY.
REFER TO PARTS BREAKDOWN SECTION FOR
THEIR IDENTIFICATION.
WARNING
TO PREVENT INJURIES:
Park the machine on a flat surface.
Disengage the P.T. O.
Lower the attachment to the ground.
Apply parking brake.
Stop the motor and remove the ignition key.
Wait until all moving parts have stopped before
leaving the driver’s seat.
Remove the plugs
Install bearing and retaining ring
Install shaft

10
ASSEMBLY
Install the bearing (item 1) onto the shaft on the front
side of axle.
Install a small retaining ring (item 2) and the big retaining
ring (item 3).
Lightly grease the lip of the seals (item 1) and install the
seals into the front and back.
The seals must be even with the axle.
Make sure the shaft rotates freely.
Install the front frame (item 1) on the tractor’s frame.
Pull the knobs (one on each side) (item 2) and hook
the front frame on the hooks (item 3). Release the
knobs.
Make sure the pins are well entered into the holes
(item 4).
Install bearing and retaining rings
Install seals
Install front frame

11
ASSEMBLY
Install the handle support (item 1) by unscrewing the two
bolts in place (if installed) and secure with two 1/2 x 1
1/4’’ hex bolts (item 2) and nylon insert locknuts (item 3).
Tighten firmly.
Install the plastic grommet (item 4) in the handle support
(item 1).
VERY IMPORTANT, BE CAREFUL NOT TO LET
ANY DIRT GET INTO THE HYDRAULIC SYSTEM.
Unscrew the hoses (item 1) from the adaptors (item 2)
and reinstall the hoses on the right side of the frame as
shown by taking care to turn the adaptors in order for
the hoses to be as straight as possible.
Unscrew the quick coupler male (item 3) and screw the
two 90° adaptors (item 4) into the quick coupler male,
making sure to install the dust caps (item 5). Add some
Teflon sealant on the threads. Screw the 90° adaptors
(item 4) on the hoses.
Connect the hoses by following these steps: Thread the
hoses under the round tube of the front frame, on the
channel over the axle, and under the frame on the right
side. Connect the hoses to the quick couplers (item 6)
(top section) of the hydraulic valve. Tie the hoses to the
frame with a nylon tie wrap so that they do not touch the
tires.
NOTE: In order to make sure that the hoses are well
installed, pull the hydraulic lift arm towards you, the
attachment must lift at least 4’’ off the ground. If this
is not the case, reverse the hoses.
WARNING
TO PREVENT INJURIES AND FOR MORE
TRACTION WHEN USING THE ATTACHMENT:
-Rear counterweight of 150 lbs. minimum is
required to counterbalance attachment’s weight.
-Tractor manufacturer approved tire chains are
required.
-Do not operate on a slope greater than 10°.
-When dismounting the attachment remove rear
counterweights.
Modify installation of the hoses
Install the handle support

12
ASSEMBLY
NOTE: This adaptor is required to be able to install the
Berco #700240 counterweight kit only.
Install the adaptor (item 1) on the tow hitch (item 2) with
two 3/4 x 1 1/2" hex bolts (item 3) and secure with two
flat washers and nuts.
Tighten firmly.
STEP 2
COUNTERWEIGHT SUPPORT ADAPTOR
INSTALLATION
CAUTION
THIS KIT IS REQUIRED
For your security and better traction, use
counterweights #700240 (option) which includes
the bracket and six weights (suitcase style) for a
total of 160 lbs. See installation instructions
included with the counterweights.
Install the adaptor
STEP 3
DRIVELINE KIT INSTALLATION:
If required, install the central part of the driveline (item
1) by sliding the spline yoke (item 2) onto the front
spline shaft (item 3). Connect the quick disconnect
yoke (item 4) to the tractor’s P.T.O.
Make sure the spline yoke is well connected to the
tractor’s P.T.O.
NOTE: The driveline kits include a half telescopic
driveline and an extension guard (covers the
driveline) that must be installed when installing the
snowblower or the rotary broom.
DANGER
ANY CONTACT WITH THE ROTATING
DRIVELINE MAY CAUSE DEATH
KEEP AWAY AND NEVER OPERATE WITHOUT:
All extension guards for the tractor and the
driveline in place.
The driveline securely attached at both ends.
Install driveline

13
ASSEMBLY
Install the male section of the driveline into the
snowblower’s driveline by aligning the stamped mark
(item 2) (located between the splines at the end of the
shaft) with the large groove (item 1) in the hollow tube of
the snowblower’s shaft.
NOTE: Only one position allows the shafts to be
inserted one into the other.
Install the extension guard (item 1) on the snowblower’s
chain guard with the height adjustment bolt (item 3) (1/4
x 1’’ hex bolt) and a nut on the top and a nut
underneath.
Secure in place with two 1/4 x 1/2’’ hex bolts (item 2)
and flange nuts.
Tighten firmly.
STEP 4
SNOWBLOWER INSTALLATION:
Refer to snowblower owner’s manual, parts breakdown
section for their identification.
WARNING
FOR YOUR SECURITY:
Read snowblower’s owner's manual for safety
precautions and rules.
Follow the assembly and operation instructions.
Install the driveline sections
Install extension guard
WARNING
TO PREVENT INJURIES:
Park the machine on a flat surface.
Disengage the P.T. O.
Lower the attachment to the ground.
Apply parking brake.
Stop the motor and remove the ignition key.
Wait until all moving parts have stopped before
leaving the driver’s seat.

14
ASSEMBLY
Attach the snowblower to the front frame as shown.
Make sure the snowblower’s hitch is pushed in until
locked into place by the springs (item 1).
Connect the driveline to the tractor’s P.T.O. spline shaft.
Make sure that the yoke is securely attached to the
tractor’s P.T.O.
DANGER
ANY CONTACT WITH THE ROTATING
DRIVELINE MAY CAUSE DEATH
KEEP AWAY AND NEVER OPERATE WITHOUT:
All extension guards for the tractor and the
driveline in place.
The driveline securely attached at both ends.
DANGER
Do not operate without driveline completely
covered by the extension guard.
If the driveline is not completely covered, be sure
an extension guard is installed.
Make sure the chain guard is in place and attached
with the rubber latch.
Adjust the extension guard so that it is parallel with
the driveline and tighten the bolts firmly.
Make sure the extension guard does not touch
anywhere particularly when the snowblower is raised.
Attach the snowblower to front frame

15
ASSEMBLY
Insert the hook (item 5) on the rotation worm (item 8)
Install the handgrip (item 1) on the handle (item 2) and
slide the handle in handle support (item 3).
Install the handle in the handle extension (item 4) and
on the hook (item 5).
Secure with the hair pins (items 6 & 7).
Install the handle
VERIFY SKID SHOE ADJUSTMENT:
LEVEL PAVED SURFACE: Adjust skid shoes to allow
3/16 to 1/4" clearance (A) between cutting edge and
surface.
UNEVEN OR GRAVEL SURFACE: Adjust skid shoes
to allow 1/2 to 5/8" clearance (A) between cutting edge
and surface.
VERIFY TIRE PRESSURE:
Check and adjust tractor tire pressure as follows:
Front tires: 20 psi
Back tires: 7–8 psi
Tire pressure must be even on both sides of the
tractor.
Adjust skid shoes

16
ASSEMBLY
ROTARY BROOM INSTALLATION:
Refer to rotary broom owner’s manual, parts breakdown
section for their identification.
WARNING
FOR YOUR SECURITY:
Read rotary broom owner's manual for safety
precautions and rules.
Follow the assembly and operation instructions.
Install the male section of the driveline into the rotary
broom’s driveline by aligning the stamped mark (item 2)
(located between the splines at the end of the shaft) with
the large groove (item 1) in the hollow tube of the rotary
broom’s shaft.
NOTE: Only one position allows the shafts to be
inserted one into the other.
Install the extension guard (item 1) on the rotary broom’s
chain guard with the height adjustment bolt (item 2) (1/4
x 1’’ hex bolt) and a nut on the top and a nut
underneath.
Secure in place with two 1/4 x 1/2’’ hex bolts (item 3)
and flange nuts.
Tighten firmly.
Install the driveline sections
Install the extension guard
WARNING
TO PREVENT INJURIES:
Park the machine on a flat surface.
Disengage the P.T. O.
Lower the attachment to the ground.
Apply parking brake.
Stop the motor and remove the ignition key.
Wait until all moving parts have stopped before
leaving the driver’s seat.

17
ASSEMBLY
Adjust the extension guard so that it is parallel with
the driveline and tighten the bolts firmly.
Make sure the extension guard does not touch
anywhere particularly when the rotary broom is
raised.
Install the handgrip (item 1) on the handle (item 2) and
slide the handle in handle support (item 3).
Install the handle on the handle extension (item 4) and
on the control rod (item 6).
Secure with the hair pins (items 5 & 7).
VERIFY TIRE PRESSURE:
Check and adjust tractor tire pressure as follows:
Front tires: 20 psi
Back tires: 7-8 psi
Tire pressure must be even on both sides of the
tractor.
Attach the rotary broom to the front frame as shown.
Make sure the rotary broom’s hitch is pushed in until
locked into place by the springs (item 1).
Connect the driveline to the tractor’s P.T.O. spline shaft.
Make sure that the yoke is securely attached to the
tractor’s P.T.O.
DANGER
Do not operate without driveline completely
covered by the extension guard.
If the driveline is not completely covered, be sure
an extension guard is installed.
DANGER
ALL CONTACT WITH THE ROTATING
DRIVELINE MAY CAUSE DEATH
KEEP AWAY AND NEVER OPERATE WITHOUT:
All extension guards for the tractor and the
driveline in place.
The driveline securely attached at both ends.
Install handle
Attach rotary broom to front frame

18
ASSEMBLY
UTILITY BLADE INSTALLATION:
Refer to utility blade owner’s manual, parts breakdown
section for their identification.
Attach the utility blade to the front frame as shown.
Make sure the utility blade’s hitch is pushed in until
locked into place by the springs (item 1).
NOTE: If your tractor is equipped with a hydraulic
angling kit, do not install the handle.
Connect the hydraulic hoses to the tractor’s quick
couplers of the hydraulic valve by following the same
route as the hoses of the front frame.
Install the handgrip (item 1) on the handle (item 2) and
slide the handle in handle support (item 3).
Install the handle on the handle extension (item 4) and
on the control rod (item 6).
Secure with the hair pins (items 5 & 7).
VERIFY TIRE PRESSURE:
Check and adjust tractor tire pressure as follows:
Front tires: 20 psi
Back tires: 7-8 psi
Tire pressure must be even on both sides of the
tractor.
Install handle
WARNING
FOR YOUR SECURITY:
Read utility blade owner's manual for safety
precautions and rules.
Follow the assembly and operation instructions.
Attach utility blade to front frame
