INSTALLATION MANUAL
30” ELECTRIC BUILT-IN OVEN
3100568
WWW.BERTAZZONI.COM

2
/ Table of contents
TABLE OF CONTENTS
WARNINGS ___________________________________________________________________
DATA RATING LABEL ___________________________________________________________
BEFORE INSTALLATION ________________________________________________________
Room ventilation______________________________________________________________
Cabinet requirement___________________________________________________________
Installing the oven in the unit____________________________________________________
Important information _________________________________________________________
SPECIFICATIONS ______________________________________________________________
Installing the oven in a tall appliance housing _____________________________________
Installation underneath a built-in hob ____________________________________________
INSTALLATION REQUIREMENTS _________________________________________________
Electrical ___________________________________________________________________
ELECTRICAL CONNECTION _____________________________________________________
WIRING DIAGRAM _____________________________________________________________
INSTALLATION ________________________________________________________________
Appliance installation ________________________________________________________
Removing the oven door _______________________________________________________
INSTALLATION CHECKLIST ______________________________________________________
FINAL PREPARATION ___________________________________________________________
BERTAZZONI SERVICE _________________________________________________________
4
5
6
6
6
7
7
8
8
9
10
10
10
12
14
14
15
16
17
17

3
/ Models
Models
PROF30FSEXT
PROF30FSEXV
MAST30FSEXT
MAST30FSEXV
Models

4
/ Warnings
WARNINGS
To ensure proper and safe operation, the applian-
ce must be properly installed and grounded by a
qualified technician.
DO NOT attempt to adjust, repair, service, or re-
place any part of your appliance unless it is speci-
fically recommended in this manual. All other ser-
vicing should be referred to a qualified servicer.
FOR THE INSTALLER: Before installing the Ber-
tazzoni appliance, please read these instructions
carefully. This appliance shall be installed in ac-
cordance with the manufacturer’s installation in-
structions.
IMPORTANT: Leave these instructions with the
owner, who should save them for local inspector’s
use and for future reference. DO NOT remove
permanently affixed labels, warnings, or plates
from product. This may void the warranty.
This user manual is an integral part of the appliance
and must therefore be kept in its entirety in a place
accessible to the user for the entire lifetime of the
appliance.
Read this manual before using the appliance.
MANUFACTURER LIABILITY
The manufacturer shall bear no liability for property
damage or personal injury due to:
• Use of the appliance other than that specified
• Failure to comply with the instructions in the
user manual
• Tampering with/unauthorised modifications to
any part of the appliance
• The use of non-original spare parts.
• This appliance is intended for cooking food in
the home environment. Any other use shall be
considered improper.
• The appliance is not designed to operate
with external timers or with remote-control
systems.
This appliance is NOT designed for installation
in manufactured (mobile) homes or recreational
park trailers.
DO NOT install this appliance outdoors.
This appliance must be properly grounded.
Grounding reduces the risk of electric shock by
providing a safe pathway for electric current in the
event of a short circuit.
Warning!
To avoid risk of property damage, personal
injury or death; follow information in this ma-
nual exactly to prevent a fire or explosion.
DANGER!!! ELECTRIC SHOCK HAZARD!!!
To avoid risk of electrical shock, personal injury
or death, verify that the appliance has been pro-
perly grounded in accordance with local codes or
in absence of codes, with the National Electrical
Code (NEC). ANSI/NFPA 70- latest edition.

5
/ Warnings/ Data rating label
DO NOT lift the applince by the oven door’s hand-
le, as this may damage the door hinges and cause
the door to fit incorrectly.
DO NOT lift the appliance by the appliance’s con-
trol panel.
The unit is heavy and should be handled accor-
dingly. Proper safety equipment such as gloves
and adequate manpower of at least two people
must be used in moving the appliance to avoid
injury and to avoid damage to the unit or the floor.
Rings, watches, and any other loose items that
may damage the unit or otherwise might become
entangled with the unit should be removed.
Hidden surfaces may have sharp edges. Use cau-
tion when reaching behind or under appliance.
DO NOT use a hand truck or appliance dolly on
the back or front of the unit. Handle from the side
only.
Warning!
Disconnect the electrical supply prior to servicing
or cleaning.
WARNING:
Cancer and Reproductiv Harm-
www.P65Warnings.ca.gov.
The data rating label shows the model and serial
number of the range. It is located under the con-
trol panel and in the last page of this manual
DATA RATING LABEL

6
/ Before installation
• This appliance shall only be installed by an
authorized professional.
If the installation requires alterations to the dome-
stic electrical system, call a qualified electrician.
The electrician should also check that the socket
cable section is suitable for the electricity drawn
by the oven.
• This appliance shall be installed in accordance
with the manufacturer’s installation
instructions.
• This appliance must be installed in accordance
with the norms & standards of the country
where it will be installed.
• The installation of this appliance must conform
to local codes and ordinances. In the absence
of local codes, Installations must conforms to
American National Standards.
• Avoid any damage to oven vents. The vents
need to be unobstructed and open to provide
proper airflow for optimal oven performance.
•
All opening and holes in the wall and floor, back
and under the appliance shall be sealed before
installation of the appliance.
The installation, adjustments, transformations and
maintenance listed in this section must only be
performed by qualified technicians (in accordance
with applicable legislation). Incorrect installation
can cause property damage and injury to people
or pets; the manufacturer shall not be held liable
in this event. The appliance’s automatic regulation
or safety devices may only be modified by the
manufacturer or a duly authorised technician
during the appliance’s lifetime.
Ensure all necessary PPE is used when
carrying out the installation
ROOM VENTILATION
An exhaust fan may be used with the appliance;
in each case it shall be installed in conformity
with the appropriate national and local standards.
Exhaust hood operation may affect other vented
appliances; in each case it shall be installed in
conformity with the appropriate national and local
standards.
Do not use aerosol sprays in the vicinity of
this appliance while it is in operation.
CABINET REQUIREMENT
To prevent possible damage to cabinets and ca-
binet finishes, use only materials and finishes that
will not discolor or delaminate and will withstand
temperatures up to 195°F (90°C). Heat resistant
adhesive must be used if the product is to be in-
stalled in laminated cabinetry. Check with your
builder or cabinet supplier to make sure that the
materials meet these requirements.
Installation of the appliance must be performed
in accordance with the provisions of applicable
legislation.
• BE SURE that support for this appliance is
perpendicular to the front facing of the wall or
cabinet before you perform the installation.
The cabinet base must be flat and capable of
supporting the weight of the oven when in use.
Minimum Suggested Load on Cabinet Base Board
weight lb weight kg
275 125
BEFORE INSTALLATION

7
INSTALLING THE OVEN IN A CABINET
Ensure that the oven is fully present and
undamaged after removing all loose parts from
their inner and outer packaging. In the event of
any uncertainty, do not use the appliance and
contact technical support.
Check that the kitchen unit is suitable for installation
of the oven, referring to the dimensions given in
this guide.
IMPORTANT INFORMATION
Some environmental factors and cooking habits
can cause condensation in and around the oven
during use. To protect surrounding cabinetry from
possible damage caused by frequent or excessive
condensation, we recommend moisture-proofing
the oven cavity.
/ Ventilation preparation / Specifications
SPECIFICATIONS
17 1/8"
436
28"
712
1"
26
21 5/8"
550
23 1/2"
596
1 7/8"
47
CONDUIT
CHANNEL
1/2"
13
28 5/8"
726
29 7/8"
758
3 3/8"
86
3 3/8"
86 2"
52
CONDUIT
CHANNEL

8
/ Before installation

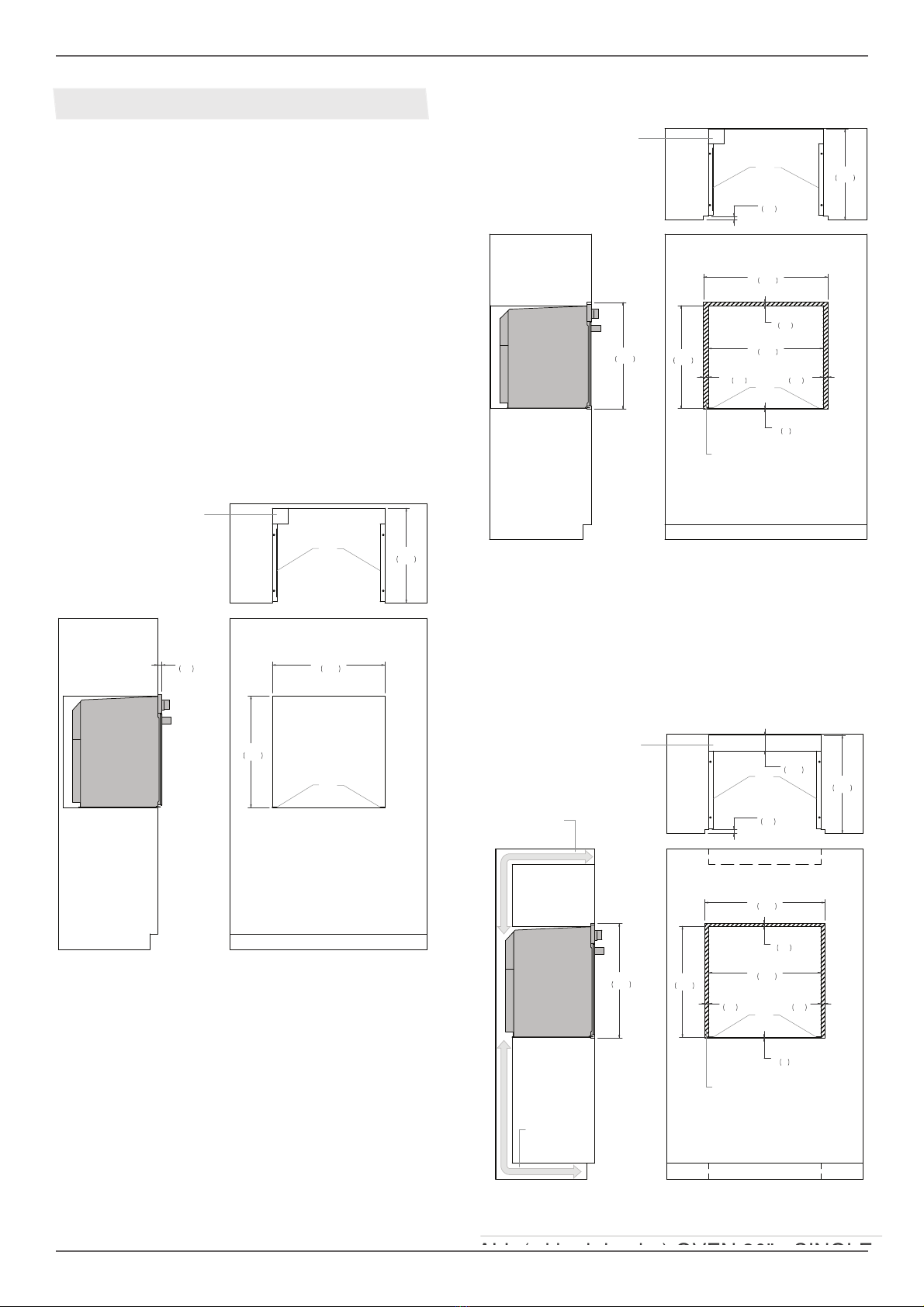

INSTALLING THE OVEN IN A TALL
APPLIANCE HOUSING
The oven can be installed in a standard or flush
application.
Finish the edges of the opening because they
may be visible when the door is open.
The clearance between the oven and the kitchen
units must be enough to ensure sufficient
ventilation and air discharge.
Standard installation
Flush installation
Flush installation with reduced clearance
Ensure there is an opening in the top or bottom of
the cabinet as shown in the figure.
BEFORE INSTALLATION
28 3/8"
720
1"
26
24"
610
(1)
(1) Spacers - Parts of standard equipment
(1)
CUT OUT FOR
POWER CORD
(4" x 4" - 102 x 102)
28 1/2"
724
28 3/8"
720
25"
635
(1)
(1) Spacers - Parts of standard equipment
(1)
CUT OUT FOR
POWER CORD
(4" x 4" - 102 x 102)
7/8"
23
28 1/2"
724
1 3/16"
30 1 3/16" 30
1/8"
3
30 7/8"
784
29 3/8"
746
(2)
(2) Finished surfaces - Will be visible
1"
25
ALL ( i h i i k ) OVEN 30" SINGLE (
28 3/8"
720
25"
635
(1)
(1) Spacers - Parts of standard equipment
(1)
AIR INTAKE
3/4"
18
28 1/2"
724
1"
25 1" 25
1/8"
3
30 1/2"
774
(2)
(2) Finished surfaces - Will be visible
4"
102
1"
25
29 1/8"
741
UPPER
AIR INTAKE
LOWER
AIR INTAKE
LOWER AIR INTAKE
UPPER AIR INTAKE
(3) Air Intake dimensions: 4"x28
1/2
"

9
/ Before installation

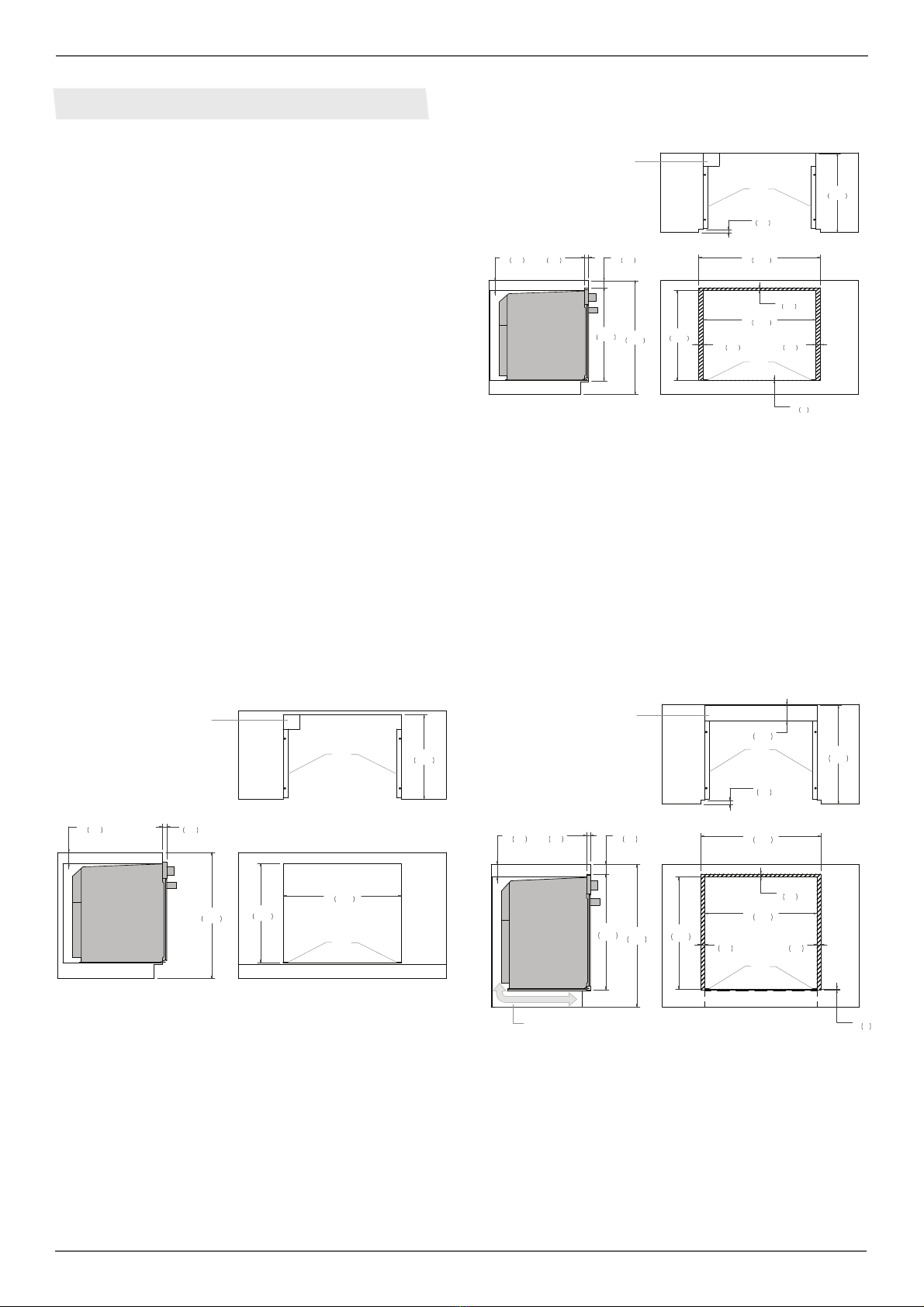

INSTALLATION UNDERNEATH A BUILT-IN
HOB
The oven can be installed in a standard or flush
application.
Finish the edges of the opening because they
may be visible when the door is open.
The clearance between the oven and the kitchen
units or other installed appliances must be enough
to ensure sufficient ventilation and air discharge.
If installed under a hob, space must be left between
the bottom of the hob and the top of the oven to
allow for ventilation of the entire compartment.
Any ventilation openings required for the hob are
to be added to those required by the oven.
See the design guide for the combination between
the Bertazzoni Oven and Bertazzoni Hob.
The manufacturer shall bear no liability in the
event of the oven being installed in combination
with a hob from another manufacturer.
Standard installation
Flush installation
Flush installation with reduced clearance
Ensure there is an opening in the top or bottom of
the cabinet as shown in the figure.
BEFORE INSTALLATION
28 3/8"
720
28 1/2"
724
1"
26
24"
610
(1)
(1) Spacers - Parts of standard equipment
(1)
CUT OUT FOR
POWER CORD
(4" x 4" - 102 x 102)
36"
914
3 1/8"
80
28 3/8"
720
28 1/2"
724
25"
635
(1)
(1) Spacers - Parts of standard equipment
(1)
CUT OUT FOR
POWER CORD
(4" x 4" - 102 x 102)
36"
914
1"
25
29 3/8"
746
2 1/4"
57
3 1/8"
80
7/8"
23
1 3/16"
30
1 3/16"
30
30 7/8"
784
1/8"
3
(2) Finished surfaces - Will be visible
1"
25
28 3/8"
720
28 1/2"
724
25"
635
(1)
(1) Spacers - Parts of standard equipment
(1)
AIR INTAKE
36"
914
1"
25
29 1/8"
741
2 1/2"
62
3 1/8"
80
3/4"
18
1"
25
1"
25
30 1/2"
774
1/8"
3
(2) Finished surfaces - Will be visible
4"
102
1"
25
LOWER
AIR INTAKE
LOWER AIR INTAKE
(
3
)
Air Intake dimensions: 4"x28
1/2
"

10
/ Installation requirements / Electrical connection
ELECTRICAL
A properly-grounded horizontally- mounted electri-
cal receptacle should be installed no higher than
3” (7.6 cm) above the floor, no less than 2” (5 cm)
and no more than 8” (20,3 cm) from the left side
(facing product).
Check all local code requirements.
Verify that power is disconnected from the electri-
cal box before proceeding.
If the electrical supply is located in the opening,
electrical connection must be made prior to pla-
cing the oven in the opening. If the electrical sup-
ply is in an adjacent cabinet, the electrical con-
nection can be made after placing the oven in the
opening.
The installation must comply with all applicable
electrical codes.
Locate the electrical supply flush with the back
wall and within the shaded area shown in the il-
lustrations on the following pages. For ease of in-
stallation, the electrical supply for the oven can be
placed in an adjacent cabinet within reach of the
conduit.
●A circuit breaker is recommended.
The electrical junction box may be located above,
below to the left or right of the unit within reach of
the power cord.
Placement within the opening may be require ad-
ditional cabinet depth.
Warrning!
ELECTRICAL SHOCK HAZARD
Disconnect electrical power at the circuit bre-
aker box or fuse box before installing the ap-
pliance.
Provide appropriate ground for the appliance.
Use copper conductors only.
Failure to follow these instructions could re-
sult in serious injury or death.
Warning!
Electrical grounding
This appliance is equipped with a 4 ft (1.2 m) flexi-
ble metal cable with 4 wires ready for connection
to a dedicated 3 pole, 4 wires grounded power
supply.
Caution
Label all wires prior to disconnecting when
servicing controls. Wiring errors can cause
improper and dangerous operation.
Verify proper operation after servicing.
The appliance shall be connected to a single pha-
se electric line rated at 120/208Vac or 120/240Vac
and 60Hz frequency.
INSTALLATION REQUIREMENTS ELECTRICAL CONNECTION
Type Voltage Circuit rating Electrical
supply
30” 120/208V
120/240V
4400W 21A
5500W 24A
30A
30A
E
5"
127
4"
102

11
/ Installation requirements / Electrical connection
FOUR-WIRE CONN.RECEPTACLE NEMA 14-50R
Check your local code for which of the options be-
low should be used in grounding the receptacle
power supply connections.
FOUR Wires connection:
-Connect the L1 receptacle terminal to the inco-
ming BLACK electrical supply wire (L1-hot wire)
-Connect the L2 receptacle terminal to the inco-
ming RED electrical supply wire (L2-hot wire)
-Connect the NEUTRAL receptacle terminal to
the incoming NEUTRAL (WHITE) electrical sup-
ply wire
-Connect the GROUND receptacle terminal to the
incoming GROUND (GREEN) electrical supply
wire

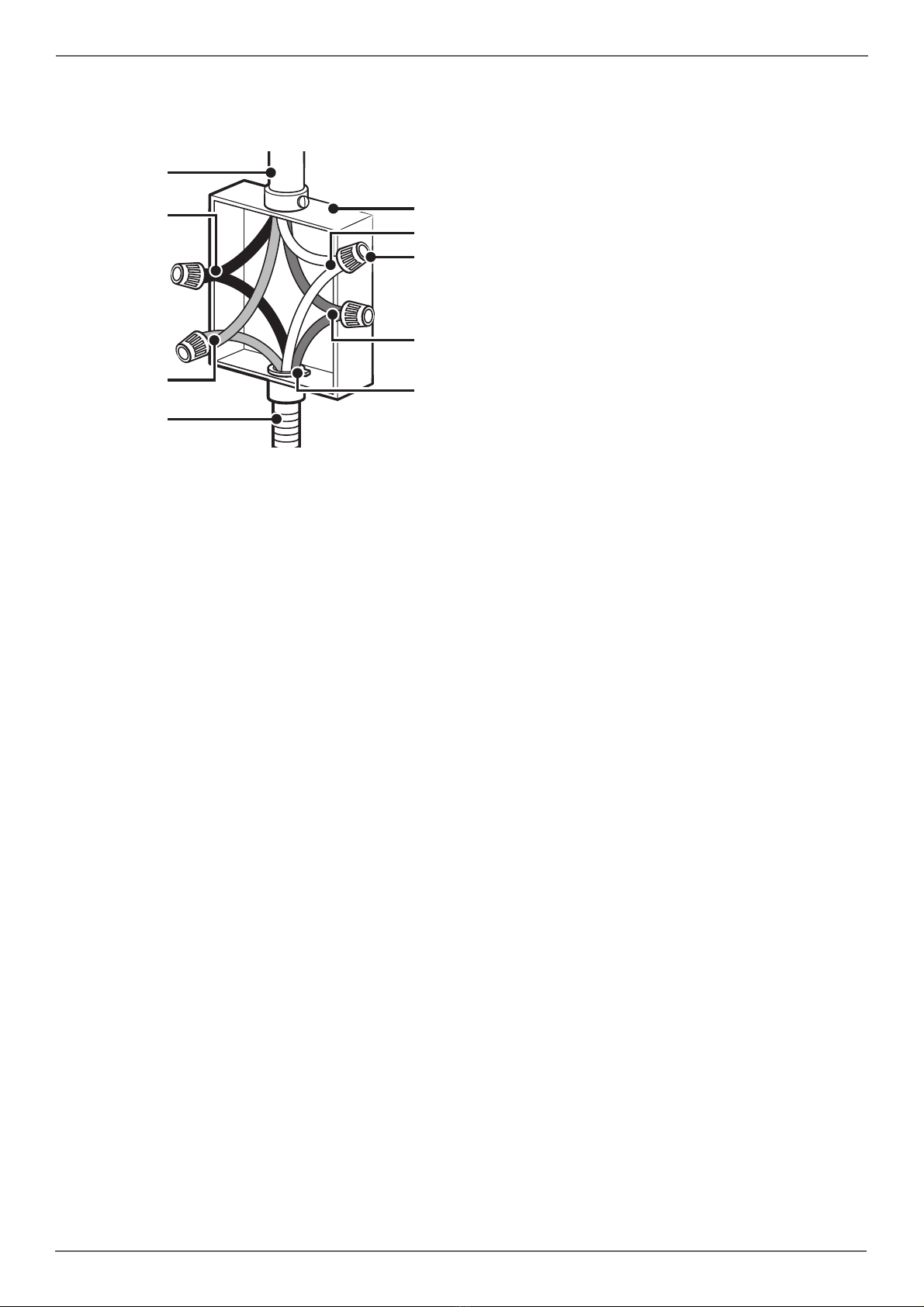

Power supply
Junction box
Black wires
UL-listed wire connectors
Red wires
UL or CSA listed connector
Green wires
Flexible metal
conduit from oven
White wires

12
/ Wiring diagram
WIRING DIAGRAM
The electric wiring diagrams and schematics are attached behind the range, and should not be removed
except by a service technician, then replaced after service.
30” XT
$
/ 1 /
*5281'
%
       
&1


&1
&1
%
%
%
%
&

&1
&9
7
- /
7
- /
0

45
%$&.%$&.
%3';
3&
%36;
8
$ 7HUPLQDO%ORFN % 7KHUPDO&XWRXW>7&@ & 0DLQRYHQFRQWUROERDUG
' 2YHQ/DPS5LJKW ' 2YHQ/DPS/HIW ( 2YHQ)DQPRWRU5LJKW ( 2YHQ)DQPRWRU/HIW
) %URLOHU+HDWLQJ(OHPHQW
* &LUFXODU+HDWLQJ(OHPHQW5LJKW * &LUFXODU+HDWLQJ(OHPHQW/HIW
+ %RWWRP+HDWLQJ(OHPHQW
- &RROLQJ)DQ$LU6ZLWFK5LJKW>07@ - &RROLQJ)DQ$LU6ZLWFK/HIW>07@
. 2YHQ7HPS6HQVRU>37@
/ 7KHUPDO&XWRXW5LJKW>7&@ / 7KHUPDO&XWRXW/HIW>7&@
/ &RROLQJIDQWKHUPDOVZLWFK76
0 6DIHW\)L[HG7KHUPRVWDW>766@ 4 2YHQ)XQFWLRQV6HOHFWRU
5 2YHQ7HPSHUDWXUH6HOHFWRU
7 &RROLQJ)DQ0RWRU5LJKW 7 &RROLQJ)DQ0RWRU/HIW
8 'RRU/RFN'RRU6ZLWFK6\VWHP 9 'LVSOD\
= 0HDW3UREH
.(<
WR&1
WR&1 WR&1
WR&1
WR&1
&1(PSW\
&1
EO %/$&. EU %52:1
EX %/8( J\ *5(<
JU *5((1 RU 25$1*( UH 5('
YL 9 ,2 /( 7
ZK :+,7(
:,5(6&2/2856
.(<
EO
EO
EX
EX
EL
EL
J\
EU
EU
YL
YL
ZK
+
)
9
=*5281'
*
*
(
(
WR&1
' '
WR&1
WR&1
WR&1 WR&9
RURU
JU
JU
UH
EO
EO
JU
JU
JU
UH
UH
UH
UH
ZK
EO
JU
JU
EO
EO RU EO
YLYL
RU
RU
HPSW\
WR&1
.
ZK
WR&1
RU
76

13
/ Wiring diagram
30” XV
&/($1
+($7,1*
35(+($7,1*
     
>WR&1@
6
5('
%/8( %/8(
  
>WR&1@

45
  
>WR&1@

%$&. %$&.
237
WR$1
WR$/
$
/ 1 /
*5281'
%
       
&1


&1
&1
%
%
%
%
&

&1
&9
7
- /
7
- /
0

$ 7HUPLQDO%ORFN % 7KHUPDO&XWRXW>7&@ & 0DLQRYHQFRQWUROERDUG
' 2YHQ/DPS5LJKW ' 2YHQ/DPS/HIW ( 2YHQ)DQPRWRU5LJKW ( 2YHQ)DQPRWRU/HIW
) %URLOHU+HDWLQJ(OHPHQW
* &LUFXODU+HDWLQJ(OHPHQW5LJKW * &LUFXODU+HDWLQJ(OHPHQW/HIW
+ %RWWRP+HDWLQJ(OHPHQW
- &RROLQJ)DQ$LU6ZLWFK5LJKW>07@ - &RROLQJ)DQ$LU6ZLWFK/HIW>07@
. 2YHQ7HPS6HQVRU>37@
/ 7KHUPDO&XWRXW5LJKW>7&@ / 7KHUPDO&XWRXW/HIW>7&@
/ &RROLQJIDQWKHUPDOVZLWFK76
0 6DIHW\)L[HG7KHUPRVWDW>766@ 4 2YHQ)XQFWLRQV6HOHFWRU
5 2YHQ7HPSHUDWXUH6HOHFWRU
7 &RROLQJ)DQ0RWRU5LJKW 7 &RROLQJ)DQ0RWRU/HIW
8 'RRU/RFN'RRU6ZLWFK6\VWHP 9 'LVSOD\
= 0HDW3UREH
.(<
WR&1
WR&1 WR&1
WR&1
WR&1
&1(PSW\
&1
EO %/$&. EU %52:1
EX %/8( J\ *5(<
JU *5((1 RU 25$1*( UH 5('
YL 9 ,2 /( 7
ZK :+,7(
:,5(6&2/2856
.(<
EO
EO
EX
EX
ZK
J\
EU
EU
YL
YL
ZK
+
)
*
*
(
(
WR&1
' '
WR&1
WR&1
WR&1
RURU
JU
JU
UH
EO
EO
JU
JU
JU
UH
UH
UH
EO
JU
JU
EO
EO RU EO
YLYL
RU
RU
HPSW\
WR&1
.
ZK
WR&1
RU
76
%3';
3&
%36;
8
ZK
ZK
UH

14
/ Installation
APPLIANCE INSTALLATION
Unpacking the oven
To avoid risk of severe personal injury and da-
mage to the unit and flooring; this appliance
requires two or more personnel while handling
and moving. Possible use of appliance dollies
moving devices is recommended
• Remove all packing materials from the
shipping pallet but leave the adhesive-backed
foam layer over brushed-metal surfaces to
protect it from scratches until the range is
installed in its final position.
• Examine the appliance after unpacking it. In
the event of transport damage, do not plug it
in. Take pictures of the damage and report it
immediately to the freight forwarder.
• If the power supply cable is damaged, it must
be replaced by the manufacturer, its service
agent or similarly qualified person in order to
avoid a safety hazard.
• Remove the oven door(s). This will reduce the
weight of the appliance.
• The oven racks should be removed to facilitate
handling.
• Before moving the appliance, protect the floor
to prevent damage.
• Use an appliance dolly to move the oven near
the opening. Place the appliance dolly on the
side to prevent damage, do not use on front
or rear.
• Use the supplied brackets to attach to the
cabinet
• Place the oven in the opening and slide
into position. To ensure adequate depth for
proper installation, the conduit must fit into
the recessed area along the rear edge of the
oven.
• Lift the oven by the handle installed on the
side panel.
• Shield the edge of the cabinet with a tape
before insert the oven.
• Check that the oven is correctly aligned with
the units.
• Locate the mounting hole in each side trim,
and install screws, ensuring that the oven
remains centered.
• Cover the screws with the caps.
• Remove and recycle packing materials
including the white protective material behind
each rack guide mounting location.
The misuse of the oven door ( placing heavy
objects on the oven doo, hanging offthe handle,
stepping or hiting on the door) can result in dama-
ge to the product and /or injuries.
DO NOT remove permanently affixed labels, war-
nings, or plates from product. This may void the
warranty.
• DO NOT install two or more wall ovens single or
double side-by-side or stacked on top of the other.
To prevent possible damage to cabinets and ca-
binet finishes, use only materials and finishes that
will not discolor or delaminate and will withstand
temperatures up to 195°F (90°C). Heat resistant
adhesive must be used if the product is to be in-
stalled in laminated cabinetry. Check with your
builder or cabinet supplier to make sure that the
materials meet these requirements.
INSTALLATION

15
REMOVING THE OVEN DOOR
Prepare the door for removal. Flip up the locking
clamps on each door hinge. Slowly shut the door
until the protruding clamps stop the movement.
Pull oven door upwards and remove.
Do not lift or carry the oven door by its handle!
This may damage the hinges.
The oven door is heavy and fragile. Use both
hands to remove the oven door. The door front
includes glass components. Handle carefully to
avoid breaking.
Grasp only the sides of the oven door. Do not gra-
sp the handle as it may swing in your hand and
cause damage or injury.
To avoid injury from hinge bracket snapping clo-
sed, be sure that both locking levers are securely
in place before removing the door.
Do not lay the removed door on sharp or pointed
objects as this could break the glass. Lay the door
on a flat, smooth surface, positioned so that the
door cannot fall over. Use a cloth to protect sur-
faces.
/ Installation

16
INSTALLATION CHECKLIST FINAL PREPARATION
A qualified installer should carry out the following
checks:
Make sure the clearance to cabinet surfaces cur-
responds to manufacturers guidelines.
Make sure the oven is level and securely fitted to
the cabinet.
Check that lower trim is undamaged.
Open the (lower) oven door slowly until it is fully
open and check for adequate clearance between
the bottom of the door and the lower trim.
Make sure any internal packaging has been re-
moved from the oven cavity.
Make sure all oven vents and openings are clear
and free of any obstruction or damage.
Turn the power to the oven on. The display will
flash. Set the clock following the instructions.
Turn the oven function to CONVECTION BAKE.
The oven should start heating at 300°F tempera-
ture. After five minutes, open the oven door: the
air inside should feel warm and the convection
fan should turn. Turn the oven function dial back
to OFF.
Have you demonstrated the basic operation to
the customer?
• Before using the oven, remove any protective
wrap from the stainless steel.
• All stainless steel parts should be wiped with
hot, soapy water and with a liquid stainless
steel cleanser.
• If buildup occurs, do not use steel wool,
abrasive cloths, cleaners, or powders!
• If it is necessary to scrape stainless steel to
remove encrusted materials, soak with hot,
wet cloths to loosen the material, then use a
wood or nylon scraper.
• Do not use a metal knife, spatula, or any other
metal tool to scrape stainless steel! Scratches
are almost impossible to remove.
• Before using the oven for food preparation,
wash the cavity thoroughly with warm soap
and water solution to remove film residue and
any dust or debris from installation, then rinse
and wipe dry.
WARNING
When using the oven for the first time it
should be operated for 15-30 minutes at a tem-
perature of about 500°F/260°C (main oven) or
440°F/227°C(auxiliary oven) without cooking
anything inside in order to eliminate any moi-
sture and odours from the internal insulation.
/ Installation checklist / final preparation

17
BERTAZZONI SERVICE
Bertazzoni is committed to providing the best cu-
stomer and product service. We have a dedicated
team of trained professionals to answer your ne-
eds.
If you own a Bertazzoni appliance and need ser-
vice in the US or Canada please use the following
contact information:
e-mail: [email protected]
Telephone - Monday through Friday,
7.30am to 7.30pm EST (except US public holidays).
US 866-905-0010
WESTERN CANADA 866-905-0010 (BC,AB,SK,MB)
EASTERN CANADA 800-561-7265 (ON,QC,NL,NB,NS,PE)
/ Bertazzoni service
