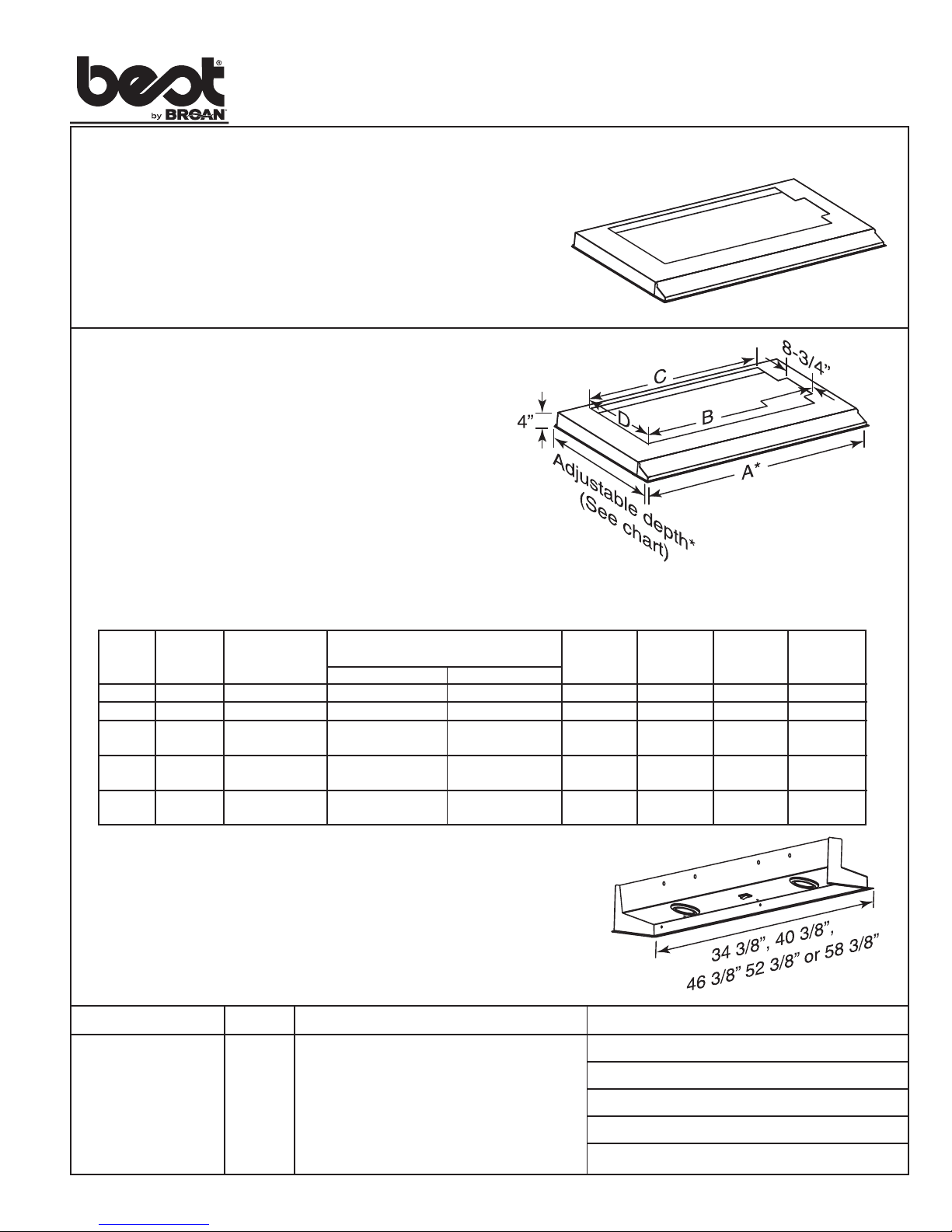

SPECIFICATION SHEET
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
HA0027A
60D 99043327C
L2936, L2942, L3848,
L3854 AND L3860
LINERS
Especially designed to protect the exterior base of
a custom hood. Fit PK22 Series inserts.
FEATURES
•Cabinet mount _ custom application
•Stainless Steel Finish
•Adjustable depth to fit into cabinet openings as shown on
chart (front to back)
•Fit custom hood nominal widths: 36’’, 42’’, 48’’, 54” or 60’’
•Wipes clean easily
TO ORDER
Refer to table below to find the right liner part number for
your insert and for width of the custom hood.
HA0032
DIMENSIONS
Ambient Light Panel
ALP Series
*Dimension does not include 3/8’’ wide flanges.
OPTION
•Ambient light panel (ALP Series) for L Series custom
hood liners (Halogen lighting: 36’’ and 42’’_2 x 50 watt;
48’’, 54” and 60’’_3 x 50 watt GU10) Lamps included
Liner Insert Custom Hood Adjustable Depth* Cut-out Cut-out Cut-out
Model Model Nominal Width Fits into cabinet openings of Width Width Width Depth
Without Backboard With Backboard A* (long) B (short) C D
L2936 PK2229 36” 20 1/2” to 23 1/2” 20 1/8” to 23 1/8” 34 3/8” 27 5/8” 26 1/8” 14 7/8”
L2942 PK2229 42” 20 1/2” to 23 1/2” 20 1/8” to 23 1/8” 40 3/8” 27 5/8” 26 1/8” 14 7/8
L3848 PK2238 48” 20 1/2” to 23 1/2” 20 1/8” to 23 1/8” 46 3/8” 36 7/16” 34 7/8” 14 13/16”
PKEX2238
L3854 PK2238 54” 20 1/2” to 23 1/2” 20 1/8” to 23 1/8” 52 3/8” 36 7/16” 34 7/8” 14 13/16”
PKEX2238
L3860 PK2238 60” 20 1/2” to 23 1/2” 20 1/8” to 23 1/8” 58 3/8” 36 7/16” 34 7/8” 14 13/16”
PKEX2238
The INSIDE DEPTH shown in the table above assumes a minimum cabinet backboard thickness of 3/8”.
BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027
