BETCO PREDATOR SERIESE Product manual

1
E12300-00
E10280-00
PREDATOR SERIES
PREDATOR SERIES
21”, 24"
Propane Burnishers
Operator and Parts
Manual
1001 Brown Avenue • Toledo, Ohio 43607-0127
Customer Service: 888-GO-BETCO • Fax: [phone] • Technical Service: 877-856-5954 • www.betco.com

2
TABLE OF CONTENTS
Carbon Monoxide Warning........................................3
Safety........................................................................ 4
Tank Use and Storage................................................5
Starting and Stopping the Honda Engine...................5
Operator Preparation.................................................6
Belt Tensioning..........................................................7
Pad Change Methods................................................ 8
Pad Driver Removal...................................................8

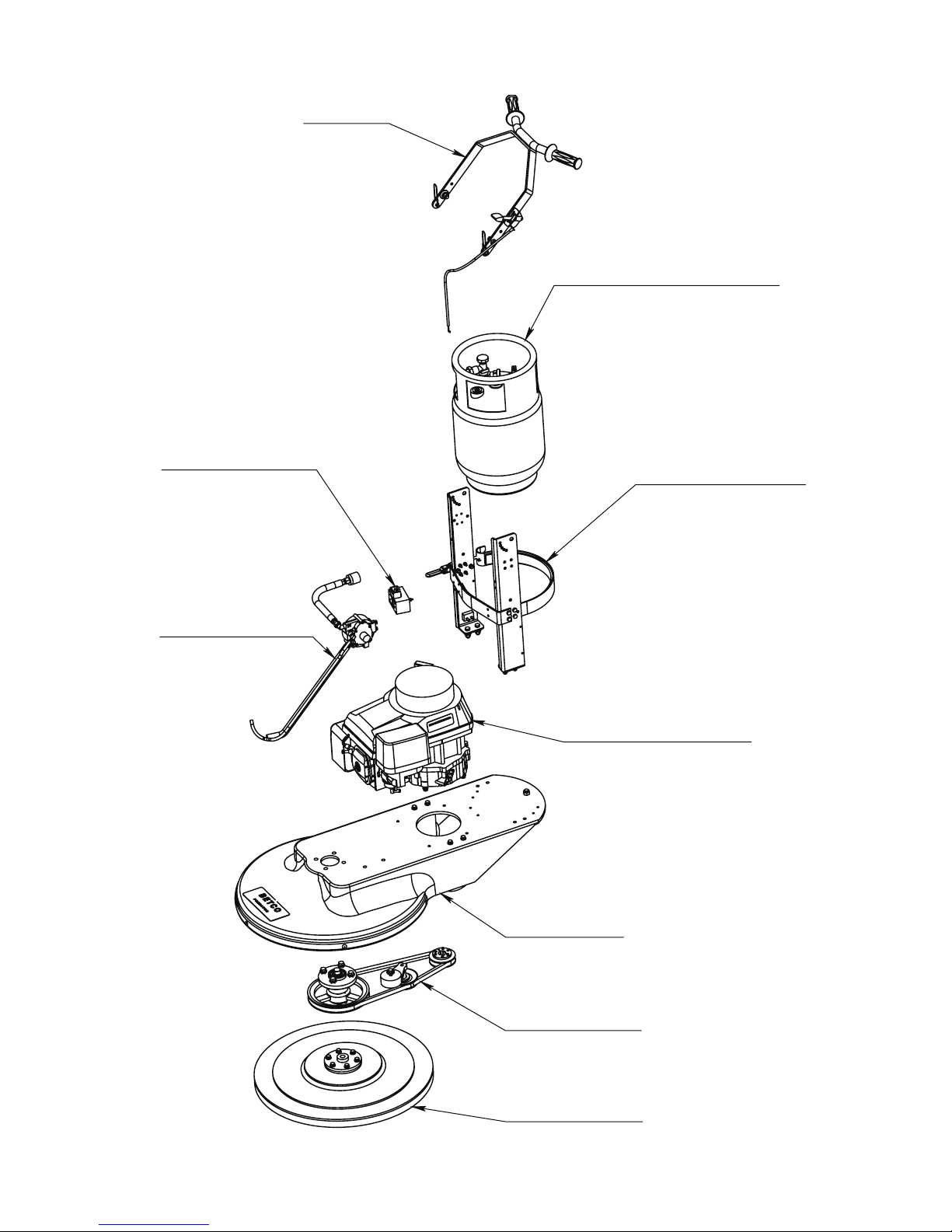

Major Assemblies......................................................9

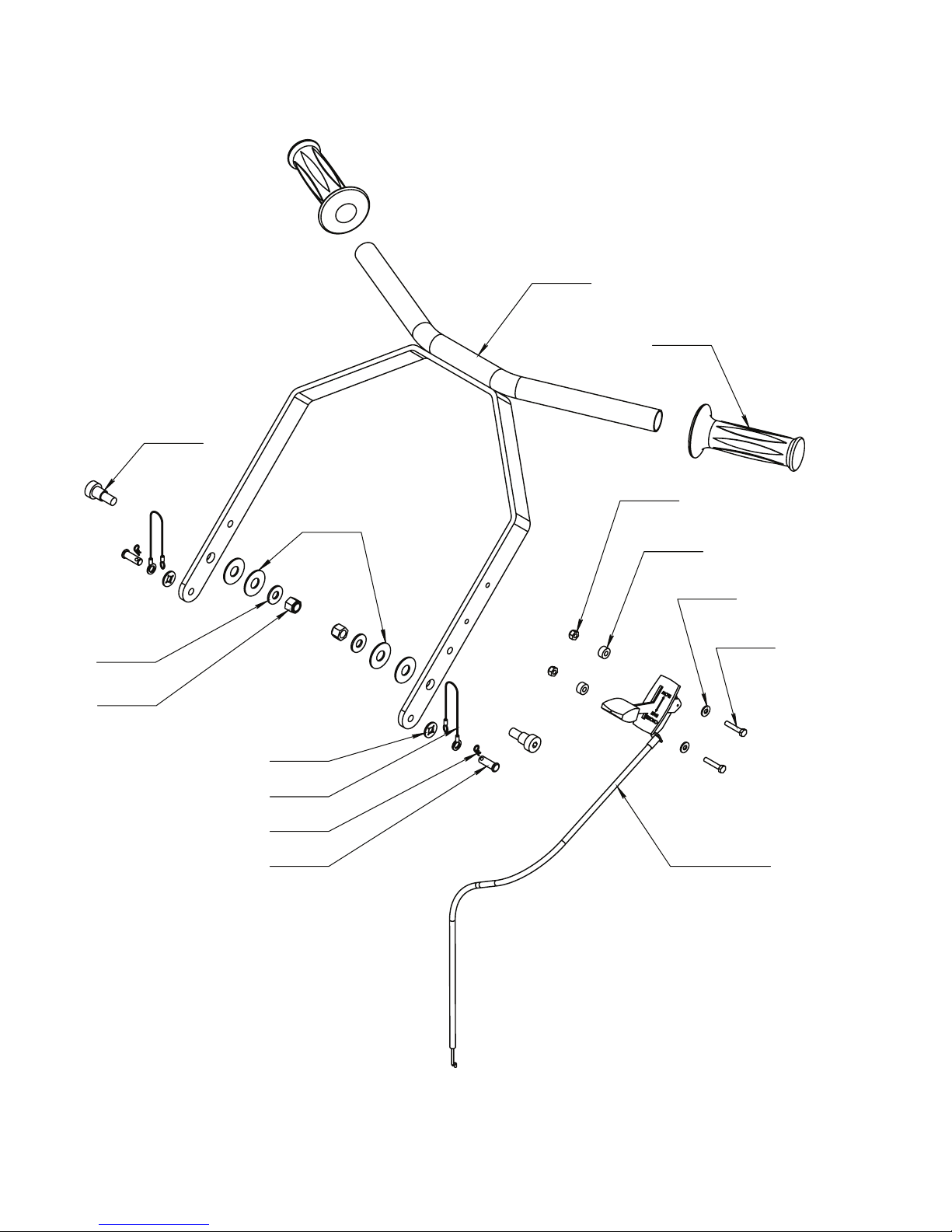

Handle Bar.................................................................10
Lower Handle Support.............................................. 12

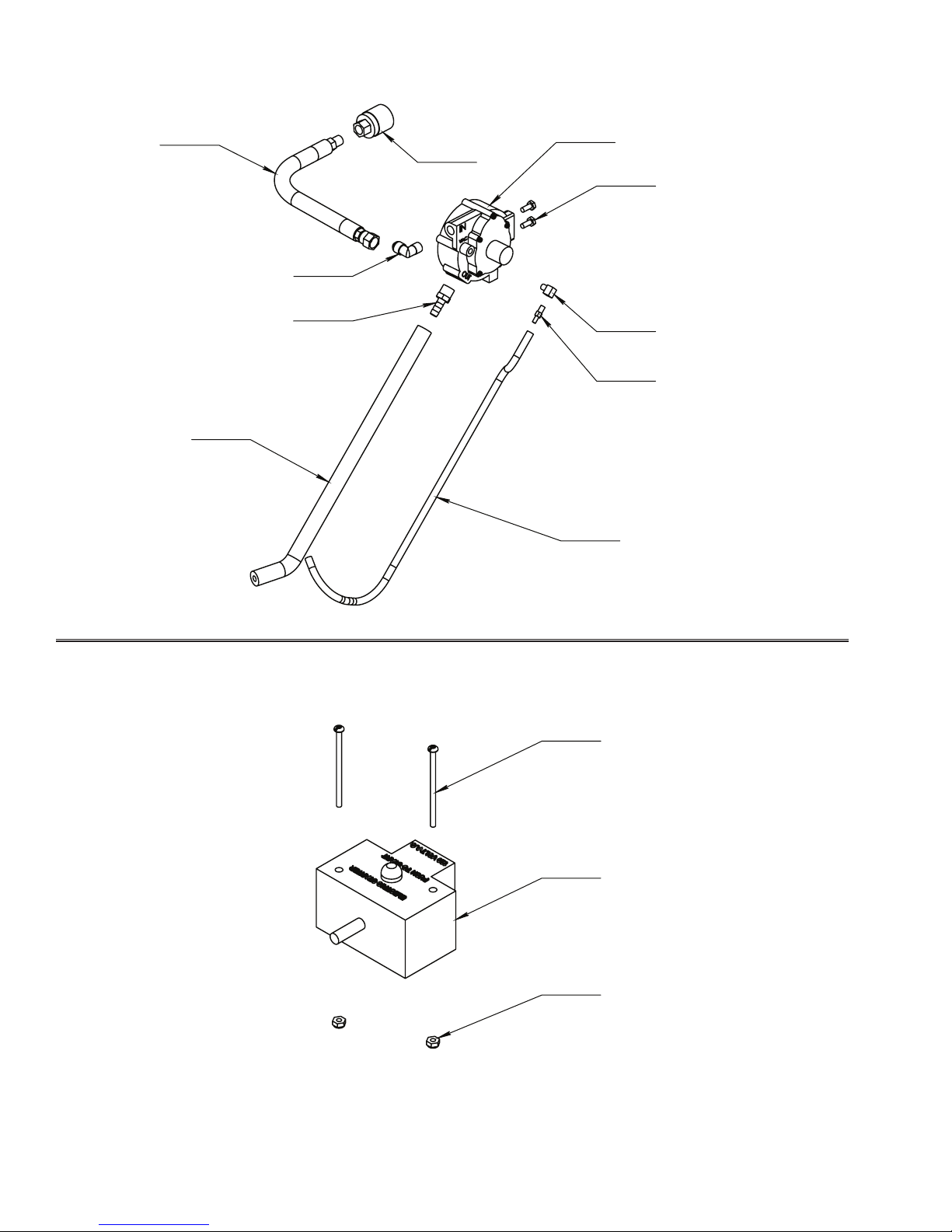

Regulator Assembly.................................................. 14
110V Starter Button.................................................. 14
Honda Engine Assembly............................................16

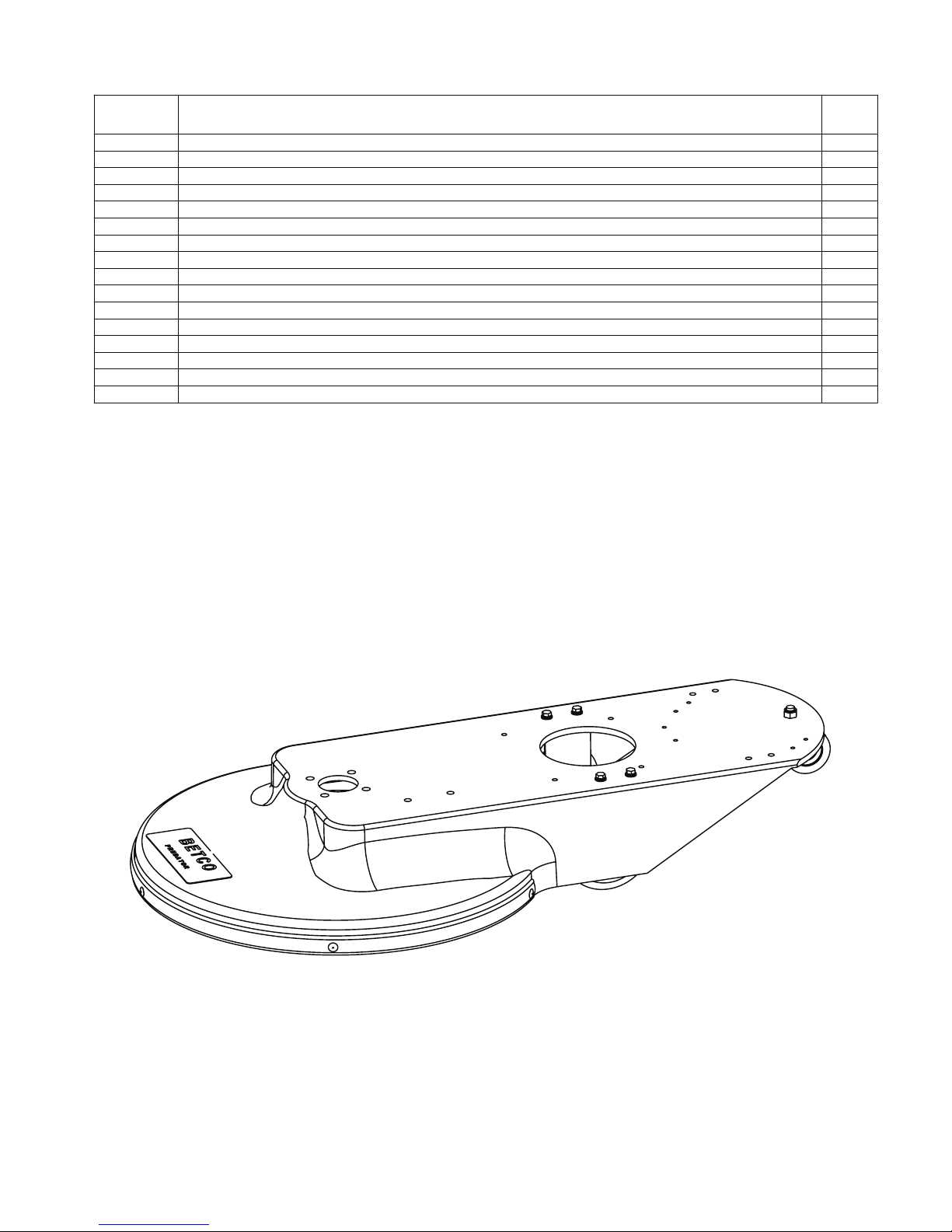

Deck Assembly..........................................................18
Belt Drive System......................................................20
Pad Drive System......................................................22
Centrifugal Clutch Assembly......................................24
Parts List...................................................................26
Electrical Schematic.................................................. 28
Engine Maintenance.................................................. 29
Troubleshooting.........................................................30
Warranty....................................................................31

3
Carbon Monoxide Poisoning Symptoms
Train your employees to know the warning signs of carbon monoxide poisoning.
Mild carbon monoxide poisoning may cause any of the following:
Headache, drowsiness, faintness, poor coordination, nausea, and vomiting.
Turn the engine off and immediately get to fresh air if you have any of these symptoms.
Do not run the machine until it is given an emissions test and repairs made by an authorized distributor.
Local emissions testing is available at a fork-lift service department.
Moderate or severe carbon monoxide poisoning causes confusion, unconsciousness, chest pain, shortness of breath, and
coma. Thus, most victims are not able to move themselves and must be rescued. Severe poisoning is often fatal.
Carbon monoxide is dangerous because a person may not recognize drowsiness as a symptom of poisoning. Consequently,
someone with mild poisoning can go to sleep and continue to breathe the carbon monoxide until severe poisoning or death
occurs. Some people with long-standing, mild carbon monoxide poisoning caused by furnaces or
heaters may mistake their symptoms for other conditions, such as the flu or other viral infections.
Carbon Monoxide Detectors
CO detectors are a must for safe operation of your equipment. Various types are available. A “CO” carbon monoxide detector
detects carbon monoxide before it reaches dangerous levels. Detectors are a must for those who run propane powered
equipment. The CO Detector is for everyone’s protection against Carbon Monoxide Poisoning.
• Carbon Monoxide Detector - Passive
– Effective for 30 days after package has been opened.
– Write the date opened on the detector.
– Mount with self-adhesive strip on the machine handle.
– Train machine operator to check detector regularly.
– If the orange disk changes to gray or black - your Carbon Monoxide Levels are
at a Dangerous Level.
– If the orange disk changes to gray or black you must turn your buffer off immediately and return it to your nearest
authorized distributor for an emissions test.
– Do Not Restart the machine until the emissions have been checked and corrected.
– This is for your protection as well as your customers. CO detectors are a must for safe operation and maximum
efficiency of your equipment.
– For replacement CO detectors, contact your distributor. Ask for the carbon monoxide detector,
part# E12426.
• Carbon Monoxide Detector - battery operated with alarm
– Available from various sources
•
WARNING - CARBON MONOXIDE
LETHAL EXHAUST GAS
- MUST READ THIS! -
Never Run The Engine In A Closed Building Or Confined Area
Exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless,
colorless, and can cause death if inhaled.

4
SAFETY
lmportant Safety Information
All LPG (Liquid Propane Gas) powered engines, including this engine, produce Carbon Monoxide (CO). It is a
Lethal Poison that is colorless, odorless, tasteless, and non-irritating gas. You must read “Danger: Lethal Exhaust Gas”
information below.
Keep hands, feet, and loose clothing away from all moving parts while the machine is in operation. The exhaust system
gets very hot so keep hands, clothing and any items that can burn away from the engine, engine manifold, and muffler.
These machines are tough and durable, however do not abuse the machine. With proper care and maintenance this unit
will give you years of trouble free operation.
Carbon Monoxide Safety Information
Engine exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless, colorless, tasteless, and
can cause death if inhaled. Failure to provide proper venting of CO, failure to properly maintain the engine, or failure to
properly train personnel of the dangers and warning signs of carbon monoxide exposure may result in Serious Injury Or
Death to the operator and others in the area.
Any equipment with the potential to produce carbon monoxide presents a significant hazard when used indoors.
They must be used with great caution. Opening a door or window, or running an exhaust fan will not necessarily
supply adequate ventilation. Avoid inhaling exhaust fumes and never run the engine in a closed building or
confined area without proper ventilation.
Do not allow engine to run unattended.
If you have any indication that the engine is not running properly, immediately shut the machine off and have it
checked over and repaired by qualified maintenance personnel.
Workers should be trained to recognize the hazards of carbon monoxide and the early symptoms of carbon
monoxide poisoning.
A carbon monoxide detector and alarm should be available to alert workers of emissions.
Have a carbon monoxide detector attached to machine handle or have machine operator wear a carbon monoxide
detector. (See carbon monoxide detector page).
Use only as described in this manual.
Use only manufacturer’s recommended components.
Maintenance and repairs must be done by qualified personnel.
Only trained operators should be allowed to operate propane powered floor machines.
If the machine is not working properly, have it serviced by an authorized service center.
Install fuel cylinder in a well ventilated place.
Be aware of possible leaks of propane gas if odor is present.
If the machine is stored inside a building, remove the fuel cylinder and store properly outside.
Secure fuel cylinders when being transported.
If tank is left attached to the machine then valve should be OFF.
Never store fuel cylinders in a vehicle, building, or area where they may exposed to high temperature.
Do not operate the machine with any openings blocked.
Keep openings free of debris that may reduce airflow.
Remove fuel cylinder and disconnect battery before servicing.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

5
TANK USE AND STORAGE
Propane Tank Use
We use the Worthington gas cylinders designed for vapor withdrawal. The fuel lock offs, regulators, and engines are
also designed for vapor withdrawal.
We recommend that you use the OPD (Overflow Protection Device) vapor withdrawal type cylinder. These style
tanks have a triangle shaped valve handle.
Do not overfill - the best gauge is a scale - never allow tank to weigh over 36 pounds for an aluminum tank and
43 pounds for a steel tank.
Connect fuel cylinder to machine in a well ventilated place.
Be aware of possible leaks of propane gas if odor is present.
Use propane tanks designed for vertical use only.
Propane Tank Storage
Store tanks outside in a well-ventilated area.
Never store fuel cylinders in a vehicle, building, or area where they may exposed to high temperature.
If the machine is stored inside a building, remove the fuel cylinder and store properly outside.
Secure fuel cylinders when being transported.
If tank is left attached to the machine then valve should be OFF.
Store tanks in the upright position (valves up).
Be aware of possible leaks of propane gas if odor is present.
STARTING AND STOPPING
THE HONDA ENGINE
Starting The Honda Engine
The Honda engine is equipped with a 110 volt starter and a push button start.
Place propane tank into handle assembly and close propane tank strap clamp to secure tank.
Attach propane hose coupling and fully tighten.
Tilt machine back so that pad is off the floor.
Open propane tank valve (turn counterclockwise) and check for any leaks.
Plug cord into starter connection and plug into wall outlet.
Push and hold throttle cable in the "Choke" position.
Push the red start button and hold until engine starts. Do not crank for more than 20 seconds at one time.
Wait at least one minute between tries when cranking. See troubleshooting guide if the engine does not start
after several tries.
After engine starts, set throttle to a slow operating speed until the motor warms up. Engine speed may be
increased after 3 to 5 minutes.
Unplug the cord from the wall and the machine and return the cord to its storage position.
Check for frost on the regulator and fuel line. Frost will indicate that the machine is drawing liquid propane
from an overfilled or incorrect tank.
Stopping The Honda Engine
Turn propane tank valve to the closed position (turn clockwise) and allow the engine to continue running until
it runs out of fuel.
•
•
•
•
•
•
•
•
•
•
•
•
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
1.

6
OPERATOR PREPARATION
Before Starting the Machine
Read the Owner’s Manual and the Engine Operation Manual.
Your machine is shipped ready for operation; however there is no fuel in the tank. When having the tank filled, you
must make sure the tank is never over-filled.
The best way to do this is to tell the filling station to weigh the tank full. On an aluminum tank, it should weigh
no more than 36 pounds and on a steel tank no more than 43 pounds. (See more information at “Tank Storage
and Maintenance” page.)
Adjust the handle for comfortable operation. Remove hairpin cotter pins from clevis pins, remove pins, and adjust to
the hole alignment that gives the most comfortable height. Replace clevis pins and hairpin cotter pins. Tighten nuts and
bolts if needed.
Make sure pad is not torn, pad is well attached and centering device is tightened.
Check Oil Level: Starting the engine without the proper amount of oil will cause severe engine damage. Always keep
the engine oil level between the full and add marks on the dipstick. Do not loosen oil fill cap or remove dipstick while
engine is running.
Park your burnisher on a level surface.
Turn the oil fill cap counter clockwise and then lift from the fill tube.
Wipe the dip stick clean and push it back into the oil fill tube until the cap seats and then withdraw it to check:
the oil level. (Do not screw cap on to check oil). Add if necessary. If the oil level is low, add API Class SM oil
having a SAE viscosity grade appropriate for the expected temperatures as indicated in the Operators Manual
(Usually a HD30 or 10W30).
Important Note: Do Not Overfill
Replace oil cap.
Inspect fuel hoses and fittings for wear and leaks. Have all worn hoses and leaks repaired before operating.
Look and listen for exhaust leaks. Have all leaks repaired before operating.
Check the carburetor filter and air filter for debris. Clean and replace if necessary.
Connect fuel hose to tank by screwing the hose fitting to tank. You must tighten all the way down to make fuel
connection. Turn tank knob slowly until you hear the flow of fuel into fuel system.
•
•
•
•
•
•

7
BELT TENSIONING
Use 15/16" socket with extension to
tighten tensioner in direction of arrow.
Test tension by pushing or pulling on belt or belt tensioner.
With proper belt tension the pulley on the belt tensioner
should only move about 1".
Use 9/16" wrench to tighten tensioner bolt.
Tilt Machine back onto rear caster or tilt machine onto its side with the air filter up .1.
Remove the pad driver using 3/4" open ended wrench. (See pad changing & pad driver removal section) 2.
On top of the deck use a 9/16" wrench to loosen the belt tensioner bolt. 3.
Using a 15/16" socket and extension, fully tighten the belt tensioner from the underside of the deck. 4.
Back off fully tightened belt tensioner about 10-15 degrees about 1 mark or about 2 inches at the end of 5.
the socket handle. (Note: There are 5 marks on the side of the tensioner. Each mark is equal to about
15 degrees and this leaves about 60 degrees of tightness.)
While holding the belt tensioner in position tighten the tensioner bolt on top of the deck. 6.
TIGHTEN SECURELY!
Hand test the tensioner by pushing and pulling on the tensioner. The belt should be tight and the arm 7.
should move about 10-15 degrees about 1".

8
Tilt the machine back on its caster. 1.
Unscrew the pad center threaded hold. 2.
Remove the pad from the pad driver. 3.
Get new, correct size pad for burnisher. 4.
Center new pad on pad driver. 5.
Screw in the pad center threaded hold 6.
until tight.
Place machine upright. 7.
Set front of machine on floor to ensure 8.
pad driver grips pad before starting.
Tilt the machine so the air filter is up .1.
Unscrew the pad center threaded hold. 2.
Remove the pad from the pad driver. 3.
Get new, correct size pad for burnisher. 4.
Center new pad on pad driver. 5.
Screw in the pad center threaded hold 6.
until tight.
Place machine upright. 7.
Set front of machine on floor to ensure 8.
pad driver grips pad before starting.
PAD CHANGE METHODS
Caution: Muffler May Be Hot!
PAD DRIVER REMOVAL
Spin the pad driver the direction of
the arrow to loosen.
Use a 3/4" open end wrench as
shown to hold pad drive shaft while
spinning the pad driver.
When screwing on the pad driver
spin pad driver in opposite direction
of arrow. Snug pad driver without
wrench. When the machine is
started the contact between the
floor and the pad will tighten the
pad driver completely.

9
MAJOR ASSEMBLIES
Handle Bar
E12423 - Steel Propane Tank
Lower Handle Support
Deck Assembly
Belt Drive System
Pad Drive System
Honda Engine Assembly
Regulator Assembly
110V Starter Button
E12422 Aluminum Propane Tank

10
HANDLE BAR
E12696
E86228
E86125
E11420
E10120
E11645
E10385
E10212
E12476
E83145
E81062
E81076
E10328 E86226 (20")
E86220
PE50087 -- Pin & Lanyard Assembly
(E10212, E10385, E10328)

11
Note: Not available for purchase assembled.
PART
NUMBER
Description QTY.
E10120 Nut, #10-32, Nylon Lock, Grade 5, Zinc 2
E10212 Washer, 5/16" Flat Push On, Zinc 2
E10328 Pin, 5/16" x 0.875 Clevis With Cotter Pin Hole, Zinc 2
E10385 Lanyard, 3/64" x 6.000" 2
E11420 Washer, #10 SAE, Zinc 2
E11645 Pin, Hairpin Cotter #1 2
E12476 Screw, Shoulder 1/2" x 1/2" Socket Head 2
E12696 Hand Grip 2
E81062 Washer, 5/16" USS, Zinc 2
E81076 Nut, 0.375 - 16, Gr 5, Nylon Lock 2
E83145 Washer, Nylon 1/2" ID X 1.25" OD 4
E86125 Screw, #10-32 x 1.000 Hex Head, Zinc 2
E86220 Handle Bar Weldment 1
E86226 Honda Throttle Cable 20" L 1
E86228 Spacer, #10 ID x 1/2" OD x 1/4" Long, Black Nylon 2
PE50087 Pin & Lanyard Assembly (E10212, E10385, E10328) 2

12
E86125
E11702
E86116
E81063
E10120
E86120
E86115
E83629E81076
E81062
E86119
E86117
E10457 (5")
E10457 (13")
E81089
E81089
E81063
LOWER HANDLE SUPPORT

13
Note: Not available for purchase assembled.
PART
NUMBER
Description QTY.
E10120 Nut, #10-32, Nylon Lock, Grade 5, Zinc 4
E10457 Felt, 1.500 W x 0.150 Thick, Adhesive Back 2
E11702 Propane Tank Strap Latch 1
E81062 Washer, 5/16" USS, Zinc 4
E81063 Nut, 5/16"-18, Nylon Lock, Grade 5, Zinc 6
E81076 Nut, 0.375 - 16, Gr 5, Nylon Lock 4
E81089 Screw, 5/16"-18 x 0.750 Hex Head, Grade 5, Zinc 6
E83629 Screw, 3/8"-16 x 1.250 Hex Head, Grade 5, Zinc 4
E86115 Lower Handle Leg Left 1
E86116 Lower Handle Leg Right 1
E86117 Propane Tank Strap Front 1
E86119 Hour Meter, SenDEC 5-80V 1
E86120 Propane Tank Strap Back 1
E86125 Screw, #10-32 x 1.000 Hex Head, Zinc 4

14
E10751
E12298
E10734
E10084
E10083
E10077
E10080
E12359
E10074
E10752
E10595
E12277
E10596
REGULATOR ASSEMBLY
110V STARTER BUTTON

15
Note: Not available for purchase assembled.
Note: Starter button and Starter come as one part and are attached by the wire.
PART
NUMBER
Description QTY.
E10074 Honda Lola Fuel Hose 1
E10077 Fitting, 1/8" MNPT x 1/8" Barb, Hose Barb 1
E10080 Fitting, 3/8 MNPT x 3/8 Barb, Hose Barb, Brass 1
E10083 Fitting, 1/8" MNPT x 1/8" FNPT, Street Elbow, Brass 1
E10084 Fitting, 3/8 MNPT x 3/8 MJIC, 90 Elbow, Brass 1
E10708 Cable Tie, Nylon AF525 3
E10734 Screw, 1/4"-20 x 0.625 Hex Head, Grade 5, Zinc 2
E10751 Propane Tank Coupling 7141F 1
E10752 Vacuum Hose 1
E12298 Fuel Regulator 60B 1
E12359 Fuel Hose 1
PART
NUMBER
Description QTY.
E10595 Screw #6-32 x 2.500 Pan Head, Slot, Zinc 2
E10596 Nut, #6-32, Nylon Lock, Grade 5, Zinc 2
E12277 Starter Button 1

16
E10371
E10942
Engine Part
E12279
E12278
PE50031
E10950
E12277
Engine Part
E12444
E10601 E10126
E81067
E12444
E81063
E10022 -- Ignition Coil
E10963 -- Spark Plug, NGK
E10967 -- Gasoline Ready
11HP Engine
E10971-- Gasoline Ready
13HP Engine
E11464 -- Head Gasket
E12426 -- CO Detector
Badge
E12440 -- Oil Level Switch
E10944
PE50030
E12444
E10545
Engine Idle RPM
1700-1730
HONDA ENGINE ASSEMBLY

17
Note: Starter button and Starter come as one part and are attached by the wire.
PART
NUMBER
Description QTY.
E10022 Voltage Regulator 1
E10126 Screw, 5/16"-24 x 1.250 Hex Head Grade 5, Zinc 2
E10371 Honda Oil Dipstick 1
E10545 Decal, Read Owners Manual 1
E10601 Screw,5/16"-18 x 2.000 Hex Head, Grade 5, Zinc 2
E10942 Honda Intake Filter, 13HP 1
E10944 Honda Intake Filter, 11HP 1
E10950 Honda Muffler 1
E10963 Spark Plug, NGK 1
E10967 Gasoline Ready 11HP Engine 1
E10971 Gasoline Ready 13HP Engine 1
E11464 Gasket, Engine Head 1
E12277 Honda 110V Starter 1
E12278 Honda Foam Air Filter 1
E12279 Honda Paper Air Filter 1
E12426 CO Detector Badge 1
E12440 Oil Level Switch 1
E12444 Washer, 5/16" SAE, Zinc 6
E81063 Nut, 5/16"-18, Nylon Lock, Grade 5, Zinc 2
E81067 Washer, 5/16" Split Lock, Zinc 2
PE50030 LP Ready Honda Engine, 11HP 1
PE50031 LP Ready Honda Engine, 13HP 1

18
DECK ASSEMBLY
E81089
E81067
E12444
E81088
E86118
E86225
E12689
E10141
E10902
E10705
E10202
E11282 -- 24" Deck
E11281 -- 21" Deck
21" Deck = 53" Bumper
24" Deck = 63" Bumper
E12584
E12584 is supplied
with the machine.
After removing the 5/16"
eye bolt (E11407)
insert it into the hole,
use a hammer to seat.
E10738

19
Note: Not available for purchase assembled.
PART
NUMBER
Description QTY.
E10141 Nut, 5/16"-18, Slim, Nylon Lock, Grade 5, Zinc 2
E10202 Rivet, 3/16" OD x 0.700" L with 0.600" Head 4
E10705 Bumper, Red (21" Deck = 53", 24" Deck = 63", 28" Deck = 75") 1
E10738 Decal, BETCO Predator 1
E10902 Screw, 5/16"-18 x 2.500 Hex Head, Grade 5, Zinc 2
E11281 Deck, 21" Aluminum Casting Duracoat 21 1
E11282 Deck, 24" Aluminum Casting Duracoat 24 1
E11407 Screw, 5/16"-18 x 3.250 Eyebolt with Nut, Zinc 1
E12444 Washer, 5/16" SAE, Zinc 4
E12584 Rivet, 5/16" Drive (Hammer In) 1
E12689 Wheel, 6" with Sealed Ball Bearings, Non-Marking 2
E81067 Washer, 5/16" Split Lock, Zinc 4
E81088 Nut, 1/2"-13, Slim, Nylon Lock, Grade 5, Zinc 1
E81089 Screw, 5/16"-18 x 0.750 Hex Head, Grade 5, Zinc 4
E86118 Swivel Caster 1/2"-13 x 1.000" Stud 1
E86225 Wheel Bracket 2

20
BELT DRIVE SYSTEM
E83629
E81066
E10135
E10459
E11289
E12547
E12546
1/4" Split Lockwasher
E10305 -- 24" Deck
Screw, 1/4"-20 x 0.750 Hex Head
E12400
E12403 -- 24" Deck
E12459
E12709
E12447
E10117
E10116
1/4" Split Lockwasher
E12401 -- 21" Deck
E10294 -- 21" Deck
E83269 -- 24" Deck place 2
between E12709
and aluminum deck
at this bolt location.
E83269 -- 21" Deck place 2
between E12709
and aluminum deck
at this bolt location.
Screw, 1/4"-20 x 1.500 Hex Head
E11135
