BETCO e83039-00 Genie B 14" Product manual

1
GENIE
GENIE™
B APS
B APS
14” All Purpose
Automatic Scrubber
E83039-00
1001 Brown Avenue • Toledo, Ohio 43607-0127
Customer Service: 888-GO-BETCO • Fax: [phone] • Technical Service: 877-856-5954 • www.betco.com
Operator and Parts
Manual
www.johnsonsupplyinc.com
Johnson Supply Inc. 828-283-1999 Call

2
TABLE OF CONTENTS
RECEIVING THE MACHINE........................................3 - 4
GENERAL SAFETY REGULATIONS................................. 5
PARTS DIAGRAMS AND LISTINGS.........................6 - 23
WARRANTY ................................................................. 24
www.johnsonsupplyinc.com

3
Immediately check, when receiving the machine, that all the materials indicated on delivery documents have been received and
also that the machine has not been damaged in transit. If it has been damaged, this damage must be immediately reported to
the shipper and also to our customer’s service department. Only acting promptly in this manner will make it possible to receive
missing material and to be compensated for damage.
INTRODUCTION
This is an automatic scrubber which, via the mechanical action of the
rotating brush and the chemical action of a water/detergent solution, can
clean any type of hard flooring. As it advances, it also collects the dirt
removed and the detergent solution not absorbed by the floor.
The machine must be used only for this purpose. Even the best ma-
chines will only work well if used correctly and kept in good working
order. We therefore suggest you read this instruction booklet carefully and
re-read it whenever difficulties arise while using the machine. If necessary,
remember that our assistance and customer service is always available for
advice or direct intervention.
RECEIVING THE MACHINE
Serial # Plate
SYMBOLS USED ON THE MACHINE
Valve symbol
Used to indicate the solenoid valve switch
Power symbol
Used to indicate the machine's power is on
Vacuum motor symbol
Used to indicate the vacuum motor switch
Maximum solution temperature gauge
Located near the solution tank inlet
www.johnsonsupplyinc.com

4
Working width in (mm) 13.8 (350)
Rear squeegee width in (mm) 17.3 (440)
Work capacity ft2/h ( m2/h) 11,300 (1050)
Water consumption g/m2 -
Battery - Maintenance Free, gel battery
Run time - Up to 1.25 hours
Brush & Pad (diameter) in (mm) 13.8 (350)
Brush motor HP 1/3 HP
Drive type semi-automatic
Forward movement speed mph (km/h) 1.9 (3)
Maximum grade 2%
Vacuum motor HP 1/3 HP
Solution tank capacity Gal (l) 3 (11.4)
Recovery tank capacity Gal (l) 3 (11.4)
Weight of empty machine (without battery) lb (Kg) 85 (38.6)
Weight of empty machine (with battery) lb (Kg) 135 (61.2)
Machine dimensions upright (Length / Height / Width) in x in x in 35 x 17 x 44
(mm/mm/mm) (889 / 432 / 1118)
Machine dimensions stored (Length / Height / Width) in x in x in 35 x 17 x 17
(mm/mm/mm) (889 / 432 / 432)
TECHNICAL DESCRIPTION Measurement Unit Genie™B
www.johnsonsupplyinc.com

5
The regulations below must be carefully followed in order to avoid harm to the operator and damage to the machine.
• Read the labels on the machine carefully. Do not cover them for any reason and replace them immediately if they are dam-
aged.
• The machine must be used exclusively by authorized and trained personnel.
• When operating the machine be careful of other people.
• The machine is not suitable for cleaning carpets.
• The power cable outlet must be plugged into a grounded power outlet.
• Avoid damaging the power cable by crushing, bending, cutting or stressing it.
• WARNING: do not let the power cable come into contact with the rotating brush.
• Whenever the power cable is damaged, immediately contact a BETCO service center.
• Do not mix different types of detergent as this may produce harmful gases.
• Do not set containers on the machine.
• Machine storage temperature is between -10°F and 130°F, never store outside under humid conditions.
• Operating conditions: room temperature between 33°F and 100°F with relative humidity between 30% to 95%.
• Do not expose the machine to rain.
• Never use the machine in an explosive environment.
• Do not use the machine as a means of transport.
• Never use acidic chemicals which could damage the machine.
• Avoid running the brushes with the machine stopped as this could damage the floor.
• Never vacuum up flammable liquids.
• Never use the machine to gather dangerous powders.
• Use a powder fire extinguisher in case of fire. Do not use water.
• Do not hit against shelving or scaffolding. The operator must always be equipped with the appropriate safety device (gloves,
shoes, helmet, glasses, etc.)
• Do not use the machine on surfaces with an inclination greater than the one shown on the serial plate.
• The machine is designed to wash and dry floors simultaneously. Signal the presence of wet floors with suitable signs.
• If the machine does not work properly, perform routine maintenance. Otherwise, request the assistance of BETCO technical
support.
• When replacing parts ask for ORIGINAL spare parts from your Authorized BETCO Dealer and/or Retailer.
• Always turn off the machine and unplug the power cord whenever maintenance is performed.
• Never remove guards that require tools to remove.
• Never wash the machine with direct or pressurized jets of water or with corrosive substances.
• Have your BETCO service center check the machine once a year.
• To prevent the formation of scale in the solution tank filter, do not store the machine with detergent in the tanks.
• Before using the machine make sure that all doors and covers are positioned as shown in this operating and maintenance
manual.
• When your BETCO machine is ready to be retired, the machine must be disposed of properly. It contains oils and electronic
components. The machine itself was built using totally recyclable materials.
• Use only brushes furnished with the machine or those specified in the user's manual. Use of other brushes can compromise
safety.
• This machine must be operated by trained professionals.
GENERAL SAFETY REGULATIONS
www.johnsonsupplyinc.com

6

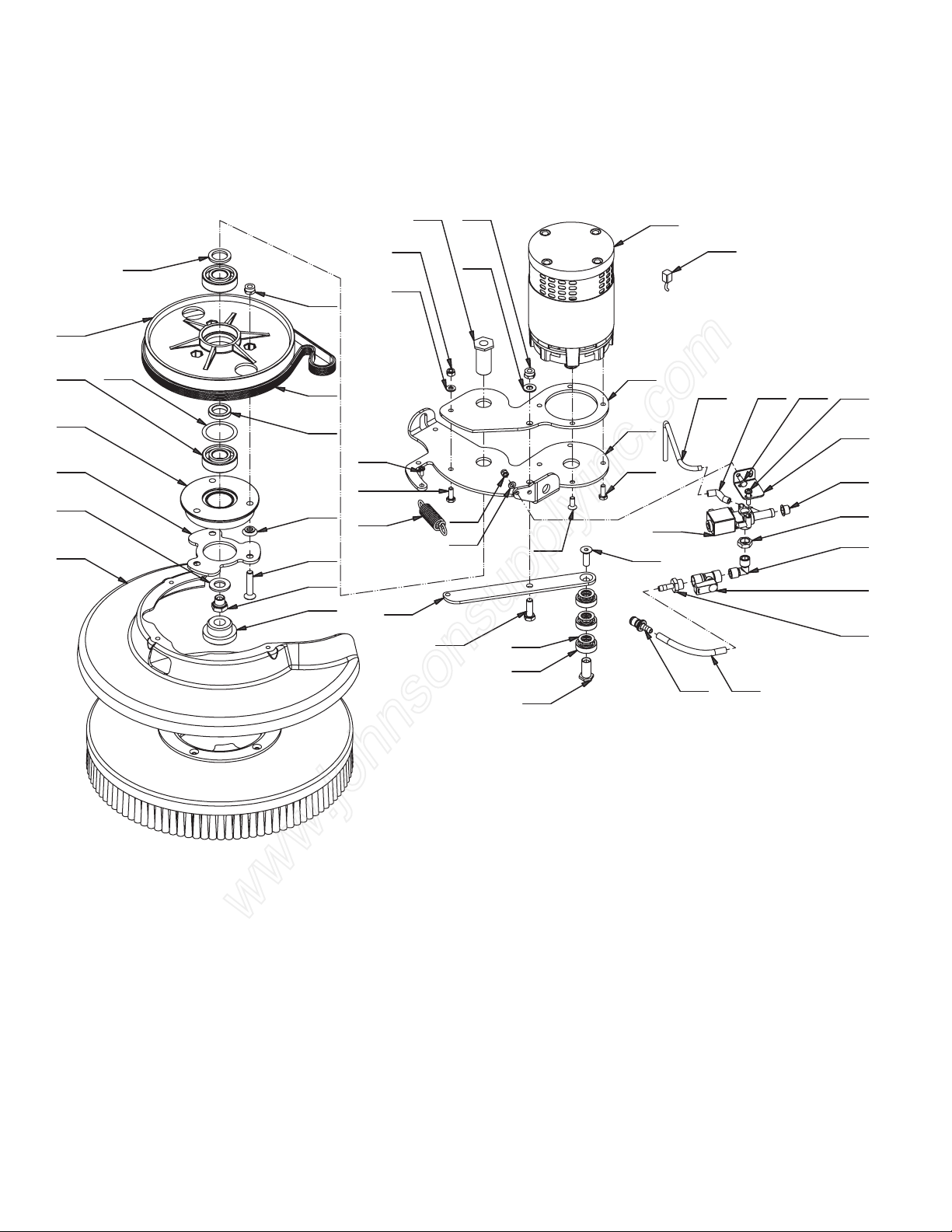

BRUSH DECK PARTS DIAGRAM
39
43
14
47
46
29
45
44
32
36
5
30
31
3
10
38
26
15
21
2
37
25
12
6
34
16
7
17
4
15
1
8
19
11
24
27
22
9
25
28
35
33
18
13
41
42
49
23
20
48
www.johnsonsupplyinc.com

7
BRUSH DECK PARTS LISTING
1 E81530 Spring, 17, 5x2, 5x69 mm 1
2 E82845 Spacer 3
3 E82844 Clutch Plate 1
4 E20503 Spacer 1
5 E88228 Bushing 1
6 E20019 Spacer 1
7 E86253 Clutch Flange 1
8 E20026 Bearing Shaft 1
9 E20403 Bracket 1
10 E20047 Motor Mount Plate 1
11 E88366 Tensioner Arm 1
12 E20553 Clutch Pulley 1
13 E82710 Hose, 8 OD x 5 ID x L 105 1
14 E81752 Tubing 5 OD x 30 L 1
15 E83547 M6x16 Bolt, Zinc Hex Head 4
16 E86667 Bearing, 6001 2RS 3
17 E81657 Bearing, 6204 2RS 2
18 E82288 Screw, Pan Hd Phil Self Tap 2
19 E83833 Hex Bolt M8x25 Zinc 1
20 E88042 Flat Hd Soc Machine Screw M6x16 Zinc 1
21 E81871 Flat Hd Soc Machine Screw M8x40 Zinc 3
22 E20291 Flat Hd Soc Machine Screw M8x25 Zinc 1
23 E82256 Nyloc Hex Nut, M5x7 Zinc 2
24 E83550 Nyloc Hex Nut, M6 Zinc 1
25 E81709 Nyloc Hex Nut, M8 Zinc 4
26 E83879 Flat Washer M5x11x1 Zinc 2
27 E82761 Washer 6x12x1.6 1
28 E81874 Flat Washer M8x17x1.6 Zinc 1
29 E20395 Flat Washer M14 SS 1
30 E83903 Shim Washer M14x22x0.3 3
31 E87290 Shim M37x47x0.3 1
32 E81719 Cap 1
33 E81967 Jam Nut, 1/4" NPT Brass 1
34 E81998 Pan Hd Phil Machine Screw M4x10 SS 3
35 E86250 Hex Bolt M5x14 Zinc 2
36 E81727 Bracket 1
37 E81541 Brush Drive Belt 1
38 E82467 Solenoid Valve 12VDC 1
39 E86167 Pipe, 1/4" x 8" Copper 1
41 E82711 Quick Disconnect, Male 1/4" 1
42 E81543 Guard, Vispa 1
43 E81550 Ball Valve, 1/4" NPT Double Female 1
44 E81551 Elbow, 90 degree 1/4" Brass NPT 1
45 E81552 Fitting, Brass, 1/4" x 7mm" 1
46 E20157 Hex Lug 1
47 E86156 Bushing 1
48 E81553 Carbon Brush 4
49 E81555 Brush Motor 12VDC 360W 1
Item# Part # Description Qty. Item# Part # Description Qty.
www.johnsonsupplyinc.com

8

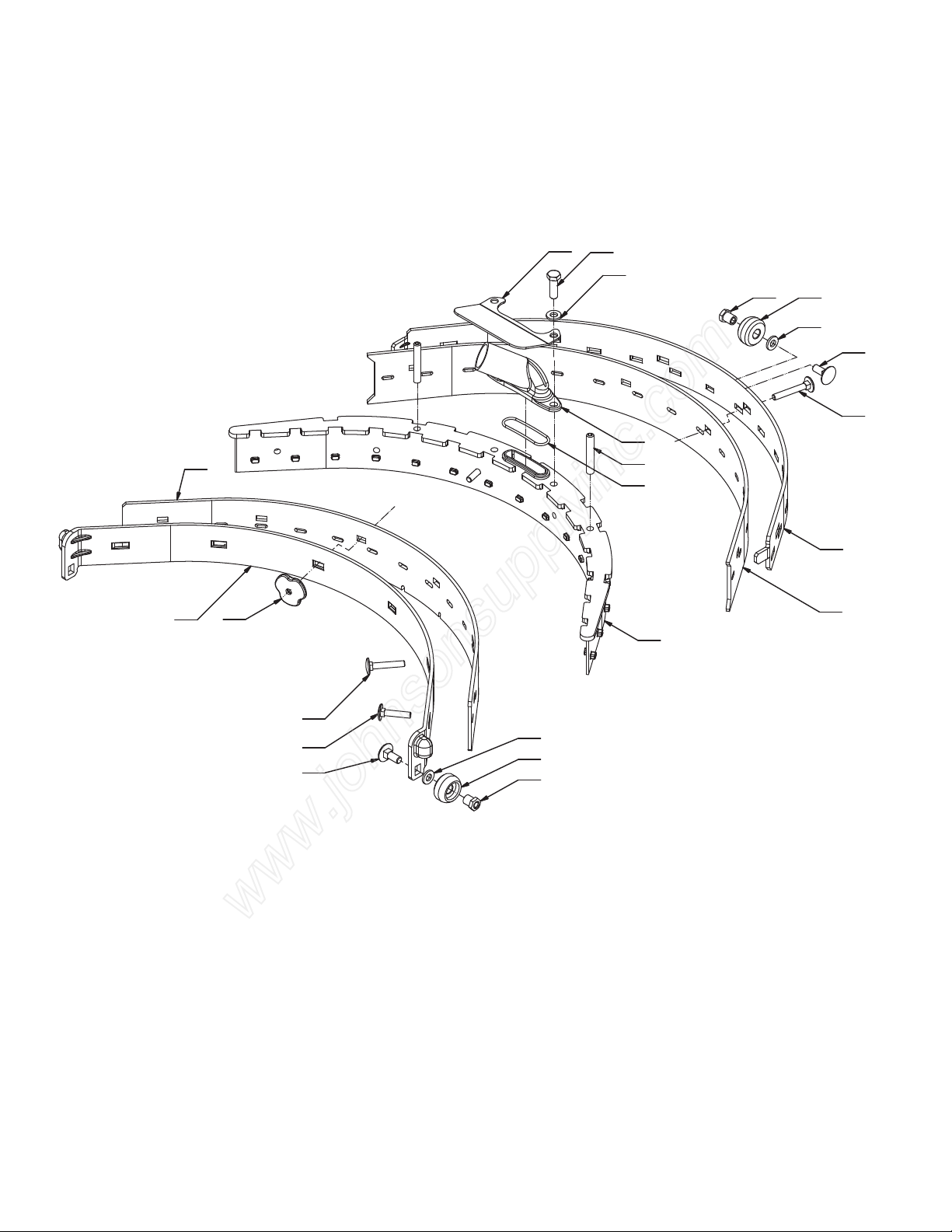

SQUEEGEE SYSTEM PARTS DIAGRAM
5
18
7
1
8
16
15 11
2
3
6
4
17
17
2
12
9
10
11
12
11
14
13
www.johnsonsupplyinc.com

9
SQUEEGEE SYSTEM PARTS LISTING
1 E81815 Squeegee Vacuum Adapter 1
2 E81897 Bushing 1
3 E85792 Squeegee Shoe 1
4 E81753 Knob M5 1
5 E83870 Squeegee Blade, Front, Shore 33 1
6 E83869 Squeegee Blade, Rear, Shore 33 1
7 E82707 Set Screw Hex Soc Flat End M6x40 SS 1
8 E81755 O-Ring 1
9 E81909 Front Squeegee Band Clamp 1
10 E82731 Rear Squeegee Blade Band Clamp 1
11 E81934 Flat Washer M6x12x1.6 SS 1
12 E81531 Squeegee Support Wheel 24 OD x 12.7 W 4
13 E20701 Squeegee Hose Guard 4
14 E20616 Carriage Bolt M5 x 35 SS 2
15 E86264 Carriage Bolt M5x25 SS 1
16 E81941 Carriage Bolt M5x30 SS 1
17 E81896 Carriage Bolt M6x16 SS 1
18 E83914 Hex Bolt M6x20 SS 1
* E81921 Complete Squeegee Assembly 1
Item# Part # Description Qty. Item# Part # Description Qty.
www.johnsonsupplyinc.com

10

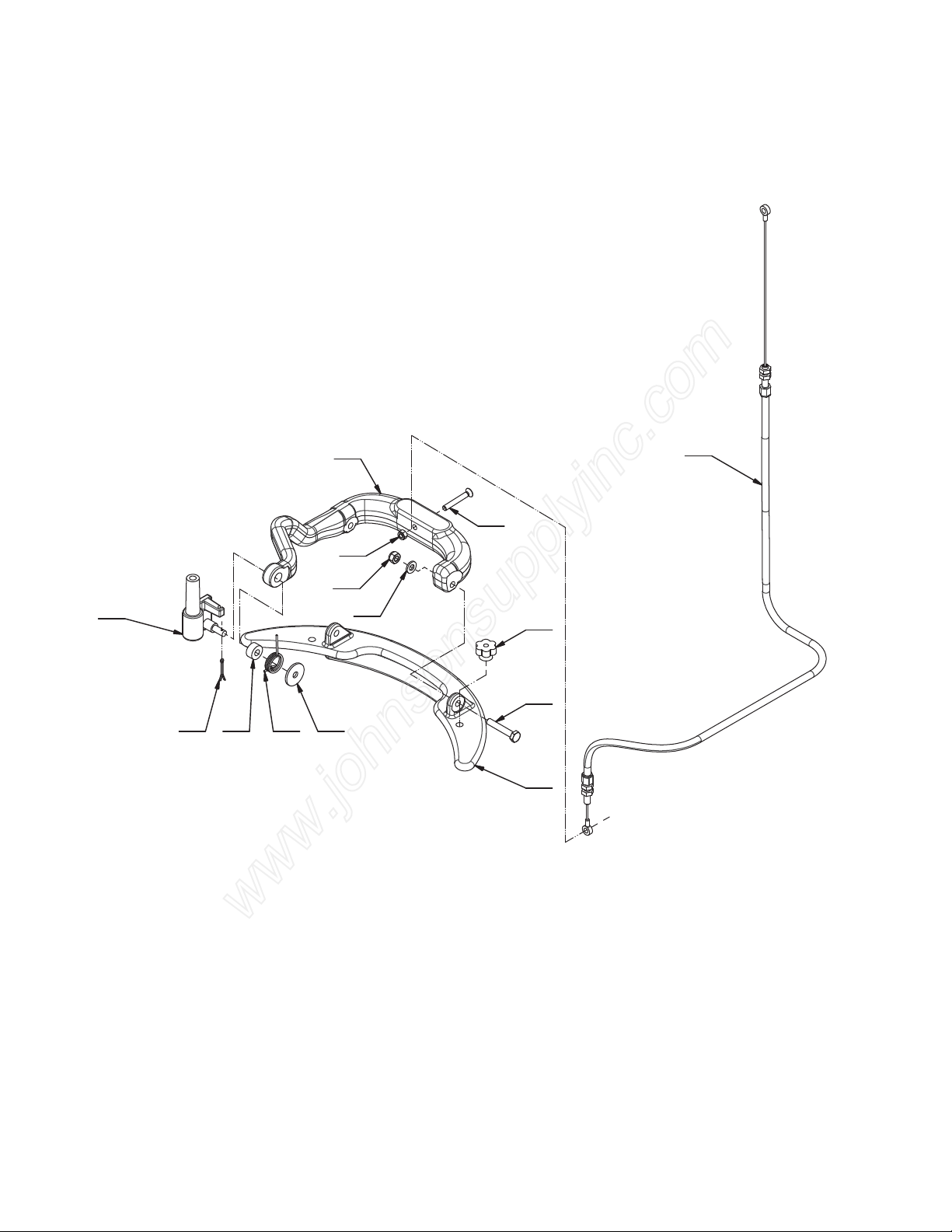

SQUEEGEE YOKE PARTS DIAGRAM
13
2
5
1
10
7
3
11 14 8
6
12
4
9
www.johnsonsupplyinc.com

11
SQUEEGEE YOKE PARTS LISTING
1 E87971 Squeegee Yoke Arm 1
2 E86153 Squeegee Yoke 1
3 E82839 Squeegee Yoke Pivot 1
4 E86263 Oval Hd Phil Machine Screw M5x35 SS 1
5 E83834 Hex Bolt M6x35 Zinc 2
6 E83550 Nyloc Hex Nut, M6 Zinc 2
7 E82761 Washer 6x12x1.6 2
8 E83278 Flat Washer M6.5x24x2 Zinc 1
9 E83710 Cotter Pin D2x20 Zinc 1
10 E83810 Knob 2
11 E86152 Spacer 1
12 E20382 Nyloc Hex Nut, M5 x 5 Zinc 1
13 E82419 Squeegee Lift Cable 1
14 E81545 Spring 1
Item# Part # Description Qty. Item# Part # Description Qty.
www.johnsonsupplyinc.com

12

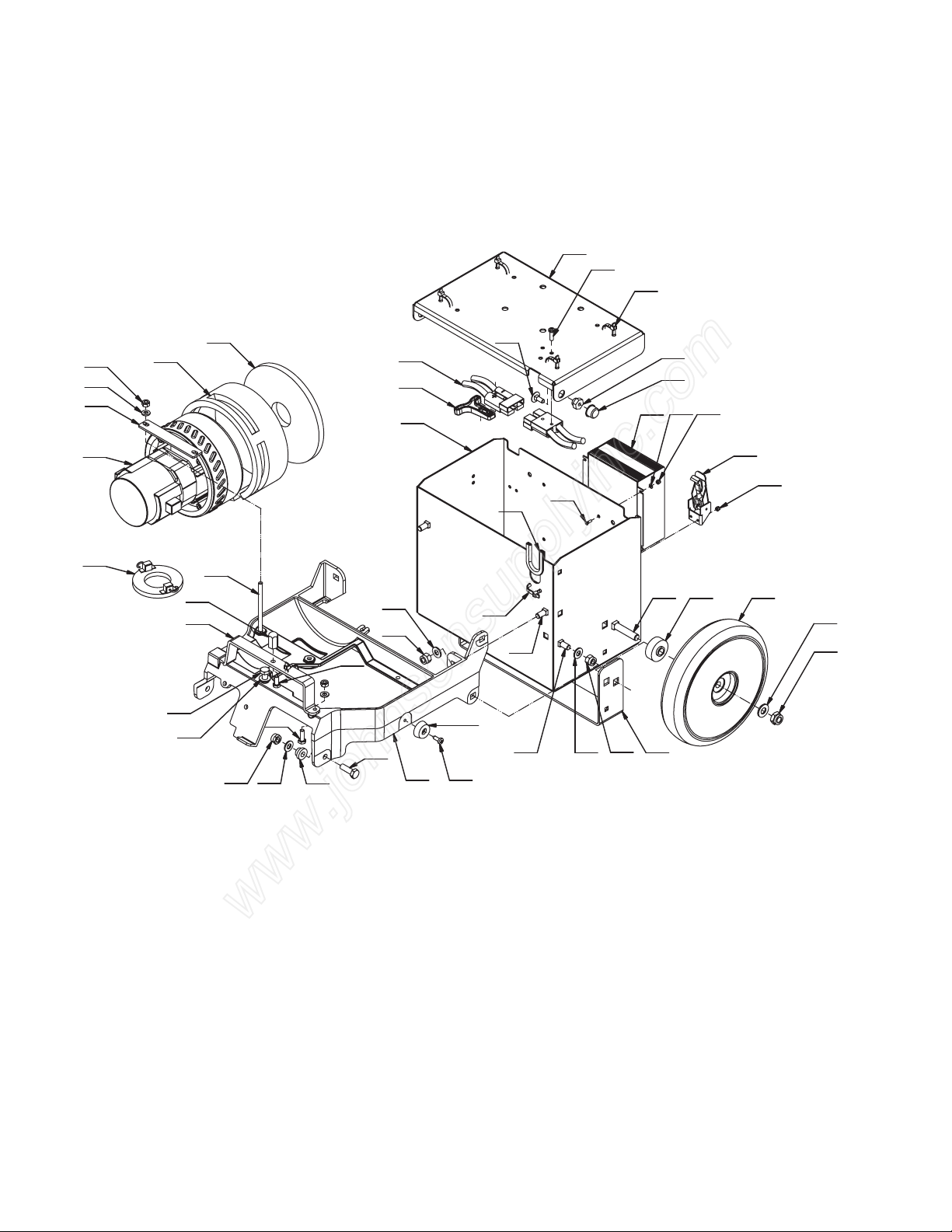

MAIN FRAME PARTS DIAGRAM
38
26
13
36
27
19
24
27
14
4
8
235
29
22
17
1
16 21
10 30
17
22
36
18
23
33
3
34
31
25
42
41
40 12
43
28
5
32
11
20
15
7
6
39
21
26
44
9
37
www.johnsonsupplyinc.com

13
MAIN FRAME PARTS LISTING
1 E20272 Bushing 2
2 E20020 Hex Lug 1
3 E86269 Bushing 2
4 E20050 Protective Trim Edging 1
5 E20587 Clamp Plate 1
6 E20053 Bracket 1
7 E83944 Sound Deadening Foam 1
8 E82456 Hex Bolt M6x14 Zinc 1
9 E20088 Hex Bolt M6x18 Zinc 1
10 E83833 Hex Bolt M8x25 Zinc 2
11 E20098 Hex Bolt M8x18 Zinc 1
12 E20108 Screw, Pan Hd Phil Self Tap M4.8x16 SS 2
13 ET1002 Screw, Pan Hd Phil Self Tap 2
14 E20098 Hex Bolt M8x18 Zinc 8
15 E83550 Nyloc Hex Nut, M6 Zinc 3
16 E81709 Nyloc Hex Nut, M8 Zinc 2
17 E81342 Nyloc Hex Jam Nut, M8 SS 4
18 ET1001 Nyloc Hex Nut, M10 SS 2
19 E81979 Flat Washer M3x7x0.5 SS 4
20 E82761 Washer 6x12x1.6 3
21 E81874 Flat Washer M8x17x1.6 Zinc 3
22 E88238 Flat Washer, M8x17x1.6 SS 4
23 E86255 Flat Washer M10x21x2 SS 2
24 E88349 SB50 Blue Electrical Connector 2
25 E89141 Charger Plug Tee Handle 1
26 E81565 Clamp, 4.8x200 Black 6
27 E20435 Nyloc Hex Nut, M3 SS 8
28 E20568 Rubber Bumper 2
29 E86215 Battery Box 1
30 E86270 Bracket 1
31 E20258 Battery Box Lid 1
32 E81538 Vacuum Motor 12VDC 250W 1
33 E81539 Transport Wheel 200 OD x 42 W 2
34 E81896 Carriage Bolt M6x16 SS 2
35 E85755 Carriage Bolt M10x50 SS 2
36 E20152 Carriage Bolt M8x20 SS 4
37 E81540 Carbon Brush 1
38 E81544
Charger 12VDC 6AMP 120VAC ONB AGM GEL BSB50 1
39 E20461 Hex Bolt M6x90 Zinc 2
40 E20383 Bushing 2
41 E20586 Cap 2
42 E86199 Latch 2
43 E87024 Main Frame Weldment 1
44 E82840 Sound Deadening Foam 1
Item# Part # Description Qty. Item# Part # Description Qty.
www.johnsonsupplyinc.com

14
SOLUTION AND RECOVERY TANKS PARTS DIAGRAM
1
3
5
2
7
8
11
6
10
14
13
9
12 4
15
2.9
2.3
2.1
2.5
2.8
2.6
2.7
2.4
2.2
www.johnsonsupplyinc.com

15
SOLUTION AND RECOVERY TANKS PARTS LISTING
1 E81532 Hose, Vacuum 29 D x 1250 L 1
2 E81534 Recovery Tank Cap ASM 1
2.1 E82853 Filter Flange 1
2.2 E82381 Gasket Ring 1
2.3 E81710 Hose Clamp 1
2.4 E81944 Grommet 1
2.5 E86217 Recovery Tank Cap 1
2.6 E81849 Vacuum Elbow Fitting 1
2.7 E81943 Vacuum Elbow Fitting Long 1
2.8 E86193 Grommet 1
2.9 E82360 Air Filter/Shutoff 1
3 E81963 Flat Hd Soc Machine Screw M5x12 SS 4
4 E83476 Rivet, M6.4x10 Nylon 4
5 E81968 Latch 2
6 E82712 Quick Disconnect, Female 1/4" 1
7 E81546 Hose, Vacuum 20 D x 1600 L 1
8 E81556 Solution Tank 1
9 E81972 Recovery Tank 1
10 E81548 Solution Tank Cap 1
11 E81549 O-Ring 1
12 E81971 Wheel Cap 2
13 E81969 Rubber Cap 1
14 E82398 Filter, Inlet 1
15 E85513 Battery Charger Cover 1
Item# Part # Description Qty. Item# Part # Description Qty.
www.johnsonsupplyinc.com

16

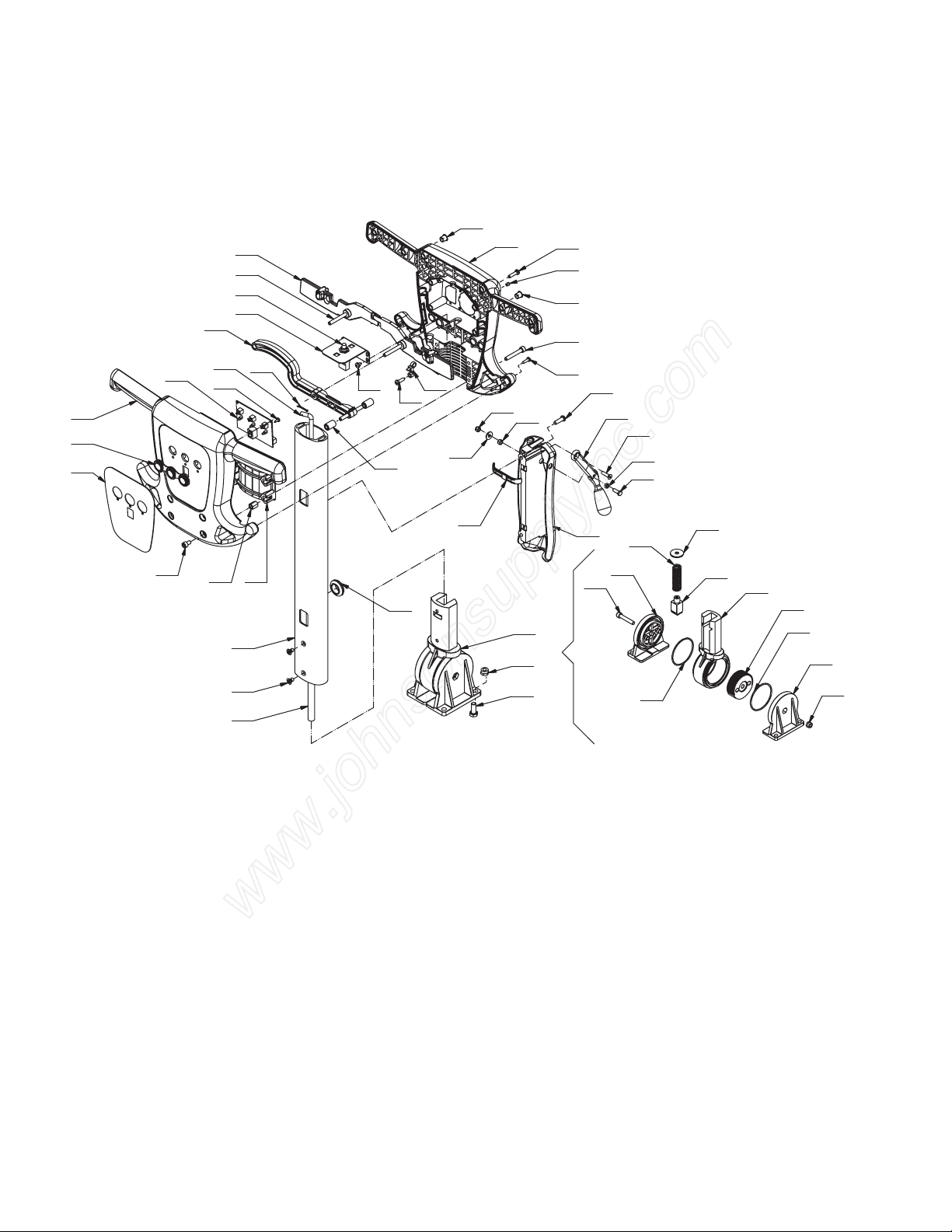

CONTROL HANDLE PARTS DIAGRAM
28 12 30
5
25
17
2
23
9
27
32
7
18
32
29
4
3
6
1
10 26
8
15
24
1
16
21
31
36
20
33
19
34 32
13
14
22
7.8
7.4
7.5
7.9
7.3
7.1
7.2 7.7
7.6 7.8
7.5
35
37
11
38
40
39
www.johnsonsupplyinc.com

17
CONTROL HANDLE PARTS LISTING
1 E85770 High Hex Nut M6x13 Zinc 4
2 E81793 Spring Pin M6x12 Zinc 3
3 E20273 Connector Tube 1
4 E20620 Handle Tube 1
5 E82721 Tie Rod 1
6 E20593 Handle Pivot Base ASM 1
7.1 E88761 Pin 1
7.2 E20519 Spring 1
7.3 E88762 Handle Coupler 1
7.4 E81709 Nyloc Hex Nut, M8 Zinc 1
7.5 E20300 O-Ring 2
7.6 E20133 Soc Hd Cap Screw M8x45 Zinc 1
7.7 E81918 Flat Washer M9x32x2.5 Zinc 1
7.8 E88763 Geared Support 2
7.9 E88764 Pivot Gear 1
7 E82288 Screw, Pan Hd Phil Self Tap 10
8 E81917 Hex Bolt M8x20 Zinc 4
9 E20342 Soc Hd Cap Screw M6x40 Zinc 4
10 E82835 Soc Hd Cap Screw M6x10 Zinc 4
11 E82257 Screw M9 x 16 2
12 E20109 Screw, Pan Hd Phil Self Tap M4.8x19 Zinc 1
13 E88765 Screw, M5x20 1
14 E82317 Hex Jam Nut, M5X3.5 Zinc 1
15 E81709 Nyloc Hex Nut, M8 Zinc 4
16 E83710 Cotter Pin D2x20 Zinc 1
17 E82796 Switch, Momentary 1
18 E81791 Plug 1
19 E88173 Flat Hd Phil Machine Screw M6x10 Zinc 2
20 E20364 Button Hd Soc Machine Screw M6x20 Zinc 2
21 E81875 Screw, Pan Hd Phil Self Tap M2.9x9.5 Zinc 4
22 E86250 Hex Bolt M5x14 Zinc 1
23 E20567 Bracket 1
24 E81792 Switch Lever 2
25 E81766 Lever, Handle Adjustment 1
26 E81994 Support 1
27 E81744 Handle Bar Console Rear 1
28 E86150 Screw, Pan Hd Phil Self Tap M4.8x9.5 SS 4
29 E20302 Grommet 1
30 E20397 Wire Clamp 1
31 E81676 Control Switch Electrical Board 1
32 E81790 Cap 2
32 E88428 Plastic Cover 1
33 E20264 Squeegee Lift Lever 1
34 E20544 Plastic Mounting Clip 1
35 E86171 Panel, Rubber Push Button 1
36 E81781 Handle Bar Console Front 1
37 E20502 Console Decal 1
38 E86132 Spacer 1
39 E20121 Flat Washer M5x15x1.5 Zinc 1
40 E20256 Nyloc Hex Jam Nut, M5 Zinc 1
Item# Part # Description Qty. Item# Part # Description Qty.
www.johnsonsupplyinc.com

18
ELECTRIC SYSTEM PARTS DIAGRAM
4
7
2
1
6
3
5
www.johnsonsupplyinc.com

19
ELECTRIC SYSTEM PARTS LISTING
1 E83547 M6x16 Bolt, Zinc Hex Head 1
2 E83550 Nyloc Hex Nut, M6 Zinc 1
3 E82761 Washer 6x12x1.6 1
4 E81767 Relay Electrical Board 1
5 E81787 Ribbon Cable 1
6 E85788 Electrical Housing 1
7 E85771 Electrical Cover 1
Item# Part # Description Qty. Item# Part # Description Qty.
www.johnsonsupplyinc.com

20

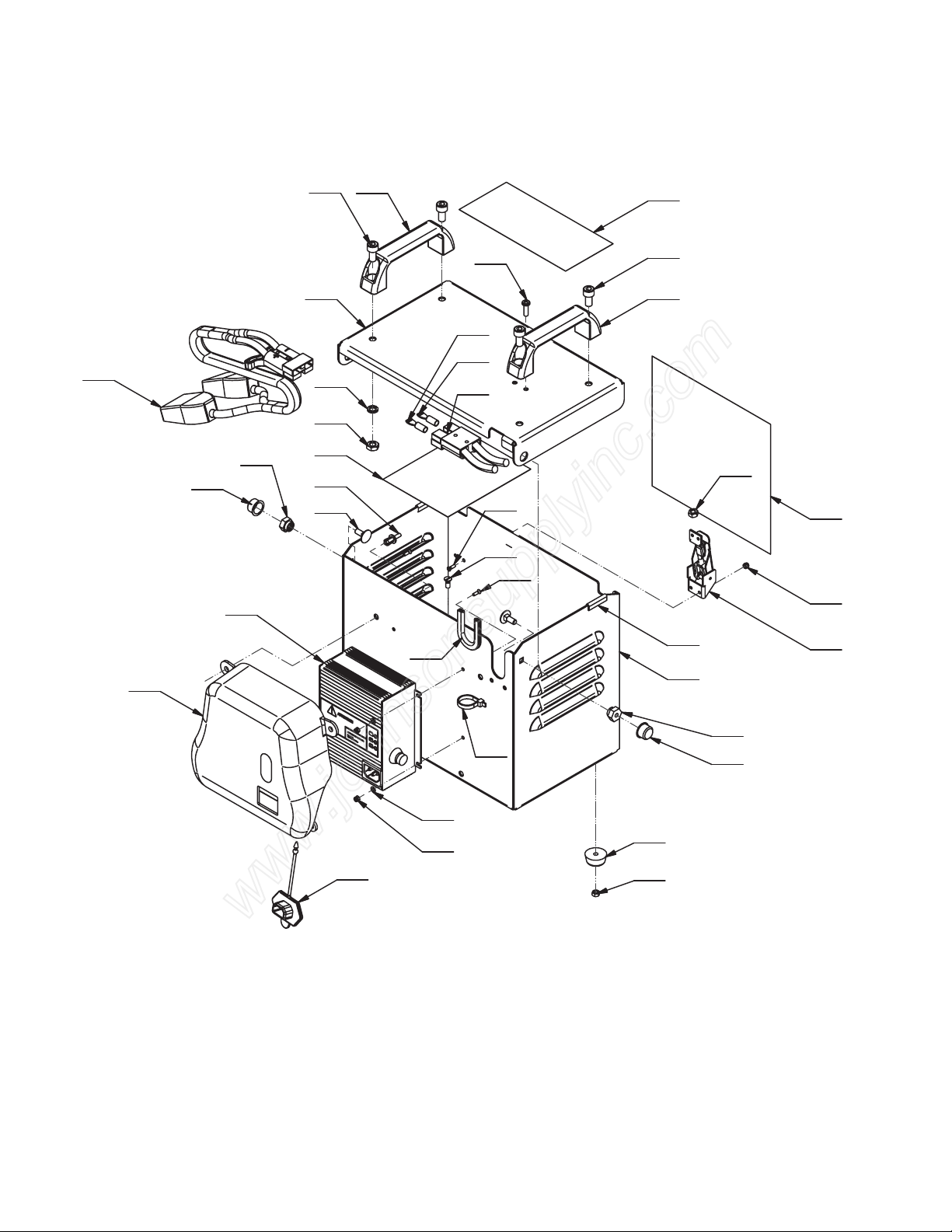

BATTERY CHARGER DIAGRAM
11
4
27
9
7
10
6
17
13
24
1
26
21
3
18
5
15
12
20
16
25
8
17
23
2
28
14
11
1
24
22 19
19
14 30
29
31
5
www.johnsonsupplyinc.com
