Betta 1000 User manual

1.
2.

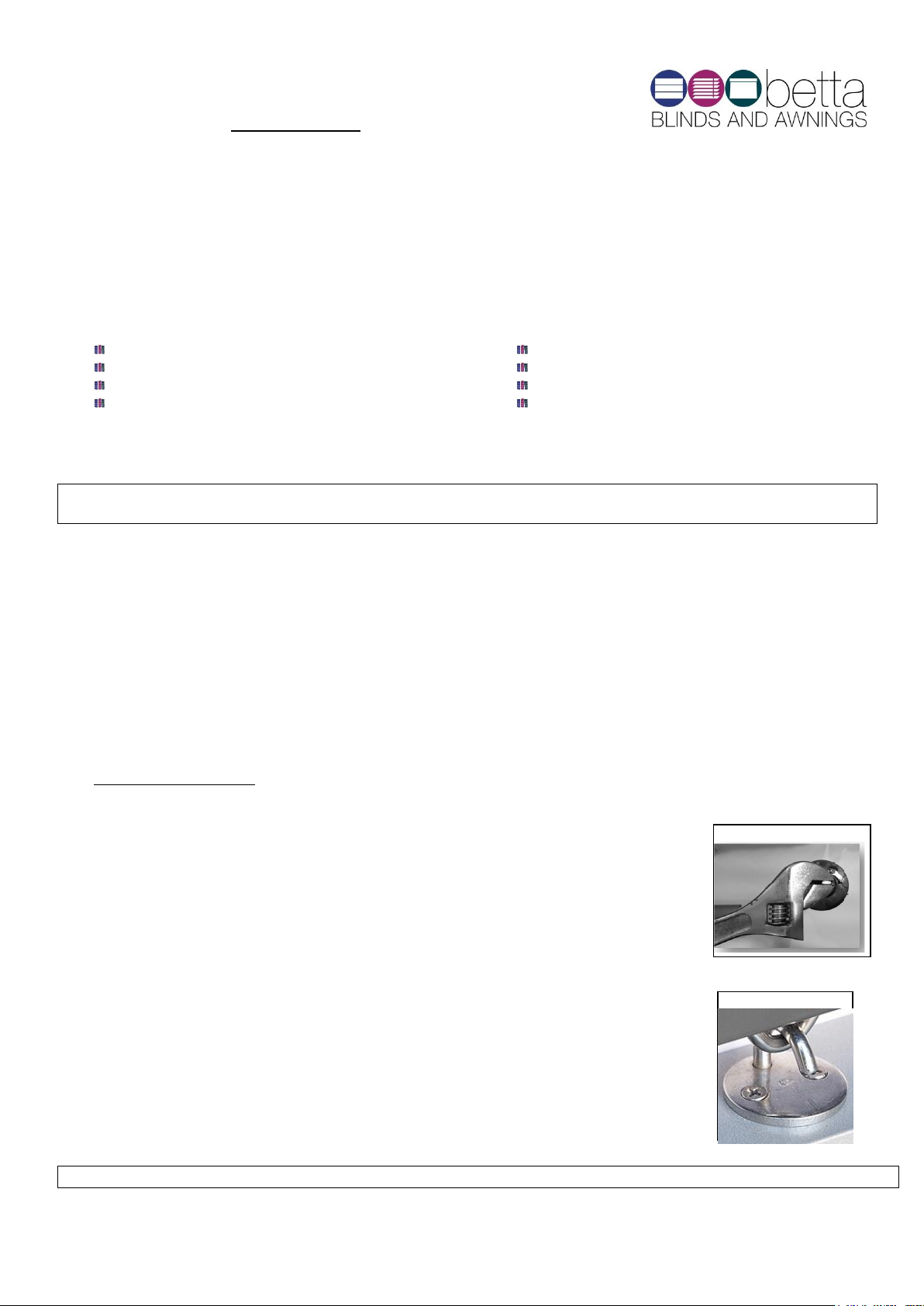

Installation Guide for Betta 1000 –Straight Drop Awning
Spring Operated with Brackets
Please Note: These instructions should be read thoroughly before installing.
This is a guide to assist in the installation and care of your external awnings. Betta Blinds and Awnings do not
guarantee the accuracy of the information contained in this guide. We recommend an experienced expert installer to
rely upon their own skills. This is based on general knowledge concerning the assembly, materials and working
process of the external blinds, which is known to us at the time of printing this guide, consequently, is subject to
change and Betta Blinds and Awnings specifically reserves the right to change this guide without notification.
Ensure all components are included in your packaging, before proceeding to install:
Universal Brackets x 2
Hooks / buttons x 2
Saddles x 2
Rivets x 4 (for saddles)
Blind
Spring Tension diagram
Pull down stick (if required)
Pull down ring (if required)
You will also need: screws, plugs, drill, hammer drill (if drilling into concrete) measuring tape, spirit level, stainless
screws, rivets, rivet gun and 6-gauge x 25mm screws (for fixing bottom saddles)
If installing on a brick wall NEVER put the screw into a mortar line. If the position, you need to drill is over a
mortar line move up to the centre of the brick above that position.
Check the size of your blind against the label, which will be attached to the packaging.
1. Install Brackets - The outside measurement from bracket to bracket is the OPEN size, it is the width of your
blind. Mark where the control end bracket is to be installed and the idle end. Drill, plug and attach brackets.
Ensure that the positions where the fasteners run through the brackets are secured into brick, or into the wall’s
structural support. NB: Ensure that the brackets are fitted level horizontally.
2. Attach saddles to bottom bar on the back straight edge. These need to be horizontal. This will be the same
measurement as the bottom hooks (step 5). If using bungee cord loops these are attached at the end of the
bottom rail.
3. ADJUSTING SPRING: Lock spring and attach a shifter to the Pin. Wind the shifter clockwise to apply tension.
Use the size chart to determine how many turns of tension are required. Link to Spring Chart Tension Below.
refer to picture 1. Do NOT let go of the shifter while tensioning as the spring has a lot of force in it. Do NOT try
and over tension the spring. When the right amount of tension has been applied, drop
the holding tab down and wind the spring back until it engages the pin
4. Install blind into brackets NB: Spring end/lock off pin should be on the left side.
5. Attach hooks/bungee buttons to bottom fixing point with screws).
NB: This measurement must be the same as saddles or bungee cord from step 2 - refer to picture 2.
6. Pull blind down and slip over hooks or bungee buttons.
Caution: Like all outdoor blinds, it is prudent to retract the blind in the presence of strong winds.

Installation Guide for Betta 1000 Straight Drop Awning
Spring Operated with Weather Box (Hood)
Please Note: These instructions should be read thoroughly before installing.
This is a guide to assist in the installation and care of your external awnings. Betta Blinds and Awnings do not
guarantee the accuracy of the information contained in this guide. We recommend an experienced expert installer
to rely upon their own skills. This is based on general knowledge concerning the assembly, materials and working
process of the external blinds, which is known to us at the time of printing this guide, consequently, is subject to
change and Betta Blinds and Awnings specifically reserves the right to change this guide without notification.
Ensure all components are included in your packaging, before proceeding to install:
Weather Box
Weather Box end caps x 2
Rivets for weather box x 6
Hooks and saddles x 2
Buttons x 2
Rivets x 4 (for saddles)
Pull down stick (if required)
Pull down ring (if required)
Blind
Spring Tension diagram
You will also need: screws, rivets, plugs, drill, hammer drill (if drilling into concrete), measuring tape, spirit level,
shifter, rivet gun and 6-gauge x 25mm screws (for fixing bottom saddles)
If installing on a brick wall NEVER put the screw into a mortar line. If the position, you need to drill is over a
mortar line move up to the centre of the brick above that position.
1. Check the size of your blind against the label, which will be attached to the packaging.
2. Fitting the Weather Box (Hood)
3. Remove the roller from the weather box.
4. Attach end caps to hood, using rivets supplied.
5. Measure the width of the hood then the width of the window. The difference between the two is the total
amount of overhang your box will have. Divide this number by two to determine how much overhang you will
have on each side. E.g. If the hood measures 2300 and the window measures 2000, the total overhang will be
300mm. dividing by two equals 150mm each side of the window.
6. Carefully raise the hood into position ensuring that it is horizontal.
Mark the top drill hole through the eyelet - refer to picture 1.
Mark your bottom hole, which is the second bottom hole.
NOTE: Auto Lock Awning shown in Pic 1, Straight Drop Awnings are Under Roll
7. Pre-drill all holes and plug. When all holes are drilled, carefully position the weather
box, and fasten with screws. Check if this is level with your spirit level.
8. If required, attach pull down ring to back of bottom bar.
9. Attach saddles to bottom bar on the back straight edge. These need to be horizontal. This will be the same
measurement as the bottom hooks. If using bungee cord loops these are attached at the end of the bottom rail.

2.
1.

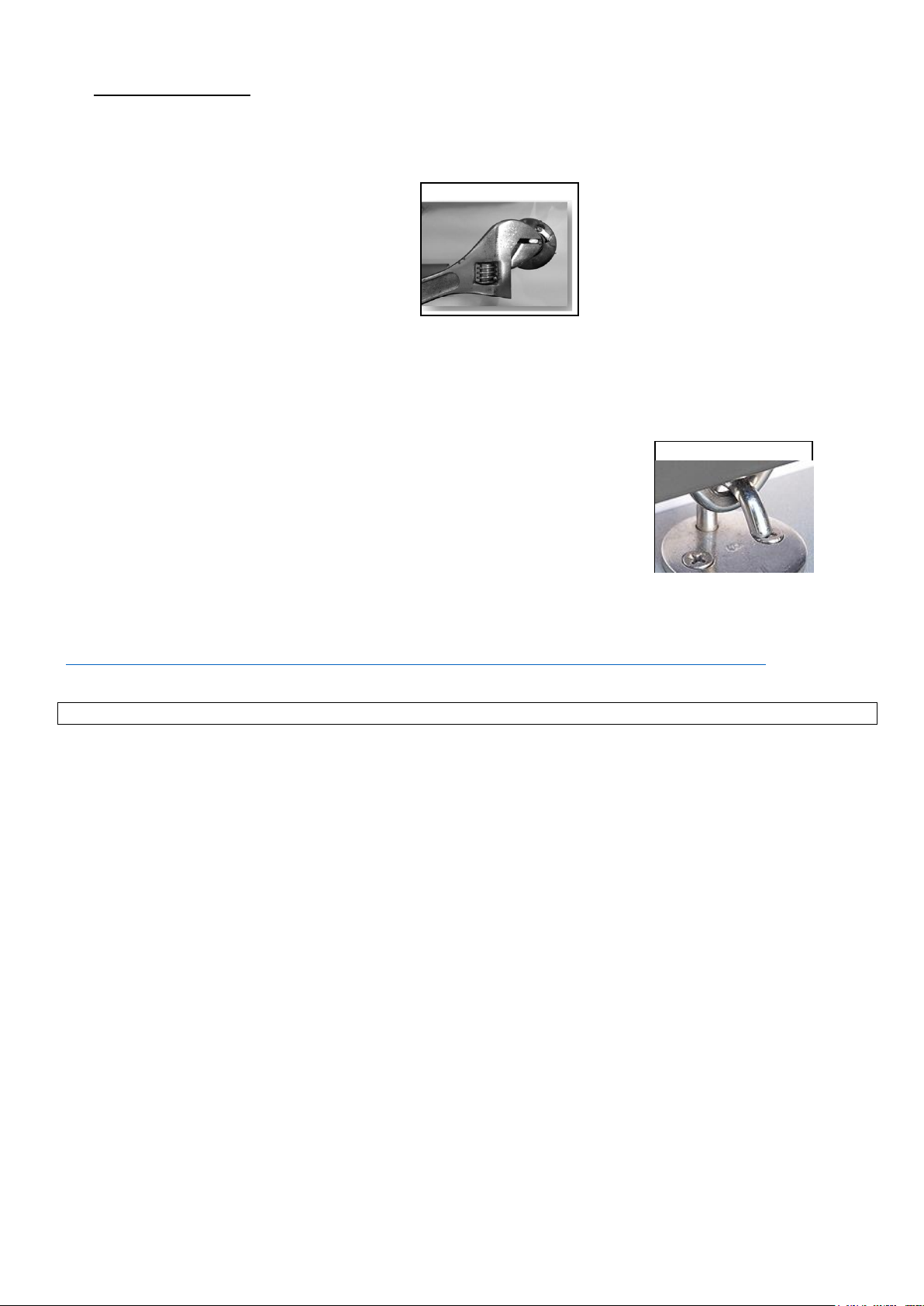

10. ADJUSTING SPRING: Lock spring and attach a shifter to the Pin. Wind the shifter clockwise to apply tension.
Use the size chart to determine how many turns of tension are required. Link to Spring Chart Tension
Below. refer to picture 1. Do NOT let go of the shifter while tensioning as the spring has a lot of force in it. Do
NOT try and over tension the spring. When the right amount of tension has been applied, drop the holding tab
down and wind the spring back until it engages the pin
11. Install blind into brackets NB: Spring end/lock off pin should be on the left side.
12. Fix hooks/bungee button to bottom fixing point with screws
NB: This measurement must be the same as saddles/bungee cords from
step 9 - refer to picture 2
13. Pull blind down and slip over hooks or bungee buttons.
Spring Tension Chart
https://www.betta-blinds.com.au/downloads/installation_guides/Spring%20Pretensioning%20Chart.pdf
Caution: Like all outdoor blinds, it is prudent to retract the blind in the presence of strong winds.

Installation Guide for Betta 1000 –Straight Drop Awning
Spring Operated with Semi Cassette
Please Note: These instructions should be read thoroughly before installing.
This is a guide to assist in the installation and care of your external awnings. Betta Blinds and Awnings do not
guarantee the accuracy of the information contained in this guide. We recommend an experienced expert installer to
rely upon their own skills. This is based on general knowledge concerning the assembly, materials and working
process of the external blinds, which is known to us at the time of printing this guide, consequently, is subject to
change and Betta Blinds and Awnings specifically reserves the right to change this guide without notification.
Ensure all components are included in your packaging, before proceeding to install:
Universal Brackets x 2
Hooks / buttons x 2
Saddles x 2
Rivets x 4 (for saddles)
Awning
Spring Tension diagram
Pull down stick (if required)
Pull down ring (if required)
You will also need: screws, plugs, drill, hammer drill (if drilling into concrete) measuring tape, spirit level, stainless
screws, rivets, rivet gun and 6-gauge x 25mm screws (for fixing bottom saddles)
If installing on a brick wall NEVER put the screw into a mortar line. If the position, you need to drill is over a
mortar line move up to the centre of the brick above that position.
Check the size of your blind against the label, which will be attached to the packaging.

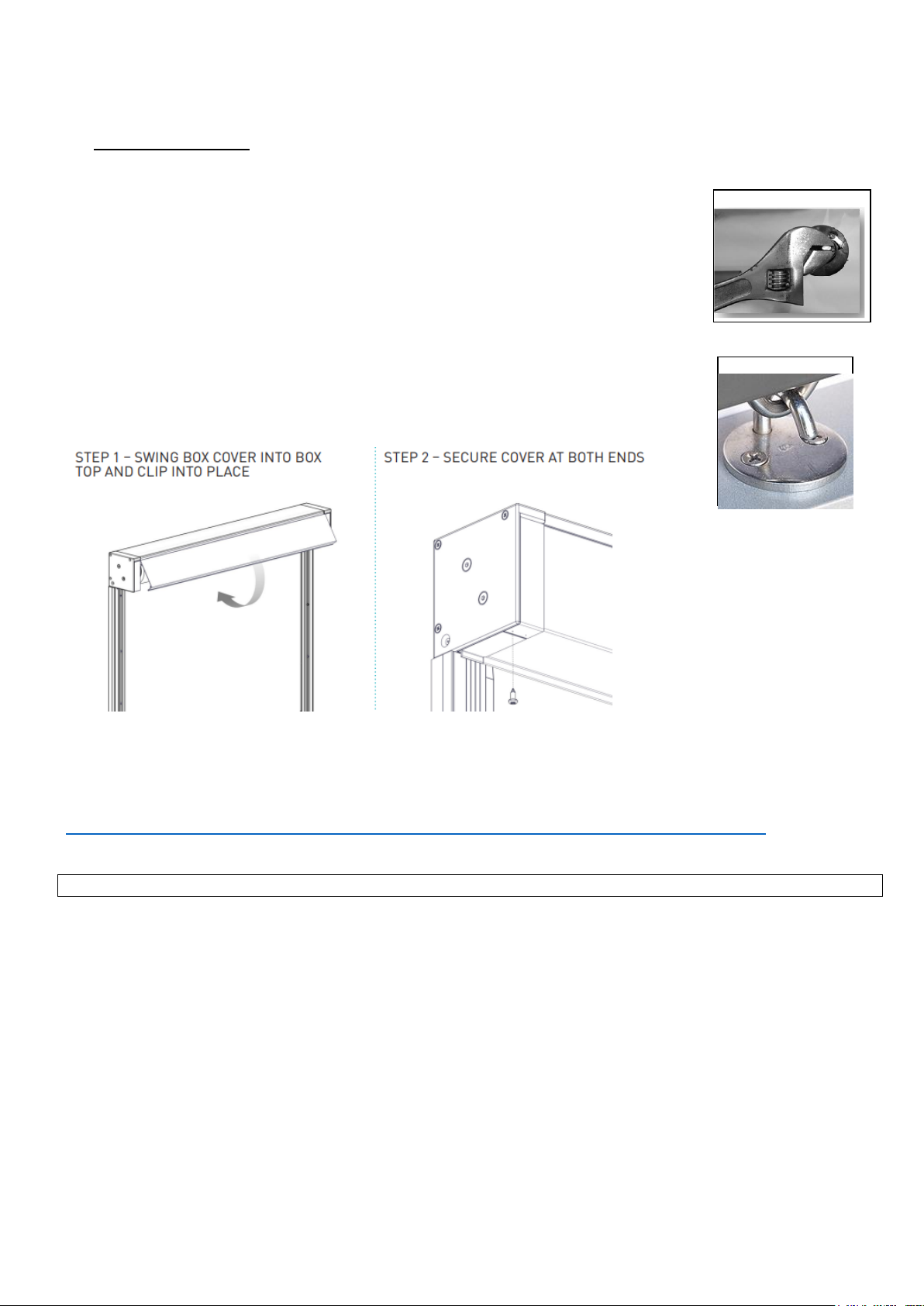

Fitting the Semi Cassette Pelmet
1. Remove the awning from the pelmet.
2. Measure the width of the hood then the width of the window. The difference between the two is the total amount
of overhang your box will have. Divide this number by two to determine how much overhang you will have on
each side. E.g. If the hood measures 2300 and the window measures 2000, the total overhang will be 300mm.
dividing by two equals 150mm each side of the window.
3. Pre-drill the holes for the Pelmet as per the desired fixing points below.
4. Carefully raise the Pelmet into position ensuring that it is horizontal. Mark the holes
5. Pre-drill all holes and plug. When all holes are drilled, carefully position the pelmet and fasten with screws.
7. Attach saddles to bottom bar on the back straight edge. These need to be horizontal. This will be the same
measurement as the bottom hooks (step 5). If using bungee cord loops these are attached at the end of the
bottom rail.

1.
2.
The Spring has been tensioned in the factory but may need to be adjusted onsite.
8. ADJUSTING SPRING: Lock spring and attach a shifter to the Pin. Wind the shifter clockwise to apply tension. Use
the size chart to determine how many turns of tension are required. Link to Spring Chart Tension Below. refer to
picture 1. Do NOT let go of the shifter while tensioning as the spring has a lot of force in it. Do NOT try and over
tension the spring. When the right amount of tension has been applied, drop the holding
tab down and wind the spring back until it engages the pin
9. Install blind into brackets NB: Spring end/lock off pin should be on the left side.
10. Attach hooks/bungee buttons to bottom fixing point with screws).
NB: This measurement must be the same as saddles or bungee cord from step 7 - refer to picture 2.
11. Pull blind down and slip over hooks or bungee buttons.
12. Close Cassette
Spring Tension Chart
https://www.betta-blinds.com.au/downloads/installation_guides/Spring%20Pretensioning%20Chart.pdf
Caution: Like all outdoor blinds, it is prudent to retract the blind in the presence of strong winds.
