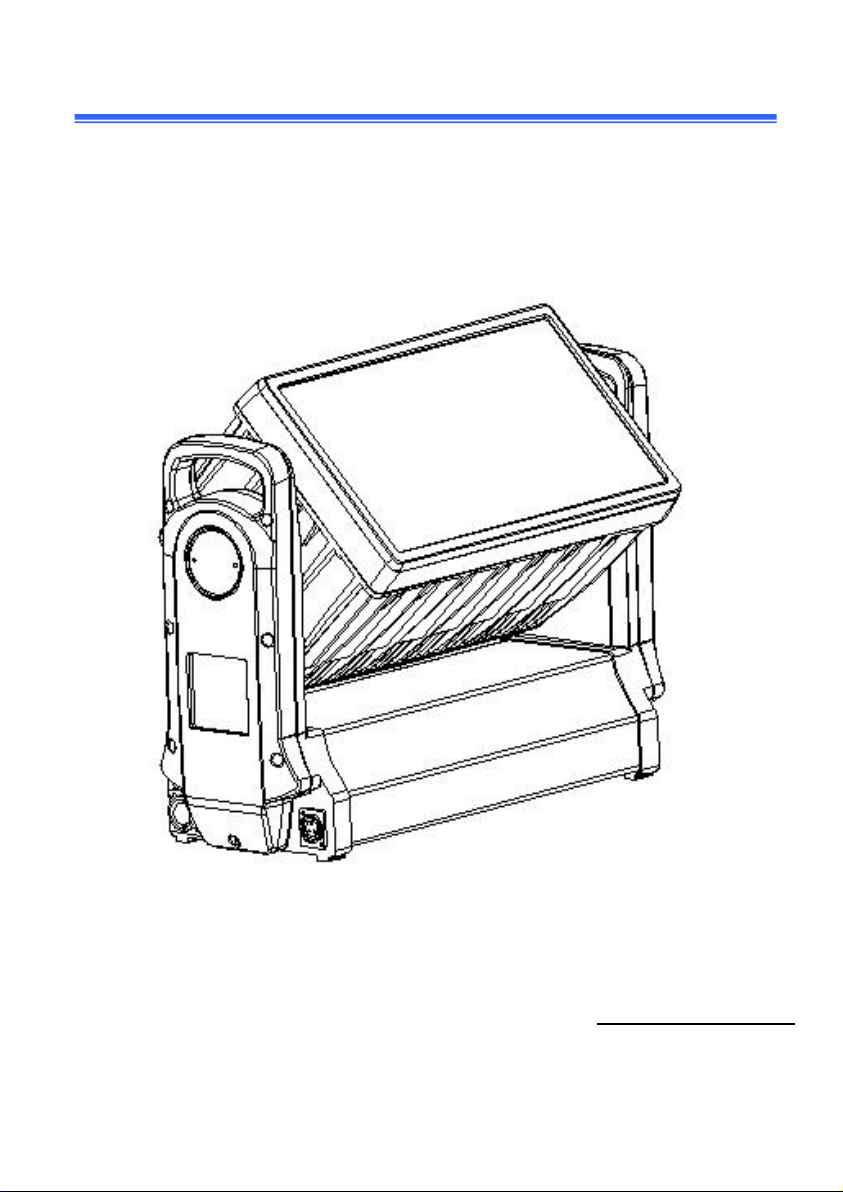

Beyond Lighting F720 User manual

F720
IP65 Wash Zoom 18*40W rgbw 4-in-1 led
User manual
P le a se rea d t he ins t r u ction s ca refu ll y before us

2
TABLE OF CONTENTS
1. S af ety I nst r uctions ......................................................................................3 -4
2. Technical Specifications. ....................................................................................5-6
3.DMX Link..............................................................................................................6-7
4.LUX Date....................................................................................................................7
5.How To Control The Unit...................................................................................8-10
6. DMX Channel List....................................................................................10-24
7. Shape.........................................................................................................................25
8.Troube shooting........................................................................................................26
9 . Fixture Cleaning .......................................................................................................27
statement
The product has well capability and intact packing when leave
factory. All of the user should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also can not be responsible for any malfunction & problem owing to
ignore the manual.

3
1. S af ety I nst r uctions
Please keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using
the unit.
Before operating, ensure that the voltage and frequency of power
supply match the power requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order
to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at
least 50cm from adjacent surfaces. Be sure that no ventilation slots are
blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as
it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its head
only, but always by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the
temperature is higher than this Unit surface temperature may reach up to 85℃.
DO NOT touch the housing bare-hand during its operation. Turn off the power
and allow about 15 minutes for the unit to cool down before replacing or serving.
the event of serious operating problem, stop using the unit immediately.Never

4
try to repair the unit by yourself. Repairs carried out by unskilled people can
lead to damage or malfunction. Please contact the nearest authorized
technical assistance center. Always use the same type spare parts.
 DO NOT touch any wire during operation as high voltage might be causing
electric shock.
Warning:
 To prevent or reduce the risk of electrical shock or fire, do not expose the unit to
rain or moisture.
 DO NOT open the unit within five minutes after switching off.
 The housing, the lenses, or the ultraviolet filter must be replaced
if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing
or attempt any repairs yourself. In the unlikely event your unit may require
service, please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating.
And make sure that the structure to which you are attaching the unit is secure
and is able to support a weight of 10 times of the unit’s weight. Also always use a
safety cable that can hold 12 times of the weight of the unit when installing the
fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.

5
2. Technical Specifications
Light Sources: 18*40W 4IN1 RGBW LED
Lamp life: ≥50000 hours
Beam Angle:3.2° - 50°
Power Consumption: 720w
Power Voltage: AC 100-250V, 50/60Hz
Control
DMX Channel:19/25/61CH
Control Modes: DMX512
Pan/Tilt
Pan : / , Tilt : 270°
Display
Size (L*W): 46*34 (1.5 inches)
4 touch buttons,Color led screen with 180 degree rotation
Switch between Chinese and English
Base hanger: 2pcs Quick lock light hook
Construction
Display:180° reversible LCD Display
Data In/Out socket: 3-pin XLR sockets
Power Socket: Waterproof Powercon in/out
Environment temperature: -10℃--- +40℃
Protection Rating: IP65

6
Product software version number ：V1.0
Features
Electronic control technology: Menu or console control lamp reset; 0-100%
dimming; constant current drive mode; temperature sensing detection,
intelligent adjustment of light source power; lamp information query; intelligent
fan speed control
● Effect configuration: full range dimming, 65536 levels of dimming accuracy;
fast strobe 1~25Hz; preset multiple color macro functions; preset multiple
effect macro functions;
● Working temperature: -10℃～45℃
● Safety protection: over current, over voltage, over heat protection, XY fixed
lock
● Protection index: IP65
● Maximum number of connections: 220V: less than 6 units, 2.5 square meters
of wires are required
120V: within 3 units, 2.5 square meters of wires are required
Product Size:508*208*351 MM
N. W : 16 KGS
3. DMX Link
Accessories
● Signal line: 3-pin 1 piece
● Power cord: 1 piece
● Chinese/English manual: 1 piece

7
Pin1: ground pin2: negative pin3: positive
DMX connection: In order to ensure the best transmission of DMX data,
try to choose the shortest connection path during the lamp connection process.
The order in which the lamps are connected via DMX will not affect the DMX
address code. For example, the address code of a fixture is set to 1, no matter
where the fixture is connected to any location, its address code will not be
changed. This is due to the principle of the DMX controller.
Operation mode: You can operate in the following three modes:
●Self-propelled mode-the lamp can automatically complete all color
changes
●DMX control mode-each lamp can be individually controlled by a
standard DMX512 console

8
●Master-slave mode-any lamp can work as a master in any of the
previous modes, and other lamps will work as slaves synchronously

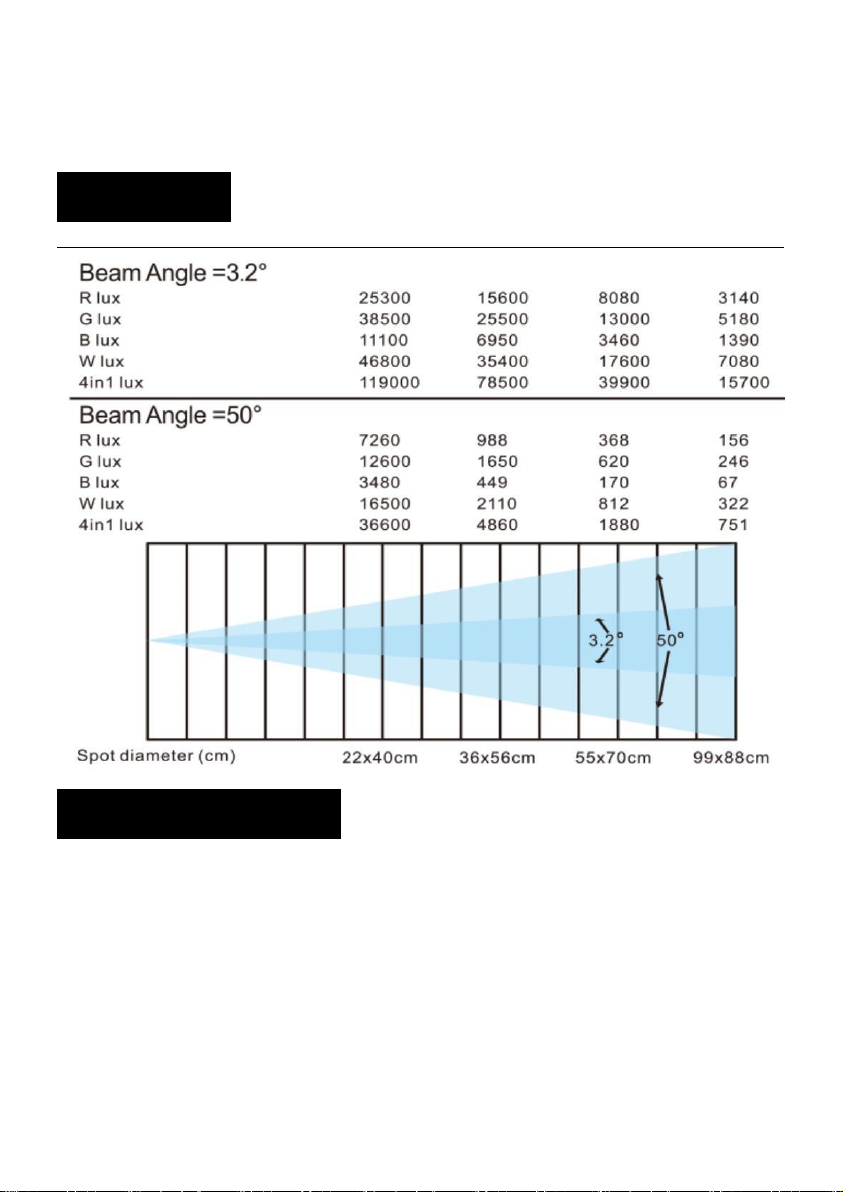

4. LUX Date
5. Display & Menu
Display:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Set DMX Address Code

9
1 Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter
into
2 Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"
keys to amended
3Press "ENTER"keys to save and Exit,Press the"MENU"Keys does not
save and Exit
1-MENU 2-UP 3-DOWN 4-ENTER
Menu
Menu
1.Mic Sense
001 - 100
Sound sensitivity adjustment
2.Language
English
Chinese
3.No Signal
1.Black Out
2.Hold
4.Fan Set
1. Automatic (Auto)
2. Low speed
3. High speed
5.Reset
1.YES
2. NO
6. Default
1.YES
3. NO
7.Adjust
Pass Word：up+down+up+down
Tilt
Changing the value of
Tilt/Focus can correct the
angle; changing the value of
R/G/B/W can adjust the white
balance
Focus
Red
Green
Blue
White

10
Address
Setting from 001 - 512
Reverse
reversed
setting
Tilt
1.Yes
2.No
Display
1.Yes
2.No
Information
1.CH Value
Each channel show CH value
2.Temp ____℃
Show the temperature of led
board
3.Soft V1.0
Show the version number
Channel
19 channels
25 channels
61 channels
Mode
DMX 512
AUTO
SOUND
Manual
Menu
1. Master/
2.Alone
1.Tilt (Y axis): 0--255
Set control mode
2.Focus:0--255
3.Red：0--255
4.Greed：0--255
5.Blue：0--255
6.White：0--255

11
7.Strobe：0-255
6.DMX Channel List
Model 1 - CH19
Channel
Function
Display
Value
CH-1
Red dimming
Red
0 --- 255
CH-2
Red trim
Red trim
0 --- 255
CH-3
Green dimming
Green
0 --- 255
CH-4
Green trim
Green trim
0 --- 255
CH-5
Blue dimming
Blue
0 --- 255
CH-6
Blue trim
Blue trim
0 --- 255
CH-7
White dimming
White
0 --- 255
CH-8
White trim
White trim
0 --- 255
NO
0--15
R100%,G UP,B0%
16--35
R
DOWM,G100%,B0%
36--55
R0%,G100%,B UP
56--75

12
CH-9
CH-9
Color temperature
Color temperature
R0%,G
DOWM,B100%
76--95
R UP,G0%,B100%
96--115
R100%,G0%,B
DOWM
116--135
R100%,G UP,B UP
136--155
R DOWM,G
DOWM,B100%
156--175
R100%,G100%,B100%,W
100%
176--195
2800K
196--200
3200K
201--205
3500K
206--210
4000K
211--215
4500K
216--220
5000K
221--225
5500K
226--230
6000K
231--235
6500K
236--240
7000K
241--245
7500K
246--250

13
8000K
251--255
CH-10
Macro color
NO effects
0--9
Macro color 1
10--19
Macro color 2
20--29
......
......(10 number one
type)
Macro color 24
240--249
Macro color 25
250--255
CH-11
Total dimming
from dark to bright
0--255
CH-12
Dimming
Dimming fine-tuning
control
0--255
CH-13
Strobe
Light up
0--3
Synchronous strobe
speed from slow to
fast (1HZ-25HZ)
4--203
Random strobe
204--255
CH-14
Pan
Pan control
0--255
CH-15
Pan fine-tuning
Pan fine-tuning control
0--255
CH-16
Pan speed
From fast to slow
0--255
CH-17
Zoom
Zoom
0--255
Model 1
0--49

14
CH-18
Dimming mode
Model 2
50--99
Model 3
100--149
Model 4
150--255
CH-19
Reset
No effects
0--250
Reset within 5S
251--255
Model 2 - CH25
Channel
Function
Display
Value
CH-1
Pan
Pan control
0--255
CH-2
Pan fine-tuning
Pan fine-tuning control
0--255
CH-3
Pan speed
From fast to slow
0--255
CH-4
Zoom
Zoom
0--255
CH-5
Total dimming
from dark to bright
0--255
CH-6
CH-6
Strobe
Strobe
Light up
0--3
Synchronous strobe
speed from slow to
fast (1HZ-25HZ)
4--203
Random strobe
204--255
CH-7
Red dimming
Linear dimming from
CH-8
Green dimming
0 --- 255

15
dark to bright
CH-9
Blue dimming
0 --- 255
CH-10
White dimming
0 --- 255
CH-11
Color temperature
NO
0--15
R100%,G UP,B0%
16--35
R
DOWM,G100%,B0%
36--55
R0%,G100%,B UP
56--75
R0%,G
DOWM,B100%
76--95
R UP,G0%,B100%
96--115
R100%,G0%,B
DOWM
116--135
R100%,G UP,B UP
136--155
R DOWM,G
DOWM,B100%
156--175
R100%,G100%,B100%,W
100%
176--195
2800K
196--200
3200K
201--205
3500K
206--210
4000K
211--215

16
CH-11
Color temperature
4500K
216--220
5000K
221--225
5500K
226--230
6000K
231--235
6500K
236--240
7000K
241--245
7500K
246--250
8000K
251--255
CH-12
CH-12
Macro color
Macro color
NO effects
0--9
Macro color 1
10--19
Macro color 2
20--29
......
...(10 number one
type)
Macro color 24
240--249
Macro color 25
250--255
NO effects
0--7
Monochrome pattern 1
8--15
Monochrome pattern 2
16--23
......
......(8 number one
type)

17
CH-13
Static pattern
Monochrome pattern
15
120--135
Mixed color pattern 1
136--143
Mixed color pattern 2
144--151
......
......(8 number one
type)
Mixed color pattern 11
216--223
Mixed color pattern 12
224--255
CH-14
CH-14
Dynamic pattern
Dynamic pattern
NO effect
0--9
Monochrome dynamic
pattern 1
10--14
Monochrome dynamic
pattern 2
15--19
......
......(5 number one
type)
Monochrome dynamic
pattern 23
120--124
Mixed color dynamic
pattern 1
125--129
Mixed color dynamic
pattern 2
130--134
......
......(5 number one

18
type)
Mixed color dynamic
pattern 12
180--184
Mixed color dynamic
pattern 13
185--255
CH-15
Pattern translation
(with 14 channels)
Select dynamic
pattern scene
0--255
CH-16
Dynamic pattern
speed (with 14
channels)
No effect
0--9
Forward, from fast to
slow
10--132
Go backward, from
slow to fast
133--255
CH-17
Pattern effect fade
Pattern effect fade
0--255
CH-18
Background total
dimming
Background 0-100%
dimming
0--255
CH-19
Background
strobe
Background strobe
0--255
CH-20
Background color
Red
Linear dimming from
dark to bright
0--255
CH-21
Background color
Green
Linear dimming from
dark to bright
0--255
CH-22
Background color
Blue
Linear dimming from
dark to bright
0--255

19
CH-23
Background color
White
Linear dimming from
dark to bright
0--255
CH-24
Dimming mode
Model 1
0--49
Model 2
50--99
Model 3
100--149
Model 4
150--255
CH-25
Reset
No effects
0--250
Reset within 5S
251--255
Model 3 - CH61
Channel
Function
Display
Value
CH-1
Pan
Pan control
0--255
CH-2
Pan fine-tuning
Pan fine-tuning control
0--255
CH-3
Pan speed
From fast to slow
0--255
CH-4
Zoom
Zoom
0--255
CH-5
Total dimming
from dark to bright
0--255
CH-6
Strobe
Light up
0--3
Synchronous strobe
speed from slow to
fast (1HZ-25HZ)
4--203

20
Random strobe
204--255
CH-7
Red dimming
Linear dimming from
dark to bright
CH-8
Green dimming
0 --- 255
CH-9
Blue dimming
0 --- 255
CH-10
White dimming
0 --- 255
CH-11
CH-11
Color temperature
Color temperature
NO
0--15
R100%,G UP,B0%
16--35
R
DOWM,G100%,B0%
36--55
R0%,G100%,B UP
56--75
R0%,G
DOWM,B100%
76--95
R UP,G0%,B100%
96--115
R100%,G0%,B
DOWM
116--135
R100%,G UP,B UP
136--155
R DOWM,G
DOWM,B100%
156--175
R100%,G100%,B100%,W
100%
176--195
2800K
196--200
