Introduction 3
I NTRODUCTION 1
The Destroyer X250 and Punisher X250, developed and manufactured by Martin
Professional, are aggressive disco lighting effects using a powerful 250W
halogen lamp. With a motorized parabolic reflector and gobo wheel, they produce
a myriad of turning beams that change color and pattern on demand. There is a
“flash” effect for strobe-like animation and, on the Punisher, a motor driven
“shake” effect.
Unlike most fixtures of this type, the effects of the Destroyer and Punisher are
programmable from any standard DMX-512 controller, using a single or multi-
channel protocol. Alternatively, the Destroyer and Punisher can be directly
triggered from a music source as stand-alone units. In addition, the Destroyer can
run several units in master/slave configuration.
FEATURES
Multiple rotating beams
12 pattern gobo wheel, 7 with color and 5 white
24 V/250 W halogen lamp
Dichroic colors
Adjustable focus
Sound-activated beam rotation and color/pattern change
Sound-activated shake effect (Punisher only)
Built-in microphone with automatic sensitivity adjustment
Multi or single channel DMX control
Master/slave configuration (Destroyer only)
Stepmotor drive
Adjustable mounting bracket
35000035C.FM Page 3 Wednesday, January 3, 2001 9:33 AM

4 Safety Information
S AFETY I NFORMATION 2
Warning! This product is not for household use. It presents risks of lethal or
severe injury due to fire and heat, electric shock, and falls.
Read this manual before powering or installing the fixture, follow the safety
precautions listed below and observe all warnings in this manual and printed on
the fixture. If you have questions about how to operate the fixture safely, please
contact a Martin distributor for assistance.
To protect yourself and others from electric shock
• Disconnect the fixture from AC power before removing or installing the lamp,
fuses, or any part, and when not in use.
• Always ground (earth) the fixture electrically.
• Use only a source of AC power that complies with local building and electrical
codes and has both overload and ground-fault protection.
• Do not expose the fixture to rain or moisture.
• Refer all service to a qualified technician.
• Never operate the fixture with missing or damaged lenses and/or covers.
To protect yourself and others from burns and fire
• Never attempt to bypass the thermostatic switch or fuses. Always replace
defective fuses with ones of the specified type and rating.
• Keep all combustible materials at least 0.1 meters (4 inches) away from the
fixture. Keep flammable materials well away from the fixture.
• Do not illuminate surfaces within 0.3 meters (12 inches) of the fixture.
• Provide a minimum clearance of 0.1 meters (4 inches) around fans and air vents.
• Replace the lamp if it becomes defective or worn out. When replacing the lamp,
allow the fixture to cool for at least 15 minutes before opening the fixture or
removing the lamp. Protect your hands and eyes with gloves and safety glasses.
• Never place filters or other materials over the lens.
• The thumbscrews holding the lamp socket assembly reach temperatures up to
120° C (250° F). Allow the fixture to cool for 15 minutes before handling.
• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).
35000035C.FM Page 4 Wednesday, January 3, 2001 9:33 AM

Safety Information 5
To protect yourself and others from injury due to falls
• When suspending the fixture above ground level, verify that the structure can
hold at least 10 times the weight of all installed devices.
• Verify that all external covers and rigging hardware are securely fastened and use
an approved means of secondary attachment such as a safety cable.
• Block access below the work area whenever installing or removing the fixture.
35000035C.FM Page 5 Wednesday, January 3, 2001 9:33 AM

6Setup
S ETUP 3
The package includes the following items:
Destroyer or Punisher
IEC mains cable
Mounting bracket and hardware
User manual
Before starting to operate the unit you need to:
Install the halogen lamp (not included)
Fit a mains plug
Check voltage setting
Fit the mounting bracket
Rig the unit in its permanent site
WARNING! Always disconnect the unit from AC power before performing
any installation or service procedure.
INSTALLING THE LAMP
See the specifications on page 16 for lamps that may be used in the Destroyer
X250 and Punisher X250. Do not install any other lamp.
Warning! Allow the unit to cool for 15 minutes before handling.
1 Remove the 2 screws from the lamp access plate on the bottom of the unit.
2 Loosen the thumbscrew and pull back on the lamp socket/reflector assembly
until the assembly is free of its mounting plate. Remove the lamp assembly.
3 Hold the new lamp in a cloth to avoid contaminating it with oils from your
fingers. Press it squarely into the socket.
4 Hold the lamp assembly by the socket end, with the thumbscrew up. Slide the
thumbscrew into the notch on the mounting plate. Align the holes in the
assembly with the guide screws on the mounting plate and press the lamp
assembly flush against the mounting plate. Tighten the thumbscrew.
5 Replace the lamp access cover.
35000035C.FM Page 6 Wednesday, January 3, 2001 9:33 AM

Setup 7
FITTING THE MAINS PLUG
The Destroyer/Punisher is delivered from the factory without a plug on the mains
cable. You will have to fit a plug that conforms to your local mains outlet. The
double insulated mains cable contains three wires.
1 Connect the BROWN wire to the LIVE pin.
2 Connect the BLUE wire to the NEUTRAL pin.
3 Connect the YELLOW/GREEN wire to the EARTH pin.
ADJUSTING THE VOLTAGE SETTING
The voltage setting on the Destroyer/Punisher shall match the local power supply.
The factory setting is printed on the serial number label on rear of the unit. If the
setting does not match the local power supply, rewire the unit as follows:
Important! To prevent damage, the RED wire must be connected to an
outside pin as shown.
1 Disconnect the fixture from AC power. Remove the top cover from the unit by
unscrewing the 4 screws that hold it in place.
2 Locate and disconnect the plug with red, yellow, and blue wires at the top-
right corner of the printed circuit board, as seen from the back of the unit.
3 To change to 230 V AC (EU version) or 110 V AC (US version), flip and move
the plug
right so that the red wire connects to the pin closest to the edge.
4 To change to 245 V AC (EU version) or 120 V AC (US version), flip and move
the plug
left so that the red wire connects to the pin furthest from the edge.
5 Replace the top cover before applying power.
red
red
110 V (US)
230 V (EU) 120 V (US) 245 V (EU)
Power setting plug as seen from rear
35000035C.FM Page 7 Wednesday, January 3, 2001 9:33 AM

8Setup
REMOVING THE TRANSPORT SECURITY
PLATE ( PUNISHER ONLY)
Before first operating the Punisher, you need to remove the transport security
plate inside the unit. This plate holds the mirror assembly during transit, and must
be removed to enable the “shake effect”.
1 Remove the top cover from the unit by unscrewing the 4 Phillips screws that
hold it in place.
2 Locate the parabolic mirror assembly in the center of the unit and unscrew
the 4 RED Phillips screws holding the transport plate. Remove the plate.
3 Reassemble the unit.
FITTING THE MOUNTING BRACKET
Fit the supplied mounting bracket using the plastic spacers, star washers and
thumbscrews. The star washer must be placed between the bracket and the plastic
spacer.
RIGGING THE UNIT
1 Verify that the structure can support at least 10 times the weight of all
installed fixtures, clamps, cables, auxiliary equipment, etc.
2 If hanging the fixture with a rigging clamp, verify that the clamp is
undamaged and is designed for the fixture’s weight. Bolt the clamp securely
to the bracket with a grade 8.8 (minimum) M12 bolt and lock nut, or as
recommended by the clamp manufacturer, through the clamp hole in the
mounting bracket.
3 If permanently installing the fixture, verify that the hardware (not included)
and mounting surface can bear at least 10 times the fixture’s weight. The four
small holes and the clamp hole in the mounting bracket may be used for
attachment.
4 Working from a stable platform, clamp or fasten the fixture to the structure.
5 Install a safety cable that can hold at least 10 times the weight of the fixture
through/over the support and mounting bracket.
6 Loosen the thumbscrews, tilt the fixture to the desired angle, and retighten.
7 Verify that the fixture is at least 0.3 meters (12 in.) from the surface to be
illuminated and at least 0.1 meters (4 in.) from any combustible materials.
Verify that the clearance around the air vents is at least 0.1 meters (4 in.).
35000035C.FM Page 8 Wednesday, January 3, 2001 9:33 AM

Controller Operation 9
C ONTROLLER O PERATION 4
CONNECTING THE DATA LINK
A reliable data connection begins with the right cable. Standard microphone cable
cannot transmit DMX data reliably over long runs. For best results, use cable
specifically designed for RS-485 applications.
The XLR data sockets are wired with pin 1 to ground, pin 2 to signal - (cold), and
pin 3 to signal + (hot). This is the standard pin assignment for DMX devices. One
or more adaptor cables may be required to connect the fixture to the controller
and/or other lights as many devices have 5-pin connectors and others may have
reversed signal polarity.
1Connect a data cable to the controller’s output. If controller has a 5-pin
output, use a 5-pin male to 3-pin female adaptor cable (P/N 11820005).
2 Lead the data cable from the controller to the first fixture. Plug the cable into
the fixture’s data input.
3 Connect the output of the fixture closest to the controller to the input of the
next fixture. If connecting two fixtures with reversed polarity on pins 2 and 3,
insert a phase-reversing cable between the two fixtures.
4 Continue connecting fixtures output to input. Up to 32 devices may be
connected on a serial link.
5 Terminate the link by inserting a male termination plug (P/N 91613017) into
the data output of the last fixture. A termination plug is simply an XLR
connector with a 120 ohm, 0.25 W resistor soldered across pins 2 and 3.

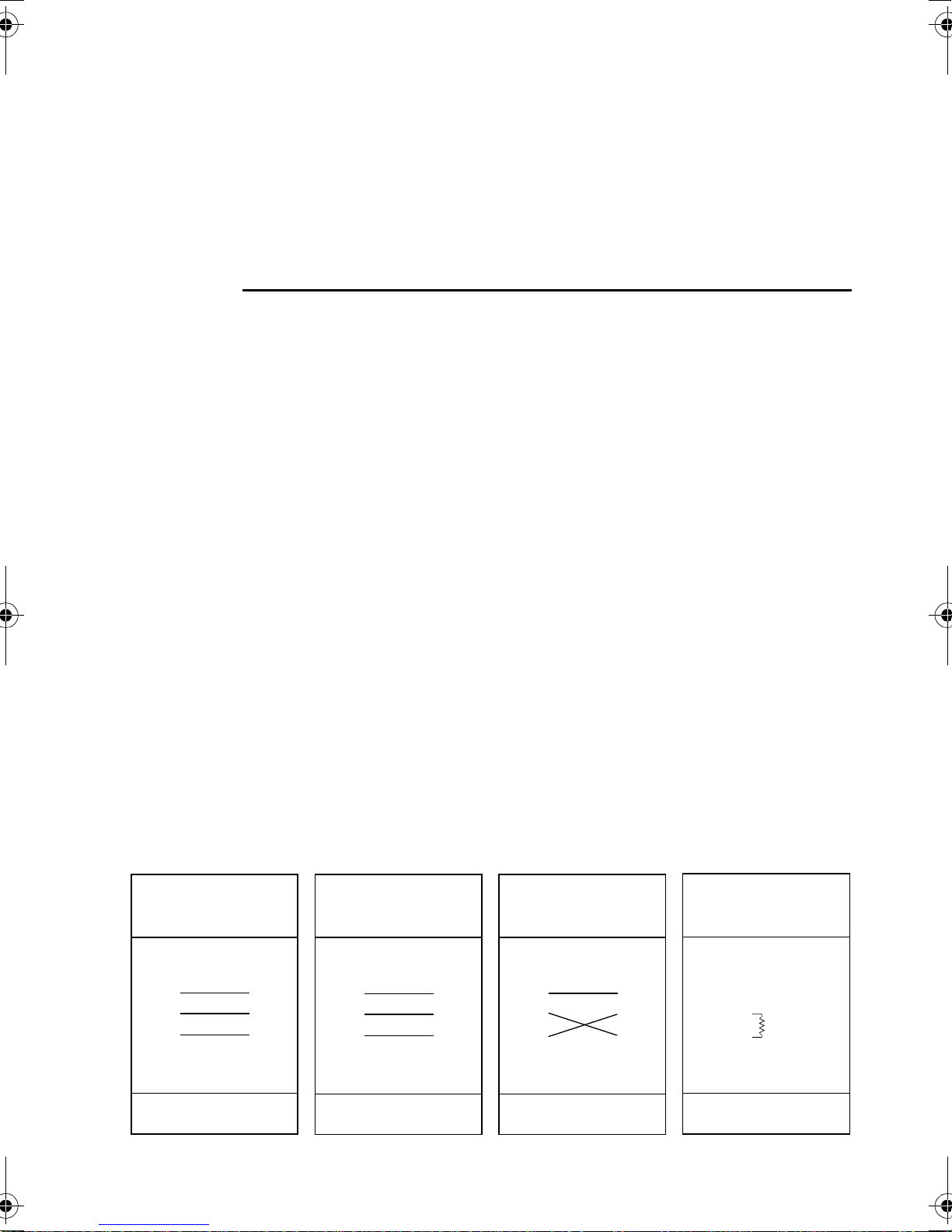

Phase-Reversing
Adaptor
Male Female
1
2
3
1
2
3
3-pin to 3-pin
P/N 11820006
Adaptor
Male Female
1
2
3
4
5
1
2
3
5-pin to 3-pin
P/N 11820005
Adaptor
Male Female
1
2
3
1
2
3
4
5
3-pin to 5-pin
P/N 11820004
Male XLR
1
2
3
Male
P/N 91613017
120
Termination Plug
35000035C.FM Page 9 Wednesday, January 3, 2001 9:33 AM

10 Controller Operation
ADDRESS AND MODE SETTINGS
On the rear of the unit is a 10-way DIP-switch with the following functions:
DMX MODE SETTING
The Destroyer/Punisher has two DMX modes: a 1-channel mode and a multi-
channel mode that requires 5 channels for the Destroyer and 6 channels for the
Punisher.
The 1-channel mode is simpler and saves channels on your controller. In this
mode, the unit becomes more aggressive the higher you set the fader. The Martin
MC-1 controller is specially designed to operate the Destroy/Punisher and other
Martin products is 1-channel mode. When using the Destroyer X250 and Punisher
X250 with the MC-1, the address (see below) must be set to DMX channel 1.
For full control of each effect, use the multi-channel mode. The functions of each
mode are described in appendix a.
• Use DIP-switch 9 to select the DMX mode. Flip the pin ON for 1-channel
operation of OFF for multi-channel operation.
ADDRESS SETTING
Use the first 8 DIP-switches to set the DMX address (the first DMX channel on
which the Destroyer/Punisher responds to the controller) to any value between 1
and 255. The address is the sum of the values for each individual DIP-switch that
is ON.
Important! DIP-switch 10 must be flipped ON when using the Destroyer or
Punisher with a controller. Otherwise, both the unit and the
controller will transmit DMX signals and damage to one or
both devices may occur.
1 Select an address for the fixture on your controller. When using the MC-1
controller, the address must be DMX channel 1.
2 Look up the DIP-switch setting for the address on page 11.
3 Set pins 1 through 8 to the ON (1) or OFF (0) position as listed in the table.
4 Set pin 9 to ON for 1-channel operation, or OFF for multi-channel operation.
5 Set pin 10 to the ON position.
Switch ON OFF
1 - 8 DMX address (1 - 255)
9 1-channel DMX Multi-channel DMX (5/6)
10 Slave (DMX reception) Master (DMX transmission -
Destroyer only)
35000035C.FM Page 10 Wednesday, January 3, 2001 9:33 AM

Controller Operation 11
ADDRESS TABLE
Locate the channel in the table below. Follow the row to the left to find the
settings for pins 1 to 5; follow the column to the top to find the settings for pins 6
to 8. Pin 9 selects DMX mode. Pin 10 selects controller or stand-alone operation
and stand-alone master/slave on the Destroyer.
DIP-Switch Setting
0 = OFF
1 = ON
#10 1: controller, 0: stand-alone
#9 1: 1 channel, 0: 5/6 channel DMX
#800001111
#700110011
#601010101
#1 #2 #3 #4 #5
0 0 0 0 0 32 64 96 128 160 192 224
1 0 0 0 0 1 33 65 97 129 161 193 225
0 1 0 0 0 2 34 66 98 130 162 194 226
1 1 0 0 0 3 35 67 99 131 163 195 227
0 0 1 0 0 4 36 68 100 132 164 196 228
1 0 1 0 0 5 37 69 101 133 165 197 229
0 1 1 0 0 6 38 70 102 134 166 198 230
1 1 1 0 0 7 39 71 103 135 167 199 231
0 0 0 1 0 8 40 72 104 136 168 200 232
1 0 0 1 0 9 41 73 105 137 169 201 233
0 1 0 1 0 10 42 74 106 138 170 202 234
11010 11 43 75 107 139 171 203 235
0 0 1 1 0 12 44 76 108 140 172 204 236
1 0 1 1 0 13 45 77 109 141 173 205 237
01110 14 46 78 110 142 174 206 238
1 1 1 1 0 15 47 79 111 143 175 207 239
0 0 0 0 1 16 48 80 112 144 176 208 240
10001 17 49 81 113 145 177 209 241
0 1 0 0 1 18 50 82 114 146 178 210 242
1 1 0 0 1 19 51 83 115 147 179 211 243
00101 20 52 84 116 148 180 212 244
1 0 1 0 1 21 53 85 117 149 181 213 245
0 1 1 0 1 22 54 86 118 150 182 214 246
11101 23 55 87 119 151 183 215 247
0 0 0 1 1 24 56 88 120 152 184 216 248
1 0 0 1 1 25 57 89 121 153 185 217 249
01011 26 58 90 122 154 186 218 250
1 1 0 1 1 27 59 91 123 155 187 219 251
0 0 1 1 1 28 60 92 124 156 188 220 252
10111 29 61 93 125 157 189 221 253
0 1 1 1 1 30 62 94 126 158 190 222 254
1 1 1 1 1 31 63 95 127 159 191 223 255
35000035C.FM Page 11 Wednesday, January 3, 2001 9:33 AM

12 Stand-Alone Operation
S TAND -A LONE O PERATION 5
STAND-ALONE
If the unit does not receive control data, it automatically goes into stand-alone
mode and performs a random sequence triggered by sounds picked up by the
built-in microphone.
STAND-ALONE MASTER/SLAVE ( DESTROYER ONLY)
If you have two or more Destroyers, this feature allows you to operate all the units
in synchronization. You must assign one, but only one, unit to be master, by setting
DIP-switch 10 OFF. The unit will then be sending DMX signals (via its XLR in
and output connectors) that correspond to what it is doing itself. You can then
connect up to 32 slaves which will all perform exactly the same when set to DMX
address 1.
Important! To prevent damage to the electronic circuitry, one, and only
one, fixture may be set as master (DIP-switch 10 OFF).
1 Disconnect all fixtures from AC power.
2 On the master unit, set DIP-switch 10 OFF.
3 On all slave units, set DIP-switch 1 and 10 ON.
4 Insert a 120Ωfemale XLR termination plug (P/N
91613018) in the DMX input socket of the master
unit.
5 Connect the DMX output of the master unit to the
input of one of the slaves using a XLR-XLR cable.
Continue the link this way, always connecting
output to input (daisy-chain), until all slaves are
linked together.
6 Finally, insert a 120Ωmale XLR termination plug (P/N 91613017) in the free
output socket of the last unit on the link.
7 Apply power first to the master and then to the slave fixtures.
Female XLR
1
2
3
Female
120
Termination Plug
P/N 91613018
35000035C.FM Page 12 Wednesday, January 3, 2001 9:33 AM

DMX Protocol 13
DMX P ROTOCOL A
MULTI-CHANNEL MODE
DMX
Channel DMX Value Description
10 - 11
12 - 193
194 - 255
Lamp ON/OFF
Lamp OFF
Lamp ON
Gobo strobe: slow →fast
20 - 11
12 - 127
128 - 255
Trigger Mode
Off
Music triggered
Controller triggered - triggers when DMX level crosses 195
30 - 91
92 - 98
99 - 189
190 - 231
232 - 255
Parabol Speed
The rotation time is equal to the trigger decay if trigger mode is set to
music or controller.
Rotation CW, fast →slow
Stop
Rotation CCW, slow →fast
Random CW/CCW slow (music/controller triggered)
Random CW/CCW fast (music/controller triggered)
40 - 4
5 - 252
253 - 255
Trigger Decay
0 seconds
0.2 to 9.9 seconds
Random (music/controller triggered)
35000035C.FM Page 13 Wednesday, January 3, 2001 9:33 AM

14 DMX Protocol
SINGLE-CHANNEL MODE
5
0 - 5
6 - 20
21 - 36
37 -52
53 - 68
69 - 84
85 - 100
101 - 116
117 - 132
133 - 148
149 - 164
165 - 180
181 - 196
197 - 244
245 - 255
Color/Gobo Wheel
Blackout
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
Position 9
Position 10
Position 11
Position 12
No effect
Random (music/controller triggered)
60-4
5-252
253-255
Shake (Punisher only)
Off
Slow →fast
Random (music/controller triggered)
Channel DMX Value Effect
1
0 - 50
51 - 101
102 - 152
153 - 203
204 - 255
Blackout
Slow random action
Medium random action
Fast random action
Random speed and action
DMX
Channel DMX Value Description
35000035C.FM Page 14 Wednesday, January 3, 2001 9:33 AM

Troubleshooting 15
T ROUBLESHOOTING B
Problem Probable cause(s) Suggested remedy
None of the units respond to
the controller. The controller is disconnected from the DMX
link.
Connect controller.
Use of incorrect cable
between the controller and
the first unit on the DMX
link.
Check pin-out of DMX controller against
Destroyer/Punisher and ensure that signal +
goes to signal + and signal - goes to signal -.
One or more of the units
does not respond to the
controller or respond
erratically.
Bad DMX link connection. Check connections/cables in the DMX link and
correct accordingly.
DMX link not terminated
with termination plug. Insert termination plug in the last unit on the DMX link.
Incorrectly addressing (DIP-
switch setting) of the unit. Ensure that all units are addressed in compliance with the controller configuration.
Unit not powered on. Power on unit.
One or more units are set to
master, i.e. DIP-switch 10
OFF.
Set DIP-switch 10 ON.
One of the units is defective
and disturbs the data
transmission on the link.
By-pass one unit at a time until normal
operation is regained. Do this by unplugging the
XLR in and out connectors and then connect
them directly together.
No light emission from unit. No lamp or lamp blown. Install or replace lamp.
Unit appears to be
completely dead (no reset
when switching on).
Mains fuse blown. Replace fuse located in power input socket.
PCB fuse blown. Replace PCB fuse.
Lamp is cutting out
intermittently. Room temperature is too high. Reduce room temperature.
Fan speed is reduced due to
fan covered by dirt and dust. Clean fan and air vents.
Incorrect voltage setting. Check voltage setting. Correct if necessary
(230/245V, 110/120V).
35000035C.FM Page 15 Wednesday, January 3, 2001 9:33 AM

S PECIFICATIONS
PHYSICAL
Size (L x W x H)............................... 340 x 265 x 303 mm (13.4 x 10.4 x 11.9”)
Weight........................................................................................... 7 kg (15.4 lbs.)
THERMAL
Maximum ambient temperature (Ta) .............................................40° C (104° F)
Maximum surface temperature....................................................120° C (250° F)
CONTROL AND PROGRAMMING
Data pin-out ...........................................pin 1 shield, pin 2 cold (-), pin 3 hot (+)
Control protocol............................................................USITT DMX-512 (1990)
DMX channels, Destroyer ................................................................................1/5
DMX channels, Punisher..................................................................................1/6
AC POWER
Max. power and current.............270 W, 1.2 A @ 230 V; 270 W, 2.3 A @ 120 V
Input socket................................................................... 3-prong IEC male socket
Input, 230/245 V model........................................................ 230/245 V, 50-60Hz
Input, 110/120 V model........................................................ 110/125 V, 50-60Hz
Primary fuse, 230/245 V model............................2.5 AT / 250 V, P/N 05020010
Primary fuse, 110/120 V model............................5.0 AT / 250 V, P/N 05020018
INSTALLATION
Minimum distance to combustible materials......................................0.1 m (4 in)
Minimum distance to illuminated surfaces.......................................0.3 m (12 in)
Minimum clearance around fan and air vents.....................................0.1 m (4 in)
ACCESSORIES
MC-1 controller, EU..............................................................................90718000
MC-1 controller, US ..............................................................................90718100
50 hour lamp, halogen, EHJ, 24V/250W...............................................97000105
300 hour lamp, halogen, EVC (M33), 24V/250W ................................97000103
G-clamp ................................................................................................91602003
Half-coupler...........................................................................................91602005
35000035C.FM Page 16 Wednesday, January 3, 2001 9:33 AM
