BFM Europe Eden HE MK2 Mounting instructions

Eden HE MK2
HIGH EFFICIENCY BALANCED FLUE
INSET ROO HEATER
Installation, aintenance & User Instructions
Hand these instructions to the user
odel No’s BBFG**RN2 is for use on Natural Gas (G20) at a supply pressure
of 20 mbar in G.B. / I.E.
odel No’s BBFG**RP2 is for use on Propane Gas (G31) at a supply
pressure of 37 mbar in G.B. / I.E.
** Denotes trim & colour variant

CONTENTS
PAGE
Section 1 Information and Requirements
1.0 Appliance information 3
1.1 Conditions of installation 4
1.2 Flue terminal position 5
1.3 Shelf position 6
1.4 Hearths 6
1.5 Efficiency Declaration 6
Section 2 Installation of Fire
2.1 Unpacking the combustion chamber 7
2.2 Preparing the combustion chamber opening ( n studded wall) 8
2.3 Preparing the combustion chamber opening ( n chimney breast) 9-10
2.4 Securing the fire to the opening 11
2.5 nstallation of the gas supply 12
2.6 Specifying the flue system & components 13-15
2.7 Preparation of the wall 15
2.8 Preparation of the flue hole 16-17
2.9 Fitting the starter pipe 15-16
2.10 Fitting the flue pipes together 18
2.11 Fitting the flue terminal 19
2.12 Fitting the flue terminal guard 20
2.13 Making the electrical connection 21
2.14 Removal & re-fitting of the glass panel 22-23
2.15 Removing the burner assembly 24-26
2.16 Finishing the product aperture 27
Section 3 Assembling Fuel Bed and Commissioning
3.1 Fitting the fuel bed logset 28-32
3.2 Fitting the fuel bed pebbles set 33
3.3 Lighting & operation of the fire 34-39
3.4 Removal / re-fitting of the restrictor baffle 40
3.5 Fitting the handset wall bracket 40
Section 4 aintenance
4.1 Removal of the burner assembly 41
4.2 Removal of the gas control valve 41-42
4.3 Removal of the ultrasonic reciever 42
4.4 Removal of the pilot assembly 42
4.5 Removal / replacement of the convection fan / thermal switch 42
4.6 Removal / replacement of the handset battery 42
4.7 Wiring diagram 44
Section 5 User Instructions
5.1 nstallation nformation 45
5.2 About your Eden HE MK2 gas fire 46
5.3 Lighting & operating the appliance 47-51
5.4 Cleaninginstructions 52
5.5 Removal & replacing the glass frame assembly 53-54
5.6 Removal & re-fitting the fuel-bed logset 55-59
5.7 Removal & re-fitting the pebble fuel-bed pebble set 60
Model numbers BBFG**RN2 & BBFG**RP2 are manufactured by:-
BFM Europe Ltd. Trentham Lakes, Stoke-on-Trent, Staffordshire, ST4 4TJ
2

SECTION 1
INFOR ATION AND REQUIRE ENTS
1.0 APPLIANCE INFOR ATION
Main injector : (1 off) Stereomatic Cat 82 – size 2.00 (NG)
Stereomatic Cat 82 – size 1.31 (LPG)
Pilot Type : NG - Polidoro G27.2
LPG - Polidoro G24.1
Max. Gross Heat nput : 6.3 kW
Min. Gross Heat nput : 2.0 kW
Cold nlet Pressure : G20 20.0+/-1.0 mbar (8.0 +/- 0.4 in w.g.)
G31 37.0+/-1.0 mbar (14.8 +/- 0.4 in w.g.)
gnition : ntegral to gas valve
Electrode Spark Gap : 4.0mm
Packed Weight Combustion Chamber : 76.0 kg (Pack 1 of 2)
Packed Weight Flue Terminal Pack : 16.0 kg (Pack 2 of 2)
Supply Voltage : 230V a.c.
Supply Frequency : 50Hz
Supply Fuse : 3 Amp to BS 1362
Electrical Supply Required 230v AC, 50Hz
Fig. 1 Fig. 2
Top View of Combustion Side View of Combustion
Chamber Chamber
3
870mm
795mm
370 mm 540mm
595mm
370mm
175mm
111mm
125mm
25mm

INSTALLATION REQUIRE ENTS
1.1 CONDITIONS OF INSTALLATION
t is the law that all gas appliances are installed only by a GAS SAFE Registered
nstaller, in accordance with these installation instructions and the Gas Safety
( nstallation and Use) Regulations 1998 as amended. Failure to install appliances
correctly could lead to prosecution. t is in your own interest and that of safety to
comply with the law. The installation must also be in accordance with all relevant
parts of the Local and National Building Regulations where appropriate, the
Building Regulations (Scotland Consolidation) issued by the Scottish Development
Department, and all applicable requirements of the following British Standard Code
of Practice.
1. B.S. 5871 Part 1 nstallation of Gas Fires
2. B.S. 6891 nstallation of Gas Pipework
3. B.S. 5440 Parts 1 & 2 nstallation of Flues and Ventilation
4. .S 813 : 1996 Domestic Gas nstallation, issued by the National Standards
Authority of reland.
4

1.2 FLUE TER INAL POSITION

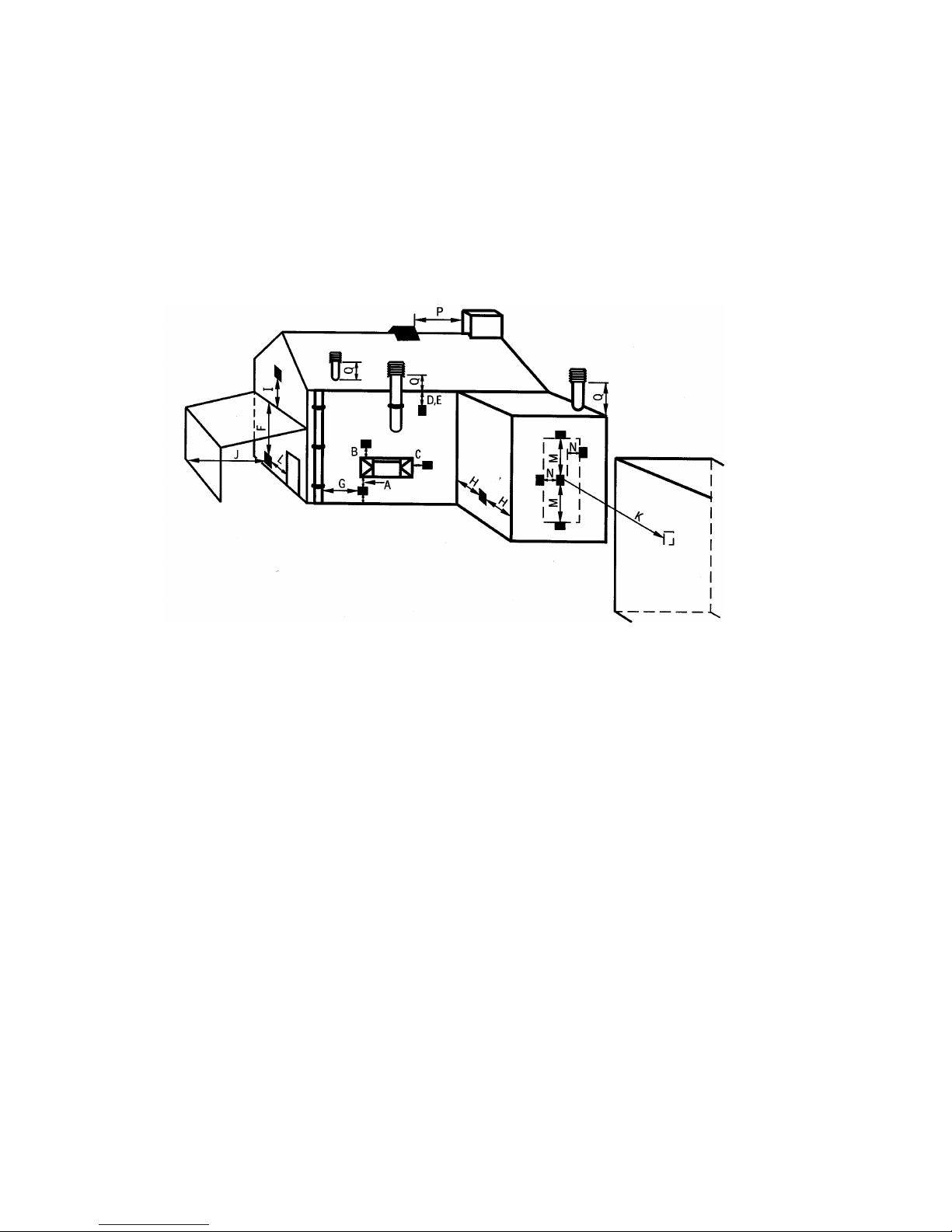

The minimum acceptable dimensions from the flue terminal to obstructions
and ventilation openings are shown below and listed in the table
It is important that the position of the flue allows the free passage of air
across it at all times. The minimum acceptable space from the flue terminal
to obstructions and ventilation openings are specified below (figure 3).
Fig. 3
DI ENSION TER INAL POSITION INI U DI ENSION
A Directly below an opening, air brick, 300mm (12in)
opening window
B Above an opening, air brick, 300mm (12in)
opening window
C Horizontally to an opening, air brick,
opening window etc.
D Below gutters, soil pipes or drain pipes 300mm (12in)
E Below eaves 300mm (12in)
F Below balconies or car port roof 600mm (12in)
G From a vertical drain pipe or soil pipe 300mm (12in)
H From an internal or external corner 600mm (24in)
I Above ground roof or balcony level 300mm (12in)
J From a surface facing the terminal 600mm (24in)
K From a terminal facing the terminal 600mm (24in)
L From an opening in the car port 1200m (48in)
Vertically from a terminal on the same wall 1500mm(59in)
N Horizontally from a terminal on the 300mm (12in)
same Wall
O NOT APPLICABLE N/A
P NOT APPLICABLE N/A
Q NOT APPLICABLE N/A
5

1.3 SHELF POSITION
The fire may be fitted below a combustible shelf providing there is a minimum
distance of 300mm above the top of the fire and the shelf does not project more
than 150mm. f the shelf overhangs more than 150mm the distance between the
fire and the shelf must be increased by 15mm for every 25mm of additional
overhang over 150mm.
1.4 HEARTHS
This appliance does not require the fitting of a hearth that projects in front of it
when installed into a recess in either an existing chimney breast or a studded wall,
providing the appliance is installed a minimum of 225mm above the floor level.
The appliance must however stand on a non-combustible base that is a minimum
thickness of 12mm
1.5 APPLIANCE EFFICIENCY DECLARATION
The efficiency of this appliance has been measured as specified in
BS EN 613 : 2001 and the result is 76% on both Natural Gas & LPG. The gross
calorific value of the fuel has been used for this efficiency calculation.
The test data from which it has been calculated has been certified by the British
Standards nstitute (BS ) Testing Services. The efficiency value may be used in
the UK Government’s Standard Assessment Procedure (SAP) for energy rating of
dwellings.
6

SECTION 2
INSTALLATION OF FIRE
2.1 UNPACKING THE CO BUSTION CHA BER
Carefully lift the combustion chamber out of the carton. Remove the loose item
packaging carefully from the pack. Check the contents as listed :-
DO NOT UNDER ANY CIRCU STANCES USE THIS APPLIANCE IF THE
GLASS PANEL IS BROKEN OR NOT SECURELY FIXED TO THE FIREBOX.
Packing Check List
Pack 1 of 2 - Combustion Chamber Pack
1 off Combustion Chamber & Glass Assembly
1 off Boxed ceramic fuel-bed set (packed inside combustion chamber)
1 off nstallation instruction / user manual
1 off Plastering frame
1 off Thermostatic remote handset
1 off Loose items pack – containing :-
4 off No. 12 x 40mm Screws
4 off rawlplugs
1 off efficiency baffle
1 off glass clamp
1 off handset bracket
6 off M6 wingnuts
1 off grommet
1 off 9V battery
1 off flue gasket
Pack 2 of 2 - Flue System Pack
1 off Flue terminal
1 off 150mm starter pipe
1 off *Telescopic flue pipe - supplied in two seperate sections
1 off 90 degree elbow
3 off Pipe clips
*These two sections of the telescopic need to be assembled by the
installer to form the 250mm to 410mm telescopic piece.
PLEASE NOTE : Due to the high level of heat produced by this product we
recommend that Plasma / LCD televisions are not placed in close proximity
to this product.
7

2.2 PREPARATION OF THE CO BUSTION CHA BER OPENING
(INTO STUDDED WALL)
2.2.1 All combustible parts of the studwork must be set at the distances as
shown below in figure 4 & 5.
8
Minimum 50mm at sides
Minimum 50mm at rear
Combustion Chamber
Dimension “A”
Opening Width = 835mm
Dim “A”
Dim “B”
Dimension “B”
Opening Height = 555mm
Dim “C”
Dimension “C”
Minimum Depth 420mm
Fig. 4
Fig. 5
MINIMUM HEIGHT FROM
FLOOR LE EL TO
BOTTOM OF OPENING IS
225MM
PLEASE NOTE : For the front face of the studwork a non
combustible board such as “Versa Tecbor” should be
used in a double 12mm thickness. “Versa Tecbor”
board is available from Euroform Products Ltd, Tel :
[phone], www.euroform.co.uk
Studwork

2.3 PREPARATION OF THE CO BUSTION CHA BER OPENING
(INTO EXISTING CHI NEY BREAST)
2.3.1 An opening should be constructed to the following dimensions in the
existing chimney breast. See figure 6 below.
Fig. 6
PLEASE NOTE : The opening size as detailed above will require
reducing in size to the product aperture and finishing in a high
temperature plaster finish as detailed in section 2.8
NOTE : Please ensure that suitable cut outs in the sides and front face of the
chimney breast are implemented for fixing of the flue pipe, and for future
servicing.
9
Width = 835mm
Height = 545mm
Depth = 370mm
Lintle must
project 150mm
either side of the
opening if
cutting into an
existing chimney
breast

Fig. 7
2.3.2 The opening needs to be sufficient to accomodate the combustion
chamber. To support the wall above the opening, a suitable lintel must
be inserted across the top of the opening. The lintel could be either
pre-cast concrete or steel - Catnic CN52 or CN 46 could be used,
depending upon the inner wall thickness. Before proceeding with the
installation of the fire, an assessment of the area immediately above the
fire is required, see figure 7 above. f there is no existing openings
within either triangle, proceed with forming the opening. However, if
opening or beams occur within either triangle, then you should seek
specialist advice from a structural engineer or consider relocating the
proposed position of the firebox.
10
400mm interactive area
600mm load triangle
The Interactive Zone -
Openings, beams or joists within
this area need to be assessed.
Load triangle - No beam or
opening permissible within this
area
Lintel
e.g. 750mm x 75mm
roposed Opening in
Chimney Breast

11
2.4 SECURING THE CO BUSTION CHA BER TO THE OPENING
2.4.1 The combustion chamber must be secured to the opening via the four
off screw and rawlplugs provided. Figure 8 below shows the hole
centres in the mounting flanges of the combustion chamber.
Fig. 8
2.4.2 DO NOT SECURE THE COMBUST ON CHAMBER NTO THE
OPEN NG AT TH S PO NT AS ACCESS W LL ST LL BE REQU RED
TO RUN THE GAS SUPPLY P PEWORK AS DETA LED N SECT ON
2.5
Fig. 9
346mm CRS
858mm CRS
4 holes in combustion
chamber mounting flange
for securing to the opening
150mm
90mm
858mm CRS
346 CRS

2.5 INSTALLATION OF THE GAS SUPPLY (INTO STUDDED WALL OR
EXISTING CHI NEY BREAST)
2.5.1 Before installing the combustion chamber, decide from which side or if a
rear connection to the gas supply is required. Plan the pipe run to enter
from the rear or below the firebox from the left, right or rear and connect
to the inlet elbow. See figure 10, 11 & 12 below. The gas connection is
located at the front right hand side of the fire. Note : Before breaking
into the gas supply a gas tightness test should be carried out to
establish that the existing pipework is sound.
12
Combustion Chamber
Gas Supply entering from L/H/S
Combustion Chamber
Gas Supply entering from Rear of Combustion Chamber
Outer
Cavity Wall or
rear face of
studwork
Ensure if bringing gas
supply through side or rear
of a chimney breast that the
pipe is sleeved and sealed
with a suitable flexible, non
setting compound
Fig. 10
Fig. 11
Combustion Chamber
Fig. 12
Gas Supply entering from R/H/S

2.6 SPECIFYING THE FLUE SYSTE & ASSOCIATED CO PONENTS
2.6.1 This product requires a minimum vertical flue length of 150mm (6 inch).
The horizontal length can then be extended up to a maximum of
1600mm, giving a total depth from mounting flange to outer wall of
2000mm. The standard flue kit supplied with the product comprises the
following components :-
1 off Flue terminal
1 off Flue terminal guard
1 off 150mm starter pipe
1 off 250mm minimum to 410mm maximum telescopic flue pipe
1 off 90 degree elbow 3 off Pipe clips
This kit comprises the components required to fit the appliance into a studded wall
or a chimney breast with a maximum depth of 880mm (from mounting flange of
combustion chamber to outer face of wall) The main flue pipe section is a
telescopic item which allows for a variation in depth of 160mm minimum to
maximum length (250mm to 410mm). See figure 13 below.
Fig. 13
13
Minimum
Wall
Thickness
Excluding
Flue Terminal
320mm
Flue Terminal Length
200mm
Maximum Wall Thickness
Excluding Flue Terminal
410mm
Flue Terminal
Length 200mm
90 Degree Elbow
150mm
Starter ipe
90 Degree Elbow
150mm
Starter ipe
Telescopic Flue Section
Telescopic Flue Section

n instances where a large depth cavity wall, chimney breast is encountered, or if
the installation requires a flue termination to the left or right hand of the
combustion chamber, the overall length from the centre of the flue spigot can be
increased up to 1360mm as shown below in figure 14. This is only applicable to
Natural Gas models, LPG models can only be fitted with the standard length
flue duct.
Fig. 14
n installation’s where components are required that exceed the limitations of the
components supplied with the standard kit, extra lengths of flue pipe are available
from BFM Europe Ltd. The lengths available and part no’s are shown below.
B-83970 1000mm flue length section
B-83980 500mm flue length section
B-83990 250mm flue length section
B-84000 150mm flue length section
Always ensure that the solid section is fitted to the elbow when installing
extra sections, followed by the telescopic section as supplied in the
standard flue kit, this will allow adjustment for differences in cavity wall
depth. See figure 15 overpage.
14
1360mm Maximum
1360mm Maximum
1485mm
Maximum
Combustion Chamber
1605mm
Maximum

Fig. 15
2.7 PREPARATION OF THE WALL / OUNTING
The appliance and flue pipes must be installed at right angles to the mounting
wall. The appliance itself should be installed vertically against a flat wall. Where
an uneven wall surface is found, appropriate action should be taken to ensure that
the appliance is not stressed or does not distort when installed.
Ensure that the floor surface onto which the appliance is mounted onto is flat.
The minimum height from the mounting base to the centre of the flue is shown on
below in figure 16.
NOTE : Adjustable feet are fitted to the combustion chamber to allow fine tuning of
it’s positioning.
Fig. 16
15
Additional Flue
Length e.g. 1000mm to
be fitted onto elbow
before telescopic
section is fitted, to take
into account
variation in wall cavity
depths
250mm to
410mm
Telescopic
Section
90 degree
elbow
150mm starter pipe
with standard flue
length, 2 x 150mm
with extended flue
length
Flue
Terminal
Combustion
Chamber
840mm to CRS
of Flue ipe
with standard
ducts, 990mm
with extended
flue lengths
150mm Starter ipe - additional
150mm pipe length (part no. B-
84000) to be fitted if used with
extended horizontal flue.
A minimum clearance of
100mm is required above the
top of the flue pipe to
combustible surfaces
300mm, 450mm if
fitting with extended
flue length
90 degree elbow

2.8 PREPARATION OF THE FLUE HOLE
2.8.1 Mark the position of the centre of the flue on the inner wall. (See figure
16 on previous page for position).
2.8.2 Cut hole for outer flue pipe. There are two possible methods to achieve
this, either core drill or via hammer and chisel.
2.8.3 To core drill, proceed as follows :-
Drill a pilot hole through the wall, in position as specified in figure 16 on
previous page.
Using a 6” core drill, drill the flue hole.
To Hammer and chisel, proceed as follows :-
Mark the position of the centre of the flue pipe as specified in figure 16.
Mark the position of the hole around this point.
Chisel out the area as marked on the wall.
We then recommend that a cardboard cylinder is placed around the flue pipe and
inserted in the chiselled out hole whilst making good.
NOTE :- If the appliance is to be installed into a building under
construction, it is recommended that a non-corrosive metal tube of 6”
diameter be inserted into the position of the hole as specified on page 16.
2.9 FITTING THE STARTER PIPE TO THE APPLIANCE
2.9.1 Place gasket on top of the combustion chamber as shown below in
figure 17.
Fig. 17
16

2.9.2 The starter pipe is attached to the appliance by placing it over the spigot
on the combustion chamber and locating the mounting flange over the
weld studs that protrude from the top panel on the combustion chamber.
(See figure 18 below).
Fig. 18
2.9.3 When the starter pipe is located, tighten the 6 off wingnuts (supplied in
loose items pack) to seal the starter pipe to the combustion chamber.
(See figure 19 below).
Fig. 19
2.9.4 Fit the 90 degree elbow in the required direction of the flue pipe (L/H,
R/H or to the rear), and secure to the starter pipe with the clamps as
shown in section 2.9.
17

2.10 FITTING THE FLUE PIPES TOGETHER
2.10.1 The flue pipes are located by pushing the sections together and
clamping using the clamps provided. As with all balanced flue
appliances ensure that the flue sections are fitted together horizontally.

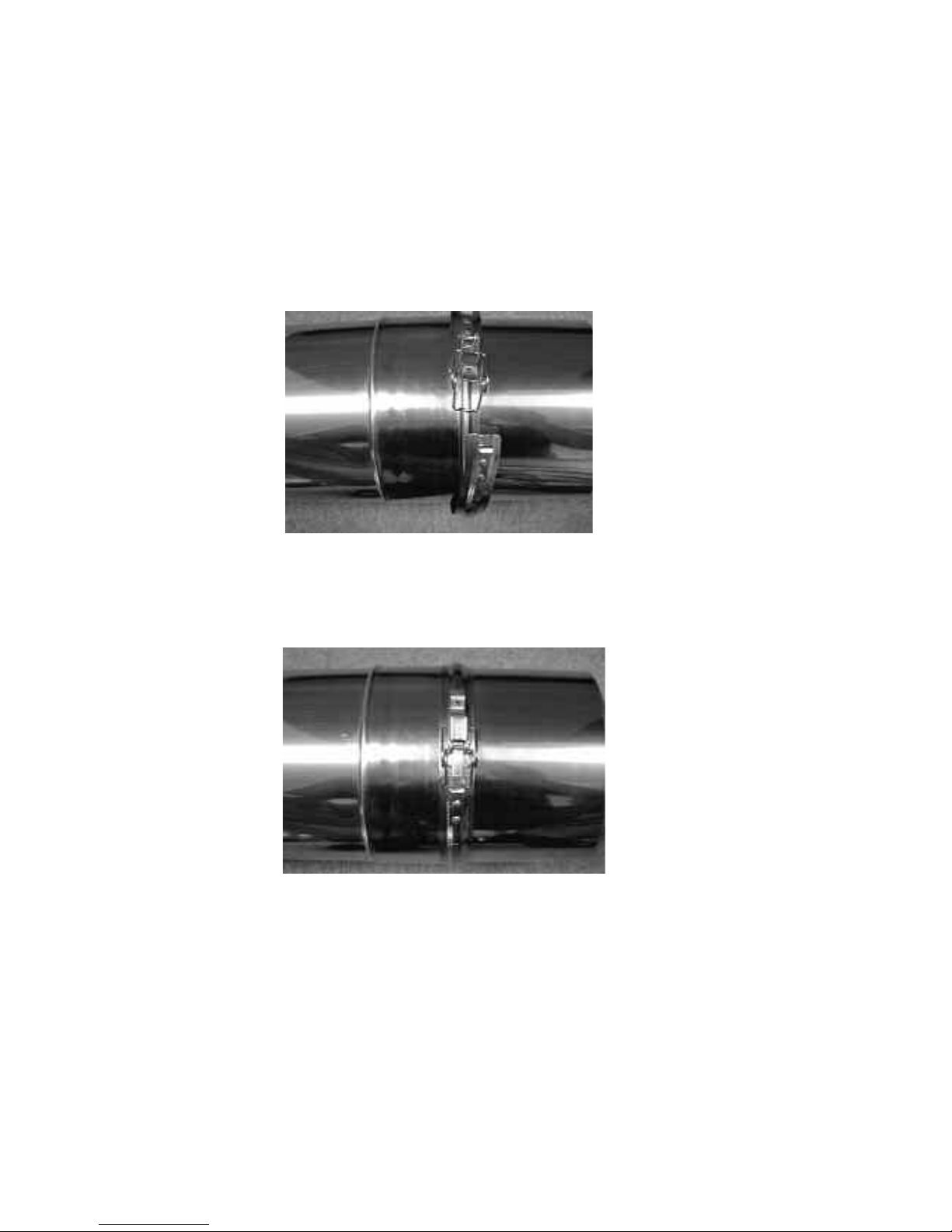

2.10.2 The clamps are fitted together as shown below in figure 20 & 21 below.
Fig. 20
Fig. 21
18

2.11 FITTING THE FLUE TER INAL
2.11.1 The flue terminal locates over the telescopic flue section and is clamped
as per the other flue sections. The flue terminal must not protrude out
of the wall further than 150mm. This is indicated by the ridge on the
terminal itself. Failure to comply with this request will result in poor
performance of the product during adverse weather conditions.
See figure 22 below for correct positioning of the flue terminal.
Fig. 22
19
Inner Cavity Wall Outer Cavity Wall
Correct osition of
Flue Terminal
Flue terminal shown in correct
position with inlet area flush with
external wall
Inner Cavity Wall Outer Cavity Wall
Flue terminal shown in an incorrect
position, protruding beyond the
external wall
In-Correct osition of
Flue Terminal
Ensure flue
pipes are
sealed to
inner and
outer cavity
and gap
around
terminal are
sealed

2.12 FITTING THE TER INAL GUARD
2.12.1 With the flue terminal in position, place the terminal guard over the top
of the flue terminal and mark the position of the holes on the outer wall.
Remove the terminal guard and drill the 4 off 6 mm holes. nsert the
raw plugs into the drilled holes, replace the terminal guard over the top
of the flue terminal and attach to the wall using the No.12 x 40mm
screws provided with the terminal guard. See figure 23 below.
Fig. 23
NOTE : In England & Wales, the building regulations require that a terminal
guard should be fitted if the terminal could come into contact with people
near the building or be subject to damage. BF Europe Ltd. also
recommend the fitting of a flue terminal guard where regulations do not
demand that it be fitted. A suitable flue terminal guard is supplied with the
appliance.
20
