BFM Europe Atina HE Mounting instructions

Atina HE
HIGH EFFICIE CY I SET ROOM HEATER
Installation, Maintenance & User Instructions
Hand these instructions to the user
Model o’s BHAL**R is for use on atural Gas (G20) at a supply pressure
of 20 mbar in G.B. / I.E.
Model o’s BHAL**RP is for use on Propane Gas (G31) at a supply pressure
of 37 mbar in G.B. / I.E.
** Denotes trim & colour variant

CO TE TS
PAGE
Section 1 Information and Requirements
1.0 Appliance information 3
1.1 Conditions of installation 4
1.2 Flue & Chimney Suitability 4
1.3 Shelf position 5
1.4 Hearths 5
1.5 Efficiency Declaration 5
Section 2 Installation of Fire
2.1 Unpacking the combustion chamber 6
2.2 Preparing the combustion chamber opening (In studded wall) 7
2.3 Preparing the combustion chamber opening (In chimney breast) 8-9
2.4 Securing the fire to the opening 10
2.5 Installation of the gas supply 11
2.6 Making the electrical connection 12
2.7 Removal & re-fitting of the glass panel 13-14
2.8 Removing the burner assembly 15-17
2.9 Finishing the product aperture / fitting the plaster frame 18
Section 3 Assembling Fuel Bed and Commissioning
3.1A Fitting the fuel bed logset 19-23
3.1B Fitting the fuel bed pebbles set 24
3.2 Lighting the appliance 25-29
3.3 Checking for clearance of combustion products 29-30
3.4 Removal / Re-fitting of the efficiency baffle 30
3.5 Fitting the handset wall bracket 30
Section 4 Maintenance
4.1 Removal of the burner assembly 31
4.2 Removal of the gas control valve 31-32
4.3 Removal of the ultrasonic reciever 32
4.4 Removal of the pilot assembly 32
4.5 Removal / Replacement of the convection fan / thermal switch 32
4.6 Removal / Replacement of the handset battery 33
4.7 Checking for flue debris 33
Section 5 User Instructions
5.1 Installation Information / about the Atina HE 34-35
5.2 Lighting the appliance 36-39
5.3 Important safety information 40
5.4 Cleaning& removing / replacing the glass panel 41-43
5.5A Removal & re-fitting the fuel-bed logset 44-48
5.5B Removal & re-fitting the pebble fuel-bed pebble set 49
Model numbers BHAL**R & BHAL**RP are manufactured by:-
BFM Europe Ltd. Trentham Lakes, Stoke-on-Trent, Staffordshire, ST4 4TJ
2

SECTIO 1
I FORMATIO A D REQUIREME TS
1.0 APPLIA CE I FORMATIO
Main injector : (1 off) Stereomatic Cat 82 – size 1.70 (NG)
Stereomatic Cat 82 – size 1.12 (LPG)
Pilot Type : NG - Seagas P5-29D
LPG - Seagas P5-30LP
Max. Gross Heat Input : 5.0 kW
Min. Gross Heat Input : 2.8 kW
Cold Inlet Pressure : G20 20.0+/-1.0 mbar (8.0 +/- 0.4 in w.g.)
G31 37.0+/-1.0 mbar (14.8 +/- 0.4 in w.g.)
Ignition : Integral to gas valve
Electrode Spark Gap : 4.0mm
Packed Weight Combustion Chamber : 36.0 kg
Supply Voltage : 230V a.c.
Supply Frequency : 50Hz
Supply Fuse : 3 Amp to BS 1362
Electrical Supply Required 230v AC, 50Hz
Fig. 1 Fig. 2
Top View of Combustion Side View of Combustion
Chamber Chamber
3
685mm
610mm
325 mm 540mm
587mm
325mm
175mm
111mm

I STALLATIO REQUIREME TS
1.1 CO DITIO S OF I STALLATIO
It is the law that all gas appliances are installed only by a GAS SAFE Registered
Installer, in accordance with these installation instructions and the Gas Safety
(Installation and Use) Regulations 1998 as amended. Failure to install appliances
correctly could lead to prosecution. It is in your own interest and that of safety to
comply with the law. The installation must also be in accordance with all relevant
parts of the Local and National Building Regulations where appropriate, the
Building Regulations (Scotland Consolidation) issued by the Scottish Development
Department, and all applicable requirements of the following British Standard Code
of Practice.
1. BS 5871 Part 2 Installation of Inset Live Fuel Effect Gas Fires
2. BS 6891 Installation of Gas Pipework
3. BS 5440 Parts 1 & 2 Installation of Flues and Ventilation
4. BS 1251 Open fire place components
5. BS 715 / BS EN 1856-2 Metal flue pipes for gas appliances
6. BS EN 1858 Clay Flue Blocks and Terminals
7. IS 813 : Domestic Gas Installation (Republic of Ireland)
o purpose made additional ventilation is normally required for this
appliance, when installed in G.B. When Installing in I.E. please consult
document I.S. 813 : Domestic Gas Installation, which is issued by the
ational Standards Authority of Ireland. If installing in orthern Ireland,
please consult local building regulations. Any purpose made ventilation
must be checked periodically to ensure that it is free from obstruction.
1.2 FLUE A D CHIM EY SUITABILITY
This appliance is designed for use with conventional brick built or lined chimneys
and fabricated flues and metal flue boxes conforming to BS 715 / BS EN 1856-2.
All flues must conform to the following minimum dimensions.
Minimum diameter of circular flues 125 mm
Minimum effective height of all flue types 4 metres
Safe clearance of products must always be checked by carrying out a smoke
match test as described in section 3.3
4

1.3 SHELF POSITIO
The fire may be fitted below a combustible shelf providing there is a minimum
distance of 300mm above the top of the fire and the shelf does not project more
than 150mm. If the shelf overhangs more than 150mm the distance between the
fire and the shelf must be increased by 15mm for every 25mm of additional
overhang over 150mm.
1.4 HEARTHS
This appliance does not require the fitting of a hearth that projects in front of it
when installed into a recess in either an existing chimney breast or a studded wall,
providing the appliance is installed a minimum of 225mm above the floor level.
The appliance must however stand on a non-combustible base that is a minimum
thickness of 12mm
1.5 APPLIA CE EFFICIE CY DECLARATIO
The efficiency of this appliance has been measured as specified in
BS 7977-1 : 2009 and the result after conversion to Gross using the
appropriate factor from Table 4 of SAP 2009 is 69%.
The test data from which it has been calculated has been certified by BSI.
The efficiency value may be used in the U Government’s Standard Assessment
Procedure (SAP) for energy rating of dwellings.
5

SECTIO 2
I STALLATIO OF FIRE
2.1 U PACKI G THE COMBUSTIO CHAMBER
Carefully lift the combustion chamber out of the carton. Remove the loose item
packaging carefully from the pack. Check the contents as listed :-
DO OT U DER A Y CIRCUMSTA CES USE THIS APPLIA CE IF THE
GLASS PA EL IS BROKE OR OT SECURELY FIXED TO THE FIREBOX.
Packing Check List
1 off Combustion Chamber & Glass Assembly
1 off Boxed ceramic fuel-bed set (packed inside combustion chamber)
1 off Installation instruction / user manual
1 off Plastering frame
1 off Thermostatic remote handset
1 off Loose items pack – containing :-
4 off No. 12 x 40mm Screws
4 off Rawlplugs
1 off 9V Battery
1 off Glass clamp
1 off Handset bracket
1 off Grommet
PLEASE OTE : Due to the high level of heat produced by this product we
recommend that Plasma / LCD televisions are not placed in close proximity
to this product.
6

2.2 PREPARATIO OF THE COMBUSTIO CHAMBER OPE I G
(I TO STUDDED WALL) USI G A 125MM OR 175MM FLUE LI ER.
All combustible parts of the studwork must be set at the distances as shown below
in Fig. 3 & 4. For installation into such applications a flue box with 125mm flue
pipe adaptor is available to purchase as a cost option extra, please order part
number 1142-142170, from your local BFM fires stockist.
7
Minimum 50mm at sides
Minimum 50mm at rear
Combustion Chamber
Dimension “A”
Opening Width = 610mm
Dim “A”
Dim “B”
Dimension “B”
Opening Height = 560mm to
570mm
Dim “C”
Dimension “C”
Minimum Depth 340mm
Fig. 3
Fig. 4
Minimum 125mm flue liner required
125mm diameter minimum flue liner required,
clearances to combustible surfaces to be
maintained as detailed in Fig. 3
MINIMUM HEIGHT FROM
FLOOR LE EL TO
BOTTOM OF OPENING IS
225MM
PLEASE OTE : For the front face of the studwork a
non combustible board such as “Versa Tecbor” should
be used in a double 12mm thickness. “Versa Tecbor”
board is available from Euroform Products Ltd, Tel :
[phone], www.euroform.co.uk
Studwork

2.3 PREPARATIO OF THE COMBUSTIO CHAMBER OPE I G
(I TO EXISTI G CHIM EY BREAST)

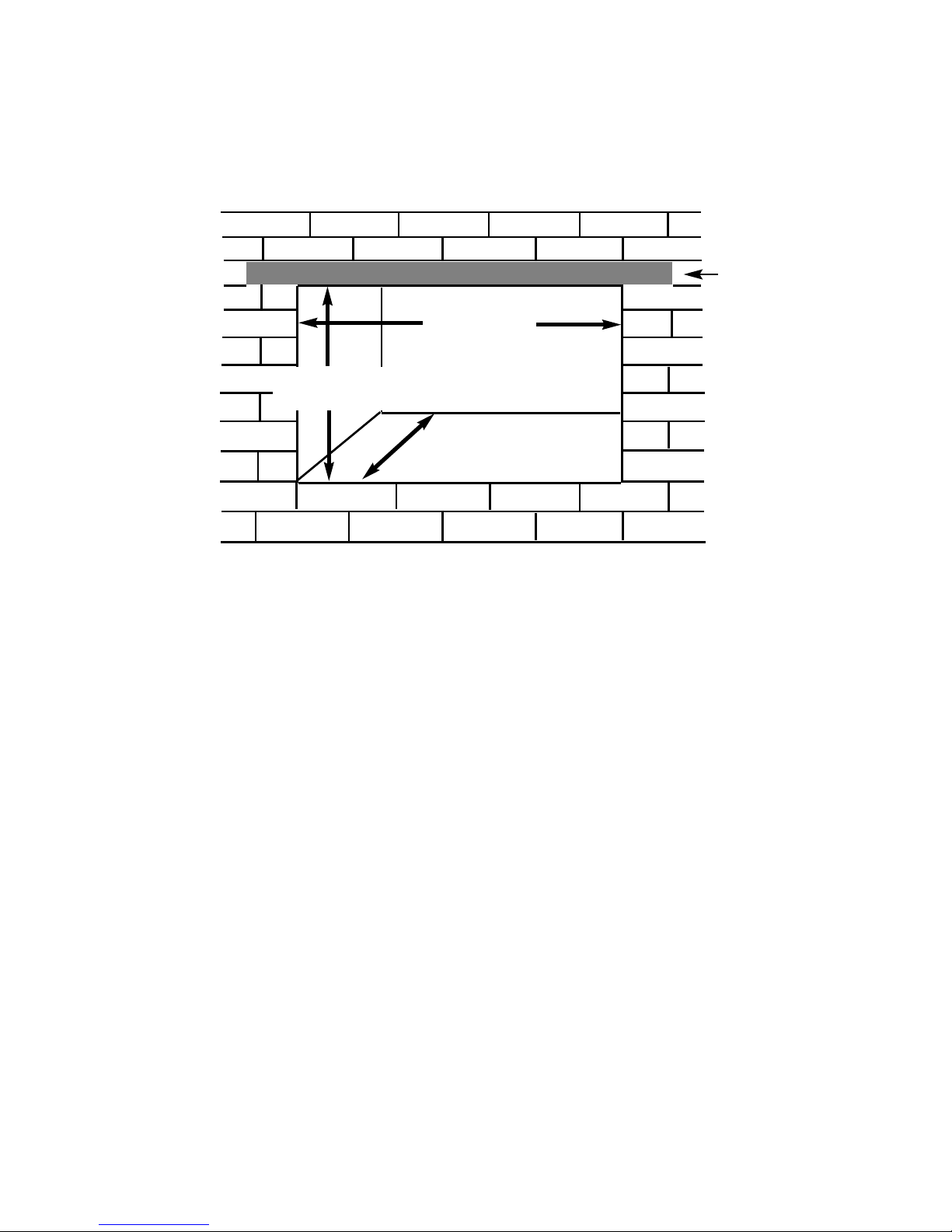

An opening should be constructed to the following dimensions in the existing
chimney breast. See fig. 5 below
Fig. 5
PLEASE OTE : The opening size as detailed above will require
reducing in size to the product aperture and finishing in a high
temperature plaster finish as detailed in section 2.9
CHECK A Y LOAD BEARI G STRUCTURAL ITEMS ARE OT
AFFECTED BY THE I STALLATIO OF THE PRODUCT. SEE FIG 6
OVERPAGE.
If the flue requires lining, an optional extra flue connection plate
assembly can be ordered to assist with the flue connection. This
assembly can be obtained from your local BFM Fires stockist, please
quote part number 1130-127120. Included with this assembly are
fitting instructions.
8
Width = 610mm
Height = 560mm
to 570mm
Depth = 375mm including
debris collection volume
Lintle must
project 150mm
either side of the
opening if
cutting into an
existing chimney
breast

Fig. 6
The opening needs to be sufficient to accomodate the combustion chamber. To
support the wall above the opening, a suitable lintel must be inserted across the
top of the opening. The lintel could be either pre-cast concrete or steel - Catnic
CN52 or CN 46 could be used, depending upon the inner wall thickness. Before
proceeding with the installation of the fire, an assessment of the area immediately
above the fire is required, see Fig. 6 above. If there is no existing openings within
either triangle, proceed with forming the opening. However, if opening or beams
occur within either triangle, then you should seek specialist advice from a
structural engineer or consider relocating the proposed position of the firebox.
9
400mm interactive area
600mm load triangle
The Interactive Zone -
Openings, beams or joists within
this area need to be assessed.
Load triangle - No beam or
opening permissible within this
area
Lintel
e.g. 750mm x 75mm
roposed Opening in
Chimney Breast

10
2.4 SECURI G THE COMBUSTIO CHAMBER TO THE OPE I G
a) The combustion chamber must be secured to the opening via the four
off screw and rawlplugs provided. Fig. 7 below shows the hole centres
in the mounting flanges of the combustion chamber.
Fig. 7
b) DO NOT SECURE THE COMBUSTION CHAMBER INTO THE
OPENING AT THIS POINT AS ACCESS WILL STILL BE REQUIRED
TO RUN THE GAS SUPPLY PIPEWOR AS DETAILED IN SECTION
2.5
Fig. 8
346mm CRS
670mm CRS
4 holes in combustion
chamber mounting flange
for securing to the opening
92mm
175mm
670mm CRS
320 CRS

2.5 I STALLATIO OF THE GAS SUPPLY (I TO STUDDED WALL OR
EXISTI G CHIM EY BREAST)
Before installing the combustion chamber, decide from which side or if a rear
connection to the gas supply is required. Plan the pipe run to enter from the rear
or below the firebox from the left, right or rear and connect to the inlet elbow. See
Fig. 9, 10 & 11 below. The gas connection is located at the front right hand side of
the fire. ote : Before breaking into the gas supply a gas tightness test
should be carried out to establish that the existing pipework is sound.
11
Combustion Chamber
Gas Supply entering from L/H/S
Combustion Chamber
Gas Supply entering from Rear of Combustion Chamber
Outer
Cavity Wall or
rear face of
studwork
Ensure if bringing gas
supply through side or rear
of a chimney breast that the
pipe is sleeved and sealed
with a suitable flexible, non
setting compound
Fig. 9
Fig. 10
Combustion Chamber
Fig. 11
Gas Supply entering from R/H/S

2.6 MAKI G THE ELECTRICAL CO ECTIO .
WAR I G : THIS APPLIANCE MUST BE EARTHED AND SHOULD BE
PREFERABLY CONNECTED VIA A 3 AMP FIXED FUSED
SPUR WITH A MINIMUM CONTACT SEPARATION OF 3MM.
IT MAY HOWEVER BE CONNECTED TO A 3 PIN PLUG TO
BS 5733, THAT IS FITTED WITH A 3 AMP FUSE TO BS
1362.
a) The product is supplied with a mains cable and 3 pin plug fitted. The
mains cable will exit the combustion chamber from the rear left hand
side (viewed from the front), through the grommet.
b) Plug the mains cable supplied into a suitable socket in close proximity
to the appliance or remove the plug and wire into a fixed fused spur.
12

2.7 REMOVI G / RE-FITTI G THE GLASS PA EL
a) To remove the glass frame, the glass clamp as supplied in the loose
items pack will be required. Secure the clamp to the glass panel as
shown below in Fig. 12
Fig. 12
b) Remove the front grill by removing the 2 off retaining
screws from the upturned tabs, 1 off at each end of the trim
Remove the side trims by simply lifting clear (they are retained by
magnets). See Fig. 13 below.
Fig. 13
OTE : Always ensure that a consistent seal between the combustion
chamber and the glass frame is achieved when replacing the glass
panel.
13
Remove the front
grill retaining screws
at L/H and R/H
sides

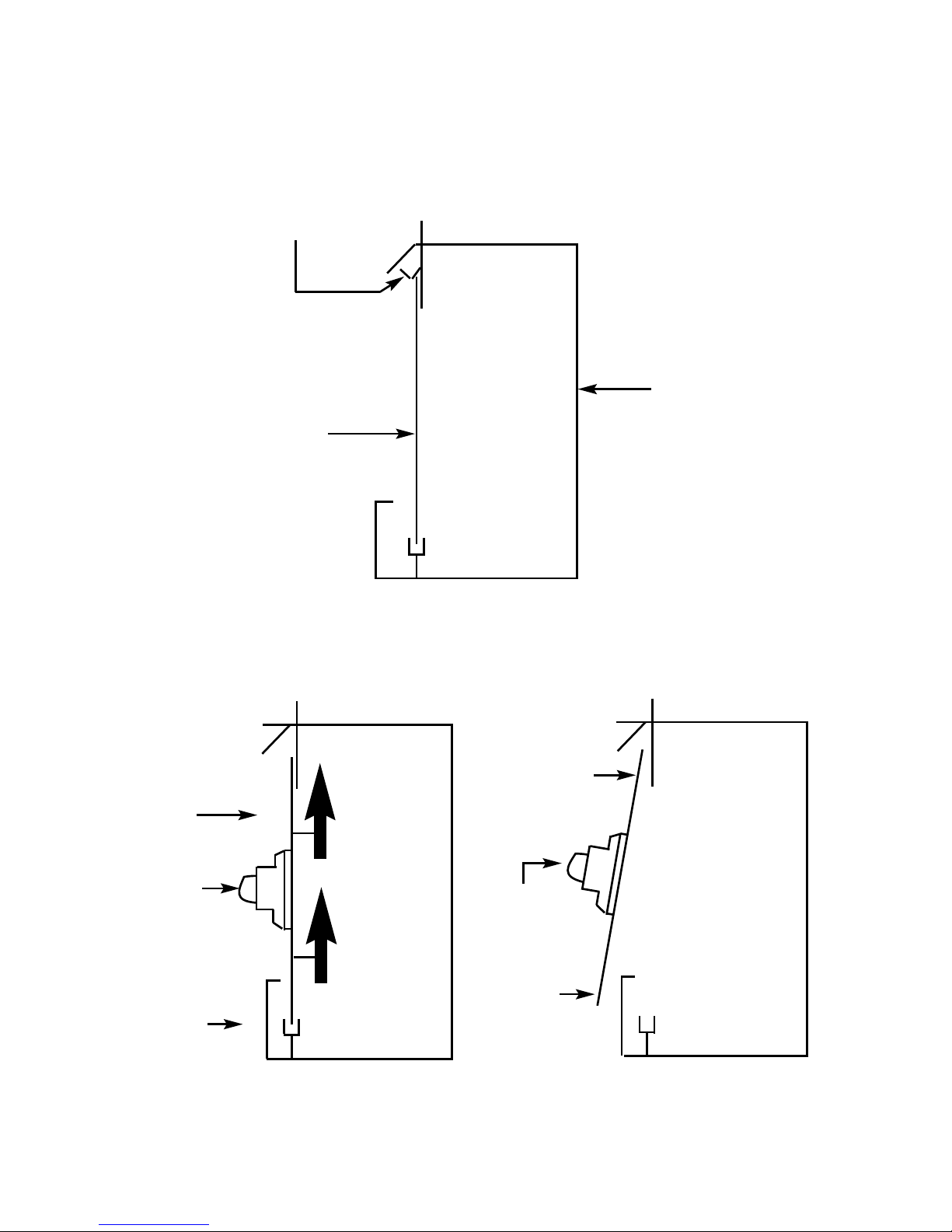

c) Remove the 5 off securing screws and glass panel retaining bracket
that are located on the top underside face of the combustion chamber.
behind the canopy. See Fig. 14 below.
c) Lift the glass panel vertically to release from the bottom retaining
channel and then tilt forwards as shown below in Fig. 15 / 16 to release.
Fig. 15 Fig. 16
14
Glass panel
Glass anel
Retaining
Bracket, secured
by 5 off screws
Combustion
Chamber
Glass Clamp
Glass panel
Bottom Glass
Retaining
Channel
Glass Clamp
Glass panel
Tilt Forwards
Bottom Edge
Fig. 14

15
2.8 REMOVI G THE BUR ER ASSEMBLY

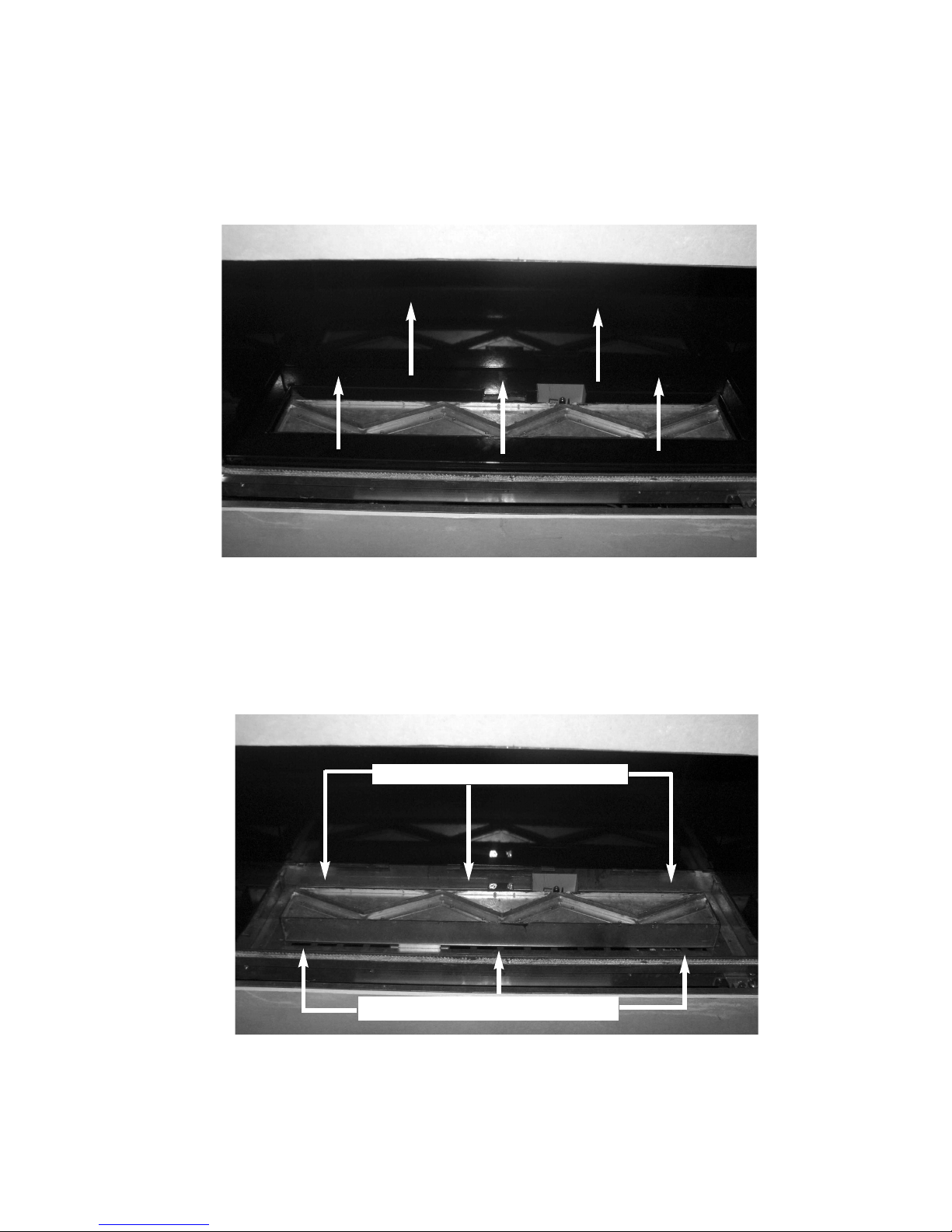

a) Lift the burner tray cover vertically clear as shown below in Fig. 17 and
store in a safe place.
Fig. 17
b) This will allow access to the 6 off burner retaining screws, 3 off at the
front of the burner and 3 off at the rear as shown below in Fig. 18
Fig. 18
3 off Burner Retaining Screws at Front
3 off Burner Retaining Screws at Rear

c) With the 6 off burner screws removed, remove the isolation switch from
it’s retaining bracket at the front right hand side. This is achieved by
lifting the switch clear from the bracket as shown below in Fig. 19
Fig. 19
d) Disconnect the burner gas supply pipe from the inlet elbow at the front
right hand side by unscrewing the nut as shown below in Fig. 20
Fig. 20
16
Lift switch from retaining
bracket
Disconnect the
burner gas
supply pipe

e) The burner can then be lifted, tilted forwards and removed from the
combustion chamber as shown below in Fig. 21
Fig. 21
f) Make the gas connection to the inlet elbow as prepared in section 2.5
Before making the final gas connection, thoroughly purge the gas
supply pipework to remove all foreign matter, otherwise serious
damage may be caused to the gas control valve on the fire.
Failure to purge the gas supply will invalidate the guarantee.
g) Replace the burner unit in reverse order and re-connect the gas supply
pipe.
h) Replace the isolation switch into it’s retaining bracket in reverse order,
taking care not to damage the wiring.
i) Remove the pressure test point screw from the inlet elbow and fit a
manometer.
j) Turn on the main gas supply and carry out a gas tightness test.
k) Turn on the electrical supply to the appliance via the fixed fused spur or
plug.
l) Finish the surface covering below the opening as shown in section 2.8
m) Fit the ceramics as shown in section 3.1A/B, replace the burner tray
cover, glass panel and glass panel securing bracket / 5 off screws.
Replace the side trims which are retained by magnets and the front grill,
then proceed to section 3.2 (lighting the appliance).
17

2.9 FI ISHI G OF THE PRODUCT APERTURE / FITTI G THE
PLASTERI G FRAME

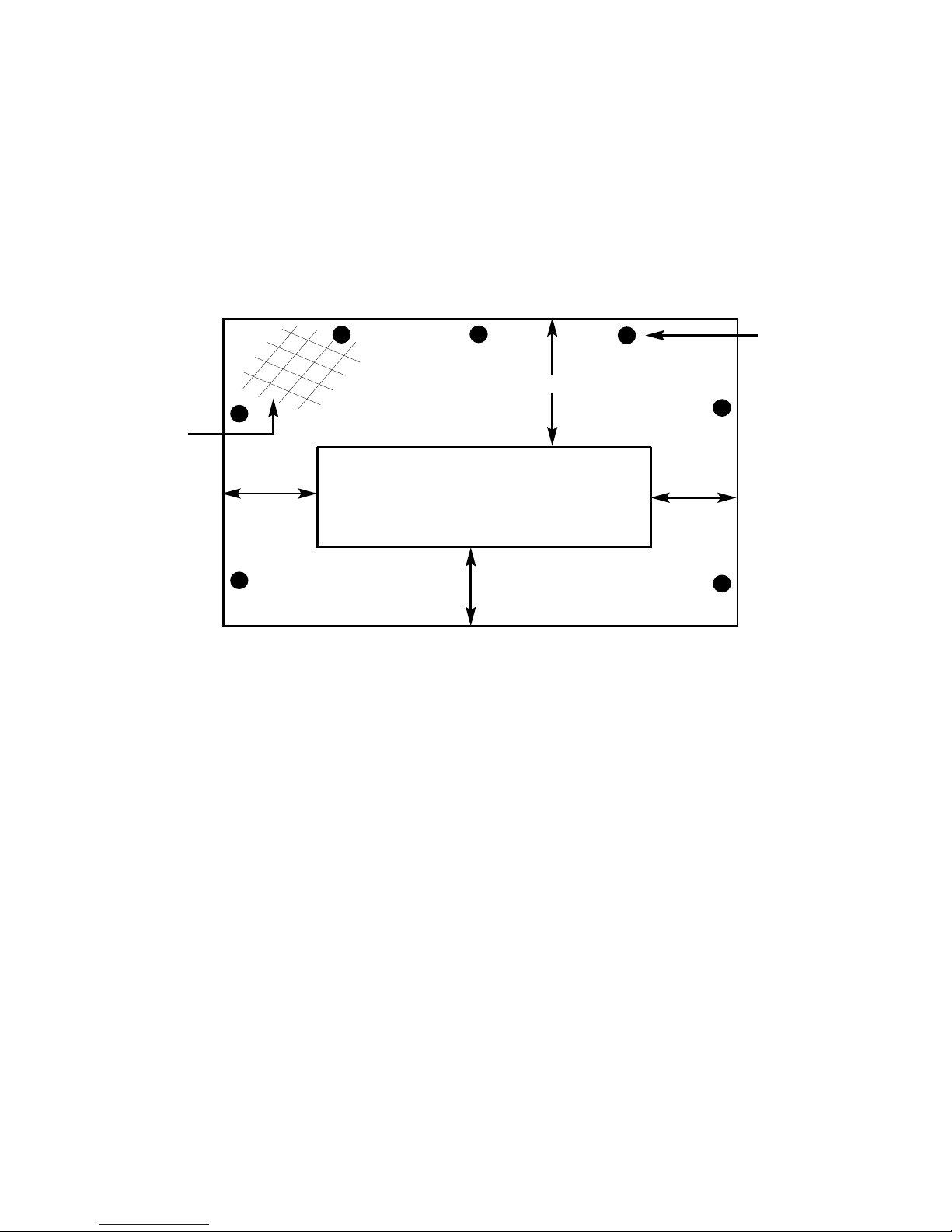

a) The area below around the appliance will require a high temperature
plaster finish around the appliance due to the high heat output level of
the product, see Fig. 22 A plastering frame is supplied with the product
to assist in obtaining this finished surface. To prevent plaster cracking
and discolouration, finish the 600mm area above and the 300mm area
at the side and below with a high temperature plaster finish as follows :-
b) The high temperature plaster should be applied over a heat proof
screed to the manufacturers instructions (see below for manufacturers
contact details) and left to dry for a minimum of 3 days.
c) Supplier’s contact details for heat proof screed & plaster are as
follows :-
Vitcas Ltd. or The Greener Company
8 Bonville Road The Old Canteen
Brislington Rosemount Works
Bristol Huddersfield Road
BS4 5NZ Elland
Tel : [phone] HX5 0EE
www.vitcas.com Tel : [phone]
[email protected] www.thegreenercompany.com
18
600mm
300mm
300mm
300mm Completed opening with product
installed - 310mm (H) x 610mm (W)
laster
Frame
meshing
Secure
plaster
frame via
product
fixing holes
Fig. 22

SECTIO 3
I STALLATIO OF FIRE
3.1 A FITTI G THE FUEL-BED LOGSET
IF FITTI G THE PRODUCT WITH THE PEBBLE FUELBED, PLEASE PROCEED
TO SECTIO 3.1B
a) The vermiculite material should then be first layed around the burner
tray as shown below in Fig. 23, resulting in an even layer.
Fig. 23
b) Place Log “1” at the left hand side of the burner tray fitting the holes
in the bottom face of the log onto the 2 off location pegs as shown
below in Fig. 24
Fig. 24
19
Log No. 1

c) Place Log “2” at the right hand side centre of the burner tray fitting
the hole in the bottom face of the log onto the single location peg as
shown below in Fig. 25
Fig. 25
d) Place Log “3” at the right hand side of the burner tray fitting the hole in
the bottom face of the log onto the single location peg as shown below
in Fig. 26
Fig. 26
20
Log No. 2
Log No. 3
