Arana RC
COAL EFFECT GAS FIRE
User Instructions
These instructions should be read by the user before operating the
appliance and retained for future reference
Model o’s GICC**R is only for use on atural Gas (G20) at a
supply pressure of 20 mbar in G.B. / I.E.
Model o’s GICC**RP is only for use on Propane Gas (G31) at a
supply pressure of 37 mbar in G.B. / I.E.
** denotes trim / fret variant

I STALLATIO I FORMATIO
CO DITIO S OF I STALLATIO
In Great Britain :-
It is the law that all gas appliances are installed only by a competent (e.g. GAS
SAFE Registered) Installer, in accordance with the installation instructions and the
Gas Safety (Installation and Use) Regulations 1998. Failure to install appliances
correctly could lead to prosecution. It is in your own interest and that of safety to
comply with the law.
The fire may be fitted below a combustible shelf provided that the shelf is at least
200mm above the top of the appliance and the depth of the shelf does not exceed
150mm.
The fire may be installed below combustible shelves which exceed 150mm deep
providing that the clearance above the fire is increased by 15mm for each 25mm
of additional overhang in excess of 150mm.
In Republic of Ireland :-
o purpose made additional ventilation is normally required for this
appliance when installed in G.B. When installed I.E. please consult
document I.S. 813 : 1996 Domestic Gas Installation which is issued by the
ational Standards Authority of Ireland. Any purpose made ventilation
should be checked periodically to ensure that it is free from obstruction.
If the chimney or flue has been previously used by appliances burning fuels other
than gas they must be swept prior to the installation of this fire.
If this appliance is fitted directly on to a wall without the use of a fireplace or
surround, soft wall coverings such as wallpaper, blown vinyl etc. could be affected
by the heat and hot convection air and may discolour or scorch. This should be
considered when installing or decorating.
The model no. of this appliance is as stated on the rating plate, located on the
control panel of the fire.
This product has been manufactured by :
BFM Europe Ltd,
Trentham Lakes,
Stoke-on-Trent,
ST4 4TJ
2
Please No e : The life span of he ba eries in he burner uni is dependen
upon use and herefore he ba ery life will vary accordingly. If he burner
uni fails o opera e, please check he 6 off AA ba eries before calling he
service cen re for engineer assis ance.

ABOUT YOUR EW GLOBAL ARA A GAS FIRE
The Global Arana RC convector coal effect gas fire incorporates a unique and
highly developed fuel bed which gives the realism of a loose coal layout combined
with realistic flames and glow. The use of durable ceramic material in the
construction of the fuelbed components ensures long and trouble free operation.
When first using the new fire a slight smell may be noticed. This is due to starch
used in the manufacture of the soft ceramic coals, it is non-toxic and will soon
disappear.
Please take the time to fully read these instructions as you will then be able to
obtain the most effective and safe operation of your fire.
IMPORTA T SAFETY I FORMATIO
WAR I G
This appliance has a naked flame and as with all heating appliances a
fireguard should be used for the protection of children, the elderly and
infirm. Fireguards should conform to B.S. 8423 : 2002 (Fireguards for use
with gas heating appliances).
It is important that this appliance is serviced at least once a year by a GAS SAFE
registered gas installer and that during the service the fire is removed from the fire
opening and the chimney or flue visually checked for fallen debris or blockages
which must be removed. The chimney should also be checked to ensure clear-
ance of flue products.
After installation or during servicing a spillage test must always be carried
out.
Rubbish of any type must NEVER be thrown onto the fuel bed, this could affect
safe operation and damage the fire.
Any debris or deposits should be removed from the fuel bed from time to time.
This may be carried out by referring to the cleaning section as described later in
this book.
nly the correct number and type of coals must be used and only complete and
genuine replacement sets must be used.
Always keep furniture and combustible materials well clear of the fire and never
dry clothing or items either on or near to the fire. Never use aerosols or
flammable cleaning products near to the fire when it is in use.
The ceramic fuel bed remains hot for a considerable period after use and
sufficient time should be allowed for the fire to cool before cleaning etc.
The fire must only be operated with a suitable fender.
3

OPERATI G THE FIRE USI G THE REMOTE CO TROL HA DSET
a) The Remote control handset generates an infrared signal, which will be
received by the sensor situated at the front right of your fire, behind the
ashpan cover. This infrared signal requires direct line of sight from the
handset to the sensor on the fire to ensure good operation.
b) To light the appliance using the handset, point the handset at the fire
and press the 2 left hand buttons together. The fire will emit a “beep”
sound, the buttons can now be released. After a few seconds an
audible clicking can be heard and then the fire will light the pilot and
then light the main burner. The ignition cycle will take approximately 20
seconds.
c) To reduce the level of heat input on the fire, point the handset at the fire
and press the small flame button. (An audible beep will be heard)
d) To increase the level of heat input on the fire, point the handset at the
fire and press the large flame button. (An audible beep will be heard)
e) To leave the fire in the standby mode (pilot only running) press the small
round button on the handset. The fire should not be left in the
standby mode when unattended.
f) To switch the appliance off completely, press the large round button on
the handset, the fire will then switch off. See fig. 1 below for image of
handset.
Fig. 1
WAR I G : If the fire goes out for any reason or is turned off and it
isnecessary to re-light the fire it is important to allow the
fire to cool for 3 minutes before attempting to re-light it.
4
OFF setting
Standby Setting
Up
Down

TUR I G THE PRODUCT OFF I THE U LIKELY EVE T OF A REMOTE
HA DSET MALFU CTIO .
a) In the unlikely event of the remote control handset malfunctioning (or if
lost or broken) after the appliance has been turned on, the fire can be
turned off via the emergency shut off switch on the control panel.
b) To turn the product off, firstly remove the ashpan from the fire.
c) Press and hold the emergency shut off switch until the fire shuts down.
The process may take up to sixty seconds to complete. (see Fig. 2
below).
d) When the fire has shut down, release the emergency shut off switch.
e) The appliance will now remain in the “off” position until activated by the
remote handset.
Fig. 2
REPLACI G THE BATTERIES (REMOTE CO TROL MODELS O LY)
E SURE THE FIRE IS COOL BEFORE REPLACI G BATTERIES
Remove the ashpan cover. The battery pack is located on the right hand side side
of the burner unit at the bottom. Carefully remove the pack and remove
batteries. Replace in the reverse order using 6 off 1.5V AA Alkaline Battery. It is
important that only an alkaline battery is used, otherwise premature battery failure
and leakage may result.
5
E ergency Shut Off
Switch Position on
Control Panel.

SPILLAGE MO ITORI G SYSTEM
This appliance is fitted with a spillage monitoring system which shuts down the fire
if the evacuation of combustion products from the fire is affected by a partially or
fully blocked flue.
If this system operates the fire will go out. If this occurs, leave the fire for at least
three minutes then follow the lighting procedure as described in the previous sec-
tion. In the event of repeated operation a GAS SAFE registered gas installer
must be called to investigate and rectify the cause.
CLEA I G - WAR I G
Before attempting any cleaning operation ensure that the fire has been allowed to
fully cool.
CLEANING THE TRIMS AND PAINTED METAL PARTS
Dependent upon the trim option chosen for use with this fire, there is a variety of
methods that can be chosen to clean the trim. All trims must only be cleaned with
a clean, damp cloth. Metal polishes must not be used on these trims. The trim is
best cleaned by removing it from the fire and placing it face up on a flat surface.
The trim is easily replaced by repositioning it on the fire and pushing it back onto
the magnets.
CLEA I G THE FUEL BED
We do not recommend cleaning of coals or fuelbed components as these are
fragile and damage may result. one of these parts must be washed or
exposed to any cleaning agents or water.
Any damaged parts must be replaced by contacting your dealer or telephoning
D.F.A. Ltd. on the number stated on the rear cover of this book. Coals must only
be replaced with a complete and genuine replacement set and the fire must never
be run with the wrong number or damaged coals. The fuelbed must be
carefully re-assembled as stated in the following section.
6
No e : Prior o replacing he oxypilo on his produc due o suspec ed
failure of he componen , please remove all debris ha has collec ed on
he lin guard of he oxypilo i self.

RE-ASSEMBLI G THE FUEL BED
a) Place the ribbed ceramic fuelbed base on top of the fuelbed support
and pull fully forwards to the burner. Make sure that the fuelbed
base is located centrally in the fire box.Ensure that the fuelbed
base fit fully down onto the fuel bed support and is not
lodged on the burner. See fig. 3 below.
Fig. 3
b) Position the two halves of the front ceramic (L/H & R/H) on the locating
channel in the front ceramic, ensuring it is located onto the lip on the
burner front ceramic support. (See fig. 4 below)
Fig. 4
7
NOTE : The posi ion of he fuel-bed componen s are cri ical o he
performance of he produc . Therefore please ensure ha he fuel-bed
componen s are posi ioned as described in he following sec ion prior o
reques ing a service call due o soo build up, poor flame pa ern e c.

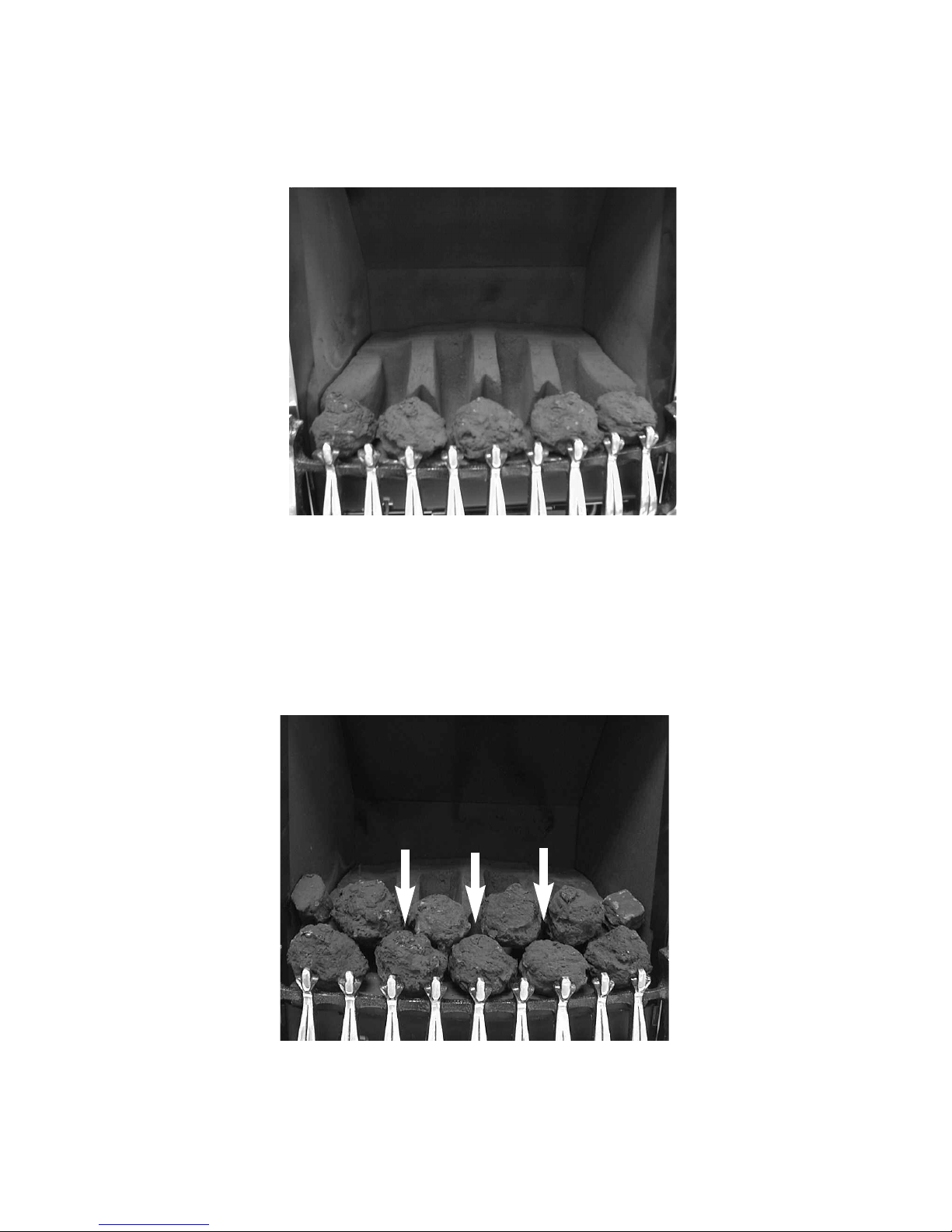

c) Fit five of the large sized coals onto the front ceramic rail, ensuring
that they are evenly spaced. Use the recess’s in the front ceramic rail
as a guide for placement. (See fig. 5 below)
Fig. 5
d) Select four of the large coals and arrange behind the front row of coals,
ensuring that flame paths as indicated below are not interupted, place
one of the small coals at each end of the second row. (See fig. 6
below)
Fig. 6
8

e) Select five of the large coals and arrange along the rear of the
fuelbed, using the ribs in the rear of the fuelbed as a guide for
placement. (See fig. 7 below)
Fig. 7
f) Select the remaining four large coals and position to fill the gaps at
each end of the third row of coals, as shown. below in Fig. 8
Fig. 8
9

The exact position and fit of the coals may be finely adjusted to give the most
pleasing and random appearance.
Warning : Use only the coals supplied with the fire. When replacing the
coals remove the old coals and discard them. Fit a complete set of
coals of the correct type. Do not fit additional coals or any coals
other than a genuine replacement set.
To ensure that the release of fibres from these R.C.F (Refractory Ceramic
Fibre) articles is kept to a minimum, during installation and servicing we
recommend that you use a HEPA filtered vacuum to remove any dust
accumulated in and around the appliance before and after working on the
appliance. When replacing these articles we recommend that the replaced
items are not broken up, but are sealed within heavy duty polythene bags,
clearly labelled as “RCF waste”. RCF waste is classed as a “stable”, non
reactive hazardous waste and may be disposed of at a landfill licensed to
accept such waste Protective clothing is not required when handling these
articles, but we recommend you follow the normal hygiene rules of not
smoking, eating or drinking in the work area, and always wash your hands
before eating or drinking.
10

TO REPLACE THE BATTERY PACK
a) Remove the fender and ashpan assembly. The battery holder is located
on the Right Hand side of the appliance .
b) Remove the battery pack with care and then disconnect the battery lead
at the white rectangular plug.
c) Replace in reverse order and check correct operation of the appliance.
NB The handset uses one LR61 (9v) and should be replaced by
removing the cover on the rear of the handset.
E SURE THE BATTERIES ARE CO ECTED TO THE CORRECT POLARITY
POSITVE (+), EGATIVE (-)
REMOVAL / RE-FITTI G THE TRIM
The trim is positioned on the firebox fixing flange and is secured with magnets.
USER REPLACEABLE PARTS
The only user replaceable parts on this fire are the fuelbed components and coals
which may be replaced as described in the above section. Replacement of any
other parts must be carried out by a competent person such as a GAS SAFE
registered gas installer.
The part numbers of the user replaceable parts are as follows, these are available
from BFM Europe, whose details can be found below.
Fuelbed base B-58690
Fuelbed front rail B-18730
Replacement coal set B-58700
11

Due to our policy of continual improvement and development the exact
accuracy of descriptions and illustrations cannot be guarantee
Part No. B-108170
Issue 4
BFM Europe Ltd
Trentham Lakes
Stoke-on-Trent
Staffordshire
ST4 4TJ
Telephone - General Enquiries : [phone]
Telephone - Service : [phone]
12
