BFM Europe Celena Mounting instructions

Celena
CONVENTIONA F UE OG EFFECT GAS FIRE
Installation, Maintenance & User Instructions
Hand these instructions to the user
Model No. BPR **RN is only for use on Natural Gas (G20) at a supply
pressure of 20 mbar in G.B. / I.E.
** denotes cosmetic variant

CONTENTS
Section 1 Information and Requirements PAGE
1.0 Appliance Information 3
1.1 Conditions of Installation 4
1.2 Flue and chimney suitability 4
1.3 Fireplace / surround suitability 5
1.4 Shelf position 5
1.5 Chimney inspection 5
1.6 Fire place opening / catchment space 6-7
1.7 Chair bricks 8
1.8 Metal flue boxes 8
1.9 Spillage monitoring system 9
Section 2 Installation of Fire
2.1 Unpacking the fire 10
2.2 Installing the fire box 10-18
2.3 Gas tightness and inlet pressure 19
2.4 Installing the Rennes surround 20-21
2.5 Installing the Avignon surround 22-23
2.6 Installing the Etienne surround 24-25
2.7 Checking mechanical fixing of all surround types 26
Section 3 Assembling Fuel Bed and Commissioning
3.1 Fitting the log fuelbed 27-31
3.2 Fitting the batteries 32
3.3 Operation of the fire 33-37
3.4 Lighting the fire 37-40
3.5 Advanced settings of remote control 40-44
3.6 Checking for clearance of combustion products 45
3.7 Removal / re-fitting the restrictor baffle 46
3.8 Fitting the optional trim assembly 46
Section 4 Maintenance
4.1 Removal of the burner assembly 47
4.2 Removal of the control valve 47-48
4.3 Removal of the oxypilot 48
4.4 Replacing the battery in the handset 49
4.5 Replacing the batteries in the fire 49
4.6 Access and checking the flue debris void 49
4.7 Spare parts shortlist 50
Section 5 User Instructions Section
5.1 Conditions of installation 51
5.2 About your new fire 52
5.3 Operating the fire 53-56
5.4 Changing the batteries in handset and in the fire 57
5.5 Setting the time, date and temperature on the remote handset 58-61
5.6 Advanced settings of the remote control 62-65
5.7 Cleaning instruction 66
5.6 Removal / re-fitting the glass panel 67
5.7 Removal / replacement of the fuelbed 68-72
5.8 User replaceable parts 73
This appliance is manufactured by :- BFM Europe Ltd, Trentham Lakes, Stoke-on-Trent, ST4 4T .
2

SECTION 1
INFORMATION AND REQUIREMENTS
1.0 APP IANCE INFORMATION
Model BPRL**RN
Gas Type G20
Main injector (1 off) Cat 82 size 360
Pilot Type ERTA-PG-82-330
Max. Gross Heat Input : 5.4kW
Min. Gross Heat Input : 3.7kW
Cold Pressure : 20.0 +/-1.0 mbar
Ignition : Via remote, integral to control system
Electrode Spark Gap 4.0mm
Packed Weight 35kg
Gas Connection : 8mm Compression (supplied with fire)
Appliance Efficiency Declaration
The efficiency of this appliance has been measured as specified in BS 7977-1 : 2009 +A1 : 2013
and the result is 79.6%. The net calorific value of the fuel has been used for this efficiency
calculation.
The test data from which it has been calculated has been certified by BSI. The efficiency value
may be used in the UK Government’s Standard Assessment Procedure (SAP) for energy rating of
dwellings.
3
Fig. 1

INSTA ATION REQUIREMENTS
1.1 CONDITIONS OF INSTA ATION
It is the law that all gas appliances are installed only by a GAS SAFE Registered
Installer, in accordance with these installation instructions and the Gas Safety
(Installation and Use) Regulations 1998 as amended. Failure to install appliances
correctly could lead to prosecution. It is in your own interest and that of safety to
comply with the law.
The installation must also be in accordance with all relevant parts of the Local and
National Building Regulations where appropriate, the Building Regulations
(Scotland Consolidation) issued by the Scottish Development Department, and all
applicable requirements of the following British Standard Code of Practice.
1. B.S. 5871 Part 2 Installation of Inset Fuel Effect Gas Fires
2. B.S. 6891 Installation of Gas Pipework
3. B.S. 5440 Parts 1 & 2 Installation of Flues and Ventilation
4. B.S. 1251 Open fire place components
5. B.S. 715 Metal flue pipes for gas appliances
6. B.S. 6461 Part 1 Installation of Chimneys and flues
7. B.S. E.N. 1858 Chinmeys Components & Concrete Flue Blocks
8. I.S. 813 : 1996 Domestic Gas Installation (Republic of Ireland)
No purpose made additional ventilation is normally required for this
appliance, when installed in G.B. When Installing in I.E. please consult
document I.S. 813 : 1996 Domestic Gas Installation, which is issued by the
National Standards Authority of Ireland. If installing in Northern Ireland,
please consult local building regulations. Any purpose made ventilation
must be checked periodically to ensure that it is free from obstruction.
1.2 F UE AND CHIMNEY SUITABI ITY
This appliance is designed for use with conventional brick built or lined chimneys
and fabricated flues conforming to BS 715. All flues must conform to the following
minimum dimensions.
Minimum diameter of circular flues 125 mm (without flue
restrictor fitted)
Minimum effective height of all flue types 3 metres
When fitting to conventional chimneys or 175mm flues it may be desirable to
leave the flue restrictor baffle (supplied) in place to reduce the flue flow and
increase the efficiency of the fire. Safe clearance of products must always
be checked by carrying out a smoke match test as described.
4

1.3 FIREP ACE / SURROUND SUITABI ITY
The fire must must not be installed directly onto carpet or other combustible
floor materials.
If a heating appliance is fitted directly against a wall combustible material must be
removed from behind it. Soft wall coverings such as blown vinyl, wall paper etc.
could be affected by the rising hot air and scorching and/or discoloration may
result. Due consideration should be made to this when installing or decorating.
1.4 SHE F POSITION
The fire may be fitted below a combustible shelf providing there is a minimum
distance of 200mm above the top of the fire and the shelf does not project more
than 150mm. If the shelf overhangs more than 150mm the distance between the
fire and the shelf must be increased by 15mm for every 25mm of additional
overhang over 150mm.
1.5 F UE / CHIMNEY INSPECTION
Before commencing installation, a flue or chimney should be inspected to ensure
that all the following conditions are satisfied.
1. Check that the chimney / flue only serves one fire place and is clear of any
obstruction. Any dampers or register plates must be removed or locked in
the open position.
2. Brick/stone built chimneys or any chimney or flue which has been used for
an appliance burning fuel other than gas must be thoroughly swept. The
base of the chimney / flue must also be thoroughly cleared of debris etc.
3. Any under-floor air supply to the fire place must be completely sealed off.
4. Ensure that the inside of the chimney / flue is in good condition along it’s
length and check that there is no leakage of smoke through the structure
of the chimney during and after the smoke pellet test.
5. Using a smoke pellet, check that there is an up-draught in the
chimney / flue and that the smoke can be seen issuing from the
terminal / chimney pot outside.
There must be no leakage of smoke through the structure of
the chimney during or after the smoke pellet test and it is
important to check inside upstairs rooms adjacent to the chimney /
flue. Check the chimney pot / terminal and general condition of the
brickwork or masonry. If the chimney or flue is in poor condition or if
there is no up-draught do not proceed with the installation. If there is a
history of down-draught conditions with the chimney / flue, a tested and
5

certificated flue terminal or cowl suitable for the relevant flue type should
be considered.
6. A spillage test must always be carried out during commissioning of
the appliance.
1.6 FIRE P ACE OPENING
1.6.1 Fireplace Opening for Engine Only Applications
The front opening of the fire place must be between 580mm and 600mm wide,
between 580mm and 600mm high and 300mm deep. If the opening exceeds
these dimensions then a surround must be constructed from suitable non-
combustible material to produce a correct size opening. Any surround must be
suitably sealed to the fire place to prevent leakage. See below in figure 2.
NOTE :- If installing with a retailer designed surround package please consult
the retailer to determine installation height required for the fire.
When installing into a brick built chimney, you must ensure that there is sufficient
depth to accomodate any debris which may fall from the chimney. This depth
must be sufficient to accomodate 12 litres of volumetric space in a conventional
brick built chimney.
6
Minimum 225mm from
grill on fire to base of
opening required to
comply with AD of
Building Regulations for
hole in the wall type
installations
Fig. 2
137mm base
of box to floor
level minimum to
attain 225mm as
required
Opening height
580mm to
600mm
Opening width
580mm to
600mm

1.6.2 Fireplace Opening for Rennes, Avignon & Etienne Surround Types
If fitting this fire with a surround supplied from “BFM Europe” then the
fireplace opening of width / height of 580mm minimum to 600mm maximum
needs to be prepared at differing heights dependent upon which surround
type is to be installed. See figure 3 below for individual heights required by
surround type. There are mounting platforms available as optional extra’s from the
manufacturer to assist with installation, for Rennes & Avignon surrounds please
request part no. 1176-182550 and for the Etienne surround please request part no.
1176-182540.
Fig. 3
7
Rennes Surround
Opening to be 117mm
from floor level to base
of opening
Use mounting platform
Part No. 1176-182550
Avignon Surround
Opening to be 107mm
from floor level to base
of opening
Use mounting platform
Part No. 1176-182550
Etienne Surround
Opening to be 67mm
from floor level to base
of opening
Use mounting platform
Part No. 1176-182540

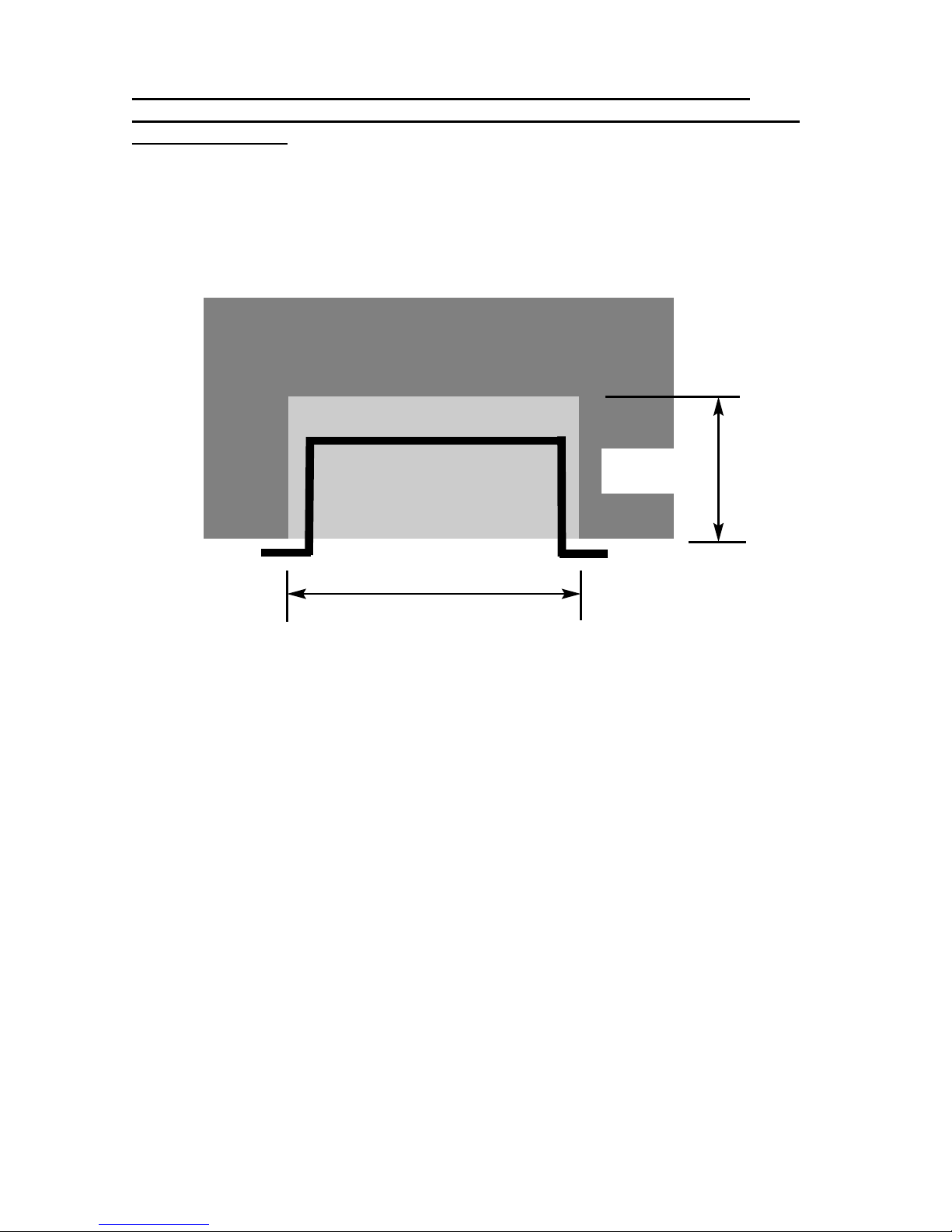

Table A - Installati n Depth Requirements f r BFM Fires Celena being
installed int  a brick built chimney, requiring 12.0 litres f debris c llecti n
v lume (figure 4).
Opening Width (mm) Minimum Depth Required (mm)
580-600mm 300mm
Fig. 4
1.7 FITTING TO FIREP ACES WITH EXISTING CHAIRBRICKS AND
CONVENTIONA BRICKBUI T CHIMNEYS
This appliance is not suitable for use in fireplaces fitted with an existing chairbrick
without the removal of the chairbrick.
1.8 FITTING TO PRE-FABRICATED TWIN WA META F UE BOXES
The appliance may be fitted to twin wall metal flue boxes conforming to the
constructional requirements of BS 715. The top face of the box must be insulated
with a minimum thickness of 50mm of non-combustible mineral wool insulation or
similar material. The flue box must stand on a non-combustible base of minimum
thickness 12mm. A suitable box is available from the manufacturer, please quote
part number 1176-180120.
8
Opening Width (580-600mm)
Depth Required
(300mm)

1.9 SPI AGE MONITORING SYSTEM
This appliance is fitted with an atmosphere sensing spillage monitoring system in
the form of an oxygen sensing burner. This is designed to shut the fire off in the
event of a partial or complete blockage of the flue causing a build up of combus-
tion products in the room in which the fire is operated. The following are
important warnings relating to this spillage monitoring system :-
1.9.1 The spillage monitoring system must not be adjusted by the installer.
1.9.2 The spillage monitoring system must not be put out of operation.
1.9.3 When the spillage monitoring system is exchanged only a complete
original manufacturers part may be fitted.
9

SECTION 2
INSTA ATION OF FIRE
2.1 UNPACKING THE FIRE
Carefully lift the fire out of the carton. Remove the loose item packaging, check
the contents as listed below :-
NOTE : DO NOT UNDER ANY CIRCUMSTANCES USE THIS APP IANCE IF THE G ASS PANE IS
BROKEN OR NOT SECURE Y FIXED TO THE FIREBOX.
Packing Check List - All Models
Pack 1 - Fire Pack
1 off Combustion chamber / burner
1 off Boxed ceramic fuel-bed set (packed inside combustion chamber)
1 off Loose items pack – containing :- 1 off fixing kit
1 off handset
5 off AA batteries
1 off Installation / user manual
Pack 2 - Optional Trim (If selected)
1 off 4 sided trim assembly (magnets supplied fitted on mounting flange of
fire)
Pack 3 - Surround (If selected)
1 off Supplied in wooden crate, see section 2.4, 2.5 & 2.6
2.2 INSTA ING THE FIRE BOX
Establish which type of flue you are intending to install the fire in to :-
225 x 225mm (9 inch x 9 inch) brick built chimneys
175mm (7 inch) diameter lined brick or stone flue, or insulated pre-fabricated
metal flue box to B.S. 715.
When installing into 125mm (5 inch) diameter lined brick or stone flue, or
insulated pre-fabricated metal flue box to B.S. 715, the restrictor baffle must
not be fitted.
A spillage test must always be carried out to check satisfactory
clearance of flue products, regardless of the type of flue the
appliance is being fitted to.
10

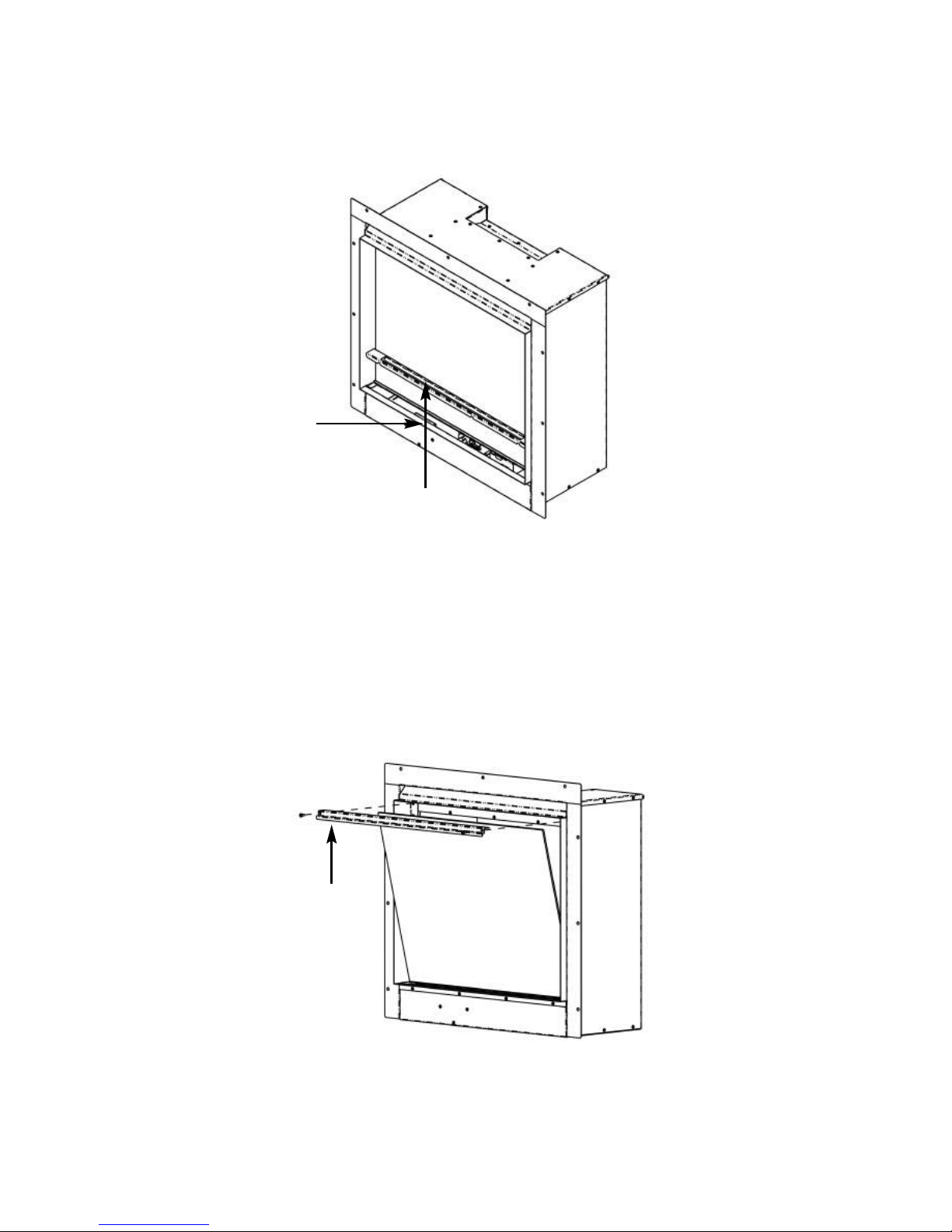

2.2.1 Remove the front grill by lifting clear and unplug the battery box as
shown below in figure 5.
Fig. 5
2.2.2 Remove the two off screws which secure the glass panel retaining
bracket as shown below in figure 6, then tilt the glass panel forward to
remove it. Take care not to allow the glass panel to fall forwards under
its own weight.
Fig. 6
11
Glass panel
retaining bracket
Front grill
Battery box

2.2.3 Store the glass panel in a safe place.
2.2.4 Re-assemble in reverse order when re-fitting the glass assembly.
2.2.5 DO NOT OPERATE THE FIRE WITHOUT THE G ASS PANE IN
POSITION OR NOT CORRECT Y OCATED.
12

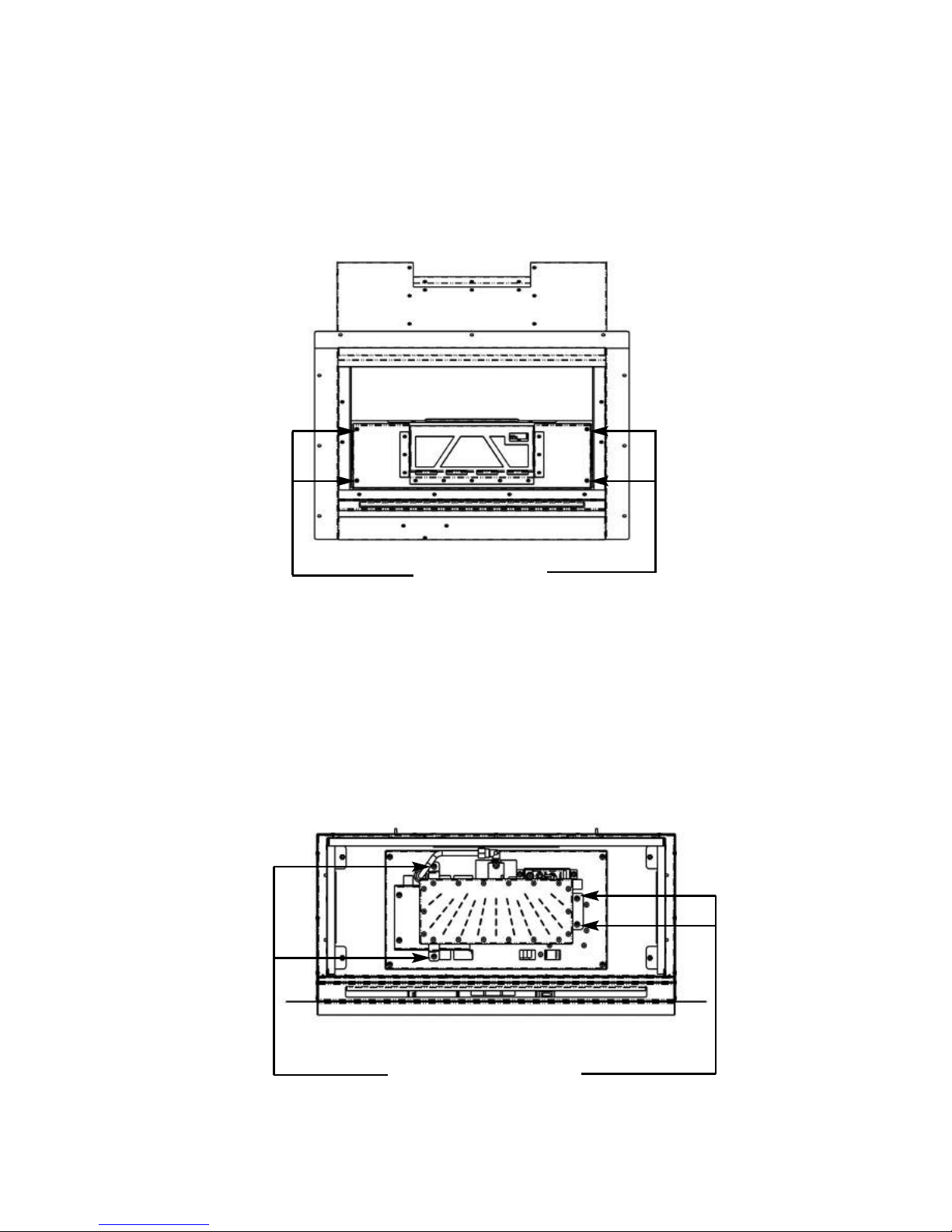

2.2.6 Remove the burner. To allow burner removal, the ceramic support
panel must be removed to allow access to the burner fixings. Remove
the 4 off ceramic support retaining screws as shown below in figure 7.
Fig. 7
2.2.7 Remove the 4 off screws that hold the burner in position, see figure 8
below.
Fig. 8
13
Four off ceramic
support retaining
screws
Four off burner retaining
screws

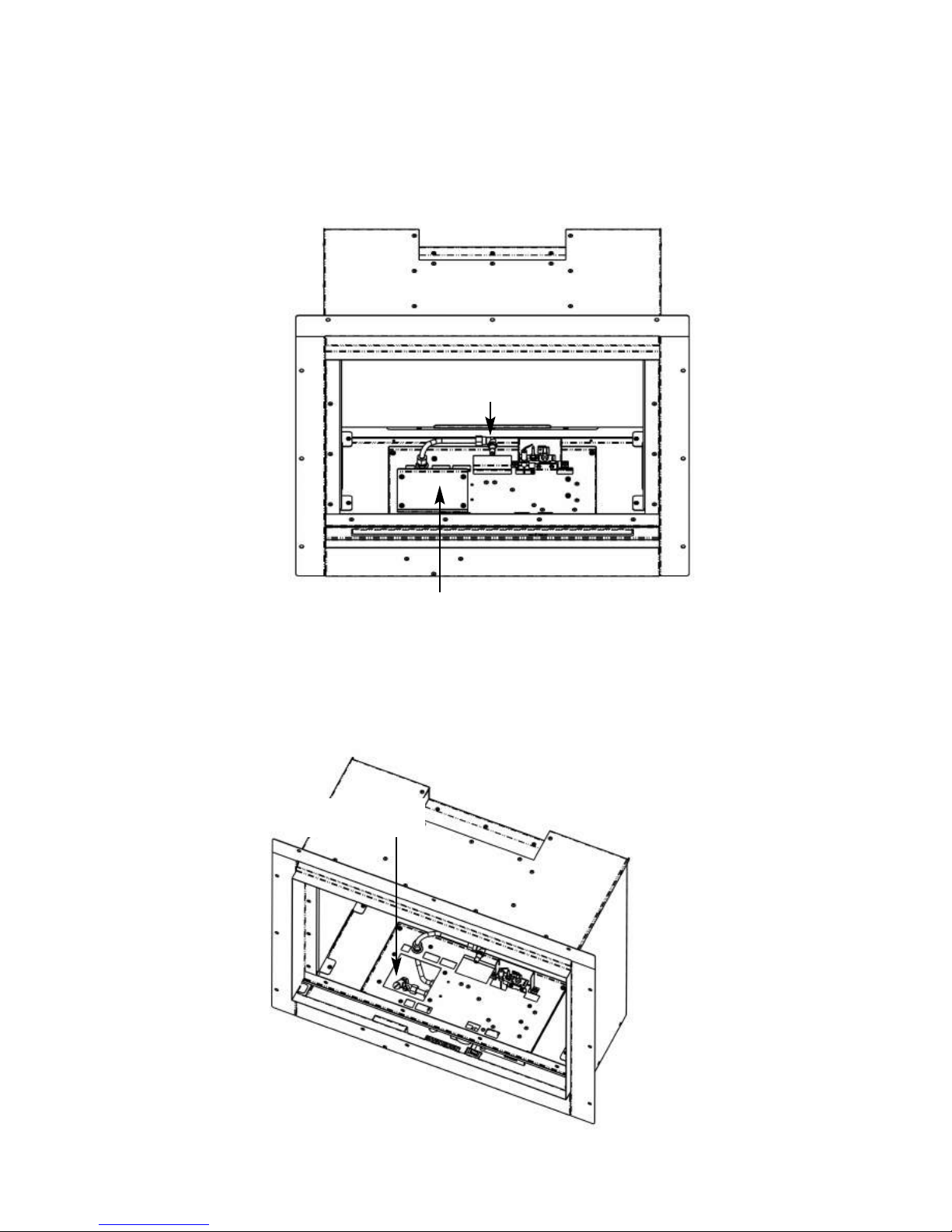

2.2.8 Loosen screw holding injector, the burner can then be slid forward and
lifted clear as shown below in figure 9.
Fig. 9
2.2.9 As shown in figure 9 above the gas supply cover plate should be
removed, allowing access to the gas inlet valve and pressure test point
as shown below in figure 10.
Fig. 10
14
Main burner injector
Gas supply cover plate
Gas inlet elbow &
pressure test point

2.2.10 The burner base plate can now be removed by removing the four
screws and lifting clear as shown below in figure 11. Tilt the assembly
up at the back as it is removed to clear the on/off switch from the inlet
channel.
Fig. 11
2.2.11 The gas supply can be routed into the fire from the left, see
figure 12 below for dimensional information regarding position and
route of gas supply pipe.
Fig. 12
Burner base plate held in
position by 4 off screws
15
Gas supply route

2.2.12 Store the removed burner components in a safe position.
2.2.13 The gas connection to the appliance should be made to the isolating /
inlet elbow using 8mm rigid tubing. There must be no soldered joints
within the firebox.
2.2.14 Ensure that the hearth (if fitted) is protected from damage and carefully
lift the fire box into the fire opening, then slide it back into position.
Check that the fire box flange fits flush to the sealing face of the fire
surround or wall with no gaps present.
Note : Before breaking into the gas supply a pressure drop test should be
carried out to establish that the existing pipework is sound.
2.2.15 Carefully withdraw the fire box from the opening to enable the gas
supply and fire fixing to be completed.
There is a choice of methods of fixing the firebox which are provided to enable the
installer to deal with any type of installation.
The preferred method of fixing which is suitable for almost all situations is
the cable fixing method which is described in the following section in detail.
The fire may be secured using the cable method as described below, or
alternatively, in installations where the cable method is not suitable (eg. loose
masonary in rear of fire opening) the fire box can be directly secured to the fire
surround using screw fixings (not provided).
To fit using the preferred cable method proceed as follows-
2.2.16 Mark out and drill 4 off No 14 (7mm) holes in the back face of the fire
opening in the positions shown below in figure 13.
Fig. 13
16
Fireplace Opening
580mm
360mm
580mm
24mm

Fit the wallplugs provided and screw the fixing eyes securely into the rear of the
fire opening. If the clearance at the rear of the fire is at the minimum specified for
a precast flue application, it may be necessary to bend over the lower fixing eyes
after screwing them fully in to the rear of a pre-cast starter block.
2.2.17 Uncoil the two fire fixing cables and thread one end of each of the
cables through one of the two cable holes on each side of the rear
brackets on the firebox (see figure 14 on page 18 for details of these
holes)
2.2.18 Position the fire carefully on the (protected) surface of the hearth and
reach into the fire opening. Thread each of the cables vertically
downwards through the pair of fixing eyes on the same side of the fire.
Thread the free end of the cables through the corresponding circular
hole on each side of the lower rear of the fire. Carefully slide the fire
box back into the fire opening and pull both cables tight.
2.2.19 Thread a tensioning screw over each of the cables and ensure that the
tensioning nut is screwed fully up against the hexagon shoulder of the
tensioning screw (this provides maximum travel for the tensioning nut).
2.2.20 Fit a screwed nipple on to each of the cables and pull hand tight up
against the tensioning screw, then secure each nipple with a
screwdriver.
2.2.21 Evenly tighten the tensioning nuts to tension both cables and pull the
fire snugly against the wall. Do not overtighten, it is only necessary to
pull the seal up against the sealing face of the wall, it does not need to
be compressed. Check that there are no gaps behind the seal.
2.2.22 Refit the burner in reverse order to which it was removed.
NOTE : ENSURE THAT THE ON/OFF SWITCH ON THE CONTRO
VA VE IS IN THE “ON” POSITION BEFORE RE-FITTING THE
BURNER UNIT
2.2.23 Before making the final gas connection, thoroughly purge the gas
supply pipework to remove all foreign matter, otherwise serious
damage may be caused to the gas control valve on the fire.
17

The other firebox fixing method is as follows :-
2.2.24 In installations where the cable method is not suitable (e.g. loose
masonary in rear of fire opening) the firebox can be secured to the
opening using four screws and wall plugs (not provided). Below (figure
14) is a diagram to indicate the hole centre positions available on the
firebox to facilitate the screw fixing to the fireplace / surround.
Fig. 14
18
Cable holes
Cable holes

2.3 GAS TIGHTNESS AND IN ET PRESSURE
2.3.1 Remove the pressure test point screw from the inlet elbow and fit a
manometer.
2.3.2 Turn on the main gas supply and carry out a gas tightness test.
2.3.3 See section 3.2 for full details of the operating method for the fire.
The fire will then commence its ignition sequence and will light to high.
2.3.4 Check that the gas pressure is 20.0 mbar (+/- 1.0mbar) 8.0 in w.g.(+/-
0.4 in w.g.)
2.3.5 Turn off the fire, remove the manometer and refit the pressure test point
screw. Check the pressure test point screw for gas tightness with the
appliance turned on using a suitable leak detection fluid or detector.
P EASE NOTE - THE WORKING PRESSURE TEST ON THIS PRODUCT
NEEDS TO BE COMP ETED BEFORE THE FUE -BED IS FITTED.
19

2.4 INSTA ING THE “RENNES” SURROUND
2.4.1 Unpack the surround from the wooden crate, check all parts are present
as per figure 15 overpage and carefully store the components.
2.4.2 The underside of the hearth should be painted with a weak PVA (8 parts
water to 1 part PVA). This will prevent staining penetrating through the
stone. The hearth must be centered to the opening. If the fireplace is
to be installed on a chimney breast ensure that the opening is also
centered to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an
equivalent material. Avoid cement based products and ensure the
hearth is firmly fitted and well supported. Allow the bedding material to
set before any weight is placed onto the hearth. Wipe off any surplus
bonding material with a wet sponge.
2.4.3 Fit bottom section to hearth, ensure it is central before fixing with a
suitable mastic adhesive.
2.4.4 Fit brackets to top of legs, offer leg up to wall and mark position of fixing
hole on wall, use shelf to ensure legs are correctly spaced / positioned.
Remove shelf then cover hearth with dust sheet and drill the fixing
holes. Remove the brackets from the legs, fix the side infills into place
with suitable adhesive and secure the leg fixing brackets only to the
wall. Fit legs to brackets that have been securely attached to the wall
with fixings as detailed in 2.4.5
2.4.5 Assess the chimney breast onto which the fire is to be installed
and ensure that it is of sound construction and suitable for
supporting the weight of the surround. Fixings used to secure the
leg brackets to the masonry of the chimney breast shall be of
expansive stainless steel or galvanised steel type masonary
fixings for dense concrete blockwork or brickwork. Where fixings
are located into light weight blockwork or friable aggregrate
blocks, the fixings shall be of the resin anchor type.
2.4.6 Fix the top infill and shelf infill into place again with suitable mastic
adhesive.
2.4.7 Fit shelf into place ensuring it is correctly aligned with legs, mark the
position of holes for securing brackets on wall, remove shelf and drill
wall and insert fixings in accordance with 2.4.5, these brackets can be
recessed if required.
2.4.8 Once the fireplace is correctly installed, grout all of the joints including
between the fireplace and the wall with a water based cream mastic or
tile grout. Ensure all surplus grout is immediately removed by washing
the stonework using a sponge and clean water.
20
