Biasi Riva ADVANCE SV User manual

USER MANUAL AND INSTRUCTIONS
Riva
ADVANCE SV
WALL HUNG GAS BOILER FOR
CENTRAL HEATING SUPPLY
Please Read Instructions Carefully
Save for Future Reference
— Do not store or use gasoline or other ammable vapors and liquids
in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor’s phone. Fol-
low the gas supplier’s instructions.
• If you can not reach your gas supplier call the re department.
— Installation and service must be performed by a qualied installer,
service agency or the gas supplier.
WARNING: If the information in this manual is not followed
exactly, a re or explosion may result causing property dam-
age, personal injury or loss of life.
Quincy Hydronic Technology Inc.
3560 Lafayette Rd. Bldg. 2 Unit A
Portsmouth, NH 03801
Phone: [phone]
Fax: [phone]

2 RIVA ADVANCE USER MANUAL

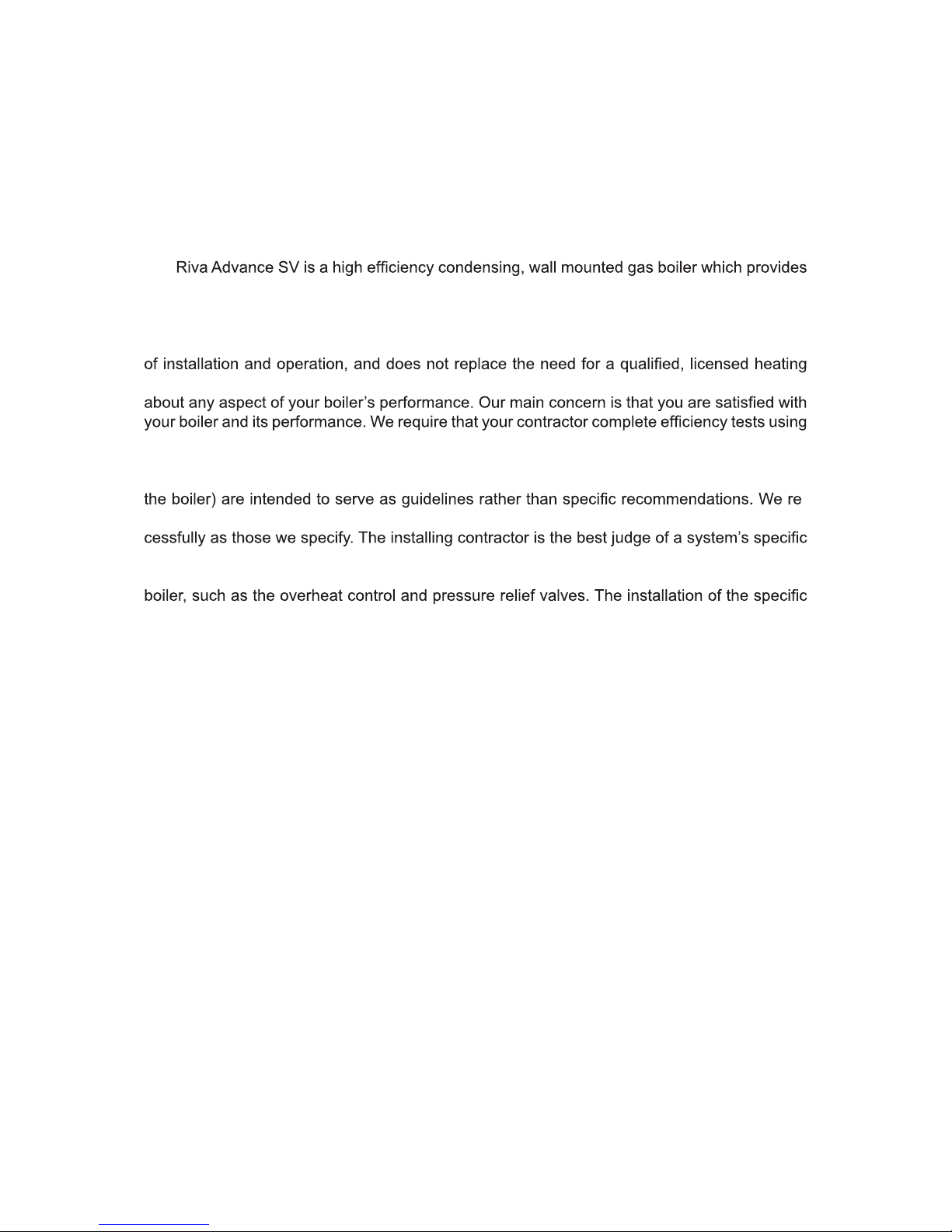

Dear Customer:
Thank you for buying a Biasi Riva Advance SV.
The
central heat.
We realize that it is not possible to answer all questions about the Riva Advance SV in this
manual. Reading this installation manual does not make the reader an expert in all aspects
contractor. We urge you to contact your installing contractor or distributor if you are in question
instruments.
The external controls and accessories listed in this manual (excluding those supplied inside
-
alize that other makes and models of such devices are available and can be used as suc-
requirements, as well as the local availability of certain makes and models of controls and
accessories. The preceding does not apply, however, to the equipment that comes with every
devices supplied with every boiler is absolutely necessary to the safe operation of the boiler
and protection of the heating system.
All BIASI wall hung boilers are built in accordance with the ASME boiler and pressure vessel
code, and bear the “H” stamp. The Entire range of applications for the Riva Advance SV has
been tested to standard ANSI Z21.13/CSA4.9 and is CSA compliant.
This Riva Advance SV has a 2 year warranty, a copy of which is provided with the boiler.
Please be sure to return the warranty registration card as the warranty will be void without your
boiler’s serial numbers (located on the ratings label afxed to the boiler), date of installation
and the name of your installer being on record in our les.
Thank you for purchasing our Riva Advance SV. If you have questions or comments, please
don’t hesitate to contact us immediately. Our goal is 100% customer satisfaction.
QHT inc.

RIVA ADVANCE USER MANUAL 3
Table of Contents
Section Title Section Number Page Number
Warning - 4-5
Important Information - 6
General Information 1 7
Technical Information 2 7-8
Appliance Description 3 9
Overview 3.1 9
Control Panel 3.2 9
Piping Connections 3.3 9
LCD General Features 4 10-11
Instructions for Use 5 12-17
Warnings 5.1 12
Relling Procedure 5.2 12
Lighting/Operating Instructions 5.3 13
Temperature Unit Setting (°C or °F) 5.4 13
Central Heating Circuit Temperature 5.5 14-15
Extinguishing Instructions 5.6 15-16
Domestic Hot Water Temperature 5.7 16
Useful Advice 6 17-19
Central Heating 6.1 17
Frost Protection 6.2 17
Periodic Maintenance 6.3 17
External Cleaning 6.4 18
Operational Faults 6.5 18-19
Warranty 20

4 RIVA ADVANCE USER MANUAL
WARNING
DANGER
Boiler is certied as an indoor appliance. Do not install boiler outdoors or locate where it will
be exposed to freezing temperatures.
Caution: Do not store or use ammable materials, chemicals or ammable liquids,
especially gasoline, in the vicinity of this heating appliance.
Caution: Should overheating occur or the gas supply fail to shut off, do not turn off
or disconnect the electrical supply to the pump. Instead, shut off the gas supply at a
location external to the appliance.
Caution: Do not use this boiler if any part has been under water. Immediately call a
qualied service technician to inspect the boiler and to replace any part of the control
system and any gas control which has been under water.
— Do not store or use gasoline or other ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your build-
ing.
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you can not reach your gas supplier call the re department.
— Installation and service must be performed by a qualied installer, ser-
vice agency or the gas supplier.
WARNING: If the information in this manual is not followed
exactly, a re or explosion may result causing property dam-
age, personal injury or loss of life.

RIVA ADVANCE USER MANUAL 5
WARNING
Any appliance that burns natural gas, propane gas, fuel oil, wood or coal is capable of pro-
ducing carbon monoxide (CO). Carbon Monoxide (CO) is a gas which is odorless, colorless
and tasteless but is very toxic. CO is lighter than air and thus may travel throughout the
building.
BRIEF EXPOSURE TO HIGH CONCENTRATIONS OF CO, OR PROLONGED EXPO-
SURE TO LESSER AMOUNTS OF CO MAY RESULT IN CARBON MONOXIDE POISON-
ING. EXPOSURE CAN BE FATAL AND EXPOSURE TO HIGH CONCENTRATIONS MAY
RESULT IN THE SUDDEN ONSET OF SYMPTOMS INCLUDING UNCONSCIOUSNESS.
Symptoms of CO poisoning include the following:
dizziness vision problems shortness of breath
headache loss of muscle control unclear thinking
nausea weakness unconsciousness
The symptoms of CO poisoning are often confused with those of inuenza, and the highest
incidence of poisoning occurs at the onset of cold weather or during u season.
A victim may not experience any symptoms, only one symptom, or a few symptoms.
Suspect the presence of carbon monoxide if symptoms tend to disappear when you
leave your home.
The following signs may indicate the presence of carbon monoxide:
• Hot gasses from appliance, venting system pipes or chimney, escaping into the living
space.
• Flames coming out around the appliance.
• Yellow colored ames in the appliance.
• Stale or smelly air.
• The presence of soot or carbon in or around the appliance.
• Very high unexplained humidity inside the building.
If any of the symptoms of CO occur, or if any of the signs of carbon monoxide are
present, VACATE THE PREMISES IMMEDIATELY AND CONTACT A QUALIFIED
HEATING SERVICE COMPANY OR THE GAS COMPANY OR THE FIRE
DEPARTMENT.
ONLY QUALIFIED, LICENSED SERVICE CONTRACTORS SHOULD PERFORM WORK
ON YOUR BIASI RIVA ADVANCE SV BOILER.

6 RIVA ADVANCE USER MANUAL
IMPORTANT INFORMATION
Please read this page carefully.
• ALL BOILERS MUST BE INSTALLED IN ACCORDANCE WITH NATIONAL, STATE
AND LOCAL PLUMBING, HEATING AND ELECTRICAL CODES AND ORDINANC-
ES, AS WELL AS THE REGULATIONS OF THE SERVING ELECTRICAL, WATER
AND GAS UTILITIES.
• All systems should be designed by competent contractors, and only persons
knowledgeable in the layout and installation of heating systems should attempt
the installation of any boiler. It is the responsibility of the installing contractor
to see that all controls are correctly installed and operating properly when the
installation is completed.
• This boiler is intended for use, only with propane or natural gas. All ammable
liquids (especially gasoline), chemicals, rags, paper, wood scraps, debris, etc.,
should be kept away from the boiler at all times. Keep the boiler area clean and
free of all re hazards.
• Please read the literature and warranties supplied by the manufacturers of the
various accessory equipment. This equipment is warranted by the respective
manufacturers, not by Quincy Hydronic Technology, Inc. Each piece of equip-
ment must be installed and used according to the recommendations of the man-
ufacturer.
Codes and Regulations:
Installation of the boiler and related equipment must conform to national, state and lo-
cal regulating agencies and codes applicable to the installation of the equipment. In the
absence of local requirements, the following codes apply:
A. ANSI/NFPA - #70 National Electric Code
B. ANSI/NFPA - #211 Chimneys and Vents
C. ANSI/NFPA - #Z223.1 National Fuel Gas Code
C. ANSI/NFPA - Domestic Gas Conversion Burner
D. CAN/CGA - B149 Installation Codes
E. ANSI/ASME - CSD-1
The above codes are available from:
National Fire Protection Association (NFPA) CANADIAN STANDARDS ASSOCIATION
Battery March Park STANDARDS DIVISION
Quincy, Massachusetts, 02269 5060 Spectrum Way, Suite 100
http://www.nfpa.org Mississauga, Ontario, L4W 5N6

RIVA ADVANCE USER MANUAL 7
1. General Information
2. Technical Information (M210.32 CV)
The Riva Advance SV is a high efciency condensing, wall mounted gas boiler which provides
central heat. The boiler features a gas valve which modulates the energy input from 32,000
BTU/h to 125,000 BTU/h. The boiler is shipped fully assembled. All units are pressure and
combustion tested at the factory prior to shipping.
Key Features:
• Wall mountable - saving valuable oor
space.
• Several ue options available
• Electronic spark ignition
• Safety ow switch - positioned on the
main circuit, which monitors the ow and
protects the main heat exchanger from
thermal shock should there be a lack of
water in the system.
• Frost protection - contains an integral frost
protection system to prevent frost dam-
age which can occur in areas susceptible
to very cold weather conditions.
• Boiler operation recognition system -
should the boiler not be used for longer
than 24 hours, it then performs a con-
trolled system test to ensuring the motor-
ized components within the boiler do not
become inoperable due to lack of use.
• Gas valve modulation - the gas input
modulates based off central heating tem-
perature to within ± 2 ºF
• Diagnostic information system equipped
with three LED diagnostic lights for quick
error assessment.
GENERAL
Height in 31.6
Width in 15.7
Depth in 13.8
Weight lb 109.5
ELECTRICAL
Voltage V120
Frequency Hz 60
Current A 1.6
Power consumption W180
RESTRICTORS
REFERENCES
Gas
(ø mm)
Air
(color)
Natural N/A BLUE
Propane 548 BLUE
CENTRAL HEATING
Maximum working temp. °F 185
Temp. Regulation range* °F 100-185
Maximum pressure psi 30.0
Minimum pressure psi 4.35
Max head loss (at 4.4 GPM) ft 8.25
*At the minimum useful output

8 RIVA ADVANCE USER MANUAL
2. Technical Information Cont.
ENERGY CAPACITY
Nominal heat input
(0/2000 ft) MBH 125.0
Nominal heat input
(2000/4500 ft) MBH 112.5
Minimum heat input MBH 32.0
Maximum useful output
(0/2000 ft) MBH 112.5
Maximum useful output
(2000/4500 ft) MBH 107.2
Minimum useful output MBH 28.8
GAS PRESSURE AT BURNER
Gas Min Max Ignition
Natural inwc 6.8 10.0 7.0
Propane inwc 10.0 13.0 11.0
FLUE DESIGN
Minimum Venturi pressure inwc 0.64
Flue pipe diameter
Coaxial in 2.25/4
3.25/5
Twin split pipes in 3.25/3.25
Nominal heat ow rate
(0/2000 ft) MBH 125.0
Nominal heat ow rate
(2000/4500 ft) MBH 112.5
Max Exhaust temperature °F 190
GAS FLOW RATE
Gas Min Max
Natural ft³/h 31.0 121.1
Propane lb/h 1.5 5.7
CLEARANCE TO COMBUSTIBLES
Front in 18
Back in 0
Top in 10
Sides in 2
Bottom in 8
Flue pipe enclosed in 2
Flue pipe free air in 0
Hot water pipes in 1”
FLUE GAS FIGURES
(at nominal heat input)
Gas Min Max
CO2 content with Natural gas 8.8% 9.8%
CO2 content with Propane gas 9.6% 11.0%
O2content 4.3% 5.0%
FLUE GAS FIGURES
(at minimum heat input)
Gas Min Max
CO2 content with Natural gas 8.8% 9.8%
CO2 content with Propane gas 9.6% 11.0%
O2content 4.3% 5.0%

RIVA ADVANCE USER MANUAL 9

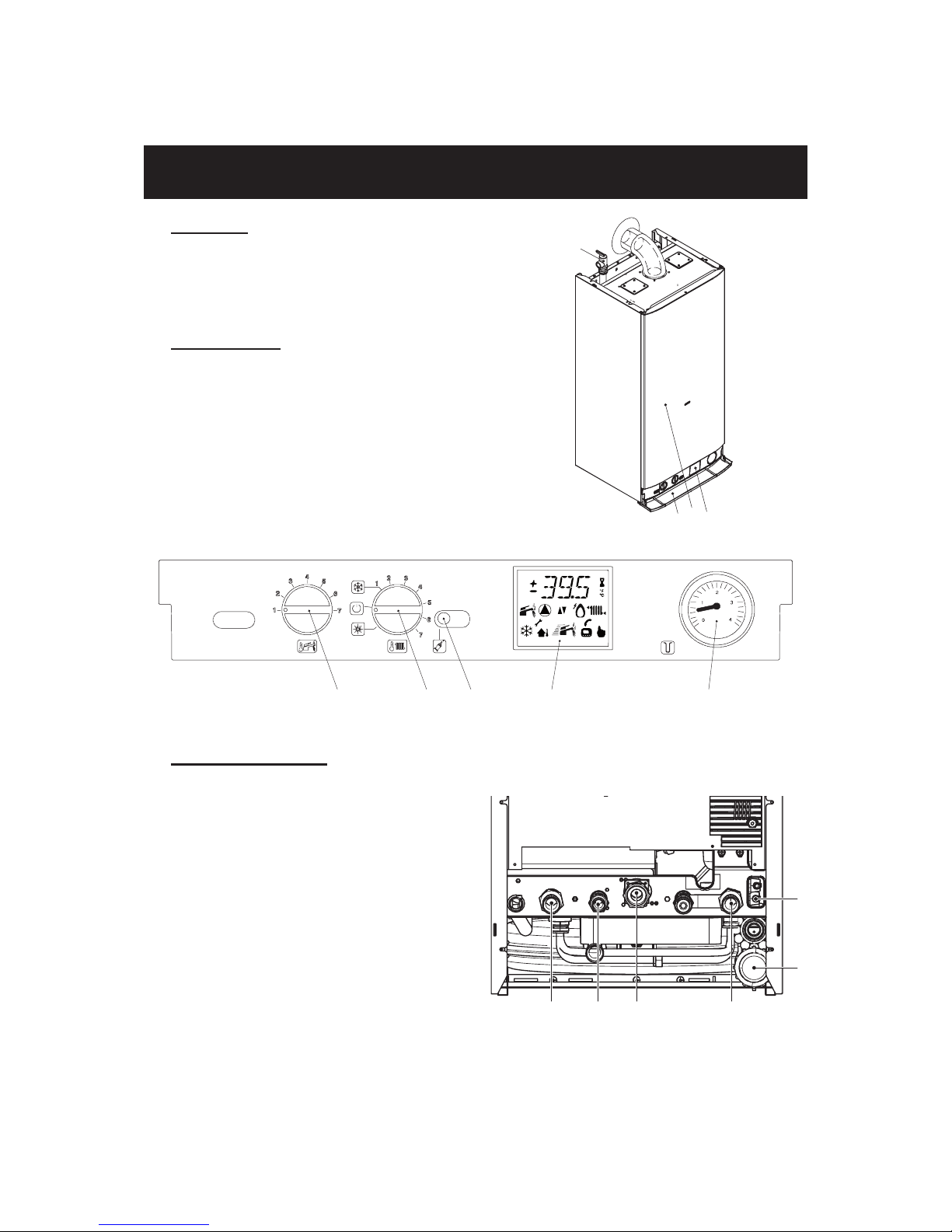

3. Appliance Description
3.1 Overview:
1 Case front panel
2 Control panel
3 Control panel cover
3.2 Control Panel:
4 Pressure gauge
5 LCD
6 Boiler reset /setting button
7 Function switch and Central heating tem-
perature adjustment knob
8 Domestic hot water, temperature control
knob
45
6
7
8
bar
3
12
H
Figure 3.1
Figure 3.3
Figure 3.2
3.3 Piping Connections:
A Gas inlet pipe
B Main circuit drain cock
C C.h. supply copper pipe
D C.h. return copper pipe and tank serpen-
tine return
E D.h.w. tank coil ow
F Condensate drain connection area
AEC D
F
B

10 RIVA ADVANCE USER MANUAL

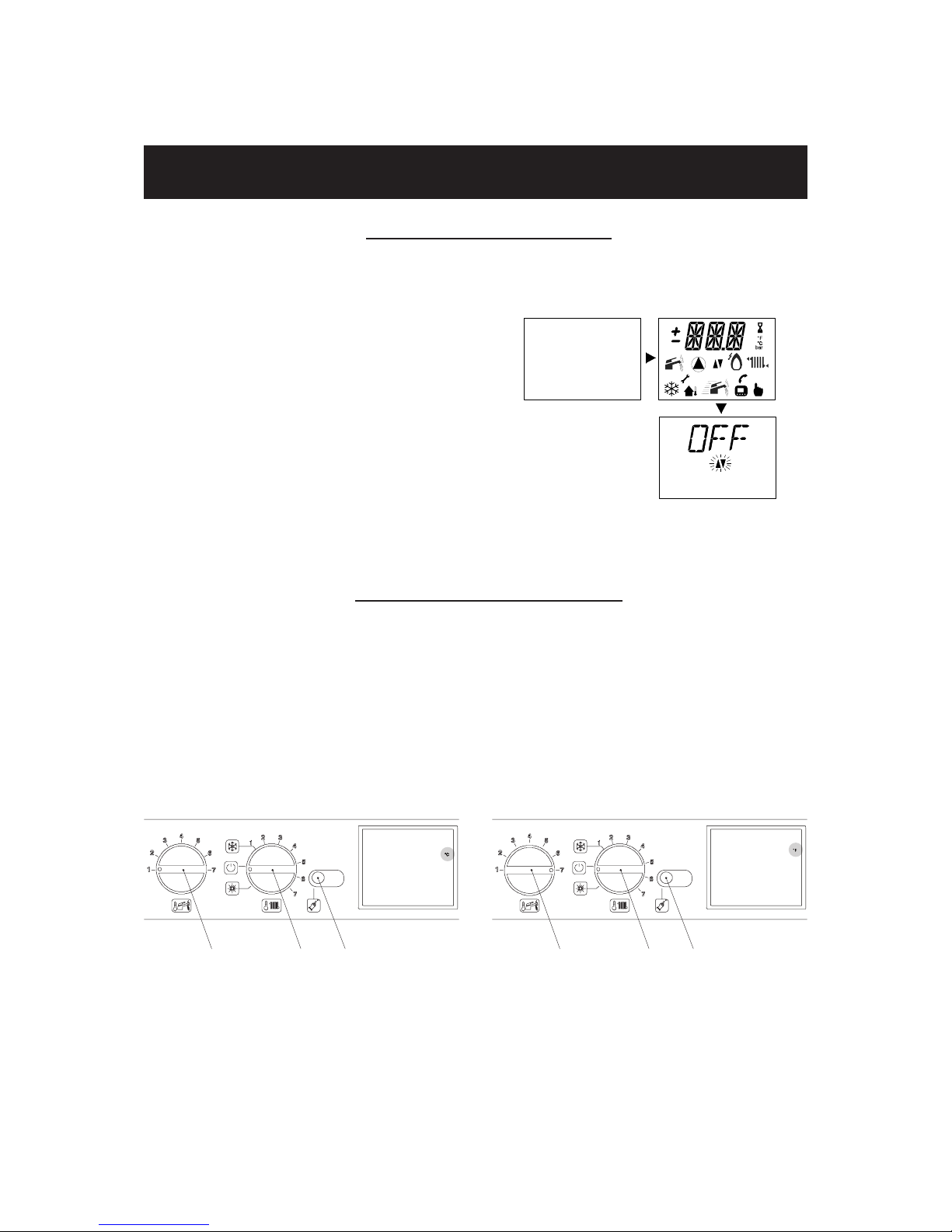

4. LCD General Features
The LCD (5 in Fig. 3.2) give detailed indication regarding the operation of the boiler.
Figure 4.1
LEGEND
The symbol indicates that the boiler
can be directly reactivated by the
user, by pressing the reset button
The symbol indicates that the fault
requires intervention on behalf of
specialised technical assistance
All symbols represented with lines
that surround them, indicate that the
symbol is ashing
SIGNAL DISPLAYED BY THE LCD
LCD FUNCTION
E01 + Lack of burner ignition on safety
lockout
E02 + Safety thermostat intervention
lockout
E03 +
General lockout
E10 +
Flue probe intervention lockout
E11 +
Flame detection error
E04 + Faulty primary circuit (no water or
absence of ow)
E05 +
Faulty fan control system
E06 +
Faulty c.h. temp. probe NTC
E07 +
Faulty d.h.w. temp. probe NTC
E08 +
Faulty external temp. probe NTC
E09 + Faulty ue temp. probe NTC
(interruption)
L01 Primary circuit temp. limit during
D.h.w. operation
The ashing symbol indicates
the communication between LCD
and the card
Boiler in winter mode
(C.h.+ D.h.w.)
Boiler in summer mode (D.h.w.)
Boiler in winter standby
Hot water + heating mode
(symbol ashing)
Boiler in summer standby
Hot water mode
(symbol ashing)
OFF Boiler powered and selector OFF
(symbol ashing)
bar
Remote connected
bar
External temperature control
probe connected
