INSTALLATION
GUIDE
LED Bay Light
with Emergency LED Driver
Delta T LLC dba Big Ass Fans

Conforms to UL Standard 1598,
UL Standard 8750, CSA Standard
C22.2 No. 250.0, and CSA
Standard C22.2 No. 250.13
CAUTION: Risk of electric shock. Disconnect power before servicing.
Driver has more than one power source. Disconnect both sources by
turning o the AC branch circuit and disconnecting the unit driver
connector.
CAUTION: Install luminaire suspension cables correctly. Cables must be taut and secure.
WARNING: This luminiare and emergency LED driver have not been evaluated to NFPA
101 (Life Safety Code) or ISO 30061:2007 (Emergency Lighting).
CAUTION: Risk of electric shock. Complete installation and apply AC power before
mating the driver unit connector located on top of the fixture.
The light source contained in this fixture shall only be replaced by the manufacturer or
his service agent or a similar qualified person.
Suitable for damp locations.
The product warranty will not cover equipment damage or failure caused by improper
installation.
Connection of the product to the mains must be performed by qualified persons in
accordance with all applicable codes. Code compliance is your responsibility. Failure to
comply with these codes could result in personal injury or property damage.
Maintain reinforced insulation between LV supply and control conductors.
This luminaire must be mounted or supported independently of an outlet box.
Not for use in dwellings.
Fixtures with driver require an unswitched AC power source of 120–277 VAC, 50/60 Hz.
READ AND SAVE THESE INSTRUCTIONS
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
www.bigassfans.com/patents ▪www.bigassfans.com/product-warranties
BAF-DBL1-24xx01yyxxxxxxS1, BAF-DBL1-30xx01yyxxxxxxS1, BAF-DBL1-36xx01yyxxxxxxS1,
BAF-DBL1-48xx01yyxxxxxxS1, BAF-DBL1-60xx01yyxxxxxxS1, BAF-DBL1-72xx01yyxxxxxxS1
Power Factor (PF) Supply Current (A)
120 V 277 V 120 V 277 V
24 K 0.997 0.959 1.18 0.52
30 K 0.998 0.972 1.46 0.63
36 K 0.997 0.936 1.86 0.82
48 K 0.998 0.963 2.53 1.11
60 K 0.996 0.923 3.34 1.53
72 K 0.997 0.948 4.19 1.85

© 2019 DELTA T LLC ALL RIGHTS RESERVED. 1
CABLE MOUNT
A1. Attach the grippers to the tops of the V-hooks.
A2. Insert the V-hooks into the holes on top of the fixture.
A3. Secure the cables to the mounting structure and insert the ends into the
grippers. Tighten the allen set screws on the bottoms of the grippers.
Figure A1 Figure A2 Figure A3
Figure A

WWW.BIGASSFANS.COM
2
Figure B
PENDANT MOUNT
B1. Run the facility power wiring through customer-supplied 3/4 NPT conduit.
Connect the wiring to the wires coming out of the conduit hub on top of the
fixture, and then connect the conduit to the conduit hub.
B2. Secure the other end of the conduit to the outlet box and connect the wiring.
When finished, complete all Cable Mount steps as shown in Figure A. The cables
are required for supporting the fixture.
Figure B1
Figure B2

© 2019 DELTA T LLC ALL RIGHTS RESERVED. 3
POWER WIRING
Fixtures with an emergency LED driver require an unswitched AC power source of
120–277 VAC, 50/60 Hz. Refer to the input voltage rating marked on the fixture,
and then wire according to the diagram and table below. Note: The dimming cable
is optional.
Supply voltage
Fixture’s L1
(unswitched) (black
w/ orange or red)
connects to
Fixture’s L2/Neutral
(white) connects to
Fixture's L3
(switched) (black)
connects to
120 VAC, 1 Ф derived from
1 Ф, 240/120 V panel H (black) N (white) H (black)
208 VAC, 3 Ф derived
from 3 Ф, 208/120 V panel
L1 (black), L2 (red), or
L3 (blue)
L2 (red), L3 (blue), or
L1 (black)
L1 (black), L2 (red),
or L3 (blue)
240 VAC, 1 Ф derived
from 1 Ф, 240/120 V panel L1 (black) L2 (red) L1 (black)
240 VAC, 1 Ф derived
from 3 Ф, 240/120 V
panel, B phase wild
L1 (black), L2
(orange), or L3 (blue)
L2 (orange), L3 (blue),
or L1 (black)
L1 (black), L2
(orange), or L3
(blue)
277 VAC, 1 Ф derived from
3 Ф, 480/277 V panel
L1 (brown), L2
(orange), or L3
(yellow)
N (white)
L1 (brown), L2
(orange), or L3
(yellow)
GROUND GREEN
L1 UNSWITCHED BLACK W/ ORANGE OR RED
L2/NEUTRAL WHITE
DIM
GRAY
DIM+
VIOLET
FIXTURE
GROUND
L1
UNSWITCHED
L2/
NEUTRAL
POWER
DIM
GRAY
DIM+
VIOLET
DIMMING
110 VDC
L3
SWITCHED
L3 SWITCHED BLACK
Low voltage fixture (120–277 V ± 15%)

WWW.BIGASSFANS.COM
4
LIGHT MODULE ROTATION OPTIONAL
90° or 180° Rotation (Figure C)
C1. While supporting the light module, use a 9/64 in. allen wrench to turn the
screws on both ends of the fixture counterclockwise until they completely back
out of the yellow end caps of the light module.
C2. Rotate the light module 90° or 180°.
C3. Turn the screws on the ends of the fixture clockwise to secure them.
45° or 135° Rotation (Figure D)
Remove the fixture end caps by removing the two screws from each end of the
fixture and sliding the end caps down and outward.
D1. While supporting the light module, remove the inner screws using a 9/64 in.
allen wrench.
D2. Rotate the light module 45° or 135°.
D3. Reinstall the screws in the second holes. Reattach the fixture end caps.

© 2019 DELTA T LLC ALL RIGHTS RESERVED. 5
Figure C
Figure C1 Figure C3
Figure C2
Figure D1 Figure D2 Figure D3
Figure D

WWW.BIGASSFANS.COM
6
CONNECTING THE LED DRIVER
CAUTION: To prevent electrical shock, do not mate the unit connector until
installation is complete and AC power is applied to the unit.
E1. After installation is complete, turn on AC power, and then join the driver unit
connector on top of the fixture.
E2. Push the unit connector and wiring into the hole.
E3. Snap the red button into the hole. Make sure the button is illuminated. This
indicates the driver is charging.
Figure E
Figure E1
TESTING THE LED DRIVER
Allow the driver battery to charge for one hour, and then press and hold the
button to conduct an initial emergency lighting test. The light should turn o and
half of the LEDs should illuminate at a dim level.
Allow the battery to charge for 24 hours, and then switch o AC power at the
circuit breaker to simulate a blackout. Make sure half of the LEDs operate at a dim
level for 90 minutes.
Figure E2 Figure E3

© 2019 DELTA T LLC ALL RIGHTS RESERVED. 7
MAINTENANCE
Electrical preventive maintenance
Big Ass Fans suggests an electrical preventive maintenance program similar to
that described in NFPA 70B: Recommended Practice For Electrical Equipment
Maintenance by the National Fire Protection Association.
Cord safety
If the external flexible cable or cord of this luminaire is damaged, it shall be
exclusively replaced by Big Ass Fans or a Big Ass Fans service agent or a similar
qualified person in order to avoid a hazard. For assistance, please contact
Customer Service.
Emergency lighting testing
Test emergency lighting as described in NFPA 101: Life Safety Code. Keep written
records of testing and make sure inspections are performed regularly.
Monthly. Conduct a 30-second emergency lighting test. Press and hold the red,
illuminated button on top of the fixture for 30 seconds. Make sure half of the LEDs
operate at a dim level for the entire 30 seconds.
Annually. Conduct a 90-minute emergency lighting test. Switch o AC power at
the circuit breaker to simulate a blackout. Make sure half of the LEDs operate at a
dim level for 90 minutes.
Cleaning the lenses
Do not clean the fixture—especially the lenses—with scouring pads, alkaline
cleaning substances, gasoline, thinner, benzene, heating oil, or polishing powder.
Do not pressure wash or use a water hose to clean the fixture.
Clean the lenses periodically to ensure optimal performance. Remove lenses
and wipe with a clean, damp cloth. Allow to dry thoroughly before replacing. If
necessary, use a mild soap or a gentle liquid cleaner.

WWW.BIGASSFANS.COM
8

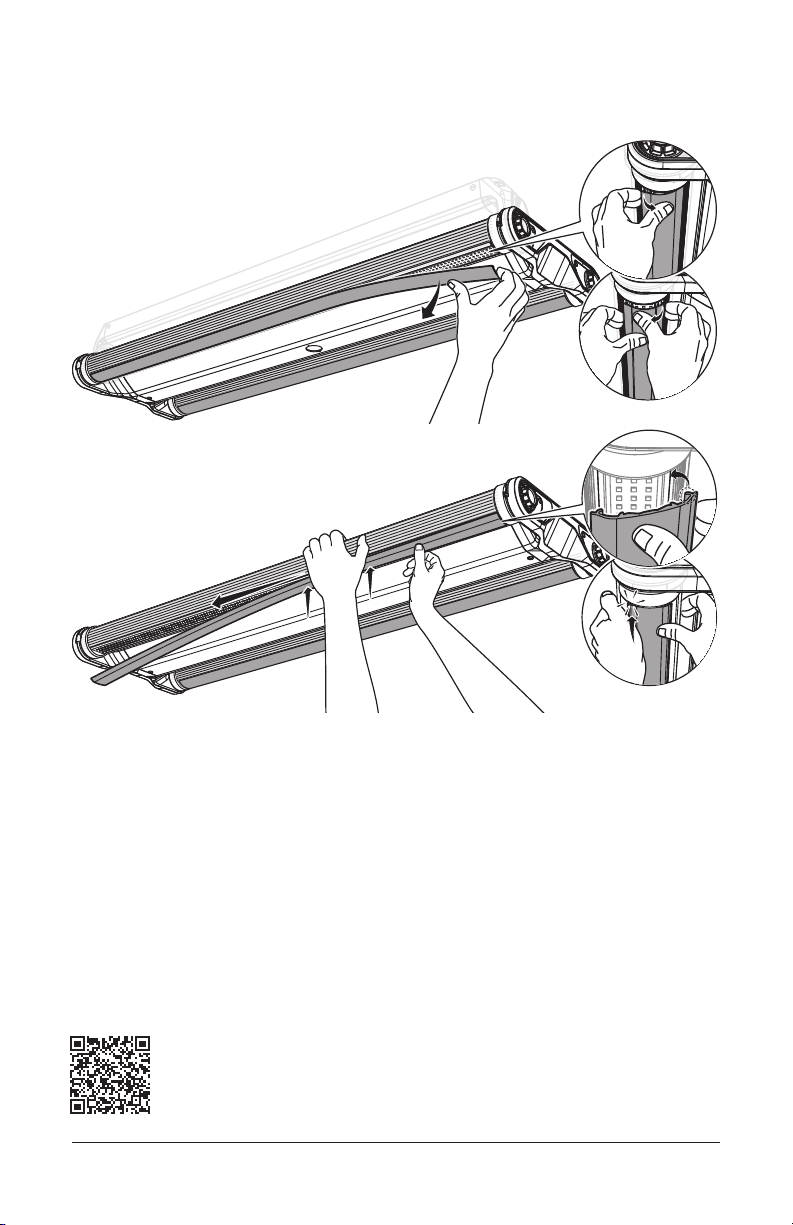

Removing and replacing the lenses
The lenses are designed to be removable for cleaning or replacement. Handle
lenses with care.
Setpoint.............................. Disabled
Ramp Up............................ Disabled
Ramp Down ...................... Disabled
Photocell............................ Disabled
OCCUPANCY SENSOR DEFAULT SETTINGS
High Mode......................... 10 V
Low Mode ......................... O
Time Delay ........................ 10 min
Cut O................................ Disabled
Sensitivity .......................... Max
To modify settings, see the handheld remote user guide.
bigassfans.com/docs/lighting/occ-sensor-remote-user-guide.pdf
