‘’ WEATHER LIGHT ‘’ SERIES FOR NON-MAINTAINED LUMINAIRES
220-240V AC/50-60Hz
4 VA 5.5 VA5.5 VA3 VA
Bayblend FR3010, transparent polycarbonate
TECHNICAL CHARACTERISTICS
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
EXTERNAL DIMENSIONS
CONSTRUCTION MATERIALS
TYPICAL WEIGHT
GUARANTEE
OPERATION VOLTAGE
MAXIMUM POWER CONSUMPTION
BATTERIES (Ni-Cd)
CHARGING TIME
INDICATIONS - CONTROLS
BATTERY PROTECTION
MINIMUM AUTONOMOUS DURATION
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
LIGHT SOURCE INTENSITY (emergency)
FLUORESCENT LAMP
3h 3h3h90min 90min
24h
Battery charging LED, TEST button
From full discharge
2.4V/1.5Ah 2.4V/3Ah
170lm
85lm
8W (T5) 2x8W (T5)
EN 60598-1, EN 60598-2-22
0 to 40 C
o
Up to 95%
3 years (1 year for the lamp and the battery)
GR-936 GR-937 GR-961/WP GR-962/WP
GR-935
4.8V/3Ah 4.8V/3Ah4.8V/1.5Ah
4 VA
IP 65
355 x 145 x 73 mm
840gr. 900gr. 1100gr. 1040gr.980gr.
GENERAL
These luminaires are used in places where
emergency luminaires are needed.
Each luminaire must be permanently connected
to mains power supply.
In normal operation the battery is charging and
the 2 yellow LED’s light in the screen.
In case of a mains power supply failure the
luminary will light the lamp automatically in
emergency mode. When the mains power
supply is restored the device turns to normal
operation.
ΑΤΤΕΝΤΙΟΝ!!!
1. Operations for installation, maintainance or
testing must be done by authorized personel
only.
2. The device must be connected to the mains
power supply thru a fuse dependent by the total
amount of the line’s power load.
3. It is sugested to check every month the
indication LED for battery charging, and by
pushing the TEST button (see the paragraph 8
on page 2), to check the emergency cirquit. The
lamp should light as long as the TEST button is
pressed
4. It is sugested to check every 6 months the
minimum autononous duration by disconnecting
the mains power supply. Count the time that the
lamp lights and in case of less time than the
minimum autonomous duration the battery must
. In the opposite condition contact the
installer.
be replaced. If the measured time is considerably
less than the minimum autonomous duration
In case of battery or lamp
replacement, these must be replaced by parts of
the same type
It is sugested
hours of continuous operation The frequent
failures of mains power supply reduces
dramaticaly the lamp s life time
t i
in battery recycling points. Do not
incinerate.
INSTALLATION
To install the luminaire follow the installation
instructions on page 2.
NOTE: LED= Light Emitting Diode
LABELING EXPLANATION:
X: Self contained
0: Non Maintained
A: Including test device
*90: 90min duration
180: 180min duration
contact the installer.
.
5. to replace the lamp every 8000
.
’.
6. In case of inactive use for a period greater
than 2 months, disconnect the battery by pulling
out the battery’s connector.
7. I s not allowed to discard batteries in to
common trash bins, they must be discarded
only
923962001_09_019
11W (CFL)
Page 2 of 2 923962001_09_019

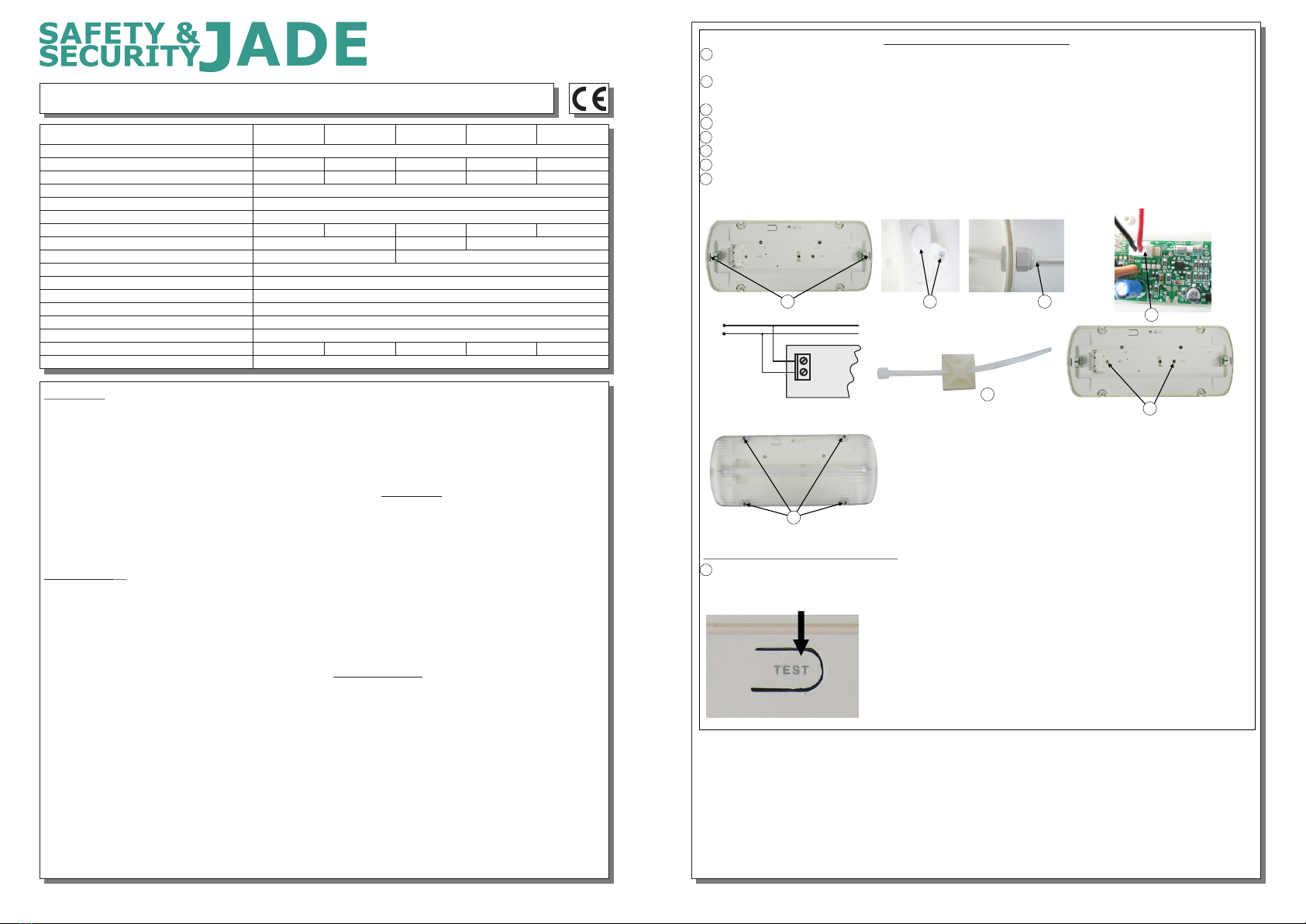

1 Remove the diffusor and the lamp. Place simultaneously 2 flat blade screwdrivers and pull up
gently the reflector.
2 Install the included plastic cover in to the unused hole and install the base plastic (with the
included mounting screws and plugs).
3 Instal the cable gland and pass the round cable thru.
4 Place the battery’s connector to the corresponding connector on the P.C.B.
5 Connect the mains as shown in figure 1.
6 Install the included tie (if needed) to fasten securely the power cables.
7 Refit the reflector and fasten the two small screws (included).
8 Finaly place the lamp and the diffusor by using the 4 included screws (tightening torque 1.2Nm).
INSTALLATION INSTRUCTIONS
Figure 1
N
L
N
L
Mains connection
230V AC
Page 1 of 2
9 Unfasten the mounting screws (step 8) and remove the diffusor. When the luminaire is supplied
by the mains, press on the marking for TEST as shown in the picture below. Mount the diffusor by
using the 4 removed screws.
TEST procedure with extra care!!
13
2
4
7
6
8
