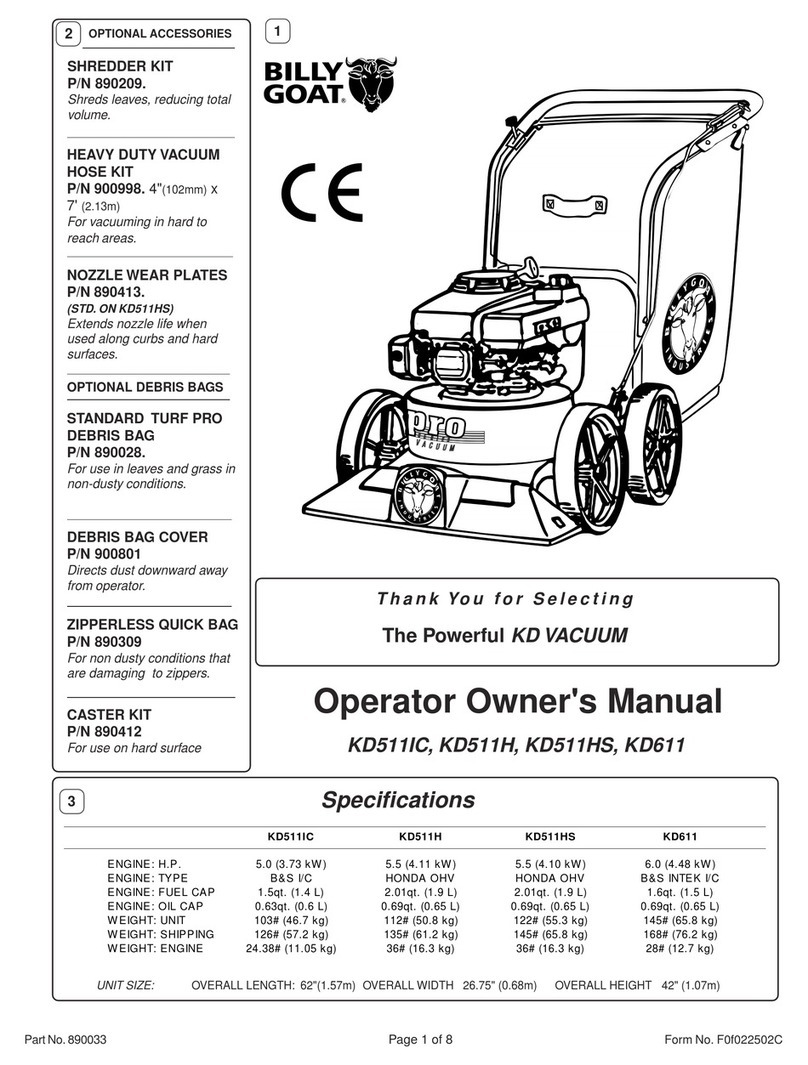

Billy Goat KD511IC Installation instructions

Billy Goat

Billy Goat KD511IC Installation instructions

Billy Goat KD 410 Installation instructions

Billy Goat

Billy Goat KD 410 Installation instructions

Billy Goat LB352 VACUUM User manual

Billy Goat

Billy Goat LB352 VACUUM User manual

Billy Goat KV VACUUM KV600 User manual

Billy Goat

Billy Goat KV VACUUM KV600 User manual

Billy Goat KD505H Installation instructions

Billy Goat

Billy Goat KD505H Installation instructions

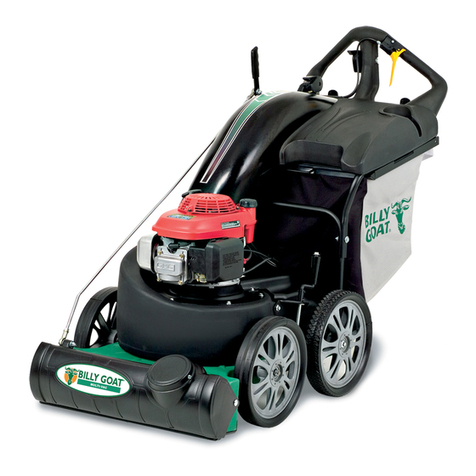

Billy Goat MV650SPH User manual

Billy Goat

Billy Goat MV650SPH User manual

Billy Goat DL3701VE User manual

Billy Goat

Billy Goat DL3701VE User manual

Billy Goat KV601SPFB User manual

Billy Goat

Billy Goat KV601SPFB User manual

Billy Goat QV900HSP User manual

Billy Goat

Billy Goat QV900HSP User manual

Billy Goat VQ1002SP User manual

Billy Goat

Billy Goat VQ1002SP User manual

Billy Goat DL2900V User manual

Billy Goat

Billy Goat DL2900V User manual

Billy Goat TR1104 User manual

Billy Goat

Billy Goat TR1104 User manual

Billy Goat KD511H Installation instructions

Billy Goat

Billy Goat KD511H Installation instructions

Billy Goat QV550EU User manual

Billy Goat

Billy Goat QV550EU User manual

Billy Goat KV601 User manual

Billy Goat

Billy Goat KV601 User manual

Billy Goat KD 50CT User manual

Billy Goat

Billy Goat KD 50CT User manual

Billy Goat VACUUM CLEANER KD-50 User manual

Billy Goat

Billy Goat VACUUM CLEANER KD-50 User manual

Billy Goat KV650SPEU User manual

Billy Goat

Billy Goat KV650SPEU User manual

Billy Goat KV601SPEU User manual

Billy Goat

Billy Goat KV601SPEU User manual

Billy Goat KV VACUUM KV600 User manual

Billy Goat

Billy Goat KV VACUUM KV600 User manual

Billy Goat QL2300KOEU Installation instructions

Billy Goat

Billy Goat QL2300KOEU Installation instructions

Billy Goat KD502H Installation instructions

Billy Goat

Billy Goat KD502H Installation instructions

Billy Goat KV601SP User manual

Billy Goat

Billy Goat KV601SP User manual

Popular Vacuum Cleaner manuals by other brands

Bissell LittleGreen Proheat 1425 Series user guide

Bissell

Bissell LittleGreen Proheat 1425 Series user guide

Panasonic MC-YL637S147-AE Service manual

Panasonic

Panasonic MC-YL637S147-AE Service manual

LG A9 Series owner's manual

LG

LG A9 Series owner's manual

Oreck Cordless Captura BK51700 Series user guide

Oreck

Oreck Cordless Captura BK51700 Series user guide

Kogan KAVACROBVWA user manual

Kogan

Kogan KAVACROBVWA user manual

Kränzle VENTOS 50 ID Use and maintenance

Kränzle

Kränzle VENTOS 50 ID Use and maintenance

NEFF N17XH10 0 Series instruction manual

NEFF

NEFF N17XH10 0 Series instruction manual

EVVO Ai35 instruction manual

EVVO

EVVO Ai35 instruction manual

DeWalt DWH200D instruction manual

DeWalt

DeWalt DWH200D instruction manual

Pontec Pondomatic Vacuum Cleaner operating instructions

Pontec

Pontec Pondomatic Vacuum Cleaner operating instructions

Cleanmaxx PC-P007E instruction manual

Cleanmaxx

Cleanmaxx PC-P007E instruction manual

RIDGID WD1685AU0 owner's manual

RIDGID

RIDGID WD1685AU0 owner's manual

Ezviz RE4P manual

Ezviz

Ezviz RE4P manual

STG global TANVAC HDV3000 Operator's manual

STG global

STG global TANVAC HDV3000 Operator's manual

Shark ROTATOR PRO COMPLETE NV550 Series manual

Shark

Shark ROTATOR PRO COMPLETE NV550 Series manual

Factory M3340 operating manual

Factory

Factory M3340 operating manual

Shop-Vac VN92 SERIES user manual

Shop-Vac

Shop-Vac VN92 SERIES user manual

Nobles 608669 Operator and parts manual

Nobles

Nobles 608669 Operator and parts manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Part No. 830542 Form No. F021302G
Page 1 of 16
Thank You for Selecting
Specifications
The Powerful VQ QUIET VACUUM
12
3
OPTIONAL ACCESSORIES
Operator Owner's Manual
VAC M HOSE KIT
P/N 830255 5" (127mm) x 8'
(2.4m) For vacuuming in
hard-to-reach areas.
HOSE CO PLER KIT
P/N 800334
5" (127mm) For coup ing
mu tip e hoses together to
increase vacuuming dis-
tance.
STANDARD DEBRIS BAG
P/N 8303 0 Standard on
VQ mode s. For dusty
conditions.
T RF DEBRIS BAG
P/N 830282 For use in
eaves and grass in non-
dusty conditions.
BAG COVER
P/N 830284 Directs dust
downward away from
operator.
ALTERNATE DEBRIS BAGS
UNIT SIZE: OVERALL LENGTH: 66 (1.68m) OVERALL WIDTH 32.75 (0.83m) OVERALL HEIGHT43.5 (1.10m)
Se f Prope ed Mode s
VQ80 SPH, VQ100 SP
VQ1002SP VQ802SPH
ENGINE: HP 10 (7.45 kW) 8 (5.97 kW)
ENGINE: TYPE B & S INTEK HONDA OHV
ENGINE: FUEL CAP. 4 qt. (3.8 L) 6.4 qt. (6.1 L)
ENGINE: OIL CAP. 0.875 qt. (0.8 L) 1.16 qt. (1.1 L)
WEIGHT: UNIT 282 lb (127.9 kg) 278 lb (126.1 kg)
WEIGHT: SHIPPING 314 lb (142.4 kg) 310 lb (140.6 kg)
ENGINE: WEIGHT 52 lb (23.6 kg) 48.5 lb (22.0 kg)
(Note: B&S = Briggs & Stratton, Honda = American Honda
RIDE ON CHARIOT KIT
P/N 830257
Reduces operator fatigue.
Operator stands whi e riding
behind vacuum. Maximum
oad 300 bs.(136 kg)
Part No. 830542 Form No. F021302G
Vibration levels at the operators handles were
measured in the vertical, lateral, and longitudinal
directions using calibrated vibration test equipment.
Tests were performed on 07/02/97 under the
conditions listed:
VIBRATION LEVEL 1.9 g
SO ND
Page 2 of 16
7 8 VIBRATION
○○○○○○○○○○○
○○○○○○○○○○○○○
○○○○○○○○
6
○○○ ○○○○
○○○○○
8 - 12
16
16
14 - 15
6, 7, 13
5
4
3
3
2
4
SAFETY INSTR CTIONS
PARTS BAG & CONTROLS
LABELS
GENERAL SAFETY
PACKING CHECKLIST
ASSEMBLY
OPERATION
PARTS DRAWING & LIST
MAINTENANCE
TRO BLESHOOTING
WARRANTY PROCED RE
○○○○○○○○○
○○○○○
○○○○○○○○
○○○ ○○○○
TABLE OF CONTENTS
○○○○○○○○
5IN THE INTEREST OF SAFETY
BEFORE STARTING ENGINE, READ AND UNDERSTAND THE “ENTIRE OPERATOR'S MANUAL &
ENGINE MANUAL.”
THIS SYMBOL MEANS WARNING OR CAUTION. DEATH, PERSONAL INJURY AND/OR PROPERTY
DAMAGE MAY OCCUR UNLESS INSTRUCTIONS ARE FOLLOWED CAREFULLY.
WARNING: DO NOT
1. DO NOT run engine in an enclosed area.
Exhaust gases contain carbon monoxide, an
odorless and deadly poison.
2. DO NOT place hands or feet near moving
or rotating parts.
3. DO NOT store, spill or use gasoline near
an open flame, or devices such as a stove,
furnace, or water heater which use a pilot
light or devices which can create a spark.
4. DO NOT refuel indoors where area is not
well ventilated. Outdoor refueling is recom-
mended.
5. DO NOT fill fuel tank while engine is
running. Allow engine to cool for 2 minutes
before refueling. Store fuel in approved
safety containers.
6. DO NOT remove fuel tank cap while
engine is running.
7. DO NOT operate engine when smell of
gasoline is present or other explosive
conditions exist.
8. DO NOT operate engine if gasoline is
spilled. Move machine away from the spill
and avoid creating any ignition until the
gasoline has evaporated.
9. DO NOT transport unit with fuel in tank.
10. DO NOT smoke when filling fuel tank.
11. DO NOT choke carburetor to stop
engine. Whenever possible, gradually
reduce engine speed before stopping.
12. DO NOT run engine at excessive speeds.
This may result in injury & /or damage to
unit.
21. DO NOT touch hot muffler, cylinder, or
fins because contact may cause burns.
22. DO NOT run engine without air cleaner
or air cleaner cover.
23. DO NOT operate during excessive
vibration!
24. DO NOT leave machine unattended
while in operation.
25. DO NOT park machine on a steep grade
or slope.
WARNING: DO
1. ALWAYS DO remove the wire from the
spark plug when servicing the engine or
equipment TO PREVENT ACCIDENTAL
STARTING.
2. DO keep cylinder fins and governor
parts free of grass and other debris
which can affect engine speed.
3. DO pull starter cord slowly until resis-
tance is felt. Then pull cord rapidly to avoid
kickback and prevent hand or arm injury.
4. DO examine muffler periodically to be
sure it is functioning effectively. A worn or
leaking muffler should be repaired or
replaced as necessary.
5. DO use fresh gasoline. Stale fuel can
gum carburetor and cause leakage.
6. DO check fuel lines and fittings frequently
for cracks or leaks. Replace if necessary
7. Follow engine manufacturer operating
and maintenance instructions.
8. Inspect machine and work area before
starting unit.
13. DO NOT tamper with governor springs,
governor links or other parts which may
change the governed engine speed.
14. DO NOT tamper with the engine speed
selected by the engine manufacturer.
15. DO NOT check for spark with spark plug
or spark plug wire removed. Use an
approved tester.
16. DO NOT crank engine with spark plug
removed. If engine is flooded, place throttle
in “FAST” position and crank until engine
starts.
17. DO NOT strike flywheel with a hard
object or metal tool as this may cause
flywheel to shatter in operation. Use proper
tools to service engine.
18. DO NOT operate engine without a
muffler. Inspect periodically and replace, if
necessary. If engine is equipped with
muffler deflector, inspect periodically and
replace, if necessary, with correct deflector.
19. DO NOT operate engine with an
accumulation of grass, leaves, dirt or other
combustible material in the muffler area.
20. DO NOT use this engine on any forest
covered, brush covered, or grass covered
unimproved land unless a spark arrester is
installed on the muffler. The arrester must
be maintained in effective working order by
the operator. In the State of California the
above is required by law (Section 4442 of
the California Public Resources Code).
Other states may have similar laws. Federal
laws apply on federal lands.
WARNING: The Engine Exhaust from this product contains chemicals known
to the State of California to cause cancer, birth defects or other reproductive harm.
Sound tests conducted were in accordance with 2000/14/EEC
and were performed on 2/14/2002 under the conditions listed:
GENERAL CONDITION:
NOTE: Sound power level listed is the highest value for any model in this manual. Please
refer to serial plate on the unit for the sound power level for your model.
108 dB WIND DIRECTION:
HUMIDITY:
TEMPERATURE:
BAROMETRIC PRESSURE:
GENERAL CONDITION:
29.91 Hg (760mm Hg)
43 %
East
10 MPH (16.1 kmh)
80° F (26.7° C)
Sunny
WIND SPEED:
MODEL: VQ1002SP
WIND DIRECTION:
HUMIDITY:
TEMPERATURE:
BAROMETRIC PRESSURE: 30.06 Hg (764mm Hg)
32 %
North
15 MPH (24.1 kmh)
50° F (10° C)
Sunny
WIND SPEED:
Sound level of 88 dBA at operator position
Part No. 830542 Form No. F021302G
EXPLOSIVE FUEL
STOP ENGINE AND ALLOWT O
COOL BEFORE REFUELING.
400268
WARNING
DANGER
810736
890254
These labels should be included on your Vacuum. If any of these labels are damaged, replace them before putting this
equipment into operation. Item and part numbers are given to help in ordering replacement labels..
12 13 CONTROLS
INSTR CTION LABELS
Literature Checklist
Check E Declaration
of Conformity &
E Distributor
List 830321
E Declaration
of Conformity
& E
Distributor List
35
Gasket
Flange
Transition VQ
P/N 830160
(not to scale)
PARTS BAG ASSEMBLY CHECKLIST P/N 830204
PARTS BAG & LITERAT RE ASSY P/N 830531
Rod End Ball Joint
5/16-24 400873 Qty. 2
73
44
Nut Regular 5/16-24
(Fine Thread) 8149002
Qty. 2
138
143 Washer 1/4 Flat Cut
8171002 Qty. 6
Washer 5/16 SAE
8172008 Qty. 3
140
132 Nut Lock 5/16-18
8160002 Qty. 3
131
Nut Lock 1/4-20 8160001
Qty. 2
Screw Cap 5/16-18 x 3/4
8041026 Qty. 3
117
113
FAST
SLOW
STOP
Throttle
Control
Stop
position
Briggs and
HONDA
engines have
a choke type
carburetor that
is operated
using choke
ever on side
of engine.
Start
position
WHEN OIL LEVEL LOW,
ENGINE STOPS IMMEDIATELY.
OIL ALERT
HONDA MOTOR CO. , LTD. MADE IN JAPAN
READ OWNER’S MANUAL BEFORE OPERATION.
LIRE LE MANUEL D UTILISATEURAVANT USAGE.
VOR INBETRIEBNAHME UNBEDINGHT BEDIENUNGSANLEITUNG DURCHLESEN.
NO UTILIZAR SINANTES NO HABER LEIDO EL MANUAL
900407 TY-Wrap Cable
1" Qty. 4
Screw Cap 1/4-20 x 1 1/4
8041007 Qty. 2
Labe Oi Chain
Item 111 Part
No. 830502
Page 3 of 16
ENGINE LABELS
15
Briggs & Stratton
Honda
Labe Do Not Fi
Whi e Engine Is Hot
Item 130
Part No.400268 Labe Danger Keep
Hands and Feet Away
Item 100 Part No.400424
14
EVERY 10 HOURS
830502
OIL CHAIN
830196
HOSE
OPEN
HOSE
CLOSED
Labe
Diverter
Instructions
Item 99
Part
No.830196
Labe Danger F ying
Materia Item 101 Part No.
810736
Labe Ear Eye
Breathing Item No.180
Part No. 890254
Labe Read
Owner's Manua
tem No.181
Part No. 890301
Debris Bag
Labe item 50
R
11
2
3
4
5
830237
N
Labe Speed
Contro
Item 150
Part No.
830237
PULLTO ENGAGE CLUTCH
RELEASETO DISENGAGE CLUTCH
830503
Labe C utch VQ Item
106 Part No. 830503
Labe Danger Guards
Item 89 Part No. 900327
WARNING
900327
READ OWNER'S MANUAL
BEFORE OPERATING,MAKE SURE:
USE PROTECTION
EXHAUST ELBOW IS ATTACHED.
EXHAUST IS DISCHARGING INTO
ENCLOSED CONTAINER.
ALL GUARDS ARE ATTACHED.
HOSE IS ATTACHED.
USE ONLYA QUALIFIED MECHANIC TO SERVICETHIS MACHINE.
INSPECT MACHINE BEFORE EACH USE AND REPLACE ANY
WORN AND DAMAGED PARTS.
ABRASIVE DEBRIS WILL SHORTEN UNIT LIFE.
830138
OPERATING INSTRUCTION IS OBTAINED.
STOP ENGINE AND ALLOWTO
COOL BEFORE REFUELING.
KEEP ENGINE CLEAN OF DEBRIS.
PROPERLYSECURE EQUIPMENT BEFORE TRANSPORTING.
NEVER SERVICE UNITWITHOUT DISCONNECTING SPARK PLUG WIRE.
Labe Caution Item 159
Part No.830138
Literature
VQ
Accessories
Owner's
Manual Check Owner's
Manual
830016
Literature
VQ
Accessories
830209
Check
Warranty
Card
Check Warranty
Card
400972
OFF ON
Labe On Off
Item 112 Part No.830276
SP Honda Models Only
RUN CHOKE
ON
OFF
THIS ENGINE EQUIPPEDWITH
LOW OIL SENSOR, IF ENGINE WILL
NOT START, CHECK OIL LEVEL
Read and follow Operating
Instructions before running engine.
Gasoline is flammable.Allow engine
to cool at least 2 minutes before fueling.
Engines emit carbon monoxide,
DO NOT run in enclosed area.
Part No. 830542 Form No. F021302G
Page 4 of 16
For your safety and the safety of others, these directions should be followed:
se of Ear Protection is recommended while
operating this machine.
Do not operate this machine without first reading
owner's manual and engine manufacturer's manual.
se of Eye and Breathing protection is recom-
mended when using this machine, especially in dry
and dusty conditions. Optional bag cover directs dust
toward ground, away from the operator.
·DO NOT place hands or feet inside nozzle intake opening,
near debris outlet or near any moving parts.
·DO NOT start engine without debris bag and quick discon-
nect connected firmly in place to exhaust outlet.
·DO NOT start or operate machine with debris bag zipper
open.
QUICK DISCONNECT
·DO NOT operate during excessive vibration.
·DO NOT remove bag until engine has been turned off and has
come to a complete stop.
·DO NOT remove hose kit cap on nozzle until engine has been
turned off and has come to a complete stop.
·DO NOT operate machine with hose cap, bag or hose removed.
·DO NOT use this machine for vacuuming exclusively sand,
dust, fine dirt, rock, glass, string like material, grain, rags,
cans, metal, bark or water.
·DO NOT operate this machine on slopes greater than 20%.
·DO NOT pick up any hot or burning debris, or any toxic or
explosive material.
·DO NOT allow children to operate this equipment.
GENERAL SAFETY
9
PACKING CHECKLIST
11
Boxing Check ist
Deflector
Assembly
830280
Check
Rod Door
Nozzle
830286
Check
These items should be included in your carton. If
any of these parts are missing, contact your dealer.
Check
Briggs & Stratton
Intek 10 HP
Per Mode
Engine
Manual
Per Model
Honda 8 HP -
GX240
Check
Check Parts Bag &
Literature Assy
830531
Parts Bag
& Litera-
ture Assy
Denotes parts found in Parts Bag Assembly (shown on page 4).
Fig. 5
Main nit
Check Debris
Bag
830170A
Elbow
Assembly
830159
Check
Briggs Models
830011.
Honda Models
830012.
Check
Upper Handle
Assy Per Model
SP
units
only
Part No. 830542 Form No. F021302G
N
Page 5 of 16
P T OIL IN ENGINE BEFORE STARTING.
Read all safety and operating instructions
before assembling or starting this unit.
ASSEMBLY
10
Your Billy Goat is shipped from the factory in one carton, com-
pletely assembled except for the debris bag, deflector assy, upper
handle assembly, rod nozzle door, elbow assy.
1. PPER HANDLE (item 41). Assemble securely to lower handle
stubs (item 37) and handle brace (item 36), using screws (item
120 & 121), so that screw heads are on inside of handle. Other-
wise, premature bag wear could result.
2. NOZZLE DOOR CONTROLS. Assemble ball joints (item 73),
jam nuts (item 138), to both ends of rod (item 47). Do not fu y
tighten jam nuts.
Using screw (item 113), washer (item 143) and lock nut (item 131),
connect one end of rod (item 47) to nozzle door mounting. (See
Figure 5). Using rod, pull nozzle door open horizontal to ground
and hold opposite end of rod next to mounting hole on remote
lever (item 48), already assembled onto upper handle. (See Figure
1). If necessary, adjust rod length using threads provided on rod.
Adjust rod length to give a minimum of 1.0 (25.4 mm) hand
clearance between lever & maximum forward throttle position
when door is open. Assemble upper end of rod to lever on handle
using same hardware item numbers as shown above. (See figure
1& 2). Tighten jam nuts.
3. EXHA ST ASSY. Place flange gasket (item 35) onto housing of
main unit and assemble exhaust elbow to housing using screws
(item 117), washers (item 140) and lock nuts (item 132), provided
in parts bag. The rear hole mounts deflector (item 118), using
screw assembly (already attached to deflector) and lock nut (item
132). Bend opposite end of deflector down until notch in rear of
deflector catches onto handle brace (item 36) (see figure 3).
4. DEBRIS BAG (Item 50) (see figure 4).
4.1 Unfold and place mouth of bag over exhaust elbow, com-
pletely covering the discharge opening with bag neck straps,
placing one on each side of elbow flange.
COMPLETELY TIGHTEN BAG NECK STRAPS
4.2 Attach rear hanger straps of bag to the hanger loops
located one on each side of the upper handle.
5. CABLES AND WIRES. Attach to the handle using cable clamps
(item 44).
6. Secure engine starter rope into starter rope guide (Item 177)
using hardware that is preassembled to the lower handle.
7. INSPECT ALL PARTS & MECHANICAL FASTENERS for
security and integrity.
8. Note: See debris bag conditioning under operation section on
page 6).
SELF PROPELLED ONLY (before starting unit).
9. CONTROL ASSY (item 77).
Before starting engine, check for neutral by
placing the control into neutral and engaging the bail, the
unit has been adjusted at the factory and should free-
wheel. If not, adjust as needed by placing the control
(item 77) and transmission offset link (item 68) into neutral
and adjust nuts on control cable(item 75).
10. Check tire pressure and lubricate all grease and oil points
(see MAINTENANCE).
11.Connect spark plug wire.
Fig. 1
48
73
138
47
47
138
73
Fig. 4
50
36
118
Fig. 3
Fig. 2
Deflector
Notch
Fig. 6
17
Part No. 830542 Form No. F021302G
Page 6 of 16
16 OPERATION
FOR MAXIM M PICK P: Adjust nozzle close to debris,
but without blocking airflow into the nozzle.
NOTE: Never bury nozzle into debris.
CLEARING A CLOGGED NOZZLE
& EXHA ST: Turn engine off and wait for impeller to
stop completely and disconnect spark plug wire.
Wearing durable gloves, remove clog. Danger, the clog
may contain sharp materials. Reconnect spark plug
wire.
NOZZLE GOBBLER DOOR.
Large debris can be vacuumed without readjusting nozzle height by
temporarily opening the remote Nozzle Gobbler Door. For maxi-
mum pickup of small debris, the gobbler door must be down, flush
with front face of nozzle.
Note: Frequent y empty debris to prevent bag over oading with
more weight than you can ift.
An optional bag and dust cover is available for use where debris will be
vacuumed in dusty conditions (See Optional Accessories shown on
page 1.)
DO NOT place bag on or near hot surface, such as engine. Run
engine at 1/2 throttle for first 1/2 hour to condition new bag. Your
new bag requires a break-in period to condition the pores of the
material against premature blockage. The entire bag surface
serves as a filter, and must be able to breath to have good vacuum
performance.
Be sure engine has come to a complete stop before removing
or emptying bag.
This vacuum is designed for picking up trash, organic
material and other similar debris (see Safety Warnings page 2-4).
However, many vacuums are used where dust is mixed with
trash. Your unit can intermittently vacuum in dusty areas. Dust
is the greatest cause of lost vacuum performance. However,
following these rules will help maintain your machine's ability to
vacuum in dusty conditions:
•Run machine at idle to quarter throttle.
•The debris bag must be cleaned more frequently. A vacuum
with a clean, pillow soft bag will have good pickup performance.
One with a dirty, tight bag will have poor pickup performance. If
dirty, empty debris and vigorously shake bag free of dust.
•Machine or pressure-wash debris bag if normal cleaning does
not fully clean bag. Bag should be thoroughly dry before use.
Having one or more spare debris bags is a good way to reduce down time
whi e dirty bags are being c eaned.
•DO NOT leave debris in bag while in storage.
Debris bags are normal replaceable wear items.
DEBRIS BAG
16.3
16.1 STARTING
ENGINE: See engine manufacturer’s instructions
for type and amount of oil and gasoline used.
Engine must be level when checking and filling oil and
gasoline.
ENGINE SPEED: Controlled by throttle lever on left side of
handle. Under normal conditions operate at minimum throttle
to accomplish your current cleaning task. For Honda model,
the stop switch is located on the switch panel on the engine
& for SP Honda models only, on remote shift control panel.
NOTE: Before starting, check that all switches and fuel
valves are on.
F EL VALVE: Move fuel shutoff valve to ON position.
CHOKE: Located at lower rear area of carburetor bowl.
Choke engine before starting when engine is cold.
THROTTLE: Move remote throttle control to fast position.
Pull starting rope to start engine.
IF YO R NIT FAILS TO START:
See Troubleshooting on page 16.
Like all mechanical tools, reasonable care must
be used when operating machine.
Inspect machine work area and machine before operat-
ing. Make sure that all operators of this equipment are
trained in general machine use and safety.
P T OIL IN ENGINE BEFORE STARTING.
Do not operate if excessive vibration occurs. If excessive
vibration occurs, shut engine off immediately and check for
damaged or worn impeller, loose impeller bolt, loose
impeller key, loose engine or lodged foreign objects.
Note: See parts list for proper impeller bolt torque specifica-
tions. (See trouble shooting section on page 16).
VAC MING OPERATION
16.2
VAC M NOZZLE HEIGHT ADJ STMENT: Is
adjusted by unlocking wing nut (item 32) and turning caster
knob. Turning the knob clockwise increases height. Be sure
the nozzle height is level (left to right) before tightening caster
wing nuts.
Adjust nozzle height according to surface conditions and
debris size; For vacuuming on flat surfaces, set nozzle 1/2
(12.7 mm) to 5/8 (15.8 mm) above ground; Higher for uneven
terrain and turf. Note: The nozzle side bogie wheels should
be at least 1/8" (3.2mm) above the ground, or maneuver-
ability will be reduced.
INTENDED SE: This machine is designed for vacuuming
leaves, grass clippings and other types of organic litter.
Debris mixed with cans, bottles and small amounts of sand
can be vacuumed; however, it is not this machine's primary
purpose. Vacuuming cans, bottles and sand will affect the
longevity of your machine.
Self propelled unit is not intended for use with any ground
engaging implements [maximum tow bar weight 300 lbs
(136 kg)].
Part No. 830542 Form No. F021302G
Page 7 of 16
16 OPERATION continued
PROP LSION
16.6
PROP LSION: VQ self-propelled vacuums are equipped with
5 forward gears, neutral and reverse. With the engine running,
the bail in released position and brake in on position, select
desired drive gear. Pull bail against handle to engage drive
(see figure 7). Smoothly engage the bail. Parking brake
engages when the bail is released. To freewheel, set transmis-
sion control in neutral and pull back on bail.
Use good judgement when operating the self-propelled drive.
Fifth gear is faster than walking speed and should normally be
used only for moving quickly from place-to-place.
Using neutral, on level terrain is advisable when maneuvering in
tight areas. This increases operator control, and can prevent
bumping into nearby objects.
Do not force-shift gears of transmission. To assist gear meshing,
it may be necessary to partially engage bail while shifting.
To stop machine, release operator's bail (this engages the
parking brake).
For reverse - Set Throttle to Idle.
Fig. 7
Throttle
Control
With operator's bail released, pull shift lever back and
depress wire stop (item 90) to continue to the reverse
position. Then smoothly pull operator's bail against handle.
Release bail to stop (see figure 7).
90
MPH 1.903.0 5.14.03.42.7
KPH 3.104.8 8.36.55.54.4
DRIVE GEAR SELECTION @ (3400 RPM)
Position Rev. N 1 2 3 4 5
Clutch
Engaged
Parking
Brake Off
Parking
Brake On
Clutch
Disengaged
Part No. 830542 Form No. F021302G
Page 8 of 16
18 PARTS DRAWING
VQ802SPH, VQ1002SP
Part No. 830542 Form No. F021302G
Page 9 of 16
Part No. 830542 Form No. F021302G
Page 10 of 16
PARTS
LIST
19 VQ1002SP VQ802SPH
PART NO. QTY PART NO. QTY
1 ENGINE 10 HP INTEK B&S 430352 1 - -
ENGINE 8 HP HONDA - - 400937 1
2 ANGLE MOUNT HDLE WA 830126 1 830126 1
3 IMPELLER ASSY VQ (INCLUDES ITEM 4,5,6,7) 830244 1 830244 1
4 KEY 0.25 SQ. X 2.75" 9201125 1 9201125 1
5 WASHER LOCK 7/16 TWISTED TOOTH 850132 1 850132 1
6 SCREW CAP 7/16 NF x 2 1/4 GR8 TORQ 60 FT LBS (81.4 N.m) 830114 1 830114 1
7 SPACER ENGINE 830113 1 830113 1
8CLIPLOCK 400591 1 400591 1
9 SCREW CAP 5/16 NF x 2 1/2 GRD. 8 830136 2 830136 2
10 HOUSING ASSEMBLY W/LABELS VQ 830153 1 830153 1
11 FRAME WA VQ 830171 1 830171 1
12 NOZZLE ASSEMBLY VQ 830010 1 830010 1
13 NOZZLE ASSY W/LABELS 830181 1 830181 1
14 CAP PLUG VQ 830232 1 830232 1
15 PLATE DOOR NOZZLE HOSE 830193 1 830193 1
16 ROD DIVERTER VQ 830194 1 830194 1
17 GROMMET FLG. 1/2 MOLDED 830176 2 830176 2
18 BRKT BOGIE ASSY LH 830197 1 830197 1
19 BRKT BOGIE ASSY RH 830198 1 830198 1
20 BRKT BOGIE WA LH 830199 1 830199 1
21 BRKT BOGIE WA RH 830200 1 830200 1
22 ROLLER GUIDE 850204 2 850204 2
23 PIN ROLLER 850205 2 850205 2
24 WHEEL BOGIE 3" 850149 2 850149 2
25 SPACER 5/16 X 1 5/8 850150-03 2 850150-03 2
26 CASTER & BRKT LH ASSY SEMI-PNEU VQ 830540 1 830540 1
27 CASTER & BRKT RH ASSY SEMI-PNEUVQ 830541 1 830541 1
28 BRKT LH WA 8" CASTER 830147 1 830147 1
29 BRKT RH WA 8" CASTER 830148 1 830148 1
30 CASTER ASSY 8" SEMI-PNEU 3/4 NC (INCL ITEM 33 (4), 94, 95, 96, 125, 134) 830539 2 830539 2
31 KNOB HAND 850154 2 850154 2
32 NUT WING WA 800227 2 800227 2
33 WASHER 3/4 NYLON 800109 2 800109 2
34 ELBOW ASSY W/LABELS VQ 830159 1 830159 1
35 GASKET FLANGE TRANSITION VQ 830160 1 830160 1
36 HANDLE BRACE REAR 830162 1 830162 1
37 HANDLE LOWER VQ 830161 1 830161 1
38 TUBE HANDLE BAG SUPPORT 830163 1 830163 1
39 ROD BAG LOOP 800178 2 800178 2
40 CAP TUBE 800392 2 800392 2
41 HANDLE ASSY UPPER W/GRIP (39, 45, 46, 81, 114, 115, 131, 163) 890295 1 890295 1
42 SWITCH & WIRE ASSY(ITEMS 107,109,110) - - 830242 1
43 CONTROL THROTTLE ASSY VQ SERVICE 900514-00 1 830132 1
44 CLAMP CABLE 1" 900813 4 900813 4
45 DOOR NOZZLE FRICTION ASSY 830288 1 830288 1
46 SPACER 850198 2 850198 2
47 ROD DOOR NOZZLE 830286 1 830286 1
48 BAR LEVER DOOR 850189 1 850189 1
49 PLATE FRICTION LIFT 850191 1 850191 1
50 BAG ASSY VQ / TURF BAG 830282 830320 1 830320 1
51AXLEREARWAPUSH ----
DIFFERENTIAL ASSY / SPROCK. ONLY 830021 830014 1 830014 1
52 WASHER HUB CAP 850237 2 850237 2
53 CAP HUB 900486 2 900486 2
54 WHEEL 13" x 6.5" PNEU. SP 830177 2 830177 2
55 BRG ASSY VQSP 850232 2 850232 2
56 BRKT MOUNT BEARING 830530 2 830530 2
57 TRANSMISSION 5 SPEED 1 REV W/BRAKE (TECUMSEH) 830179 1 830179 1
58 CHAIN #41 x 68P VQSP 830020 1 830020 1
59 BELT “V” 4L x 34" OUTSIDE LG. 830223 1 830223 1
60 PULLEY 5.0 DIA. A SEC 0.625 ID 830180 1 830180 1
61 KEY HIPRO 3/16 X 3/4 850234 1 850234 1
62 PULLEY IDLER 800260 1 800260 1
63 BOLT IDLER 800888 1 800888 1
64 ARM IDLER WA VQ 830527 1 830527 1
65 SPRING 400217 1 400217 1
ITEM DESCRIPTION
