BIMG METVISA SFP8 Series User manual

1

2
p
TABLE OF CONTENTS
1. Safety Information............................................................................................... 3
1.1 General Warnings............................................................................................................ 3
2. Technical Features .............................................................................................. 4
2.1 Main Components ............................................................................................................4
2.2 Technical Data .................................................................................................................5
3. Installation ............................................................................................................ 6
3.1 Machine Layout ................................................................................................................6
3.2 Safety Measures and User Instruction.............................................................................. 7
4. Using the Machine ............................................................................................... 7
4.1 Utility ................................................................................................................................7
4.2 Commands .......................................................................................................................8
4.3 Operating Procedures ......................................................................................................8
5. Cleaning and Maintenance ............................................................................... 12
5.1 Cleaning Procedures and Products Used .......................................................................12
5.2 Maintenance and Procedures in Case of Breakdowns ....................................................13
6. Annexes ............................................................................................................. 17

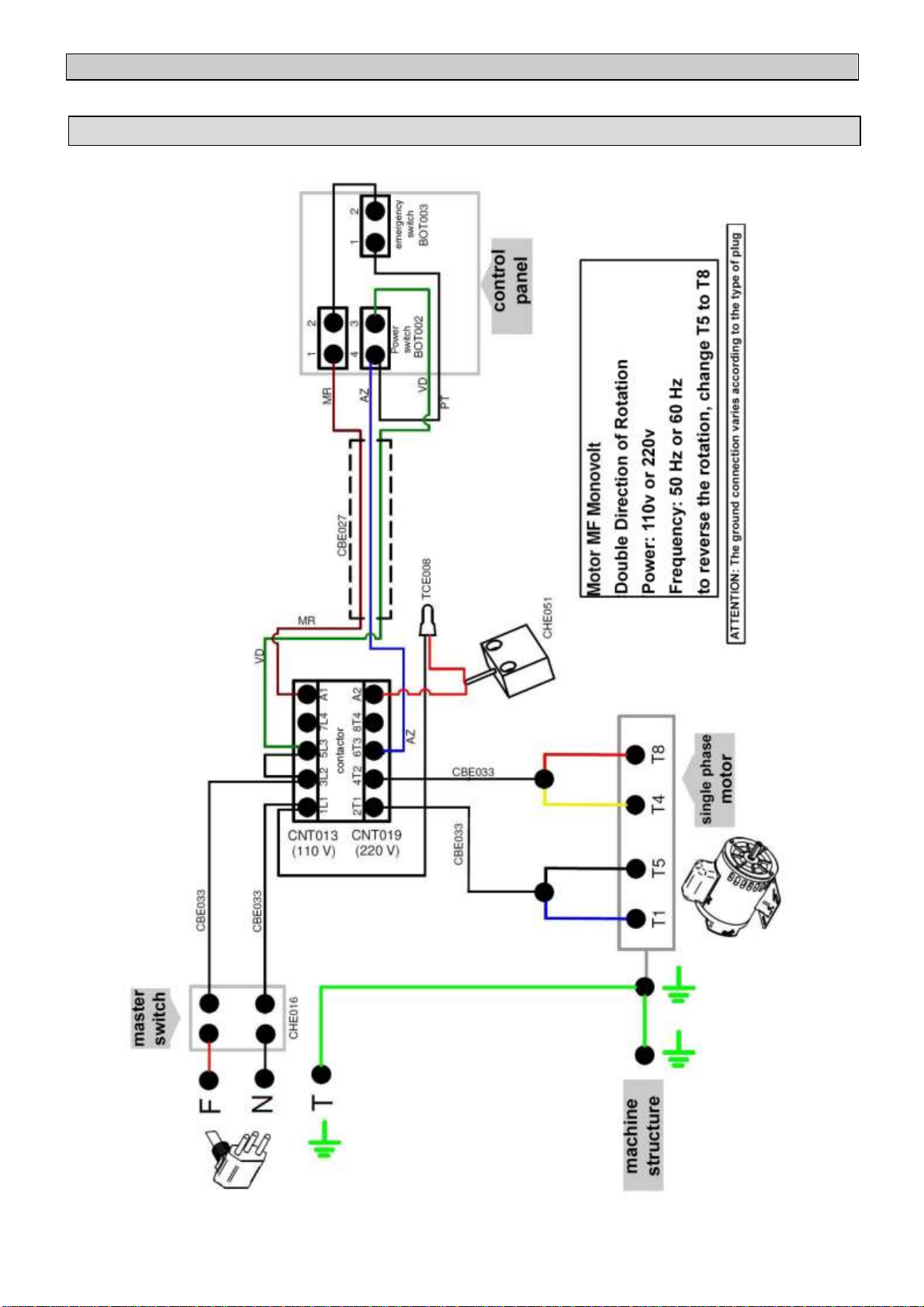

Electrical Schematic .......................................................................................................17
Blown up Design ...........................................................................................................18
List of Spare Parts.......................................................................................................... 20
ATTENTION!
The characteristics, pictures and figures presented in this manual should be considered for
information. BIMG BRASIL reserves the right to make such modifications as may be deemed
necessary without prior notice.

3
1. Safety Information
1.1 General Warnings
•Cautions / precautions must be observed when installing, using, maintaining and discontinuing use
of this machine;
•Before carrying out any operation (assembly, utilization (use), maintenance and reuse after
prolonged use of the machine), read the manual carefully;
•The machine must be used by trained personnel familiar with the use and safety regulations
described in this manual;
•This machine is not intended for use by persons (including children) with reduced physical, sensory
or mental capacities, or people with lack of experience and knowledge, unless they have received
instructions regarding the use of the machine or are under the supervision of a person responsible for
their safety.
•It is recommended that children be supervised to ensure that they are not playing with the machine;
•In case of rotation of the personnel that will work with the machine, the new operator must be
educated about the standards and the operation of the same one;
•The operator must use the Adequate PPE (equipment for individual safety). • As for example: Use
touches the hair to prevent them from locking on the moving parts of the machine;
•The operator must always be aware of situations that can cause a risk of accidents and avoid them.
• For example: avoid working with loose uniform sleeves, where they can lock in moving parts,
causing accidents;
•After reading and clarifying all doubts, this manual should be carefully stored in an easily accessible
location, known to all persons who will operate the machine and make it available to those who will
carry out maintenance for any inquiries. Whenever any questions arise, be sure to check the manual.
Do not operate the machine in any way with doubts;
•In the installation, it is essential to make this manual available to the professionals who will do the
same;
•Even if there is a safety system in the machine, never open the door or place your hands, fingers or
objects (such as spoons and knives) on the blade and moving parts or near them with the machine
on, avoiding personal injury or damage to the machine;
•Never touch the blade while the machine is running;
•Before starting cleaning and any maintenance, it is essential to disconnect the machine from the
mains and it must only be carried out by properly trained personnel;
•Periodically check the condition of the cables and electrical parts;
•Do not leave the machine on without supervision.
ATTENTION!
Do not perform repairs on your own. Refer servicing to qualified service personnel. Use
only original parts in your equipment.

4
2. Technical Characteristics
2.1Main Components
For the equipment described in this manual, safety in use, cleaning, maintenance and
maximum hygiene are guaranteed by the design and special design of all parts and also by using
stainless steel and other materials suitable for contact with the food.
The machine was built with the following features:
•In the SFPI model the structure and parts in plates are made of stainless steel. In the SFPP and
SFP8 models, the table and blade protection are stainless steel, the rest of the machine is made of
carbon steel coated with electrostatic epoxy paint, an excellent anti-corrosive protection. In both
models, the blade is made of high carbon steel with heat treatment. Ideal for precision cutting.
•• The blade extender and the upper and lower wheels are also produced in carbon steel with
electrostatic epoxy paint.
Following are the main components of the machine:
Note: For exploded design
with spare parts list, see the
attachments

5
2.2Technical Data
Model
Net Weight
(Approx.)
(kg)
Voltage
(V)
Current
Nominal
(A)
Electric Cable
(Code BIMG)
Nominal Measures
LengthxHeightxDepth
(mm)
Extended
Blade (mm)
SFP8110M60S4
41.6
110
8.3
CBE001
750x860x610
1780
SFP8220M50S1
41.6
220
4.2
CBE023
SFP8220M50S2
41.6
220
4.2
CBE029
SFP8220M50S4
41.6
220
4.2
CBE030
SFP8220M60S4
41.6
220
4.8
CBE030
SFPI110M60S4
33.4
110
6.2
CBE001
540x860x610
1780
SFPI220M50S1
33.4
220
3.3
CBE023
SFPI220M50S2
33.4
220
3.3
CBE029
SFPI220M50S4
33.4
220
3.3
CBE030
SFPI220M60S4
33.4
220
3.5
CBE030
SFPP110M60S4
33.4
110
6.2
CBE001
540x860x610
1780
SFPP220M50S1
33.4
220
3.3
CBE023
SFPP220M50S2
33.4
220
3.3
CBE029
SFPP220M50S4
33.4
220
3.3
CBE030
SFPP220M60S4
33.4
220
3.5
CBE030
SFPIM110M60C4
35.0
110
8.3
CBE001
540x860x610
1780
SFPIM110M60S4
35.0
110
8.3
CBE001
SFPIM220M50C7
35.0
220
4.2
CBE175
SFPIM220M50S1
35.0
220
4.2
CBE023
SFPIM220M50S2
35.0
220
4.2
CBE029
SFPIM220M50S4
35.0
220
4.2
CBE030
SFPIM220M60S4
35.0
220
4.8
CBE030
SFPPM110M60S4
35.0
110
8.3
CBE001
540x860x610
1780
SFPPM220M50S1
35.0
220
4.2
CBE023
SFPPM220M50S2
35.0
220
4.2
CBE029
SFPPM220M50S4
35.0
220
4.2
CBE030
SFPPM220M60S4
35.0
220
4.8
CBE030
Sound level: 80 dB.
ATTENTION!

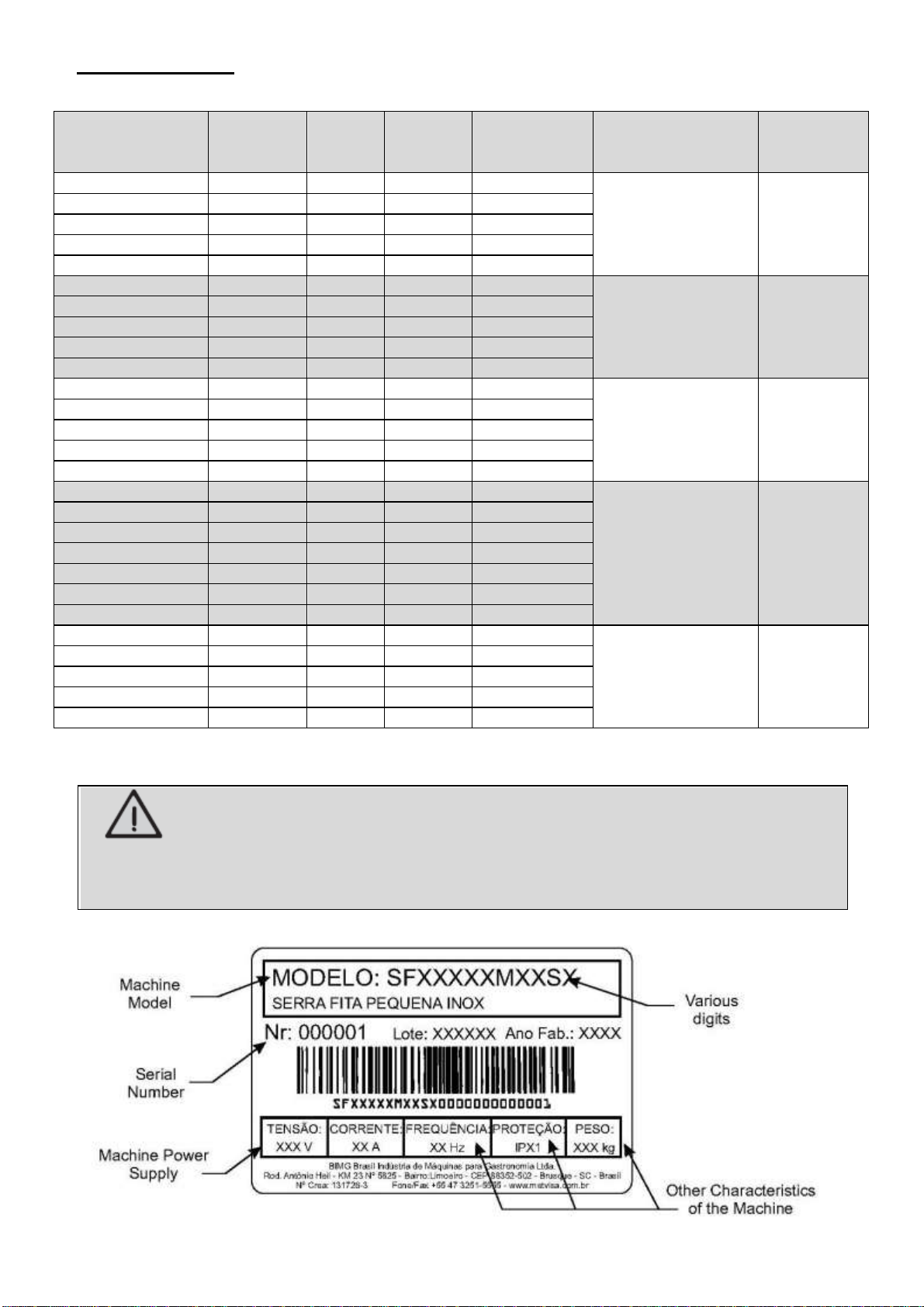

Features like: model, serial number and voltage of the equipment are provided on the label
(figure below). Before installation, check that the power supply voltage of the equipment
corresponds to that of the mains.

6
3. Installation
3.1 Machine Layout
The connection to the mains and the arrangement for operation must be carried out by a
qualified professional. Check that the machine voltage matches the mains voltage.
In the installation, it is essential to make this manual available to the professionals who will
do the same.

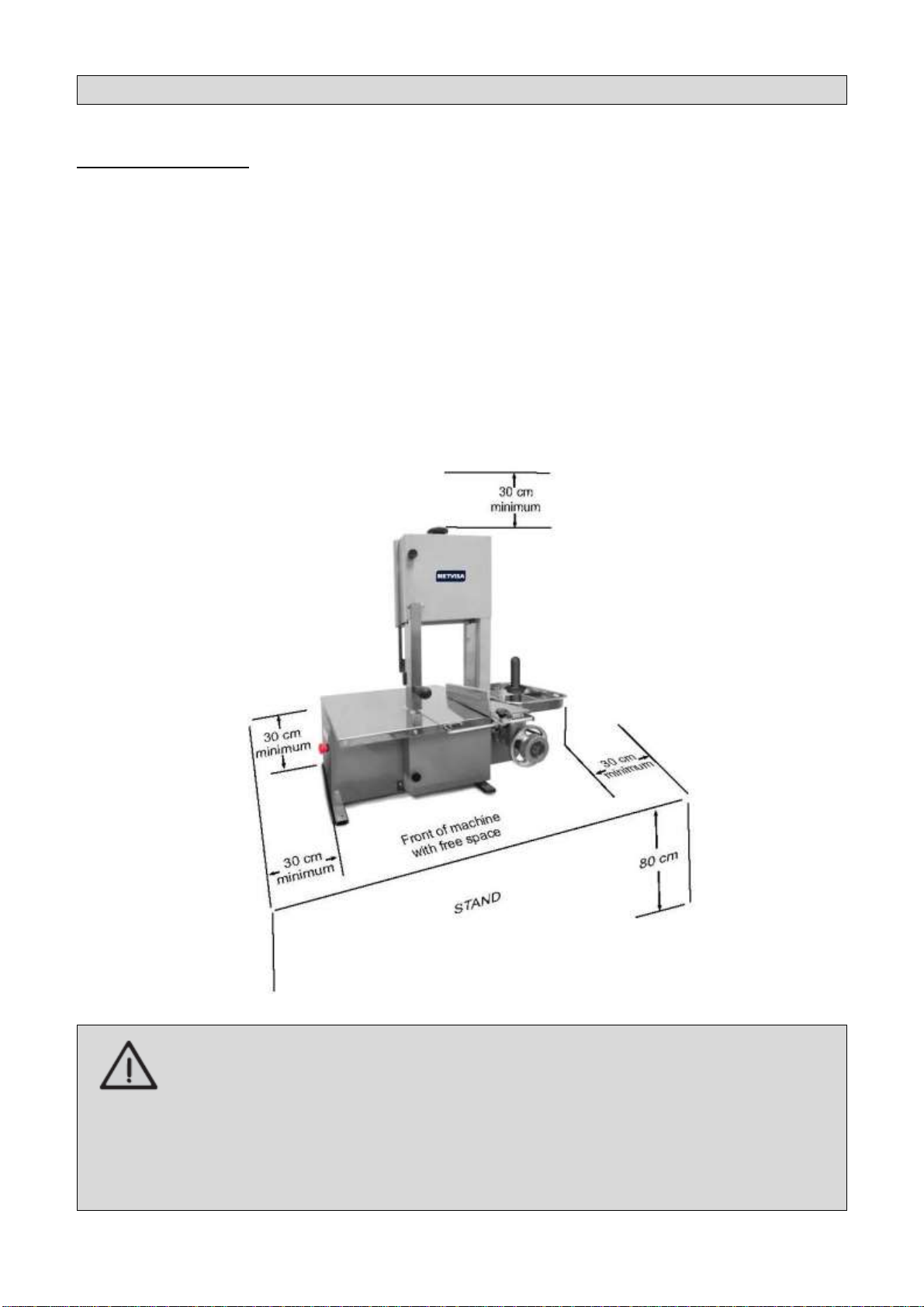

To ensure correct operation and safety, the machine must be positioned in an airy
environment and on a sufficiently wide, level, dry and stable support surface, away from heat sources
and water taps, and at a medium height of 80 cm. Install your machine leaving a free area on the front
and a minimum distance of 30 cm on the sides and back so that it has enough space for inspection,
maintenance, cleaning and use.
ATTENTION!
The installation and the place where the machine will be disposed must comply with the
norms of risk prevention and safety at work (regulatory norm in force in your country).
The manufacturer shall not be liable for any direct or indirect damages caused by non-
compliance with these standards and other instructions presented in this manual.

7
3.2 Safety Measures and User Instruction
Your machine has mechanical protections and a safety system that prevents the machine
from operating if the door is open. Removal or tampering with these safety components can cause
serious hazards to the operator.
ATTENTION!
Before operating your machine, check that the blade teeth are pointing downward, and that
the direction of rotation of the wheels is counterclockwise. To do this, turn on the machine
by pressing the power button in the "1" position (on). Position yourself in front of the
machine and see if the blade moves up and down, as shown below.
In this image, just to illustrate the direction of rotation of the wheels, they are seen with the
door open, but for practical verification, do not open the door, since the machine has a
safety system that will not allow its activation if the door is open. Always check the direction
of rotation with the doors closed and locked with the knobs.
If the blade is moving from the bottom to the top (clockwise rotation), check that the
electrical connection is reversed in relation to the wiring diagram (item 6 - Attachments) or
contact your nearest authorized service center.
4. USE OF THE MACHINE
4.1Utility
All saw models described in this manual are intended for sawing, slicing meats, poultry, fish,
and various food products. In model SFP8 (has a grinder), besides sawing and slicing also grinds
meats.

8

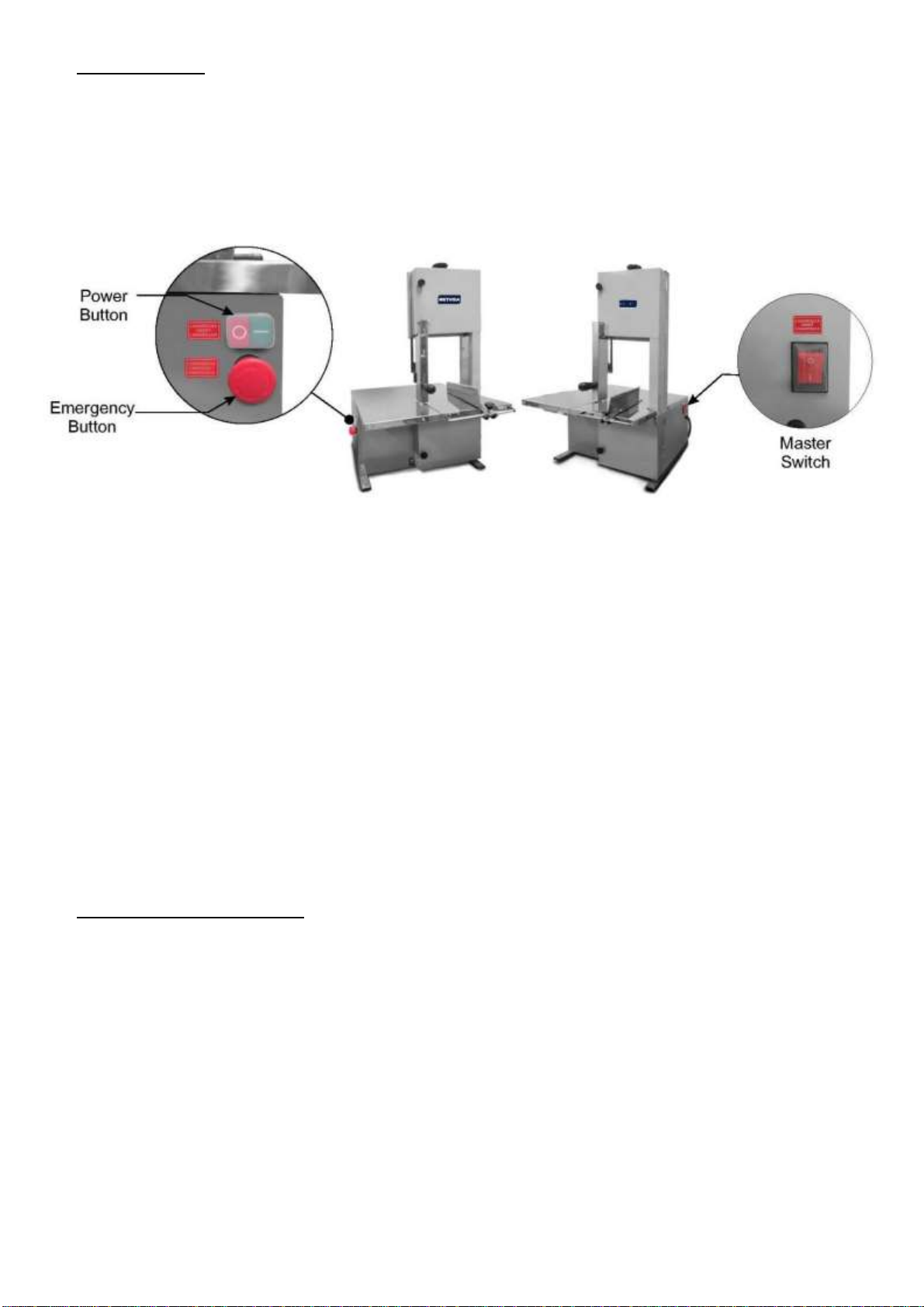

4.2Commands
The machine consists of a master key (switch), on / off and emergency button.
On the left side are the on / off and emergency buttons. The main switch is positioned on the
right side of the case.
See description of each command below:
•Master key (Switch) - equipment used to safely and permanently activate and deactivate the
electric power supply to the machine. In position "1" active, in position "0" disables power supply.
•Power button - used to turn the machine on and off. In position "1" turns on, in position "0" turns off.
•Emergency button - must be activated in the case of the need to stop the machine due to an
emergency. To activate the button simply press it and to disarm, rotate the clockwise button
(according to the arrows on the button).
4.3 Operating Procedures
Before operating your machine, make the perfect sanitation, especially of the components
that will come in contact with the food (blade, wheels, table, etc.). Do the cleaning with the machine
disconnected from the mains. Follow the cleaning instructions in item 5 of this manual.

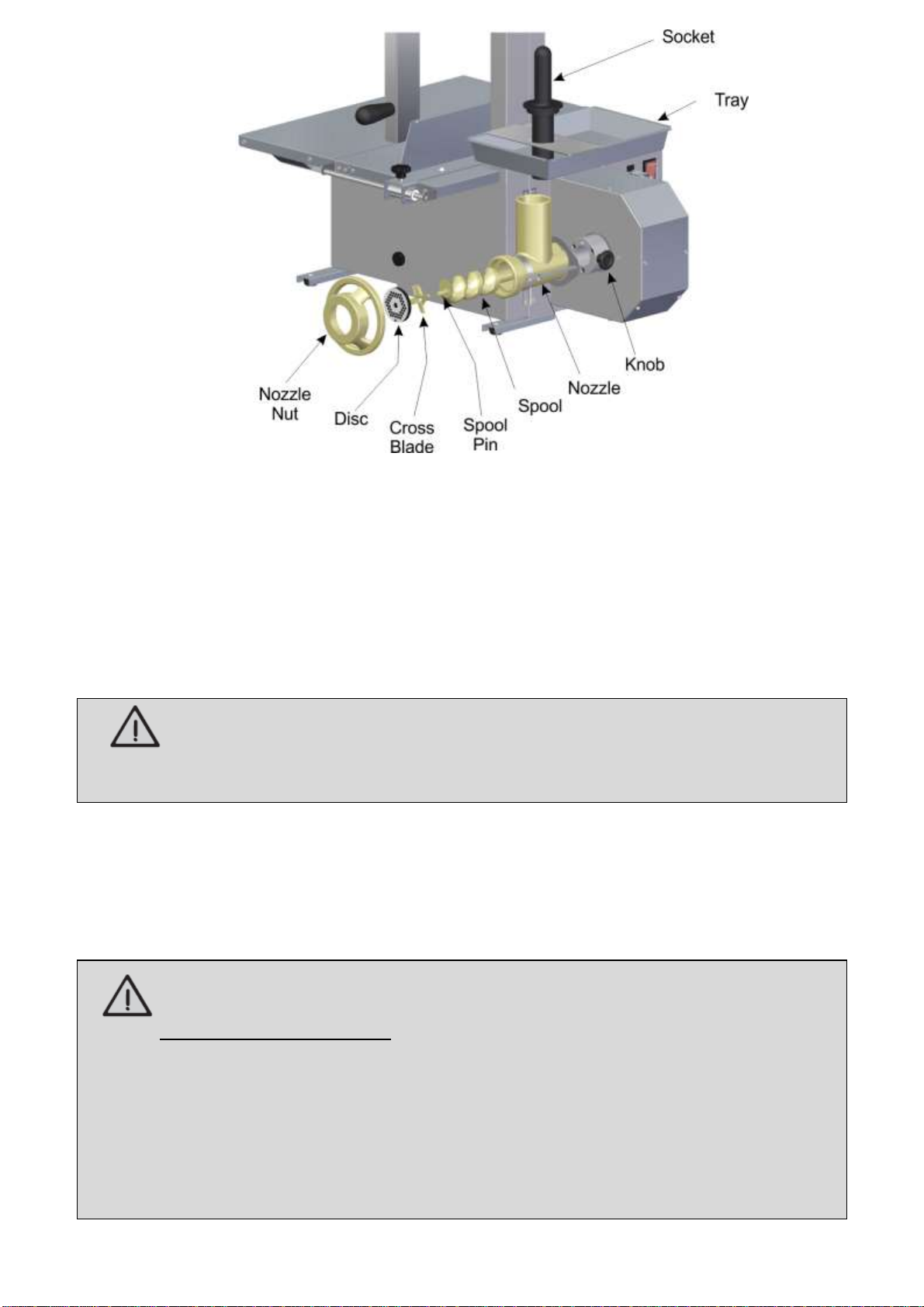

•Dismantling the grinder (Saw Model SFP8): Disconnect the machine from the mains. Remove the
socket and the tray. Unscrew the knob and pull the nozzle firmly. To remove the internal components,
unscrew the nozzle nut, remove the disk, cross blade, spool pin, and spool.

9
•Assembly of the grinder (Saw Model SFP8): The assembly procedure is the reverse of the
disassembly. When tightening the nozzle nut, do not tighten it, only rotate until the end of the thread,
but without tightening. To reassemble the nozzle, make sure that all the internal parts are assembled
(disc, cross knife, spool pin and spool), and then attach it perfectly to the holder and attach it with the
knob. With the nozzle attached, mount the tray.
If you feel that the nozzle is not firm, it may not have been properly attached. In this case, repeat the
operation and if it does not succeed, contact your service representative.
ATTENTION!
Never start the machine with the nozzle out of position and without the nozzle guard, as this
may cause accidents.
•Operation: The machine can only be operated after checking that the voltage is in accordance with
the mains voltage, if the machine is positioned in an ideal location (as per guidelines in item 3.1), if
the wheels are rotating counterclockwise ( instructions in item 3.2 Safety Measures) and that the door
is closed and locked with the knobs.
ATTENTION!
For the SFP8 Band Saw model (with grinder), the band saw and the grinder operate
simultaneously, but for your safety and to avoid damaging the machine, do not use both
functions at the same time.
Before starting the cutting operation, loosen the grinder nut counterclockwise. And to use
the grinder, remove the blade according to the instructions of item 5.2 (Maintenance and
Behavior in case of breakdowns).
The manufacturer shall not be liable for any direct or indirect damages caused by non-
compliance with these standards and other instructions presented in this manual.

10

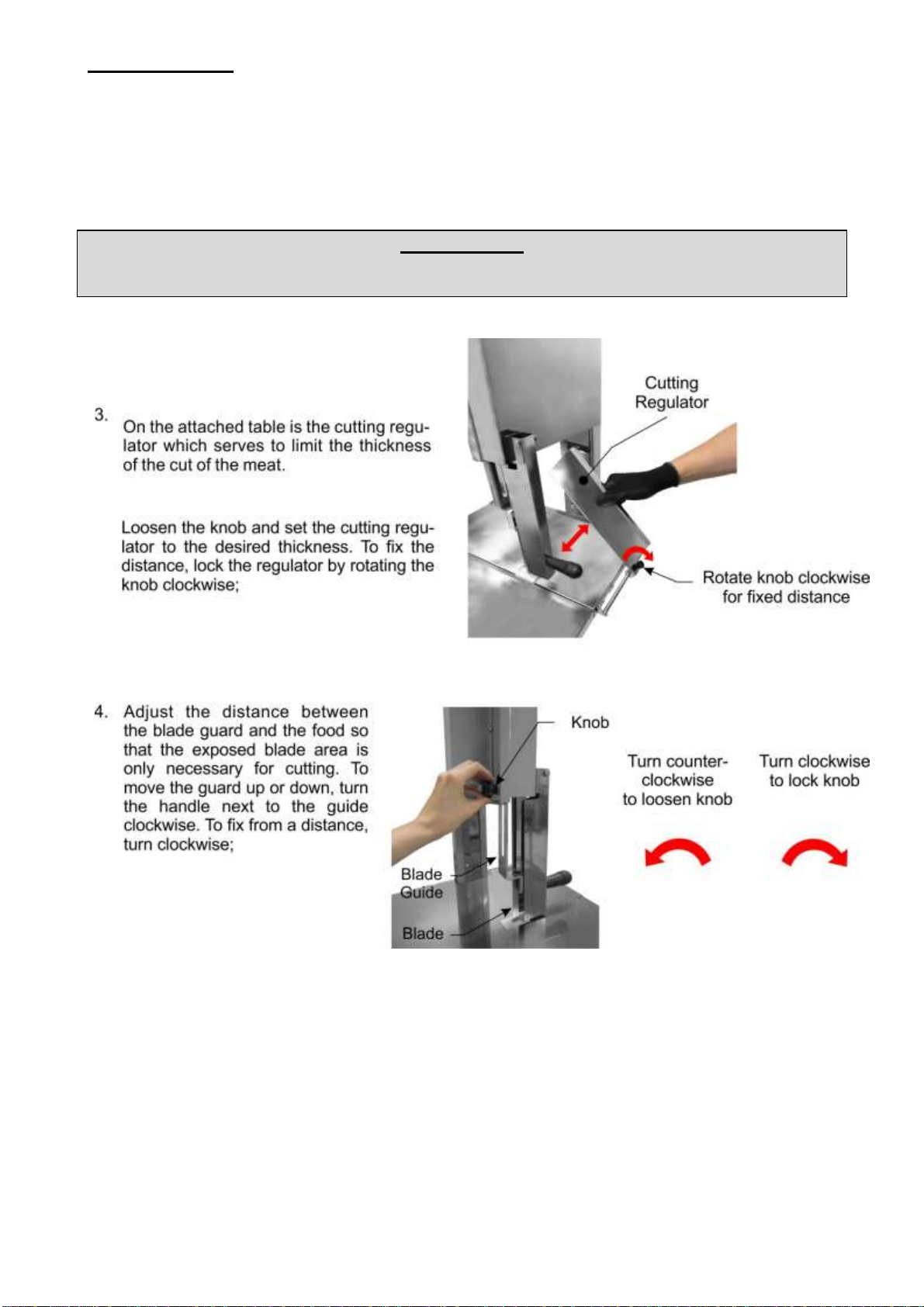

•Cutting Operation:
For the SFP8 saw model, before starting the cutting operation, loosen the grinder nut
counterclockwise.
1. Connect the power cord to the mains;
2. Place the food to be processed on the attached table;
IMPORTANT
Never place a cutting food larger than the mobile table.
1. Turn the power switch to "1" (on). At that moment the blade begins to rotate;
2. Push the meat with the pendulum pusher steadily toward the blade and start cutting;
3. With your right hand, remove the slice behind the blade, avoiding contact with the cutting area.
Stack the slices on the right side of the attached table;
4. Repeat the procedure until the end of the process;

11
ATTENTION!
When repeating the cutting operation, be careful when pulling the food forward of the
attached table so that it does not touch the back (smooth) of the blade. In this way there is
no risk of the food moving or even releasing the blade from the wheels, causing accidents.
5. After completing the cutting procedure, turn off the machine by pressing the power button in
the "0" (off) position.
ATTENTION!
Always use the pendulum pusher of the machine to direct the food against the blade. Under
no circumstances push with any other instrument or with your own hands the food against
the blade.
IMPORTANT
Check the blade tension. When the tension is insufficient, cutting deviations and premature
wear of the blade occurs. If it is necessary to adjust it, follow the instructions in item
5.2 (Maintenance and Behavior in Case of breakdowns) of this manual.
ATTENTION!
Never place your hands, fingers or objects (such as spoons and knives) on the cutting blade
while the machine is on as this may cause serious accidents.
•Operation of the grinder (model SFP8):
1. Remove the blade according to the instructions in item 5.2 (Maintenance and Behavior in
case of breakdowns);
2. Connect the power cord to the mains;
3. Position a pan under the nozzle to collect ground meat;
4. Place cut food into strips on tray;
5. Turn the power switch to "1" (on). At that moment the spool of the grinder begins to rotate;
6. Push the meat with the socket into the nozzle.
ATTENTION!
Use only the socket to push the meat into the nozzle. Never use hands or other objects other
than the socket.

12
ATTENTION!
If you notice that the machine can not slice the food or that it is not slicing, do not cut foods
too thick, so as not to impair the speed and performance of the motor and the life of the
machine.
Push the food against the blade in a straight line. Do not divert the cut during the process as
this can cause accidents and blade damage.
Failure to observe this guideline will be considered as an unsafe act and abusive use of
equipment.
Any irregularities please contact the authorized service center nearest you.
5. Cleaning and Maintenance
5.1Cleaning Procedures and Products Used
Your machine was built with first-line materials, so use it properly and you will get great
satisfaction. Keep your machine always clean and well-cared for, which will make it much more
durable.
A daily cleaning of the machine must be carried out for good operation and durability.
ATTENTION!
Before performing maintenance or cleaning, make sure that the master switch (switch) is off
and that the plug is disconnected from the mains.
ATTENTION!
Do not use water jet to clean the machine.
IMPORTANT
This machine is not intended to be immersed in water for cleaning.
The machine should be cleaned as many times as possible to prevent food residue from drying
out and sticking to parts. For cleaning, dilute soap or detergent in warm water

13
neutral and apply with a soft cloth. With a cloth moistened with water, rinse and then wipe the parts
with a dry cloth.
In the model of saw SFP8, it has the grinder that can be removed and disassembled for the
cleaning. Follow the disassembly / assembly guidelines in item 4.3 and clean with mild soap or
detergent and running water.
Never use abrasive products or sponges and substances containing acids or chlorine to clean
the metal parts, as they may scratch or damage the surface of the parts causing corrosion. Do not
spill water on the engine and electrical parts for cleaning, otherwise, turning it on may cause electric
shock or even burn the machine.
ATTENTION!
It is extremely important that products used in cleaning ensure maximum cleanliness and
are non-toxic.
Dry the blade thoroughly. Moisture compromises the life of the blade and yield of the
cutting process.
ATTENTION!
Take care when cleaning near the blade, it is extremely sharp. Knob with care as this may
cause accidents. The same attention is paid to any other cutting component of the machine.
5.2 Maintenance and Behavior in Case of Breakdowns
The operator must be instructed to perform routine inspections, making minor adjustments,
the cleaning and observe indications of breakdowns that may occur. Examples include: checking for
strange noise; loss of machine power; the non-execution by the machine of the service to which it is
proposed; among others. Actions like these are indispensable to ensure a longer machine life.
ATTENTION!
When servicing (even minor adjustments), always disconnect the machine from the mains.
It is recommended to carry out preventive maintenance every 6 months, checking and
adjusting clearances, cleaning internal parts, wear and tightening (tensioning) of the motor belt
(following guidelines),etc... When detecting broken or weakened parts, replace with original parts.
By performing preventive maintenance, you eliminate the inconvenience of getting the
equipment stopped when you need it most, reducing the cost of maintenance and reducing the risk of
accidents.

14
ATTENTION!
Before adjusting or changing the blade, make sure the machine is disconnected from the
mains, if the operator is using the appropriate PPE (personal protective equipment) and
appropriate tools for disassembly and assembly of the parts cited below.
•Procedure for Adjusting and Changing the Blade (Band Saw):
Blade Adjustment:
1. Disconnect the machine from the mains;
2. Remove the back cover of the machine by unscrewing the screws;
3. To move the blade tensioner, loosen the nut. If your need is to stretch the blade, facing the
blade tensioner, turn the adjusting knob clockwise. And to loosen the blade, turn the knob
counterclockwise;
4. After proper tensioning of the blade, tighten the nut again, securing the blade tensioner;
5. Reassemble the tensioner guard with the bolts.

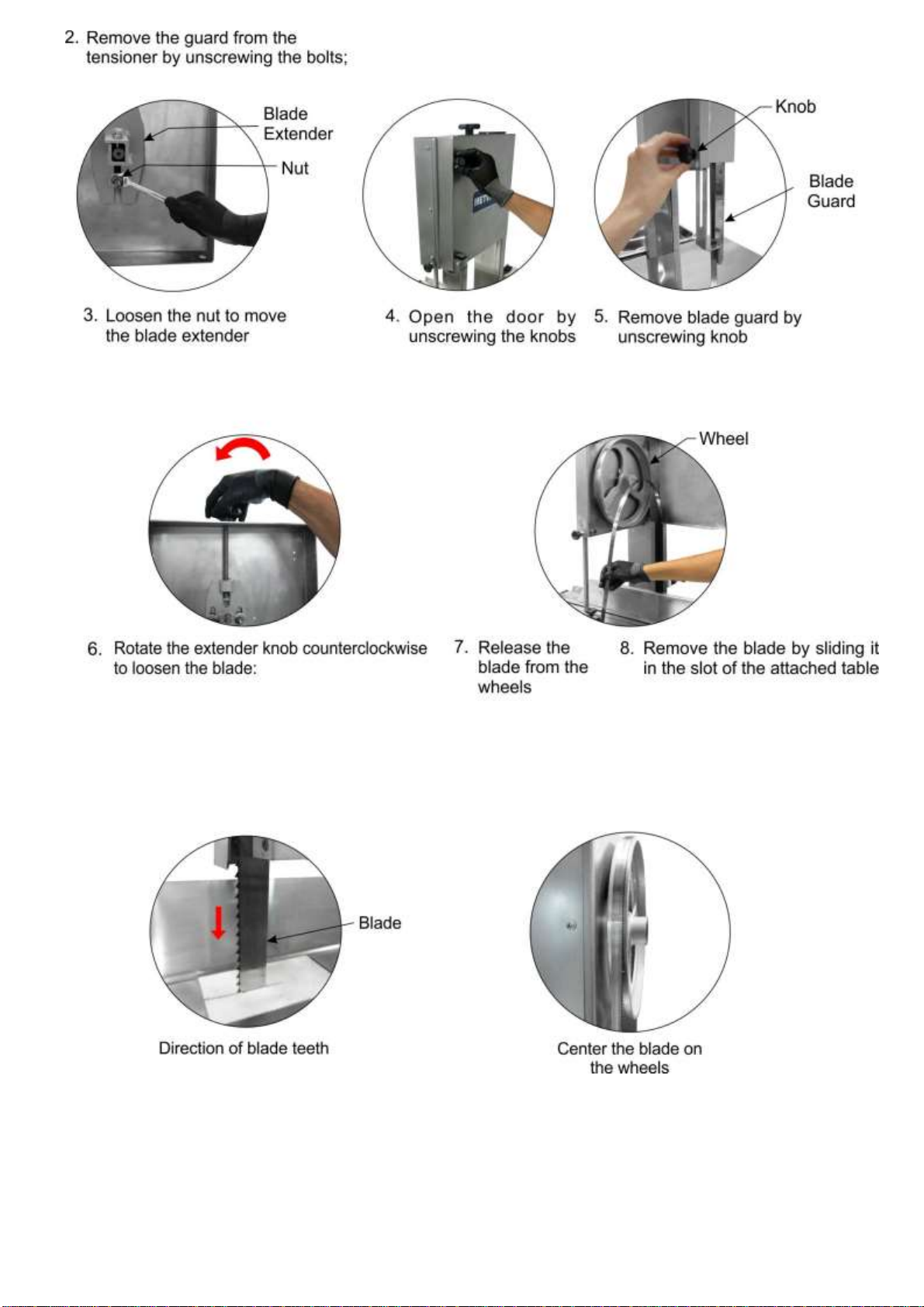

Blade Exchange:
1. Disconnect the machine from the mains;

15
9. Before attaching the new blade to the wheels, note the direction of the blade teeth, where they
should be facing forward and pointing downwards;
10. The blade should be positioned centrally on the steering wheels;
11. After proper tensioning of the blade, as instructed a little (Blade Adjustment Procedure),
retighten the blade tensioner nut;
12. Secure the blade guard with the knob.
13. With the screws, mount the extender guard;
14. Close the door by locking it with the knobs.

16
ATTENTION!
Check the ideal tension of the blade before starting the cutting process, because when the
tension is insufficient, cutting deviations occur and premature wear of the blade. Excessive
tension, in turn, can cause the blade to break.
•Adjustment / Tensioning Strap Procedure:
1. Disconnect the machine from the mains;
2. Remove the back cover of the machine by unscrewing the screws;
3. To move the motor, loosen the 4 screws located on the motor base;
4. Move the motor by adjusting the belt tension. To secure the motor to the optimum
position, tighten the screws securely;
5. Finally, secure the back cover with the screws.
After completing all adjustments, make sure that all the disassembled parts are properly
assembled and secured, ensuring the safety of the operator while using the machine.
ATTENTION!
Preventive maintenance requires a trained professional or authorized technical assistance.
Make sure that the machine is disconnected from the mains.
Whenever any item regarding the safety of the equipment (such as cleaning or maintenance) is
removed, reset it and confirm that it is performing its function correctly.
When you experience any malfunction or non-compliance, refer your equipment to the
nearest service center. See technical assistance on our website: www.metvisa.com.br

17
6. ANNEXES
Electrical schematic

20
Blown up Design

21
Blown up Design

22
Replacement parts
Position
Code
Description
Qty.
Model
1
MON040
Monobloc
01
SFPP
MON042
SFP8
MON002
SFPI
2
PEP004
Rubber Foot
04
*
3
PRR015
Mac. Screw Round
04
SFP8 / SFPP
PRR022
SFPI
4
POS006
Hexagonal Nut
04
SFP8 / SFPP
POS020
SFPI
5
PRA004
Auto Locking Screw
02
SFPI
04
SFP8 / SFPP
6
CJT836
Saw Bearing
01
SFPP
CJT837
SFP8
CJT884
SFPI
7
ARL003
Flat Washer
11
SFP8 / SFPP
ARL011
SFPI
8
PRS006
Hexagonal Screw
04
SFP8 / SFPP
PRS021
SFPI
9
VOL002
Lower Wheel
01
*
10
PRN001
Allen Screw S/C
04
*
11
POL031
Movement Pulley
01
*
12
MTE206
Electric Motor 1/2 cv - 110 V 60 Hz
01
SFP8 / SFPPM /
SFPIM
MTE207
Electric Motor 1/2 cv 220 V 60 Hz
MTE003
Electric Motor 1/2 cv –220 V 50 Hz
MTE204
Electric Motor 1/3 cv - 110 V 60 Hz
01
SFPP / SFPI
MTE205
Electric Motor 1/3 cv 220 V 60 Hz
MTE030
Electric Motor 1/3 cv –220 V 50 Hz
13
PRS007
Hexagonal Screw
04
SFP8 / SFPP
PRS030
SFPI
14
POS004
Hexagonal Nut
07
SFP8 / SFPP
POS013
SFPI
15
PMT013
Motor Pulley
01
*
16
COR002
Belt
01
*
17
CNT013
Mini-Contactor 110 V 50/60 Hz
01
110 V Saws
CNT019
Mini-Contactor 220 V 50/60 Hz
220 V Saws
18
PRA008
Locking Screw. Hex. Rod
45
SFP8
33
SFPP
PRA014
27
SFPI
19
CJT881
Sensor Assembly
01
SFP8 / SFPP
CJT886
01
SFPI
19.1
SUD022
Pointed Sensor Holder
01
SFP8 / SFPP
SBT418
01
SFPI
19.2
CHE051
Safety Sensor
01
*
19.3
POS138
Hexagonal Nut
02
*
19.4
PCC005
Cylindrical Head Screw
02
*
20
ARL005
Flat Washer
04
SFP8 / SFPP
ARL008
SFPI
21
PRA010
Hexagonal Screw
01
SFP8 / SFPP
PRS031
SFPI
22
RBT002
Rivet
02
*
23
TRS051
Rail
01
*
24
MEM020
Attached Table
01
SFP8 / SFPP
MEM037
SFPI
25
ESC024
Welded Blade Extender
01
SFP8 / SFPP
ESC029
SFPI
26
ARL002
Flat Washer
02
SFP8 / SFPP
ARL012
SFPI
* Item applicable to all models of Small Band Saw.
