OWNER’S MANUAL
B-220-HDSPLTR-1X8
HDMI 1X8 SPLITTER
IMPORTANT SAFETY INSTRUCTIONS WELCOME TO BINARY™
CONTENTS
FEATURES
1. Read and follow all instructions and warnings in this manual. Keep for future
reference.
2. Do not use this apparatus near water.
3. Clean only with a dry cloth.
4. Do not block any ventilation openings. Install according to manufacturer’s
instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus (including ampliers) that produce heat.
6. Do not override the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades - one wider than the other. If the provided
plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet.
7. Protect the power cord from being walked on or pinched particularly at plug,
convenience receptacles, and the point where it exits from the apparatus.
8. Only use attachments/accessories specied by the manufacturer.
9. Unplug this apparatus during lightning storms or when unused for long periods
of time.
10. Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as when the power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
11. Do not expose this equipment to dripping or splashing and ensure that no
objects lled with liquids, such as vases, are placed on the equipment.
12. To completely disconnect this equipment from the AC mains, disconnect the
power supply cord plug from the AC receptacle.
• Distributes a single HDMI signal to 8 identical
and synchronized HDMI outputs
• Congurable EDID Settings
• Supports 7.1 channel surround sound, DTS-HD
Master Audio and TrueHD high bit rate audio
• 6.75 Gpbs Bandwidth
• Full 1080p HD with Deep Color
• HDCP compliant
This product is designed to provide years of exceptional reliability. Binary™ is one
of the most highly-regarded Media Distribution brands available today and we
stand committed to providing our customers with the highest degree of quality and
service in the industry.
(1) HDMI Splitter, 1x8
(1) 5VDC power adapter
(2) Mounting Ears
(1) Owner’s Manual
Pg. 2 Pg. 3

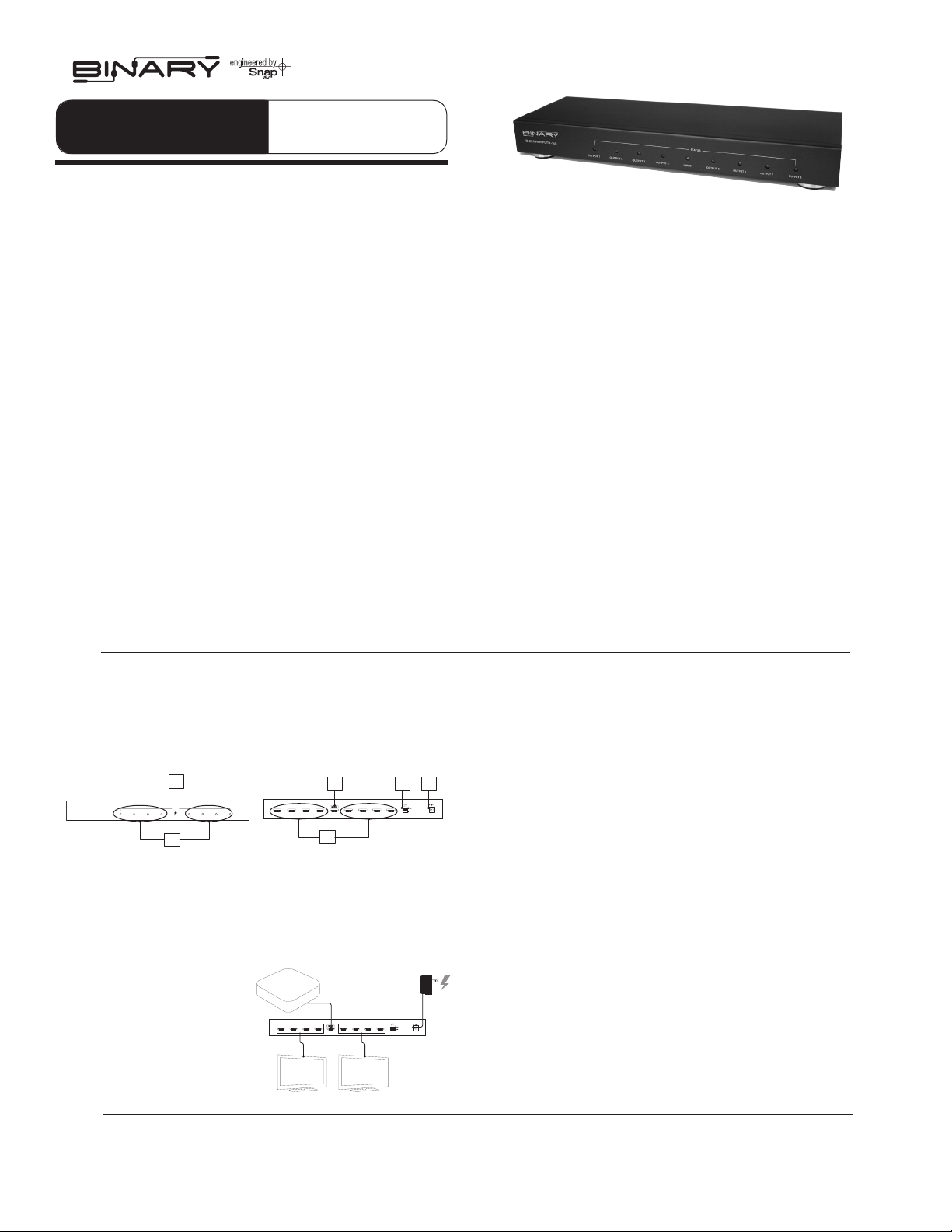

EDID CONFIGURATIONCONNECTIONS
INSTALLATION
Auto - Reads the EDID from each of the connected displays. This setting uses the lowest
common denominator for video resolution and audio format to create and apply a
new EDID to all inputs.
First Output - Reads the EDID from the display connected to output 1.
Embedded 1 -6 - 6 representative EDIDs that may be assigned to Inputs. See Dipswitch
Settings (Page 6) for details.
1. Connect an HDMI cable from the source to the B-220-HDSPLTR input.
2. Connect an HDMI cable from each B-220-HDSPLTR output to the displays.
3. Connect the power to the B-220-HDSPLTR.
4. Turn on the source and the devices.
1. Input LED
2. Output LEDs
1. HDMI Input
2. HDMI Outputs
3. EDID Dipswitches
4. Power Supply (+5V DC)
OUTPUT 1 OUTPUT2 OUTPUT3 OUTPUT4 OUTPUT5 OUTPUT6 OUTPUT 7 OUTPUT 8
5VDC 2A
1 2 3
On
Flatpanel TV
B-220-HDSPLTR-1x8
HDMI Source
Flatpanel TV
AC Power
OUTPUT 8OUTPUT 7OUTPUT 6OUTPUT 5OUTPUT 4OUTPUT 3OUTPUT 2OUTPUT 1 INPUT
POWER
STATUS
1
2
OUTPUT 1 OUTPUT 2 OUTPUT3 OUTPUT 4 OUTPUT5 OUTPUT 6 OUTPUT7 OUTPUT 8
5VDC 2A
1 2 3
On
13 4
2
© 2012 Binary™
Pg. 4 Pg. 5
FRONT PANEL BACK PANEL

Pg. 6 Pg. 7
SPECIFICATIONS
Video Support VESA: 640x480, 800x600, 1024x768, 1280x1024,
1600x1200, 1920x1200
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Video Bandwidth 6.75 Gbps
Video Transmission Full HD with 36 bit Deep Color
Audio Support Surround Sound (up to 7.1ch) DTS-HD Master
Audio and TrueHD high bitrate audio
Connector HDMI Type A (19 pin female)
ESD Protection Human Body (air gap): 15kV
Human Body (contact): 8kV
Power Supply 5V DC, 3A
Power Consumption 3.5 Watts (max)
Dimensions 12.48”W x 1.72” H x 4.1”D
Weight 4.52lbs (2.06kg)
Certications & Compliance Power Supply: CE, FCC, UL, Rohs
Product: CE, FCC, Rohs
DIPSWITCH SETTINGS
EDID Resolution Color Depth Audio Switch Settings
Auto
First Output
1 1080i@60Hz 24-Bit 7.1ch
2 1080i@60Hz 24-Bit 2ch
3 1080p@60Hz 24-Bit 7.1ch
4 1080p@60Hz 24-Bit 2ch
5 1080p@60Hz 24-Bit 3D 7.1ch
6 1080p@60Hz 24-Bit 3D 2ch
1 2 3
Down Down Down
1 2 3
Up Up Down
1 2 3
Up Down Down
1 2 3
Down Up Up
1 2 3
Down Down Up
1 2 3
Down Up Down
1 2 3
Up Down Up
1 2 3
Up Up Up
WARRANTY
CONTACTING TECHNICAL SUPPORT
2-Year Limited Warranty
This Binary™ Product has a 2 Year Limited Warranty. This warranty includes parts and
labor repairs on all components found to be defective in material or workmanship
under normal conditions of use. This warranty shall not apply to products which have
been abused, modied or disassembled. Products to be repaired under this warranty
must be returned to SnapAV or a designated service center with prior notication
and an assignment return authorization number (RA).
Phone: [phone]
Email: [e-mail]
Pg. 8
120731-0915
