Biostar B350GT3 User manual

BIOS Update ������������������������������������������������������������������������������������� 2
UEFI BIOS Setup �������������������������������������������������������������������������������� 6
1� Main Menu ����������������������������������������������������������������������������������� 7
2� Advanced Menu���������������������������������������������������������������������������� 8
3� Chipset Menu�������������������������������������������������������������������������������31
4� Boot Menu�����������������������������������������������������������������������������������34
5� Security Menu������������������������������������������������������������������������������36
6� O�N�E Menu����������������������������������������������������������������������������������38
7� Exit Menu�������������������������������������������������������������������������������������41
BIOS User Guide
B350GT3 & X370GT3

2 | BIOS Update
BIOS Update
The BIOS can be updated using either of the following ulies:
• BIOSTAR BIOS-FLASHER: Using this ulity, the BIOS can be updated from a le on a hard disk,
a USB drive (a ash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Ulity: It enables automated updang while in the Windows
environment. Using this ulity, the BIOS can be updated from a le on a hard disk, a USB
drive (a ash drive or a USB hard drive), or a CD-ROM, or from the le locaon on the Web.
BIOSTAR BIOS-FLASHER
Note
» This ulity only allows storage device with FAT32/16 format and single paron.
» Shung down or reseng the system while updang the BIOS will lead to system boot failure.
Updang BIOS with BIOSTAR BIOS-FLASHER
1. Go to the website to download the latest BIOS le for the motherboard.
2. Then, copy and save the BIOS le into a USB ash (pen) drive.(Only supported FAT/FAT32
format)
3. Insert the USB pen drive that contains the BIOS le to the USB port.
4. Power on or reset the computer and then press <F12> during the POST process.
5. Aer entering the POST screen, the BIOS-
FLASHER ulity pops out. Choose <fs0> to search
for the BIOS le.
6. Select the proper BIOS le, and a message asking
if you are sure to ash the BIOS le. Click “Yes” to
start updang BIOS.

BIOS Update | 3
B350GT3 & X370GT3
7. A dialog pops out aer BIOS ash is completed,
asking you to restart the system. Press the <Y> key
to restart system.
8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS
setup.
Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>
funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the
computer. Then the BIOS Update is completed.
BIOS Update Ulity (through the Internet)
1. Installing BIOS Update Ulity from the DVD Driver.
2. Please make sure the system is connected to the internet before using this funcon.
3. Launch BIOS Update Ulity and click the
“Online Update” buon on the main screen.
4. An open dialog will show up to request your
agreement to start the BIOS update. Click “Yes”
to start the online update procedure.
5. If there is a new BIOS version, the ulity will
ask you to download it. Click “Yes” to proceed.
6. Aer the download is completed, you will be
asked to program (update) the BIOS or not. Click
“Yes” to proceed.

4 | BIOS Update
7. Aer the updang process is nished, you
will be asked you to reboot the system. Click
“OK” to reboot.
8. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS
setup.
Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>
funcon to load Opmized Defaults, and select <Save Changes> and <Reset> to restart the
computer. Then, the BIOS Update is completed.
BIOS Update Ulity (through a BIOS le)
1. Installing BIOS Update Ulity from the DVD Driver.
2. Download the proper BIOS from hp://www.biostar.com.tw/
3. Launch BIOS Update Ulity and click the “Update
BIOS” buon on the main screen.
4. A warning message will show up to request your
agreement to start the BIOS update. Click “OK” to
start the update procedure.
5. Choose the locaon for your BIOS le in the
system. Please select the proper BIOS le, and
then click on “Open”. It will take several minutes,
please be paent.

UEFI BIOS Setup | 5
B350GT3 & X370GT3
6. Aer the BIOS Update process is nished, click
on “OK” to reboot the system.
7. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS
setup.
Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>
funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the
computer. Then, the BIOS Update is completed.
Backup BIOS
Click the Backup BIOS buon on the main screen
for the backup of BIOS, and select a proper
locaon for your backup BIOS le in the system,
and click “Save”.

6 | UEFI BIOS Setup
UEFI BIOS Setup
Introduction
The purpose of this manual is to describe the sengs in the AMI UEFI BIOS Setup program on this
motherboard. The Setup program allows users to modify the basic system conguraon and save
these sengs to NVRAM.
UEFI BIOS determines what a computer can do without accessing programs from a disk. This
system controls most of the input and output devices such as keyboard, mouse, serial ports and
disk drives. BIOS acvates at the rst stage of the boong process, loading and execung the
operang system. Some addional features, such as virus and password protecon or chipset
ne-tuning opons are also included in UEFI BIOS.
The rest of this manual will to guide you through the opons and sengs in UEFI BIOS Setup.
Plug and Play Support
This AMI UEFI BIOS supports the Plug and Play Version 1.0A specicaon.
EPA Green PC Support
This AMI UEFI BIOS supports Version 1.03 of the EPA Green PC specicaon.
ACPI Support
AMI ACPI UEFI BIOS support Version 1.0/2.0 of Advanced Conguraon and Power interface
specicaon (ACPI). It provides ASL code for power management and device conguraon
capabilies as dened in the ACPI specicaon, developed by Microso, Intel and Toshiba.
PCI Bus Support
This AMI UEFI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component Interconnect)
local bus specicaon.
Using Setup
When starng up the computer, press <Del> during the Power-On Self-Test (POST) to enter the
UEFI BIOS setup ulity.
In the UEFI BIOS setup ulity, you will see General Help descripon at the top right corner, and
this is providing a brief descripon of the selected item. Navigaon Keys for that parcular menu
are at the boom right corner, and you can use these keys to select item and change the sengs.
Note
»The default UEFI BIOS sengs apply for most condions to ensure opmum performance of the
motherboard. If the system becomes unstable aer changing any sengs, please load the default
sengs to ensure system’s compability and stability. Use Load Setup Default under the Exit Menu.
»For beer system performance, the UEFI BIOS rmware is being connuously updated. The UEFI BIOS
informaon described in this manual is for your reference only. The actual UEFI BIOS informaon and
sengs on board may be slightly dierent from this manual.
»The content of this manual is subject to be changed without noce. We will not be responsible for any
mistakes found in this user’s manual and any system damage that may be caused by wrong-sengs.

1. Main Menu | 7
B350GT3 & X370GT3
1� Main Menu
Once you enter AMI UEFI BIOS Setup Ulity, the Main Menu will appear on the screen providing
an overview of the basic system informaon.
BIOS Information
It shows system informaon including UEFI BIOS version, Project Code, Model Name, Build Date
and etc.
Total Memory
Shows system memory size, VGA shard memory will be excluded.
System Language
Choose the system default language.
System Date
Set the system date. Note that the ‘Day’ automacally changes when you set the date.
System Time
Set the system internal clock.

8 | 2. Advanced Menu
2� Advanced Menu
The Advanced Menu allows you to congure the sengs of CPU, Super I/O, Power Management,
and other system devices.
Note
»Beware of that seng inappropriate values in items of this menu may cause system to malfuncon.
AMD CBS

2. Advanced Menu | 9
B350GT3 & X370GT3
Zen Common Opons
RedirectForReturnDis
This item from a workaround for GCC/C000005 issue for XV Core on CZ A0, seng
MSRC001_1029 Decode Conguraon (DE_CFG) bit 14 [DecfgNoRdrctForReturns] to 1.
Opons: Auto (Default) / 1 / 0
L2 TLB Associavity
This item 0 - L2 TLB ways [11:8] are fully associave. 1 - L2 TLB ways [11:8] are 4K-only.
Opons: Auto (Default) / 1 / 0
Plaorm First Error Handling
This item enabled or disabled PFEH, cloak individual banks, and mask deferred error interrupts
from each bank.
Opons: Auto (Default) / Enabled / Disabled
Core Performance Boost
This item allows you to set the Core Performance Boost funcon.
Opons: Auto (Default) / Disabled
Downcore control
This item allows you to set the number of Cores to be used.
Opons: Auto (Default) / TWO (1 + 1) / TWO (2 + 0) / THREE (3 + 0) / FOUR (2 + 2) / FOUR (4 + 0)
/ SIX (3 + 3)
Enable IBS
This item allows you to set the Enable IBS.
Opons: Auto (Default) / Enabled / Disabled
Global C-state Control
This item allows you to controls IO based C-state generaon and DF C-states.
Opons: Auto (Default) / Enabled / Disabled
Instrucon Branch Predicon
This item allows you to control the Instrucon Branch Predicon feature.
Opons: Auto (Default) / Enabled / Disabled

10 | 2. Advanced Menu
Custom Core Pstates
Accept
Custom Pstate0/1/2/3/4/5/6/7
This item allows you to set the Custom Pstate 0~7.
Opons: Auto (Default) / Custom / Disabled
Pstate0~7 FID
Species the core frequency mulplier. COF = 200MHz.
Pstate0~7 DID
Species the core frequency divisor (DID [0] should zero if DID [5:0] > 1Ah.
Pstate0~7 VID
Species the core voltage.
Note
»Warning - Damage Caused by use of your AMD processor outside of specicaon or in excess of factory
sengs are not covered under your AMD product warranty and may not be covered by your system
manufacturer’s warranty.

2. Advanced Menu | 11
B350GT3 & X370GT3
DF Common Opons
DRAM scrub me
This item provide a value that is the number of hours to scrub memory.
Opons: Auto (Default) / Disabled / 1 hour / 4 hour / 8 hour / 16 hour / 24 hour / 48 hour
Redirect scrubber control
This item control DF::RedirScrubCtrl [EnRedirScrub].
Opons: Auto (Default) / Disabled / Enabled
Disable DF module queues on error
This item control DF::PIECong [DisSyncFloodProp].
Opons: Auto (Default) / Sync ood disabled / Sync ood Enabled
Freeze DF module queues on error
This item control DF::PIECong [DisSyncFloodOnFatalError], disabling this opon sets
DF:PIECong [DisImmSyncFloodOnFatalError].
Opons: Auto (Default) / Disabled / Enabled
GMI encrypon control
This item control GMI link encrypon.
Opons: Auto (Default) / Disabled / Enabled
XGMI encrypon control
This item control XGMI link encrypon.
Opons: Auto (Default) / Disabled / Enabled
CC6 memory region encrypon
This item control whether or not the CC6 save/restore memory is encrypted.
Opons: Auto (Default) / Disabled / Enabled
Locaon of private memory regions
This item control whether or not the private memory regions (PSP, SMU and CC6) are at the top
of DRAM or distributed.
Opons: Auto (Default) / Distributed / Consolidated
»Note that distributed requires memory on all dies.
»Note that it will always be at the top of DRAM if some dies don’t have memory regardless of this
opon’s seng.

12 | 2. Advanced Menu
System probe lter
This item controls whether or not the probe lter is enabled. Has no eect on parts where the
probe lter is fuse disabled.
Opons: Auto (Default) / Disabled / Enabled
Memory interleaving
This item controls fabric level memory interleaving (AUTO, none, channel, die, socket).
Opons: Auto (Default) / None / Channel / Die / Socket
»Note that channel, die, and socket has requirements on memory populaons and it will be ignored if
the memory doesn’t support the selected opon.
Memory interleaving size
This item controls the memory interleaving size. The valid uzlues are AUTO, 256 bytes, 512
bytes, 1 Kbytes or 2Kbytes. This determines the starng address of the interleave (bit 8, 9, 10 or
11).
Opons: Auto (Default) / 256 Bytes / 512 Bytes / 1 KB / 2 KB
Cannel interleaving hash
This item controls whether or not the address bits are hashed during channel interleave mode.
This eld should not be used unless the interleaving is set to channel and the interleaving size is
256 or 512 bytes.
Opons: Auto (Default) / Disabled / Enabled
UMC Common Opons

2. Advanced Menu | 13
B350GT3 & X370GT3
DDR4 Common Opons
DRAM Timing Conguraon

14 | 2. Advanced Menu
Accept
Overclock
This item Memory Overclock Sengs.
Opons: Auto (Default) / Enabled
Memory Clock Speed
This item allows you to set the memory clock frequency.
Opons: Auto (Default) / 667MHz / 800MHz / 933MHz / 1067MHz / 1200MHz / 1333MHz /
1467MHz / 1600MHz / 333MHz / 400MHz / 533MHz / 1050MHz / 1066MHz
Tcl
This item sets the tCL me.
Opons: Auto (Default) / 8 Clk / 9 Clk / 0Ah Clk / 0Bh Clk / 0Ch Clk / 0Dh Clk / 0Eh Clk /
0Fh Clk / 10h Clk / 11h Clk / 12h Clk / 13h Clk / 14h Clk / 15h Clk / 16h Clk / 17h Clk / 18h Clk /
19h Clk / 1Ah Clk / 1Bh Clk / 1Ch Clk / 1Dh Clk / 1Eh Clk / 1Fh Clk / 20h Clk / 21h Clk
Trcdrd
This item sets the RAS# Acve to CAS# read / write delay.
Opons: Auto (Default) / 8 Clk / 9 Clk / 0Ah Clk / 0Bh Clk / 0Ch Clk / 0Dh Clk / 0Eh Clk /
0Fh Clk / 10h Clk / 14h Clk / 15h Clk / 16h Clk / 17h Clk / 18h Clk / 19h Clk / 1Ah Clk / 11h Clk /
12h Clk / 13h Clk
Trcdwr
This item sets the RAS# Acve to CAS# read / write delay.
Opons: Auto (Default) / 8 Clk / 9 Clk / 0xA Clk / 0xB Clk / 0xC Clk / 0xD Clk / 0xE Clk / 0xF Clk /
10h Clk / 11h Clk / 12h Clk / 13h Clk / 14h Clk / 15h Clk / 16h Clk / 17h Clk / 18h Clk / 19h Clk /
1Ah Clk / 1Bh Clk
Trp
This item specify the row precharge me.
Opons: Auto (Default) / 8 Clk / 9 Clk / 0Ah Clk / 0Bh Clk / 0Ch Clk / 0Dh Clk / 0Eh Clk / 0Fh Clk
/ 10h Clk / 11h Clk / 12h Clk / 13h Clk / 14h Clk / 15h Clk / 16h Clk / 17h Clk / 18h Clk / 19h Clk /
1Ah Clk / 1Bh Clk

2. Advanced Menu | 15
B350GT3 & X370GT3
Tras
This item specify the min RAS# acve me.
Opons: Auto (Default) / 15h Clk / 16h Clk / 17h Clk / 18h Clk / 19h Clk / 1Ah Clk / 1Bh Clk /
1Ch Clk / 1Dh Clk / 1Eh Clk / 1Fh Clk / 20h Clk / 21h Clk / 22h Clk / 23h Clk / 24h Clk / 25h Clk / 26h
Clk / 27h Clk / 28h Clk / 29h Clk / 2Ah Clk / 2Bh Clk / 2Ch Clk / 2Dh Clk / 2Eh Clk / 2Fh Clk / 30h Clk
/ 31h Clk / 32h Clk / 33h Clk / 34h Clk / 35h Clk / 36h Clk / 37h Clk / 38h Clk / 39h Clk / 3Ah Clk
Note
»Warning - Damage Caused by use of your AMD processor outside of specicaon or in excess of factory
sengs are not covered under your AMD product warranty and may not be covered by your system
manufacturer’s warranty.
Common RAS
Data Poisoning
This item enabled or disabled data poisoning: UMC_CH::EccCtrl [UcFatalEn] ; UMC_
CH::EccCtrl[WrEccEn] Should be enabled / disabled together.
Opons: Auto (Default) / Disabled / Enabled

16 | 2. Advanced Menu
Security
TSME
This item transparent SME: AddrTweakEn = 1 ; ForceEncrEn = 1 ; DataEncrEn = 0.
Opons: Auto (Default) / Disabled / Enabled
DRAM Memory Mapping
Chipselect Interleaving
This item Interleave memory blocks across the DRAM chip selects for node 0.
Opons: Auto (Default) / Disabled
BankGroupSwap
This item allows you to set BankGroupSwap funcon.
Opons: Auto (Default) / Enabled / Disabled

2. Advanced Menu | 17
B350GT3 & X370GT3
Address Hash Bank
This item enabled or disabled bank address hashing.
Opons: Auto (Default) / Enabled / Disabled
Address Hash CS
This item enabled or disabled CS address hashing.
Opons: Auto (Default) / Enabled / Disabled
FCH Common Opons
USB Conguraon Opons
XHCI controller enable
This item enabled or disabled USB3 controller.
Opons: Auto (Default) / Enabled / Disabled

18 | 2. Advanced Menu
Trusted Computing
Device Select
This item TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM
2.0 devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2
devices if not found, TPM 1.2 devices will be enumerated.
Opons: Auto (Default) / TPM 1.2 / TPM 2.0
ACPI Settings/WakeUp Event control
ErP Control
This item enables or disables ErP Control funcon. When ErP Enabled, system meets ErP
requirment. All wake up events do not work except Power Buon aer power down system(S5).
Opons: Disabled (Default) / Enabled

2. Advanced Menu | 19
B350GT3 & X370GT3
ACPI Sleep State
This item select ACPI sleep state the system will enter when the SUSPEND buon is pressed.
Opons: S3 (Suspend to RAM) (Default) / Suspend Disabled
Restore AC Power Loss
The item specify what state to go to when power is re-applied aer a power failure.
Opons: Power O (Default) / Power On / Last State
PME Wake up from S5
The item enables the system to wake from S5 using PME event.
Opons: Disabled (Default) / Enabled
Wake system with Fixed Time
This item enables or disables the system to wake on by alarm event. When this item is enabled,
the system will wake on the hr::min::sec specied.
Opons: Disabled (Default) / Enabled
Wake up date
You can choose which date the system will boot up.
Wake up hour / Wake up minute / Wake up second
You can choose the system boot up me, input hour, minute and second to specify.
PS2 Keyboard PowerOn
This item allows you to control the keyboard power on funcon.
Opons: Disabled (Default) / Any Key / Stroke Key / Specic Key
Stroke Keys
This item will show only when Keyboard PowerOn is set “Stroke Key.”
Opons: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 / Ctrl +F4 / Ctrl+F5 / Ctrl+F6
Specic Key
This item will show only when Keyboard PowerOn is set “Specic Key.” Press Enter to set Specic
key.

20 | 2. Advanced Menu

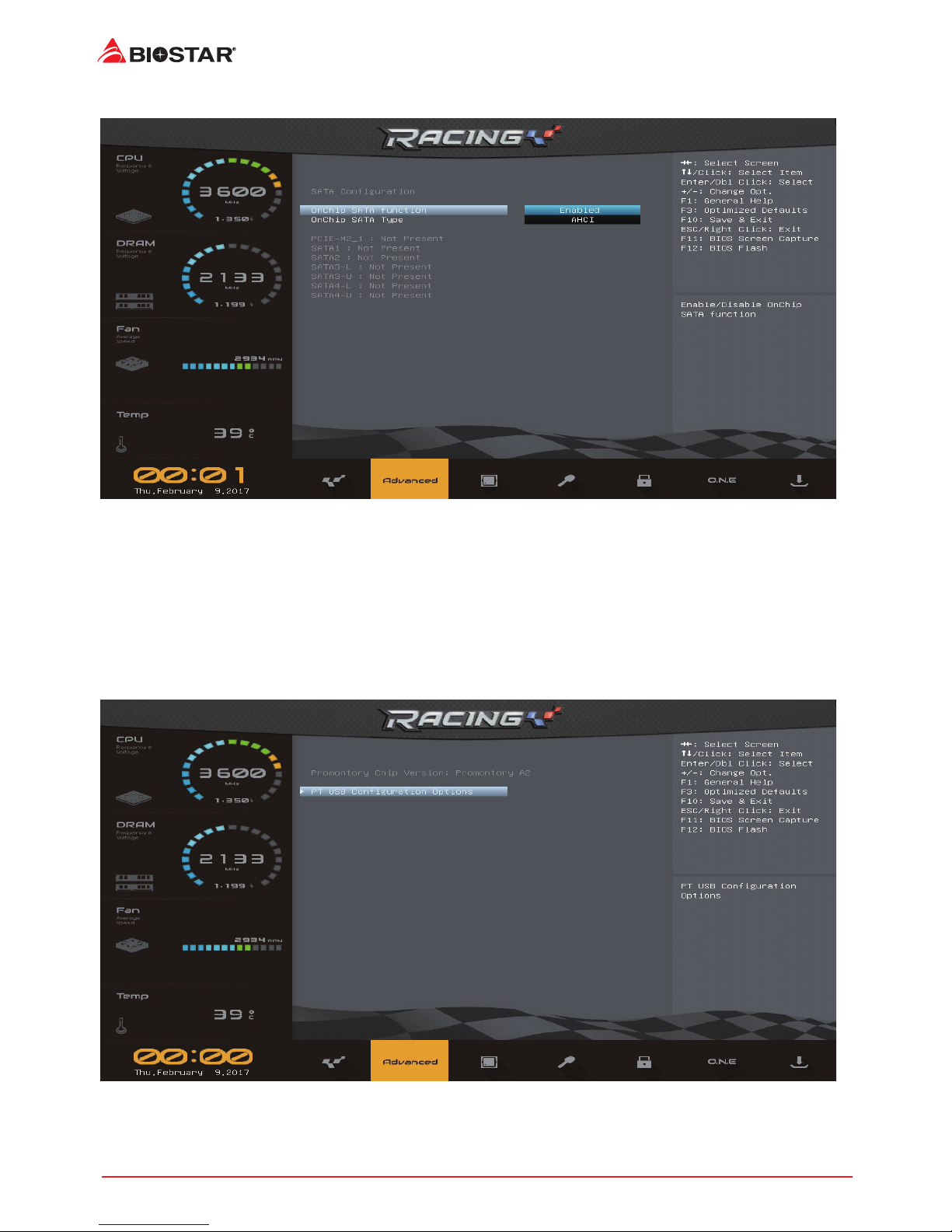

SATA Configuration
OnChip SATA funcon
This item enables or disables OnChip SATA funcon.
Opons: Enabled (Default) / Disabled
OnChip SATA Type
This item select OnChip SATA Type.
Opons: AHCI (Default) / RAID
Promontory Common Options
