BIB75-M2T Setup Manual
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.

Table of Contents
Chapter 1: Introduction ................................................. 2
1.1 Before You Start ................................................................................2
1.2 Package Checklist.............................................................................2
1.3 Mainboard Specification ..................................................................3
1.4 Rear Panel Connectors .....................................................................4
1.5 Motherboard Layout ........................................................................5
Chapter 2: Hardware Installation .................................. 6
2.1 Installing Central Processing Unit (CPU).......................................6
2.2 FAN Headers......................................................................................8
2.3 Installing System Memory ................................................................9
2.4 Power Supply...................................................................................11
2.5 Onboard Slot/Connector/Header/Jumper ....................................12
Chapter 3: BIOS Setup ................................................. 17
3.1 Main Menu .......................................................................................19
3.2 Advanced Menu...............................................................................20
3.3 Chipset Menu ...................................................................................35
3.4 Boot Menu ........................................................................................47
3.5 Security Menu...................................................................................49
3.6 Exit Menu..........................................................................................50
Chapter 4: Useful Help ................................................. 51
4.1 Driver Installation Note .................................................................51
4.2 AMI BIOS Beep Code.......................................................................52
4.3 Troubleshooting...............................................................................53

User’s Manual
2
CHAPTER 1: INTRODUCTION
1.1 BEFORE YOU START
Thank you for choosing our product. Before you start installing the
mainboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with
sufficient lighting.
Always disconnect the system from power outlet
before operation.
Before you take the mainboard out from anti-static
bag, ground yourself properly by touching any safely
grounded appliance, or use grounded wrist strap to
remove the static charge.
Avoid touching the components on mainboard or the
rear side of the board unless necessary. Hold the board
on the edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the
case after installation. Loose parts will cause short
circuits which may damage the equipment.
Keep the system from dangerous area, such as heat
source, humid air, and water.
Please switch on/off the machine normally. That is, DO
NOT pull out power cord directly from the mainboard
or the system may damage.
1.2 PACKAGE CHECKLIST
microATX Mainboard x 1
Fully Setup Driver CD x 1 (optional)
I/O Bracket x 1
SATA Cable x 1

BIB75-M2T
3
1.3 MAINBOARD SPECIFICATION
Specification
CPU
Support Intel Ivy Bridge CPU
(Co-lay support Sandy Bridge CPU/Embedded CPU SKU)
Intel® Core™ i7-2600 3.4GHz up to 95W
Intel® Core™ i5-2400 3.1GHz up to 95W
Intel® Core™ i3-2120 3.3HHz up to 65W
Chipset INTEL B75 chipset (co-lay with Q77)
BIOS AMI 8M BIOS
Graphic
Intel® Integrated Graphic
Display Memory: Max. shared system memory up to 1759MB
Resolution: VGA: Max. Up to 2048 x 1536 at 75Hz
DVI-D: Max. upto 1920 x 1200 at 60Hz
Main Memory
4x 240pin DDR3 SDRAM max up to 32GB
Each DIMM supports 512MB/ 1GB/2GB/4GB/8GB DDR3
Dual Channel Mode DDR3 memory module
Supports DDR3 1066/1333, DDR3 1600 (Depending on CPU)
Registered DIMM and ECC DIMM is not supported
SATA
Chipset built-in Serial ATA controller
Data transfer rates up to 3.0/6.0 Gb/s
SATA Version 2.0/3.0 specification compliant
RAID 0,1,5,10, SRT support (Supported by Q77 only)
LAN 1x Realtek RTL8111F for PCIe Gigabit LAN
Sound Codec Realtek ALC892
5.1 channels audio out, High-Definition Audio support
LPC I/O ITE IT8728
Serial Port ST75185CTR x2
Expansion Slots
PCI x2
PCIe x1 x1
PCIe x16 x1
On Board Connectors
& Headers
2*5 pins, 2.54 pitch front panel header x1
2*5 pins, 2.54 pitch front audio for (Line-out & Mic-in) x1
2*13 pins, 2.0 pitch Parallel port pin header x1
SATA connector support 3.0Gb/s x5
SATA connector support 6.0Gb/s x1
2*10 pins, 2.0 pitch, 2 x USB 3.0 ports box-header x1
2*5 pins, 2.54 pitch, 2 x USB 2.0 ports box-header x2
1*4 pins, CPU PWM-FAN header x1
1*3 pins, System DC-FAN header x1
24 pins, ATX power connector x1
4 pins, 12V power connector x1
Buzzer x1
Back Panel I/O
PS/2 KB/MS (for PS/2 keyboard & mouse) x1
VGA x1
DVI-D x1
COM Port x2

User’s Manual
4
Specification
USB2.0 Port x4
USB3.0 Port x2
RJ-45 Port x1
Audio Jack x3
Board Size 220 mm (W) x 244 mm (L) microATX
Operation Temperature 0°C ~ 60°C
Storage Temperature -20°C ~ 80°C
Relative Humidity 10% ~ 90% (non-condensing)
Watchdog Timer Yes (65536 segments)
RoHS Compliant Yes
OS Support
Windows* 7(32/64bit) & embedded, Window XP & XP Embedded,
WinCE, Linux, Intel® Embedded Graphics Drivers Version 10(Support by
Intel EIA IEGD tools)
Biostar reserves the right to add or remove support for any OS with or
without notice.

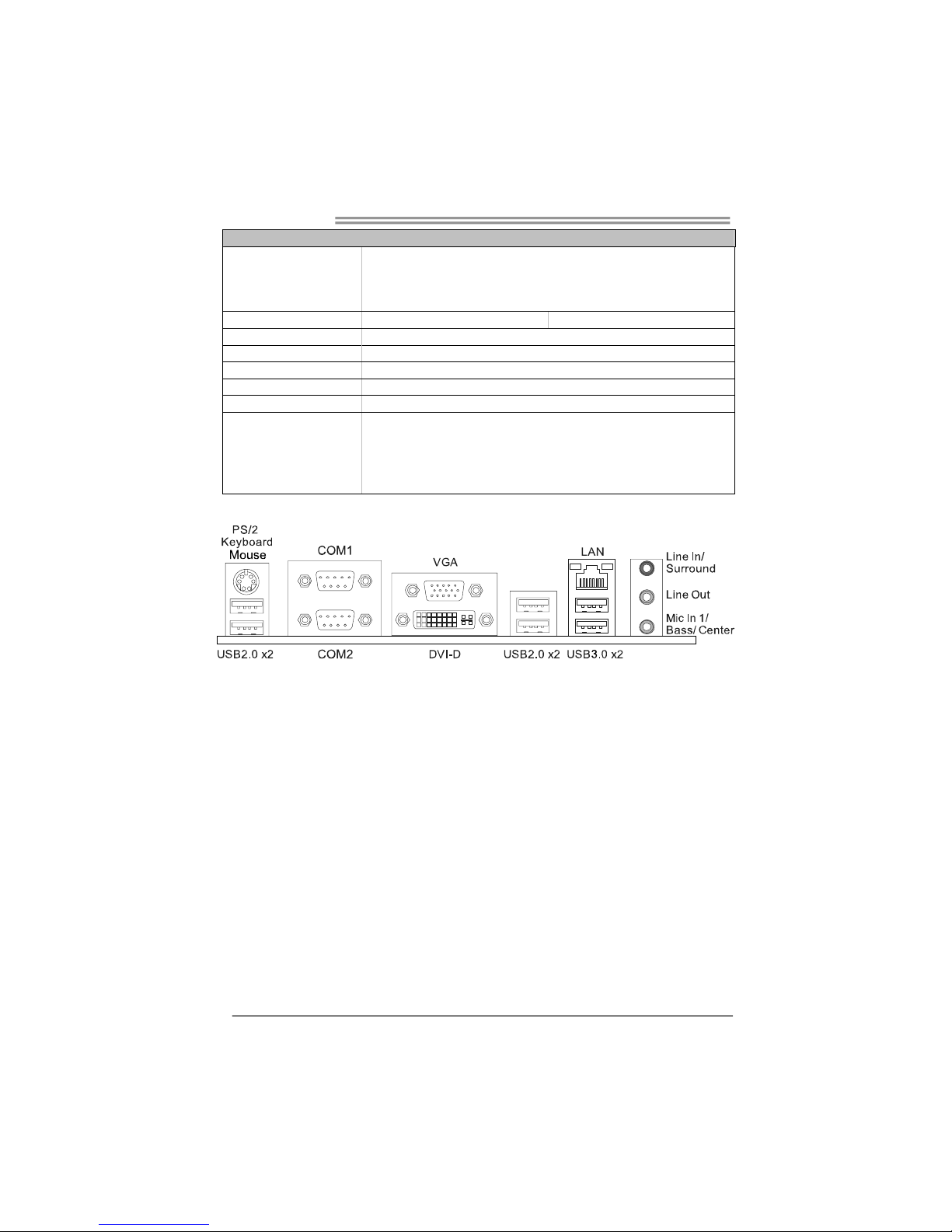

1.4 REAR PANEL CONNECTORS
Note1: DVI-D / VGA Output require an Intel Core family processor with Intel Graphics Technology.
Note2: Since the audio chip supports High Definition Audio Specification, the function of each
audio jack can be defined by software. The input / output function of each audio jack listed
above represents the default setting. However, when connecting external microphone to
the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.
Note3: Maximum resolution:
VGA: 2048 x 1536 @75Hz
DVI: 1920 x 1200 @60Hz

BIB75-M2T
5

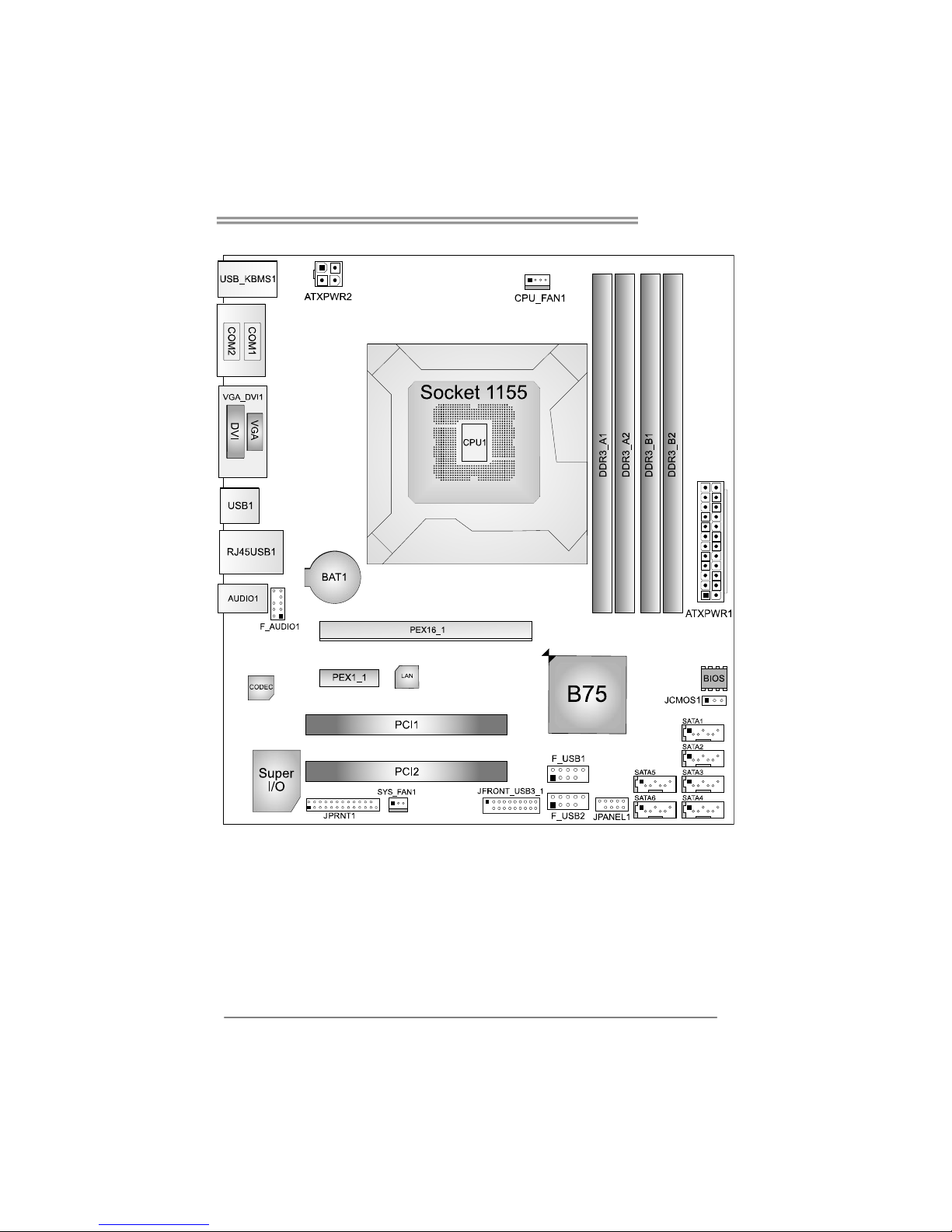

1.5 MOTHERBOARD LAYOUT
Note: ■represents the 1st pin.

User’s Manual
6
CHAPTER 2: HARDWARE INSTALLATION
2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)
Notice:
1. Remove Pin Cap before installation, and make good preservation for future use.
When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin
legs won’t be damaged.

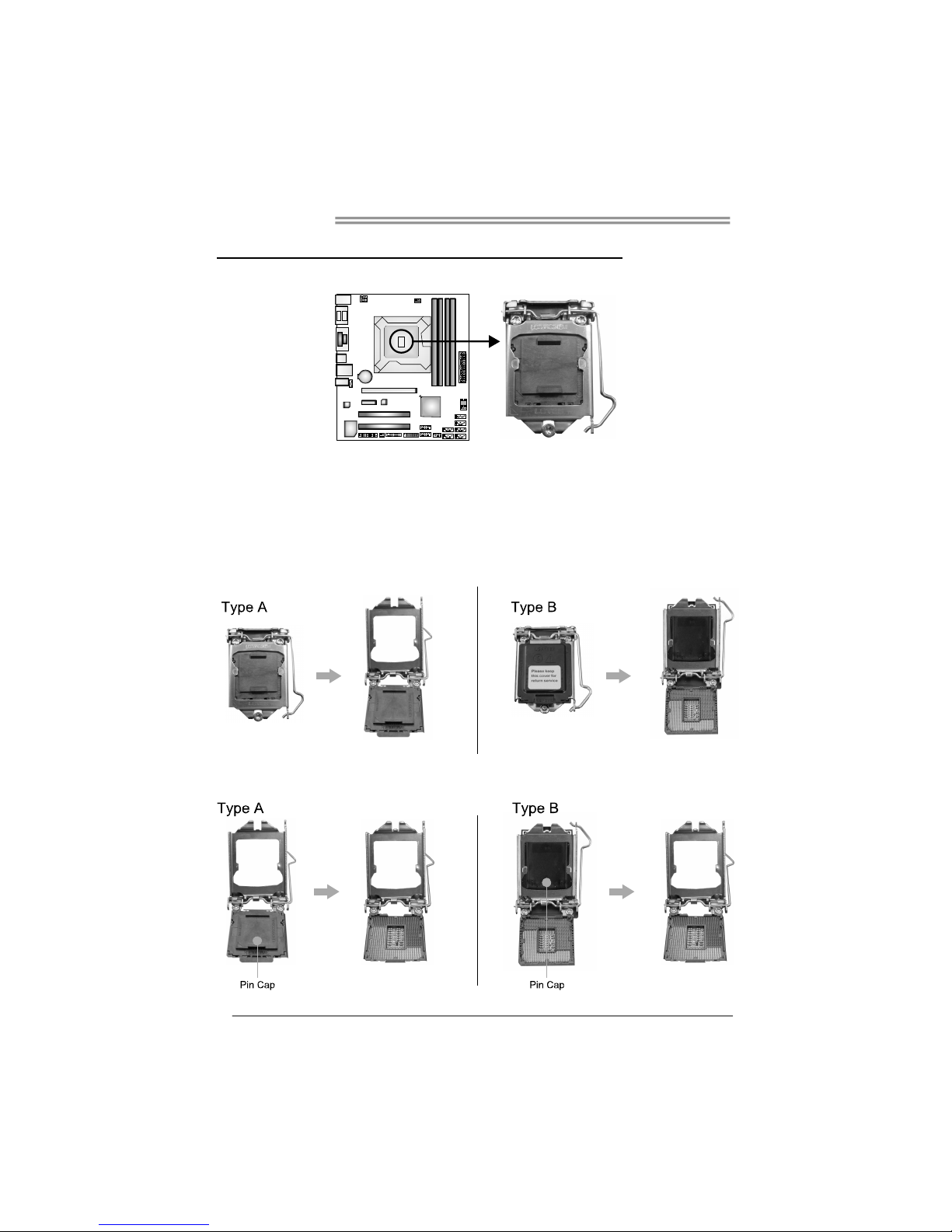

2. The motherboard might equip with two different types of pin cap. Please refer
below instruction to remove the pin cap.
Step 1: Pull the socket locking lever out from the socket then raise the
lever and load plate to the fully open position.
Step 2: Remove the Pin Cap.

BIB75-M2T
7
Step 3: Hold processor with your thumb and index fingers, oriented as
shown. Align the notches with the socket. Lower the processor
straight down without tilting or sliding the processor in the socket.
Step 4: Close the load plate. Pressing down on the load plate, close and
engage the socket lever.
Step 5: Put the CPU Fan and heatsink assembly on the CPU and buckle it
on the retention frame. Connect the CPU FAN power cable into
the CPU_FAN1 to complete the installation.

User’s Manual
8
2.2 FAN HEADERS

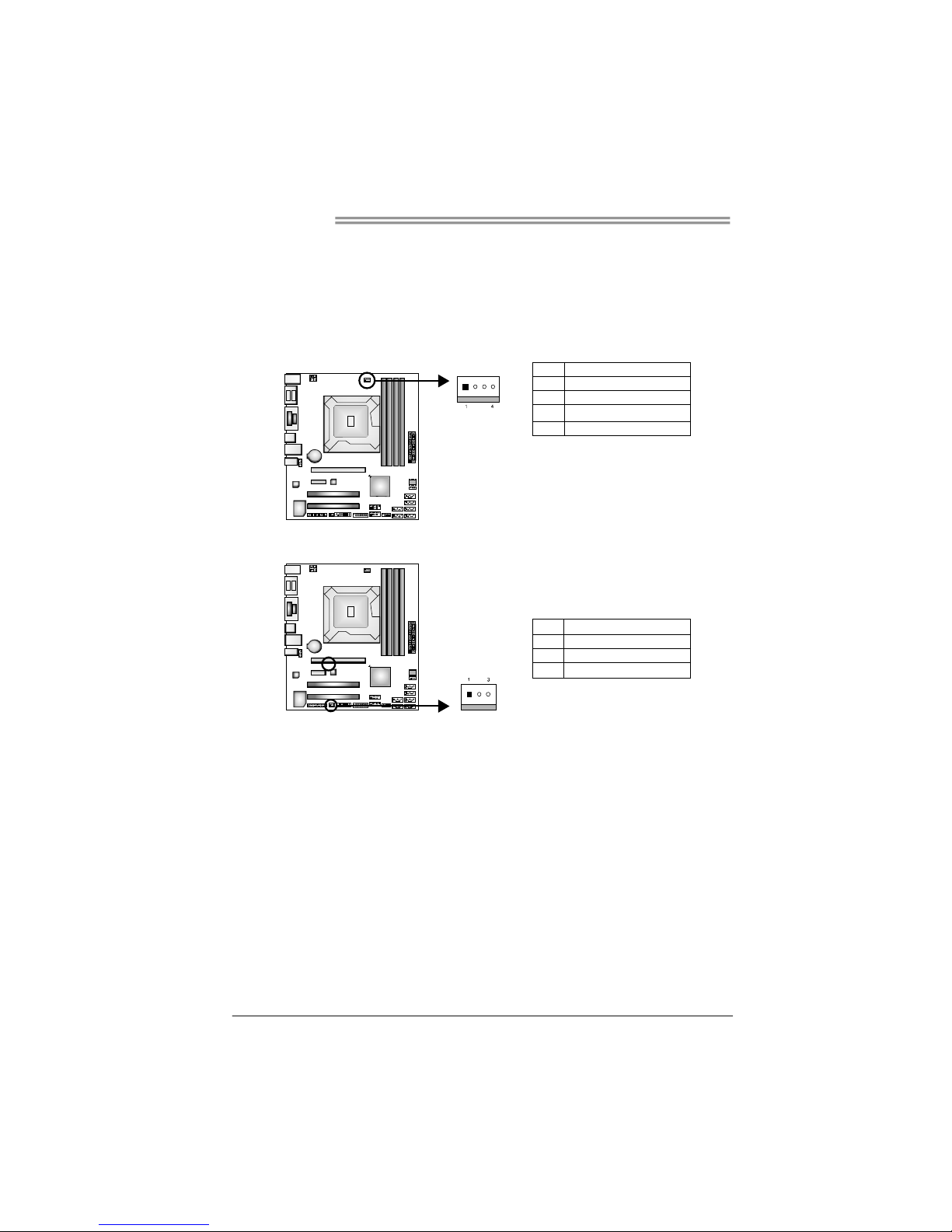

These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
CPU_FAN1: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 Smart Fan Control
SYS_FAN1: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
Note:
The SYS_FAN1 supports 3-pin head connector; the CPU_FAN1 supports 4-pin head
connector. When connecting with wires onto connectors, please note that the red wire is
the positive and should be connected to pin#2, and the black wire is Ground and should
be connected to GND.

BIB75-M2T
9
2.3 INSTALLING SYSTEM MEMORY
A. Memory Modules
Step1:

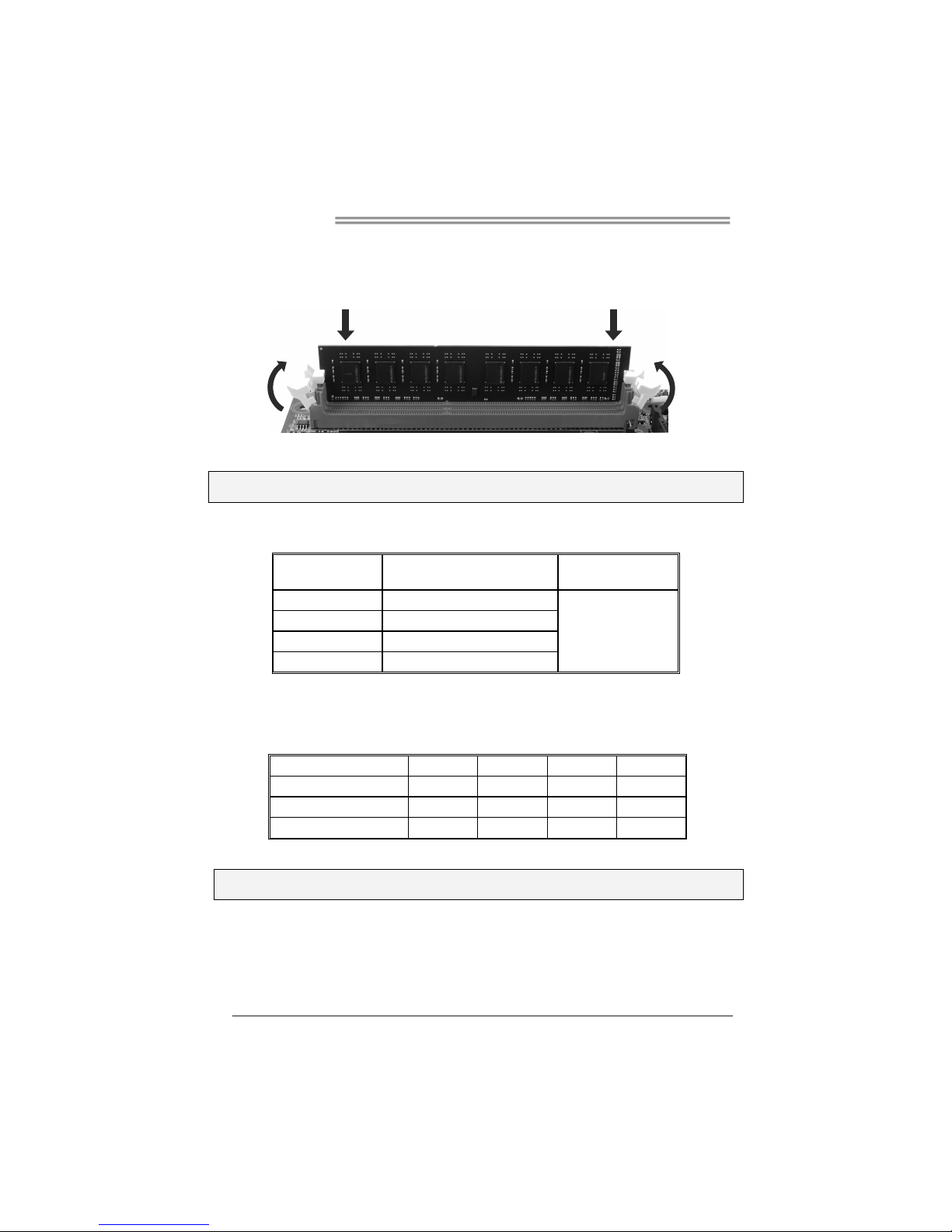

Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the
slot such that the notch on the DIMM matches the break on the Slot.

User’s Manual
10
Step2:
Insert the DIMM vertically and firmly into the slot until the retaining chip snap
back in place and the DIMM is properly seated.
Note:
If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.
B. Memory Capacity
DIMM Socket
Location DDR3 Module Total Memory Size
DDR3_A1 512MB/1GB/2GB/4GB/8GB
DDR3_A2 512MB/1GB/2GB/4GB/8GB
DDR3_B1 512MB/1GB/2GB/4GB/8GB
DDR3_B2 512MB/1GB/2GB/4GB/8GB
Max is 32GB.
C. Dual Channel Memory Installation
Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2
Enabled O X O X
Enabled X O X O
Enabled O O O O
(O means memory installed, X means memory not installed.)
Note:
The DRAM bus width of the memory module must be the same(x8 or x16)

BIB75-M2T
11
2.4 POWER SUPPLY
ATXPWR1: ATX Power Source Connector (24-pin)
This connector allows user to connect 24-pin power connector.
Pin Assignment Pin Assignment
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS_ON
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PW_OK 20 NC
9 Standby Voltage +5V 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
ATXPWR2: ATX Power Source Connector (4-pin)
This connector provides +12V to system power circuit.
Pin Assignment
1 +12V
2 +12V
3 Ground
4 Ground

User’s Manual
12
2.5 ONBOARD SLOT/CONNECTOR/HEADER/JUMPER
*How to Setup Jumpers
The illustration shows how to set up jumpers. When the jumper cap is placed on
pins, the jumper is “close”, if not, that means the jumper is “open”.
Pin opened Pin closed Pin1-2 closed
PEX16_1: PCI-Express x16 Slot
-PCI-Express 3.0 compliant.
-Maximum theoretical realized bandwidth of 16GB/s simultaneously per
direction, for an aggregate of 32GB/s totally.
-PCI-Express Gen3 is supported by Core i7-3xxx / i5-3xxx CPUs.
PEX1_1: PCI-Express x1 Slot
-PCI-Express 2.0 compliant.
-Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.
PCI1/2: Peripheral Component Interconnect Slots
-This motherboard is equipped with 2 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.

BIB75-M2T
13
JPANEL1: Front Panel Header
This 10-pin header includes Power-on, Reset, HDD LED, and Power LED
connection. It allows user to connect the system case’s front panel switch
functions.
Pin Assignment Function Pin Assignment Function
1 Key N/A 2 Power LED+(3.3V)
3 HD LED+ 4 Power LED+(3.3V)
5 HD LED- HDD LED 6 Power LED-
Power LED
7 Reset 8 Power
9 GND Reset Button 10 Power GND
Power Button
JCMOS1: Clear CMOS Header
Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and
the CMOS data. Please carefully follow the procedures to avoid damaging the
mainboard.
31
Pin 1-2 Close: (Default)
Normal Operation.
3
1
Pin 2-3 Close:
Clear CMOS data.
Clear CMOS Procedures:※
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.

User’s Manual
14

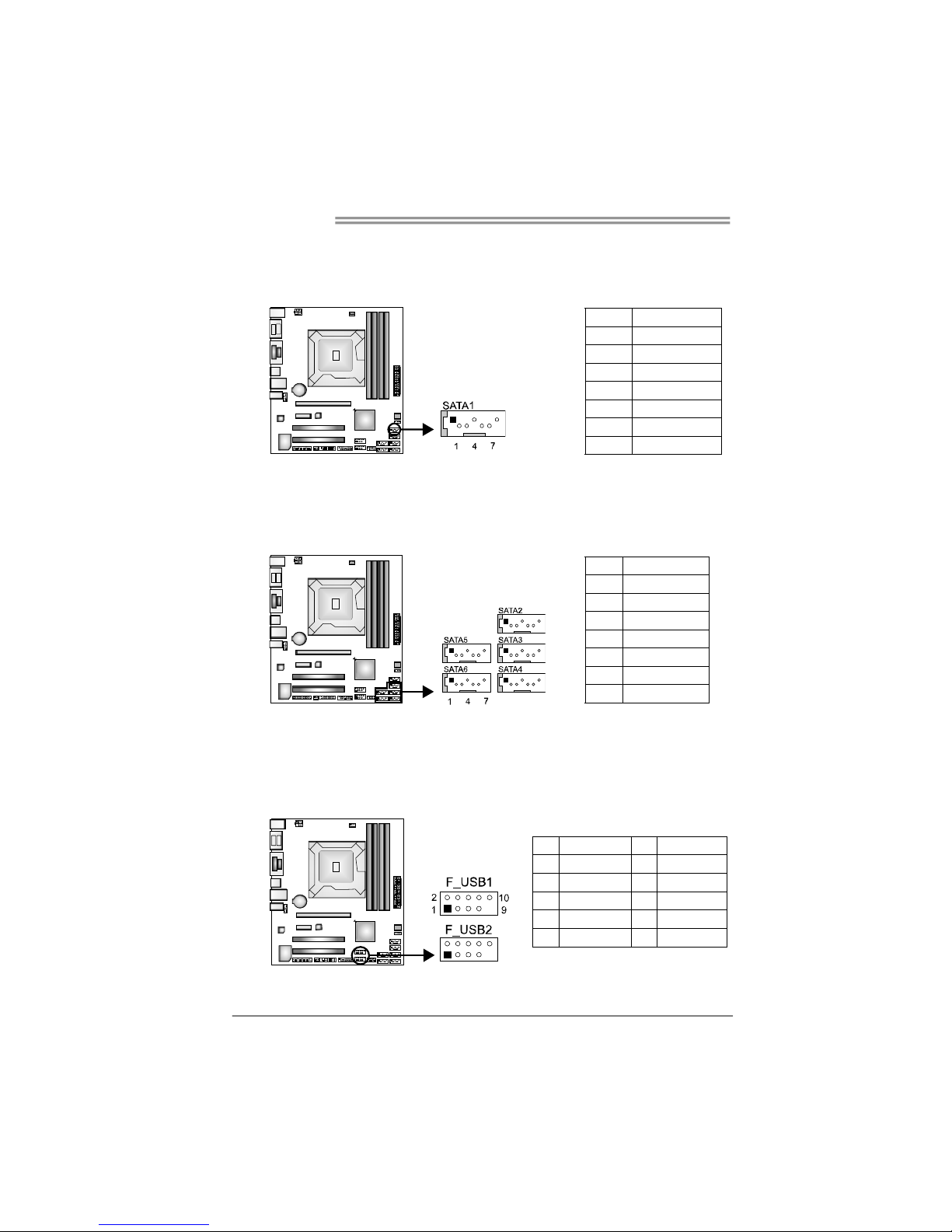

SATA1: Serial ATA3 Connector
The connector connects to Serial ATA 6.0 Gb/s hard disk drive and optical disc
drive.
Pin Assignment
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
SATA2/3/4/5/6: Serial ATA2 Connectors
The connectors connect to Serial ATA 3.0 Gb/s hard disk drive and optical disc
drive.
Pin Assignment
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
F_USB1/2: USB 2.0 Connectors
The mainboard provides 2 front USB pin connector, allowing up to 4 additional
USB 2.0 ports up to maximum throughput of 480 Mbps. Connect the USB cable
into the pin header for using high-speed USB interface peripherals.
Pin Assignment Pin Assignment
1 +5V (fused) 2 +5V (fused)
3 USB- 4 USB-
5 USB+ 6 USB+
7 Ground 8 Ground
9 Key 10 NC

BIB75-M2T
15
JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel
This header allows user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
Pin Assignment Pin Assignment
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 Ground
4 Ground 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 Ground
7 Ground 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS1
10 ID 20 Key
Note: USB3.0 is only supported by Windows 7 and backward compatible with USB2.0/1.1.
JCOM1/2: Serial Port Connectors
The motherboard has 2 Serial Port Connectors for connecting RS-232 Port.
Pin Assignment
1 Carrier detect (DCD)
2 Received data (RXD)
3 Transmitted data (TXD)
4 Data terminal ready (DTR)
5 Signal ground (GND)
6 Data set ready (DSR)
7 Request to send (RTS)
8 Clear to send (CTS)
9 Ring

User’s Manual
16
JPRNT1: Printer Port Connector
This header allows you to connect printer port on the PC.
Pin Assignment Pin Assignment
1 -Strobe 2 -ALF
3 Data 0 4 -Error
5 Data 1 6 -Init
7 Data 2 8 -Scltin
9 Data 3 10 Ground
11 Data 4 12 Ground
13 Data 5 14 Ground
15 Data 6 16 Ground
17 Data 7 18 Ground
19 -ACK 20 Ground
21 Busy 22 Ground
23 PE 24 Ground
25 SCLT 26 Key
F_AUDIO1: Front Panel Audio Header
This is an interface for the front panel audio cable that allows convenient
connection and control of audio devices. This header allows only HD audio front
panel connector; AC’97 connector is not acceptable..
Pin Assignment Pin Assignment
1 Mic Left in 2 Ground
3 Mic Right in 4 Present Sense
5 Right line out 6 GND_AUD
7 Front Sense 8 Key
9 Left line out 10 GND_AUD

BIB75-M2T
17
CHAPTER 3: BIOS SETUP
Introduction
The purpose of this manual is to describe the settings in the AMI UEFI BIOS
Setup program on this motherboard. The Setup program allows users to modify
the basic system configuration and save these settings to NVRAM.
UEFI BIOS determines what a computer can do without accessing programs
from a disk. This system controls most of the input and output devices such as
keyboard, mouse, serial ports and disk drives. BIOS activates at the first stage of
the booting process, loading and executing the operating system. Some additional
features, such as virus and password protection or chipset fine-tuning options are
also included in UEFI BIOS.
The rest of this manual will to guide you through the options and settings in
UEFI BIOS Setup.
Plug and Play Support
This AMI UEFI BIOS supports the Plug and Play Version 1.0A specification.
EPA Green PC Support
This AMI UEFI BIOS supports Version 1.03 of the EPA Green PC specification.
ACPI Support
AMI ACPI UEFI BIOS support Version 1.0/2.0 of Advanced Configuration and
Power interface specification (ACPI). It provides ASL code for power
management and device configuration capabilities as defined in the ACPI
specification, developed by Microsoft, Intel and Toshiba.
PCI Bus Support
This AMI UEFI BIOS also supports Version 2.3 of the Intel PCI (Peripheral
Component Interconnect) local bus specification.
DRAM Support
DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

User’s Manual
18
Supported CPUs
This AMI UEFI BIOS supports the Intel CPU.

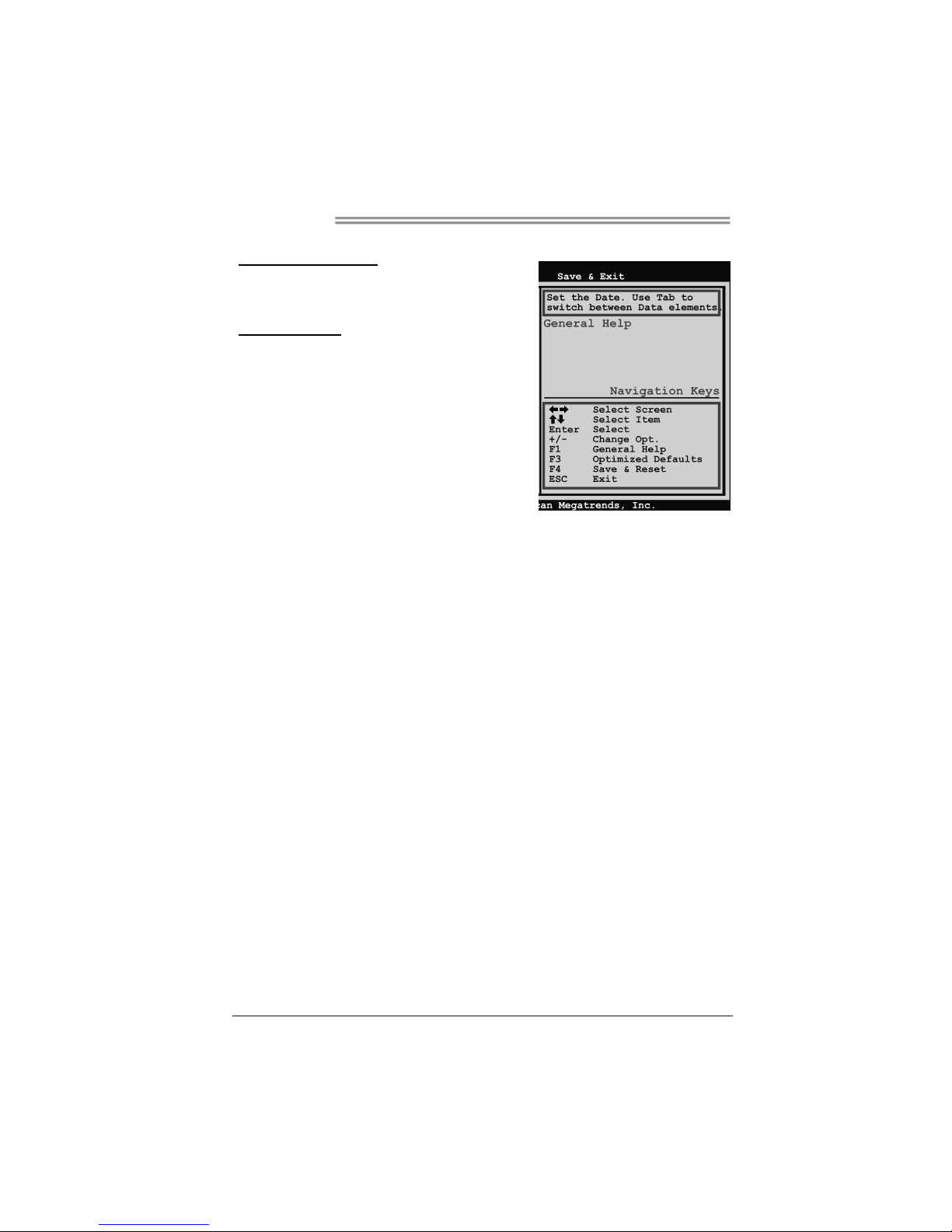

Using Setup
When starting up the computer, press <Del>
during the Power-On Self-Test (POST) to enter
the UEFI BIOS setup utility.
In the UEFI BIOS setup utility, you will see
General Help description at the top right corner,
and this is providing a brief description of the
selected item. Navigation Keys for that
particular menu are at the bottom right corner,
and you can use these keys to select item and
change the settings.
Notice
The default UEFI BIOS settings apply for most conditions to ensure
optimum performance of the motherboard. If the system becomes
unstable after changing any settings, please load the default settings to
ensure system’s compatibility and stability. Use Load Setup Default
under the Exit Menu.
For better system performance, the UEFI BIOS firmware is being
continuously updated. The UEFI BIOS information described in this
manual is for your reference only. The actual UEFI BIOS information and
settings on board may be slightly different from this manual.
The content of this manual is subject to be changed without notice. We
will not be responsible for any mistakes found in this user’s manual and
any system damage that may be caused by wrong-settings.
