Biostar GeForce 6100-M9 User manual

GeForce 6100-M9
i
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.

Table of Contents
ii
Chapter 1: Introduction .............................................................. 1
1.1 Motherboard Features.....................................................................1
1.2 Layout and Components.................................................................4
Chapter 2: Hardware Installation ............................................ 5
2.1 Installing Central Processing Unit (CPU)..................................... 5
2.2 FAN Headers....................................................................................6
2.3 Installing System Memory..............................................................7
2.4 Connectors and Slots .......................................................................9
Chapter 3: Headers & Jumpers Setup...................................11
3.1 How to Setup Jumpers .................................................................. 11
3.2 Detail Settings.................................................................................11
Chapter 4: Useful Help........................................................... 17
4.1 Award BIOS Beep Code................................................................ 17
4.2 Extra Information........................................................................... 17
4.3 Troubleshooting .............................................................................19
Chapter 5: WarpSpeeder™....................................................... 20
5.1 Introduction ....................................................................................20
5.2 System Requirement......................................................................20
5.3 Installation....................................................................................... 21
5.4 [WarpSpeeder™] includes 1 tray icon and 5 panels..................22

GeForce 6100-M9
1
CHAPTER 1: INTRODUCTION
1.1 MOTHERBOARD FEATURES
CPU
Supports Socket 939.
Supports AMD Athlon 64 FX/ Athlon 64/ Athlon 64 X2 processor.
AMD 64 architecture enables simultaneous 32 and 64 bit
computing.
Supports HyperTransport Technology up to 2000MT/s.
Supports AMD Cool’n’Quiet Technology.
Chipset
North Bridge: nVIDIA GeForce6100.
South Bridge: nVIDIA nForce 410.
Dimensions
Micro ATX Form Factor: 24.5cm (L) x 24.45cm (W)
Operating System Supporting
Supports Windows 2000 and Windows XP.
Note: Does not support Windows 98SE and Windows ME.
Slot
Two PCI bus master slots.
One PCI-E x1 slot.
One PCI-E x16 slot.
Super I/O
Chip: ITE IT8712F.
Low Pin Count Interface.
Provides the most commonly used legacy Super I/O
functionality.
Environment Control initiatives,
!H/W Monitor
!Fan Speed Controller
!ITE's "Smart Guardian" function

GeForce 6100-M9
2
System Memory
Supports Dual Channel DDR..
Supports 8 banks in total.
Supports DDR-266/333/400.
Maximum memory size is up to 4GB. (Following table is only for
reference.)
DIMM Socket
Location DDR Module Total Memory Size
DIMMA1 128MB/256MB/512MB/1GB *1
DIMMA2 128MB/256MB/512MB/1GB *1
DIMMB1 128MB/256MB/512MB/1GB *1
DIMMB2 128MB/256MB/512MB/1GB *1
Max is 4 GB.
On-board IDE
Two on-board connectors support 4 IDE disk drives.
Supports PIO mode 0~4, Block Mode and Ultra DMA
33/ 66/100/133 bus master mode.
Onboard Serial ATA
Integrated in nForce 410.
Four serial ATA connectors support 2 SATA devices.
Supports RAID 0 and RAID 1 functions.
Supports 2 serial ATA(SATA) ports.
-Data transfer rates up to 3.0 GB/s.
-Compliant with SATA Version 2.0 specification.
10/100 LAN PHY
PHY: RTL8201BL/RTL8201CL.
Supports 10 Mb/s and 100 Mb/s auto-negotiation.
Half/Full duplex capability.
Supports ACPI, PCI power management.
Onboard AC’97 Sound Codec
Chip: ALC655
Support 6 channels.
Supports S/PDIF out function.
Compliant with AC’97 Version 2.3 specification.

GeForce 6100-M9
3
Internal On-board I/O Connectors and Headers
1 front panel header supports front panel facilities.
1 CD-in connector supports 1 CD-ROM audio-in device.
1 front audio header supports front panel audio function.
1 S/PDIF-Out connector supports digital audio-out function.
1 chassis open header supports PC case-opened warning
function.
1 FDD connector supports 2 Floppy drives with 360K, 720K,
1.2M, 1.44M and 2.88Mbytes.
2 IDE connectors support 4 hard disk devices.
2 Serial ATA connectors support 2 SATA devices.
2 USB headers support 4 USB 2.0 ports at front panel.

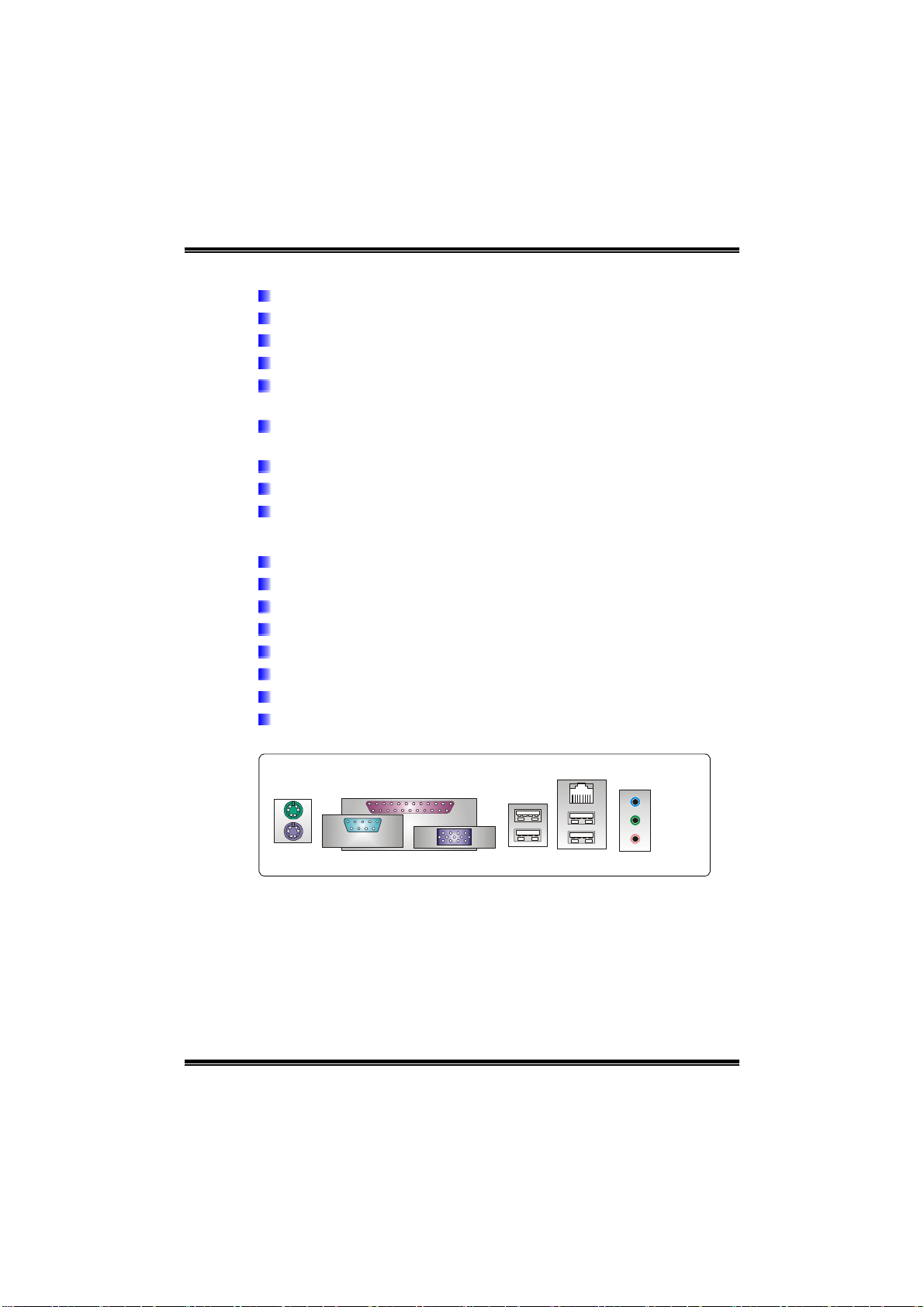

Back Panel I/O Connectors
4 USB 2.0 ports.
1 VGA port.
1 Serial port.
1 Printer port.
1 RJ-45 LAN jack.
1 PS/2 Mouse port.
1 PS/2 Keyboard port.
1 Vertical audio port including 1 Line-in connector, 1 Line-out
connector, and 1 MIC-in connector.
COM1
COM1
VGA1
Parallel
USB x2
LAN
USB x2
Line In/
Surround
Line Out
Mic In 1/
Bass/Center
PS/2
Keyboard
PS/2
Mouse

GeForce 6100-M9
4
1.2 LAYOUT AND COMPONENTS
JPRNT1
JKBMS1
JUSB1
JAUDIO1
JUSBLAN1
BIOS
PCI-EX1_1
PCI-EX16
PCI1
FDD1
IDE2
CPU1
BAT1
JKBV1
JCOM1
JVGA1
JUSBV1
JCDIN1
Codec
LAN
PHY
JAUDIO2
JATXPWR2
JSPDIF_OUT1
PCI2
Super I/O
JUSBV2
JUSB2 JUSB3
DIMMB1
DIMMB2
DIMMA1
DIMMA2
JSFAN1
JSATA2
JSATA1
JCI1
JCMOS1
JPANEL1
IDE1
JATXPWR1
JCFAN1
nForce
410
GeForce
6100
Note: ■represents the 1st pin.

GeForce 6100-M9
5
CHAPTER 2: HARDWARE INSTALLATION
2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)
Step 1: Remove the socket protection cap.
Step 2: Pull the lever toward direction Afrom the socket and then raise the
lever up to a 90-degree angle.
A
90
Step 3: Look for the white triangle on socket, and the gold triangle on
CPU should point forwards this white triangle. The CPU will fit
only in the correct orientation.

GeForce 6100-M9
6
Step 4: Hold the CPU down firmly, and then close the lever toward direct
B to complete the installation.
B
Step 5: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.
2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
JSFAN1
1
3
JCFAN1
3
1
3 FAN RPM rate
sense
Note:
The JCFAN1 and JSFAN1 support 3-pin head connector. When connecting with wires
onto connectors, please note that the red wire is the positive and should be connected to
pin#2, and the black wire is Ground and should be connected to GND.

GeForce 6100-M9
7
2.3 INSTALLING SYSTEM MEMORY
DIMMB1 DIMMB2 DIMMA1 DIMMA2
2.2.1 DDR Module installation
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
Note:
To remove the DDR modules, push the ejector tabs at both sides of the slot outward at
the same time, and pull the modules out vertically.

GeForce 6100-M9
8
2.2.2 DDR Installation Notice
For AMD K8 939 CPU launched before Rev. E, please follow the table
below to install your DDR memory module, or the system may not
boot up or may not function properly. (Please refer to Table 1 for CPU
Revision)
“SS” represents Single Side DDR memory module.
“DS” represents Double Side DDR memory module.
Star sign “*” represents leave the DIMM socket empty.
DIMMA1 SS/DS * SS/DS SS/DS
DIMMA2 * SS/DS SS/DS SS/DS
DIMMB1 * * * SS/DS
DIMMB2 * * * SS/DS
2.2.3 Know your CPU version
AMD Athlon™64 Processor Ordering Part Number Example
ADA 3200 A E P 5 AP
Table 1: AMD Athlon™
™™
™64 Processor Part Definition Options
Part Definition Revision Part Definition Revision
AP Rev C0 BN Rev E4
AR Rev CG BP Rev E3
AS Rev CG BO Rev E3
AW Rev CG BY Rev E6
AX Rev CG BW Rev E6
AZ Rev CG
BI Rev D0
Part Definition: AP = Rev C0
(
see Table 1
)

GeForce 6100-M9
9
2.4 CONNECTORS AND SLOTS
FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
This connector supports the provided floppy drive ribbon cables.
1
234
33
IDE1/IDE2: Hard Disk Connectors
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133
functionality. It has two HDD connectors IDE1 (primary) and IDE2
(secondary).
The IDE connectors can connect a master and a slave drive, so
you can connect up to four hard disk drives. The first hard drive
should always be connected to IDE1.
IDE1IDE2
21
3940

GeForce 6100-M9
10

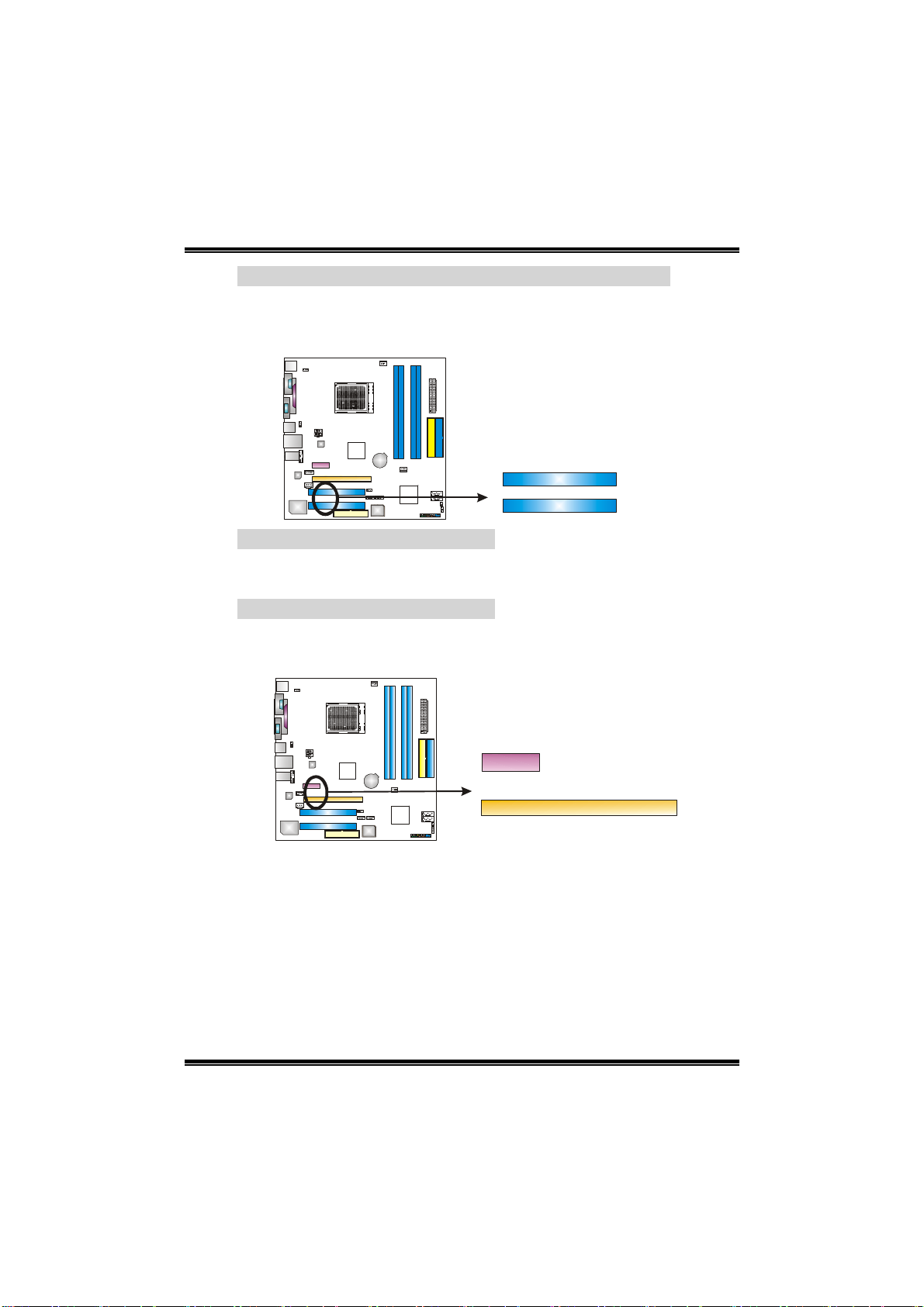

PCI1~PCI2: Peripheral Component Interconnect Slots
This motherboard is equipped with 2 standard PCI slots. PCI stands
for Peripheral Component Interconnect, and it is a bus standard for
expansion cards. This PCI slot is designated as 32 bits.
PCI2
PCI1
PCI-EX16: PCI-Express x16 Slot
-PCI-Express 1.0a compliant.
-Maximum bandwidth is up to 4GB/s per direction.
PCI-EX1_1: PCI-Express x1 Slot
-PCI-Express 1.0a compliant.
-Maximum bandwidth is up to 250MB/s per direction.
PCI-EX16
PCI-EX1_1

GeForce 6100-M9
11
CHAPTER 3: HEADERS & JUMPERS SETUP

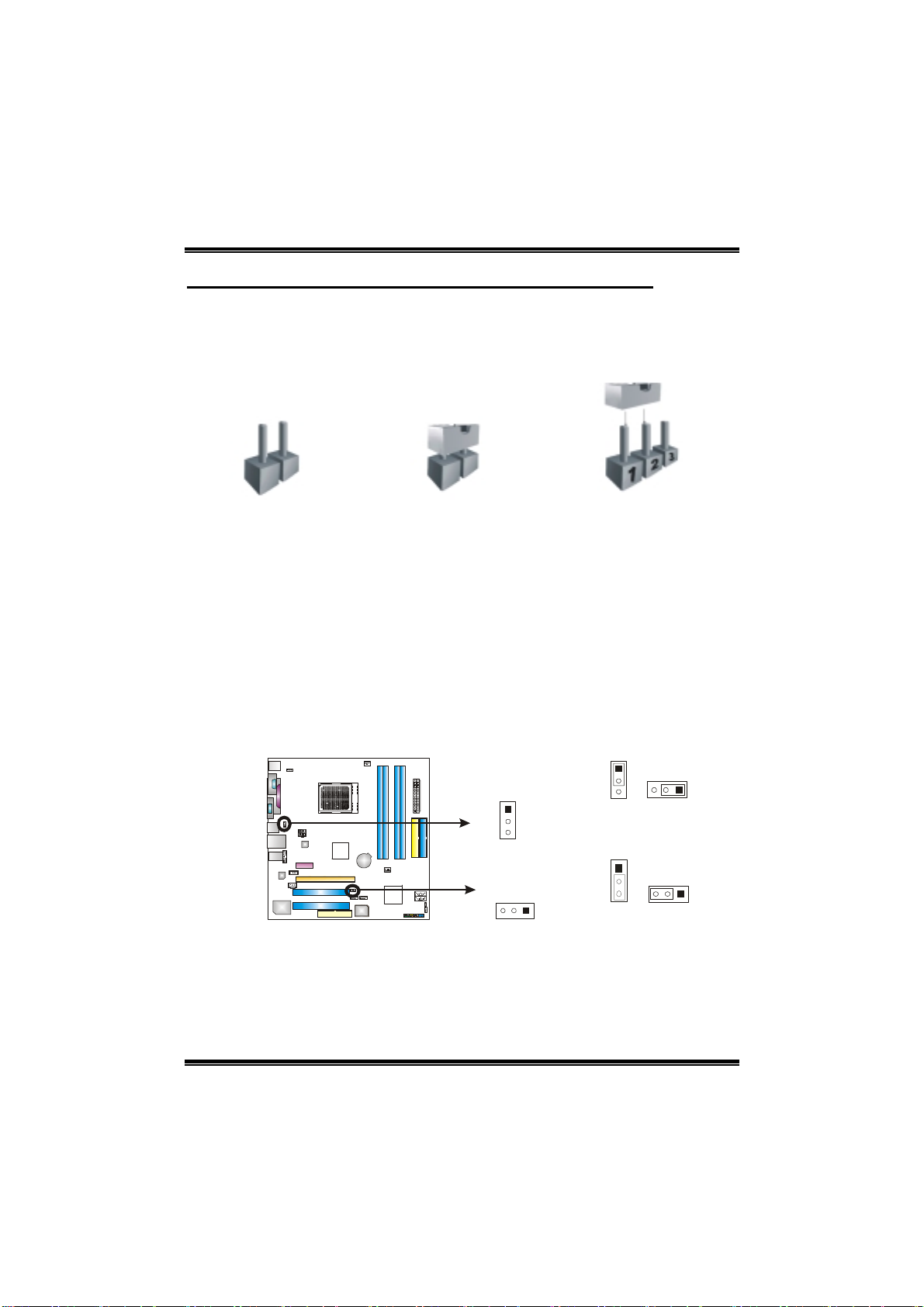

3.1 HOW TO SETUP JUMPERS
The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS
JUSBV1/JUSBV2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBV1: +5V for USB ports at JUSB1 and JUSBLAN1.
JUSBV2: +5V for USB ports at front panel (JUSB2/JUSB3).
Pin 2-3 Close:
JUSBV1: USB ports at JUSB1 and JUSBLAN1 are powered by +5V
standby voltage.
JUSBV2: USB ports at front panel (JUSB2/JUSB3) are powered by +5V
standby voltage.
1
3
1
3
Pin 1-2 close (Default)
JUSBV1
3
1
JUSBV2
31
1
3
1
3
Pin 2-3 close
Note:
In order to support this function “Power-On system via USB device,” “JUSBV1/ JUSBV2”
jumper cap should be placed on Pin 2-3 individually.

GeForce 6100-M9
12
JKBV1: Power Source Header for PS/2 Keyboard and Mouse
3
1
Pin 1-2 Close
+5V for PS/2 keyboard and
mouse.
13
3
1
Pin 2-3 close
PS/2 keyboard and mouse are
powered by +5V standby
voltage.
Note:
In order to support this function “Power-on system via keyboard and mouse”, “JKBV1”
jumper cap should be placed on Pin 2-3.
JATXPWR1: ATX Power Source Connector
This connector allows user to connect 24-pin power connector on theATX
power supply. Pin Assignment
1 +3.3V
2 +3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW_OK
9 Standby Voltage
+5V
10 +12V
11 +12V
12 +3.3V
13 +3.3V
14 -12V
15 Ground
16 PS_ON
17 Ground
18 Ground
19 Ground
20 -5V
21 +5V
22 +5V
23 +5V
12 24
113
24 Ground

GeForce 6100-M9
13

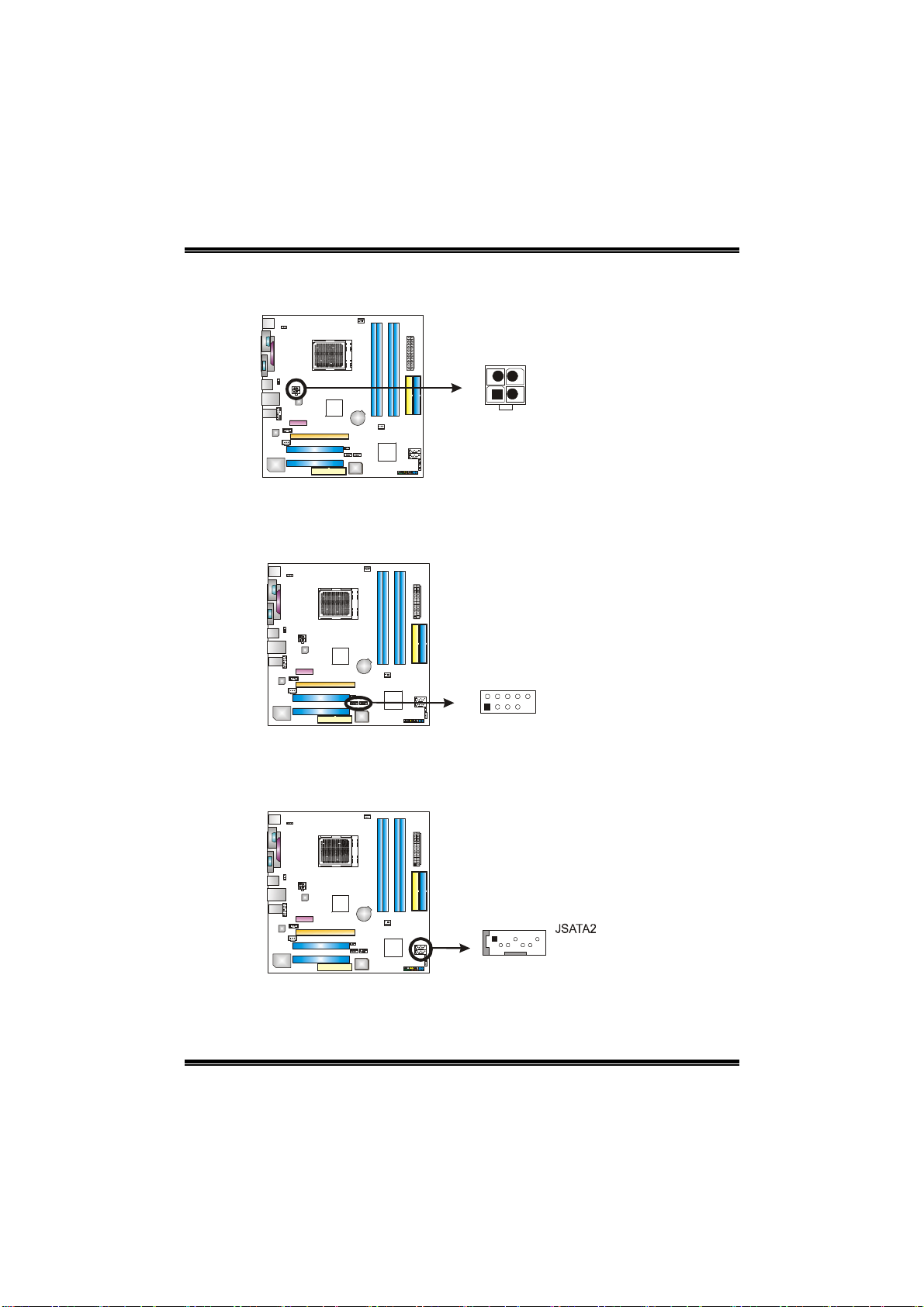

JATXPWR2: ATX Power Source Connector
By connecting this connector, it will provide +12V to CPU power circuit.
Pin Assignment
1 +12V
2 +12V
3 Ground
1
4
2
3
4 Ground
JUSB2/JUSB3: Headers for USB 2.0 Ports at Front Panel
This header allows user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
1
2
9
10
JUSB3JUSB2
10 NC
JSATA1~JSATA2: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 2 channels SATA interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3GB/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
JSATA1
17
4
7 Ground

GeForce 6100-M9
14

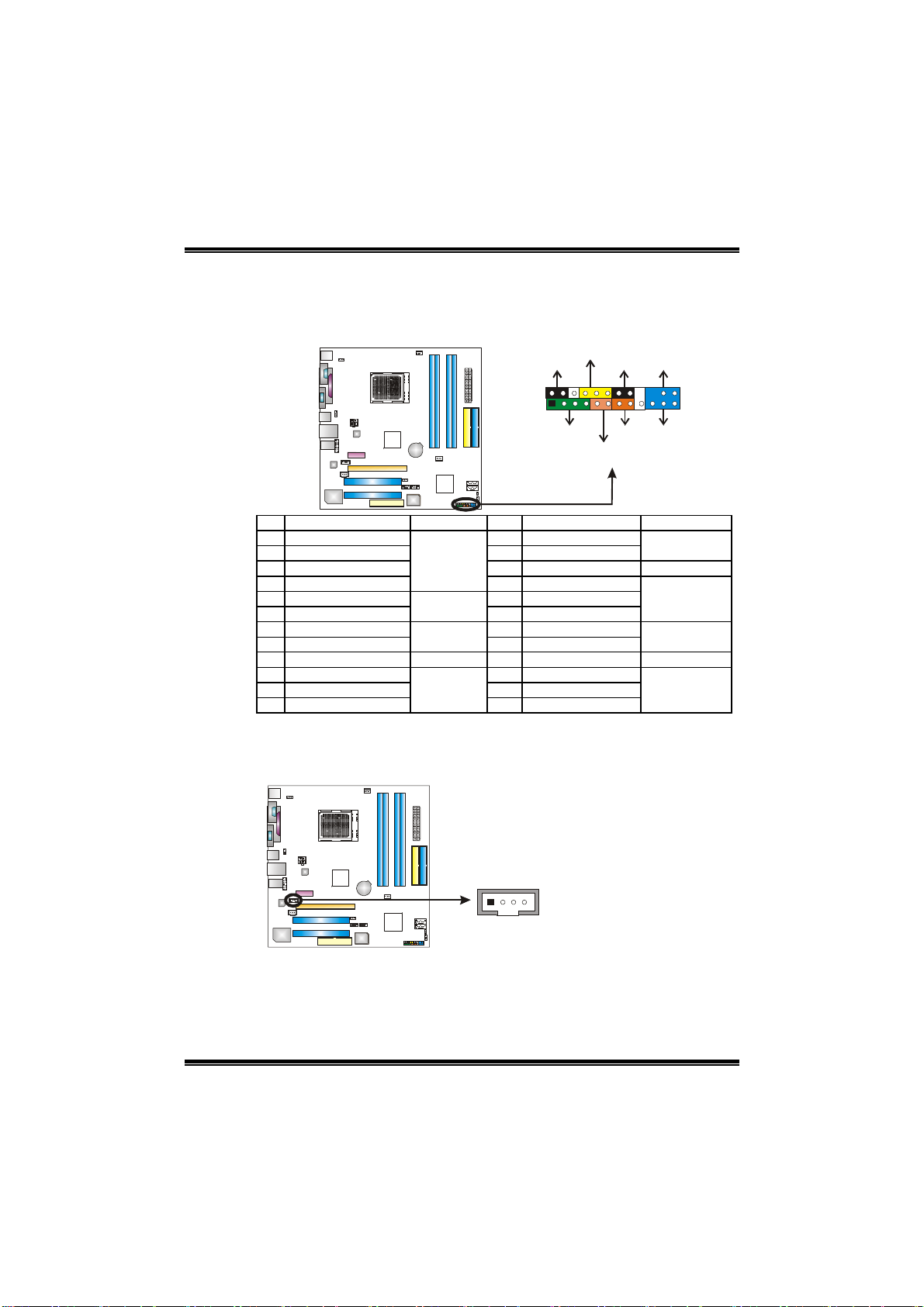

JPANEL1: Front Panel Header
This 24-pin connector includes Power-on, Reset, HDD LED, Power LED, Sleep
button, speaker and IrDAConnection. It allows user to connect the PC case’s
front panel switch functions.
123
24
SLP PWR_LED
On/Off IR
IR
RST
HLED
SPK
++
+
2
-
-
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep control
3 N/A 4 Ground
Sleep button
5 N/A 6 N/A N/A
7 Speaker
Speaker
Connector 8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HDD LED (-) Hard drive
LED 12 Power LED (-) Power LED
13 Ground 14 Power button
15 Reset control Reset button 16 Ground Power-on button
17 N/A 18 Key
19 N/A 20 Key
21 +5V 22 Ground
23 IRTX
IrDA
Connector 24 IRRX IrDA Connector
JCDIN1: CD-ROM Audio-in Connector
This connector allows user to connect the audio source from the variaty devices,
like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..
Pin
Assignment
1 Left Channel Input
2 Ground
3 Ground
41
4 Right Channel Input

GeForce 6100-M9
15

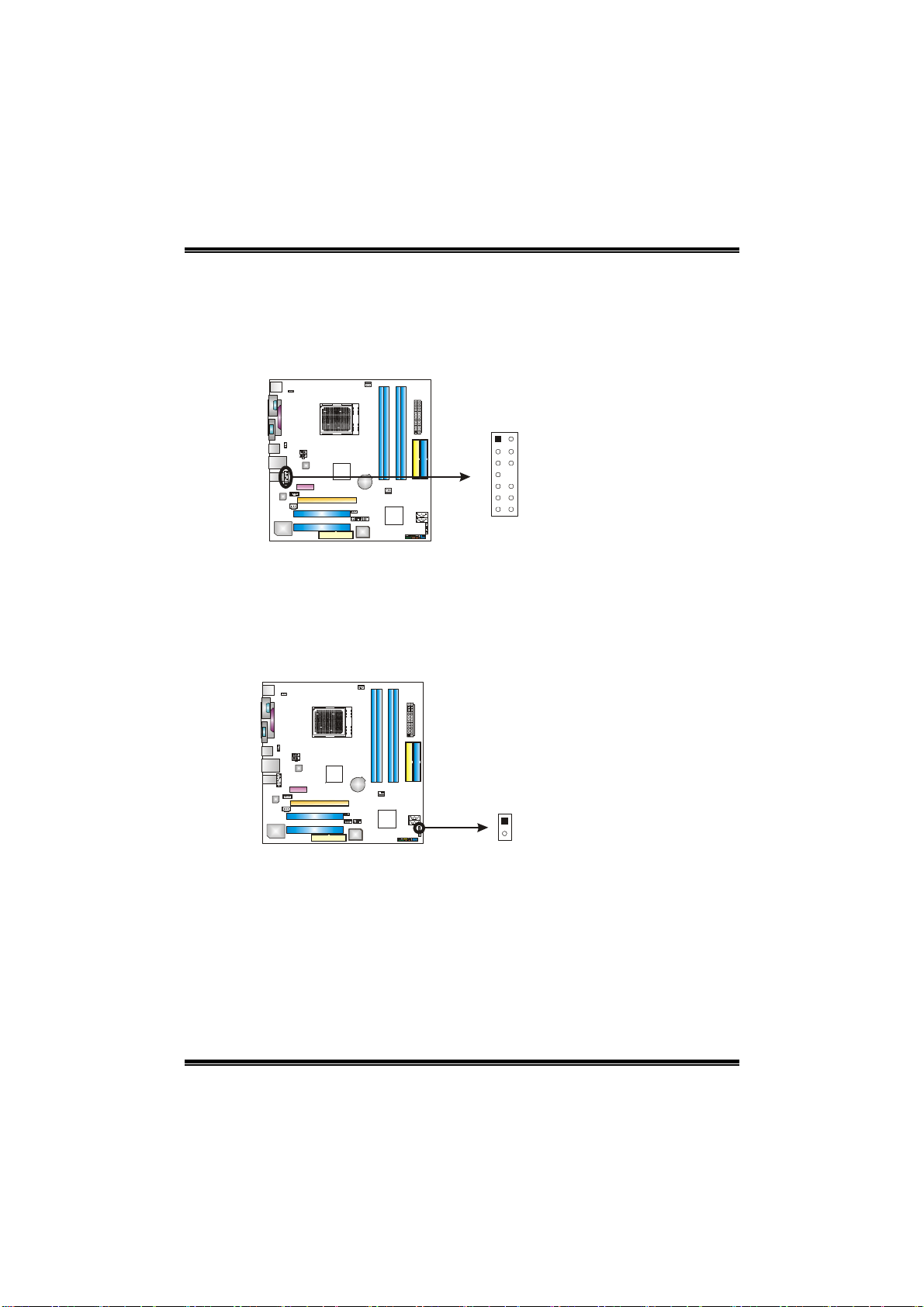

JAUDIO2: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. It will disable the output on back panel audio connectors.
Pin Assignment
1 Mic-in/Stereo MIC-in R
2 Ground
3 Stereo MIC-in L
4 Audio power
5 Right line-out/
Speaker-out Right
6 Right line-out/
Speaker-out Right
7 Reserved
8 Key
9 Left line-out/
Speaker-out Left
10 Left line-out/
Speaker-out Left
11 Right line-in (optional)
12 Right line-in (optional)
13 Left line-in (optional)
14
2
13
1
14 Left line-in (optional)
JCI1: Chassis Open Header
This connector allows system to monitor PC case open status. If the signal has
been triggered, it will record to the CMOS and show the message on next
boot-up.
Pin
Assignment
1 Case open signal
1
2
2 Ground

GeForce 6100-M9
16
JSPDIF_OUT1: Digital Audio-out Connector
This connector allows user to connect the PCI bracket SPDIF output header.
Pin Assignment
1 +5V
2 SPDIF_OUT
13
3 Ground
JCMOS1: Clear CMOS Header
By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting
and the CMOS data, please carefully follow the procedures to avoid damaging
the motherboard.
1
3
Pin 1-2 Close:
Normal Operation (Default).
1
3
1
3
Pin 2-3 Close:
Clear CMOS data.
※
※※
※Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.

GeForce 6100-M9
17

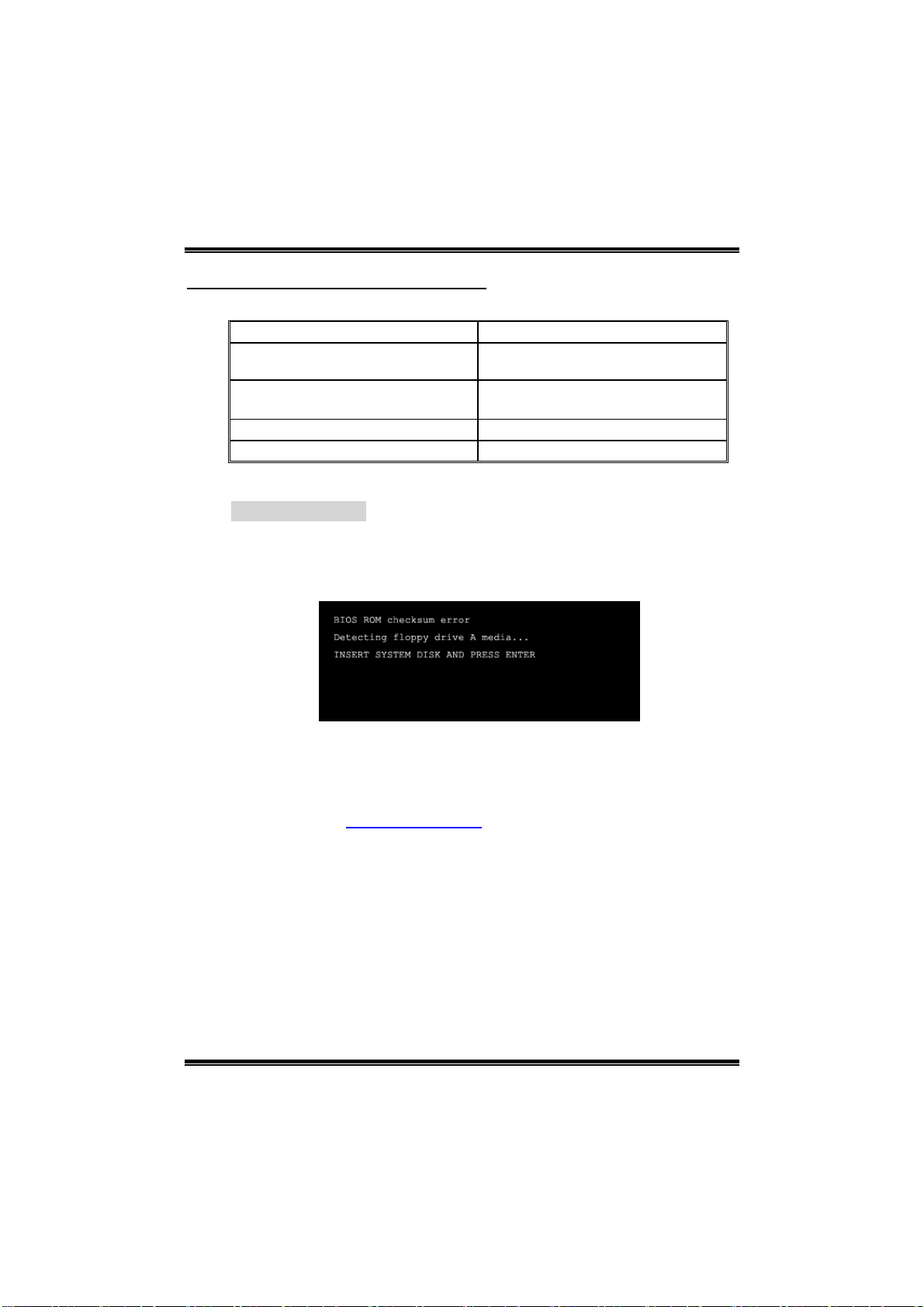

CHAPTER 4: USEFUL HELP
4.1 AWARD BIOS BEEP CODE
Beep Sound Meaning
One long beep followed by two short
beeps Video card not found or video card memory bad
High-low siren sound CPU overheated
System will shut down automatically
One Short beep when system boot-up No error found during POST
Long beeps every other second No DRAM detected or install
4.2 EXTRA INFORMATION
A. BIOS Update
After you fail to update BIOS or BIOS is invaded by virus, the
Boot-Block function will help to restore BIOS. If the following message
is shown after boot-up the system, it means the BIOS contents are
corrupted.
In this Case, please follow the procedure below to restore the BIOS:
1. Make a bootable floppy disk.
2. Download the Flash Utility “AWDFLASH.exe” from the Biostar
website: www.biostar.com.tw
3. Confirm motherboard model and download the respectively BIOS
from Biostar website.
4. Copy “AWDFLASH.exe” and respectively BIOS into floppy disk.
5. Insert the bootable disk into floppy drive and press Enter.
6. System will boot-up to DOS prompt.
7. Type “Awdflash xxxx.bf/sn/py/r” in DOS prompt.
(xxxx means BIOS name.)
8. System will update BIOS automatically and restart.
9. The BIOS has been recovered and will work properly.

GeForce 6100-M9
18
B. CPU Overheated
If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.
When the CPU is over heated, the motherboard will shutdown
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection
function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.
