J3710NH / J3160NH / J3060NH Setup Manual
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee that
interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the contents
here and specially disclaims any implied warranties of merchantability or fitness
for any purpose. Further the vendor reserves the right to revise this publication
and to make changes to the contents here without obligation to notify any party
beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and we
will not be responsible for any mistakes found in this user’s manual. All the brand
and product names are trademarks of their respective companies.
Dichiarazione di conformità
sintetica
Ai sensi dell’art. 2 comma 3 del D.M.
275 del 30/10/2002
Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive
2004/108/CE, 2006/95/CE e
1999/05/CE
quando ad esso applicabili
Short Declaration of conformity
We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives
2004/108/CE, 2006/95/CE and
1999/05/CE
whenever these laws may be applied

Table of Contents
Chapter 1: Introduction ...............................................................1
1.1 Before You Start......................................................................... 1
1.2 Package Checklist..................................................................... 1
1.3 Motherboard Specifications ....................................................... 2
1.4 Rear Panel Connectors ............................................................. 3
1.5 Central Processing Unit (CPU).................................................. 3
1.6 Motherboard Layout .................................................................. 4
Chapter 2: Hardware Installation................................................5
2.1 Connect Cooling Fans............................................................... 5
2.2 Install System Memory .............................................................. 5
2.3 Expansion Slots......................................................................... 7
2.4 Jumper Setting .......................................................................... 8
2.5 Headers & Connectors .............................................................. 9
Chapter 3: UEFI BIOS & Software.............................................13
3.1 UEFI BIOS Setup .................................................................... 13
3.2 BIOS Update ........................................................................... 13
3.3 Software................................................................................... 17
Chapter 4: Useful Help ..............................................................20
4.1 Driver Installation..................................................................... 20
4.2 AMI BIOS Beep Code.............................................................. 21
4.3 Troubleshooting....................................................................... 21
Appendix: SPEC In Other Languages......................................23
Arabic ......................................................................................................... 23
French ........................................................................................................ 24
German....................................................................................................... 25
Portuguese ................................................................................................. 26
Russian....................................................................................................... 27
Spanish....................................................................................................... 28
Thai............................................................................................................. 29

J3710NH/J3160NH/J3060NH
1
CHAPTER 1: INTRODUCTION
1.1 Before You Start
Thank you for choosing our product. Before you start installing the
motherboard, please make sure you follow the instructions below:
Prepare a dry and stable working environment with sufficient
lighting.
Always disconnect the computer from power outlet before
operation.
Before you take the motherboard out from anti-static bag,
ground yourself properly by touching any safely grounded
appliance, or use grounded wrist strap to remove the static
charge.
Avoid touching the components on motherboard or the rear
side of the board unless necessary. Hold the board on the
edge, do not try to bend or flex the board.
Do not leave any unfastened small parts inside the case after
installation. Loose parts will cause short circuits which may
damage the equipment.
Keep the computer from dangerous area, such as heat
source, humid air and water.
The operating temperatures of the computer should be 0 to
45 degrees Celsius.
To avoid injury, be careful of:
Sharp pins on headers and connectors
Rough edges and sharp corners on the chassis
Damage to wires that could cause a short circuit
1.2 Package Checklist
Serial ATA Cable x2
Rear I/O Panel for ATX Case x1
Installation Guide x1
Fully Setup Driver DVD x1
Note: The package contents may be different due to the sales region or models in which it was
sold. For more information about the standard package in your region, please contact your dealer
or sales representative.

Motherboard Manual
2
1.3 Motherboard Specifications
Specifications
CPU Support
J3710NH: Intel® Pentium® J3710 processor
J3160NH: Intel® Celeron® J3160 processor
J3060NH: Intel® Celeron® J3060 processor
Memory
Supports Dual Channel DDR3L-1600/1066 (1.35V~1.5V)
2x DDR3L SO-DIMM Memory Slot, Max. Supports up to 16 GB Memory
(Supports up to 8GB Memory for DDR3L-1600)
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3L module
* Please refer to www.biostar.com.tw for Memory support list.
Storage 2x SATA 6Gb/s Connector
Supports AHCI Mode
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec ALC662, 5.1 Channels, High Definition Audio
USB 6x USB 2.0 port (2 on rear I/Os and 4 via internal header)
4x USB 3.0 port (2 on rear I/Os and 2 via internal header)
Expansion Slots 1x PCIe 2.0 x1 Slot
Rear I/Os
1x PS/2 Mouse
1x PS/2 Keyboard
1x VGA Port
1x HDMI Port
1x LAN port
2x USB 3.0 Port
2x USB 2.0 Port
3x Audio Jack
Internal I/Os
2x SATA 6.0Gb/s Connector
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.0 Header (each header supports 2 USB 3.0 ports)
1x 24-Pin Power Connector
2x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x Printer Port Header
1x Serial Port Header
Form Factor Mini-ITX Form Factor, 170 mm x 170 mm
OS Support
Windows 7 (64bit)/ Windows 8.1 (64bit)/ Windows 10
Biostar reserves the right to add or remove support for any OS with or without
notice.

J3710NH/J3160NH/J3060NH
3

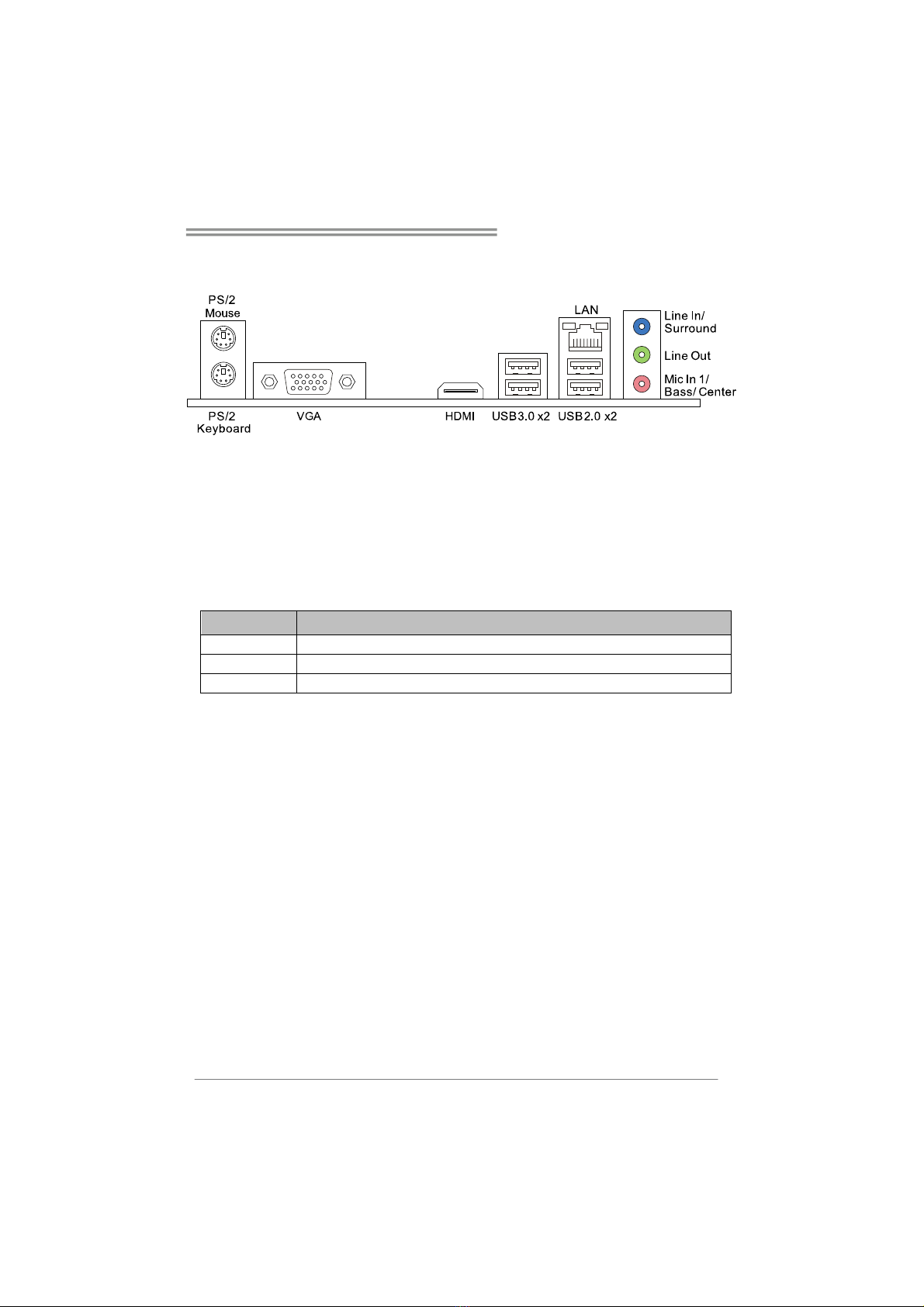

1.4 Rear Panel Connectors
Note 1: Since the audio chip supports High Definition Audio Specification, the function of
each audio jack can be defined by software. The input / output function of each audio jack
listed above represents the default setting. However, when connecting external microphone
to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.
Note 2: Maximum resolution:
HDMI: 1920 x 1080 @60Hz
VGA: 1920 x 1200 @60Hz
1.5 Central Processing Unit (CPU)
The motherboard is equipped with an onboard Intel procrssor and a CPU cooler.
Model Name: Onboard CPU:
J3710NH Intel® Pentium® J3710 processor (Quad Core, 2M Cache, up to 2.64 GHz)
J3160NH Intel® Celeron® J3160 processor (Quad Core, 2M Cache, up to 2.24 GHz)
J3060NH Intel® Celeron® J3060 processor (Dual Core, 2M Cache, up to 2.48 GHz)

Motherboard Manual
4
1.6 Motherboard Layout
Note: ■represents the 1st pin.

J3710NH/J3160NH/J3060NH
5
CHAPTER 2: HARDWARE INSTALLATION
2.1 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and
connector may be different according to the fan manufacturer. Connect the fan
cable to the connector while matching the black wire to pin#1.
SOC_FAN1/SYS_FAN1: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
Note: When connecting with wires onto connectors, please note that the red wire is the positive
and should be connected to pin#2, and the black wire is Ground and should be connected to
GND.

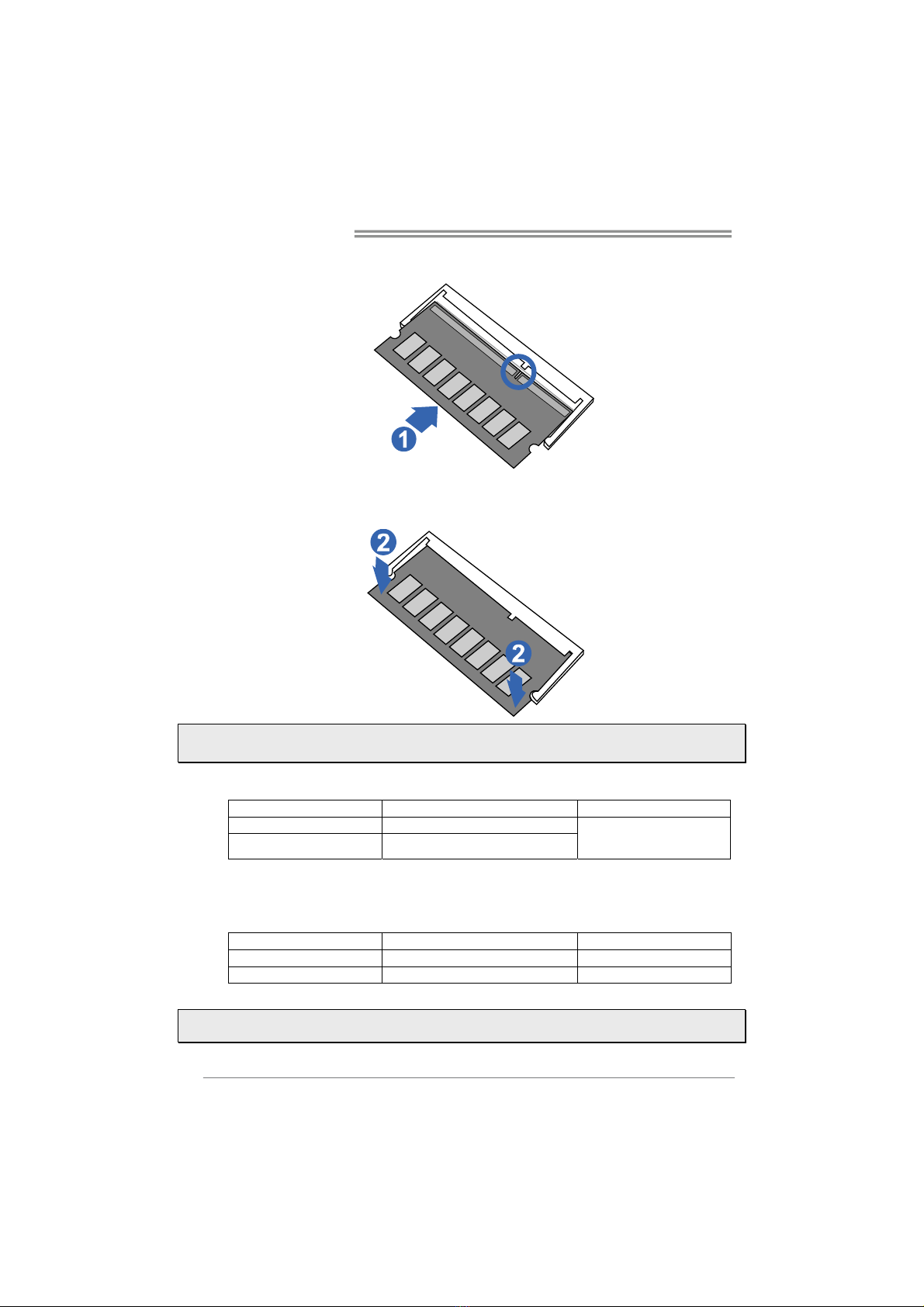

2.2 Install System Memory
A. DDR3L SO-DIMM Module (1.35V/1.5V)

Motherboard Manual
6
Step 1: Align a DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
Step 2: Insert the DIMM firmly into the slot until the retaining chip snap back in place
and the DIMM is properly seated.
Note1: The DIMM must be installed to DIMMA1(DDR3_A1) slot first.
Note2: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.
B. Memory Capacity
DIMM Socket Location DDR3L Module Total Memory Size
DIMMA1 512MB/1GB/2GB/4GB/8GB Max is 16GB
(Supports up to 8GB Memory
for DDR3L-1600)
DIMMB1 512MB/1GB/2GB/4GB/8GB
C. Dual Channel Memory Installation
Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status DIMMA1 DIMMB1
Disabled O X
Enabled O O
(O means memory installed, X means memory not installed.)
Note: When installing more than one memory module, we recommend to use the same brand and
capacity memory on this motherboard.

J3710NH/J3160NH/J3060NH
7

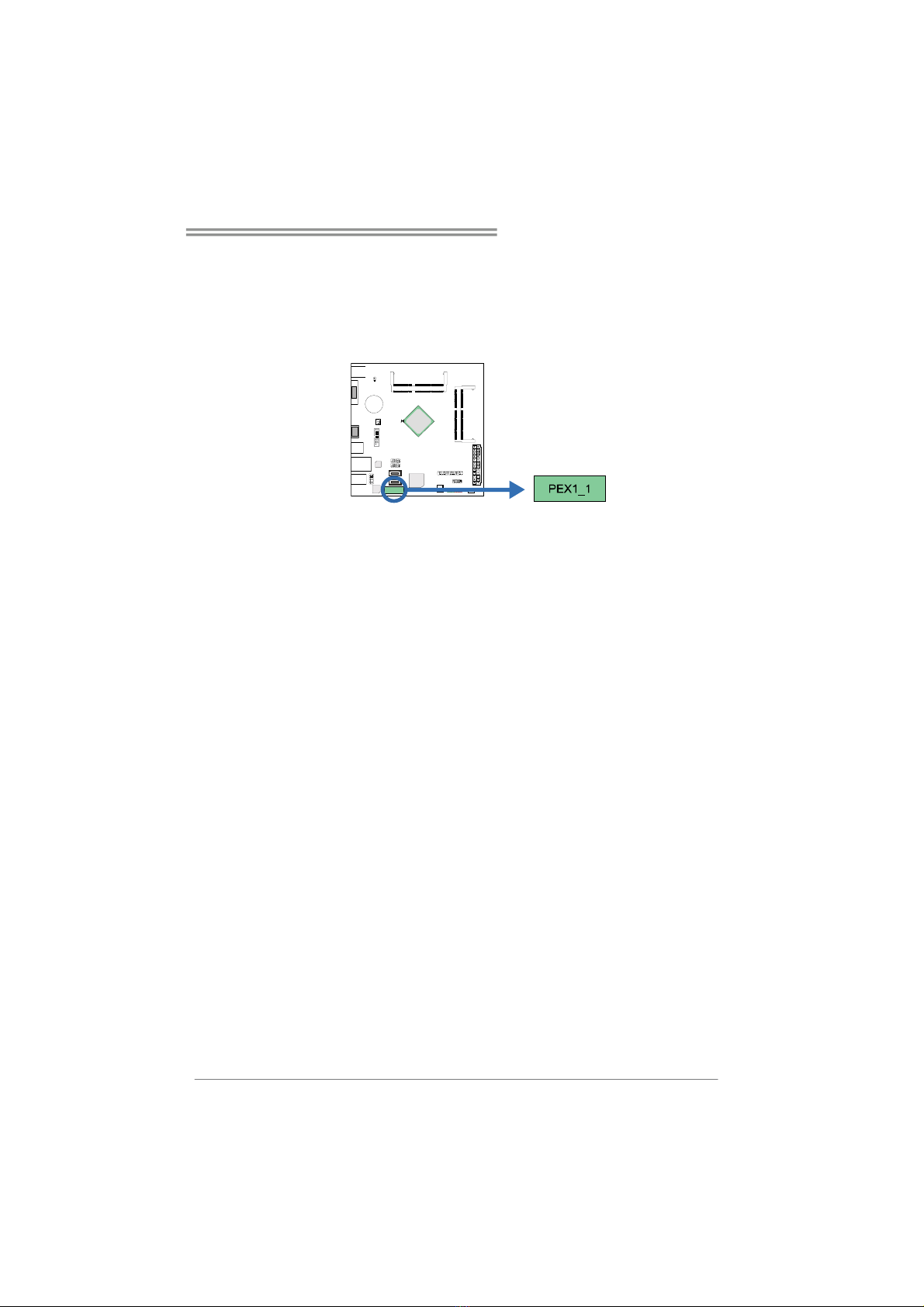

2.3 Expansion Slots
PEX1_1: PCI-Express Gen2 x1 Slot
-PCI-Express 2.0 compliant.
-Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.
Install an Expansion Card
You can install your expansion card by following steps:
1. Read the related expansion card's instruction document before install the
expansion card into the computer.
2. Remove your computer's chassis cover, screws and slot bracket from the
computer.
3. Place a card in the expansion slot and press down on the card until it is
completely seated in the slot.
4. Secure the card’s metal bracket to the chassis back panel with a screw.
5. Replace your computer's chassis cover.
6. Power on the computer, if necessary, change BIOS settings for the
expansion card.
7. Install related driver for the expansion card.

Motherboard Manual
8

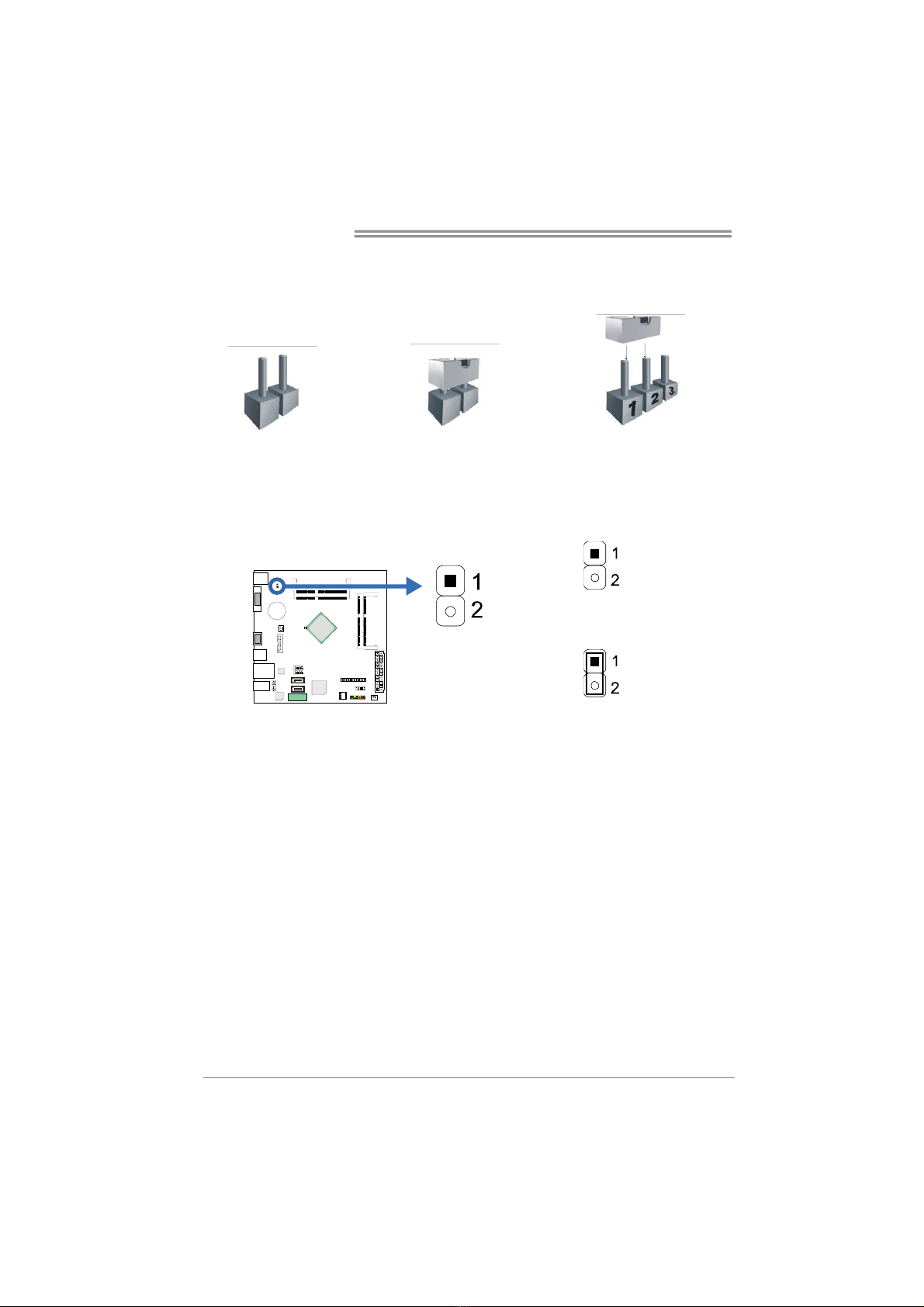

2.4 Jumper Setting
The illustration shows how to set up jumpers. When the jumper cap is placed on
pins, the jumper is “close”, if not, that means the jumper is “open”.
Pin opened Pin closed Pin1-2 closed
JCMOS1: Clear CMOS Jumper
The jumper allows users to restore the BIOS safe setting and the CMOS data.
Please carefully follow the procedures to avoid damaging the motherboard.
Pin 1-2 Open:
Normal Operation (default).
Pin 1-2 Close:
Clear CMOS data.
※Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 1-2 close”, you can use a metal object like a
screwdriver to touch the two pins.
3. Wait for five seconds.
4. After clearing the CMOS values, be sure the jumper is “Pin 1-2 open”.
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

J3710NH/J3160NH/J3060NH
9
2.5 Headers & Connectors
ATXPWR1: ATX Power Source Connector
For better compatibility, we recommend to use a standard ATX 24-pin power
supply for this connector. Make sure to find the correct orientation before plugging
the connector.
Pin Assignment Pin
A
ssignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V
Note1: Before you power on the system, please make sure the ATXPWR1 connector have been
plugged-in.
Note2: Insufficient power supplied to the system may result in instability or the peripherals not
functioning properly. Use of a PSU with a higher power output is recommended when configuring a
system with more power-consuming devices.
SATA1/2: Serial ATA Connectors
These connectors connect to SATA hard disk drives via SATA cables.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground

Motherboard Manual
10

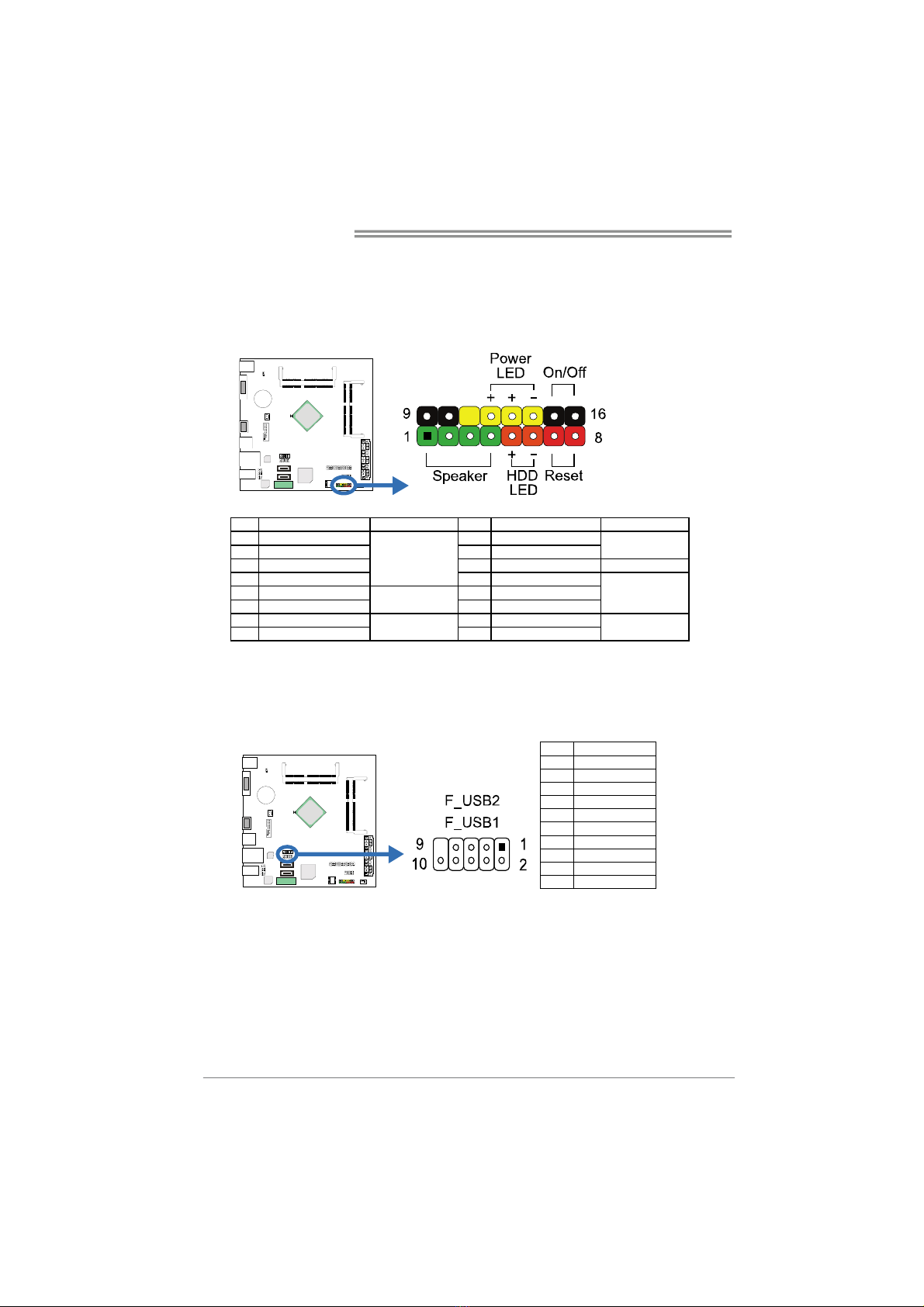

PANEL1: Front Panel Header
This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and
speaker connection. It allows user to connect the PC case’s front panel switch
functions.
Pin Assignment Function Pin Assignment Function
1 +5V
Speaker
Connector
9 N/A N/A
2 N/A 10 N/A
3 N/A 11 N/A N/A
4 Speaker 12 Power LED (+)
Power LED
5 HDD LED (+) Hard drive LED 13 Power LED (+)
6 HDD LED (-) 14 Power LED (-)
7 Ground Reset button 15 Power button Power-on button
8 Reset control 16 Ground
F_USB1/2: Header for USB 2.0 Ports at Front Panel
This header allows user to connect additional USB cable on the PC front panel,
and also can be connected with a wide range of simultaneously accessible
external Plug and Play peripherals.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
10 NC

J3710NH/J3160NH/J3060NH
11
JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel
This header allows user to connect additional USB cable on the PC front panel,
and also can be connected with a wide range of simultaneously accessible
external Plug and Play peripherals.
Pin Assignment Pin Assignment
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 Ground
4 Ground 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 Ground
7 Ground 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS1
10 ID 20 Key
F_AUDIO1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. This header supports HD and AC’97 audio front panel connector.
HD Audio AC’97
Pin Assignment Pin Assignment
1 Mic Left in 1 Mic In
2 Ground 2 Ground
3 Mic Right in 3 Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7 Front Sense 7 Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out
Note1: It is recommended that you connect a high-definition front panel audio module to
this connector to avail of the motherboard's high definition audio capability.
Note2: Please try to disable the "Front Panel Jack Detection" if you want to use an AC'97
front audio output cable. The function can be found via O.S. Audio Utility.
J_COM1: Serial Port Connector
The motherboard has a Serial Port Connector for connecting RS-232 Port.
Pin Assignment
1 Carrier detect
2 Received data
3 Transmitted data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
10 Key

Motherboard Manual
12
J_PRINT1: Printer Port Connector
This header allows you to connector printer on the PC.
Pin Assignment Pin Assignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key

J3710NH/J3160NH/J3060NH
13
CHAPTER 3: UEFI BIOS & SOFTWARE
3.1 UEFI BIOS Setup
The BIOS Setup program can be used to view and change the BIOS
settings for the computer. The BIOS Setup program is accessed by pressing
the <DEL> key after the Power-On Self-Test (POST) memory test begins
and before the operating system boot begins.
For further information of setting up the UEFI BIOS, please refer to the UEFI
BIOS Manual in the Setup DVD.
3.2 BIOS Update
The BIOS can be updated using either of the following utilities:
BIOSTAR BIOS Flasher: Using this utility, the BIOS can be updated from a
file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a
CD-ROM.
BIOSTAR BIOS Update Utility: It enables automated updating while in the
Windows environment. Using this utility, the BIOS can be updated from a file
on a hard disk, a USB drive (a flash drive or a USB hard drive), or a
CD-ROM, or from the file location on the Web.
BIOSTAR BIOS Flasher
BIOSTAR BIOS Flasher is a BIOS flashing utility providing you an easy and simple
way to update your BIOS via USB pen drive.
Note1: This utility only allows storage device with FAT32/16 format and single partition.
Note2: Shutting down or resetting the system while updating the BIOS will lead to system boot
failure.
Updating BIOS with BIOSTAR BIOS Flasher
1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.
3. Insert the USB pen drive that contains the BIOS file to the USB port.
4. Power on or reset the computer and then press <F12> during the POST process.
5. After entering the POST screen,
the BIOS-FLASHER utility pops
out. Choose [fs0] to search for the
BIOS file.

Motherboard Manual
14
6. Select the proper BIOS file, and a
message asking if you are sure to
flash the BIOS file. Click Yes to
start updating BIOS.
7. A dialog pops out after BIOS flash
is completed, asking you to restart
the system. Press the [Y] key to
restart system.
8. While the system boots up and the full screen logo shows up, press <DEL> key to
enter BIOS setup.
After entering the BIOS setup, please go to the Save & Exit, using the Restore
Defaults function to load Optimized Defaults, and select Save Changes and
Reset to restart the computer. Then, the BIOS Update is completed.
BIOS Update Utility (through the Internet)
1. Installing BIOS Update Utility from the DVD Driver.
2. Please make sure the system is connected to the internet before using this
function.
3. Launch BIOS Update Utility and
click the Online Update button on
the main screen.

J3710NH/J3160NH/J3060NH
15

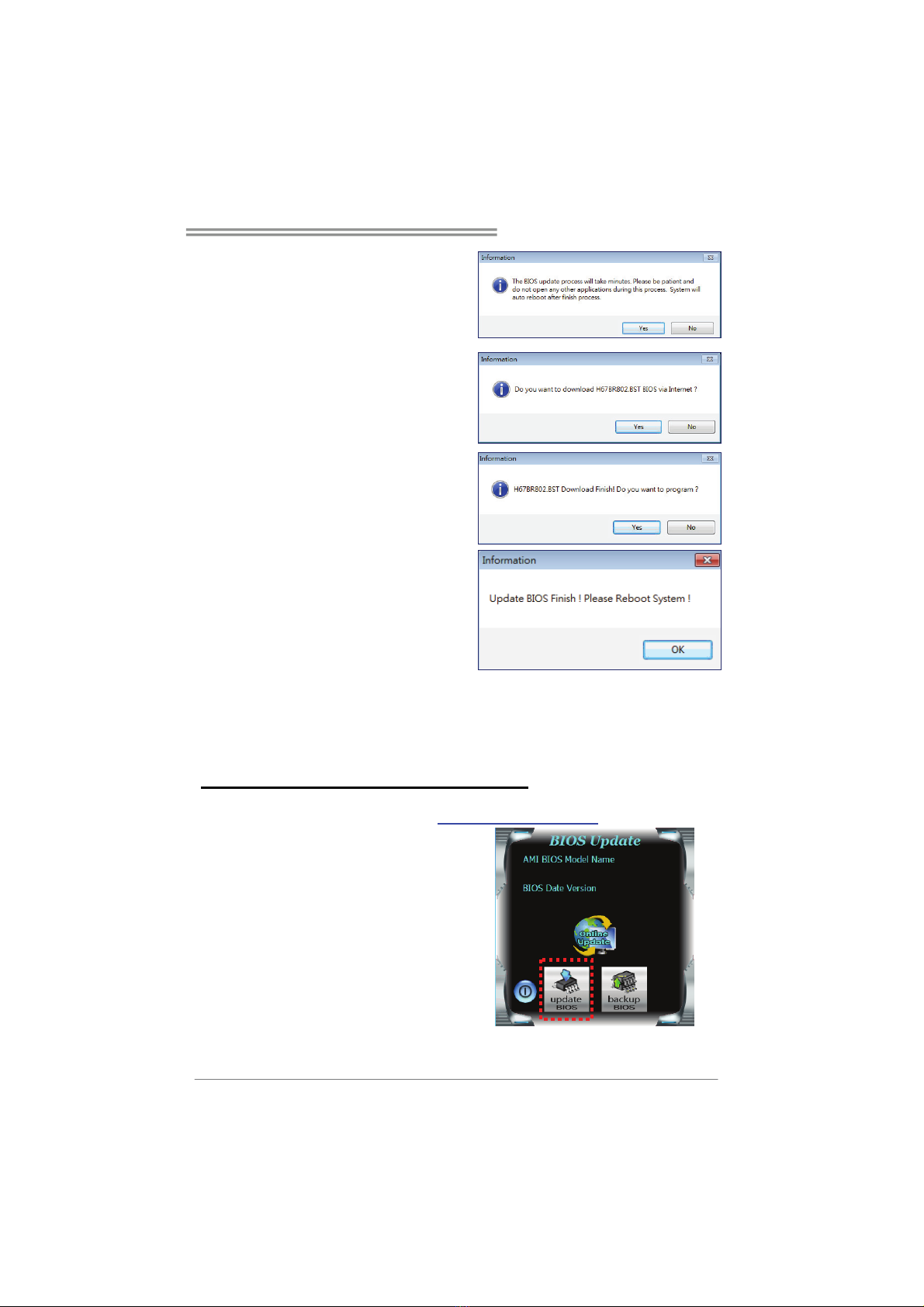

4. An open dialog will show up to
request your agreement to start the
BIOS update. Click Yes to start the
online update procedure.
5. If there is a new BIOS version, the
utility will ask you to download it.
Click Yes to proceed.
6. After the download is completed,
you will be asked to program
(update) the BIOS or not. Click Yes
to proceed.
7. After the updating process is
finished, you will be asked you to
reboot the system. Click OK to
reboot.
8. While the system boots up and the full screen logo shows up, press <DEL> key
to enter BIOS setup.
After entering the BIOS setup, please go to the Save & Exit, using the Restore
Defaults function to load Optimized Defaults, and select Save Changes and
Reset to restart the computer. Then, the BIOS Update is completed.
BIOS Update Utility (through a BIOS file)
1. Installing BIOS Update Utility from the DVD Driver.
2. Download the proper BIOS from http://www.biostar.com.tw/
3. Launch BIOS Update Utility and
click the Update BIOS button on
the main screen.

Motherboard Manual
16
4. A warning message will show up
to request your agreement to start
the BIOS update. Click OK to start
the update procedure.
5. Choose the location for your BIOS
file in the system. Please select
the proper BIOS file, and then
click on Open. It will take several
minutes, please be patient.
6. After the BIOS Update process is
finished, click on OK to reboot the
system.
7. While the system boots up and the full screen logo shows up, press <DEL> key
to enter BIOS setup.
After entering the BIOS setup, please go to the Save & Exit, using the Restore
Defaults function to load Optimized Defaults, and select Save Changes and
Reset to restart the computer. Then, the BIOS Update is completed.
Backup BIOS
Click the Backup BIOS button on
the main screen for the backup of
BIOS, and select a proper location
for your backup BIOS file in the
system, and click Save.

J3710NH/J3160NH/J3060NH
17
3.3 Software
Installing Software
1. Insert the Setup DVD to the optical drive. The driver installation program would
appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.
Launching Software
After the installation process is completed, you will see the software icon showing on
the desktop. Double-click the icon to launch it.
Note1: All the information and content about following software are subject to be changed without
notice. For better performance, the software is being continuously updated.
Note2: The information and pictures described below are for your reference only. The actual
information and settings on board may be slightly different from this manual.
BIOScreen Utility
This utility allows you to personalize your boot logo easily. You can choose BMP as
your boot logo so as to customize your computer.
Please follow the step-by-step instructions below to update boot logo:
Load Image：Choose the picture as the boot logo.
Transform：Transform the picture for BIOS and preview the result.
Update Bios：Write the picture to BIOS Memory to complete the update.

Motherboard Manual
18

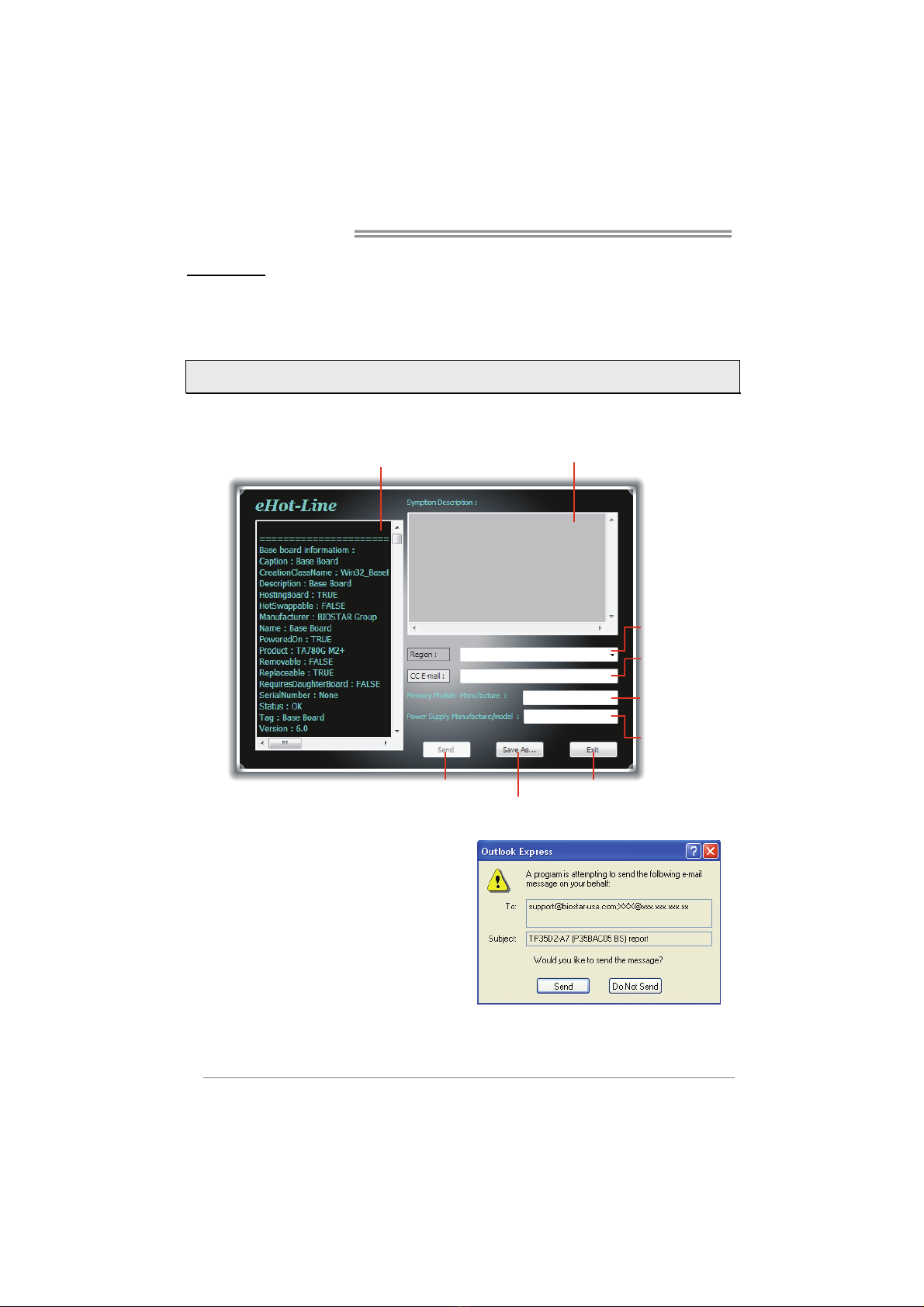

eHot-Line
eHot-Line is a convenient utility that helps you to contact with our Tech-Support system.
This utility will collect the system information which is useful for analyzing the problem you
may have encountered, and then send these information to our tech-support department
to help you fix the problem.
Note: Before you use this utility, please set Outlook Express as your default e-mail client
application program.
This block will show
the information which
would be collected in
the mail.
Provide the e-mail
address that you would
like to send the copy to.
Provide the name of
the power supply
manufacturer and the
model no.
Send the mail out.
Save these information to a .txt file
Exit this dialog.
Select your area or
the area close to you.
*
Provide the name of
the memory module
manufacturer.
*
Describe condition
of your system.
*
*
represents important
information that you
must provide. Without
this information, you may
not be able to send out
the mail.
After filling up this information, click
“Send” to send the mail out. A
warning dialog would appear asking
for your confirmation; click “Send” to
confirm or “Do Not Send” to cancel.
If you want to save this information to
a .txt file, click “Save As…” and then
you will see a saving dialog appears
asking you to enter file name.
