Bird Control Group AVIXLite User manual

User manual
The AVIX®Lite is a product of

User manual AVIX®Lite

User manual AVIX®Lite 1
1.2
2.1 2.2
G
H
FE
A B
1.1 1.3
General view AVIX Lite
C D
2.3

User manual AVIX®LiteUser manual AVIX®Lite
2
<500 mW
4.1
3.1
Z

User manual AVIX®Lite 3
EN
User manual AVIX®Lite
Thank you for your purchase of
the AVIX Lite
Bird Control Group offers silent and effective bird
control products. Our patented optical technology is
optimized to repel birds over long distances.
Package contents:
1 x AVIX Lite
2 x Safety key
1 x 18650 Rechargeable Li-ion battery (incl. PCM)
1 x Battery charger (including power cables EU,
UK and US)
1 x Storage box
Please keep this manual ready for future reference.
This manual and possible updates hereof are readily
available via the following link:
Explanation of general view (page 1)
ENGLISH
A Laser aperture
B Protection rubber
C Output indicator
D ON/OFF button
E Battery compartment
F 18650 Rechargeable Li-ion battery
G Screw cap
H ON/OFF button
Table of contents
1. Technical specications 4
2. Safety instructions 5
3. Functional use 6
4. Accessories 6
5. Maintenance 8
6. Warranty 9
7. Spare parts 9
8. Troubleshoot 9
Explanation of signal words
WARNING: Indicates a potentially hazardous
situation which, if not avoided, may result in death or
serious injury and/or property damage.
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate injury and/or property damage.
The “CE” mark indicates that this product complies with the applicable European Directives which
relate to health, safety, environmental and consumer protection.
avix.to/manuals
Scan the QR code and enter the following password to
access the digital manual:
Best-Bird-Control-Solutions!

User manual AVIX®Lite
4
AVIX Lite
Laser
class
power
wavelength
divergence
diameter at aperture
lifetime
NOHD
MPE
3B
40 - 80 mW
532 nm (green) continuous wave
0.1 - 0.5 mrad
25 - 30 mm
5,000 hours (under normal operating conditions)
60 m
25.4 W/m
2
(assumed exposure duration of 0.25 seconds)
Power source 1 x 18650 rechargeable Li-ion battery (incl. PCM)
Input voltage 3.7 VDC
Power consumption 2 W
Dimensions 196 (7.7) x 40 (1.6) x 40 (1.6) mm (in) (L x W x H)
Weight 200 g (7.1 oz.)
Operating temperature* -10 °C to 35 °C (14 °F to 95 °F)
1. Technical specications
Charger
Power input 100-240 VAC 50/60 Hz or 9~12 VDC (1 A)
Power output 4.35 VDC / 4.2 VDC / 3.7 VDC / 1.48 VDC (2 x 500 mA)
Dimensions 132 (5.2) x 70 (2.8) x 35 (1.4) mm (in) (L x W x H)
Weight 126 g (4.4 oz.)
Operating temperature -10 °C to 40 °C (32 °F to 104 °F)
Bird Control Group is not liable for the misuse of the
AVIX Lite and/or its accessories. Bird Control Group
has no control over the use, care, or maintenance of
the AVIX Lite once it is in the hands of a user; and as
such, accepts no liability for the use or misuse of the
AVIX Lite. Under no circumstance are Bird Control
Group, its partners, suppliers or employees liable for
losses, damages or expenses of any kind resulting
from: the use, misuse, or abuse of the AVIX Lite; or for
the user’s failure, willful or otherwise, to operate the
product in a correct and safe manner.
WARNING: Carefully read all safety warnings
and all instructions. Retain all safety warnings and all
instructions for future reference.
CAUTION: Prior to initial use of the product,
determine if additional laws and regulations are
applicable in your country or locale for use of the AVIX
Lite.
WARNING: Prior to use, perform a risk
assessment of the intended area of use and take
precautions or control measures as necessary.
*Optimal performance of the device is guaranteed when the product has a temperature around room-temperature.

User manual AVIX®Lite 5
EN
2. Safety instructions
WARNING: Avoid direct eye
exposure to the laser beam. Direct
eye exposure to the laser beam and
exposure to direct reections can result in serious eye
damage. Exposure of the eye to diffuse reection is
considered to be safe.
WARNING: Viewing the laser output with optical
instruments designed for use at a distance (for
example, telescopes or binoculars) may pose an eye
hazard.
WARNING: Consider use of protective eyewear
when using this product. The appropriate protective
eyewear or its specications can be provided by Bird
Control Group.
WARNING: This laser product is only to be used
in a controlled area and is for professional use only.
WARNING: Never direct the device to an area
where people are (or may be) present to prevent
hazardous laser exposure.
WARNING: The laser beam of the AVIX Lite may
cause dazzle or after images, particularly under low
ambient light conditions. These effects may have
indirect safety implications if experienced by users
during the performance of safety-critical operations.
CAUTION:
• User must complete laser safety training before
operating this product.
• The AVIX Lite is to be used by adults only.
• The AVIX Lite is to be used only for the purpose of
repelling birds.
• The AVIX Lite has no internal serviceable parts.
• To reduce the risk of injury, only use the supplied
battery.
WARNING: Operate only in undamaged
condition. Use of the product when damaged may
result in exposure to hazardous laser radiation.
WARNING: If the laser beam doesn’t switch off
when it is expected to, immediately take the following
actions:
1. Direct the device towards a nonreective surface
nearby (e.g. point towards the ground).
2. Carefully unscrew the screw cap and remove the
battery.
3. Place the product and its accessories into the
storage box.
4. Return the product to your local dealer or Bird
Control Group for investigation and repair.

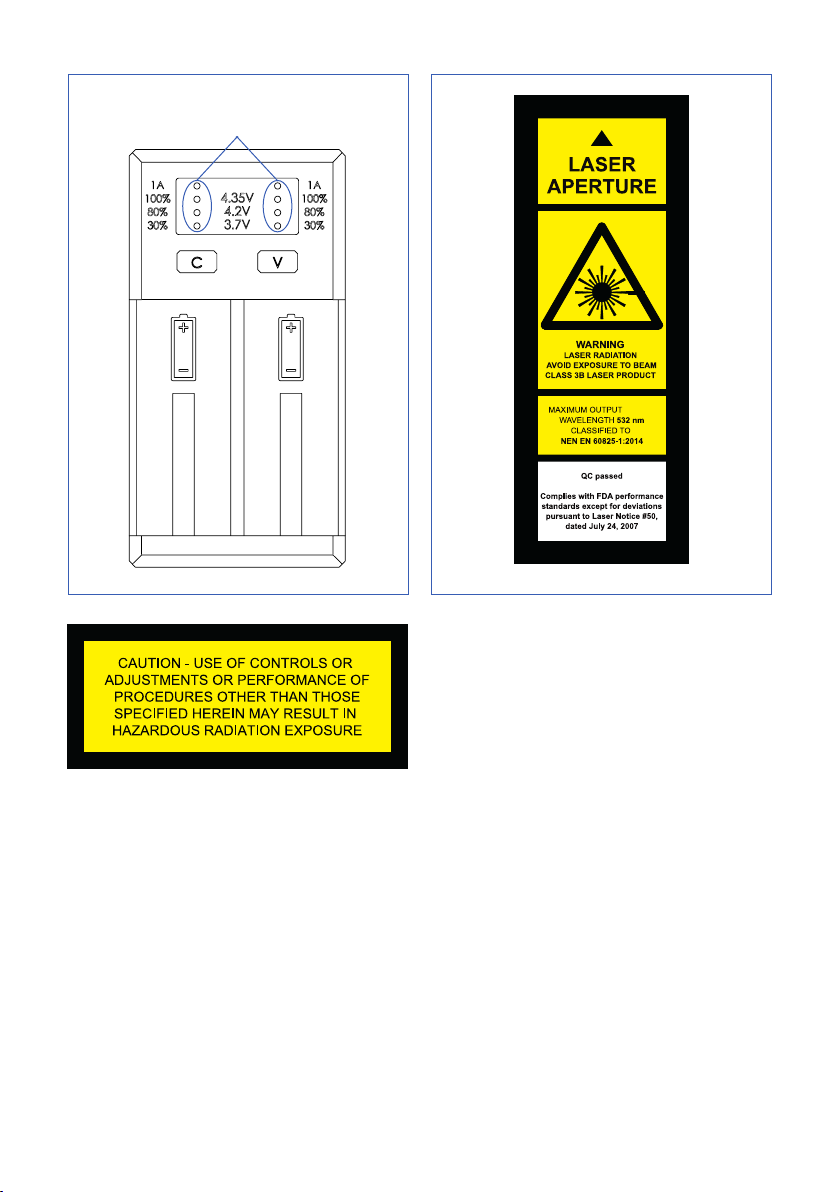

The safety label shown in gure 4.1 on page 2 of this
manual can be found on the bottom side of the AVIX
Lite body.
If a person experiences direct eye exposure to the
laser, this person should visit the assigned company-
doctor. If no company doctor is assigned, persons
should bring the applicable laser specications and
visit their own doctor.
CAUTION: The images below depict incorrect
use of the AVIX Lite. For your safety and the safety
others, study these images carefully before operating
the AVIX Lite.
Never project the laser device toward aircraft, water
vessels, or other vehicles.
Never project the laser device at humans.

User manual AVIX®Lite
6
Never project the laser device into the innite sky.
Never project the laser device towards reective
surfaces such as mirrors, windows and metallic
objects.
CAUTION: Projecting the laser device towards
water can cause distractions.
Contact your local dealer or Bird Control Group for any
questions related to product safety.
3. Functional use
Preparing for use
CAUTION:
• Point the laser toward the ground when inserting
the battery.
• Do not drop the product. The product may
malfunction if it is subjected to strong shocks or
vibration.
• Avoid sudden changes in temperature: Sudden
changes in temperature, such as those that occur
when entering or leaving a heated building on a
cold day, can cause condensation inside the device.
To prevent such condensation, keep the device in
the storage box until activating it for use.
Perform the following steps to replace the battery of
the AVIX Lite:
1. Make certain the rechargeable battery is charged.
2. Turn the screwcap counter-clockwise to open the
battery compartment (gure 1.1).
3. Insert the battery with the positive side facing the
screwcap (gure 1.2).
4. Turn the screw cap clockwise to close the battery
compartment (gure 1.3).
Using the AVIX Lite
CAUTION:
• The AVIX Lite is a mobile laser device intended only
for the purposes of repelling birds.
• Never project the laser into the eyes of birds or other
animals.
• When using the AVIX Lite, always adhere to the
safety precautions outlined in this document.
• The AVIX Lite is not suited for continuous use. Use
for short repelling actions only.
Perform the following steps to prepare the AVIX Lite
for active bird repelling:
1. Point the AVIX Lite toward the ground (gure 2.1)
2. Insert the safety key at the back of the device and
turn it clockwise to unlock the Handheld. (gure 2.2)
3. Switch on the AVIX Lite by pushing the ON/OFF
button (gure 2.3).
CAUTION: By pressing the ON/OFF button, the
laser is activated.
A
B
For effective bird repelling, project the laser dot on
the ground in front of you (A) and slowly move the dot
toward the birds (B). Make sure no vehicles, people
or reective objects are present between you and the
birds. The AVIX Lite should not be used like a gun, i.e.,
do not employ a “point and shoot” technique.
Weather conditions: The AVIX Lite is most effective
during night, sunrise, sunset, overcast, rainy or foggy
weather conditions.

User manual AVIX®Lite 7
EN
During bright weather conditions, make sure that the
birds are positioned between the user and the sun. If
not, bright sunlight could inhibit the repelling action.
Moisture: Ensure the AVIX Lite is kept dry. Remove
any surface moisture with a dry cloth.
Protected species: Local regulations may prohibit the
repelling of specic (protected) bird species. Always
consult relevant laws and regulations before using
the AVIX Lite.
4. Accessories
Battery charger
Use the included battery charger to recharge the
batteries.
1. Plug one end of the power cable or car charger
adapter to the charger’s power input. Plug the other
end of the cord into a wall outlet or the cigarette
lighter socket in your vehicle.
2. Insert the battery in the charger slot and make sure
the positive battery pole corresponds with the (+)
symbol on the charger (gure 6.1). Make sure that
solid contact is made between battery poles and
metal contact points. Once inserted, all the four
status indicators light up for two seconds (Z in
gure 6.1). Afterwards some of the lower status
indicators will turn off, with at least one indicator
blinking. This indicates that the battery is charging.
Charging is completed when the three lower (green)
status indicators are all continuously illuminated.
It takes 2 to 3 hours to fully charge an AVIX Lite
battery.
The charger monitors the charging status of the
battery and will stop charging when the battery is fully
charged. To ensure safe operation, the battery charger
is equipped with overcharge protection and reverse
polarity protection.
If a battery is inserted in reverse or if a defective
battery is inserted, all four status indicators will
continously blink.
CAUTION:
• Only one battery should be inserted per charger slot.
• Non-rechargeable batteries cannot be charged with
this battery charger.
• Use a power source corresponding to the voltage
specied on the nameplate of the charger.
• Do not charge the battery in presence of ammable
liquids or gases.
• Do not expose charger to moisture, water, rain, snow
or spray.
• Never carry the charger by the power cord or yank it
to disconnect from socket.
• After charging or before attempting any
maintenance or cleaning, unplug the charger from
the power source. Pull by plug rather than cord
whenever disconnecting the charger.
• Make sure the cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage or stress.
• Do not operate the charger with a damaged cord or
plug - replace these immediately.
• Only use the supplied power cables.
• Do not operate the charger or disassemble the
charger if it has received a sharp blow, been dropped,
or otherwise damaged in any way. Incorrect use or
reassembly may result in a risk of electric shock or
re.
• Do not charge a battery when temperature is below
-10°C (14°F) or above 40°C (104°F).
• Do not disassemble the charger. There are no user-
serviceable parts inside.
• Keep the charger and the power cord away from
children.

User manual AVIX®Lite
8
Battery
CAUTION:
• To prevent product malfunction, always insert the
battery using the correct orientation.
• Do not short circuit the battery.
• Misuse or abuse of the battery may result in leakage,
burns, re or explosion/disassembly resulting in
personal injury or damage to other devices.
• Eye contact with battery contents may cause severe
irritation. If the battery is leaking and material
contacts the eye, ush thoroughly with copious
amounts of running water for 15 minutes. Seek
immediate medical attention.
• Skin contact with battery contents may cause
irritation. If battery is leaking and material contacts
the skin, remove any contaminated clothing and
ush the exposed area with copious amounts of
running water. If irritation, injury or pain persists,
seek medical attention.
• Inhalation of vapors or fumes released from multiple
leaking batteries may cause respiratory and eye
irritation. A high concentration of fumes or vapor
may cause central nervous system effects including
headache, dizziness and nausea.
• Do not swallow batteries. Irritation to the internal/
external mouth area, may occur following exposure
to a leaking battery. If battery is leaking, contents
may be irritating to respiratory passages. Move to
fresh air. If irritation persists, seek medical attention.
• In case of re, use dry chemical, alcohol foam,
water or carbon dioxide as appropriate to extinguish
a re. In the initial stage of a re, carbon dioxide
extinguishers are typically more effective than water.
Fireghters should wear positive pressure self-
contained breathing apparatus and full protective
clothing. Fight re from a distance or protected
area. Batteries exposed to re must be cooled to
prevent rupture. Use extreme caution when handling
batteries that have been exposed to re as they may
explode or rupture.
5. Maintenance
Cleaning
Body
Use a soft dry cloth to remove dust and dirt from the
AVIX Lite. Do not use any liquids.
Important: Dust and other foreign matter
inside the AVIX Lite may cause damage not
covered under warranty.
Lens
Lenses are fragile, therefore remove dust and dirt only
with a cloth. To remove ngerprints and other stains,
apply a small amount of lens cleaner onto a cloth and
clean with care.
Storage
If the AVIX Lite will not be used for an extended
period of time, remove the battery prior to storage. To
prevent mold or mildew, store the AVIX Lite in a dry,
well-ventilated area.
Do not store your AVIX Lite in a location that is:
• Poorly ventilated or subject to humidity of over 60%.
• Next to equipment that produces strong
electromagnetic elds, such as televisions or radios.
• Exposed to temperatures above 65°C (149°F) or
below -20°C (-4°F).
Always store the AVIX Lite in the supplied storage
box. Always pack the AVIX Lite in the supplied storage
box for transport. Do not store the AVIX Lite in a
vehicle. Always store the battery, battery charger and
accessories in the supplied box.
Disposal
Do not dispose of the AVIX Lite, battery
charger or battery together with household
material. Recycle in accordance with the
regulations applicable to your location.
Always recycle batteries.

User manual AVIX®Lite 9
EN
6. Warranty
CAUTION: Any attempt to disassemble the
AVIX Lite, successful or otherwise, voids the product
warranty.
If you encounter defects, please contact your local
dealer or Bird Control Group. Should any defect
arise within the warranty period as a result of
production faults, free repair or replacement is
guaranteed. The AVIX Lite has a warranty period of
12 months, starting at the date of purchase. In case
of replacement, the warranty period of the original
product purchased will remain valid.
The warranty is invalid if:
• Water damage or damage due to falling or jolting
occurs.
• The serial number has been removed.
• Any repairs have been carried out by unauthorized
Individuals or companies.
• Any defects that occur as a result of misuse or use
in environments that are not prescribed.
• The defect is due to wear of replaceable parts, such
as batteries.
7. Spare parts
The following spare parts are available from your local
dealer or Bird Control Group:
Spare parts
18650 Rechargeable Li-ion battery (incl. PCM)
Screw cap
Battery charger
8. Troubleshoot
AVIX Lite
Check the following if the AVIX Lite appears non-
functional:
• Is the ON/OFF button activated?
• Is the battery charged?
• Is the battery inserted in correct orientation (as
shown in gure 1.2)?
• Is the safety key inserted into the screw cap and
turned?
Battery charger
Check the following if the battery is not charging:
• Is the power cable connected to the charger’s power
input?
• Is the power cable also connected to the wall outlet
or the cigarette lighter socket?
• Is the battery inserted in the correct orientation? The
positive battery pole should correspond with the (+)
symbol on the charger.
• Is solid contact made between the pole of the battery
and the metal contact point of the charger?
• Does the LED-indicator blink when the battery is
inserted?
Contact your local dealer or Bird Control Group for
questions concerning the AVIX Lite or its
accessories.

AVIX Lite is a product of Bird Control Group.
Bird Control Group
Headquarters
Molengraaffsingel 12
2629 JD Delft
The Netherlands
T+ 31 23 230 2030
E[email protected]
Wwww.birdcontrolgroup.com
North American Oce
27350 SW 95th Ave. Suite 3022
Wilsonville, OR 97070
United States
T+1-844-406-9280 (toll-free)
CONFIDENTIAL
Published by Bird Control Group
August 20th, 2020 - Rev. A.0
