Barbie™Real Vacuum
USER’S GUIDE
Safety Instructions
3
Product View
4
Assembly
4-5
5-6
Troubleshooting
7
Replacement Parts
7
Warranty
8
The Barbie™Real Vacuum is
intended for children 6 years
and older. Adult supervision
Recommended.
Model 3600 Series

2
Thanks for buying a Barbie™Real Vacuum
We’re glad you purchased a Barbie™Real Vacuum. Everything we know
about floor care and cleaning went into the design and construction of this
handy appliance.
Your Barbie™Real Vacuum is well made, and we back it with a
limited one-year warranty. We also stand behind it with a knowledgeable,
dedicated Consumer Services Department, so, should you ever have a
problem, you’ll receive fast, considerate assistance.
My great-grandfather invented the floor sweeper in 1876. Today,
BISSELL is a global leader in the design, manufacture, and service of high
quality homecare products like your Barbie™Real Vacuum.
Thanks again, from all of us at BISSELL.
Mark J. Bissell
President and Chief Executive Officer

3
IMPORTANT SAFETY INSTRUCTIONS
■Do not use for any purpose other than
described in this User’s Guide.
■ Use only manufacturer’s recommended
attachments - use of attachments not
provided or sold by BISSELL may cause
fire, electric shock or injury.
■ Use only the DC adapter supplied by
BISSELL to recharge your Barbie™Real
Vacuum.
■ Use charger unit only in standard electrical
outlet (120v - 60hz).
■ Keep openings free of dust, lint, hair, etc.
■ Disconnect Barbie™ Real Vacuum from
DC adapter before maintenance or cleaning.
■ Be extra careful when cleaning stairs.
This portable hand vacuum contains
rechargeable nickel cadmium batteries. Do
not incinerate batteries or they will explode
when exposed to high temperatures.
Battery cell leaks can occur under extreme
conditions. If battery cell liquid comes in
contact with the skin:
■ Wash immediately with soap and water.
Then . . .
■ Neutralize with a mild acid such as
vinegar or lemon juice.
If battery cell liquid gets into the eyes:
■ Flush immediately with clean water for a
minimum of 10 minutes.
■ Seek medical attention.
SAVE THESE INSTRUCTIONS.
This model is for household use only.
Read all instructions before allowing your
child to use the BARBIE™REAL VACUUM.
WARNING: When using an
electrical appliance, basic precautions
should be observed, including the following:
■ Parental supervision recommended.
■ Store indoors.
■Do not expose to rain.
■Do not immerse or use on wet surfaces.
■Do not handle with wet hands.
■Do not use Barbie™Real Vacuum if it
has been dropped, damaged, left
outdoors or dropped into water - return
it to a Service Center.
■Do not damage the charging cord. Never
carry or pull by the cord, use cord as a
handle, close door on cord, or pull cord
around sharp edges or corners. Keep cord
away from heated surfaces.
■Do not use an extension cord. DC adapter
should plug directly into electrical outlet.
■Do not put any object into appliance openings,
or restrict air flow.
■Do not use with any opening blocked.
■Do not use without filter in place.
■Do not pick up hot, burning or smoking objects
such as cigarettes, matches or hot ashes.
■Do not pick up flammable or combustible
materials (lighter fluid, gasoline, kerosene,
etc.) or use in the presence of explosive
liquids or vapor.
■Do not use appliance in an enclosed
space filled with vapors given off by oil
base paint, paint thinner, some moth
proofing substances, flammable dust, or
other explosive or toxic vapors.
■Do not pick up toxic material (chlorine bleach,
ammonia, drain cleaner, gasoline, etc.).

4
WARNING:
Electric/electronic appliances
should not be subjected to extreme
temperatures or high humidity. Do
not store the Barbie™Real Vacuum
in bathing areas or close to stoves,
furnaces or radiators.

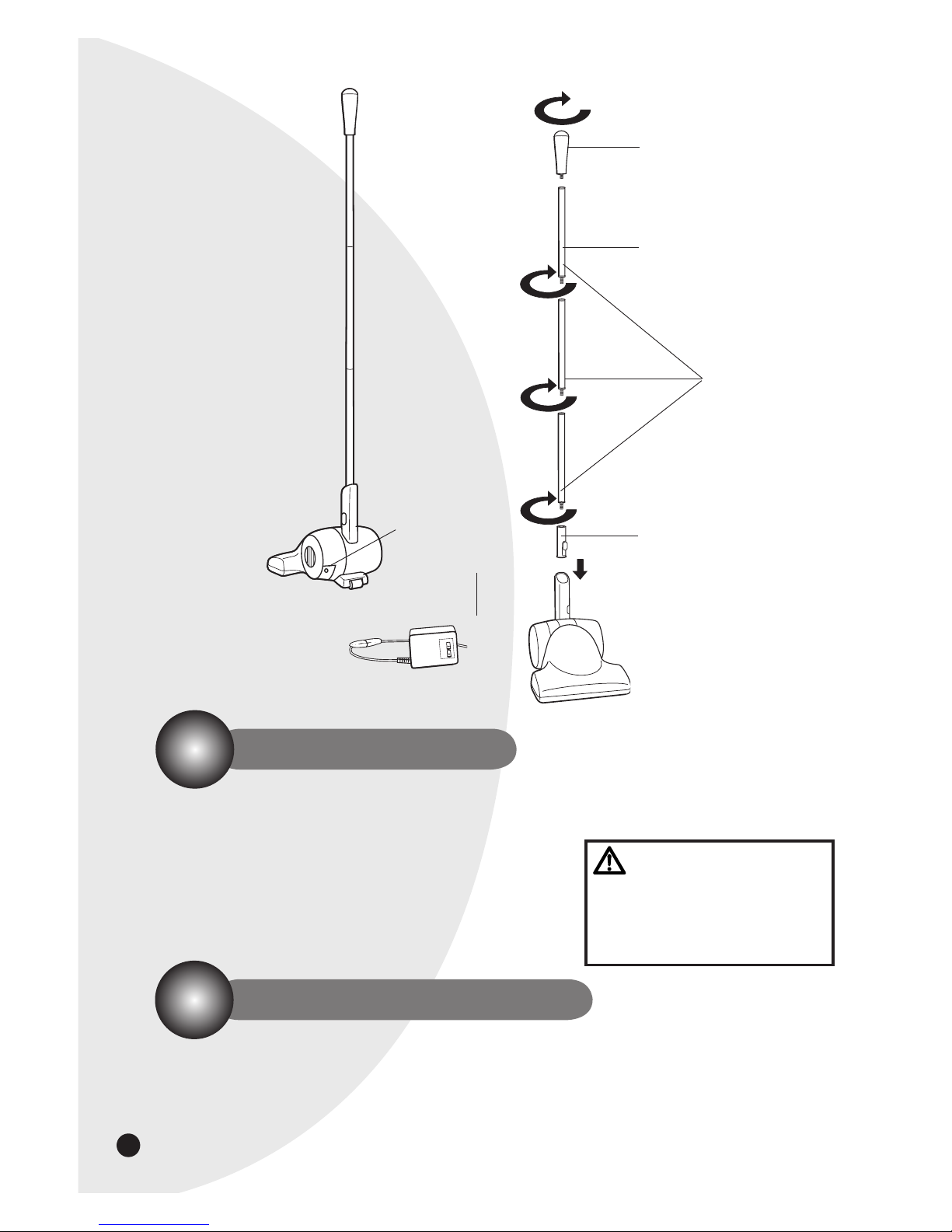

Handle
Assembly
Handle
Grip
Charging Port
Dust Cup
Metal
Extension
Handle
D-Shaped End
DC Adapter
This User’s Guide has been designed to help you and your child
get the most satisfaction from the rechargeable Barbie™Real
Vacuum. Enclosed you’ll find assembly instructions, tips for all
cleaning tasks, safety precautions, plus maintenance and
troubleshooting instructions.
Please read this Guide thoroughly before using your Barbie™
Real Vacuum. Pay particular attention to the parts diagram,
assembly instructions and part names. Following the Guide will
greatly enhance your ability to get the most performance from
your Barbie™Real Vacuum for many years.
Adult Assembly Required.
The Barbie™Real Vacuum requires very little assembly. Remove
it from the box and check it against the illustration to familiarize
yourself with the components listed. The exploded view drawing
with part names will also be helpful if you should need to order
a part at a later time.
How To Use This Guide
How to Assemble the Barbie™Real Vacuum

5
6
Bottom View
Rotating Brush
Dust Blade
5

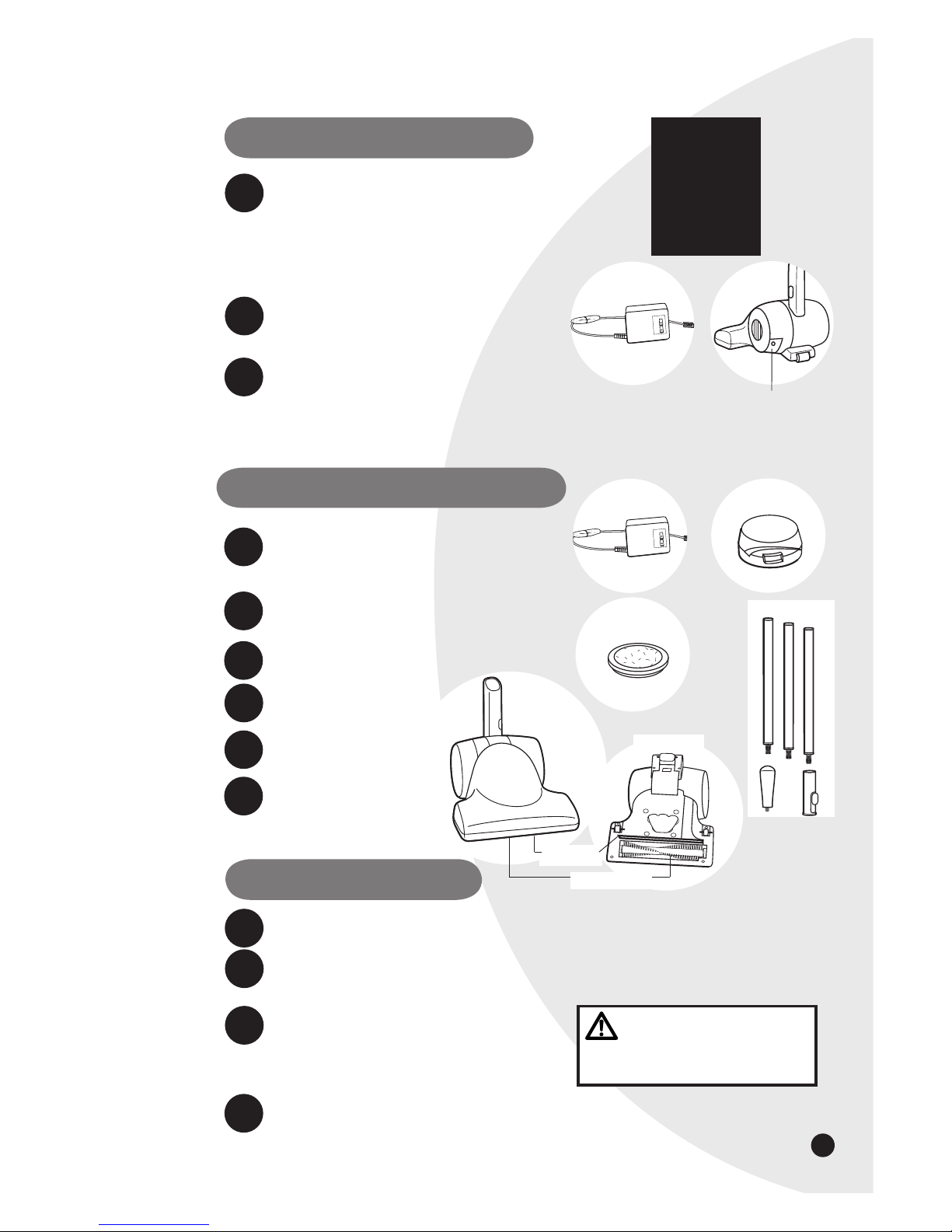

Assemble the Handle by screwing together two (2)
pieces of the Metal Extension Handle. To lengthen, use
all three (3) pieces of the Metal Extension Handle. Place
the colored Handle Grip on top of the metal extension
assembly and twist clockwise until secure. Screw the
D-shaped End into the bottom of the Metal Extension
Handle assembly.
Place bottom D-shaped End into the D-shaped opening
at the top of the Barbie™Real Vacuum. Push firmly until
the button at the bottom “clicks” into place in the opening.
The Barbie™Real Vacuum must be fully charged before
using. To charge the unit, plug the DC Adapter into a
standard electrical outlet (120v-60hz); plug the opposite
end into the port on the Motor side of your Barbie™Real
Vacuum. The Barbie™Real Vacuum is now charging.
Charging Cord with DC Adapter Plug - DC Adapter
plugs into standard electrical outlet (120v - 60hz);
plug opposite end into port on Motor side of Barbie™
Real Vacuum.
Dust Cup - Press and turn to securely lock.
Washable Filter - Fits inside Dust Cup.
Metal Extension Handle
(five pieces).
Rotating Brush.
Dust Blade.
When completely charged, the Barbie™Real Vacuum
provides over 12 minutes of full cleaning power.
When charging for the first time, allow to charge
uninterrupted for at least 24 hours. Thereafter, a 12 -16
hour charge will renew the Barbie™Real Vacuum battery.
Decreased operating time may indicate that the battery has
built up a charging resistance. To recharge, first completely
exhaust the battery, recharge it, then exhaust it again before
recharging a second time. This procedure may be required
more than once.
When not charging, be sure to unplug the Barbie™Real
Vacuum from the charger.
1.
2.
3.
Quick and Easy Assembly Tip:
The Barbie™Real
Vacuum should
be plugged into
an electrical outlet
by an adult.
Plug into Port on the
Motor side of the
Barbie™Real Vacuum
Model 3600
Charging Cord with
DC Adapter Plug
1.
Components
2.
3.
12
3
4.
5.
6.
4
Charging the Battery
1.
2.
3. WARNING TO PARENTS:
Barbie™Real Vacuum will not
pick up crayons, marbles, and
other large or hard objects.
4.

6
Charging the Battery – Continued
If your battery still fails to recharge or does not hold a charge of
normal duration, call:
BISSELL Consumer Services
1-800-237-7691
Monday - Friday 8 a.m. — 10 p.m. ET
Saturday 9 a.m. — 8 p.m. ET
Or visit our website @ www.bissell.com

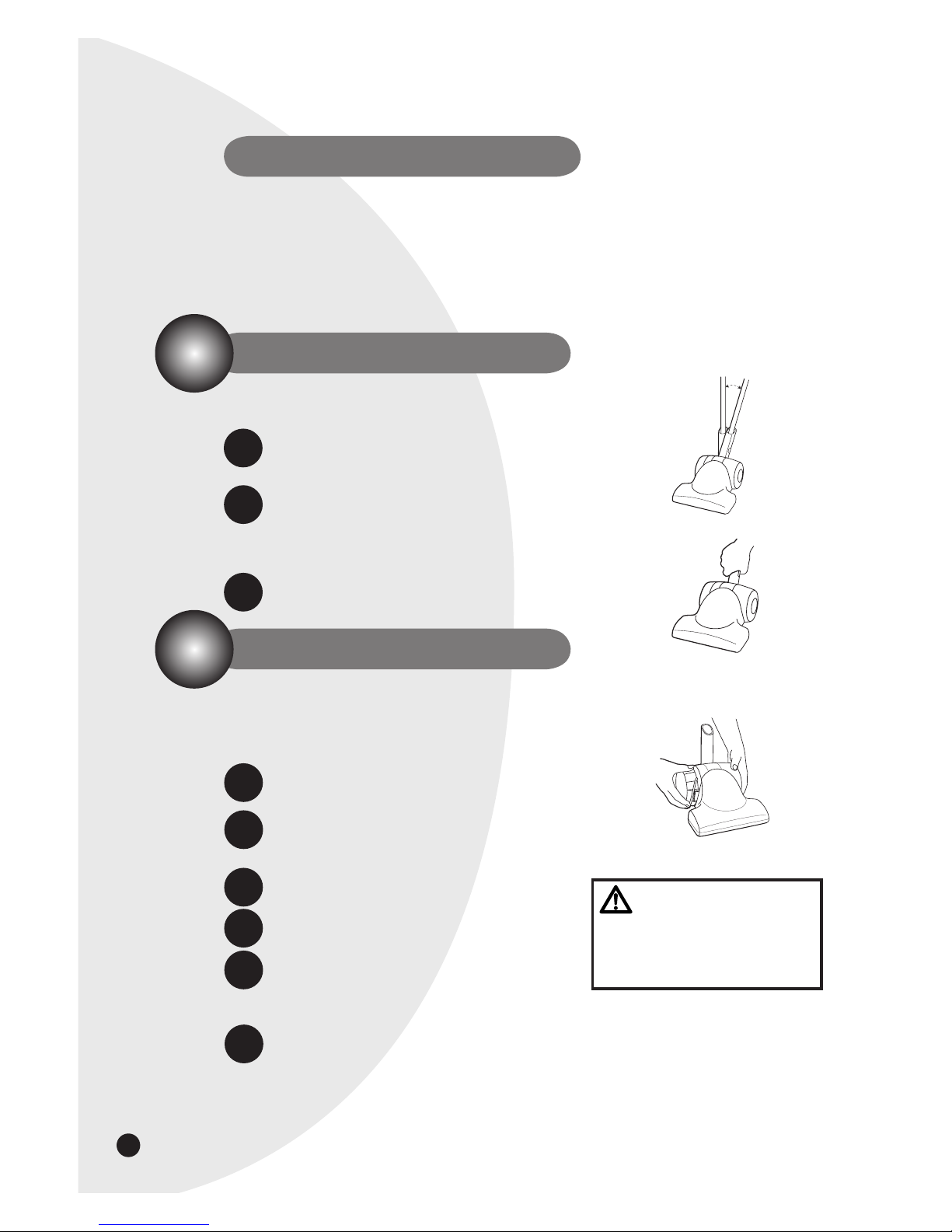

The Barbie™Real Vacuum is a quick and easy way for your child
to keep her/his room and home clean!
Tip back the Handle into typical use position and your
Barbie™Real Vacuum turns on by itself. To turn Barbie™
Real Vacuum off, return Handle to upright position.
To clean small areas, detach the Handle by depressing
the button where the bottom of the Handle slides into the
Barbie™Real Vacuum and pull the entire Handle assembly
out. Use the Barbie™Real Vacuum by holding the built-in
hand grip.
When done, replace the Handle (if detached) and store
for the next use.
The key to maximum performance is emptying the Dirt Cup
frequently and cleaning the Filter. Emptying the Dirt Cup after
each use, and cleaning the Filter periodically, will help your
Barbie™ Real Vacuum operate at peak efficiency. This proce-
dure should be done by an adult and not the child.
Make sure that the Barbie™Real Vacuum is in the “OFF” position.
With Barbie™Real Vacuum facing away from you, grasp
Dust Cup in right hand and turn it toward you (toward
the back of the Barbie™Real Vacuum).
Carry the Dust Cup, with filter in place, to a waste container.
Remove Filter, empty debris, then replace Filter in Dust Cup.
Replace Dust Cup by placing it in position and turning it
away from you until it fits securely.
Clean exterior surfaces with a soft cloth dampened with water
only. Do not use a strong detergent or other cleaner - this
may damage the finish. Always unplug the Barbie™Real
Vacuum from the electrical outlet before cleaning the surface.
After heavy usage, you may clean the Filter by gently rinsing it
in a bowl of water and mild dish detergent. Rinse thoroughly
under running water and make certain it is completely dry
before replacing it. You may also purchase replacement Filters.
Use only BISSELL Filters in the Barbie™Real Vacuum.
If the Filter becomes damaged or becomes too dirty
to wash, you may purchase new filters by calling
BISSELL Consumer Services.
1.
2.
3.
1.
2.
3.
4.
5.
WARNING:
Never operate the Barbie™
Real Vacuum without the
Filter in place. Doing so may
damage the motor and void
the warranty.
Maintenance
On
Off
6.
How To Use Your Barbie™Real Vacuum

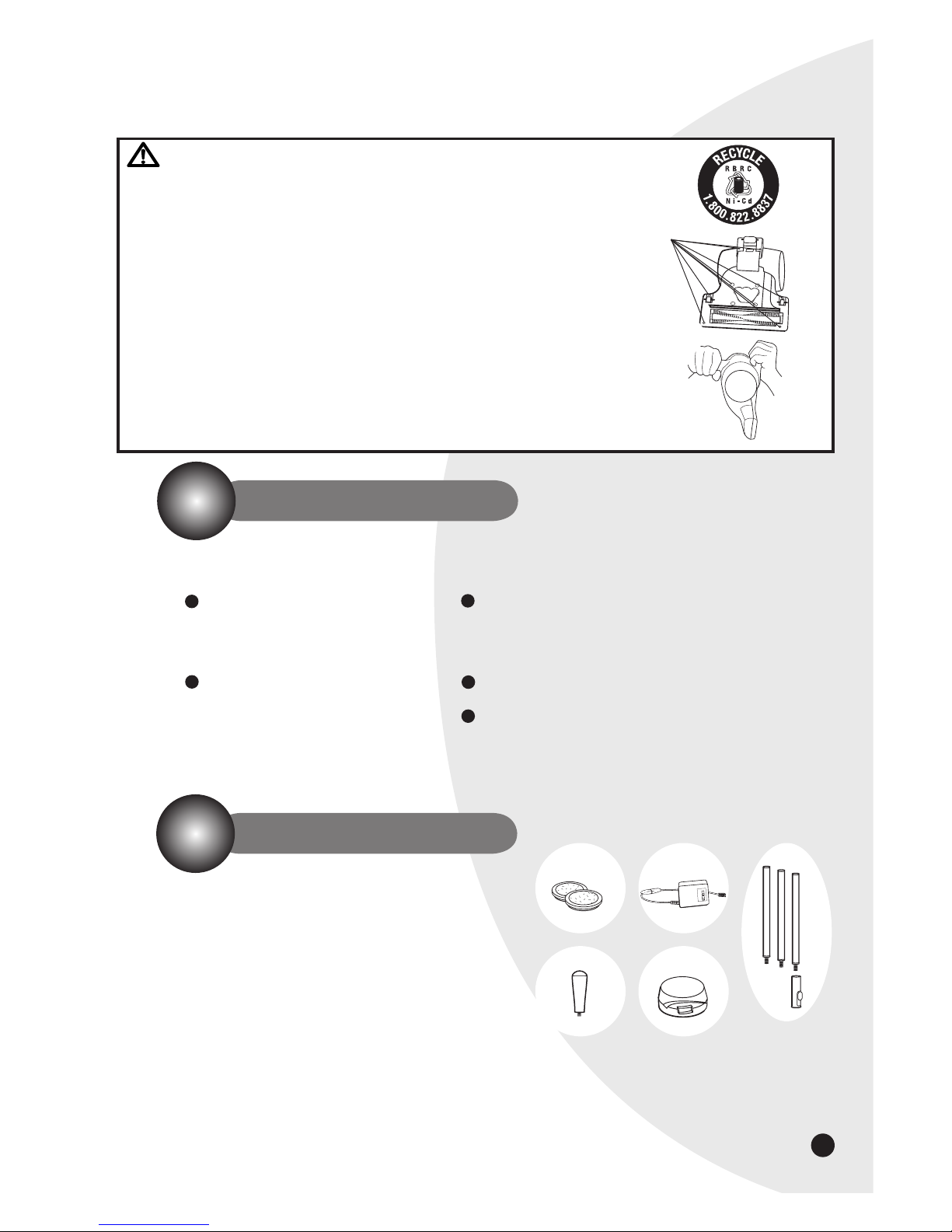

WARNING: This product contains a nickel-cadmium (Ni-Cd) rechargeable
battery pack. According to Federal and State regulations, removal and proper
disposal of Ni-Cd batteries is required. For removal of the battery pack in your
Barbie™Real Vacuum, see instructions below:
1. IMPORTANT: Unplug charger.
2. Remove Handle and Dust Cup.
3. Remove (8) Phillips head screws on the bottom cover as shown in picture.
4. Separate top and bottom cover by applying outward force as shown in picture.
5. Remove wire connectors from the battery pack.
6. Keep Battery Pack together - DO NOT separate individual batteries.
For specific disposal instructions of batteries, please contact:
RBRC (Rechargeable Battery Recycling Corporation) 1-800-822-8837 or
visit the website: www.rbrc.com
7. Discard remainder of product.
Caution: Opening the unit will destroy the appliance and invalidate the warranty.
7
Troubleshooting
Reduced Suction/No Suction.
Possible Causes Remedies
Filter is full Empty debris from Filter and clean.
Not Powered/Underpowered.
Possible Causes Remedies
Barbie™Real Vacuum not charged thoroughly Make sure Barbie™Real Vacuum has been properly
plugged into an outlet for the recommended amount of time.
See Charging the Battery on page 5.
If suggested solutions for this or any function of the Barbie™Real Vacuum do not correct the problem, call BISSELL
Consumer Services.
Item Part No. Part Name
1 203-3540 Filter (2 Pack)
2 204-1100 DC Adapter
3 203-4480 Metal Extension Handle (4 Sections)
4 204-1132 Handle Grip
5 203-0660 Dust Cup
Note To Parents: To order replacement parts using
Discover, American Express, VISA®
or MasterCard®call:
BISSELL Consumer Services
1-800-237-7691
Monday - Friday 8 a.m. — 10 p.m. ET
Saturday 9 a.m. — 8 p.m. ET
Or visit our website @ www.bissell.com
11
11
Replacement Parts
See the following instructions to dispose of the batteries after they have exceeded the battery life.
An adult must always remove and dispose of the batteries.
8 Screws
2
123
45

8
©2005 BISSELL Homecare, Inc
Grand Rapids, Michigan
All rights reserved. Printed in China
Part Number 010-2466
Rev 1/05
Parents may visit our website at:
www.bissell.com
This warranty gives you specific legal rights, and you may also have other rights which may vary from state to
state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please
contact BISSELL Consumer Services by e-mail, telephone, or regular mail as described below.
Limited One Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product, BISSELL Homecare,
Inc. will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge
from the date of purchase by the original purchaser, for one year any defective or malfunctioning part.
See information below on "If your BISSELL product should require service".
This warranty applies to product used for personal, and not commercial or rental service. This warranty does not
apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction caused by
negligence, abuse, or use not in accordance with the User's Guide is not covered.
If your BISSELL product should require service:
Parents should call BISSELL Consumer Services at the number listed below or visit the BISSELL website - www.
bissell.com to locate a BISSELL Authorized Service Center in your area.
-- The machine should be returned with a photocopy of your proof of purchase. (Your dated sales receipt is your
warranty - do not send original.)
If you need information about repairs or replacement parts, or if you have questions about your warranty, contact
BISSELL Consumer Services.
Website or E-mail:
www.bissell.com
Use the “Customer Services” tab.
Or Call:
BISSELL Consumer Services
1-800-237-7691
Monday - Friday 8 a.m. - 10 p.m. ET
Saturday 9 a.m. - 8 p.m. ET
Or Write:
BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids MI 49501
ATTN: Consumer Services
BISSELL HOMECARE INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE
ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE PURCHASE
PRICE OF THE PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you.
*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER
ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION
OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION
FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.
Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
Warranty
Barbie is a trademark owned by and used under license from Mattel, Inc.
© 2004 Mattel, Inc. All rights reserved.
