KEYNFORMAT ON YOU SHOULD KNOW:
•Chargebattery for 9 hours before first use.
• DO NOT OV R-T NSION CHAIN. Refer to "ADJUSTING
CHAIN T NSION" for proper methodof tensioningchain.
•Retightenchainfrequently duringfirst two hours of use.
Catalog Number NPP2018
VEA EL ESPAÑOL EN LA CONTRAPORTADA.
POUR LE FRANÇAIS, VOIR LA COUVERTURE ARRIÈRE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
INSTRUCTIVO D OP RACIÓN, C NTROS D S RVICIO Y
PÓLIZA D GARANTÍA. ADVERTENCIA: LÉAS ST
INSTRUCTIVO ANT S D USAR L PRODUCTO.
Cord ess Po e Saw
INSTRUCTION MANUAL
Thank you for choosing Black & Decker! Go to
www.BlackandDecker.com/NewOwner
to register your new product.
PLEASE READ BEFORE RETURNING
THIS PRODUCT FOR ANY REASON:
If you hav a qu stion or xp ri nc a probl m
with your Black & D ck r purchas , go to
HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS
If you can’t find th answ r or do not hav acc ss to th int rn t,
call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. -- Fri. to sp ak
with an ag nt. Pl as hav th catalog numb r availabl wh n you call.
for instant answ rs 24 hours a day.

2
IMPORTANT SAFETY RULES
WARNING: Read and understand all instructions. Failure to
follow all instructions listed below may result in electric shock, fire
and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Before Operating Pole Saw
• For safe operation, read and understand all instructions before
using the Pole Saw. Follow all safety instructions. Failure to follow
all safety instructions listed below, can result in serious personal
injury.
• Watch what you are doing. Use common sense. Do not operate
Pole Saw when you are tired.
• Use Pole Saw for cutting wood only. Do not use Pole Saw for
purpose not intended. Do not use for cutting non-wood items.
• Only well-instructed adults should operate Pole Saw. Never allow
children to operate.
• Do not allow children or untrained individuals to use this unit.
• Wear the following safety gear when operating Pole Saw:
- heavy-duty gloves
- steel-toed safety footwear with non-skid soles
- safety glasses, goggles or face screen that are marked to
comply with ANSI Z87
- safety hard hat
- ear mufflers or ear plug
- face or dust mask (if working in dusty areas)
• Wear heavy long pants and boots. Do not wear loose fitting
clothing, short pants, jewelry of any kind, or go barefoot.
• Secure long hair so it is above shoulder level to prevent
entanglement in any moving parts.
• Before cutting, always provide the following:
- clear work area
- secure footing
- planned retreat path from falling limbs
• Inspect tree before trimming. Make allowance for branches to fall
freely to the ground.
• Do not use your Pole Saw to fell saplings.
While Operating Pole Saw
• Stay alert. Use common sense while operating the unit.
• Keep work area clean. Cluttered areas invite injuries.
• Keep children, animals and bystanders at least 50 ft. (15 m) away
from Pole Saw. Only Pole Saw user should be in work area.
• Do not use the Pole Saw to cut down trees.
• Grip Pole Saw securely - one hand on the pole, the other on the
handle.
• Keep finger off trigger until ready to make cut.
• Before starting Pole Saw, make sure chain is not touching anything.
• Keep all parts of body away from chain when Pole Saw is running.
• Do not force Pole Saw while cutting. Apply light pressure. It will do
the job better and safer at the rate for which it was intended.
• Carry Pole Saw from one place to another
- with battery removed
- by holding pole at balance point
- with guide bar and chain to rear and with scabbard attached
• Do not cut small brush and saplings with the Pole Saw. Slender
matter may catch in the chain and be whipped toward you. This
could also pull you off balance.
• Do not operate in poor lighting.
• Keep firm footing and balance. Do not overreach. Overreaching
can result in loss of balance or exposure to hot surfaces.
• Keep all parts of your body away from any moving part.
• Do not, under any circumstance, use any attachment or accessory
on this product, which was not provided with the product, or
identified as appropriate for use with this product in this Instruction
Manual.
Do not operate Pole Saw:
- while under the influence of alcohol, medication, or drugs
- in rain or in damp or wet areas
- where highly flammable liquids or gases are present

3
- if Pole Saw is damaged, adjusted wrong, or not fully and
securely assembled
- if trigger does not turn Pole Saw on and off. Chain must stop
moving when you release trigger. Have faulty switch replaced by
authorized service center. See “Service Information”.
- while in a hurry
- while in tree or on a ladder
- while on aerial booms, buckets or platforms
- during high wind or storming weather
General Safety Rules
WARN NG: Shock Hazard. To protect yourself from electrocution,
do not operate within 50 feet (15 m) of overhead electrical lines.
Failure to do this could result in severe personal injury.
• To protect yourself from falling branches do not stand directly under
the branch or limb being cut. This unit should not be held at an
angle over 60 degrees from ground level.
• Keep the handles dry, clean, and free of oil.
• Before you start the unit, make sure the chain is not contacting any
object.
• Make sure the cutting chain has stopped before setting the unit
down.
Service
•Tool service must be performed only by qualified repair
personnel. Service or maintenance performed by unqualified
personnel could result in a risk of injury. See “Service Information”.
•When servicing a tool, use only identical replacement parts.
Follow instructions in the Maintenance section of this manual.
Use of unauthorized parts or failure to follow Maintenance
Instructions may create a risk of electric shock or injury.
Guard Against Kickback
WARN NG: K CKBACK may occur when the nose or tip of the
guide bar touches an object, or when the wood closes in and pinches
the saw chain in the cut. Tip contact in some cases may cause a
lightning fast reverse reaction, kicking the guide bar up and back
towards the operator. Pinching the saw chain along the top of the
guide bar may push the guide bar rapidly back towards the operator.
ither of these reactions may cause you to lose control of the saw
which could result in serious injury to user.
The following precautions should be followed to minimize
kickback:
• Grip Pole Saw firmly. Hold the saw firmly with both hands when the
unit is running. Use a firm grip with thumbs and fingers encircling
the saw handle and pole.
• Do not over reach.
• Keep proper footing and balance at all times.
• Don't let the nose of the guide bar contact a log, branch, ground or
other obstruction.
• Do not extend Pole Saw handle above shoulder height.
• Use devices such as low kickback chain, chain braking system and
special guide bars that reduce the risks associated with kickback.
• Only use replacement bars and chains specified by the
manufacturer or the equivalent.
• Never let the moving chain contact any object at the tip of the guide
bar.
• Keep the working area free from obstructions such as other trees,
branches, rocks, fences, stumps, etc. liminate or avoid any
obstruction that your saw chain could hit while you are cutting
through a particular log or branch.
• Keep your saw chain sharp and properly tensioned. A loose or dull
chain can increase the chance of kickback. Check tension at
regular intervals with the motor stopped and battery removed.
• Begin and continue cutting only with the chain moving at full speed.
If the chain is moving at a slower speed, there is a greater chance
for kickback to occur.
• Cut one branch at a time.
• Use extreme caution when re-entering a previous cut. ngage
spiked bumpers into wood and allow chain to reach full speed
before proceeding with cut.
• Do not attempt plunge cuts or bore cuts.
• Watch for shifting branches or other forces that could close a cut
and pinch or fall into chain.

4
Kickback Safety Features
Warning: The following features are included on your Pole Saw
to help reduce the hazard of kickback; however such features will
not totally eliminate this dangerous reaction. As a chain saw user do
not rely only on safety devices. You must follow all safety
precautions, instructions, and maintenance in this manual to help
avoid kickback and other forces which can result in serious injury.
•Reduced-Kickback Guide Bar, designed with a small radius tip
which reduces the size of the kickback danger zone on bar tip. A
reduced- kickback guide bar is one which has been demonstrated
to significantly reduce the number and seriousness of kickbacks
when tested in accordance with safety requirements for electric
chain saws.
•Low-Kickback Chain, designed with a contoured depth gauge and
guard link which deflect kickback force and allow wood to gradually
ride into the cutter. A low-kickback chain is a chain which has met
kickback performance requirements of ANSI B175.1 when tested
on the representative sample of chain saws.
Specific Safety Rules
•Hold tool by insulated gripping surfaces when performing an
operation where the cutting tool may contact hidden wiring.
Contact with a "live" wire will make exposed metal parts of the tool
"live" and shock the operator.
WARNING: Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities contains chemicals
known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber. (CCA)
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed
to filter out microscopic particles.
•Avoi prolonge contact with ust from power san ing,
sawing, grin ing, rilling, an other construction activities.
Wear protective clothing an wash expose areas with soap
an water. Allowing dust to get into your mouth, eyes, or lay on the
skin may promote absorption of harmful chemicals.
WARNING: Use of this tool can generate and/or disburse
dust, which may cause serious and permanent respiratory or
other injury. Always use NIOSH/OSHA approved respiratory
protection appropriate for the dust exposure. Direct particles away
from face and body.
SAVE THESE INSTRUCTIONS
The label on your ool may include he following symbols.
V................vol s A ....................amperes
Hz..............her z W ..................wa s
min ............minu es ..................al erna ing curren
..........direc curren no ..................no load speed
..............Class II Cons ruc ion ....................ear hing erminal
............safe y aler symbol .../min ............revolu ions or
per minu e

SAFETY WARNINGS AND
INSTRUCTIONS
CHARG NG
1. This manual contains important safety and operating instructions.
2. Before using battery charger, read all instructions and cautionary
markings on (1) battery charger, (2) battery pack, and (3) product
using battery pack.
3. CAUTION: To reduce the risk of injury, charge only
Black & Decker Battery Packs. Other types of batteries may burst
causing personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by Black &
Decker may result in a risk of fire, electric shock, or injury to
persons.
6. To reduce risk of damage to electric plug and cord, pull by plug
rather than cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on, tripped
over, or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely
necessary. Use of improper extension cord could result in a risk
of fire, electric shock or electrocution.
a. Two-wire cords can be used with 2-wire or 3-wire extension
cords. Only round jacketed extension cords should be used, and
we recommend that they be listed by Underwriters Laboratories
(U.L.). If the extension is to be used outside, the cord must be
suitable for outdoor use. Any cord marked for outdoor use can
also be used for indoor work. The letters "W" or "WA" on the cord
jacket indicate that the cord is suitable for outdoor use.
b. An extension cord must have adequate wire size (AWG or
American Wire Gauge) for safety, and to prevent loss of power
and overheating. The smaller the gauge number of the wire, the
greater the capacity of the cable; that is, 16 gauge has more
5

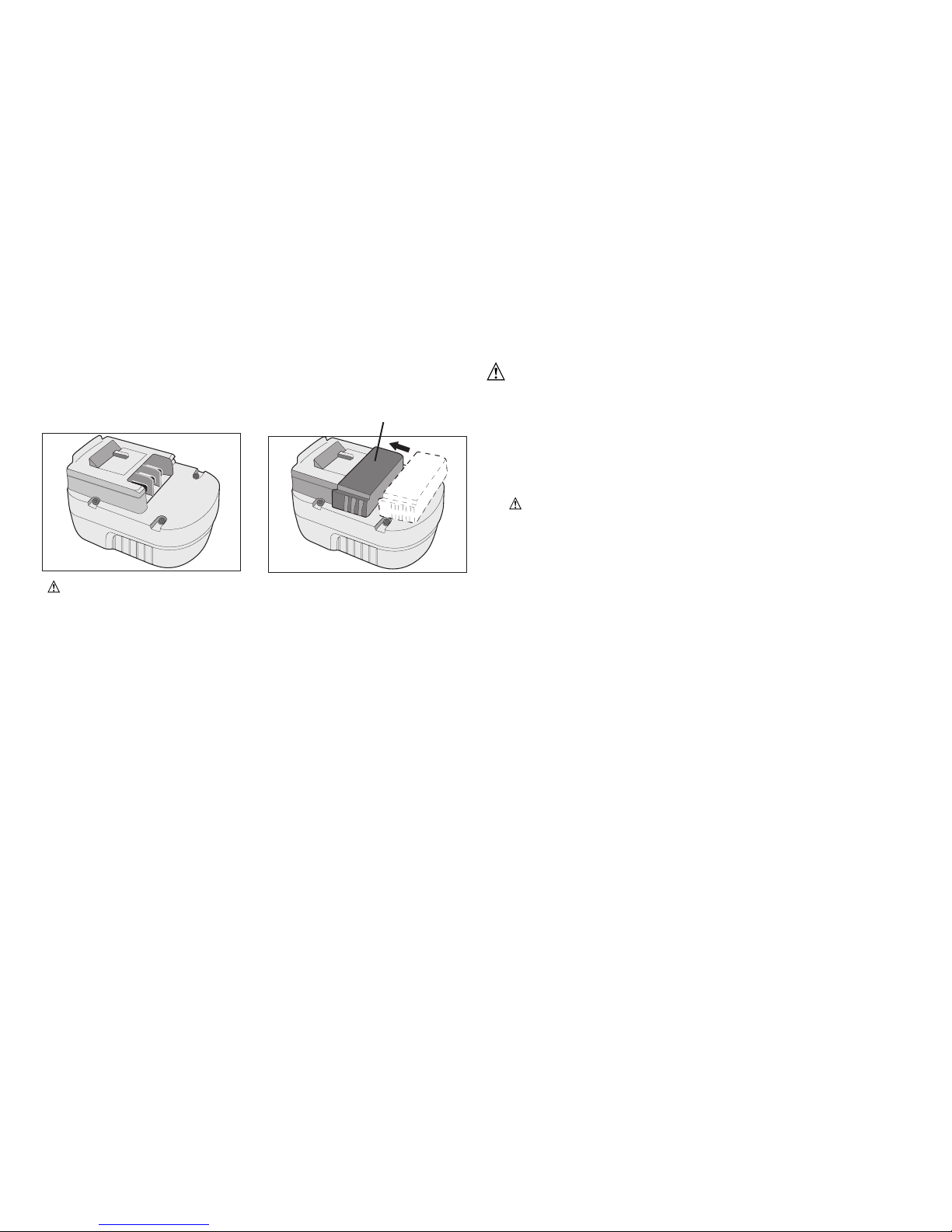

Battery Cap Information
Battery storage and carrying caps are provided for use whenever
the battery is out of the tool or charger. Remove cap before placing
battery in charger or tool.
WARN NG: Fire hazard. Do not store or arry battery so that
metal obje ts an onta t exposed battery terminals. For
example, do not place battery in aprons, pockets, tool boxes, product
kit boxes, drawers, etc., with loose nails, screws, keys, etc.
Transporting batteries an possibly ause fires if the battery
terminals inadvertently ome in onta t with ondu tive
materials su h as keys, oins, hand tools and the like. The US
Department of Transportation Hazardous aterial Regulations
(H R) actually prohibit transporting batteries in commerce or on
airplanes (i.e., packed in suitcases and carry-on luggage) UNLESS
they are properly protected from short circuits. So when transporting
individual batteries, make sure that the battery terminals are
protected and well insulated from materials that could contact them
and cause a short circuit.
Battery Cap

capacity than 18 gauge. When using more than one extension to
make up the total length, be sure each extension contains at least
the minimum wire size.
CHART FOR M N MUM W RE S ZE (AWG) OF EXTENS ON CORDS
NAMEPLATE RAT NG AMPS – 0 – 10.0
Total xtension Cord
Length (ft) 0-25 26-50 51-100 101-150
(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)
Wire Gauge 18 16 16 14
9. Use only the supplied charger when charging your unit. The use
of any other charger could damage the battery pack or create a
hazardous condition.
10. Use only one charger when charging.
11. Do not attempt to open the charger or the unit. There are no
customer serviceable parts inside. Return to any authorized Black
& Decker service center.
12. DO NOT incinerate battery packs even if they are severely
damaged or completely worn out.
13. Do not incinerate the batteries. They can explode in a fire. A small
leakage of liquid from the battery cells may occur under extreme
usage, charging or temperature
conditions. This does not indicate a failure. However, if the outer
seal is broken and this leakage gets on your skin:
a. Wash quickly with soap and water.
b. Neutralize with a mild acid such as lemon juice or vinegar.
c. If the battery liquid gets in your eyes, flush them with clean water
for a minimum of 10 minutes and seek immediate medical
attention. MEDICAL NOTE: The liquid is a 25-35% solution of
potassium hydroxide.
6
IMPORTANT CHARGING SAFETY
INSTRUCTIONS
CHARG NG PROCEDURE
THE BATTERY PAC IS NOT FULLY CHARGED AT THE
FACTORY. CHARGE BATTERY PAC FOR AT LEAST 9 HOURS
BEFORE USE.
The charger is designed to use standard household 120 volt 60 Hz
power.
1. Plug the charger into any standard 120 Volt 60 Hz electrical
outlet. NOTE: Do not charge by means of an engine
generator or DC power source. Use only 120V AC.

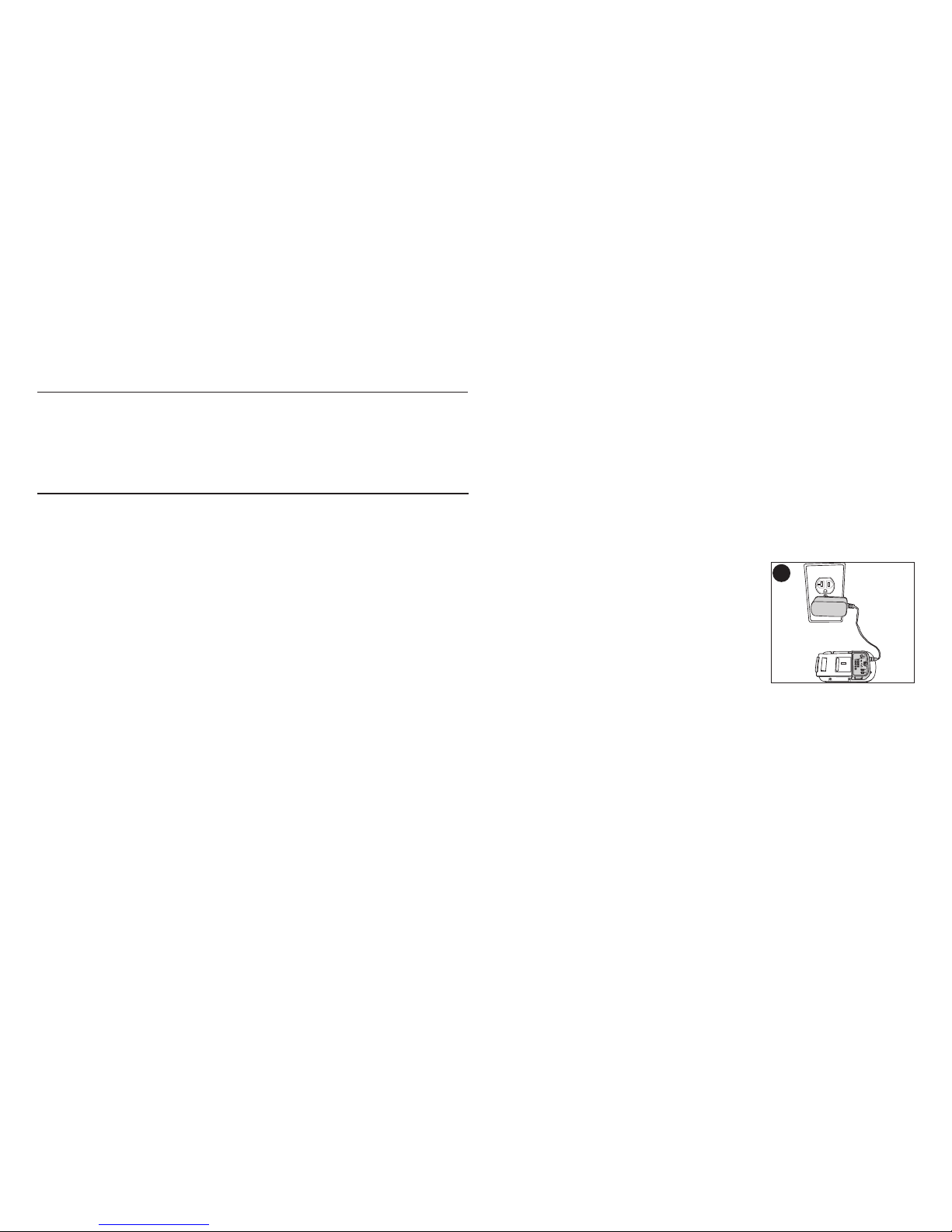

2. Slide the charger onto the battery as
shown in figure 1 and let the battery
charge initially for 9 hours. After the
initial charge, under normal usage, your
battery should be fully charged in 6 to 9
hours.
2a) During charging the green L D will
appear.
2b) When charging is complete the green
L D will go off.
3. Unplug charger, and remove the battery pack. Place the battery
pack into the tool until it “clicks” into place.
NOTE: To remove the battery pack, press down on the release
button on the back of the battery pack and slide out.
MPORTANT CHARG NG NOTES
1. After normal usage, your battery pack should be fully charged in
6 to 9 hours. If the battery pack is run-down completely, it may
take up to 9 hours to become fully charged. Your battery pack
was sent from the factory in an uncharged condition. Before
attempting to use it, it must be charged for at least 9 hours.
2. DO NOT charge the battery pack in an air temperature below
1

7
+40°F(+4.5°C), or above +105°F (+40.5°C). This is important
and will prevent serious damage to the battery pack. Longest life
and best performance can be obtained if battery pack is charged
when air temperature is about 75°F (24°C).
3. While charging, the charger may hum and become warm to
touch. This is a normal condition and does not indicate a
problem.
4. If the battery pack does not charge properly—(1) Check current
at receptacle by plugging in a lamp or other appliance. (2) Check
to see if receptacle is connected to a light switch which turns
power off when you turn out the lights. (3) Move charger and
battery pack to a surrounding air temperature of 40°F (+4.5°C) to
105°F (+40.5°C). (4) If the receptacle and temperature are OK,
and you do not get proper charging, take or send the battery
pack and charger to your local Black & Decker service center.
See Tools lectric in yellow pages.
5. The battery pack should be recharged when it fails to produce
sufficient power on jobs which were easily done previously. DO
NOT CONTINU using unit with its battery pack in a depleted
condition.
6. The battery pack will reach optimum performance after being
cycled 5 times during normal usage. There is no need to run the
battery pack down completely before recharging. Normal usage
is the best method of discharging and recharging the battery
pack.
STORAGE RECOMMENDAT ON
1. Store tool:
a.) with the battery pack removed and on the charger.
b.) in a place that is cool and dry away from direct sunlight and excess
heat or cold.
c.) out of the reach of children.
2. For prolonged storage such as over the winter, the battery pack
should be fully charged and then removed from the charger. It
should be charged again just prior to use.
LEAVING THE BATTERY PACK IN THE CHARGER
It is OK to leave battery packs on charge for long periods of time. The
charger has a maintenance mode which gives the battery pack
enough charge to stay “topped off”. If however, the tool is not
expected to be needed for more than 30 days, unplug the charger
and store battery pack in a cool, dry location. NOTE: A battery pack
will lose its charge when kept off of the charger. If the battery pack
has not been kept on maintenance charge, it may need to be
recharged before use. A battery pack may also lose its charge if left in
a charger that is not plugged into an appropriate AC source.
Pole Saw Names and Terms
•Chain Brake - A device used to stop the Pole Saw.
•Drive Sprocket or Sprocket - The toothed part that drives the saw
chain.
•Guide Bar - A solid railed structure that supports and guides the
saw chain.
•Guide Bar Scabbard - nclosure fitted over guide bar to prevent
tooth contact when saw is not in use.
•Kickback - The backward or upward motion, or both of the guide
bar occurring when the saw chain near the nose of the top area of
the guide bar contacts any object such as a log or branch, or when
the wood closes in and pinches the saw chain in the cut.
•Low-Kickback Chain - A chain that complies with the kickback
performance requirements of ANSI B175.1-1991 (when tested on a
representative sample of chain saws.
•Reduced Kickback Guide Bar - A guide bar which has been
demonstrated to reduce kickback significantly.
•Replacement Saw Chain - A chain that complies with kickback
performance requirements of ANSI B175.1-1991 when tested with
specific chain saws. It may not meet the ANSI performance
requirements when used with other saws.
•Saw Chain - A loop of chain having cutting teeth, that cut the wood,
and that is driven by the motor and is supported by the guide bar.
•Spiked Bumper (Spike) - The pointed tooth or teeth for use when
pruning to pivot the saw and maintain position while sawing.

8
Preparing Your Pole Trimmer for Use
WARN NG: Read and understand all instructions. Failure to
follow all instructions listed below may result in electric shock, fire
and/or serious personal injury.
nstalling and Removing Saw Chain
WARN NG: Sharp moving blade. To prevent accidental
operation, insure that battery is disconnected from the handle
before performing the following operations. Failure to do this
could result in serious personal injury.
CAUT ON: Sharp moving blade. Always wear protective
gloves when installing or removing the chain. The chain is sharp
and can cut you when it is not running.
• Place the saw on a firm surface.
Rotate the two allen head screws
counterclockwise with the wrench
provided as shown in figure 2.
• Remove sprocket cover, bar clamp,
and allen head screws.
• To remove the chain, rotate the screw
in the front of the housing using the
flat screwdriver end of the wrench as
shown in figure 3. Turning the screw
counterclockwise allows the guide
bar to recede and reduces the
tension on the chain so that it may be
removed.
• Lift the worn chain out of the groove
in the guide bar.
• Flip guide bar over.
• To replace the chain, check to make
sure that the slot in the guide bar is
over the two location pins shown in
figure 3A and that the hole below the
slot is located over the adjustment
pin.

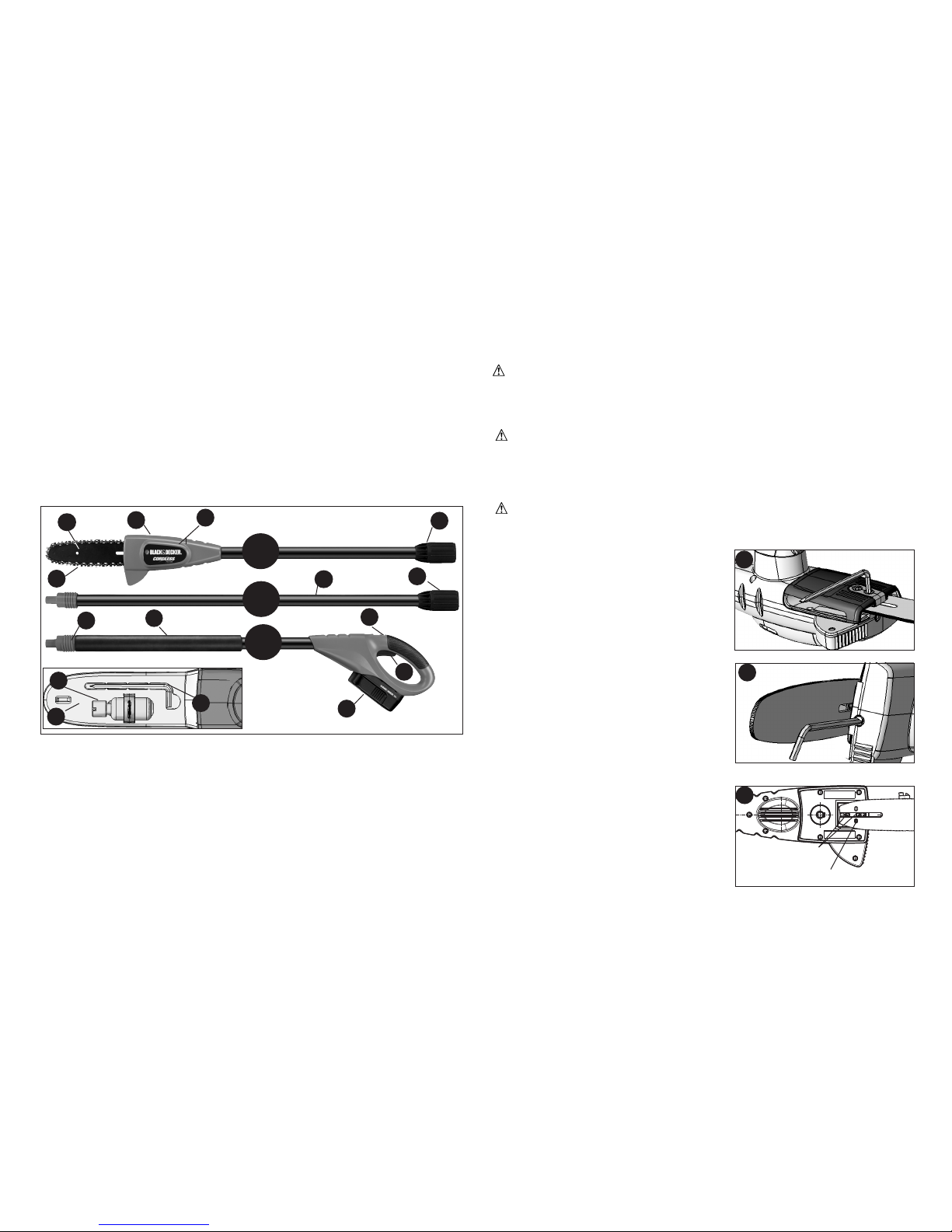

Features
Before using your Pole Saw familiarize yourself with all operating and
safety features.
54
3
2
1
11
10 9
8
76
A. Handle Module
B. Center xtension
C. Saw Head Module
1. Trigger Switch
2. Lock Button
3. Battery
4. Foam Gripper
5. Threaded Pole
6. Threaded Sleeve
7. Center xtension Pole
8. Sprocket Cover (other side)
9. Allen Head Screws (other side)
10. Guide Bar
11. Saw Chain
12. Scabbard
13. Allen Wrench
14. Oil Bottle
6
A
B
C
12
13
14
2
3
3A
LOCATING PINS
ADJUSTMENT PIN
•Switch - A device that when operated will complete or interrupt an
electrical power circuit to the motor of the chain saw.
•Switch Lockout - A movable stop that prevents the unintentional
operation of the switch until manually actuated.
•Trimming (Pruning) - Process of cutting limbs from a tree.
•Undercut - An upward cut from underside of a log or limb.This is done
while in normal cutting position and cutting with top of guide bar.

9
• Place new chain in groove of guide bar and around sprocket. Make
sure saw teeth are facing correct direction by matching arrow on
chain with graphic on housing shown here.
• Rotate the screw in the front of the housing clockwise to increase
the chain tension as in Figure 3.
• Replace sprocket cover, bar clamp, and allen head screws.
• Follow instructions for adjusting the chain tension.
Adjusting Chain Tension
• With the saw still on a firm surface check the chain tension. The
tension is correct when the chain snaps back after being pulled
1/8 in. (3mm) away from the chain
bar with light force from the middle
finger and thumb as shown in
figure 4. There should be no “sag”
between the guide bar and the chain
on the underside as shown in
figure 5.
• To adjust saw chain tension, loosen
allen head screws.
• Rotate the screw in the front of the
housing using the flat screwdriver end
of the wrench as shown in figure 3.
• Do not over-tension the chain as this will
lead to excessive wear and will reduce
the life of the bar and chain.
Overtensioning also reduces the amount of cuts you will get per
battery charge.
• Once chain tension is correct, tighten allen head screws to clamp
bar.
• When the chain is new check the tension frequently (after
disconnecting battery) during the first 2 hours of use as a new chain
stretches slightly.
Chain Oiling
• A high quality bar and chain oil or
SA 30 weight motor oil should be
used for chain and bar lubrication. The
use of a vegetable based bar and chain
oil is recommended when pruning
trees. Mineral oil is not recommended
because it may harm trees. Never use
waste oil or very thick oil. These may
damage your chain saw.
• Lubricate the whole chain evenly
before each use as shown in figure 6.
Also lubricate the chain whenever
replacing a fully discharged battery with
a fully charged one.
Transporting Pole Saw
• Always remove the battery pack from the
handle (figure 7) and cover the chain with the
scabbard (figure 8) when transporting the
Pole Saw. See page 5 for additional
information on transporting the battery.
5
4
6
7
8

Joining Center Extension to Saw Head Module and
Handle Module
Adding the extension (B) to the handle module (A) and saw head
module (C) creates a Pole Saw that is approximately 9 foot in length
as shown in figure 13.
To attach the middle module to the handle module and saw head
module:
1. Align the groove on the outside of the
coupling end of the handle module (A)
with the tongue on the inside of the
coupling end of the center extension (B).
See figure 14. Push the two sections
completely together.
2. Slide the threaded sleeve (6) (figure
15) on the center extension down as far
as possible and rotate the sleeve
clockwise until it stops and completely
covers the orange threads as shown in
figure 16.
3. Repeat steps 1 and 2 above to attach
the saw head module to the center
extension.
WARN NG: Always check to make
sure that the sleeve is completely
threaded on and that the orange threads are no longer visible.
Not threading the sleeve completely on could result in the modules
becoming disconnected creating a hazardous condition.
Periodically check the connections to insure that no orange threads
are visible.
Groove
14
15
16
13
10
Assembly
Joining Saw Head Module to 18V Handle Module
WARN NG: Sharp moving blade. To prevent accidental
operation, insure that battery is disconnected from the handle
and that the protective scabbard is in place on the chain before
performing the following operations. Failure to do this could result
in serious personal injury.
The three modules which make up the 18V Pole Saw are keyed to
insure correct assembly. If a module does not smoothly attach to
another do not force fit.
Combining the handle module (A) to the saw head module (C)
creates a pole saw that is approximately 6 foot in length as shown in
figure 9.
To attach the handle module to the saw head module:
1. Align the groove on the outside of the coupling end of the handle
module (A) with the tongue on the
inside of the coupling end of the saw
head module (C). See figure 10. Push
the two sections completely together.
2. Slide the threaded sleeve (6) figure 11
on the saw head module down as far as
possible and rotate the sleeve clockwise
until it stops and completely covers the
orange threads as shown in figure 12.
WARN NG: Always check to make
sure that the sleeve is completely
threaded on and that the orange
threads are no longer visible. Not
threading the sleeve completely on
could result in the modules becoming
disconnected creating a hazardous
condition. Periodically check the
connections to insure that no orange
threads are visible.
Groove
10
11
12
9

11
Disassembly
Detaching Saw Head Module
WARN NG: Sharp moving blade. To prevent accidental
operation, insure that battery is disconnected from the handle
and that the protective scabbard is in place on the chain before
performing the following operations. Failure to do this could result
in serious personal injury.
When detaching the modules, whether it is in the two
module or three module mode, always detach the
saw head module first. To do this, rest the handle
module on the ground and grasp the center of the
saw head module with
one hand figure 17. Use
your other hand to loosen
the threaded sleeve
figure 18 and then pull
the two halves apart.
Repeat this process if the center extension
was attached.
Operating the Pole Saw
WARN NG: Read and understand all
instructions. Failure to follow all
instructions listed below may result in
electric shock, fire and/or serious personal
injury.
Connecting the Battery
Place the battery in the tool as shown in
figure 19 and be certain that it is inserted
fully into the tool cavity until it “clicks” into
place. To remove the battery from the tool,
press down on the release button on the
back of the battery (figure 20) and slide
out.
20
17
18
19
Switch
Always be sure of your footing and grip the
Pole Saw firmly with both hands with the
thumb and fingers encircling the handle.
To turn the tool ON pull the lock button (1)
back with your thumb and then squeeze
the trigger (2) with your fingers as shown
in figure 21. (Once the tool is running you
can release the lock button.) To turn the
tool OFF, release the trigger.
Auto-Stop Chain Braking System
Your chain saw is fitted with an auto-stop chain braking system which
will stop the chain quickly each time you release the rear trigger, or if
kickback should occur. This system should be tested before every
use.
21

12
Pruning With the Pole Saw
Warning: When pruning trees:
•Guard Against Kickback which can result in
severe injury or death. See “KICKBACK”,
page 3 to avoid the risk of kickback.
•Do not overreach. Make sure your footing is
firm. Keep feet apart. Divide your weight evenly
on both feet.
•Use both hands to grip Pole Saw as shown
in figure 22. Use a firm grip. Thumbs and
fingers must wrap around Pole Saw handle and
pole. Keep fingers away from
sawdust exhaust chute shown in
figure 22a.
•Never operate while in a tree, in
any awkward position or on a
ladder or other unstable surface.
You may lose control of Pole Saw
causing severe injury.
Follow directions below to trim a tee.
1. Make sure Pole Saw is running at full speed before making a cut.
When starting a cut, place moving chain against limb. Hold Pole
Saw firmly in place to avoid
possible bouncing or skating
(sideways movement) of Pole
Saw.
2. Guide Pole Saw using light
pressure. Make first cut six inches
from tree trunk on underside of
limb. Use top of guide bar to make
this cut. Cut 1/3 through diameter
of limb. Then make the finish cut
from the top as shown in figure
23.
22
22a
23
Pole Saw Trimming /
Pruning
Warnings:
•Never stand directly
under the limb you
are cutting. Always
position yourself out of
the path of falling
debris.
•Always wear head,
eye, foot and body
protection. Wearing
body protection helps
reduce the risk of
injury when operating
this unit.
•Never
stand on a
ladder or
other
unstable
support
while using the Pole
Saw. Always avoid
any position which can
cause you to loose your balance and cause severe injury.
•Keep other persons at least 50 feet (15m) from the
work area. Distractions can cause you to lose control.
•Electrocution Hazard. To prevent shock, do not
operate within 50 feet (15m) of overhead electrical
lines. Always check surrounding area for hidden
electrical lines.
•Do not extend Pole Saw switch handle above
shoulder height.
Always Wear:
Head Protection
ye Protection
Work Gloves
Long Pants
Steel Toed Shoes
Operating Position

13

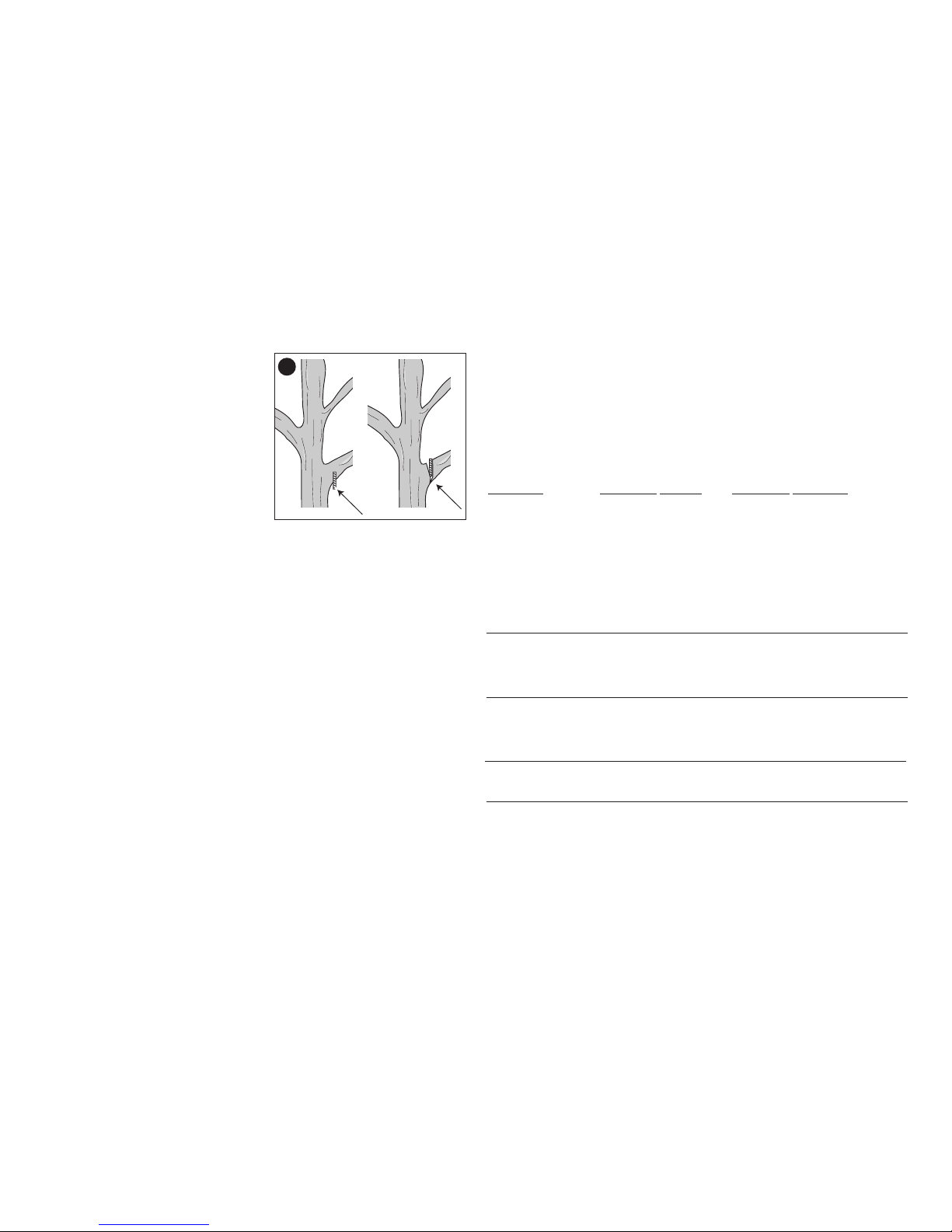

If you try to cut off thick branches
from the bottom, the branch may
close in and pinch the saw chain
in the cut. If you try to cut off thick
branches from the top, without a
shallow undercut, the branch may
splinter figure 24.
Do not force Pole Saw. The motor
will overload and can burn out. It
will do the job better and safer at
the rate for which it was intended.
3. Remove Pole Saw from cut while
it is running at full speed. Stop Pole Saw by releasing trigger.
Make sure chain has stopped before setting Pole Saw down.
Saw chain sharpness
The cutters will dull immediately if they touch the ground or a nail
while cutting.
Saw chain tension
This should be done regularly. Refer to page 8 “Adjusting Chain
Tension”.
Pole Saw Maintenance Section
Regular maintenance ensures a long effective life for the tool.
After every 10 minutes of use be sure to remove the battery (be
aware the chain and bar can be hot!) check the bar and chain for
correct tension and lubricate per pole saw instruction manual.
Use only mild soap and damp cloth to clean the tool. Never let any
liquid get inside the tool; never immerse any part of the tool into a
liquid.
MPORTANT: To assure product SAF TY and R LIABILITY, repairs,
maintenance and adjustment should be performed by authorized
service centers or other qualified service organizations, always using
identical replacement parts.
24 Accessories
Replacement chain and bar are available from your nearest Black &
Decker service center.
Replacement chain # 623382-00, Replacement bar # 623381-00
The use of accessories not recommended in this manual may be
hazardous.
Troubleshooting Section
If your Pole Saw does not operate correctly check the following:
Problem Possible Cause Possible Solution
• Tool will not
start.
• Unit will not
charge.
• Bar / chain
overheated.
• Battery not
installed properly.
• Battery not
charged.
• Lock-out button not
actuated.
• Pole connections
not properly
tightened.
• Battery not
inserted into
charger.
• Chain too tight.
• Lubrication
needed.
• Check battery installation.
• Check battery charging
requirements.
• Pull back on lock
button/actuate trigger.
• Refer to instruction manual
for pole connections.
• Insert battery into charger
until green L D appears.
Charge up to 9 hours if
battery totally drained.
• Refer to section on
adjusting chain tension.
• Refer to sections for chain
oiling application.
• Chain is
loose. • Chain tension set incorrectly. • Refer to section for chain tensioning.

14
Service Information
All Black & Decker Service Centers are staffed with trained personnel
to provide customers with efficient and reliable power tool service.
Whether you need technical advice, repair, or genuine factory
replacement parts, contact the Black & Decker location nearest you.
To find your local service location, refer to the yellow page directory
under "Tools— lectric" or call: 1-800-544-6986 or visit
www.blackanddecker.com.
Full Two-Year Home Use Warranty
Black & Decker (U.S.) Inc. warrants this product for two years against
any defects in material or workmanship. The defective product will be
replaced or repaired at no charge in either of two ways.
The first, which will result in exchanges only, is to return the product
to the retailer from whom it was purchased (provided that the store is
a participating retailer). Returns should be made within the time
period of the retailerʼs policy for exchanges (usually 30 to 90 days
after the sale). Proof of purchase may be required. Please check with
the retailer for their specific return policy regarding returns that are
beyond the time set for exchanges.
Troubleshooting Section Con’t.
Problem Possible Cause Possible Solution
• Unit runs but
does not cut. • Chain installed backwards. • Refer to sections for installing and removing
chain.
See ʻTools-Electricʼ
– Yellow Pages –
for Service & Sales
Imported by
Black & Decker (U.S.) Inc.,
701 . Joppa Rd.
Towson, MD
21286 U.S.A.
The second option is to take or send the product (prepaid) to a Black
& Decker owned or authorized Service Center for repair or
replacement at our option. Proof of purchase may be required.Black
& Decker owned and authorized Service Centers are listed under
"Tools- lectric" in the yellow pages of the phone directory.
This warranty does not apply to accessories. This warranty gives you
specific legal rights and you may have other rights which vary from
state to state or province to province. Should you have any
questions, contact the manager of your nearest Black & Decker
Service Center. This product is not intended for commercial use.
FREE WARNING LABEL REPLACEMENT: If your warning labels
become illegible or are missing, call 1-800-544-6986 for a free
replacement.
LAT N AMER CA: This warranty does not apply to products sold in
Latin America. For products sold in Latin America, check country
specific warranty information contained in the packaging, call the local
company or see the website for warranty information.
• Poor cut
quality. • Chain tension set
incorrectly.
• Chain needs
replacement.
• Refer to section on
adjusting chain tension.
Note: xcessive tension
leads to excessive wear
and reduction in life of bar
& chain.
Lubricate after every 10
minutes of use.
Refer to section for
installation of chain.
