Black & Decker DV9605EN Operation instructions

www.blackanddecker.co.uk
DV9605EN
DV1205EN

2
English (Original instructions) 6

3

4

5

6
English
Intended use
Your Black & Decker Dustbuster®hand-
held vacuum cleaner has been designed
for light dry vacuum cleaning purposes.
This appliance is intended for household
use only.
Design and Patent information
EC Design Registration Numbers:
607643-0001
607668-0001
607650-0001
Safety instructions
Warning! When using battery-powered
appliances, basic safety precautions,
including the following, should always be
followed to reduce the risk of fire, leaking
batteries, personal injury and material
damage.
Read all of this manual carefully
before using the appliance.
The intended use is described in this
manual. The use of any accessory or
attachment or the performance of
any operation with this appliance
other than those recommended in
this instruction manual may present
a risk of personal injury.
Retain this manual for future
reference.
Using your appliance
Do not use the appliance to pick up
liquids or any materials that could
catch fire.
Do not use the appliance near water.
Do not immerse the appliance in
water.
Never pull the charger lead to
disconnect the charger from the
socket. Keep the charger lead away
from heat, oil and sharp edges.
This appliance is not intended for use
by young or infirm persons without
supervision. Children must be
supervised to ensure they do not
play with the appliance.
After use
Unplug the charger before cleaning
the charger or charging base.
When not in use, the appliance
should be stored in a dry place.
Children should not have access to
stored appliances.
Inspection and repairs
Before use, check the appliance for
damaged or defective parts. Check
for breakage of parts, damage to
switches and any other conditions
that may affect its operation.
Do not use the appliance if any part
is damaged or defective.
Have any damaged or defective
parts repaired or replaced by an
authorized repair agent.
Regularly check the charger lead for
damage. Replace the charger if the
lead is damaged or defective.
Never attempt to remove or replace
any parts other than those specified
in this manual.
Additional safety instructions -
batteries and chargers
Batteries
Never attempt to open for any
reason.
Do not expose the battery to water.
Do not expose the battery to heat.
Do not store in locations where the
temperature may exceed 40°C.
Charge only at ambient
temperatures between 10°C and
40°C.
Charge only using the charger
provided with the appliance/tool.
Using the wrong charger could result
in an electric shock or overheating of
the battery.
When disposing of batteries, follow
the instructions given in the section
"Protecting the environment".
Do not damage/deform the battery
pack either by puncture or impact, as
this may create a risk of injury and
fire.
Do not charge damaged batteries.
Under extreme conditions, battery
leakage may occur. When you notice
liquid on the batteries carefully wipe

7
the liquid off using a cloth. Avoid skin
contact.
In case of skin or eye contact, follow
the instructions below.
Warning! The battery fluid may cause
personal injury or damage to property. In
case of skin contact, immediately rinse
with water. If redness, pain or irritation
occurs seek medical attention. In case of
eye contact, rinse immediately with clean
water and seek medical attention.
Chargers
Your charger has been designed for a
specific voltage. Always check that the
mains voltage corresponds to the voltage
on the rating plate.
Warning! Never attempt to replace the
charger unit with a regular mains plug.
Use your Black & Decker charger
only to charge the battery in the
appliance/tool with which it was
supplied. Other batteries could burst,
causing personal injury and damage.
Never attempt to charge non-
rechargeable batteries.
If the supply cord is damaged, it must
be replaced by the manufacturer or
an authorised Black & Decker
Service Centre in order to avoid a
hazard.
Do not expose the charger to water.
Do not open the charger.
Do not probe the charger.
The appliance/tool/battery must be
placed in a well ventilated area when
charging.
Safety of others
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning the use of the appliance
by a person responsible for their
safety.
Children should be supervised to
ensure that they do not play with the
appliance.
Electrical safety
Your charger has been designed for a
specific voltage. Always check that the
mains voltage corresponds to the voltage
on the rating plate. Never attempt to
replace the charger unit with a regular
mains plug.
Symbols on the charger
Features
1. Dust collector extension
2. Dust collector
3. Release button
4. On/Off switch
5. Charging indicator
6. Filter cleaning button
7. Charging base
Fig. A
8. Crevice tool
9. Brush tool
Your charger is double
insulated; therefore no earth
wire is required.
Short circuit proof safety
isolating transformer. The mains
supply is electrically separated
from the transformer output.
The charger automatically shuts
off if the ambient temperature
becomes too high. As a
consequence the charger will be
inoperable. The charging base
must be disconnected from the
mains supply and taken to an
authorised service centre for
repair.
Charge only at ambient
temperatures between 10°C and
40°C
The charging base is intended
for indoor use only.
T1A/250 Vac
ta = 40°C

8
Installation
Fitting the charging base to the wall
The charging base can be placed on a
work top or fitted to the wall to provide a
convenient storage and charging point for
the appliance.
When fixing to a wall, make sure that the
fixing method is suitable for the wall type
and is appropriate to the weight of the
appliance.
Assembly

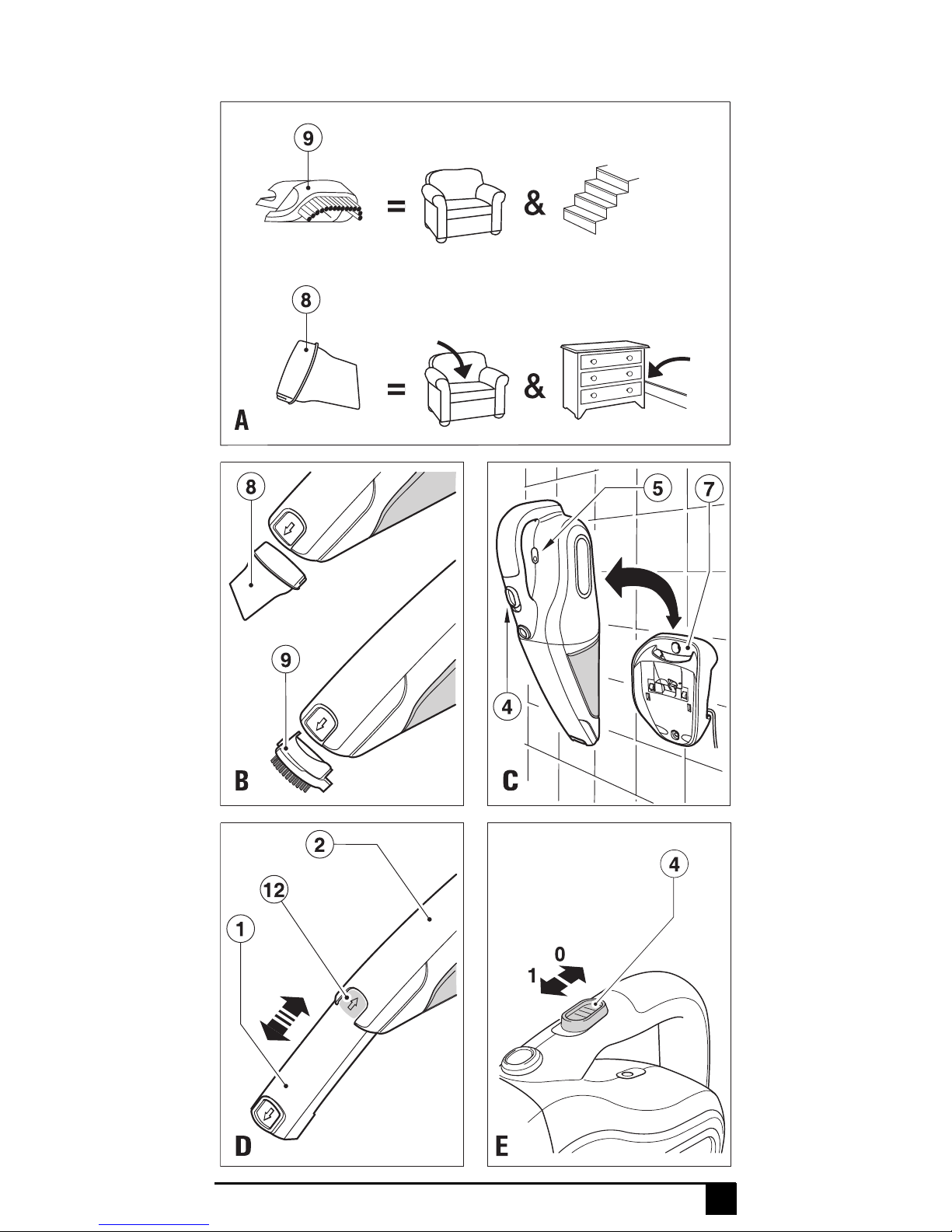

Fitting the accessories (fig. A & B)
This model is supplied with the following
accessories:
A crevice tool (8) for confined
spaces.
A brush tool (9) for furniture and
stairs.
To fit an accessory, proceed as follows:
Take the accessories from its
storage position on the appliance or
charging base (7) (fig. B& K).
Insert the appropriate accessory into
the front of the appliance.
Residual risks
Additional residual risks may arise when
using the tool which may not be included
in the enclosed safety warnings. These
risks can arise from misuse, prolonged
use etc.
Even with the application of the relevant
safety regulations and the
implementation of safety devices, certain
residual risks cannot be avoided. These
include:
Injuries caused by touching any
rotating/moving parts.
Injuries caused when changing any
parts, blades or accessories.
Injuries caused by prolonged use of
a tool. When using any tool for
prolonged periods make sure you
take regular breaks.
Impairment of hearing.
Health hazards caused by breathing
dust developed when using your tool
(example:- working with wood,
especially oak, beech and MDF).
Use
Before first use, the battery must be
fully charged.
Place the appliance on the charging
base whenever it is not in use.
Charging the battery (fig. C)
Before charging the battery:
Make sure that the dust collector
extension (1) is pushed back into the
dust collector (2).
Make sure that the appliance is
switched off. The battery will not be
charged with the on/off switch (4) in
the on position.
Place the appliance on the charging
base (7) as shown.
Plug in the charger. Switch on at the
mains.
While charging, the charger may become
warm. This is normal and does not
indicate a problem. The appliance can be
left connected to the charger indefinitely.
The charger on this unit has been
designed to save energy but also give
faster charging. When the unit is in the
fast charge mode the charge indicator (5)
will be illuminated most of the time with
short off periods. When the charger
detects that full charge has been reached
the charger will change modes and the
indicator will be off most of the time with
short pulses on showing that the charger
is maintaining the battery charge and
keeping the product ready for use. The
charge time to recharge a fully
discharged battery will be about 5 hours.
Adjusting the dust collector (fig. D)
Extend the dust collector (2) by
pulling the dust collector extension
(1) until it locks into position.
Retract the dust collector extension
(1) by pressing the area (12) marked
with an arrow and pushing the dust
collector extension (1) back into the
dust collector (2).

9
Switching on and off (fig. E)
To switch the appliance on, slide the
on/off switch (4) forward.
To switch the appliance off, slide the
on/off switch (4) back.
Optimising the suction force (fig. F)
In order to keep the suction force
optimised, the filters must be cleared
regularly during use.
Slide the filter cleaning button (6) up
and down a few times to shake out
dust clogging the filters (10 & 11).
Cleaning and maintenance
Warning! Regularly clean the filters (10 &
11).

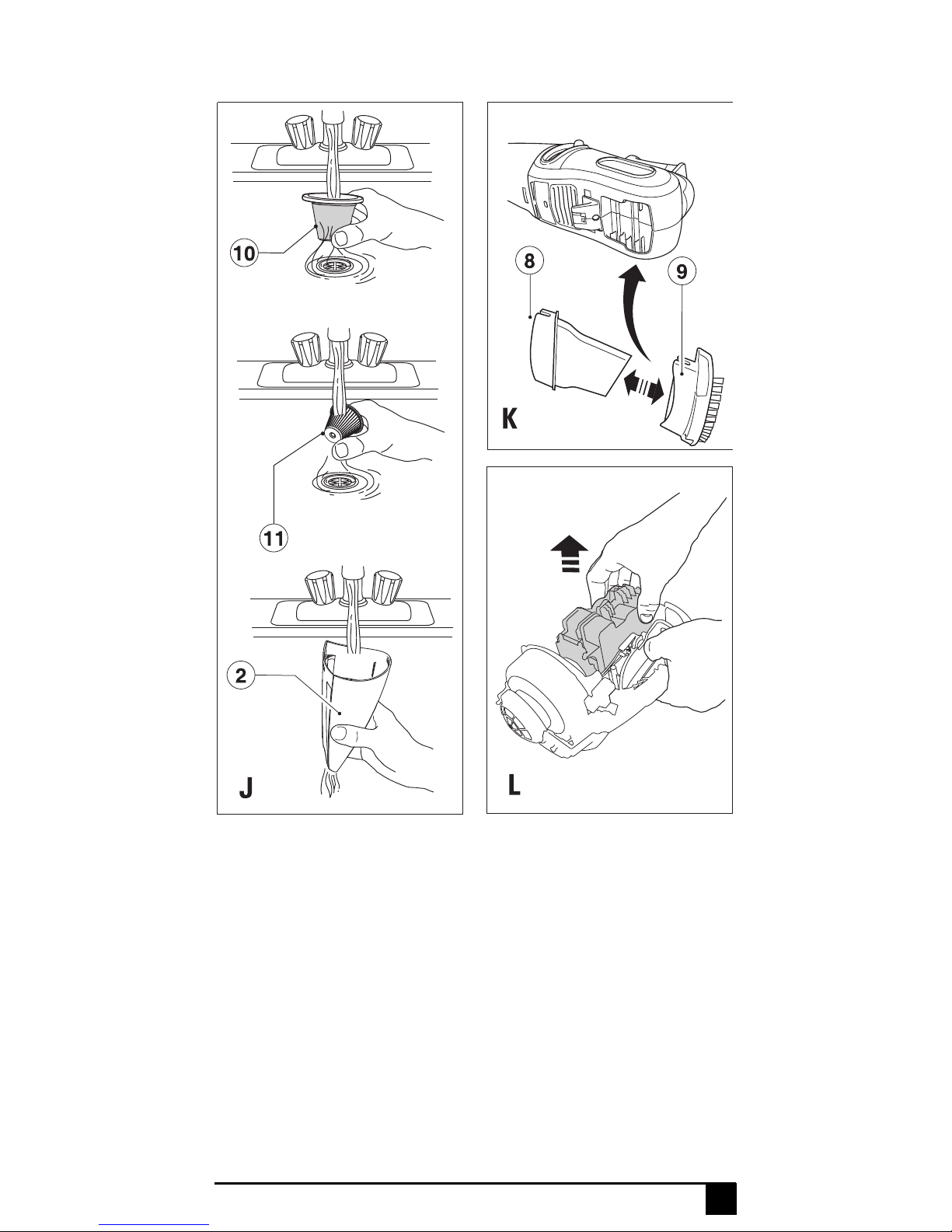

Cleaning the dust collector and filters
(fig. G - J)
The filters are re-usable and should be
cleaned regularly.
Press the release button (3) and
remove the dust collector (2).
Empty the dust collector (2) (fig. H).
Remove the filters (10 & 11) by
twisting them clockwise (fig. I).
Separate the filters (10 & 11)
Brush any loose dust from the filters
(10 & 11).
Wash the filters in warm, soapy
water (fig. J). The dust collector (2)
can also be washed if necessary.
Warning! Do not immerse the appliance
in water.
Make sure that the dust collector (2)
and the filters (10 & 11) are dry.
Refit the filters (10 & 11) on to the
appliance, twisting them counter-
clockwise until they lock into place.
Refit the dust collector (2) onto the
appliance. Make sure that the dust
collector clicks into place.
Warning! Never use the appliance
without the filters. Optimum dust
collection will only be achieved with clean
filters.
Replacing the filters
The filters should be replaced every 6 to
9 months and whenever worn or
damaged. A replacement filter (11) is
available from your Black & Decker
dealer (cat. no. VF70):
Remove the old filters as described
above.
Fit the new filters as described
above.
Storing the accessories (fig. K & L)
Press the accessories into the
corresponding holders until they click
into place.
Protecting the environment
Should you find one day that your Black &
Decker product needs replacement, or if it
is of no further use to you, do not dispose
of it with household waste. Make this
product available for separate collection.
Local regulations may provide for
separate collection of electrical products
from the household, at municipal waste
sites or by the retailer when you purchase
a new product.
Black & Decker provides a facility for the
collection and recycling of Black & Decker
products once they have reached the end
of their working life. To take advantage of
this service please return your product to
any authorised repair agent who will
collect them on our behalf.
You can check the location of your
nearest authorised repair agent by
contacting your local Black & Decker
office at the address indicated in this
manual. Alternatively, a list of authorised
Black & Decker repair agents and full
Separate collection. This
product must not be disposed of
with normal household waste.
Separate collection of used
products and packaging allows
materials to be recycled and
used again. Re-use of recycled
materials helps prevent
environmental pollution and
reduces the demand for raw
materials.

10
details of our after-sales service and
contacts are available on the Internet at:
www.2helpU.com.
Battery (g. L)
Preferably discharge the battery by
operating the appliance until the
motor stops.
Press the release button (3) and
remove the dust collector (2).
Remove the filters (10 & 11) by
twisting them clockwise (fig. I).
Remove the seven screws holding
the body of the appliance together.
Pull the cover half away from the
location half.
prise the small cover from the filter
cleaning slider and remove the slider
securing screw.
lift out the full motor/fan/battery
assembly
Unplug the battery assembly from
the main assembly.
Place the battery in a suitable
packaging to ensure that the
terminals cannot be short-circuited.
Take the battery to your service
agent or to a local recycling station.
Once removed, the battery cannot be
refitted.
Instruction manual
This instruction manual is made from
100% recycled material and can be
recycled when it is of no further use to
you.
Technical data
Level of sound pressure, measured
according to EN60704-1: <70 dB(A)
Guarantee
Black & Decker is confident of the quality
of its products and offers an outstanding
guarantee. This guarantee statement is in
addition to and in no way prejudices your
statutory rights. The guarantee is valid
within the territories of the Member States
of the European Union and the European
Free Trade Area.
If a Black & Decker product becomes
defective due to faulty materials,
workmanship or lack of conformity, within
24 months from the date of purchase,
Black & Decker guarantees to replace
defective parts, repair products subjected
to fair wear and tear or replace such
products to make sure of the minimum
inconvenience to the customer unless:
The product has been used for trade,
professional or hire purposes.
The product has been subjected to
misuse or neglect.
The product has sustained damage
through foreign objects, substances
or accidents.
If you want to dispose of the
product yourself, the battery
must be removed as described
below and disposed of in
accordance with local
regulations.
DV9605EN H3
Voltage Vdc 9.6
Battery type NiMH
Weight kg 1.3
DV1205EN H3
Voltage Vdc 12.0
Battery type NiMH
Weight kg 1.4
Charger CHA010013B
Model DV1205EN
DV9605EN
Input voltage Vac 100-240
Output voltage Vdc 7-26
Output current mA 400
Approx. charging
time
h 5
Weight kg 0.3

11
Repairs have been attempted by
persons other than authorised repair
agents or Black & Decker service
staff.
To claim on the guarantee, you will need
to submit proof of purchase to the seller
or an authorised repair agent. You can
check the location of your nearest
authorised repair agent by contacting
your local Black & Decker office at the
address indicated in this manual.
Alternatively, a list of authorised Black &
Decker repair agents and full details of
our after-sales service and contacts are
available on the Internet at:
www.2helpU.com
Please visit our website
www.blackanddecker.co.uk to register
your new Black & Decker product and to
be kept up to date on new products and
special offers. Further information on the
Black & Decker brand and our range of
products is available at
www.blackanddecker.co.uk.

12
TYP.
www.2helpU.com 15 - 03 - 10
E15955
DV9605EN - DV1205EN
Partial support - Only parts shown available Nur die aufgefuerten teile sind lieferbar Reparation partielle - Seules les pieces indiquees sont disponibles Supporto parziale - Sono disponibili soltanto le parti evidenziate Solo estan disponibles las peizas listadas So se encontram disponiveis as pecas listadas Gedeeltelijke ondersteuning - alleen de getoonde onderdelen zijn beschikbaar
7
5
4
6
3
23
22
1
H3
16

13

14

ENGLISH
Do not forget to register your product!
www.blackanddecker.co.uk/productregistration
Register your product online at www.blackanddecker.co.uk/productregistration or send your name, surname and product
code to Black & Decker in your country.

90571532 REV 1 S/L-01/2011
