Black Box AC1050A User manual
12
CAT5 MULTI VIDEO SYSTEM
© Copyright 2005. Black Box Corporation. All rights reserved.
1000ParkDrive•Lawrence,PA15055‐1018•724‐746‐5500•Fax724‐746‐0746
.
1
APRIL 2005
CAT5 Multi Video System
1 x 9 Video Distribution Amp
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA15055-1018
AC1050A
2
CAT5 MULTI VIDEO SYSTEM
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed to
provide reasonable protection against such interference when the equipment is
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
EUROPEAN UNION DECLARATION OF CONFORMITY
The manufacturer declares that this product meets the requirements of
EU Directive 89/336/EEC.
.
11
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de
que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.
NOM STATEMENT, TRADEMARKS
3
10
CAT5 MULTI VIDEO SYSTEM
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
TRADEMARKS USED IN THIS MANUAL
Any trademarks mentioned in this manual are acknowledged to be the property of
the trademark owners.
4
.
3
Contents
Contents
Chapter Page
1. Specifications....................................................................................................6
2. Introduction ......................................................................................................7
2.1 Overview.....................................................................................................7
2.2 Package Contents .................................................................................….7
2.3 Equipment You May Also Need.............................................................….7
2.4 Compatible Cabling ...............................................................................….7
3. Setup and Installation..........................................…......................................….8
3.1 Cabling Considerations.....…......................…........................................….8
3.2 Making the Connections.................................….....................................….8
3.2.1 Connections and Setup in General .........…....................................…8
3.2.2 Connections on the 1x9 Video Distribution Amp
(AC1050A)……………...................................................................….9
4. Troubleshooting................................................................................................10
4.1 Common Problems ...................................................................................10
4.2 Calling Black Box ......................................................................................10
4.3 Shipping and Packaging ...........................................................................10
Appendix A. Cabling Pinouts................................................................................11
5
4
CAT5 MULTI VIDEO SYSTEM
1.Specifications
Cable Required: Between transmitter and receiver(s): Category 5 shielded or
unshielded twisted pair (STP or UTP)
Compliance: CE; FCC Class A, IC Class/classe A
Video Support: Transparent to users—transmitter/receiver dependent.
Resolution and
Refresh Rate: 2048 x 1536 @ 70 Hz, SD and HDTV formats (480i, 480p, 525p,
720p, 1080i, 1080p) — transmitter/receiver dependent
Transmission: Transparent to users (automatic, no delay)
Maximum
Distance: Total end to end, from source device to farthest destination
device, over good CAT5 cable (assuming source
outputs signal at normal strength) receiver dependent:
Up to 1500 ft. ( 457m) all resolutions
Connectors: AC1050A: (1) RJ-45 input, (9) RJ-45 ouput;
(1) rear-mounted 5-pin DIN F power inlet
Temperature
Tolerance: Operating: 32 to 104°F (0 to 40°C);
Storage: -4 to +140°F (-20 to +60°C)
Humidity
Tolerance: Up to 80% noncondensing
Enclosure: Steel
Power: From utility-power (mains) outlet to power inlet, through
detachable external power supply: Input: 100 to 250 VAC
@ 50 or 60 Hz (autosensing);
Output: +5 VDC;
Consumption: 12 watts maximum
Size: 1.75"H x 8.1"W x 6.5"D (4.5 x 20.6 x 16.5 cm);
Weight: 2.3 lb. (1.0 kg);
6
.
9
CHAPTER 2: Introduction
2. Introduction
2.1 Overview
The CAT5 Multi Video System extends video signals over ordinary Category 5
cable. All models use a transmitter-to-receiver setup.
This manual covers the CAT5 Multi Video System 1x9 Distribution Amp. A CAT5
Multi Video System transmitter unit as well as CAT5 Multi Video System receiver
units are required for operation. Please contact technical support for help.
WARNING
This equipment is not intended for, nor does it support, distribution
through an Ethernet network. Do not connect these devices to any sort
of networking or telecommunications equipment!
2.2 Package Contents
You should have received the following when ordering a CAT5 Multi Video System
receiver:
•The 1x9 Video Distribution Amp.
•A ground wire.
•External power supply (100–250 VAC, 50–60 Hz, autosensing) with cord.
•This manual.
2.3 Equipment You May Also Need
•CAT5 cable.
2.4 Compatible Cabling

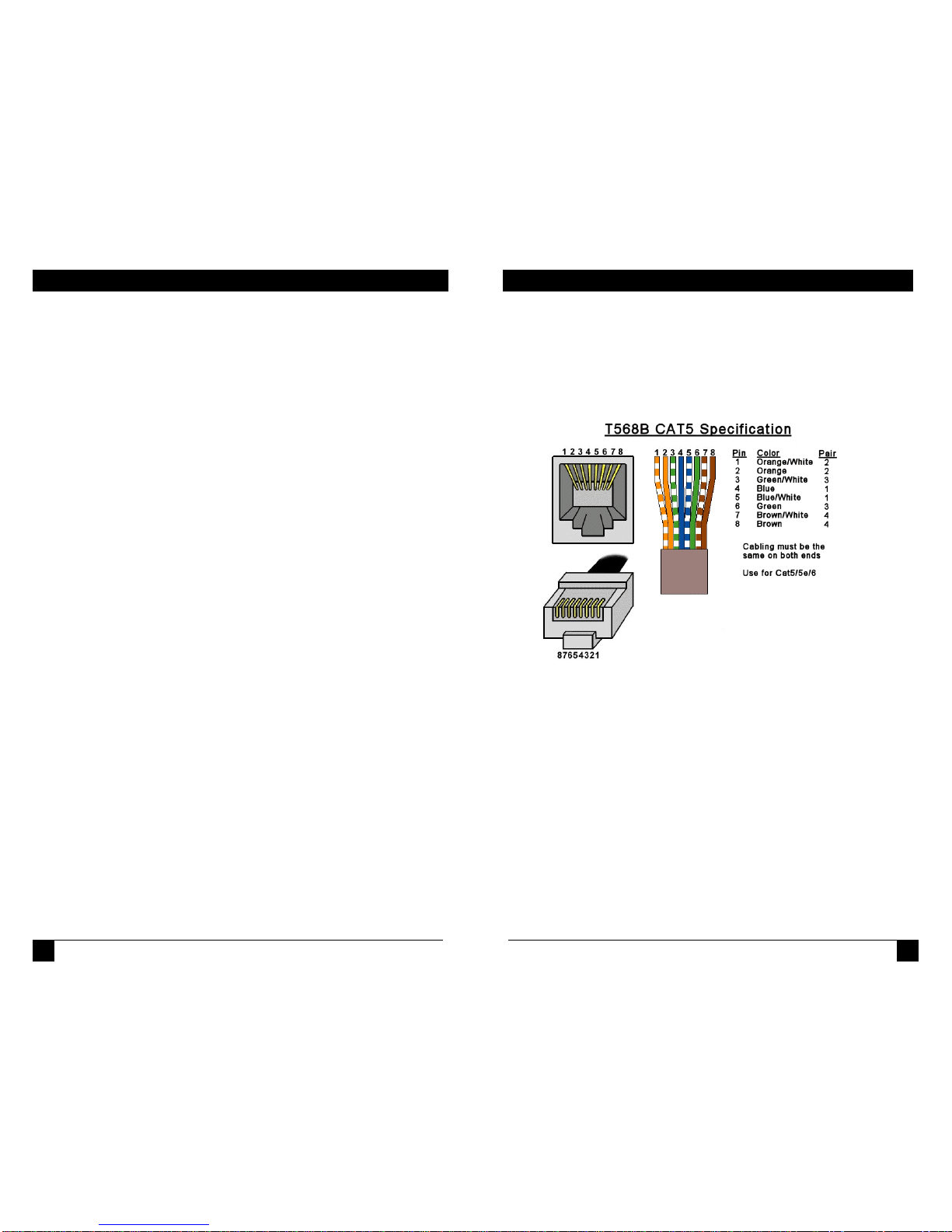

CAT5 cabling for the CAT5 Multi Video System must be pinned to the TIA-EIA
T568B wiring specification. We also highly recommend that all CAT5 cables
be pre-terminated and tested. Cables terminated on-site or in an existing
infrastructure should be tested before use to ensure compliance with the TIA-EIA
T568B specification. Using incorrectly terminated CAT5 cables can damage the
CAT5 Multi Video System.
7
8
CAT5 MULTI VIDEO SYSTEM
3. Setup and Installation
3.1 Cabling Considerations
• We recommend mounting and connecting all cabling to the CAT5 Multi Video
System components before applying power.
• Makes sure that the CAT5 cable you intend to use has been tested to comply
with the TIA/EIA 568B wiring specification.
3.2 Making the Connections
3.2.1 CONNECTIONS AND SETUP IN GENERAL
1. Connect the RJ-45 cable from a CAT5 Multi Video System transmitter unit or
other 1x9 Video Distribution Amp into the port labeled UTP IN.
2. Connect RJ-45 cables from CAT5 Multi Video System receiver units into the
ports labeled OUTPUTS.
3. The port labeled UTP THRU may be used to cascade to other 1x9 Video
Distribution Amps or can be used with a CAT5 Multi Video System receiver.
4. Connect the power supply to the unit.
5. Connect the included ground cable to the rear gold thumbscrew and the other
end to a suitable earth ground. The grounding is required in instances where LCD
monitors are used that do not provide a ground via the DC power adapter. Failure
to connect the ground cable may result in loss of video signals.
8
.
5
CHAPTER 3: Setup and Installation
3.2.2 CONNECTIONS ON THE 1x9 VIDEO DISTRIBUTION AMP (AC1050A)
The CAT5 Multi Video System 1x9 Distribution Amp utilizes industry standard
CAT5 cabling to connect a CAT5 Multi Video System transmitter and receivers.
Additional 1x9 Distribution Amps may be cascaded via the UTP THRU output or
any other output if necessary.
Figure 3-1 shows the 1x9 Distribution Amp connections.
Figure 3-1. Transmitter connections on the AC1050A.
9
6
CAT5 MULTI VIDEO SYSTEM
4. Troubleshooting
4.1. Common Problems
In most cases, nearly every issue with the CAT5 Multi Video System can be
resolved by checking the CAT5 termination and making sure that it’s pinned to the
TIA/EIA 568B wiring specification. However, there may be other problems that
cause the system to not perform as it’s designed. Below are solutions to the most
common installation errors.
Problem: No video signal at the receiver.
Solution: • Check that all units are powered.
• Make sure the CAT5 cable is terminated correctly per the
TIA/EIA 568B wiring specification.
• Check Receiver cable compensation switches/knob
adjustments
• Is the display device powered on and functioning?
4.2 Calling Black Box
If you determine that your CAT5 Multi Video System is malfunctioning, do not
attempt to alter or repair it. It contains no user-serviceable parts. Contact Black
Box at 724-746-5500. Before you do, make a record of the history of the problem. We will be able
to provide more efficient and accurate assistance if you have a complete description,
including:
• the nature and duration of the problem.
• when the problem occurs.
• the components involved in the problem.
• any particular application that, when used, appears to create the problem or make it worse.
4.3 Shipping and Packaging
If you need to transport or ship your CAT5 Multi Video System:
• Package it carefully. We recommend that you use the original container.
• If you are shipping the CAT5 Multi Video System for repair, make sure you
include everything that came in the original package. Before you ship, contact
Black Box to get a Return Authorization (RA) number.
10
.
7
APPENDIX A: Cabling Pinouts
Appendix A. Cabling Pinouts
Table A-3. T568B CAT5 pinout
11
Table of contents
Languages:
Other Black Box Amplifier manuals
